Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

1 Explanation of symbols 7
2 Safety instructions 8

2.1 General safety 8
2.2 Operating the cooling device safely 9

3 Scope of delivery 10
4 Accessories 10
5 Intended use. 11

6 Function description 12

6.1 Scope of functions. 12
6.2 Operating and display elements 13

7Operation 14

7.1 Before initial use 14
7.2 Energy saving tips 15
7.3 Connecting the cooler 15
7.4 Using the battery monitor 17
7.5 Using the cooler 18
7.6 Setting the temperature 19
7.7 Enabling WiFi signal for optional app (all except CFX28 and CFX65DZ) 20
7.8 Set brightness of display. 21
7.9 Using the emergency switch (where fitted) 21
7.10 USB port for power supply 21
7.11 Switching off the cooler 22
7.12 Defrosting the cooler 22
7.13 Replacing the AC fuse. 22
7.14 Replacing the DC plug fuse 23
7.15 Replacing the light PCB. 23

8 Cleaning and maintenance 24

9 Guarantee 24
10 Troubleshooting 25
11 Disposal 26
12 Technical data 27

1 Explanation of symbols

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 Safety instructions

2.1 General safety

WARNING!

• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This cooling device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the cooling device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
  Children must not play with the cooling device.
• Children must be supervised to ensure that they do not play with the cooling device.
• Always keep and use the cooling device out of the reach of children under the age of 8 years.
• Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION!

• Disconnect the cooling device from the power supply
• before each cleaning and maintenance
• after every use
• Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• Only connect the cooling device as follows:
• With the DC connection cable to a DC power supply in the vehicle

• Or with the AC connection cable to an AC power supply

• Never pull the plug out of the socket by the cable.

• If the cooling device is connected to a DC outlet: Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device.
• If the cooling device is connected to a DC outlet: Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.

2.2 Operating the cooling device safely

CAUTION!

• Before starting the cooling device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

- Danger of overheating!

Ensure at all times that there is a minimum of 50~mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components.

Do not place the cooling device in closed compartments or areas with none or minimal air flow.

• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and the cable against heat and moisture.

3 S C O P E O F D

See fig. 1, page 2

Item Quantity Description

11Cooler
2.1 Connection cable for DC connection
3.1 Connection cable for AC connection
-1 Operating manual

4 A c c e s o r i

Available as accessory (not included in scope of delivery):

Designation Ref. no. Model

Universal fixing kit (belt system) CFX-UFK 9108300002 suits all models

Quick release fixing kit CFX-QFK 9600000166 CFX28 only

Wireless display CFX-WD

9600000164 suits CFX28,

CFX65DZ and

older models

without WIFIapp

function

Visit the Domatic website (see back page) for information about a WiFi app with control-, display- and alarm functions (all except CFX28 and CFX65DZ). Note that the app may not be available in your country.

5 Intended use

The cooler is suitable for cooling and freezing foods.

The cooler is designed to be operated from:

• a DC on-board power supply of a vehicle, boat or caravan
  a DC auxiliary battery
• an AC power supply

The cooling device is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments
• farm houses
• clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

6 Function description

The cooler can chill products, keep them cool as well as freeze them. A low maintenance refrigerant circuit with compressor provides the cooling. The generous insulation and powerful compressor ensure efficient and fast cooling.

The cooler is portable.

The cooler can withstand a short-term inclination of 30^ , for example on boats.

6.1 Scope of functions

Power supply with priority circuit for connecting to the AC mains
- Three-level battery monitor to protect the vehicle battery
- Display with temperature gauge in ^ C and ^ F switches off automatically at low battery voltage
- Temperature setting: With two buttons in steps of 1^ C ( 2^ F )
- Integrated WiFi transmitter hence controllable using an app (all except CFX28 and CFX65DZ)
- Foldable carrying handles
- USB port for power supply
Emergency switch (where fitted)
- Removable wire basket

6.2 Operating and display elements

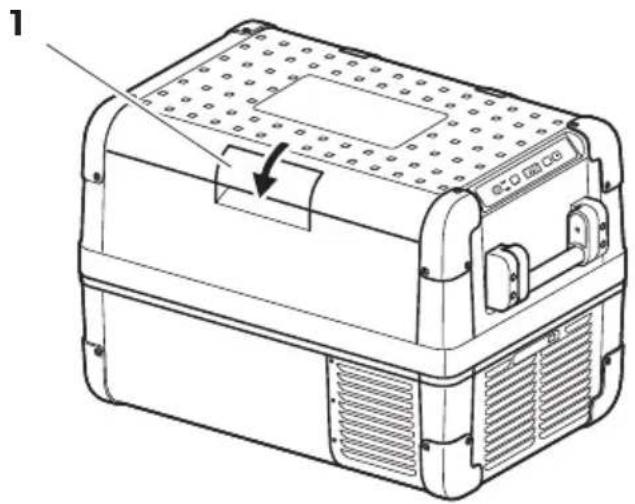

Latch for lid: fig. 2 1, page 2

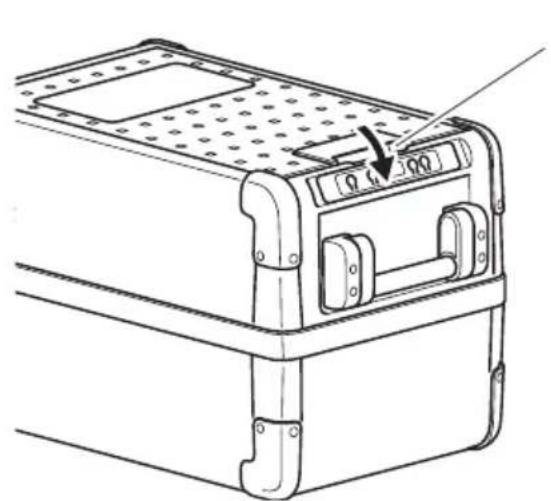

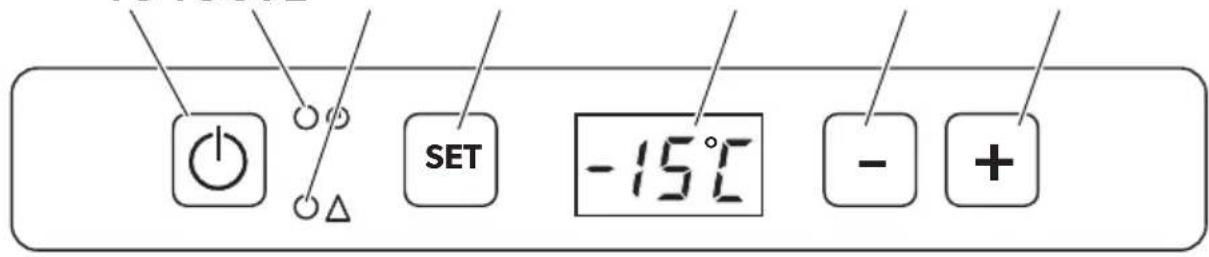

Operating panel (fig. 3, page 3)

Item Description Explanation
1	ON OFF	Switches the cooler on or off when the button is pressed for between one and two seconds
2	POWER "●"	Status indication
		LED lights up green: Compressor is on
		LED lights up orange: Compressor is off
		LED flashes orange: Display switched off automatically due to low battery voltage
3	ERROR LED flashes red: Device is switched on but not ready for operation
4	SET Selects the input mode: • Temperature setting • Celsius or Fahrenheit display • Set battery monitor • Set brightness of display • Switch WiFi on or off (all except CFX28 and CFX65DZ)
5	-	Display, shows the information
6	DOWN -	Press once to decrease the value
7	UP +	Press once to increase the value

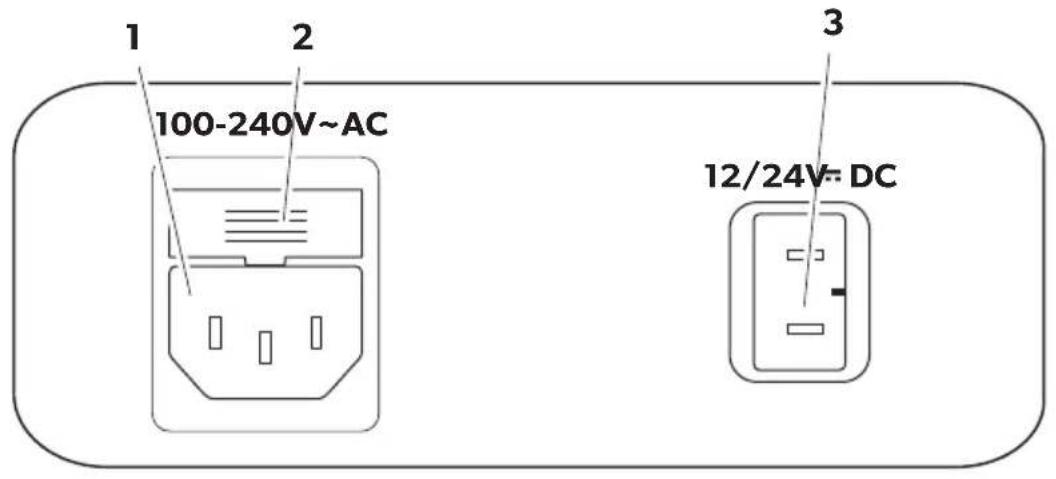

Connection sockets (fig. 4, page 3)

Item Description

1 Connection socket AC voltage supply

2 Fuse holder

3 Connection socket DC voltage supply

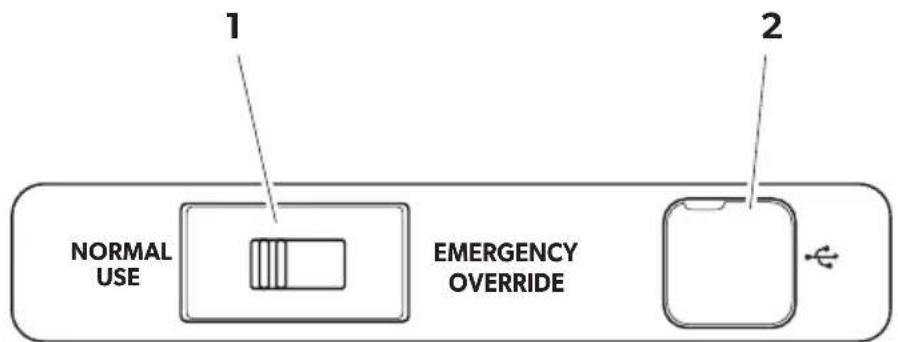

Emergency switch (when fitted) and USB port (fig. 5, page 3)

Item Description

1 Emergency switch (when fitted)
2 Power supply for USB devices

7 O p e r a t i o n

7.1 Before initial use

NOTE

Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 24).

Reversing the lid opening direction (only CFX50W, CFX65W, CFX65DZ)

The lid hinges can be moved to the opposite side if you want to open the lid from the opposite direction. To do this, proceed as follows:

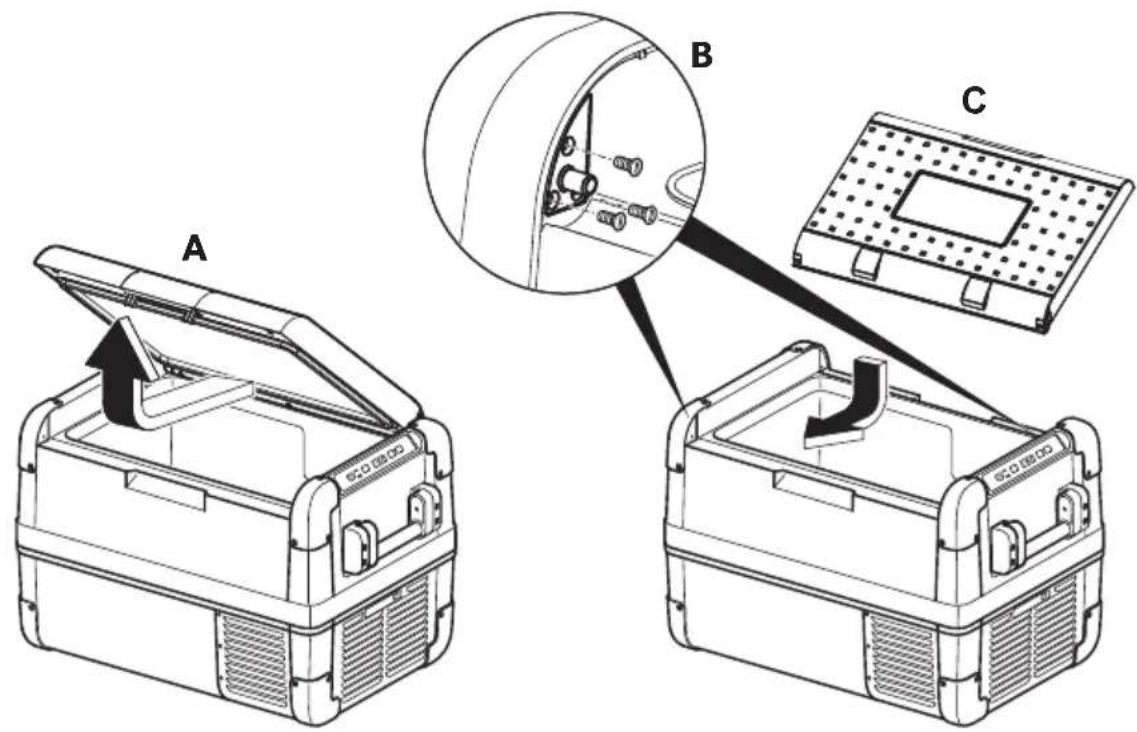

Open the lid and remove it (fig. 6 A, page 4).
Remove the 3 screws per hinge (fig. 6 B, page 4) and take off hinges.
Remove the plastic covers from the new hinge positions with a small screwdriver and re-fit to the old hinge positions.
Re-fit the hinges in new positions.
Insert the lid in the hinges on the opposite side (fig. 6 C, page 4).

Selecting the temperature units

Temperature display units can be switched between Celsius and Fahrenheit as follows:

Switch on the cooler.
Press the "SET" button (fig. 3 4, page 3) twice.
Use the "UP+" (fig. 3 7, page 3) or "DOWN-" (fig. 3 6, page 3) buttons to select Celsius or Fahrenheit.
- The selected temperature units then appear in the display for a few seconds. The display flashes several times before it returns to the current temperature.

7.2 Energy saving tips

• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
• Defrost the cooler once a layer of ice forms.
• Avoid unnecessarily low temperatures.

7.3 Connecting the cooler

Connecting to a battery (Vehicle or boat)

The cooler can be operated with 12V = = or 24V = =

NOTICE! Danger of damage!

Disconnect the cooler and other consumer units from the battery before you connect the battery to a quick charging device.

Overvoltage can damage the electronics of the device.

For safety reasons the cooler is equipped with an electronic system to prevent polarity reversal. This protects the cooler against short-circuiting when connecting to a battery.

Using the fused DC plug

NOTICE! Danger of damage!

For protection of the device the DC cable supplied includes a fuse inside the plug. Do not remove the fused DC plug.

Only use the DC cable supplied.

Plug the DC connection cable (fig. 1 2, page 2) into the DC voltage inlet of the cooler (fig. 4 5, page 3).
Connect the connection cable to the DC power outlet.

Connecting to an AC power supply (e.g. in the home or office)

DANGER! Danger of electrocution!

• Never handle plugs and switches with wet hands or if you are standing on a wet surface.
• If you are operating your cooler on board a boat from a AC power supply, you must install a residual current circuit breaker between the AC power supply and the cooler.

Seek advice from a trained technician.

The coolers have an integrated multi-voltage power supply with priority circuit for connecting to an AC voltage source. The priority circuit automatically switches the cooler to AC operation, if the device is connected to an AC power supply, even if the DC connection cable is still attached.

When switching between the AC power supply and the battery supply, the red LED may light up briefly.

Plug the AC connection cable (fig. 1 3, page 2) into the AC voltage socket of the cooler (fig. 4 1, page 3).
Connect the connection cable to the AC power outlet.

7.4 Using the battery monitor

The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board DC supply.

If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level. The cooler will switch back on once the battery has been recharged to the restart voltage level.

NOTICE! Danger of damage!

When switched off by the battery monitor, the battery will no longer be fully charged. Avoid starting repeatedly or operating current consumers without longer charging phases. Ensure that the battery is recharged.

In "HIGH" mode, the battery monitor responds faster than at the levels "LOW" and "MED" (see the following table).

Battery monitor mode LOW MED HIGH
Switch-off voltage at 12 V	10.1 V 11.4 V 11.8 V
Restart-voltage at 12 V	11.1 V 12.2 V	12.6 V
Switch-off voltage at 24 V	21.5 V	24.1 V	24.6 V
Restart voltage at 24 V	23.0 V	25.3 V	26.2 V

The battery monitor mode can be selected as follows:

Switch on the cooler.
Press the "SET" button (fig. 3 4, page 3) three times.
Use the "UP +" (fig. 3 7, page 3) or "DOWN -" (fig. 3 6, page 3) buttons to select the battery monitor mode.
Display will be as follows: Lo (LOW), NEd (MED), Hi (HIGH)
- The selected mode then appears in the display for a few seconds. The display flashes several times before it returns to the current temperature.

NOTE

When the cooler is supplied by the starter battery, select the battery monitor mode "HIGH". If the cooler is connected to a supply battery, the battery monitor mode "LOW" will suffice.

7.5 Using the cooler

NOTICE! Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

Place the cooler on a firm foundation.

Make sure that the ventilation slots are not covered and that the heated air can dissipate.

NOTE

Place the cooler as shown (fig. 1, page 2). If you operate the box in a different orientation it can be damaged.

Connect the cooler, see chapter "Connecting the cooler" on page 15.

NOTICE! Danger from excessively low temperature!

Ensure that the only those objects are placed in the cooler that are intended to be cooled at the selected temperature.

Press the "ON/OFF" button (fig. 3 1, page 3) for between one and two seconds.
The LED "O" lights up (fig. 3 2, page 3).
The display (fig. 3 5, page 3) switches on and shows the current temperature.

CAUTION! Health hazard!

CFX65DZ:

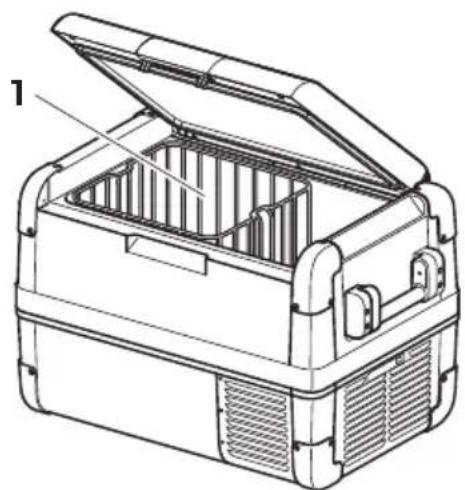

If the temperature in the freezer compartment (fig. 8 1, page 5) is very low (-22^) , the temperature range in the cooling department (fig. 8 2, page 5) can be below freezing as well.

NOTE Displayed temperature

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

The temperature displayed is that of the large interior compartment (e.g. CFX50W, CFX65W: fig. 1, page 4).

CFX65DZ:

• With fridge/freezer divider in: The temperature displayed is that of the freezer compartment (fig. 8 1, page 5).
• With fridge/freezer divider out: The actual compartment temperature will be considerably warmer than the displayed temperature

The cooler starts cooling the interior.

NOTE

When operating with the battery, the display switches off automatically if the battery voltage is low. The LED "O" flashes orange.

Latching the cooler lid

Close the lid.
Press the latch (fig. 2 1, page 2) down, until it latches in place audibly.

NOTE - Alarm "Lid open"

If the lid is left open for three minutes or more and the device is switched on, the interior light will flash until the lid is closed.

7.6 Setting the temperature

Press the "SET" button (fig. 3 4, page 3) once.
Use the "UP +" (fig. 3 7, page 3) and "DOWN - " (fig. 3 6, page 3) buttons to select the cooling temperature.
- The cooling temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed again.

NOTE

The temperature can be set to -22^ . The manufacturer however recommends a cooling temperature of -15^ to -18^ for normal usage and optimum energy consumption.

7.7 Enabling WiFi signal for optional app (all except CFX28 and CFX65DZ)

The cooler can be controlled via WiFi using an app that you can install on a compatible device. The app has control, display and alarm functions.

For further information go to the Dometic website for your country (see back page). Note that the app may not be available in your country.

The WiFi name of the compressor cooler begins with "CFX". The preset password is "00000000". You can change the WiFi name and password individually.

Switching the WiFi signal on or off

Press the "SET" button (fig. 3 4, page 3) five times.
Use the "UP+" (fig. 3 7, page 3) and "DOWN-" (fig. 3 6, page 3) buttons to switch the WiFi signal on or off.
- The desired setting appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed again.

NOTE

• The default setting for the WiFi transmitter is off. For first time use and whenever power to the device is interrupted, switch on the WiFi transmitter to use the app.
• The WiFi transmitter uses a small amount of power. For optimal energy performance switch the WiFi transmitter off if it is not being used.

Resetting the WiFi to factory settings

In case you have personalized the WiFi settings of your cooling device using the WiFi app and forgotten your password, you can reset to the factory settings as follows:

Press the "SET" button (fig. 3 4, page 3) five times.

Hold the "UP +" (fig. 3 7, page 3) button for at least five seconds.
In both displays "rES" will blink several times before returning to the previous display.
- The WiFi settings have been reset to factory settings.

For additional information visit the Dometic website from which you downloaded the app.

7.8 Set brightness of display

The display brightness can be dimmed for low ambient light conditions. To set the dimming level of the display proceed as follows:

Switch on the cooler.
Press the "SET" button (fig. 3 4, page 3) four times.
Use the "UP +" (fig. 3 7, page 3) or "DOWN -" (fig. 3 6, page 3) buttons to set the brightness of the display.
Display will be as follows: d0 (default), d1 (medium), d2 (dark)
- The display shows the set mode for some seconds. The display flashes several times before it returns to the current brightness.

NOTE

The factory setting of brightness of the display is d0 (default).
- If a fault occurs, the brightness automatically is d0 (default). After troubleshooting the set brightness is reactivated.

7.9 Using the emergency switch (where fitted)

The emergency switch (fig. 4 3, page 3) is located below the control panel on all models except CFX28 where it is located above the power inlet sockets. For normal operation the switch is in the "NORMAL USE" position.

If an electronic control failure occurs, slide the switch to "EMERGENCY OVERRIDE" position

NOTE

If the switch is in the "EMERGENCY OVERRIDE" position, the cooler runs with full cooling capacity and may freeze.

7.10 USB port for power supply

USB port allows you to charge small devices like mobile phones and mp3-players.

To use your cooling box with any USB devices, simply connect a USB cable (not included) to your device.

NOTE

Ensure that any small device connected to the USB port is compatible with 5 V/500 mA operation.

7.11 Switching off the cooler

Empty the cooler.
Switch the cooler off.

Pull out the connection cable.

If you do not want to use the cooler for a longer period of time:

Leave the cover slightly open. This prevents odour build-up.

7.12 Defrosting the cooler

Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this.

NOTICE! Danger of damage!

Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

To defrost the cooler, proceed as follows:

Take out the contents of the cooler.
If necessary, place them in another cooling device to keep them cool.

Switch off the device.
Leave the lid open.
Wipe off the defrosted water.

7.13 Replacing the AC fuse

DANGER! Danger of electrocution!

Disconnect the power supply and the connection cable before you replace the device fuse.

Disconnect the power supply to the device.

Pull off the connection cable.
Pry out the fuse insert (fig. 4 2, page 3) with a screwdriver.
Replace the defective glass fuse with a new one that has the same type and rating (4 A, 250 V).

Press the fuse insert back into the housing.
Reconnect the power supply to the device.

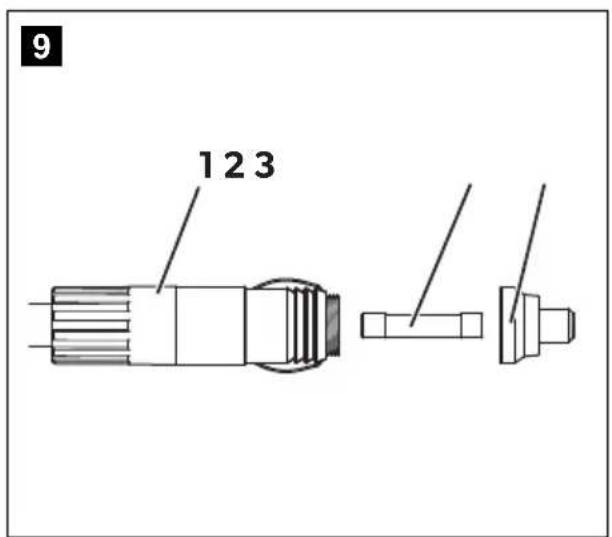

7.14 Replacing the DC plug fuse

Unscrew the contact pin housing (fig. 9 3, page 5) from the plug (fig. 9 1, page 5).
Replace the defective fuse (fig. 9 2, page 5) with a new fuse of the same type and rating (3AG, Fast Acting, 10 A).
Re-assemble the plug in reverse order.

NOTE - Internal DC fuse

There is an additional DC fuse inside the device (Automotive standard blade fuse, 10 A). This fuse can only be replaced by an authorised repair centre.

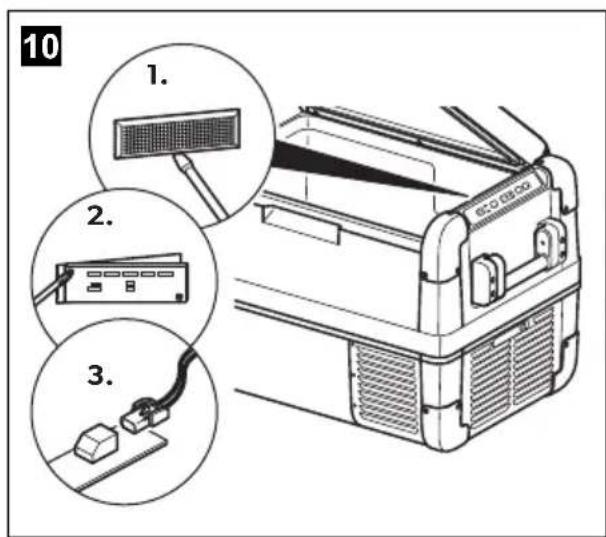

7.15 Replacing the light PCB

Disconnect the power supply to the device.
Pry out the transparent cover with a screwdriver (fig. 10 1, page 5).
Unscrew the PCB mounting screws (fig. 10 2, page 5).
Pull out the plug from the PCB (fig. 10 3, page 5).
Replace the defective light PCB with a new one.
Fit new PCB using reverse of removal instructions.

Press the transparent cover back into the housing.
Reconnect the power supply to the device.

8 Cleaning and maintenance

WARNING!

Always disconnect the device from the power supply before you clean and service it.

NOTICE! Risk of damage

• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

Occasionally clean the device interior and exterior with a damp cloth.
Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

9 G u a r a n t e e

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and warranty processing, please include the following documents when you send in the device:

A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

10 Troubleshooting

Fault Possible cause Suggested remedy

Device does not function, LED does not glow.	No voltage was detected in the DC power outlet.	In most vehicles the ignition must be turned on before power will be supplied to the DC power outlet.
	No voltage present in the AC voltage socket.	Try using another plug socket.
	The device fuse is defective.	Replace the device fuse, see chapter “Replacing the AC fuse” on page 22.
	The integrated mains adapter is defective.	This can only be repaired by an authorised repair centre.
The device does not cool (plug is inserted, “POWER” LED is lit).	Defective compressor. This can only be repaired by an authorised repair centre.
The device does not cool (plug is inserted, “POWER” LED flashes orange, display is switched off).	Battery monitor is set too high.	Select a lower battery monitor setting.
	Battery voltage is too low.	Test the battery and charge it as needed.
When operating from the DC outlet: The ignition is on and the device is not working and the LED is not lit.	The DC outlet is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the DC outlet, either the DC outlet must be cleaned or the plug has not been assembled correctly.
	The fuse of the DC plug has blown.	Replace the fuse in the DC plug, see chapter “Replacing the DC plug fuse” on page 23.
	The DC fuse inside the device has blown.	This can only be repaired by an authorised repair centre.
	The vehicle fuse has blown.	Replace the vehicle’s DC outlet fuse. Please refer to your vehicle’s operating manual.
The display shows an error message (e.g. “Err1”) and the appliance does not cool.	The appliance has switched off due to an internal fault.	This can only be repaired by an authorised repair centre.

Fault Possible cause Suggested remedy

The interior light of a compartment flashes.

The lid of the compartment has been left open for more than three minutes.

Close the lid of the compartment.

11 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	CFX28 CFX35W CFX40W
Ref. no.: 9600000468	9600000469	9600000470	9600000472
		9600000471	9600000473
Connection voltage:	12/24 V= and 100 - 240 V~
Rated current:	12 V=: 6.5 A	12 V=: 7.0 A
	24 V=: 3.2 A	24 V=: 3.2 A
	100 V~ : 0.75 A	100 V~ : 0.86 A
	240 V~ : 0.32 A	240 V~ : 0.42 A
Cooling capacity:	+10°C to -22°C (+50°F to -8°F)
Category:	1
Energy efficiency class:	A++
Energy consumption:	61 kWh/annum	62 kWh/annum	64 kWh/annum
Gross volume:	28 I	34.5 I	41 I
Storage volume:	26 I	32 I	38 I
Climate class:	N, T
Ambient temperature:	+16 °C to +43 °C (+61 °F to +110 °F)
Noise emission:	34 dB(A)	42 dB(A)
USB:	5 V= , 500 mA
Frequency band (WiFi):	2.4 GHz (wireless module)	2.4 GHz
RF power (WiFi):	11 - 0 dBm (wireless module)	16 ± 1.5 dBm (802.11 b CCK, 11 Mbps)
		12 ± 1.5 dBm (802.11 g OFDM, 54 Mbps)
		11 ± 1.5 dBm (802.11 n HT20, MCS7)
Refrigerant quantity:	38 g	33 g	38 g
CO2 equivalent:	0.054 t	0.047 t	0.054 t
Global warming potential (GWP):	1430
Dimensions (W x H x D) in mm (including handles):	342 x 425 x 620	398 x 411 x 692	398 x 461 x 692
Weight:	13 kg	17.5 kg	18.5 kg
	CFX50W CFX65W CFX65DZ
Ref. no.: 9600000474	9600000475	9600000476	9600000478
		9600000477	9600000479
Connection voltage:	12/24 V--- and 100 - 240 V~
Rated current: 12 V---: 7	.8 A	12 V---: 8.2 A	12 V---: 5.5 A
	24 V---: 3.6 A	24 V---: 3.8 A	24 V---: 2.6 A
	100 V~: 0.95 A	100 V~: 1.0 A	100 V~: 0.75 A
	240 V~: 0.46 A	240 V~: 0.48 A	240 V~: 0.37 A
Cooling capacity:	+10 °C to -22 °C (+50 °F to -8 °F)
Category: 1
Energy efficiency class:	A++		A+
Energy consumption:	66 kWh/annum	69 kWh/annum	115 kWh/annum
Gross volume:	50 l	65 l	with divider: 61 l without divider: 65 l
Storage volume:	46 l	60 l	53 l
Climate class:	N, T
Ambient temperature:	+16 °C to +43 °C (+61 °F to +110 °F)
Noise emission:	42 dB(A)
USB:	5 V---, 500 mA
Frequency band (WiFi):	2.4 GHz		-
RF power (WiFi):	16 ± 1.5 dBm (802.11 b CCK, 11 Mbps)		-
	12 ± 1.5 dBm (802.11 g OFDM, 54 Mbps)
	11 ± 1.5 dBm (802.11 n HT20, MCS7)
Refrigerant quantity:	43 g	57 g	31 g
CO2 equivalent:	0.062 t	0.082 t	0.044 t
Global warming poten-tial (GWP):	1430
Dimensions (W x H x D) in mm (including handles):	725 x 471 x 455	725 x 561 x 455	725 x 561 x 455
Weight:	20.4 kg 22.3 kg	23.2 kg

NOTE

If the ambient temperature is above +32^ (+90^) , the minimum temperature cannot be attained.

Test/certificates:

The coolant circuit contains R134a.

Contains fluorinated greenhouse gases

Hermetically sealed equipment

There are no restrictions on using the WiFi function of the device in the EU member states.

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

Activer/désactiver le signal WiFi

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

La temperatura indica se refiere al compartmento grande de refrigeracion y de congelacion (por exemple, CFX50W, CFX65W: fig. 7 1, pagina 4).

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

• CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

La temperatura indica si riferisce al vano frigorifero e freeze.
grande (ad es.CFX50W, CFX65W: fig. 1, pagina 4).

CFX65DZ:

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

• CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

ANVISNING - Larm "Öppet lock"

7.6 Stalla in temperature

Quick-Release-festesett CFX-QFK 9600000166 for CFX 28

Tradløst display CFX-WD 9600000164 passende til

CFX28, CFX65DZ

og elderre modeller

uten

WLAN-app-funk-

sjon

På Dometics internettside (se baksiden) finner du informasjon om en WLAN-app med kontroll-, visnings- og alarmfunksjoner (alle unntatt CFXCFX28 og CFX65DZ). Det kan vengeance at appen ikke er tilgengelig i ditt land.

5 T i l t e n k t b

Kjøleboksen er beregnet på Å kjole ned og dypfryseæringsmidler.

Kjøleboksen er beregnet for drift på:

et likestrømsnett i et kjørtey, en båt ell er en bobil
- et likestromsforsyningsbatteri
- etvekselstrømnett

PASS PÀ! Fare for overopbehing!

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

Den viste temperaturen gjelder det store kjøle- og fryserommet (f.eks. CFX 50W, CFX 65W: fig. 1, side 4).

7.6 Stille inn temperature

Trykk på knappen «SET» (fig. 3 4, side 3) en gang.

MERK - Intern likestrømsikring

Det er en ekstra likestrømsikring innate i apparatet (standard bladsikring for bil, 10 A). Denne sikringen kan bare skiftes ut av et autorisert verksted.

• CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

• CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

Ha dincnee oTo6paXaetc TEmnepaTpya B 60nbOoi XOnoAnbHOMop03nBHOJ Kamepe (Ha npimep, CFX50W, CFX65W: pnc. 7 1, ctp. 4).

• CFX65DZ:

• C neperopokon B xoOnnBHO-Mopo3nBHO kamepe: OTo6paXaetc TeMnepatypa B Mopo3nBHO kamepe (pnc. 8 1, ctp. 5).

• Be3 neperopokn B xOIOINbHO-MOpO3INbHO Kamepe:ФakTNueCKa TeMnepaTpa B KaMepe MoXeT HeCKOJIbKO OTINuATbcr OTOT6paxaemOn TeMnpaTpybl.

XoOnOaHbHK HaunHaet OxnaXdaTb BHyTppeHHee npoctpaHCTBO.

YKA3AHNE

Pp npapoe ot akymyTopHO 6aTapei nncnne aBToMaTuYeCKN OTKIOUaETc,ecnHaInpxHHe 6aTapei cTaHOBHTcCNIJKOM Hn3KM. INHdkaTOP «O» MrraeT opahXeBBIM CBETOM.

Блорвахолдьнka

3aKpoIte KpbIiKy.

ПрихмiteфИксатор(pnc.21,ст.2)Вин3,чTOбI OH 3aшeнКнунссхаразКТерньIM ueNCHOM.

YKA3AHNE-CnHann3aunKpbIkaOTKpbIta

Ecnn KpbiSha BkIoueHnO np6opa OTKpbTa 6oJee Tpex MInHyT, BHyTpeneHHe OcBeUeHne HauHnaet MInrAte N MInraet Do Tex nOp, NOKa KpbiShKa He 6ydt 3akpbTa.

7.6 Hac tropona temnepaTypbl

HaxmTe KhoNky «SET» (pnc. 3 4, ctp. 3) oIN pa3.
KhoNkaMn «UP +» (pnc. 3 7, ctp. 3) inn «DOWN -» (pnc. 3 6, ctp. 3) BbIbePnte Tempeatpy oxnaJdeHn.
Ha nncnnee Ha HeckoIbKO cekyHd NOBnEeTcN HINKaunr 3aDaHHoTtempeatypbl.
mnaet HeckoIbKO pa3, npexde yem BepHyTbcra K OTO6paXeHNIO Teky-
uien TemnepaTypbl.

YKA3AHNE

TeMnepeIpya KaJdoi KaMepb MoXeT 6bItb HacTpoEHa Do-22°C. Ho dIy HopMaJIbHOro peKIMa pa6OtB I ONTImaJIbHOrO 3HeprOnOTpe6IeHnI N3rTOBHTeIb peKOMeHdyet TempeIpy oT-15°C Do-18°C.

7.7 Bклioуене снгна 6ecnpobODHоCetnДЯ akTиBaци npiloxeHЯ (Bce yctpoiCTBa, 3a ncklioyehem CFX28 n CFX65DZ)

XOJIOJIbHnKOMMOxHOynpaBnTbYepe36ecnpoBOHyOceTbC NOMOuI npINOKeHnY, yCTaHOBHeHHOM Ha COBmecTmOM yCTpOiCTBe. PnIOxHne IMeet cyHKunN KOHTPOJI, INDnKaUNN CnIHaN3aUNN.

IopobnHa HOpMaun npBedeHa Ha pernoHbHom caTe Dometic (cm. Ha obope). B HeKToPbIX cTpaHax npInOxHeNe HeDoctynHO.

CeteBoe nma xonoDnBnka B cetn WLAN naunhaetc C «CFX». PpeBaPntbHo yctaHOBneHbI npoIb: 00000000. CeteBoe nma n npoIb MOxHO N3MeHITb.

BkIIOueHne/ByIKIIIOueHne Wi-Fi-cnHaHa

Haxmte KhoNky «SET» (pnc. 3 4, ctp. 3) nTb pa3.

KhoNkaMn «UP +» (pnc. 3 7, ctp. 3) nnn «DOWN -» (pnc. 3 6, ctp. 3) BkIIOUHTe nnn BbIKIOUHTe W-Fi-cnrHan.
Ha dincnnee ha Heckonbko cekynd OTo6paXaetcBb6paHna HacTroponka.
Dncnne Miraet Heckonbko pa3, npexde yem BepHytbcra K OTo6paXeHHIO
Tekyue Tempepatypbl.

YKA3AHNE

• CtaHdapTHo 6ecnpoBODHO nepedaTCHKIOUeH. Bo BpeMBA B3KcNpyaTaUNIO, a TaKxpe Nocne KaXDOrO OTKnIOUeHnI NCTOuHnKa PNTaHnI Heo6xOIMo BKIOUaTb 6ecnpoBODHO nepedaTCHK DnTTO, YTO6bl IMEt BO3MOXHOCTb IcNoJIb3OBaTb npINOxHeHne.
  Wi-Fi-inepeaatuknotpe6naretHe3NaHTeHoeKoNueCTBO 3neKtpo3heprnn.ДЯ ONTImaIbHOrO 3HeprOnOTpe6nEHHRA BbIKIOUHTe Wi-Fi-inepeaatuk,ecnOH He nCNoB3yETcra.

BocstahOBJIeHne 3aBODCKoHaCTpoiKn Wi-Fi-cetn

EcnI cTaNdApTHbIe HacrpoKn Wi-Fi-ceTN XoNoDInbHnKa 6blN n3MeHehblB npINOxKeHH, a napOy yTpaueH, MOxHO BOCCTaHOBNTb 3aBOdCKne HAcTPOkNCJIeDyUOnm o6pa3OM:

Haxmte KhoNky «SET» (pnc. 3 4, ctp. 3) nTb pa3.
YdepxnBaIe KhoNky «UP +» (pnc. 3 7, ctp. 3) haxaToH He MeHee nTn ceKyHd.
Ha dincnpnee Heckonbko pa3 Miraet «rES», посе уero on B03BpaaetcK npedbyuemy oTo6paxeHIO.
Hacpoi Wi-Fi c6poWeHbI, BocCTaHOBneHbI 3aBOIDCKne 3HaueHnra.

IcnbTaHn/ceTpncKaTbI:

中

XoOnOaHbI KOnTp coeepxnt R134a.

Copeknt TOpopoBaHbIe napHkoBble ra3bl

TepMeTnueckn 3aKpbTaKaHCTpyKuJa

IcnoB3OBaHne cyHKuN WiFi ycpoiCTBa He IMeet orpaHueHn B cTpaHax EC.

• CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

Ovladacipanel (obr.3, strane 3)

• CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

Zobrażna teplota sa vztahuje na velký chladiaci a mraziacci priečinok (napr. CFX50W, CFX65W): obr. 7 1, strane 4).

CFX65DZ:

Ovladaci panel (obr. 3, strana 3)

• CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

Zobrażna teplota se vztahuje k velkému chladićumu a mrazićumu boxu (napr. CFX50W, CFX65W: obr. 7 1, strana 4).

CFX65DZ:

CFX28, CFX35W, CFX40W, CFX50W, CFX65W:

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

1800212121

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

Neudonferstraße 108

A-2353 Guntramsdorf

[phone]

[phone]

Mail: [e-mail]

BENELUX

Domatic Branch Office Belgium

Lourdesstraat 84

B-8940 Geluwo

[phone]

[phone]

Mail: [e-mail]

BRAZIL

Dometic DO Brasil LTDA

Avenida Paulista 1754, conj. 111

SP 01310-920 Sao Paulo

[phone]

[phone]

Domatic Group Asia Pacific

Suites 2207-11 22/F Tower 1

The Gateway 25 Canton Road,

Tsim Sha Tsui·Kowloon

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Zrt. Sales Office

Kerekgyarto u.5.

H-1147 Budapest

[phone]

[phone]

Domatic Italy S.r.l.

Via Virgilio, 3

F47122 Forli (FC)

[phone]

390543754983

Mail: [e-mail]

IAPAN

Domatic KK

Maekawa-Shibaura,Bldg.2

2-13-9 Shibaura Minato-ku

Tokyo 108-0023

[phone]

[phone]

Mail: [e-mail]

MEXICO

Domatic Mx, S. de R. L. de C. V.

Circuito Médicos No. 6 Local 1

Colonia Ciudad Satélite

CP 53100 Naucalpan de Juarez

Estado de Mexico

[phone]

[phone]

Mail: [e-mail]

NETHERLANDS

Dometic Benelux B.V.

Ecustreaat 3

NL-4879 NP Etten-Leur

[phone]

[phone]

Mail: [e-mail]

NEW ZEALAND

Domatic New Zealand Ltd.

PO Box 12011

Penrose

Auckland 1642

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

Osteroyveien 46

N-3232 Sandefjord

[phone]

[phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

PL02-801 Warszawa

[phone]

[phone]

Mail: [e-mail]

PORTUGAL

Dometic Spain, S.L.

Komsomolskaya square 6-1

RU-107140 Moscow

[phone]

[phone]

Mail: [e-mail]

SINGAPORE

Dometic Pte Ltd

18 Boon Lay Way

06-141TradeHub21

Singapore 609966

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Domic Slovakia s.r.o.

Sales Office Bratislava

Nadražná 34/A

900 28 Ivanka pri Dunaji

/[phone]

Mail: [e-mail]

SOUTH AFRICA

Domicic (Pty) Ltd.

Regional Office

South Africa & Sub-Saharan Africa

2 Avion Road

West Lake View Ext 11

Modderfontein1645

Johannesburg

[phone]

Mail: [e-mail]

SPAIN

Domatic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Canada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rumlang

[phone]

[phone]

Mail: [e-mail]

UNITED ARAB EMIR

Dometic Middle East FZCO

P.O.Box17860

S-D 6, Jebel Ali Freezone

Dubai

[phone]

[phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House, The Brewery

Blandford St. Mary

DorsetDT19LS

[phone]

[phone]

Mail: [e-mail]

USA

Dometic RV Division

1120 North Main Street

Elkhart, IN 46515

[phone]
