Brand	Casualplay
Model	Protector
Product type	Car seat group 2/3
Child weight	15 to 36 kg
Use	Forward-facing
Installation	Vehicle three-point safety belt (with or without retractor)
Height adjustment	Telescopic headrest with push button
Base adjustment	Seat length adjustable via wheel
Backrest recline	Yes, with function selector on the handle
Approval standard	UN/ECE R44/04 (Universal)
Cover	Machine washable at 30°C without spin or hand wash
Cleaning	Warm water and mild soap; no chemical cleaners
Position in vehicle	Rear seat recommended (possible at front if airbag deactivated)
Components	Backrest, seat, headrest, armrests, tether clamp, belt guides
Seat weight	Approximately 5 kg
Safety note	Replace after an accident; never use without backrest
Storage	Remove from car if not used for long periods
Sun protection	Cover seat when not in use to prevent burns
Manual included	Yes, keep in the seat

Frequently Asked Questions - Protector CASUALPLAY

How to install the Protector seat in the car?

Place the seat on the vehicle seat, facing forward. Pass the three-point safety belt through the belt guides of the armrest (upper side) and under the armrests (abdominal part). Buckle the belt and check that it is tight. See illustrations 05 to 11 in the manual.

What is the recommended weight and age for this seat?

The seat is designed for children from 15 to 36 kg (group 2/3). There is no strict age limit, but it is suitable for children who weigh at least 15 kg and can sit up independently.

How to adjust the headrest height?

Press the push button located at the back of the headrest (fig. 13) and pull up or push down to adjust the height. The diagonal belt should pass at the child's chest level, never at the neck.

How to adjust the seat base?

Turn the position selector on the handle to the left (fig. 15) and slide the base to lengthen or shorten it according to the child's leg length (fig. 16). The base should support the thighs without pressing on the calves.

How to recline the backrest?

Turn the position selector on the handle to the right (fig. 17) and use the handle to recline the backrest forward or backward (fig. 18). This allows the child to sleep more comfortably.

Can I wash the seat cover?

Yes, the cover is machine washable at a maximum of 30°C, without spin. You can also hand wash it with warm water and mild soap. Do not use chemical cleaners or a dryer.

Is this seat compatible with all vehicles?

The seat is universal (standard UN/ECE R44/04). It is compatible with most vehicles equipped with approved three-point belts. Check your vehicle's manual to see if a seat position allows installation of a universal child seat.

What to do after an accident?

The seat must be replaced after an accident, even if it shows no visible damage. The stresses may have altered its structure and protective capacity.

Can I use the seat without the backrest?

No, the seat must always be used with the backrest. The Protector has been approved as a complete unit. Using the seat without the backrest compromises the child's safety.

How to disassemble the Protector?

To separate the backrest from the seat, press the button located at the back of the lower part of the backrest (fig. 19-20) and pull upward. The backrest detaches from the base.

USER MANUAL Protector CASUALPLAY

Keep turereerree Hre rarely

FANCAIS

MCCEDEMPLOI.

Cannrnnnne nnnnne annnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne

DEUTSCH

ASWENDLNGSHMWESE

11A10X

JTNZONETHUG

00072165

INSTITUTIONAL USU

Conrrntnol 1000

CESKY

NAVODKGBLUZE

Uchowepn pruipadn da5 pcu28. Ctepe pozm 30

SLOVENSKY

NAVOD NAPOUZTE

Uchoshts 20 pndt dtey zhe cnte peone.

MAG74J

HAESNATLTASITAS

3

P7184

INSTEEL COULTURE

ZENONDEA

Gdnn 1

casual play

www.casualplay.com

E

Keep up your receipt in order to exercise your right as a consumer

F

yostd rmitcome consumatior.

(1)

Only suitable for use in the vehicles equipped with a lap 3 point safety belt with or without retractor approved to UN/ECE regulation no 16 or other equivalent standards.

REMARQUE

INSTRUCTIONS GENERALS

Muntege del Protector (veure il.lustraciones 01 - 04)

CASUALPLAY would like to thank you for purchasing this safety seat. This product has been designed, manufactured and approved in accordance with the strictest safety regulations. It has been designed for easy installation and use, but we need your collaboration to ensure it is installed correctly and functions perfectly. Please read these instructions carefully before installing the seat in the vehicle. The safety of your child depends on the correct use of the seat.

Do not hesitate to contact us if you have any queries (Tel., e-mail, see the back of these instructions).

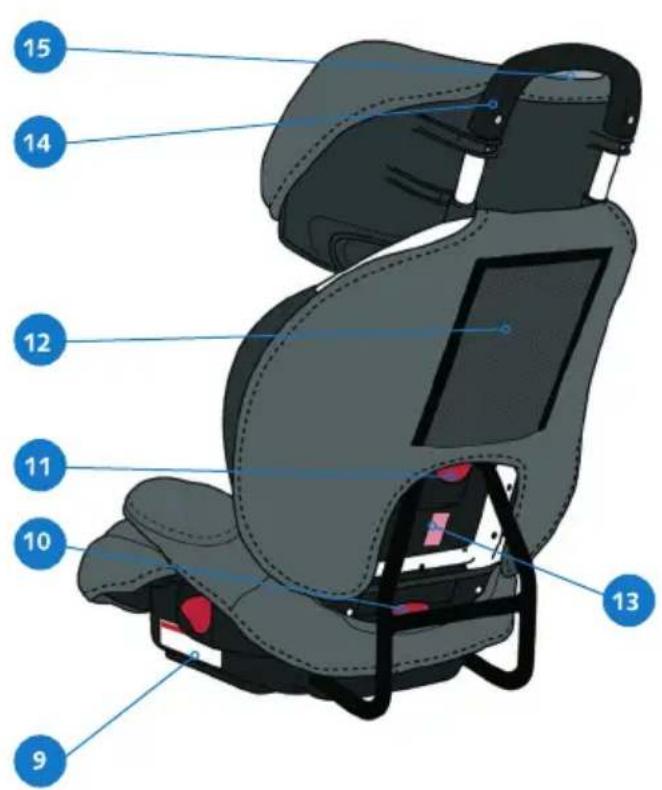

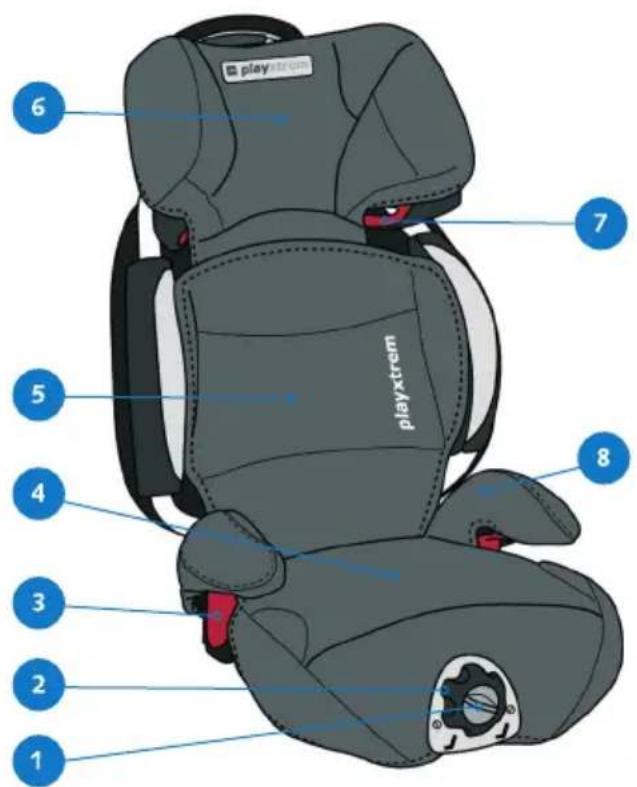

FEATURES OF THE AUTOPLAY PROTECTOR

1. Bi-functional adjuster handle

2. Function selector:

3. Seat extension

4. Backrest angle

5. Armrest belt guide

6. Seat
7. Backrest
8. Headrest
9. Headrest belt guide

1. Armrest
2. Seatbelt route label
3. Button to release Seat/ Backrest
4. Fastening clip
5. Instructions manual
6. Approval label
7. Telescopic headrest handle
8. Headrest adjuster button

WARNING

1. This is a "UNIVERSAL" retention system. It is certified under Regulation n°44, amendments series 04, for general use in vehicles and appropriate for the majority of car seats although not all.
2. Correct installation is required if the vehicle manufacturer has stated in the instructions manual that the vehicle is suitable for a "UNIVERSAL" retention system for this age group to be installed.
3. This retention system has been classified as "UNIVERSAL" according to stricter conditions than those that are applied to previous designs that do not carry this warning.
4. If you have any queries contact the seat manufacturer or retailer.

WARNING AND SAFETY NOTES

THIS INSTRUCTION MANUAL SHOULD BE KEPT INSIDE THE PROTECTOR WHILE IT IS IN USE.

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE ARTICLE AND KEEP THEM FOR ANY FUTURE REFERENCE. THE SAFETY OF THE CHILD MAY BE AT RISK IF THESE INSTRUCTIONS ARE NOT FOLLOWED.

• The PROTECTOR is a child seat belonging to Group 2 - 3 (15 - 36 kg).
• This seat can only be installed facing forwards using a three-point seatbelt fitted in the actual automobile, complying with UN/ECE-16 regulations or equivalent standards.
• The PROTECTOR is not designed for domestic use. It can only be used in a vehicle.
• The safest position for a car safety seat is on the back seat of the vehicle.
• Never use the seat without fastening the harness correctly or without securing it with the car seatbelt.
• The original equipment must not be altered.
  After an accident the seat must be changed.
• Make sure that the folding seat or the doors of the vehicle can not cause damage to any elements of the seat.
• In direct sunlight the inside of the vehicle can reach very high temperatures, therefore it is advisable to cover the seat when not in use to avoid the child suffering possible burns.
• The straps should never be twisted.
  Always use the seat, even on short journeys and never leave the child unattended.
• In the case of an emergency it is important that the child can be unfastened quickly, therefore the buckle must never be covered up. It is advisable to teach the child that he must never play with the buckle.
• Remove the seat from the vehicle if it is not going to be used for a while.

• It is advisable to secure luggage and objects that may cause injury in the case of a crash.

• We guarantee the safety of the product when it is used by the original buyer, do not use second-hand safety seats or devices.

• The other passengers in the vehicle must also be fastened in with seatbelts as in the case of an accident they may be flung about and injure the baby.
• Do not use the seat without upholstery or with one different from the original.
• Regularly check the buckle, harness and other elements that may have become distorted or deteriorated with use.
• The upholstery should be hand washed, using mild soap and warm water; or machine washed at a maximum temperature of 30^ and WITHOUT SPINNING. Do not use chemical cleaners (dry-cleaning).
• Make sure that the upholstery of the vehicle seat does not make it difficult to tighten the seatbelt or the harness of the seat.
• Remember that you are responsible for the child's safety.

GENERAL INSTRUCTIONS

Assembling the Protector (see illustrations 01 - 04)

• The Protector comes dismantled for its comfort when carrying it (fig. 01).
• Place the back so that the gripper stays between the metallic structure of the Protector base (fig. 02 - 03), but never behind it (fig. 04). A typical 'click' will confirm that the fixation has been done successfully.

WARNING: Do never use Protector without the back, it has been approved as a set, and it could affect child's health.

Installation of the Protector in the car (see illustrations 05 - 11)

• The Protector can be installed on the front or back seat with the car belt of three points.
• Make sure the safety belt of the seat where it is going to be placed is unfasten (fig. 05).
• Place the Protector on the seat where it is going to be installed (fig. 06).
• Place the child on the Protector (fig. 07).
• Pass the belt through the strap slots placed in the headrest (fig. 08 - 09) but put it on its highest position. Then put the headrest back to the appropriate position according to child's height.
• Fasten the seat belt checking that the abdominal part goes under both armrests (zone marked in red) and the diagonal part next to the buckle goes over the upper part of it (fig. 10 - 11).
• Adjust the Protector height so the car belt can pass over the child chest and not over his/her neck.

Adjust the Protector height (see illustrations 12 - 14)

• It is possible to adjust the Protector height in order to adapt as the child grows.
• Once installed in the car with the child, adjust the Protector height, the belt can never pass over the child's neck.
• Press the (fig. 13) upper pusher and pull in order to adjust the headrest height

(fig. 13 - 14).

Adjust the Protector base (see illustrations 15 - 16)

• It is possible to adjust the Protector base according to the child's growth.
• Adjust the base according to the length of the child's legs, once he/she is sat.
• Turn left the position selector placed on the knob (fig. 15). Move the knob to modify the length of the base, so it can adapt to the child's legs (fig. 16).

Adjust the Protector slope (see illustrations 17 - 18)

• Adjust the Protector back slope according to the moment.
• In such case the child fells sleep or wants to adopt a more relax position bend the Protector back.
• Turn right the position selector placed on the knob (fig. 17). Use the knob to adjust the back slope to the desired position (fig. 18).

Removing the Protector (see illustration 19 - 20)

• To remove the Protector press the button on the lower rear part of the backrest (fig. 19 - 20) and pull it upwards.
