USER MANUAL Basefix baby CASUALPLAY

Congratulations Parents!

CASUALPLAY would like to thank you for purchasing the Base Fix Baby 0+.

This product has been designed, manufactured and approved under the strictest safest regulations. It has been designed to be easy to install and use, but we need your collaboration for the optimal functioning results of this safety seat.

Please read these instructions carefully before installing the Base Fix Baby 0+ in the vehicle. The safety of your child depends on the correct use of this product. Please contact us if you have any type of query (see the back of these instructions).

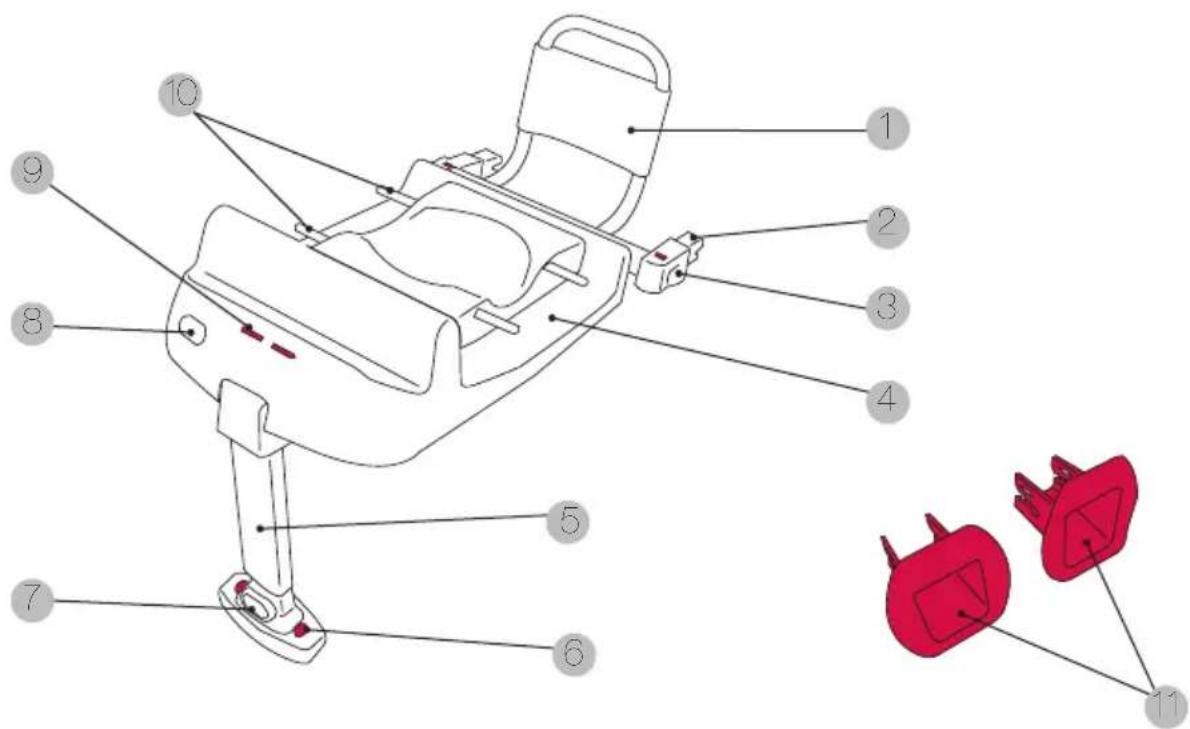

Meet the Bebop

Support platform1

Isofix connectors?

Isofix connectors release button3

Base4

Support bar5

Support bar colour indicator

Support bar adjustment button7.

Isofix connectors extraction button8

Baby carrier fastener indicator

Fastening points 10.

Isofix guides11.

Warning! THE Base Fix Baby 0+ IS ONLYCompatible WITH THE Base Fix Baby 0+ CAR SEATS.

Warning! Never install the base on seats fitted with a frontal AIRBAG without disconnecting it first.

Warning

1. The category of this child restraint system is "SEMI-UNIVERSAL" and it is suitable for installation in the vehicles and in the seat positions indicated in the vehicle list inside this packaging.
2. Other vehicles and seat positions may also be suitable for this restraint system.
3. If in doubt, consult the manufacturer or retailer.

Warning

1. This is an ISOFIX SYSTEM FOR CHILDREN. Approved under Regulation n° 44, Supplement 5, 04 series of amendments, for general use in vehicles equipped with an ISOFIX fastening system.
2. It can be fitted in vehicles with positions approved as "ISOFIX positions" (as listed in the vehicle manual), depending on the category of child seat and the fastening systems.
3. The mechanism has been designed for an ISOFIX size class and weight group of: 0 - 13 kg and Class E.

Warnings and Safety notes

• This instruction manual should be stored inside the base fix base Fix Baby 0+ while it is in use.
• Read these instructions carefully before using the product and keep them for future reference. The child's safety may be at risk if these instructions are not followed.

The Base Fix Baby 0+ together with the Base Fix Baby 0+ is a child restraint system - belonging to Group 0+ (up to 13kg ).

Never install the base on seats fitted with a frontal AIRBAG without disconnecting it first.

The safest position for the base is on the back seat of the vehicle.

The original equipment must not be modified.

After an accident the base should be inspected or replaced.

Make sure that the fold down seat or the doors of the vehicle can not damage any part of the base.

The inside of the vehicle can reach very high temperatures in sunlight. It is . advisable to cover the base when it is not in use, to prevent it from possibly burning the child.

The straps should never be twisted.

• Always use the child restraint system, even on short journeys, and never leave the child unattended in the vehicle.
• Take the base out of the vehicle when it is not going to be used and keep it out of the reach of children.
• It is advisable to securely fasten any luggage or objects that may cause injury in the event of a collision.
• We guarantee the safety of the product when it is used by the original buyer, do not use second hand safety seats or devices.

The other passengers in the vehicle should also be secured with their seat belts, as in the event of an accident they may get flung about and injure the baby.

Regularly inspect the clasp, harness of the Base Fix Baby 0+ and other elements that may become loose or suffer from wear and tear through use.

Remember that you are responsible for the child's safety.

User Instructions

Fitting the Base Fix Baby O+

IMPORTANT: Consult the instruction manual of your vehicle to locate the position of the ISOFIX fastening points. If in doubt consult your car dealership.

• Position the clips in front of both ISOFIX slots, which are situated between the seat and the backrest (fig. 1).

NOTE: If the vehicle came supplied with these connectors, it is not necessary to assemble them.

• Unfold the support bar (fig. 2).
  Press the Isofix connectors extraction button (fig. 3), found on the front part of the base.
• Position the Base Fix Baby 0+ on the vehicle seat. Position the connectors of the base in front of the Isofix fasteners of the vehicle and fasten them, a green indicator will appear on each of the Isofix connectors of the base (fig. 4), showing that it has been fitted correctly. Check that they are secure by pulling the base.
• Next, press the Base Fix Baby 0+ against the seat (fig. 5), until it is firm against the backrest of the vehicle.

Lastly, adjust the length of the support bar by pressing the adjustment button of the support bar (fig. 6) and unfold it until it touches the floor of the vehicle (fig. 7). A green indicator will appear on the support bar when it is fitted correctly (fig. 8).

Check that the support bar is locked into place and that it does not move upwards or downwards.

WARNING: Check that the support bar is correctly set to one of the adjustment positions.

Fitting the Base Fix Baby 0+

Put the handle of the Base Fix Baby 0+ into the carrying position.

Position the Base Fix Baby 0+ facing backwards, place it on the fastening points of the base.

Press the Base Fix Baby 0+ against the base until it clicks and two green indicators will appear on the front part of the base (fig. 9).

• Check that it is securely fastened to the base by pulling the Base Fix Baby 0+ upwards.

Detaching the Base Fix Baby 0+

Pull the release device found on the backrest of the Base Fix Baby 0+ . The indicators on the front part of the Base Fix Baby 0+ will turn red, indicating that it has been detached correctly (fig. 10).

Pull the seat upwards (fig. 11).

Detaching the base

Remove the Base Fix Baby 0+ car seat.

Pull the buttons on both sides of the connectors. A red signal will appear if this has been done correctly (fig. 12).

Remove the base from the seat.

Fold the support bar over the lower part and fasten it.

Maintenance

Clean the plastic parts of the base using a cloth with soap and warm water. Do not use abrasive cleaning products or solvents.
