USER MANUAL GFR 25 BOSCH

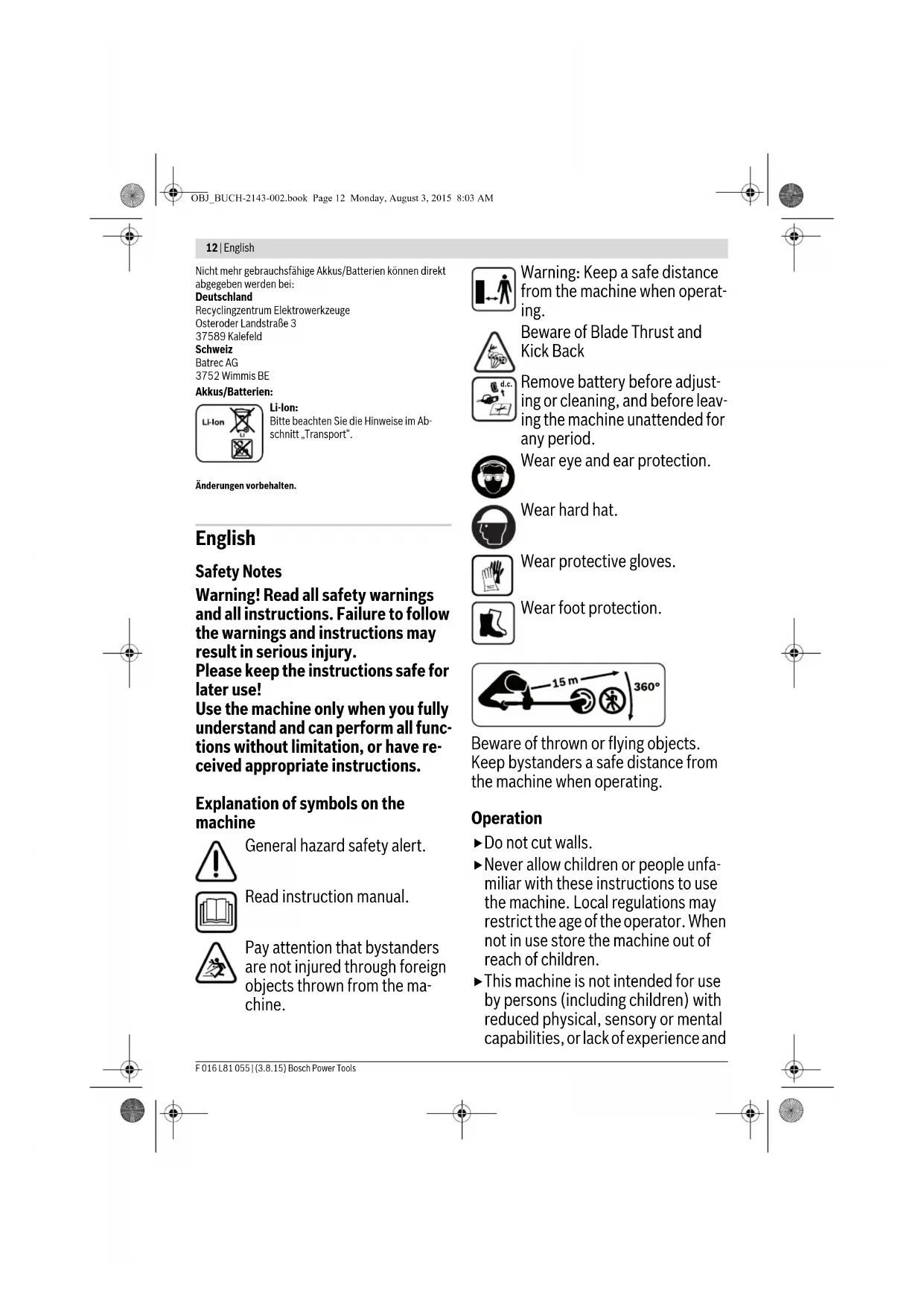

Warning: Keep a safe distance

from the machine when operat- ing. Beware of Blade Thrust and Kick Back Remove battery before adjust- ing or cleaning, and before leav- ing the machine unattended for any period. Wear eye and ear protection. Wear hard hat. Wear protective gloves. Wear foot protection. Beware of thrown or flying objects. Keep bystanders a safe distance from the machine when operating. Operation Do not cut walls. Never allow children or people unfa- miliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and d.c. OBJ_BUCH-2143-002.book Page 12 Monday, August 3, 2015 8:03 AMEnglish | 13 Bosch Power Tools F 016 L81 055 | (3.8.15) knowledge, unless they have been given supervision or instruction con- cerning use of the machine by a per- son responsible for their safety. Children should be supervised to en- sure that they do not play with the machine. Never work while people, especially children, or pets are nearby. The operator or user is responsible for accidents or hazards occurring to other people or their property. Do not operate the machine when barefoot or wearing open sandals, al- ways wear substantial footwear and long trousers. Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects. Do not operate in areas where live ca- bles may be present. Before using, always visually inspect to see that the blade, blade nut and cutter assembly are not worn or dam- aged. Replace worn or damaged blade and nut in sets to preserve balance. Work only in daylight or in good artifi- cial light. Avoid operating the machine in bad weather conditions especially when there is a risk of lightning. For your safety, please take care whilst operating the machine in wet grass. Walk, never run and stay in a stable position. Keep firm footing and balance. Do not overreach. Always wear ear and eye protection when operating the machine. Never operate the machine with missing or broken guards or shields or without guards or shields in posi- tion. Always check for signs of wear or damage before and after use. Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. Working on banks can be danger- ous. – Do not work on excessively steep slopes. – Always be sure of your footing on slopes or wet grass. – Work across the face of slopes – never up and down. – Exercise extreme caution when changing direction on slopes. Keep hands and feet away from the cutting means at all times, especially when switching on the motor. Wait until the cutting head has com- pletely stopped before touching it. The head continues to rotate after the machine is switched off, the cutting system can cause injury/damage. Take care against injury from any de- vice fitted for trimming the filament line length. After extending new cut- ter line always return the machine to its normal operating position before switching on. OBJ_BUCH-2143-002.book Page 13 Monday, August 3, 2015 8:03 AM14 | English F 016 L81 055 | (3.8.15) Bosch Power Tools Switch off when transporting the ma- chine to and from the area to be worked on. Switch off and remove the battery from the battery cartridge: – whenever you leave the machine unattended for any period, – before clearing a blockage, – before replacing the cutting head, – before checking, cleaning or work- ing on the machine, – after striking a foreign object. In- spect the machine for damage and make repairs as necessary, – if the machine starts to vibrate ab- normally (check immediately). Do not modify this product. Unau- thorized modifications may impair the safety of your product and may result in increased noise and vibra- tion. Only use Bosch Professional Garden Tool recommended and approved ac- cessories. Beware that the tool may kick back when a blade suddenly strikes a hard object when cutting brush or scrub vegetation. Take care to minimise the effects of kick back. This tool is designed to be used with the shoulder harness provided. Take care to adjust the harness to balance the tool correctly and reduce the po- tential for operator fatigue in use. For Transport and Storage, Blade should be protected using an appri- ate cover. Maintenance For Your Safety

Warning: Switch off and remove

battery from machine before ad- justing or cleaning. Use correct battery and charger. Always wear protective gloves when handling or working near the sharp blades. Please use the correct guards with the correct cutting heads. See figure 4 of illustrations. To ensure long and reliable service, carry out the following mainte- nance regularly: Keep all nuts, bolts and screws tight using tool kit provided to be sure that the machine is in safe working condi- tions. Examine the machine and replace worn or damaged parts for safety. Ensure Bosch approved correct re- placement parts are used. Have the machine repaired only by an authorized customer service agent. Cleaning Before transport or storage ensure machine is clean and free from de- bris, if necessary clean with a soft, dry brush. The following cleaning schedule should be carried out after every 10 hours of work: – Remove slip plate and thoroughly clean area below. – Open bump head spool and remove any debris. OBJ_BUCH-2143-002.book Page 14 Monday, August 3, 2015 8:03 AMEnglish | 15 Bosch Power Tools F 016 L81 055 | (3.8.15) Recommendations for Optimal Han- dling of the Battery and Charger Warning! Do not attempt to charge non rechargeable batteries with the charger. Inserting the battery pack into the machine with the switch on is danger- ous. Ensure battery is the right way up. Insert the battery until the locking mechanism clicks. To remove the bat- tery, operate locking lever. Take care not to drop the battery through the hole. For care use and maintenance please use charger and battery manuals which are supplied with the products or available at www.bosch-professional.com. Symbols The following symbols are important for reading and under- standing the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner. Intended Use The garden product is intended for Professional use. Technical Data Only Li-ion batteries GBA 36V 6.0Ah Hw-D (Art. No. 2 607 336 065) and battery charger AL 36100 CV Professional (Art. No. 1 600 A00 1..) can be used with this machine. Please do not use non-rechargeable batteries with this appliance, only those specified by the manufacturer. Symbol Meaning Movement direction Reaction direction Switching On Switching Off Audible noise Balance Point Accessories/Spare Parts CLICK! Brushcutter GFR 25 Professional GFR 42 Professional Article number 3 600 J13 000 3 600 J13 001 Cutting head type Metal blade Bump feed head & line Cutting width cm 25 42 Type of handle Bike handle Bike handle Voltage V3636 Overall length (without cutting attachment) cm 197 197 Weight (without batteries) according to EPTA-Procedure 01/2003 kg 6.5 6.5 Serial number see type plate on the garden product OBJ_BUCH-2143-002.book Page 15 Monday, August 3, 2015 8:03 AM16 | English F 016 L81 055 | (3.8.15) Bosch Power Tools Noise/Vibration Information Declaration of Conformity Equipment category: 33 Notified body: DEKRA Certification B.V. Meander 1051 6825 MJ Arnhem Netherlands Nr. 0344 Technical file (2006/42/EC, 2000/14/EC) at: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY

Mounting and Operation The numbering of the figures refer to the illustrations of the machine on the graphics page. Product Transportation Always transport machine with safety guard fitted. Always transport machine without battery fitted. Eyelet can be used to tether machine for secure transpor- tation. Sound emission values determined according to EN 50636-2-91. 3 600 J13 000 3 600 J13 001 Typically the A-weighted noise levels of the product are: Sound pressure level Sound power level Uncertainty K Wear hearing protection! dB(A) dB(A)

(triax vector sum) and uncertainty K deter- mined according to EN 50636-2-91: Vibration emission value a

<2.5 =1.5 <2.5 =1.5 3 600 J13 000 3 600 J13 001 We declare under our sole responsibility that the product described under “Technical data” is in conformity with all relevant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC, 2000/14/EC includ- ing their amendments and complies with the following standards: EN 60335, ISO 11806. 2000/14/EC: Guaranteed sound power level: Conformity assessment procedure according to Annex V. Conformity assessment procedure according to Annex VI. dB(A) 79

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9 Action Figure Page Delivery Scope

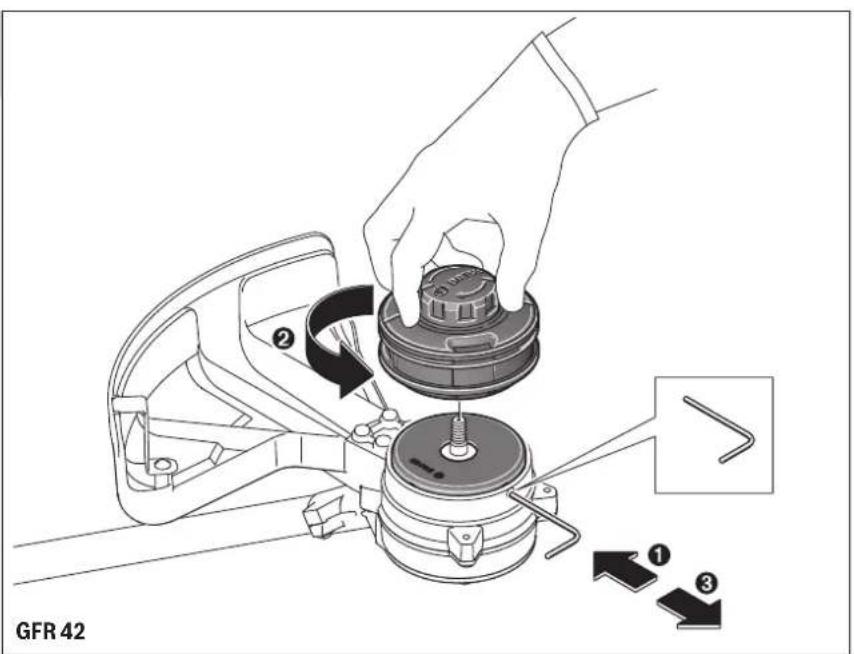

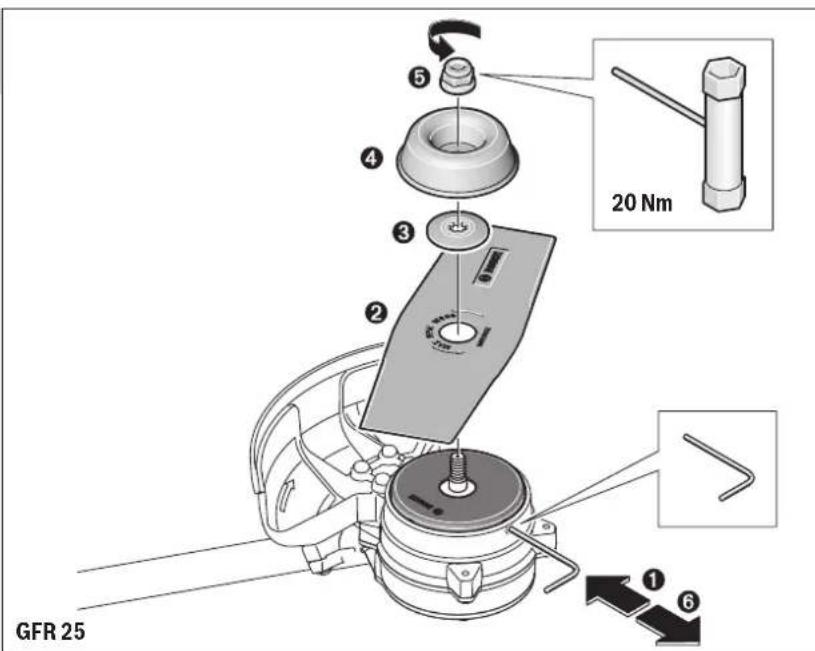

Mounting the blade guard Mounting the Friction Plate

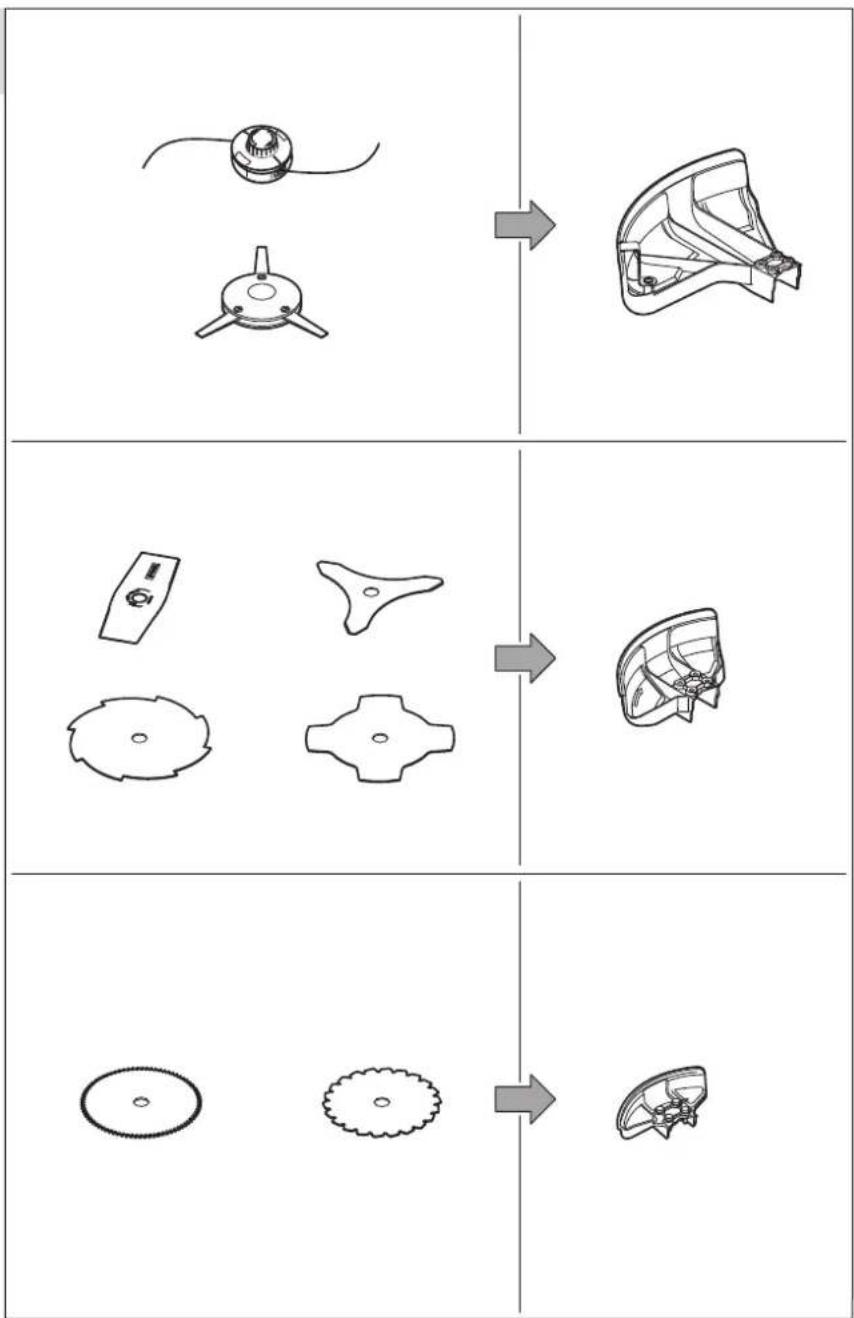

Combination of Cutting Tools and Guards

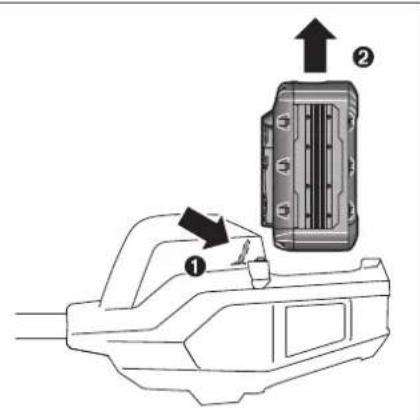

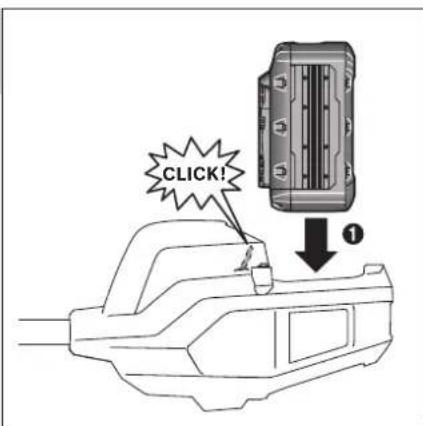

Inserting/Removing the Battery

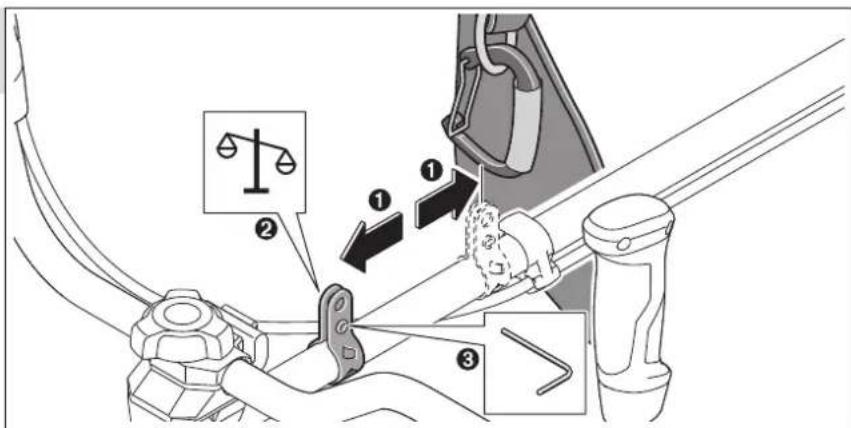

Mounting the Comfort Harness

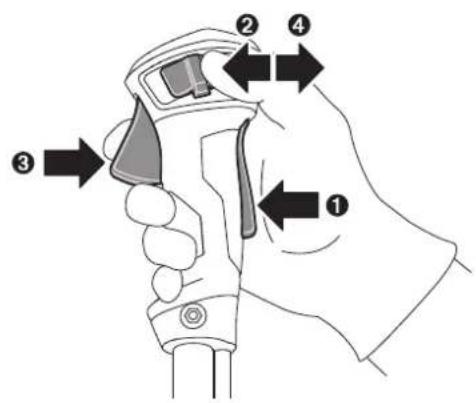

Switching On and Off

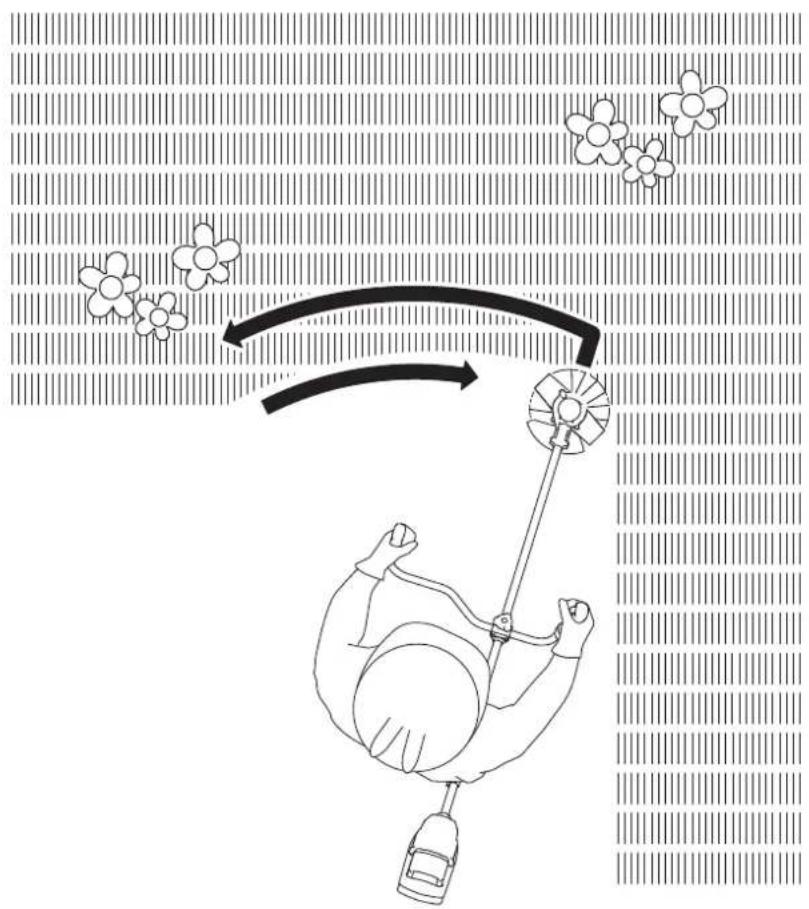

Selecting Accessories 12 127–128 Action Figure Page OBJ_BUCH-2143-002.book Page 16 Monday, August 3, 2015 8:03 AMEnglish | 17 Bosch Power Tools F 016 L81 055 | (3.8.15) Working Advice Troubleshooting Should the cutting blade jamb in long or dense grass, simply release then re-engage the switches. This will activate the auto-release function that releases the jamb by quickly reversing the motor for a short time. For optimum performance and finish always use correct cutting accessory as shown below. Cutting system Usage application area Grass Light vegetation Heavy vegetation Bushes, thin trees

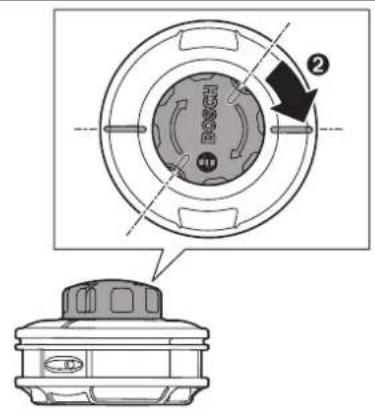

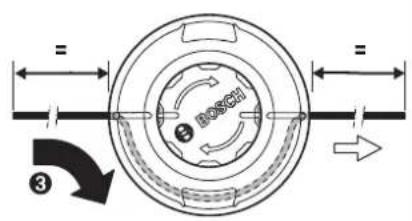

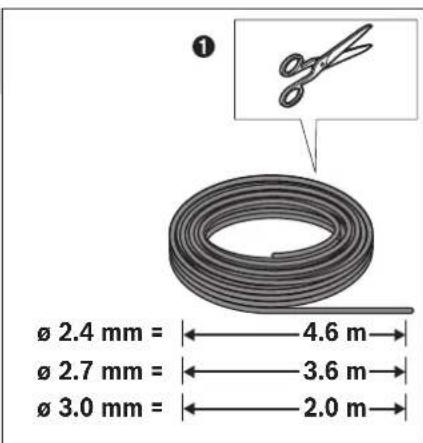

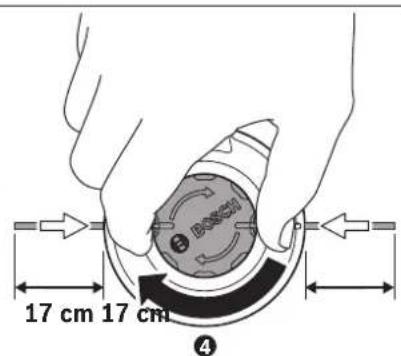

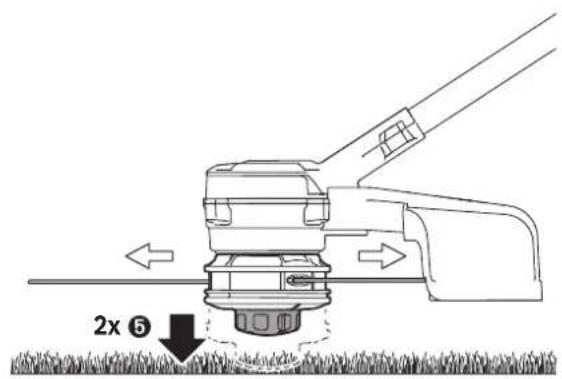

d.c. Problem Possible Cause Corrective Action Blade guard can not be mounted over cutting blade Incorrect assembly Remove cutting blade and mount blade guard first Machine fails to operate Battery discharged Recharge battery Battery too hot/cold Allow to cool/warm OBJ_BUCH-2143-002.book Page 17 Monday, August 3, 2015 8:03 AM18 | English F 016 L81 055 | (3.8.15) Bosch Power Tools Machine runs intermit- tently Motor protector has activated Allow motor/electronics to cool for 5 minutes and cut in stages Internal wiring of machine damaged Contact Service Agent On/Off switch defective Contact Service Agent External cabling damaged Contact Service Agent Machine does not cut Cutting blade damaged Replace the blade (always wear protective gloves). Ensure blade is not upside-down (8T and saw blades). Increased vibration Cutting blade damaged Replace the blade (always wear protective gloves) Cutting line broken Replace line (see figure 7 of illustrations) Debris build up on cutting head Clean slip plate groove Blade nut loose Tighten nut bolt to 20 Nm ensuring the blade, nut shield and dome washer are all present and central (always wear protective gloves) (see figure 5 of illustrations) Machine leaves ragged fin- ish and/or labours Grass too high/dense Grass too high: Cut in stages Grass too dense: Reduce rate of cutting every time Cutting blade blunt Flip/replace blade Cutting blade obstructed Check underneath the machine and clear out as necessary (always wear protective gloves) Blade fitted in incorrect direction of rotation Re-fit blade correctly (only 8T and saw blades) Debris build up on cutting head Clean slip plate groove Motor starts then stops immediately Low battery capacity Ensure battery is fully charged before use Battery not fully charged Check battery display – charge battery if nec- essary Battery too hot/cold Allow battery to cool down/warm up – check battery display Grass too high/dense Grass too high: Cut in stages Grass too dense: Reduce rate of cutting every time Nut cannot be removed to release cutting blade Damaged thread on nut/shaft Lubricate shaft to aid removal Locking pin not located correctly Reinsert locking pin and apply light pressure whilst rotating shaft (see figure 5 of illustra- tions) Problem Possible Cause Corrective Action OBJ_BUCH-2143-002.book Page 18 Monday, August 3, 2015 8:03 AMEnglish | 19 Bosch Power Tools F 016 L81 055 | (3.8.15) If you are unable to resolve the problem using the Troubleshooting guide then please contact your dealer in the first instance. After use/Storage Correct storage is essential for maintaining the life of the product. If possible, avoid storage areas with high humidity which could cause rust or corrosion. End of season storage: Remove battery and store both ma- chine and battery in a dry safe place away from direct sun- light. Do not place objects on top of the machine. When storing for extended periods, thoroughly clean the product beforehand. After-sales Service and Application Service www.bosch-professional.com In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: (01) 4666700 Fax: (01) 4666888 Cutting blade fails to ro- tate Cutting blade obstructed Check underneath the machine and clear out as necessary (always wear protective gloves) Blade nut loose Tighten nut bolt to 20 Nm ensuring the blade, nut shield and dome washer are all present and central (always wear protective gloves) (see figure 5 of illustrations) Low battery charge Check the charge remaining in the battery – shown on the battery display Grass too high/dense Grass too high: Cut in stages Grass too dense: Reduce rate of cutting every time Battery too hot/cold Allow battery to cool down/warm up – check battery display Motor protector has activated Allow motor/electronics to cool for 5 minutes and cut in stages Poor cutting performance Cutting guard encrusted with debris Clean inside of cutting guard Cutting blade blunt Flip/replace blade Cutting line short Bump head to expose more line No cutting line Replenish line (see figure 7 of illustrations) Poor motor performance Remove cutting system and slip plate and clean slip plate groove Problem Possible Cause Corrective Action OBJ_BUCH-2143-002.book Page 19 Monday, August 3, 2015 8:03 AM20 | English F 016 L81 055 | (3.8.15) Bosch Power Tools Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: Phone: (01300) 307044 Fax: (01300) 307045 Inside New Zealand: Phone: (0800) 543353 Fax: (0800) 428570 Outside AU and NZ: Phone: +61 3 95415555 www.bosch.com.au Republic of South Africa Customer service Hotline: (011) 6519600 Gauteng – BSC Service Centre 35 Roper Street, New Centre Johannesburg Tel.: (011) 4939375 Fax: (011) 4930126 E-Mail: bsctools@icon.co.za KZN – BSC Service Centre Unit E, Almar Centre 143 Crompton Street Pinetown Tel.: (031) 7012120 Fax: (031) 7012446 E-Mail: bsc.dur@za.bosch.com Western Cape – BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel.: (021) 5512577 Fax: (021) 5513223 E-Mail: bsc@zsd.co.za Bosch Headquarters Midrand, Gauteng Tel.: (011) 6519600 Fax: (011) 6519880 E-Mail: rbsa-hq.pts@za.bosch.com Transport The contained lithium-ion batteries are subject to the Danger- ous Goods Legislation requirements. The user can transport the batteries by road without further requirements. When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is re- quired. Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regula- tions. Disposal Do not dispose of garden products, battery chargers and bat- teries/rechargeable batteries into household waste! Only for EC countries: According to the European law 2012/19/EU, electrical and electronic equipments that are no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be separated from the tool and collect- ed separately. If battery is broken or leaking please dispose of in an environmentally correct manner according to local regu- lations. Batteries no longer suitable for use can be directly returned at: Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com Battery packs/batteries: Li-Ion: Please observe the instructions in section “Transport”. Subject to change without notice. OBJ_BUCH-2143-002.book Page 20 Monday, August 3, 2015 8:03 AMFrançais | 21 Bosch Power Tools F 016 L81 055 | (3.8.15) Français Avertissements de sécurité Attention ! Lisez avec attention toutes les instructions suivantes. Fa- miliarisez-vous avec les éléments de commande et l’utilisation appropriée de l’outil de jardin. Conservez la no- tice d’utilisation pour une utilisation ultérieure. N’utilisez la machine qu’après vous être familiarisé avec toutes ses fonc- tions et que vous êtes en mesure de l’utiliser sans réserve ou après avoir reçu des instructions correspon- dantes. Explication des symboles se trouvant sur l’outil de jardin Indications générales sur d’éventuels dangers. Lisez soigneusement ces ins- tructions d’utilisation. Faites attention à ce que les personnes se trouvant à proxi- mité ne soient pas blessées par des projections provenant de la machine.
