USER MANUAL Storm Isofix Be Cool

Product photo of a baby car seat with 'be cool' and 'isofix' branding, no visible text or symbols beyond branding.

• UNIVERSAL - Grupo I: 9 - 18 kg
• SEMI-UNIVERSAL - Grupo II: 15 - 25 kg

STORM isofix

E INTRODUCCIÓN

- Read Carefully Before Attempting to Fit the Child Car Seat

- WARNING: NEVER leave your child unattended – your child's safety is your responsibility.

- WARNING: The child car seat must be fitted in accordance with the manufacturer's instructions. Incorrect installation could be dangerous.

- WARNING: This installation must only be performed by a competent ad Don't try to install the seat when intoxicated or drowsy.

- WARNING: Always ensure that new or occasional users [e.g. grandparents] have read the instructions or been taught the correct installation by someone who has read and understood the instructions.

- WARNING: Always keep this instruction manual with the child car seat, or in the vehicle in which you are carrying the child car seat. Some models of child car seat have a pocket to store the instructions.

- WARNING: Do not fit the child car seat in a rearward facing position

- WARNING: Before installing the child car seat ensure that the passenger seat you are using is locked in the upright position.

- WARNING: Do not use the child car seat in the home - it has only been designed to be used in the car.

- WARNING: Do not leave loose/unsecured objects on the back seat of your car or the parcel shelf. They may be dangerous to your child if you are forced to brake suddenly.

- Which is the safest passenger seat to fit your child car seat to?

• THE CENTRE REAR PASSENGER SEAT

- If your centre rear passenger seat is fitted with a three point seatbelt system and

• ISOFIX system then you should use it.

- If your centre rear passenger seat does not have a three point seatbelt system and ISOFIXsystem (i.e. no seatbelt at all, or only a lap belt) then you should use the rear left passenger seat or the rear right passenger seat.

WHEN USING THE CHILD CAR SEAT

- WARNING: Make sure that the child car seat is placed somewhere so that rigid items and plastic parts do not become trapped in doors or movable seat units when the seat is in everyday use.

- WARNING: Always use the vehicle's door child safety lock system, if o available, to make it impossible for the child to open the car doors from inside. 5

STORM isofix

GB

• WARNING: Allow the child a break during long car journeys and make sure they don't get out of the car seat unaided and without supervision.
• WARNING: The child car seat must be fitted securely to the passenger seat. Ensure that it is not loose or wobbly after you have fitted it. If it is loose, refit it.
• WARNING: Ensure that the child car seat is secured to the car seat at all times even when not in use.
• WARNING: The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.
• WARNING: Stop the car at regular intervals to check that the child car seat is in the correct position and that both the car seatbelt AND the child car seat harness (if required) are still fastened and latched.
• WARNING: In the event of an emergency it is important to be able to release the child quickly (as defined by British Standards). This means that seat buckle cannot be fully tamper proof and you should actively discourage your child from playing with or using the buckle.
• WARNING: Do not place anything under the child car seat (e.g. a towel or cushion) as this could affect the performance of the seat in an accident.
• WARNING: Avoid winter clothing bundling Bulky clothing can rrect harness tightening. In an accident, the child can slip right out of the extra padding - and thus out of the seat. Let the car warm up or cool down prior to placing your child in there if possible. If your child is cold, place a blanket over the top of the harness.
• WARNING: Make sure to properly secure any loose objects, such as luggage or books, in your car as they may cause injuries in the event of an accident.

SEAT BELT

- WARNING: NEVER use any load bearing contact points other than those described in these instructions or marked on the child car seat.

- WARNING: Ensure that the lap section of the seatbelt or harness is worn low down, so that pelvis is firmly engaged.

- WARNING: Make sure that ALL the passengers in your vehicle have seatbelts fastened, as unrestrained people can be very dangerous to the child in an accident.

- WARNING: NEVER use a seatbelt routing scheme that differs from these instructions.

STORM isofix

GB

• WARNING: The lap and diagonal seatbelt must be used at all times when your child is in the child car seat.
• WARNING: Make sure that there are no twists in the seatbelt.

SUNLIGHT/HOT DAYS

• WARNING: Do not leave your child in the child car seat while parked in direct sunlight or on a hot day.
• WARNING: Do not subject the child car seat to prolonged direct sunlight as this may be dangerous for your child (the metal and plastic fittings could become hot) and may cause the fabric to fade. You can reduce this problem by covering the child car seat with a sheet when not in use.

BACK OF THE SEAT/HEADREST

• WARNING: Ensure that the child car seat is as close as possible to the backrest of the vehicle seat.
• WARNING: REMOVE the head rest of the passenger seat being used if it obstructs the proper installation of the child car seat. REMEMBER to refit the headrest when the child car seat has been removed.

SECOND HAND OR DAMAGED CHILD CAR SEATS AND SEATBELTS

• WARNING: Never buy a second hand child car seat. It may have unseen damage.
• WARNING: The manufacturer only guarantees this product when the original owner uses it.
• WARNING: You MUST replace the child car seat and your vehicles seatbelts if they become badly worn or damaged.
• WARNING: You MUST replace the child car seat if it is involved in an accident it may have unseen damage and may not protect your child as well as it should. At the very least send the child car seat to your retailer for inspection, together with the accident report.

STORM isofix

D

EINFÜHRUNG

Technical diagram of a car seat assembly with numbered parts for identification

STORM isofix

ES

1. Diagonal seatbelt guide
2. Shell (front)
3. Installation sticker
4. Harness yoke
5. Lap belt guide
6. Base
7. Frabric cover
8. Installation bar and lock
9. Lock-off device
10. Instructions storage compartment
11. Lap belt guide
12. Shell (rear)
13. Head cushion
14. Harness shoulder pads
15. Buckle
16. Base cushion
17. Harness adjuster button
18. Harness adjuster strap
19. Shoulder strap height slots
20. Shoulder strap
21. Waist harness
22. Booster cushion insert
23. Crotch harness
24. Recline adjuste handle
25. Tpo Testher
26. Isofix Adjuster Button
27. Isofix Connector

DE

Diagram showing car inspection with checkmarks and documents, including directional arrows and checkmarks for verification.

2

upright reclined

3

Illustration of a banana seat with a leaf and a small arrow pointing right (no text or symbols)

Push ① Push ② ③ ④

Illustration of a car seatbelt mechanism with labeled parts and a magnified inset showing the tool path (no text or symbols present)

4 CLICK B

Diagram showing a device with a belt buckle and its side view of the lock mechanism (no text or symbols)

STORM isofix

4

Press Open A B

2 C D E CLICK

5

Illustration of a child wearing a seatbelt inside a vehicle seat, with directional arrows indicating movement or force (no text or symbols)

Simple line drawing of a banana-shaped object with a leaf and arrow, no text or symbols present

Diagram of a car seat assembly with labeled component A (no text or symbols present)

4

Illustration of a car seat with an arrow indicating direction (no text or symbols)

STORM isofix

5

6 D E

7 F G I H J

Diagram illustrating seatbelt usage and seatbelt positioning with labeled parts (O, E, M) and directional arrows.

STORM isofix

6

1 A B

Illustration of a banana-shaped object with a stem and arrow, no text or symbols present

Illustration of a car seat with a leaf and attached seatbelt (no text or symbols)

3

5 E G G F

6 ① ② ① ② rear view of shell

STORM isofix

6

7 L M K

7

Diagram of a person seated in a car seat with labeled parts A, B, and C indicating different seat positions.

8

Diagram of a car seat assembly with labeled parts A, B, C and a screwdriver for identification

9

1 A B C A

©

Diagram showing two labeled parts (1 and 2) with arrows indicating movement or flow, and a checkmark symbol inside the second part.

② x ①

STORM isofix

9

Medical illustration showing a surgical procedure with catheter placement and needle insertion (no text or labels)

Illustration of a banana-shaped object with a stem and leaf, no text or symbols present

6 CLICK

5

Diagram of a V-shaped mechanical or structural component with two arms and a central base (no text or symbols)

Diagram illustrating car seatbelt usage with labeled parts and steps

STORM isofix

9

9 4 3 H 3 G G

10 J 4 4 3 3 K

11

E

STORM isofix

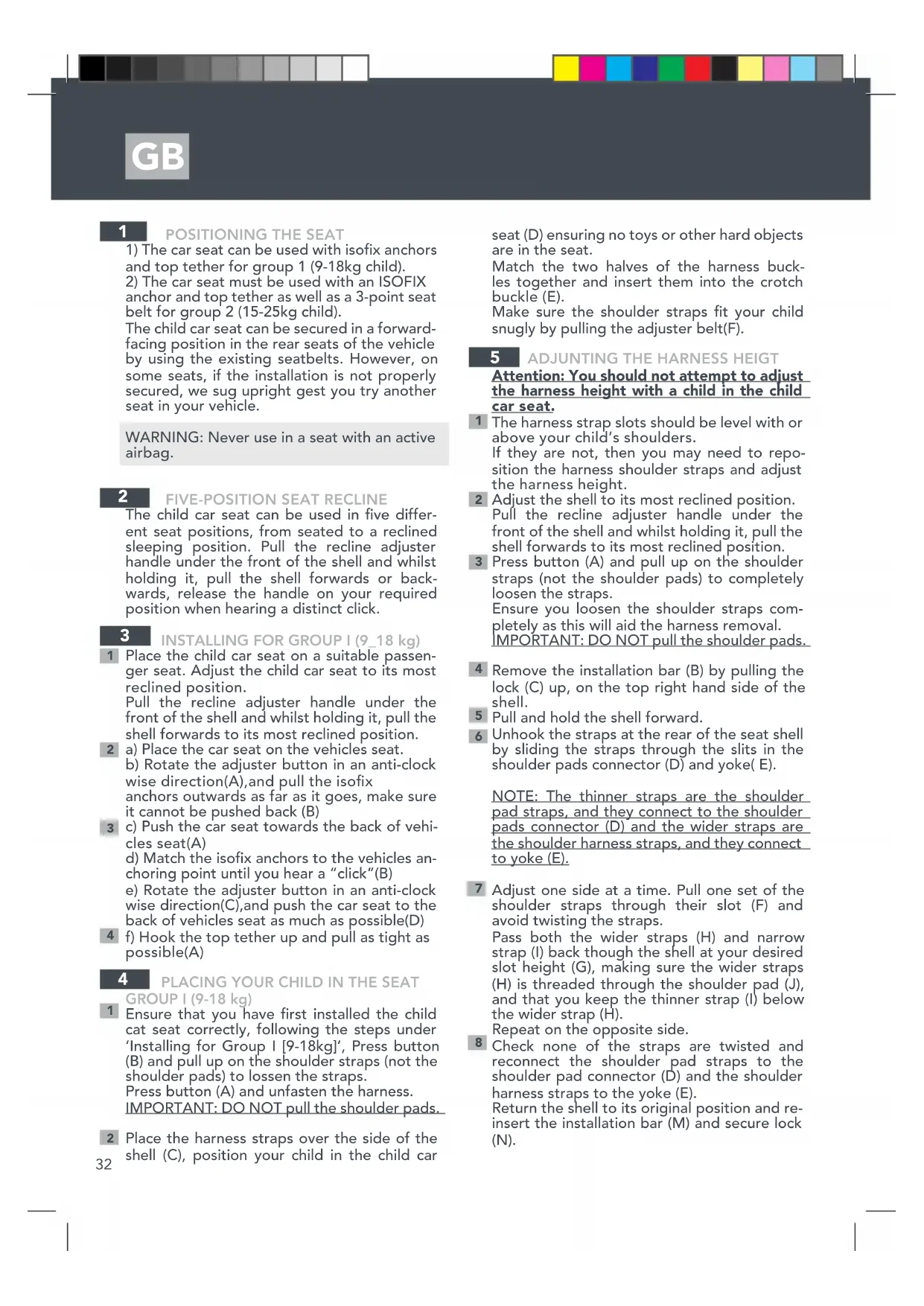

1) The car seat can be used with isofix anchors and top tether for group 1 (9-18kg child). 2) The car seat must be used with an ISOFIX anchor and top tether as well as a 3-point seat belt for group 2 (15-25kg child).

The child car seat can be secured in a forward-facing position in the rear seats of the vehicle by using the existing seatbelts. However, on some seats, if the installation is not properly secured, we sug upright gest you try another seat in your vehicle.

WARNING: Never use in a seat with an active airbag.

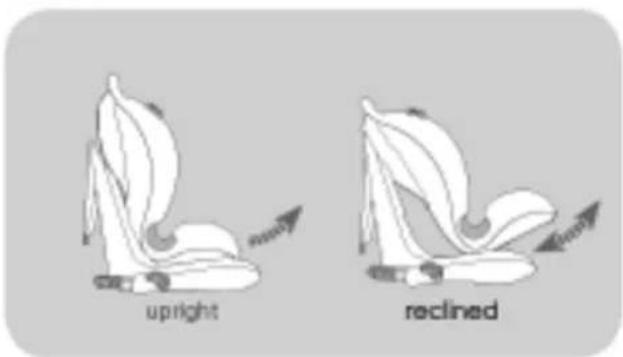

2 FIVE-POSITION SEAT RECLINE

The child car seat can be used in five different seat positions, from seated to a reclined sleeping position. Pull the recline adjuster handle under the front of the shell and whilst holding it, pull the shell forwards or backwards, release the handle on your required position when hearing a distinct click.

3 INSTALLING FOR GROUP I (9\_18 kg)

1 Place the child car seat on a suitable passenger seat. Adjust the child car seat to its most reclined position. Pull the recline adjuster handle under the front of the shell and whilst holding it, pull the shell forwards to its most reclined position.

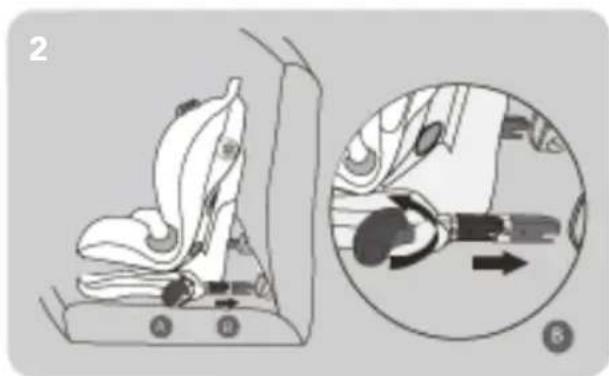

2 a) Place the car seat on the vehicles seat. b) Rotate the adjuster button in an anti-clock wise direction(A), and pull the isofix anchors outwards as far as it goes, make sure it cannot be pushed back (B)

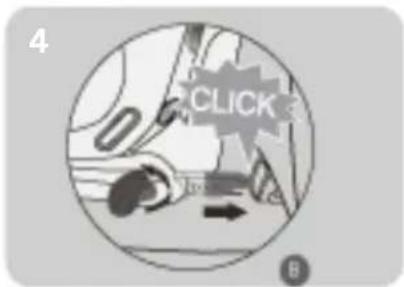

3 c) Push the car seat towards the back of vehicles seat(A) d) Match the isofix anchors to the vehicles anchoring point until you hear a "click"(B) e) Rotate the adjuster button in an anti-clock wise direction(C), and push the car seat to the back of vehicles seat as much as possible(D) 4 f) Hook the top tether up and pull as tight as possible(A)

4 PLACING YOUR CHILD IN THE SEAT

GROUP I (9-18 kg)

1 Ensure that you have first installed the child cat seat correctly, following the steps under 'Installing for Group I [9-18kg]', Press button (B) and pull up on the shoulder straps (not the shoulder pads) to lossen the straps. Press button (A) and unfasten the harness. IMPORTANT: DO NOT pull the shoulder pads.

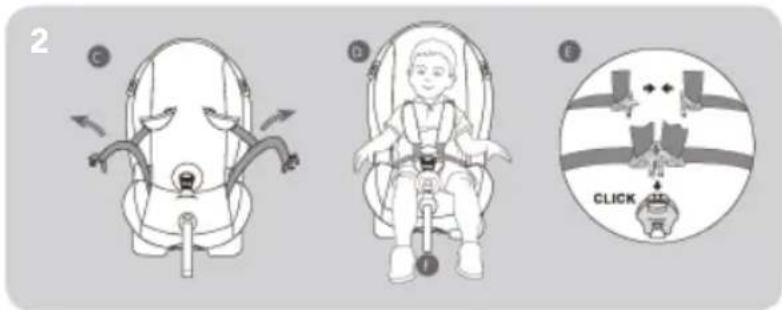

2 Place the harness straps over the side of the shell (C), position your child in the child car

seat (D) ensuring no toys or other hard objects are in the seat.

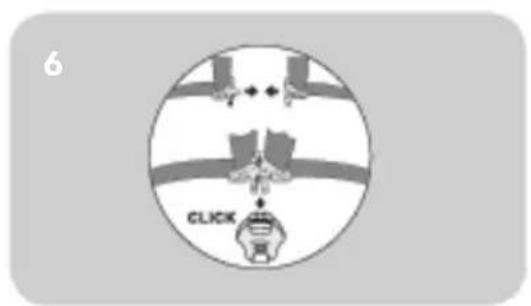

Match the two halves of the harness buckles together and insert them into the crotch buckle (E).

Make sure the shoulder straps fit your child snugly by pulling the adjuster belt(F).

5 ADJUNTING THE HARNESS HEIGHT

Attention: You should not attempt to adjust the harness height with a child in the child car seat.

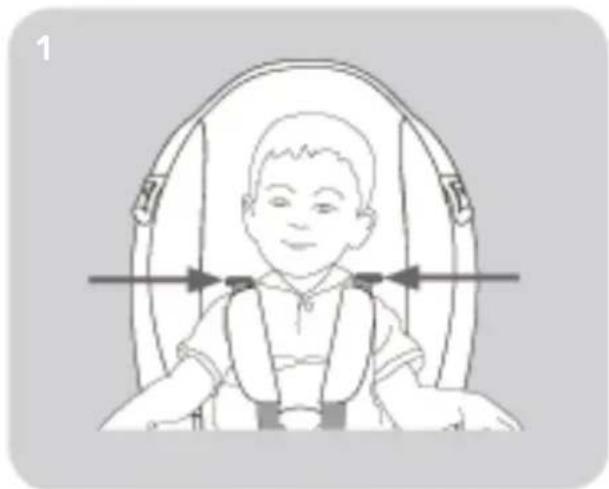

1 The harness strap slots should be level with or above your child's shoulders. If they are not, then you may need to reposition the harness shoulder straps and adjust the harness height.

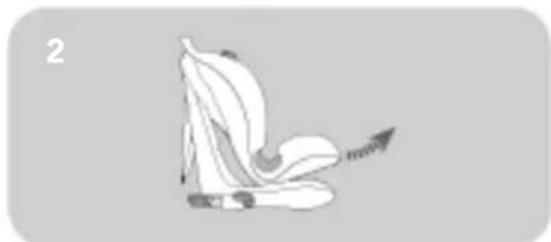

2 Adjust the shell to its most reclined position. Pull the recline adjuster handle under the front of the shell and whilst holding it, pull the shell forwards to its most reclined position.

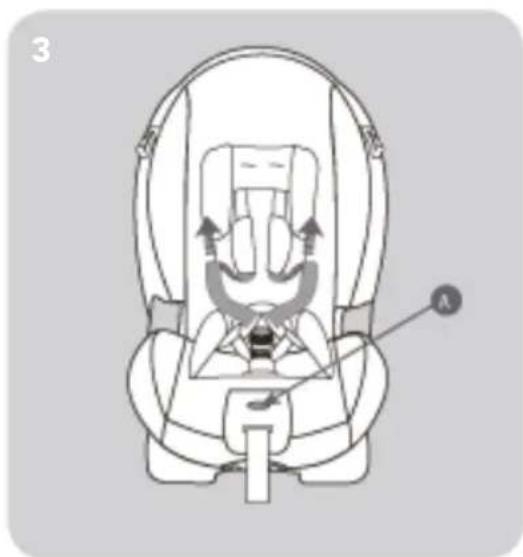

3 Press button (A) and pull up on the shoulder straps (not the shoulder pads) to completely loosen the straps. Ensure you loosen the shoulder straps completely as this will aid the harness removal. IMPORTANT: DO NOT pull the shoulder pads.

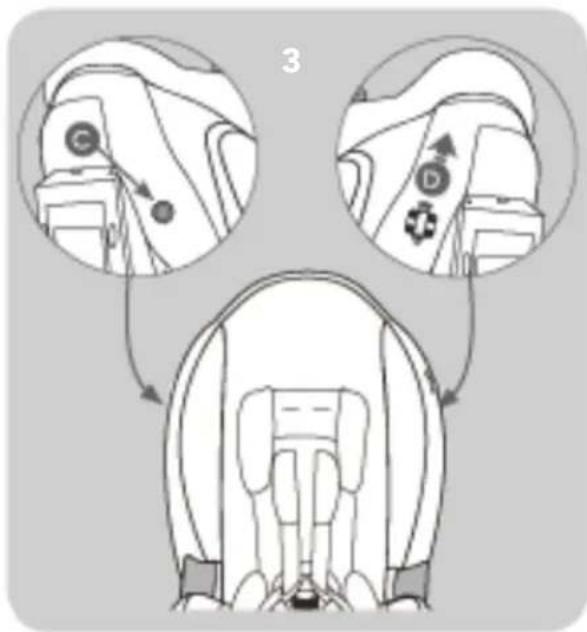

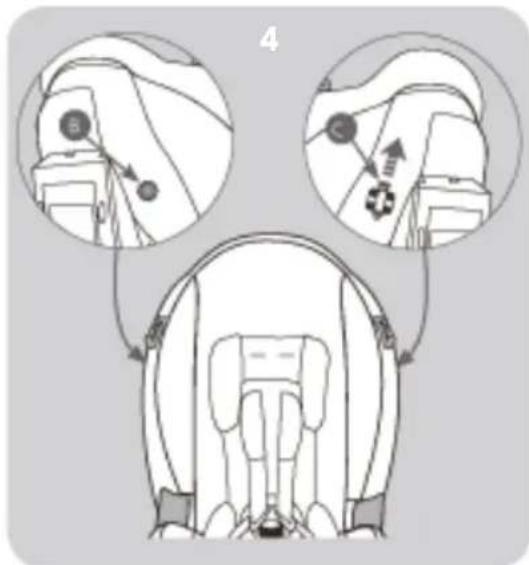

4 Remove the installation bar (B) by pulling the lock (C) up, on the top right hand side of the shell.

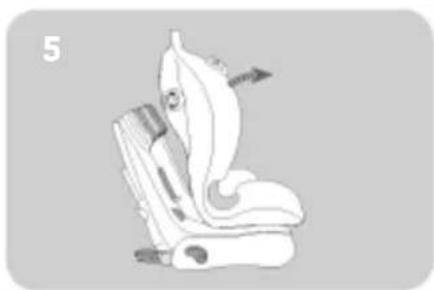

5 Pull and hold the shell forward.

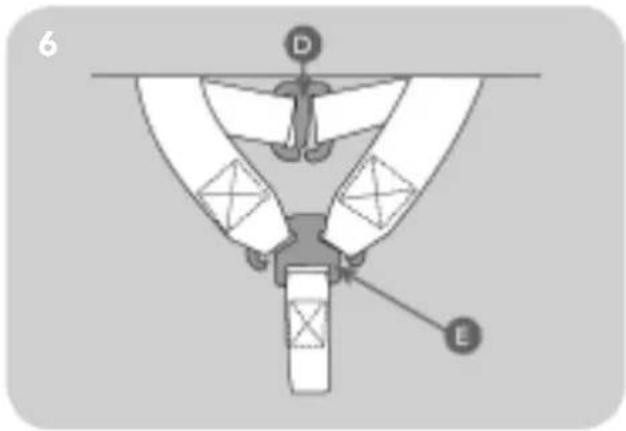

6 Unhook the straps at the rear of the seat shell by sliding the straps through the slits in the shoulder pads connector (D) and yoke( E).

NOTE: The thinner straps are the shoulder pad straps, and they connect to the shoulder pads connector (D) and the wider straps are the shoulder harness straps, and they connect to yoke (E).

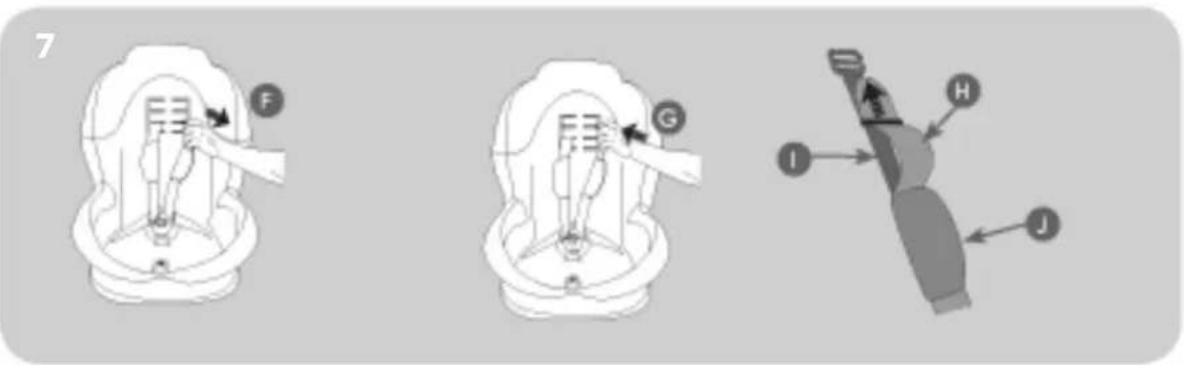

7 Adjust one side at a time. Pull one set of the shoulder straps through their slot (F) and avoid twisting the straps.

Pass both the wider straps (H) and narrow strap (I) back though the shell at your desired slot height (G), making sure the wider straps (H) is threaded through the shoulder pad (J), and that you keep the thinner strap (I) below the wider strap (H).

Repeat on the opposite side.

8 Check none of the straps are twisted and reconnect the shoulder pad straps to the shoulder pad connector (D) and the shoulder harness straps to the yoke (E). Return the shell to its original position and re-insert the installation bar (M) and secure lock (N).

INSTRUCCIONES • INSTRUCTIONS GEBRAUCHSANWEISUNG • INSTRUCTIONS INSTRUÇÕES • ISTRUZIONI

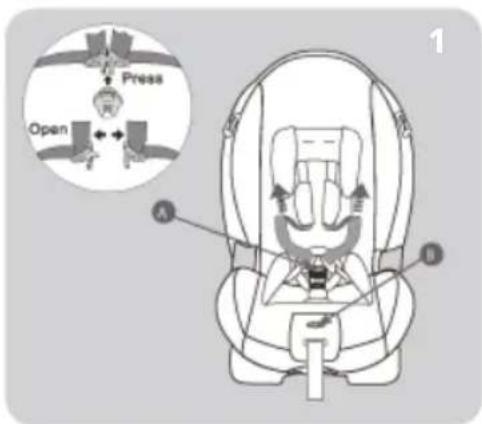

6 CONVERTING FOR CHILDREN IN GROUP II (15-25 kg)

1 It is recommended that you use the 5-point harness for as long as possible.

Try removing the booster cushion as this could allow you to use the seat in group I configuration for longer.

When your child has outgrown the group I [9-18kg] configuration or you wish to use the seat for a child 15-25kg, then you will need to convert the child car seat to group II mode.

You will need to remove the child car seat's integral 5-point harness.

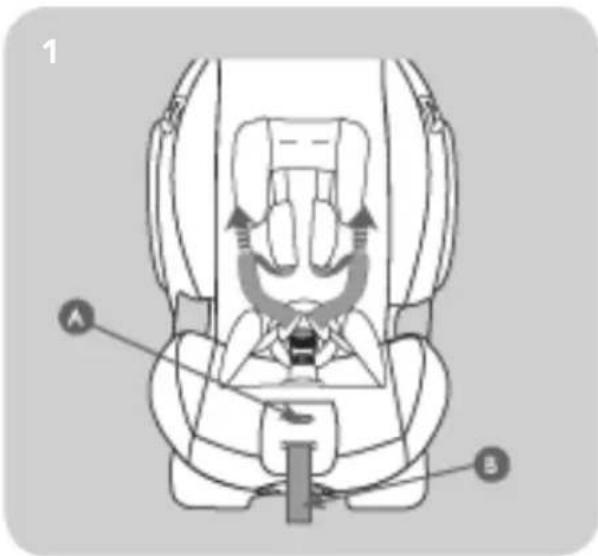

Press button (A) and pull up on the shoulder straps (not the shoulder pads) to completely loosen the shoulder straps much as possible.

IMPORTANT: DO NOT pull the shoulder pads.

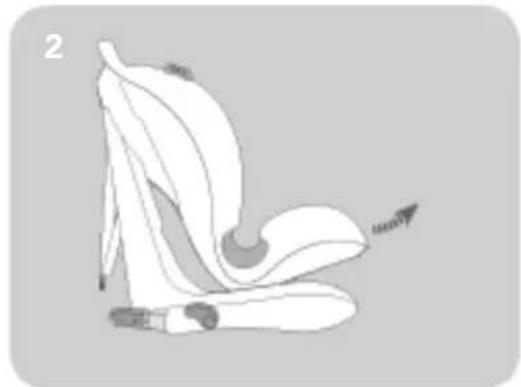

2 Adjust the shell to its most reclined position. Pull the recline adjuster handle under the front of the shell and whilst holding it, pull the shell forwards to its most reclined position.

3 Remove the installation bar (C) by pulling the lock (D) up, on the top right hand side of the shell.

4 Pull and hold the shell forward.

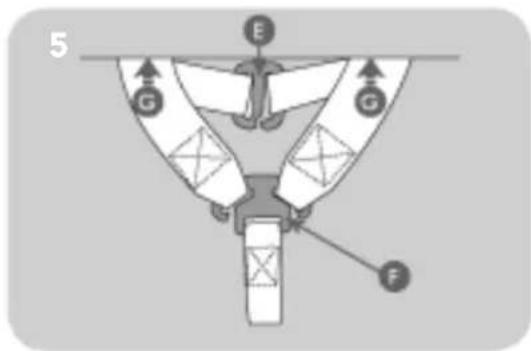

5 Unhook the shoulder pad straps from shoulder pad connector (E). Unhook the shoulder harness straps from yoke (F).

Pass the shoulder straps through the slots in the back of the shell (G).

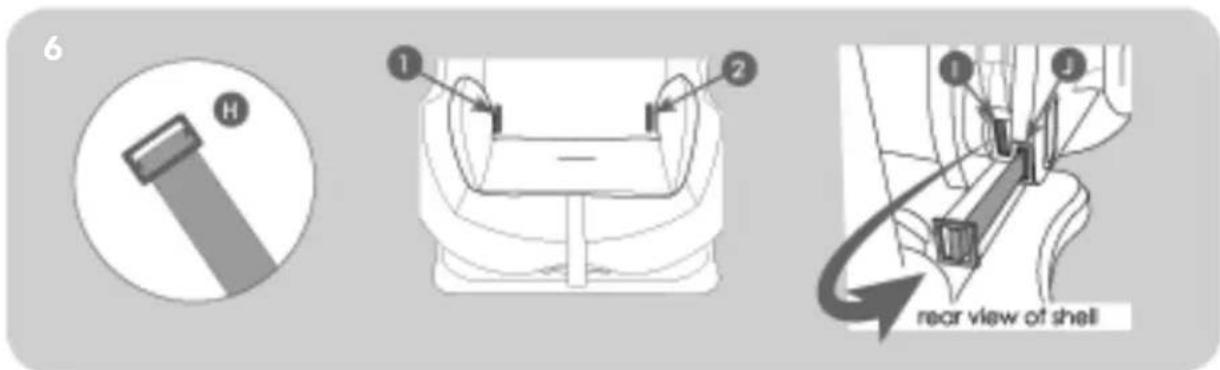

6 Locate the two metal retainer buckles (H) under the seat cover at points (1) and (2).

Pass the metal buckles on the waist harness from the front of the shell, through the inner slots (I) on the back of the shell and back out the outer slots (J), to the front to remove the harness.

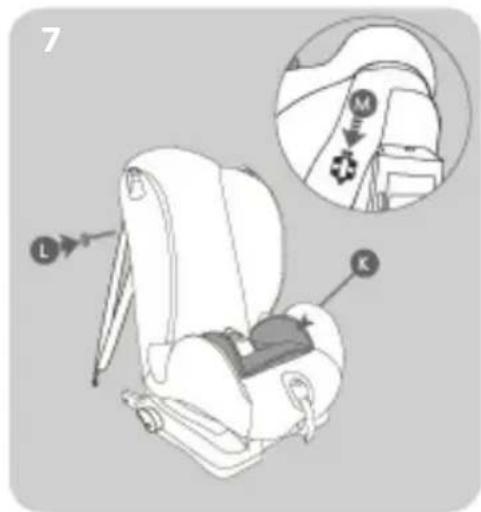

7 If your child does not need the booster cushion (K) if can be removed.

To remove the crotch strap, ensure the child car seat is in a fully reclined position.

Push the crotch strap down through the slot and hold it there, allowing the strap to slacken on the underside of the child car seat. Whilst holding the strap locate the metal retainer buckle underneath the car seat shell and pass it through the bottom of the seat and remove the crotch strap.

Return the shell to its original position and re-insert the installation bar (L) and secure the lock (M).

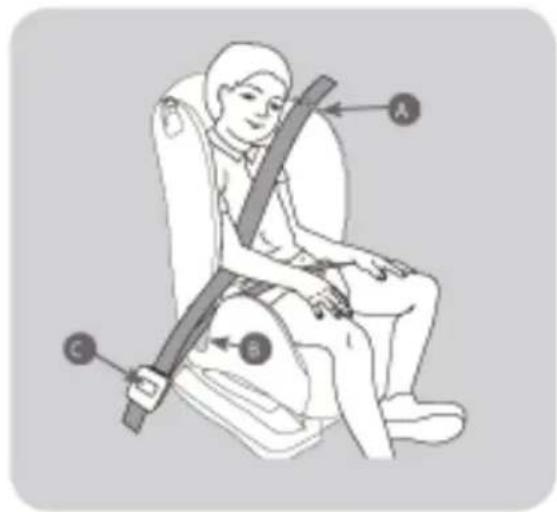

7 INSTALING FOR GROUP II (15-25 kg)

Ensure that you have first removed the child car seat's integral 5-point harness, following the steps under 'Removing the 5-point harness'.

Position your child in the child car seat, place the diagonal section of the seatbelt through the

diagonal seatbelt guide (A) and the waist belt across the child's lap and through belt guide (B). Finally fasten the seatbelt buckle (C).

WARNING: The child car seat should always be buckled in and secured, whether a child is seated in it or not!

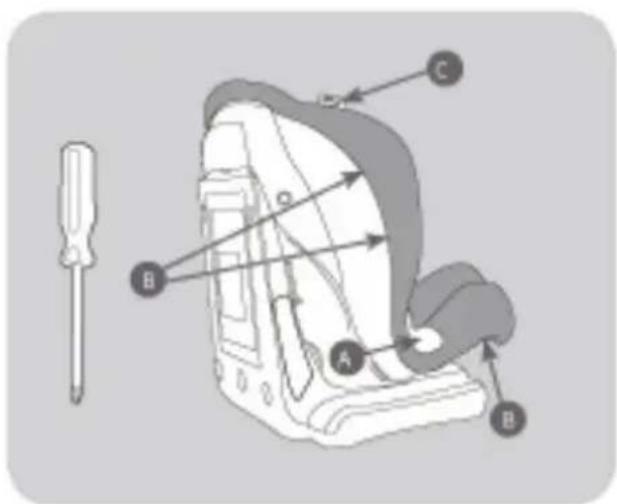

8 REMOVING THE SEAT COVER

The seat cover is a safety feature. Never use the child car seat without its cover.

The seat covers can be removed for cleaning (see "Maintenance and cleaning" p18). You will need a phillips screwdriver.

If not already removed then remove the harness straps, crotch strap, head cushion and base cushion (see 'Converting for children in group II [15-25kg]', page 11-13).

Turn the child car seat on its side and using a Phillips screwdriver, unscrew the two screws on each side of the shell holding the belt guides (A) in place. Put the belt guides and screws safely to one side for later.

Remove the two small side covers (B) by grasing the elastic band and pulling each cover off.

The main cover is held in place by a series of hooks(C) located on the back and underside of the shell. Unhook the cover's elastic from the hooks. Work the cover from under the strap hooks (D) and remove.

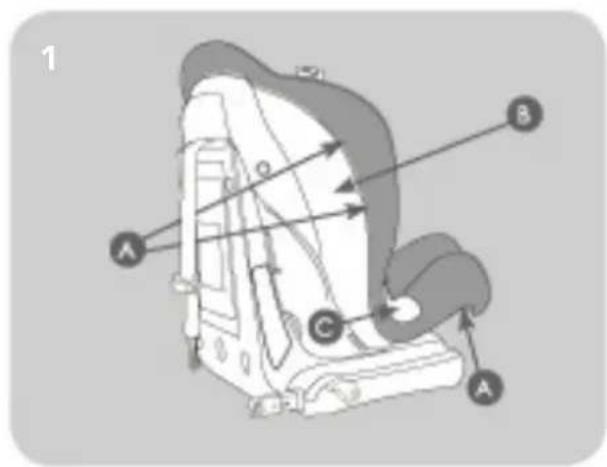

9 REPLACING THE SEAT COVER AND HARNESS

1 Place the cover over the child car seat and stretch the elastic over the shell, taking care as you work the cover over and around the plastic parts. Once in place on the back and underside of the shell.

Stretch the two side covers (B) back over the side panels.

2 The belt guides have a narrow point (1) and a wider point (2).

Reattach the belt guides (C) ensuring they are put on correctly shown.

6 Reattach the two screws on each side.

Attention: Be careful to not over-tighten the screws as this could cause damage.

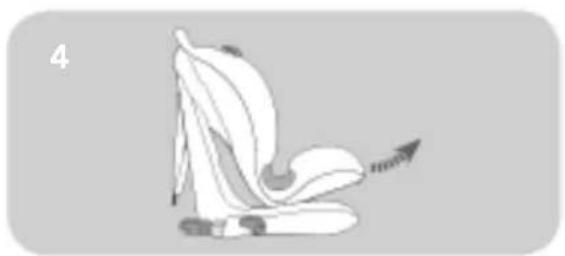

4 Adjust the shell to its most reclined position.

Pull the recline adjuster handle under the front

GB

of the shell and whilst holding it, pull the shell forwards to its most reclined position.

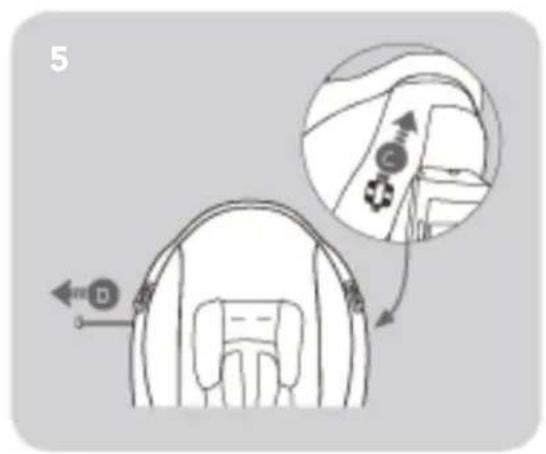

5 Unlock the lock (D), remove the installation bar (E) and pull the top of the shell forwarders to access the space behind the shell more easily.

6 Take the two harness shoulder straps with the buckle clips and crotch strap and match the buckle tongue sections together and insert into the buckle.

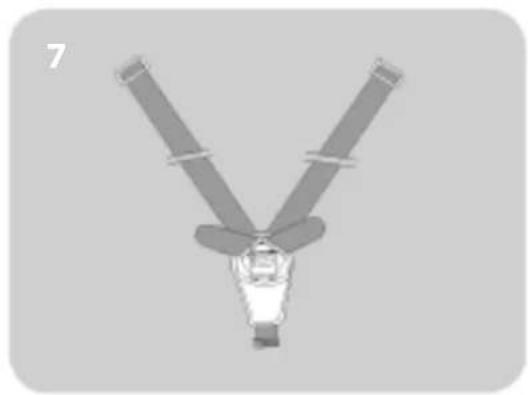

7 Take the buckle connected you will have something similar to the illustration opposite.

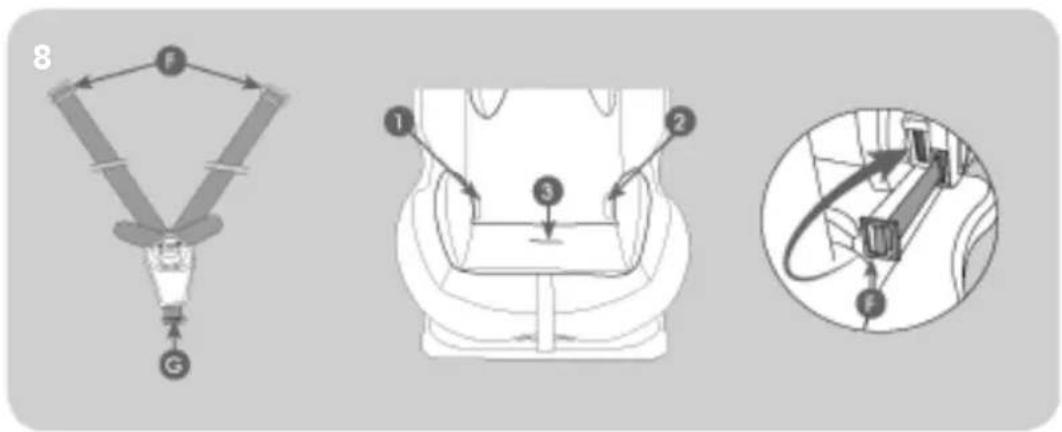

8 Insert waist strap retainer buckles (F) through the two slots (1) and (2) on the cover and out through the outer slots on the back of the shell then back through the inner slots. Insert crotch strap retainer buckle (G) through slot (3).

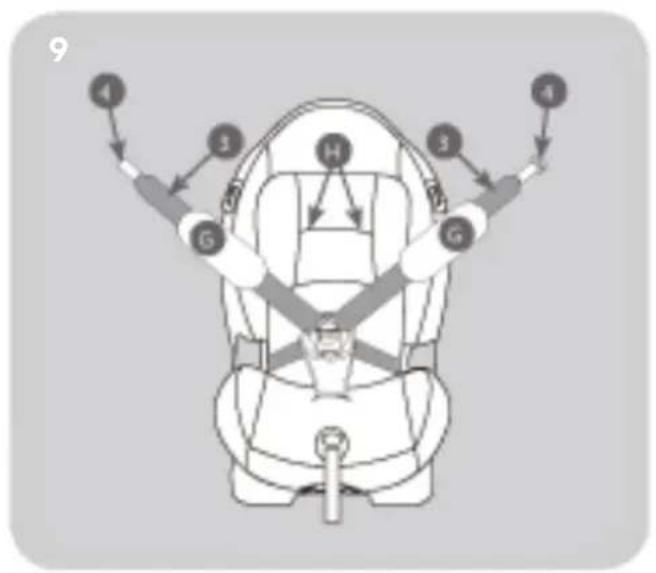

9 Thread strap ends (3) through the shoulder pads (H). Thread strap ends (3) and (4) through slots

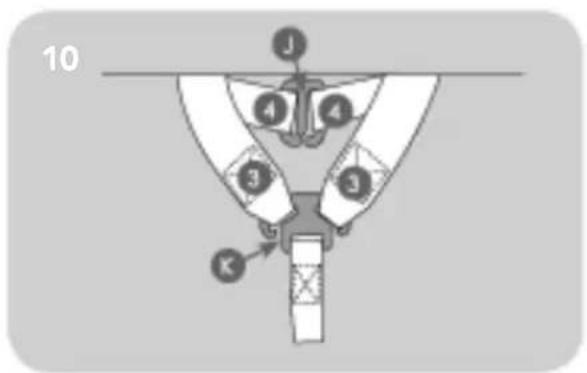

10 Connect the shoulder pad straps (4) to the shoulder pad connector (J), connect the shoulder harness straps (3) to the yoke (K).

11 Return the shell to its original position and reinsert the installation bar (L) and secure lock (M).

MAINTENANCE AND CLEANING STORAGE

1) Store this child car seat in a safe place when not in use.

2) DO NOT place heavy objects on top of it.

3) Always store the child car seat in a dry environment.

4) DO NOT store the child car seat near a direct

heat source such as a radiator.

COVERS

1) The seat cover is easily removable and should be handwashed with a PH neutral soap and cold water.

2) DO not press, iron, dry clean, tumble dry or wring the cover.

3) Do not use solvents, caustic or abrasive cleaning material.

4) Dry flat, aways from direct heat and sunlight.

5) If the seat cover needs to be replace and is under warranty-contact your retailer.

PLASTIC / METAL PARTS

1) Wipe clean using a mild soap and warm water.

2) You must not remove, dismantle or alter any part of the seat shell

3) You must not oil or lubricate any part of the seat shell.

INSPECTION

1) Check your child car seat regularly for wear and tear.

2) The child car set may have a slight rattle when not in use, this is normal. If in any doubt, contact your retailer immediately.

INSTRUCCIONES • INSTRUCTIONS GEBRAUCHSANWEISUNG • INSTRUCTIONS INSTRUÇÕES • ISTRUZIONI
