eSC-Hi20 - Roller Be Cool - Free user manual and instructions

Product Type	Inline Rollerblades
Brand	Be Cool
Model	eSC-Hi20
Skill Level	Beginner to Intermediate
Frame Material	Aluminum Alloy
Wheel Size	80 mm
Wheel Hardness	82A
Bearing Rating	ABEC-7
Brake Type	Heel Brake (Removable)
Closure System	Laces + Buckle + Velcro Strap
Boot Type	Hard Shell
Liner	Breathable, Padded
Recommended Use	Recreational, Fitness
Weight (per skate)	Approx. 1.5 kg
Max User Weight	100 kg (220 lbs)
Size Range	EU 36-46 (US 4-12)
Adjustable Size	Yes, up to 4 sizes
Maintenance	Regular cleaning, bearing lubrication
Safety Features	Heel brake, secure closure
Spare Parts Available	Wheels, bearings, brakes, straps

Frequently Asked Questions - eSC-Hi20 Be Cool

How do I determine the correct size for Be Cool eSC-Hi20 rollerblades?

Measure your foot length in cm and compare with the size chart in the manual. The skates are adjustable up to 4 sizes, so choose the range that fits your measurement.

Can I replace the wheels on my eSC-Hi20 skates?

Yes, the wheels are replaceable. Use 80 mm wheels with a hardness of 82A. Ensure you also check the bearing compatibility (standard 608 bearings).

How often should I clean and lubricate the bearings?

It is recommended to clean and lubricate bearings every 10-20 hours of use, or more often if skating in wet or dusty conditions.

Does the eSC-Hi20 have a brake?

Yes, it comes with a removable heel brake. You can attach or detach it depending on your preference.

What is the maximum user weight for these skates?

The maximum recommended user weight is 100 kg (220 lbs) for safe and optimal performance.

Are the skates suitable for outdoor use?

Yes, they are designed for recreational and fitness skating on paved surfaces. Avoid rough terrain to prevent wheel damage.

How do I adjust the size of my eSC-Hi20 skates?

Locate the size adjustment button or lever at the back of the boot. Press and slide to the desired size. Ensure it clicks into place.

Can I buy replacement parts like straps or buckles?

Yes, spare parts including straps, buckles, wheels, bearings, and brakes are available from authorized Be Cool dealers.

How do I properly clean my rollerblades?

Wipe the boot with a damp cloth. Remove wheels and bearings for thorough cleaning. Use a degreaser for bearings and relubricate after drying.

What type of bearings are used in the eSC-Hi20?

The skates come with ABEC-7 rated bearings, which offer good speed and durability for recreational skating.

USER MANUAL eSC-Hi20 Be Cool

Line drawing of a fully electric scooter with visible wheels and front-mounted sensor (no text or symbols)

HERZLICHEN GLÜCKWUNSCH!

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

www.becool.at/downloads

Line drawing of a multi-wheeled electric scooter with extended suspension and wheels (no text or symbols)

3.2 Zubehör

1x Ladegerät

4x Schrauben

Line drawing of an electric scooter with a close-up inset showing the handle mechanism (no text or symbols)

Line drawing of a scooter with an inset showing the lever mechanism (no text or symbols present)

Technical line drawing of a bicycle frame with lever and seat (no text or symbols)

Line drawing of a two-wheeled electric scooter with wheels and suspension (no text or symbols)

Apple

Android

Side-view illustration of a person wearing a helmet and holding a device (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Illustration of a person riding a scooter with motion arrows and a circular diagram showing mechanical components (no text or symbols)

Technical line drawing of a bicycle's front wheel assembly (no text or symbols)

Illustration of a person using a scooter to interact with a hand, showing motion and safety symbols (no text or labels)

Three human figures in safety gear standing with curved arrows indicating motion or movement (no text or symbols)

Line drawing of a person standing in the rain with a scooter underneath, no text or symbols present

Line drawing of a person riding a scooter, no text or symbols present

Line drawing of a person standing in front of a door, viewed from the side (no text or symbols)

Simple line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person using a scooter with a hand gesture diagram nearby (no text or symbols)

Simple line drawing of a human figure standing on a rock, no text or symbols present

Line drawing of a person riding a motorcycle (no text or symbols)

Line drawing of a person riding a scooter with a helmet (no text or symbols)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Three identical line drawings of a person standing with wheels, showing motion direction arrows (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of two people riding scooters, one standing and one seated, both wearing helmets (no text or symbols)

Line drawing of a person riding a scooter with one hand raised, no text or symbols present

Two line drawings of a person performing a jump on a scooter, one standing and one riding, both with motion lines indicating jumps (no text or symbols)

Two identical line drawings of a person using a shared mobility device, viewed from the side (no text or symbols)

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

1. SPECIAL SAFETY INSTRUCTIONS

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE OPERATING OR SERVICING YOUR SCOOTER. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE.

The exclamation mark in the triangle indicates to the user that there are important instructions or explanations regarding the operation and/or maintenance of the device. Please read the

Read the operating instructions carefully before using the appliance.

WARNING:

To reduce the risk of electric shock, remove

Do not open the housing of this device. There are no

Parts that can be repaired by the user. Therefore, do not attempt to repair or maintain internal parts yourself.

Leave repairs to qualified service personnel.

KICK-STARTER

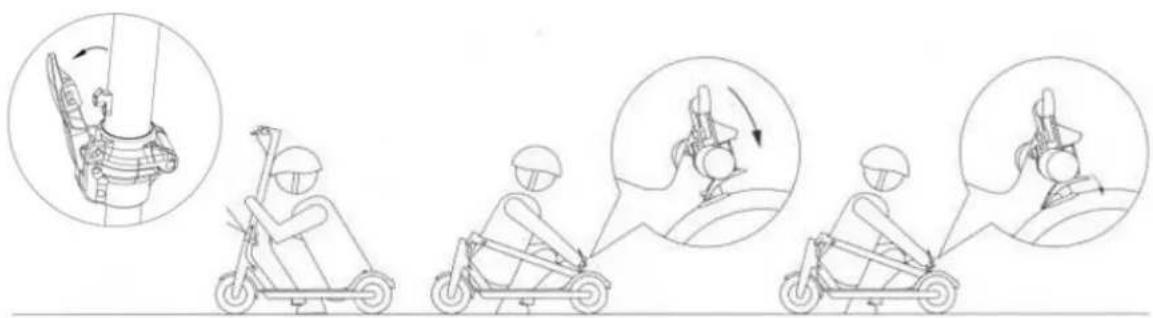

Please note that the scooter has a kick-start. This means that you first have to accelerate to get going and only then can you accelerate using the throttle lever.

ATTENTION!

Do not ride in rain or wet conditions!

Do not use for jumps or stunts!

Do not use on slippery surfaces!

Do not use under the influence of drugs or alcohol! Avoid paths with obstacles such as branches, garbage or stones!

Avoid steep inclines!

Do not drive faster than recommended!

Do not load the device more than permitted!

ATTENTION!

Persons with visual, balance, coordination, reflex, muscle or bone problems MUST NOT use this vehicle!

ATTENTION!

Children under the age of 10 are NOT allowed to ride the scooter! Children between the ages of 10 and 12 may only use the scooter if they have a cycling license and

are accompanied by a supervisor who is at least 16 years old - however detailed instructions on how to use the scooter in a safe manner must be provided beforehand and the existing dangers must be described.

Helmets are also compulsory for children up to the age of 12.

2. GENERAL SAFETY INSTRUCTIONS

- Carefully remove the packaging and make sure that the scooter is not damaged.

- Do not use the device if it is visibly damaged.

- We recommend wearing qualified protective clothing such as helmets, hand and knee protectors, etc., as required for comparable sports.

- Before you get on the scooter, make sure that you have positioned the scooter on a level surface and that the scooter is switched on.

- Do not open or modify the scooter, otherwise the manufacturer's warranty will be invalidated and malfunctions may occur which could lead to serious physical injury or even death.

- Only ride the scooter in places where riding the scooter is expressly permitted. Only use the scooter outside public places and in places where you do not pose a danger to yourself others or other people's property.

- Never use the scooter under the influence of alcohol and/or drugs.

- Never use the scooter if you are overtired or unfocused. Always be alert and recognize a dangerous situation at an early stage.

- Avoid sudden changes of direction, especially at high altitudes. Speeds.

- Make sure that the charging socket cover is always in place.

- The scooter is subject to protection class IPX4 and is therefore only splash-proof, NOT WATERPROOF. Avoid riding through water or rain, as this could damage your scooter and any resulting damage is excluded from the warranty.

- Do not ride through puddles, mud, sand, stones, gravel, grit or on unsuitable, rough terrain. On uneven surfaces, it is advisable to carry the scooter until a suitable riding surface is found.

The scooter is not suitable for "OFF-Road" use.

- Do not ride in bad weather such as snow, rain, hail, icy roads or in extreme heat - DANGE OF CRASH!

- Avoid driving near swimming pools or other large pools of water.

- Prevent riding over obstacles, bumps that are higher than 1.5 cm - even if you are an experienced scooter rider.

- Do not talk on the phone or text while driving. Drive attentively and be aware of your surroundings: road conditions, people, objects, etc.

- Do not ride the scooter in places with a lot of people. Ride the scooter with the utmost care and pay attention to people and objects in the vicinity.

- Do not ride up and down steep hills ( >15^ ). On gentle hills and terrain with slight bumps, it helps to bend your knees slightly while riding to absorb shocks and vibrations. This allows you to maintain your balance on slightly uneven terrain up to a certain intensity.

- Never attempt to ride with several people at the same time. The scooter is only suitable for riding with a single person.

- Do not transport any objects while driving.

- People with balance problems should not ride the scooter.

BE COOL

• Do not ride the scooter during pregnancy.
• Please note that the braking distance increases proportionally at higher speeds.
• Never get on or off with a jump. Do not attempt any stunts or tricks with the scooter.
  • Take particular care when driving in the dark or in poorly lit areas.
• Do not exceed or fall below the specified weight limit of the scooter.
• Avoid driving in dangerous places to prevent fire and explosion accidents caused by, for example: flammable gases, vapors, liquids, dust, fibers.
• Comply with all national and local laws that apply to your region with regard to the use of your scooter.
• Drive on sight and always be ready to brake.
  • The use of any other charger may result in damage to the device and other potential risks.
• Avoid discharging the battery completely. It is best to charge the battery when there is still a certain residual capacity (at least 1 bar on the display). This will extend the service life of the battery.
• Place the battery away from fire or corrosive environments while charging as it is classified as flammable and explosive.
• Do not attempt to open the battery housing. If you notice any damage, please contact the Service Center.
• Do not charge the device in direct sunlight or in the immediate vicinity of naked flames or open flames.
  • The scooter must not be used while charging.

Riding the scooter is at your own risk and responsibility.

Not all hazards that could lead to injury or even death can be covered in this manual.

ATTENTION!

Note on deep discharge of the battery

The service life and performance of a battery depends on its age, care and how often it has been used.

Compared to other battery models, lithium-ion batteries have a very low self-discharge rate. Charge at least 80% of the capacity if the battery is not used for more than 30 days. It is better to charge the battery to 100% every 60-90 days to protect the function of the battery.

Please note that a deeply discharged battery is irreparably damaged and must therefore be replaced at your expense, which is why the battery should never be fully discharged during operation!

RECYCLING

The packaging materials can be recycled. It is therefore recommended to dispose of them in sorted waste.

BE COOL

DISPOSAL

The "crossed-out dustbin" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally harmful substances. Therefore, do not dispose of them in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. This will help to protect resources and the environment. For further information, please contact your dealer or the local authorities.

DECLARATION OF CONFORMITY

We hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link: www.becool.at/downloads

Errors and technical changes excepted.

www.becool.at

BE COOL

3. CONTENTS

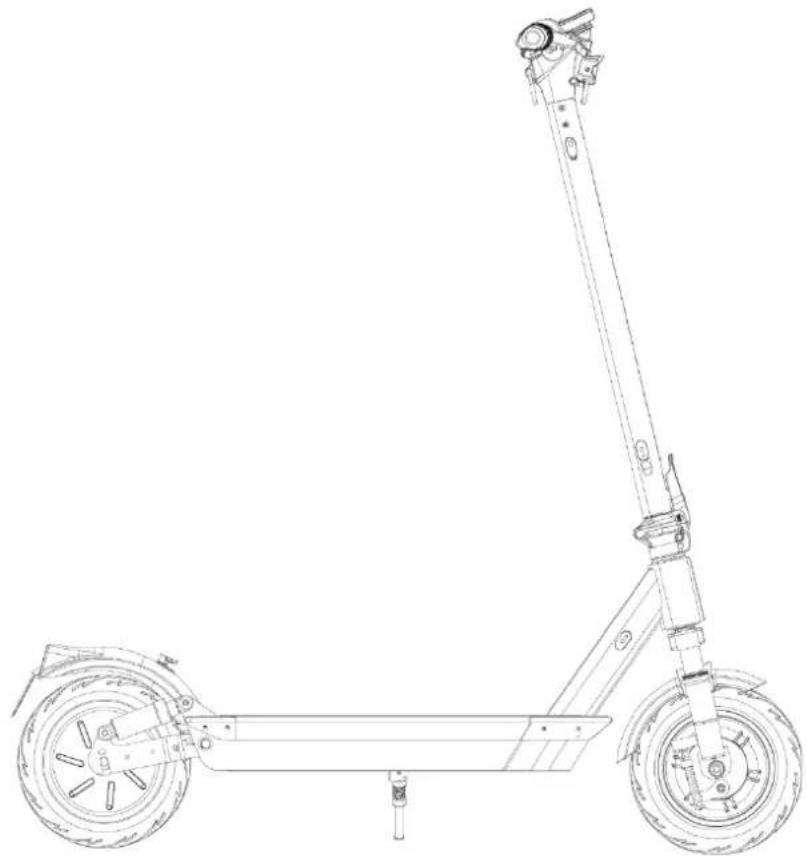

3.1 E-scooter

Line drawing of a multi-wheeled electric scooter with extended suspension and wheels (no text or symbols)

3.2 Accessories

1x charger 4x screws 1x hexagon wrench

If anything is missing, please contact the dealer in good time!

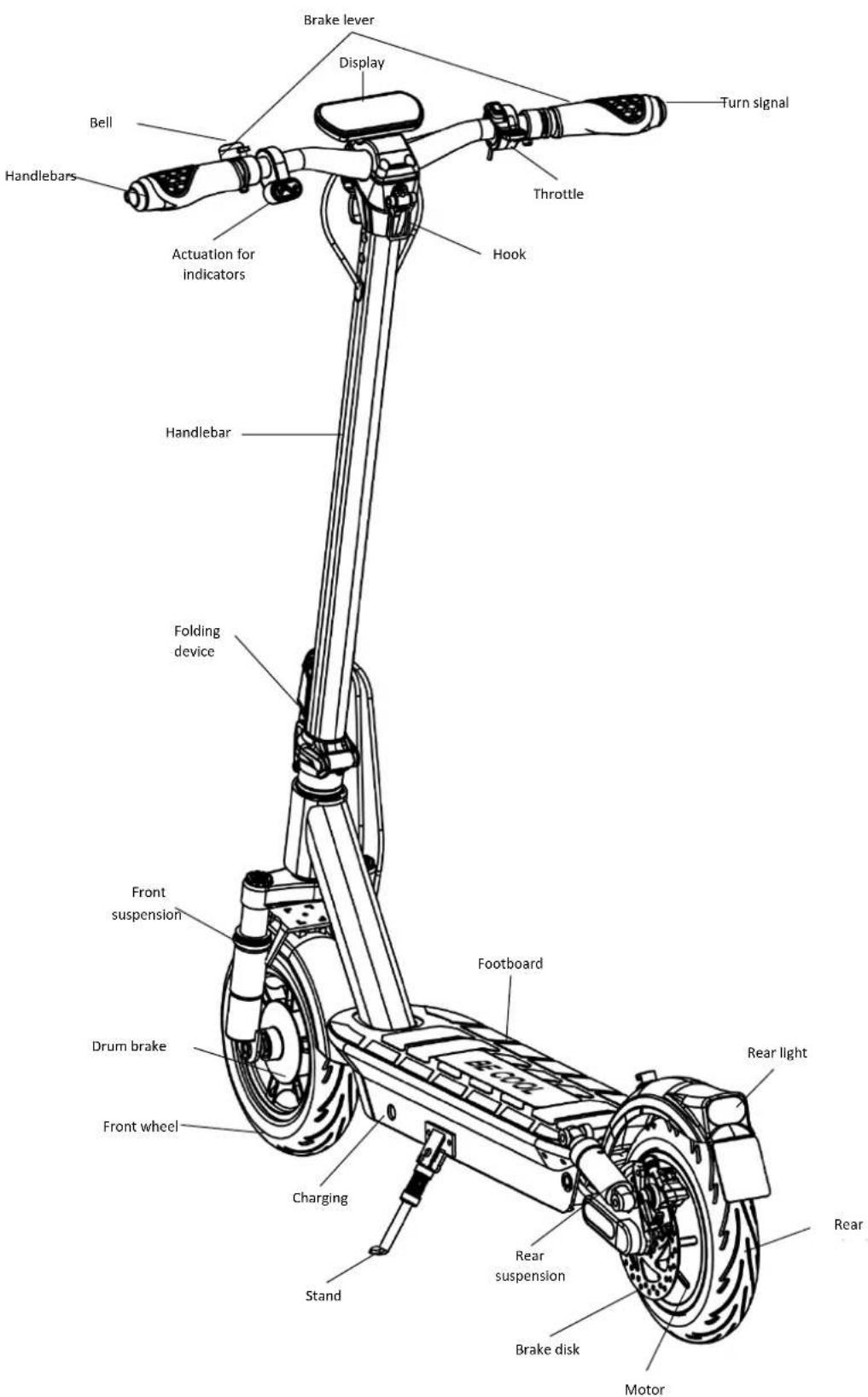

4. INTRODUCTION OF THE PROD

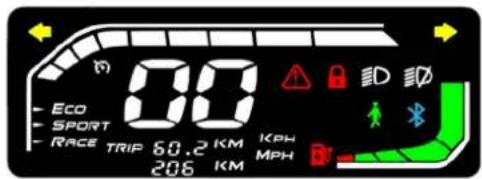

5. display & operation

Speed modes

Maximum speed: 5 km/h Maximum speed: 15 km/h Maximum speed: 20 km/h Maximum speed: 25 km/h

The maximum speed of the low, medium and high speed modes can also be optionally adjusted via the app.

	Indicates the remaining battery level with 5 bars, with all bars lighting up corresponding to 100% power. 4 bars indicate the battery level between 100% and 90%, and 3 bars indicate the power between 90% and 70%. When the battery is completely empty, 1 bar still flashes. You should then charge the e-scooter as quickly as possible. The e-scooter must never be left standing, stored or winterized for several days with a completely empty battery.You must always fully charge the battery before you leave the e-scooter standing, store it or leave it for the winter, as otherwise the built-in battery will be deeply discharged and the battery will therefore be defective and such a defect is not covered by the warranty!
	The e-scooter has an integrated Bluetooth function to connect the e-scooter to your smartphone and the associated "Be Cool" app. The smartphone is connected to the e-scooter directly via the app and not via the settings on your smartphone. The Bluetooth symbol lights up when the connection with your smartphone is successful and established.There is no pairing mode, the e-scooter is always and automatically in pairing mode.
	This e-scooter has a cruise control function which can be activated or deactivated. If you have activated the cruise control function, the cruise control starts automatically when the throttle is held in the same position for 5 seconds. When cruise control is active, the e-scooter maintains the set speed automatically and it is no longer necessary to hold the throttle. Cruise control deactivates automatically when the throttle is pressed again or the brake system is activated.The cruise control function can be activated or deactivated via the app.
	Indicates whether the lighting is switched on or off.
Turn signal blinker	Press the button to activate the respective direction display (left or right). The display indicates that the blinker is activated in the direction shown.
	Displays the current driving speed.Please note:If your e-scooter suddenly displays incorrect speeds (e.g. 15 instead of 25 km/h) then you have most likely changed the speed display to mp/h.
205 KM Mileage	Shows you the total kilometers that have been covered with your e-scooter.

The illustrations are for illustrative purposes only. It is possible that some illustrations may differ from the actual product.

BE COOL

On/off button

When switched off, press for 3 seconds to switch the e-scooter on.

When switched on, press for 3 seconds to switch the e-scooter off.

Turn signal

Press the turn signal to indicate the desired direction of travel.

Switching light on/off

Press the on/off button once to switch the light on or off. Alternatively, you can also control the light via the app.

Switching the speed level

Press the on/off button twice in quick succession to switch between the speed levels. Alternatively, the speed levels can be adjusted and selected as required via the app.

Select Km/h or Mp/h

Press the on/off button 3 times in quick succession to change the speed display to km/h or mp/h.

Please note: If your e-scooter suddenly displays incorrect speeds (e.g. 15 instead of 25 km/h), then you have most likely changed the speed display to mp/h.

Please note! Do not operate the brake and gas pedal levers at the same time.

BE COOL

7. ASSEMBLY

7.1 Assembling

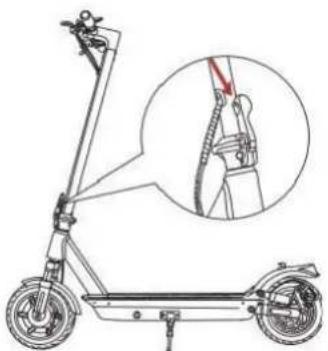

Line drawing of an electric scooter with a close-up inset showing the handle mechanism (no text or symbols)

1. fold out the stand of the scooter and close the folding mechanism.

1. mount the handlebar on the handlebar

Line drawing of a scooter with an inset showing the lever mechanism (no text or symbols present)

1. use the hexagon wrench in the package to tighten the screws on both sides

Technical line drawing of a bicycle frame with no visible text or symbols

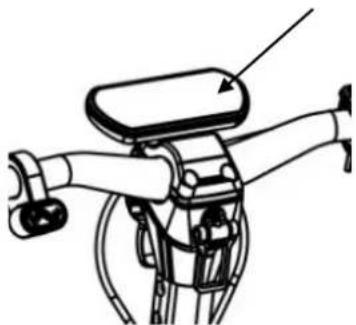

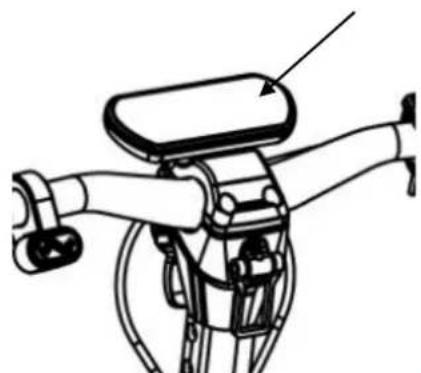

1. check the operating display after assembly is complete

7.2 Charging

1. open the rubber stopper at the position shown

Line drawing of a multi-wheeled electric scooter with wheels and suspension components (no text or symbols)

1. insert the charging plug of the mains adapter into the charging socket

1. after successful charging, close the rubber plug to secure the charging socket

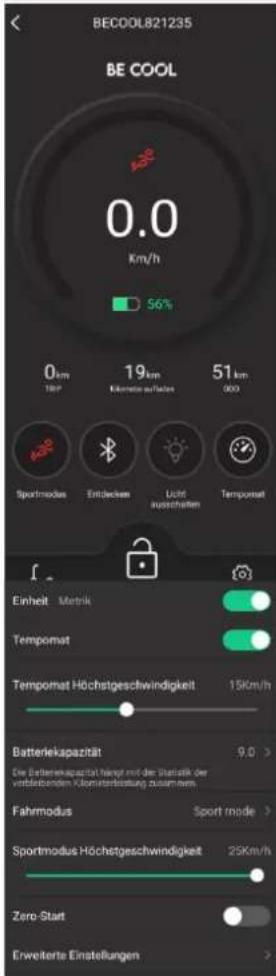

8. use of the app

8.) Open the relevant app store on your smartphone and search for "Be Cool" or alternatively scan the following QR code to match your smartphone:

Apple

Android

9.) Switch on your e-scooter and open the "Be Cool" app. Wait a short moment until your e-scooter appears in the app
10.) Click on your e-scooter and wait until your e-scooter is connected to the app.
11.) As soon as the e-scooter is connected to the app, the Bluetooth® symbol on the e-scooter lights up continuously and the start screen appears in the app.
12.) The following functions are available:

Current driving speed

Total mileage

Cruise control On/Off

Battery capacity

Speed mode Toggle

Further information on the e-scooter

Current kilometers driven

Bluetooth® On/Off

Locking/unlocking the e-scooter

Estimated range

Lighting On/Off

Settings

13.) Settings:

Unit: Switch the speed display between km/h and mp/h

Cruise control: Switch the cruise control function on or off

Cruise control maximum speed: Set the maximum speed for the cruise control function Battery capacity: Set the corresponding battery capacity of your e-scooter according to the technical data

Driving mode: Set the desired speed level

"-mode" maximum speed: Set the desired maximum speed according to the set speed level

Zero start: Switch the kick-start on or off. Please note, when the "Zero-Start" function is switched on, the e-scooter starts immediately when you press the throttle. The e-scooter does not need to be dived into. ATTENTION: Risk of injury!

Side-view illustration of a person wearing a helmet and a medical device (no text or symbols)

As there is a risk of falling while riding, always wear a helmet and protective equipment.

Diagram of a bicycle's front wheel assembly with no text or symbols

1. switch on the device and check the operating display

Line drawing of a person riding a scooter (no text or symbols)

1. place one foot on the footboard and push off with the other foot to get going.

Illustration of a person using a scooter with a hand operating a device, showing motion and safety instructions (no text or symbols)

1. now place the second foot on the footboard as soon as the scooter is moving and press the gas pedal lever to accelerate (only accelerate when the speed of the e-scooter exceeds 5 km/h = kick start).

Line drawing of a person riding a scooter with motion arrows, showing gear movement and a circular diagram (no text or symbols)

1. release the gas pedal lever when braking. Pull firmly on the brake if you have to brake abruptly.

Three human figures in safety gear standing with curved arrows indicating motion or movement (no text or symbols)

1. tilt your body slightly to the left to ride to the left. Tilt your body slightly to the right if you want to ride to the right. Turn the handlebar grip in the desired direction.

10. SAFETY NOTE

BE COOL

Line drawing of a person in rain gear standing on a platform with a stick, standing in the rain (no text or symbols)

Use in rain or frost is not recommended.

Line drawing of a person riding a scooter (no text or symbols)

It is recommended that you bend your knees slightly to adapt better to an uneven road. Maintain a low speed (5-10 km/h) when riding on an uneven road.

Line drawing of a person standing at the door with legs raised, showing posture and head alignment (no text or symbols)

Always be aware of your surroundings to avoid injuring yourself or others.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Do not accelerate when driving down a hill.

Line drawing of a person using a scooter with a hand gesture diagram nearby (no text or symbols)

Do not press the gas pedal lever while pushing the scooter.

Simple line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Pay attention to your lane and drive around obstacles.

BE COOL

Simple line drawing of a person riding a motorcycle (no text or symbols)

Do not hang rucksacks and other heavy objects on the handlebar grip.

Line drawing of a person riding a scooter with a helmet and motion lines (no text or symbols)

It is forbidden to take one foot off the footboard while riding.

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

It is forbidden to ride the scooter in the overtaking lane for motor vehicles.

Three identical line drawings of a person standing on a scooter, viewed from behind with curved arrows indicating motion or movement (no text or symbols)

It is forbidden to turn sharply in a residential area with high pedestrian traffic.

Line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

It is forbidden to ride through puddles. Damage to the e-scooter caused by water is excluded from the warranty.

Line drawing of two people using a scooter, one standing and one seated, both wearing helmets (no text or symbols)

The scooter may only be used by one person at a time.

BE COOL

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Always keep both hands on the handlebars.

Two line drawings of a person performing a jump on a scooter, one jumping and the other riding (no text or symbols)

Do not ride the e-scooter up or down eps and do not jump over obstacles.

11. CARRY & STOW

Make sure that the e-scooter is switched off. Open the folding mechanism. Fold the handlebar over and secure it by hooking it into the ring on the mudguard.

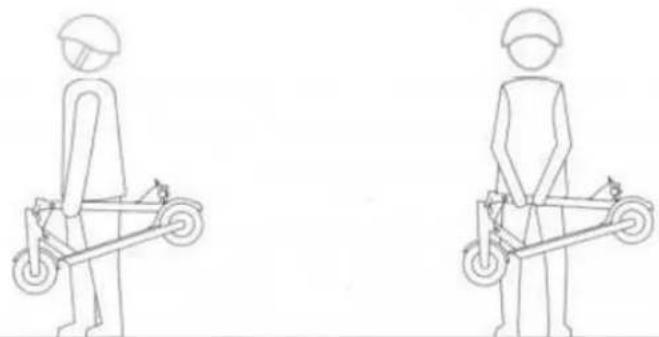

Two identical line drawings of a person using a shared electric scooter, shown in side and top views (no text or symbols)

You can easily carry the scooter after folding it up.

Take care not to bump into people or other objects with the scooter.

12. CLEANING AND MAINTENANCE

If the surface of the scooter is dirty, please use a soft cloth dipped in a little water to wipe it clean.

Tip: Do not use alcohol, petrol, kerosene or other volatile chemical solvents for cleaning, as this will significantly damage the appearance and internal structure of the body. The use of a high-pressure cleaner for cleaning is prohibited. Please ensure that the product is switched off and the rubber cover of the charging contact is firmly closed, as otherwise electric shocks may occur or water ingress may cause damage to the scooter.

Store indoors in a dry and cool place, avoid outdoor storage periods. Exposure to sunlight/overheated/undercooled outdoor areas will accelerate the appearance and aging of the tires and reduce the service life of the battery.

12. BATTERY MAINTENANCE

• Only use the original charger for charging, otherwise there is a risk of damage or fire.
• Improper disposal of used batteries can lead to serious environmental pollution. Observe the local regulations when disposing of this battery.
• Fully charge the battery before storage to extend its service life.

Please do not expose the battery to high temperatures above 40 °C or low temperatures below - 10 °C (e.g. do not expose to sunlight in summer). For further information on battery maintenance, please refer to the battery rating plate on the housing.

Avoid discharging the battery completely. With high mileage, the service life and performance of the battery will decrease if it is used at temperatures below 0 °C . At an ambient temperature of -10 °C , the battery performance may only be half or less. Battery performance is restored as the temperature rises.

Note: When fully charged, the stored power is used up after approx. 60-90 days; when incompletely charged, the time to complete discharge is reduced. If the battery is not charged in good time, this can lead to excessive discharge of the battery and irreparable damage to it. A fully discharged battery is excluded from the warranty. (Note: Only service workshops authorized by Schuss Home Electronic may disassemble the battery without authorization, otherwise an electric shock or short circuit may be caused. This would be a safety incident that could lead to a serious accident).

1. TECHNICAL DATA

	Properties		Parameters
Dimensions	L x W x H		1150 x 635 x 1250 cm
	L x W x H (folded)		1150 x 635 x 630 cm
Weight	Net		21.5kg
Driving characteristics	Max. Load capacity		120kg
	Max. Speed		25km/h
	Max. Range [1]		50km
Device parameters	Max. Gradient		15%
	Operating temperature		-10 - 40°C
	Storage temperature		0-40°C
	IP protection class		IPX4
	Nominal voltage		48VDC
	Max. Charging voltage		54.6VDC
Battery	Nominal capacity [2]		720 Wh
	Loading time		7 - 8 hours
	Input voltage		110-240 VAC
	Output voltage		54.6VDC
Motor	Rated power		500W
Contact addresses for further Information on		Schuss Home Electronic GmbH Scheringgasse 3 A-1140 Vienna Phone: [phone] www.becool.at FB-No.: 236974 t / FB-Court: Vienna
Service line		DEC Digital-Electronic-Center Service GmbH Kelsenstrasse 2 A-1030 Vienna Phone: [phone] E-mail: [e-mail]

1] Typical range: tested at full power, 75kg load, 25°C, 60% of max. speed on average on asphalt. The actual range may vary due to load, temperature, wind speed, road and operating habits and other factors.
Note: Data and parameters vary for different models. Subject to change without notice.
[2] All KickScooter models can have different battery capacities. Some of the parameters, such as the range, would change in this case

BE COOL

WARRANTY

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

We grant the following warranty periods for this BE COOL appliance:

E-Scooter: 2 years from date of purchase valid in Austria

Rechargeable battery: 6 months from date of purchase valid in Austria

If, contrary to expectations, warranty work is nevertheless necessary on your device during this period, we hereby guarantee you a free repair (spare parts and labor) or (at the discretion of Schuss Home Electronic GmbH) to replace the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a time value credit note.

Please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by our authorized workshops in Austria will immediately invalidate this warranty.

This guarantee does not cover

• Repair or replacement of parts due to normal wear and tear
• Water damage.
• We do not accept any liability for consequential damage in the event of improper use
• Damage due to non-compliance with the operating instructions
• Devices that are used - even partially - for commercial purposes
• Devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) and signs of wear and tear
  Of an aesthetic nature.

- Damage caused by force majeure, water, lightning or overvoltage are attributable.

- Devices where the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.

- services outside our authorized workshops, the transport costs to an authorized workshop or to us and back, as well as the associated risks.

Compatibility problems with other devices, even if they come from the seller.

We would like to emphasize that within the warranty period, a lump sum of € 40,- (indexed based on CPI 2010, June 2015) will be charged for operating errors or if no error is detected.

The provision of a warranty service (repair or replacement of the device) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer as well as the complete device designation) and the corresponding guarantee certificate, on which the device type and serial number must be noted.

Without presentation of the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but unrealized savings, consequential damages and damages from third party claims is excluded. Damage to or for recorded data is always excluded from the liability for damages.

Congratulations on your choice. We wish you lots of fun with your Be Cool e-scooter!

BE COOL

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over together with the device to the dealer from whom you purchased the device!

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Wien, AUSTRIA

Declares, that the product

is conformity with following directives, norms and/or regulations:

of 16 April 2014 amending Directives 2003/71/EC and 2009/138/EC and Regulations (EC) No 1060/2009, (EU) No 1094/2010 and (EU) No 1095/2010 in respect of the powers of the European Supervisory Authority (European Insurance and Occupational Pensions Authority) and the European Supervisory Authority (European Securities and Markets Authority)

Article 3.1(a) Health:

EN 62479:2010

Article 3.1(b) EMC:

EN 55032:2015 + A1:2020 + A11:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2:2019+A2:2021

ETSI EN 301 489-1 V2.2.3(2019-11)

ETSI EN 301 489-17 V3.2.6(2023-01)

Article 3.2 Radio:

EN 300 328 V2.2.2 (2019-07)

EMC Directive (EMC): 2014/30/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility; Official Journal of the EU L96, 29/03/2014, p. 79–106

EN IEC 55014-1:2021

EN IEC 6100-3-2:2019+A1:2021

EN 6100-3-3:2013+A1:2019+A2:2021+AC:2022-01

EN IEC 55014-2:2021

Low Voltage Directive (LVD):2014/35/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits; Official Journal of the EU L96, 29/03/2014, p. 357–374

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 62233:2008

EN 17128:2020

RoHS Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment; Official Journal of the EU L174, 1/07/2011, p. 88–110

IEC 62321-3-1:2013, IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2017, IEC 62321-8:2017

Place and date of issue:

Vienna, 2024-04-09

Senior product and purchasing manager i.V.

Authorized representative of manufacture

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Wien, AUSTRIA
