Brand	Be Cool
Model	ESCAD1GRRD
Product Type	Electric Scooter
Dimensions Folded (L x W x H)	103.5 x 44 x 110 cm
Dimensions Unfolded (L x W x H)	103.5 x 44 x 480 cm
Net Weight	11.7 kg
Max Payload	120 kg
Max Speed	25 km/h
Typical Range	28 km
Max Slope	15%
Traversable Terrain	Asphalt/flat pavement; obstacles <1 cm; gaps <3 cm
Operating Temperature	-10 to 40°C
Storage Temperature	0 to 40°C
IP Rating	IPX4
Nominal Voltage	36 VDC
Max Charging Voltage	42 VDC
Charging Duration	3–4 h
Battery Capacity (nominal)	270 Wh
Motor Nominal Power	350 W
Input Voltage (charger)	110–240 VAC
Output Voltage (charger)	42 VDC
Drive Modes	ECO (6 km/h), Standard (15 km/h), Sport (25 km/h)
Brake Type	Disc Brake
Front Light	Yes
Rear/Brake Light	Yes
Foldable	Yes
Accessories Included	4 screws, hex wrench, battery charger
Warranty Scooter	2 years (Austria)
Warranty Battery	6 months (Austria)

Frequently Asked Questions - ESCAD1GRRD Be Cool

How do I assemble the e-scooter for the first time?

Unfold the parking bracket, close the folding buckle, install the crossbar on the pole, and use the hex wrench to lock screws on both sides. Finally, check the switch detection.

How do I charge the battery?

Open the rubber stopper on the charging port, insert the charging plug, and connect to a wall outlet. Charging takes 3–4 hours. Close the rubber stopper after charging. Only use the original charger.

Can I ride the scooter in the rain?

No. The scooter has an IPX4 rating (splash-resistant) but is NOT waterproof. Water damage voids the warranty. Avoid riding in rain, puddles, or wet conditions.

What is the maximum weight limit?

The maximum payload is 120 kg (including rider). Exceeding this limit may damage the scooter and cause safety risks.

How do I fold the scooter for carrying?

Ensure the scooter is switched off. Open the folding device, fold down the handlebar, and hook it onto the ring on the mudguard. You can then carry it easily.

What do the different power modes mean?

Double-click the power button to switch modes: ECO (min speed 6 km/h, max range), D (standard 15 km/h, moderate range), and S (sport 25 km/h, reduced range).

How should I maintain the battery?

Charge after each use. Avoid complete discharge; charge when at least 1 bar remains. If not used for 30 days, fully charge and store in a cool, dry place. Recharge every 60 days to prevent deep discharge. Deep discharge irreparably damages the battery and is not covered by warranty.

What safety gear do I need?

Always wear a helmet. It is recommended to wear knee and hand protectors. For children aged 10–12, helmets are mandatory. Children under 10 are not allowed to ride.

Can I ride the scooter off-road?

No. The scooter is designed for asphalt or flat pavement only. Avoid obstacles >1 cm, gaps >3 cm, and slopes >15%. Do not ride on uneven terrain, mud, sand, or gravel.

What should I do if the scooter displays an error code?

The speedometer may show error codes when faults are detected. Contact the service center at www.becool.at for assistance. Do not attempt to repair internal parts yourself.

USER MANUAL ESCAD1GRRD Be Cool

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Simple line drawing of a plug connected to a rectangular box and coiled cable (no text or symbols)

xl

Line drawing of a scooter with two wheels and an inset showing the wheel assembly (no text or symbols)

Line drawing of a scooter with wheels and a side-mounted sensor, shown with an inset close-up of the component (no text or symbols)

Line drawing of a scooter with attached suspension components and an inset showing internal wiring (no text or symbols)

Line drawing of a scooter with wheels and a side-mounted sensor, shown with an inset close-up of the sensor assembly (no text or symbols)

Line drawing of a scooter with attached plug and cable (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a mechanical component with a cable and a knob (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

Side-view illustration of a person wearing a helmet and holding a device, with no visible text or symbols.

Line drawing of a scooter with two wheels and a handle, shown with an inset close-up of the wheel assembly (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Illustration of a person using a scooter with a hand gesture and circular motion diagram (no text or symbols)

Line drawing of a person riding a scooter with motion arrows and a circular diagram showing mechanical components (no text or symbols)

Three human figures in safety gear standing with curved arrows indicating motion or movement (no text or symbols)

Line drawing of a person standing in the rain with a stick and backpack, holding a small object underneath (no text or symbols)

Line drawing of a person riding a scooter, wearing a helmet and uniform (no text or symbols)

Line drawing of a person standing in the back of a door, viewed from behind and to the right (no text or symbols)

Simple line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person using a scooter with a hand gesture diagram nearby (no text or symbols)

Simple line drawing of a person standing on a path with a lightning bolt symbol (no text or labels)

Simple line drawing of a person riding a bicycle (no text or symbols)

Line drawing of a person riding a scooter with a helmet (no text or symbols)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Three identical line drawings of a person standing in a row, each wearing a helmet and holding a scooter (no text or symbols)

Line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Line drawings of two people using a scooter, one holding the other (no text or symbols)

Line drawing of a person riding a scooter with one hand raised, no text or symbols present

Two line drawings of a person performing a jump on a scooter, one jumping and the other sitting on a scooter (no text or symbols)

Two identical line drawings of a person using a shared mobility device, viewed from the side (no text or symbols)

The exclamation point within the triangle is intended to alert the user to the presence of important instructions or statements regarding the operation and/or maintenance of the appliance. Please read the

operating instructions carefully before using the unit.

WARNING:

To reduce the risk of electric shock, do not remove the casing of this unit. There are no parts inside that can be repaired by the user. Therefore, do not attempt to repair or service internal parts yourself.

Leave repairs to qualified service personnel.

KICK-STARTER

Please note that the scooter has a kick-start. This means that you first have to push to get going and only then can you accelerate with the help of the throttle lever.

ATTENTION!

Do not ride in rain or wet conditions - the unit is NOT WATERPROOF!

Do not use e-scooter for jumps or stunts!

Do not use it in slippery conditions!

Do not use under the influence of drugs or alcohol! Avoid paths with obstacles such as branches, rubbish or stones!

Avoid steep inclines!

Do not ride faster than recommended!

Do not load the device more than permitted!

CAUTION!

Persons with visual balance, coordination, reflex, muscle or bone problems MUST NOT use this vehicle!

ATTENTION!

Children under the age of 10 are NOT allowed to us the device. Children from the age of 10 with a bicycle driving licence and children up to the age of 12 accompanied by a supervisor who is at least 16 years old may use the scooter - however, detailed instructions on how to use the scooter in a safe manner must be provided beforehand and the existing dangers must be described. In addition, helmets are compulsory for children up to 12 years of age.

2. GENERAL SAFETY NOTE

• Carefully remove the packaging and make sure that the e-scooter is not damaged.
• Do not use the unit if it has any visible damage.
• We recommend wearing qualified and necessary protective clothing such as helmet, hand and knee protectors, etc. as for comparable sports.
• Before getting on the scooter, make sure that you have positioned the scooter on a level surface and that the scooter is switched on.
• Do not open the scooter, modify the scooter, otherwise the manufacturer's warranty will be void and malfunctions may occur that could result in serious physical injury - even death.
• Only ride the scooter in places where riding the scooter is expressly permitted. Only use the scooter outside public places and in places where you do not pose a danger to yourself others or other people's property.
• Never use the scooter under the influence of alcohol and/or drugs.
• Never use the scooter when you are overtired or unfocused. Always have presence of mind and recognise the dangerous situation at an early stage.
• Avoid sudden changes of direction - especially at high speeds.
• Make sure that the protection of the charging socket is always in place.
• The scooter is subject to protection class IPX4 and is therefore only spray water resistant NOT WATERPROOF. Never drive through water or rain as this could damage you scooter. Damage caused by water are excluded from this warranty.
• Do not ride through puddles, mud, sand, stones, gravel, grit or on unsuitable rough terrain. For uneven surfaces, it is recommended to carry the scooter until a suitable road surface is found.
  The scooter is not suitable for "OFF-road" use.
• Do not drive in bad weather such as snow, rain, hail, icy roads or extreme heat - DANGER OF FLIPPING!
• Avoid driving near swimming pools or other large accumulations of water.
• Prevent riding over obstacles, bumps higher than 1.5cm - even if you are an experienced scooter rider.
• Do not talk on the phone or text while driving. Drive attentively and be aware and alert of your surroundings: road condition, people, weather, objects, etc.
• Do not drive the scooter in places with many people. Drive the scooter with extrer consideration and pay attention to people and objects in the vicinity.
• Do not ride up and down steep hills ( >15^ ). On gentle hills and terrain with slight bumps, it helps to bend the knees slightly when riding to absorb shocks and vibrations. This helps you keep your balance on slight bumps up to a certain intensity.
• Never attempt to ride with more than one person at a time. The scooter is only suitable for riding with a single person.
• Do not transport any objects while driving.
• People with balance disorders should not ride the scooter.

BE COOL

- Do not ride the scooter during pregnancy.

- Children under the age of 12 and older people may only ride under the supervision of experienced and adult persons and protective clothing.

• Note that the braking distance increases proportionally at higher speeds and bodyweight.

- Never get on or off the scooter with a jump. Do not attempt any stunts or tricks with the scooter.

- Be overcarful while driving in the dark or in poorly lit areas.

- Do not exceed or fall below the stated weight limit of the scooter.

- Avoid driving in dangerous places to avoid fire and explosion accidents caused by e.g.: flammable gases, vapours, liquids, dust, fibres.

- Follow all national and local laws applicable to your region regarding the use of your scooter.

- Drive on sight and always be ready to brake.

• Using a different charger may result in damage to the unit and other potential risks.

- Avoid completely discharging the battery. It is best to charge the battery when there is still some remaining capacity (min. 1 bar on the display). This will prolong the life of the battery.

- Place the battery away from fire or corrosive environment while charging as it is classified as flammable and explosive.

- Do not attempt to open the battery housing. If you notice any damage, contact the Service Centre.

- Do not charge the unit in direct sunlight or in the immediate vicinity of an open fire or flames.

- The scooter must not be used during charging.

Riding the scooter is at your own risk and responsibility.

Not all hazards that could lead to injury or even death can be covered in this manual.

ATTENTION!

Note on deep discharge of the battery

The life and performance of a battery depends on its age, care and how often it has been used.

Compared to other battery models, lithium ion batteries have a very low self-discharge and must be charged periodically.

Even if you do not use your scooter, the battery must be charged for at least 1 hour every 2 months, otherwise it will lose capacity. Regular charging protects the battery from deep discharge.

Please note that a deeply discharged battery is irreparably damaged and must be replaced at the owner's expense. For this reason, the battery should never be completely discharged, even during operation!

BE COOL

RECYCLING

The packaging materials can be recycled. It is therefore recommended to dispose of them in the sorted waste.

DISPOSAL

The symbol "crossed-out garbage can" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic devices can contain dangerous and environmentally hazardous substances. Therefore, do not dispose of it in unsorted residual waste, but at a designated collection point for used electrical and electronic equipment. In this way you contribute to the protection of resources and the environment.

For more information, please contact your dealer or local authorities.

DECLARATION OF CONFIRMITY

We hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU.

You can view the detailed declaration of conformity at any time under the following link:

www.becool.at/downloads

Subject to errors and technical changes.

www.becool.at

BE COOL

3. CONTENTS

3.1 e-Scooter

3.2 Accessories

4x Screws

×4

1x Hex wrench

x1

1x Battery charger

Simple line drawing of a plug connected to a rectangular box and cable (no text or symbols)

xl

BE COOL

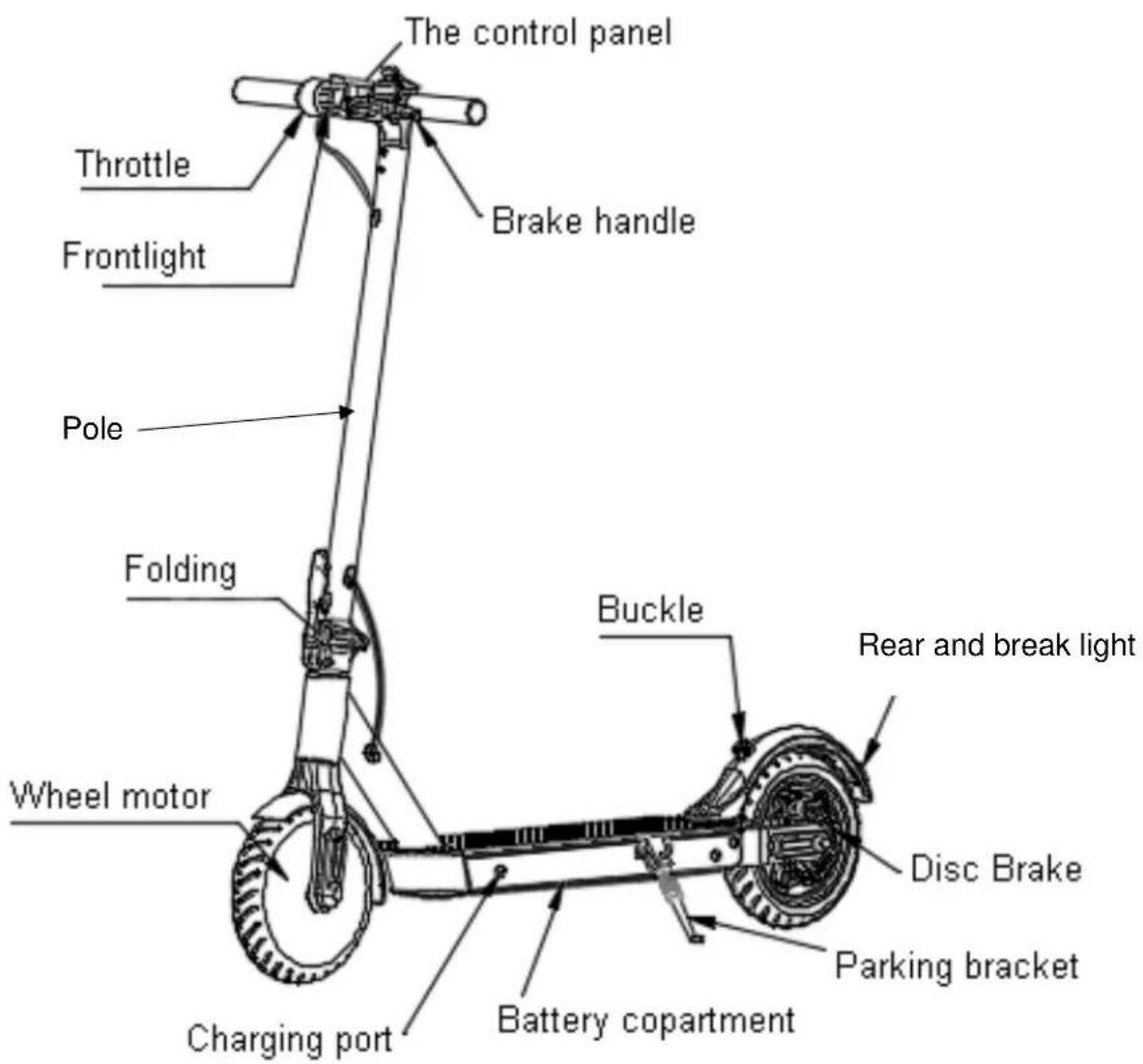

4. INTRODUCTION OF THE PRUDUCT

BE COOL

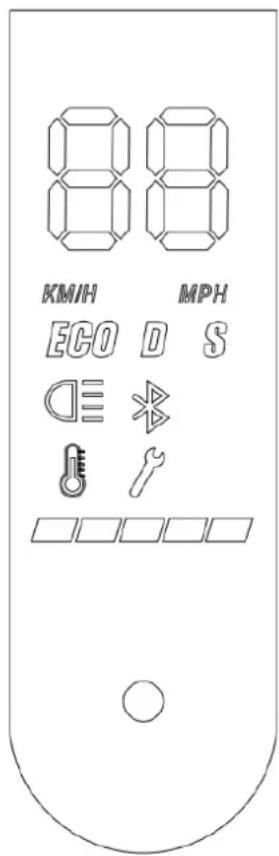

5. DASHBOARD & POWER BUTTON

Speedometer	Indicates the current speed. Also displays error codes when faults are detected
Power Level	Indicates the remaining battery level with 5 bars. Each bar equates to approximately 20% power level.
Power mode	Double click the power button to switch the mode:ECO icon: ECO mode (minimum speed 6km/h, increase range)D icon: Standard mode (moderate speed 15km/h, moderate range)S icon: Sport mode (maximum speed 25km/h, reduce range)
Cruise Control	Press and hold the accelerator lever at the same speed for 5 seconds to activate cruise control modePress accelerator or brake again, cruise control mode off
Bluetooth (if include)	A blinking Bluetooth icon indicates that the vehicle is ready to connect. A solid Bluetooth icon indicates that the vehicle is connected to a mobile device
Power button	Short press to power on. Long press to power off. When powered on., single click to turn on/off the headlights. Double-click to change power mode
Temperature	Scooter Overheat indicator: the motor temperature exceeds 80°C
Fault	Device fault indicator - Contact Service of www.becool.at

BE COOL

6. MONTAGE

6.1 Assamble

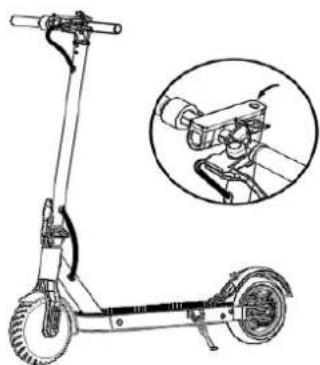

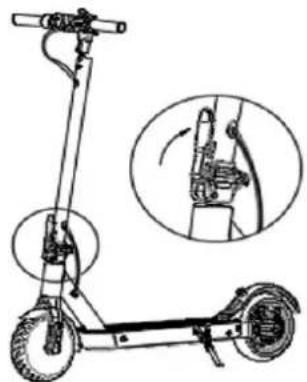

Line drawing of a scooter with wheels and a close-up inset showing the lever mechanism (no text or symbols)

1. Secure the scooter by unfolding the parking bracket; close the folding buckle.

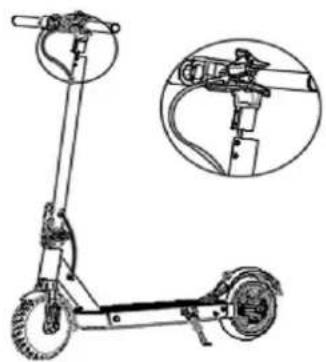

Line drawing of a scooter with wheels and a side-mounted sensor, shown with an inset close-up of the sensor assembly (no text or symbols)

1. Install the crossbar on the pole

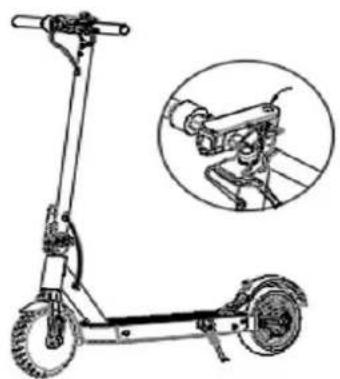

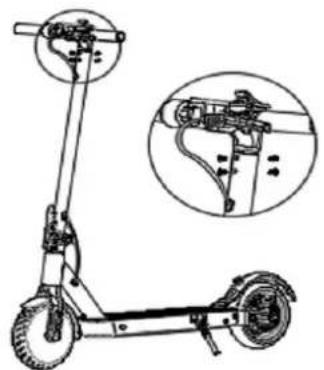

Line drawing of a scooter with visible suspension components and an inset close-up of the engine (no text or symbols)

1. Use the hex wrench in the packing box to lock screws on both sides.

Line drawing of a small electric scooter with wheels and a hand-in-view inset showing the wheel assembly (no text or symbols)

1. After the completion of the installation to carry out switch detection

6.2 Charging

Line drawing of a scooter with wheels and a connecting rod (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

1. Open the rubber stopper

Simple line drawing of a mechanical component inside a circular frame, no text or symbols present

1. Insert the charging plug

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

1. After charging, close the rubber stopper

BE COOL

7. LERN TO RIDE

Side-view illustration of a person wearing a helmet and pointing to a device (no text or symbols)

There is a risk of falling injury during ving – please wear a helmet and a protective gear as shown

Line drawing of a person riding a scooter (no text or symbols)

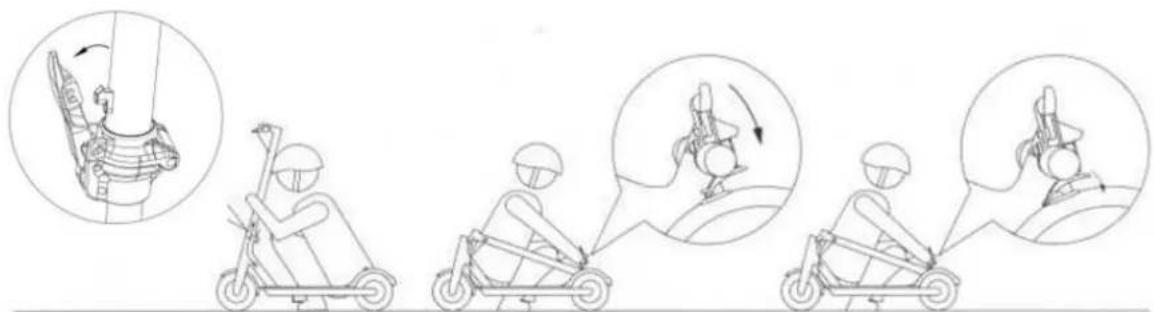

1. Stand on the pedal with one foot, push off with your foot to start moving.

Illustration of a person riding a scooter with motion arrows and a circular diagram showing mechanical components (no text or symbols)

1. Release the throttle button to slow down. Pull the brake lever to slow down and come to a halt.

Line drawing of a scooter with two wheels and a handle, shown with an inset close-up of the wheel assembly (no text or symbols)

1. Turn on the power and check the power indicator

Illustration of a hand holding a small object inside a circle, alongside a person riding an electric scooter (no text or symbols present)

1. When the electric scooter is sliding, put the other foot on the pedal and keep both feet remain stable. Press the throttle button to accelerate.

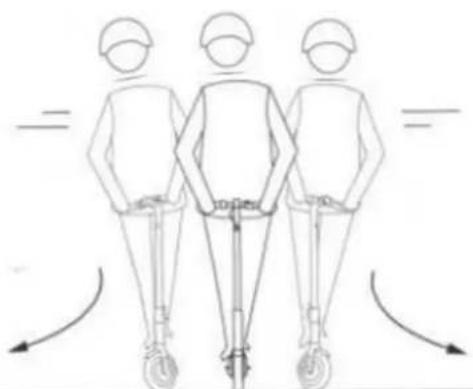

Three human figures in a standing position with curved arrows indicating motion or movement (no text or symbols)

1. Lean and steer to the right for going right; Lean and steer to the left for going left.

BE COOL

8. WARNINGS

Line drawing of a person digging with a shovel in the rain, no text or symbols present

You must not drive during rain. Damage caused by water are excluded from this warranty.

Line drawing of a person riding a scooter, no text or symbols present

Pay attention to uneven grounds; please do not pass at high-speed and try to bent your knees slightly to adapt uneven roads.

Line drawing of a person standing in front of a door, with a separate side view showing a person standing beside it (no text or symbols)

Pay attention to your surroundings and other people to avoid any accidents.

Line drawing of a person riding a scooter on a slope, with motion lines indicating speed (no text or symbols)

Do not accelerate at downhill.

Illustration of a hand holding a device and a person riding a scooter (no text or symbols)

Do not press the throttle button while waking and pushing your scooter.

Simple line drawing of a person standing on a rock with a lightning bolt symbol (no text or labels)

Please avoid any obstacles so you don't lose control over the scooter.

BE COOL

Simple line drawing of a person riding a bicycle (no text or symbols)

Do not hang heavy objects such as backpack on the handlebar

Line drawing of a person riding a scooter, no text or symbols present

You must not ride with only one leg on the pedal.

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

You are not allowed to ride on fast lanes next to cars.

Three identical line drawings of a person standing in a row, each wearing a helmet and holding a scooter (no text or symbols)

Do not turn to the left or right fast in pedestrian areas.

Line drawing of a person using a scooter to clean or remove debris (no text or symbols)

Do not ride through water paddles. Damage caused by water are excluded from this warranty.

Line drawings of two people using a scooter and a person holding a child, both wearing helmets (no text or symbols)

The scooter may only be used by one person at a time.

BE COOL

Line drawing of a person riding a scooter, no text or symbols present

It is not allowed to put off your hands from the handlebar.

Two line drawings of a person performing a jump on a scooter, one in motion and the other in safety (no text or symbols)

It is forbidden to ride scooters upstairs and downstairs or jump over obstacles.

9. FOLDING AND CARRYING

Make sure that the e-scooter is switched off. Open the folding device. Fold down the handlebar and secure it by hooking it onto the ring located on the mudguard.

Line drawing of a person using a wheeled cart (no text or symbols)

Simple line drawing of a person standing beside a wheeled cart (no text or symbols)

After folding you are able to carry the scooter easily. Make sure to not hit any obstacles or people.

9. CLEANING AND MAINTENANCE

If the e-scooter body surface is dirty, please use a soft cloth dipped in a small amount of water to clean it.

TIP: Do not use alcohol, gasoline, kerosene or other corrosive, volatile chemical solvent cleaning, otherwise it will seriously damage the appearance and internal structure of the body. It is forbidden to use a pressure water gun to spray and flush, and ensure that the electric scooter is closed all along and the the charging cable has been unplugged and the rubber cap is tightened. Otherwise, it may cause electric shock or serious failure due to internal water intake.

Store indoors in a dry and cool place if possible, do not store outdoors for long periods. Exposure to sunlight/overheated/undercooled outdoor areas will accelerate the appearance and aging of the tires and reduce battery life.

11. BATTERY MAINTENANCE

• Only use the original charger to charge, otherwise there is a risk of damage or fire.
• Improper disposal of used batteries may cause serious contamination of the environment. Observe local regulations when discarding this battery pack. Do not dispose of the battery pack, to protect the natural environment together.
• After each use, please recharge the battery and then store, and it is conducive to extend battery life.

Do not place the battery in a high temperature environment higher than 40^ C or below -10^ C (for example, do not place the electric scooter or its battery pack under summer exposure). Otherwise it may lead to battery failure, overheating, and even fire risk. When not using for more than 30 days, please be fully charged, stored in a cool dry place, and fully charged every 60 days, or it may damage the battery, and this damage is not within the warranty.

In addition, at room temperature, the battery pack can play a higher mileage and performance; And if it is used in an environment below 0^ C, battery life and performance will drop. Typically, at -10^ C, the mileage may be only half or less at room temperature. If temperature rises, the battery mileage will be restored.

Note: When fully charged, the stored power will be consumed after approximately 60-90 days; when incompletely charged, the time to complete discharge will be reduced. Failure to charge the battery in a timely manner may result in excessive discharge of the battery and irreparable damage to it. A fully discharged battery is not covered under warranty. (Note: Only service workshops authorized by Schuss Home Electronic may disassemble the battery on their own authority, otherwise an electric shock or short circuit may be caused. This would be a safety incident that could lead to a serious accident).

1. TECHNICAL DATA

	Item		Parameters
Dimensions	Fold: L x W x H		103.5*44*110cm
	L x W x H		103.5*44*480cm
Weight	Net		11.7kg
Rider	MaxPayload		120kg
Machine parameters	Max. speed		25km/h
	Typical Range [1]		28km
	Max. Slop		15%
	Traversable Terrain		Asphalt/flat pavement; obstacles<1cm); gaps<3cm
	Operating Temperature		-10-40°C
	Storage Temperature		0-40°C
	IP Rating		IPX4
	Nominal Voltage		36VDC
Battery	Max.Charging Voltage		42VDC
	Duration of Charging		3-4h
	Nominal Capacity [2]		270Wh
Motor	Input voltage		110-240 VAC
	Output voltage		42VDC
	Nominal power		350W
Contact addresses for further Information		Schuss Home Electronic GmbH Scheringgasse 3 A-1140 Wien Tel.: [phone] www.becool.at FB-N0: 236974 t / FB-Gericht: Wien
Serviceline		DEC Digital-Electronic-Center Service GmbH Kelsenstrasse 2 A-1030 Wien Tel.: [phone] E-Mail: [e-mail]

[1] Typical Range: tested while riding under full power, 75kg load, 25°C, 60% of max. Speed on average on pavement. The actual range due to load, temperature, wind speed, road and operating habits and other factors to be different.
Note: Data and parameters vary with different models. Subject to change without notice.
[2] All Scooter models could install different battery capacity. Some of parameters like range would change in this case.

BE COOL

WARRANTY

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BE COOL device we grant the following warranty periods:

e-Scooter: 2 years from date of purchase valid in Austria

Battery: 6 months from the date of purchase valid in Austria

If, contrary to expectations, service work on your device is still necessary during this period, we hereby guarantee you a free repair (spare parts and working time) or (at the discretion of the company Schuss Home Electronic GmbH) to replace the product. If neither repair nor exchange are possible for economic reasons, we reserve the right to create a time value credit.

Please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by our authorized workshops in Austria immediately terminates the validity of this warranty.

This warranty does not include:

• Repair or replacement of parts due to usual signs of wear.
• Water damage.
• In the event of improper use, we do not assume any consequential damages.
• Damage due to non-compliance with the operating instructions.
• Devices that are used - even partially – commercially.
• Mechanically damaged devices due to external influence (fall, shock, breakage, improper use etc.) as well as signs of wear and tear of an aesthetic nature.
• Damage due to force majeure, water, lightning or overvoltage.
• Devices for which the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.
• Services outside our authorized workshops, the transport costs to an authorized workshop or to us and back as well as the associated risks.

Compatibility issues with other devices, even if they come from the seller.

We would like to emphasize that within the warranty period in case of operating errors or if no error has been detected, a lump sum of € 40, - (indexed base VPI 2010, June 2015) will be charged.

By providing a warranty (repair or replacement of the device), the absolute warranty period of 2 years from the date of purchase is not extended.

The 2-year warranty is only valid on presentation of the proof of purchase (must contain the name and address of the dealer as well as the complete device name) and the corresponding warranty certificate, on which the device type and the serial number must be noted.

Without presenting the guarantee certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue unabated.

BE COOL

A liability for damages on the part of Schuss Home Electronic GmbH and its vicarious agents exists only in the presence of gross negligence or intent. In any case, liability is excluded for lost profits, expected but not occurred savings, consequential damages and damages from claims of third parties. Damage to or for recorded data is always exempt from the obligation to pay damages.

Congratulations on your election. We wish you a lot of fun with your Be Cool e-scooter!

Address

Schuss Home Electronic GmbH

A-1140 Wien, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

In the case of warranty, this warranty certificate must be followed together with the device by the dealer from whom you purchased the device!
