USER MANUAL S097 BUFFALO

UK Table of Contents

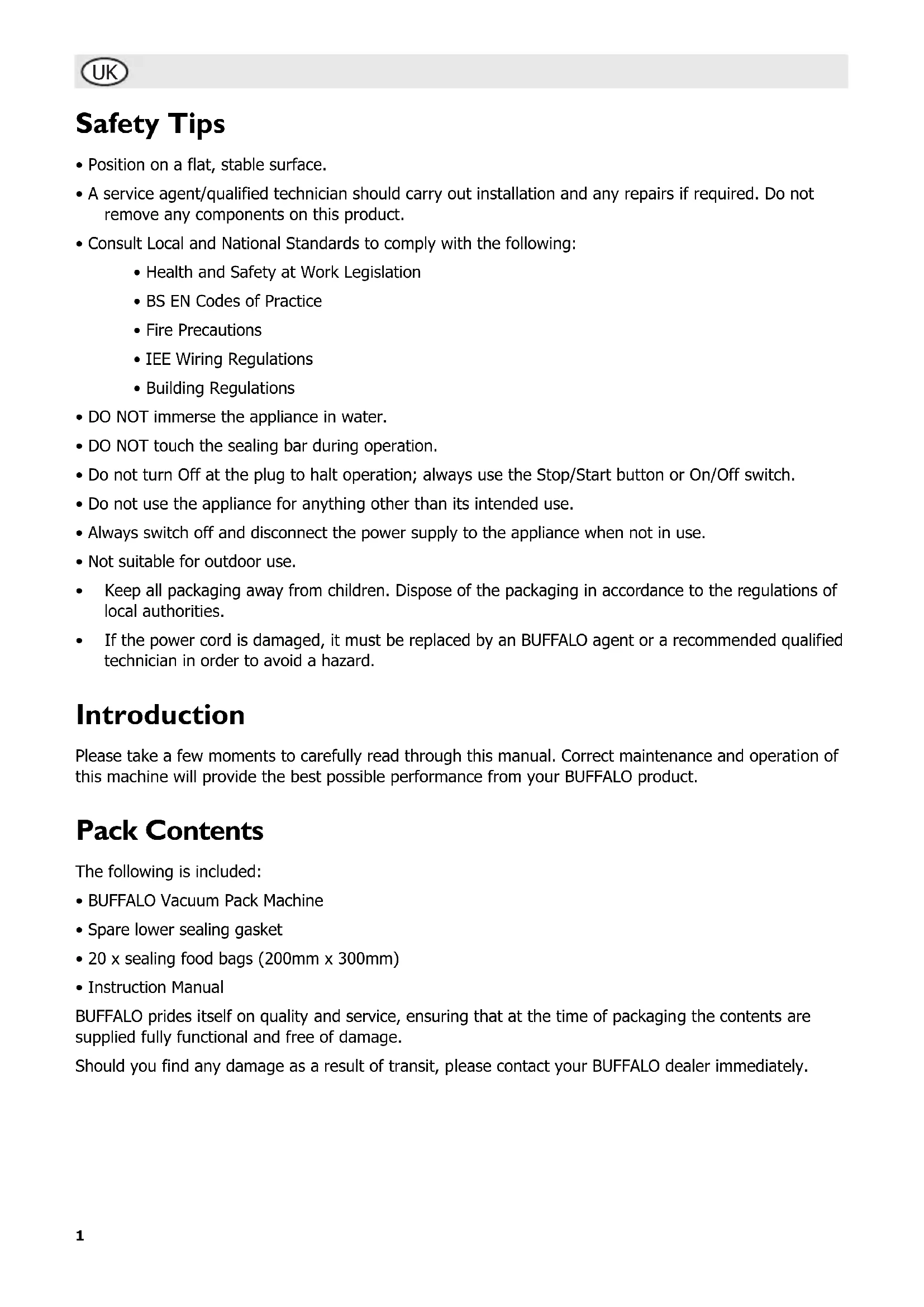

Safety Tips 1

Introduction 1

Pack Contents 1

Location of Controls 2

Operation 2

Sealing Food 2

Alter Vacuum Level 3

Overheat Cut-out 3

Cleaning, Care & Maintenance 3

Removing the Vacuum Chamber 4

Replacing the Vacuum Chamber 4

Troubleshooting 4

Technical Specifications 5

Electrical Wiring 5

Compliance 5

NL Inhoudsopgave

Veiligheidstips 6

Inleiding 6

Verpakkingsinhoud 6

Specifications techniques 1

Raccordement electrique 1

Conformité. 1

Technical Specifications 45

El-kabler 45

Overensstemmelseserklaering 45

Sikkerhetsrips 46

Innledning 46

Pakkeinnhold 46

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation
BS EN Codes of Practice
Fire Precautions
- IEE Wiring Regulations
Building Regulations

DO NOT immerse the appliance in water.
DO NOT touch the sealing bar during operation.
- Do not turn Off at the plug to halt operation; always use the Stop/Start button or On/Off switch.
- Do not use the appliance for anything other than its intended use.
- Always switch off and disconnect the power supply to the appliance when not in use.
- Not suitable for outdoor use.
- Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Vacuum Pack Machine
• Spare lower sealing gasket
• 20 x sealing food bags (200mm x 300mm)
• Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

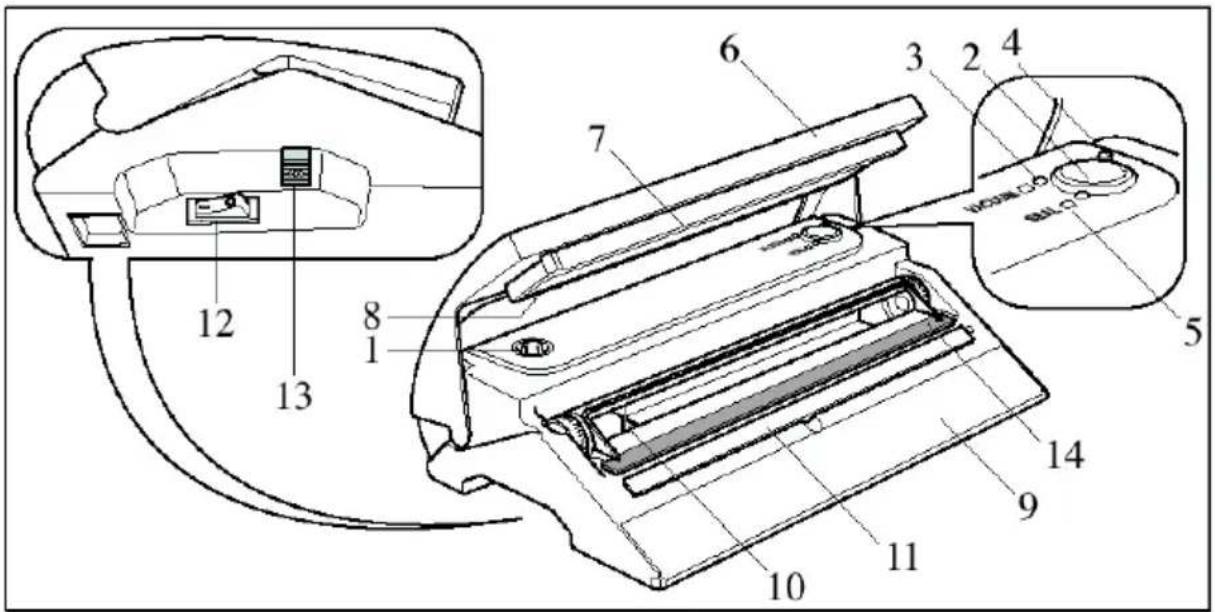

Location of Controls

1. Stop/Start button

2. Upper gasket

3. Vacuum button

9.Hose housing

1. Vacuum indicator light

2. Removable vacuum chamber

3. Power indicator light

II. Sealing bar

1. Sealing indicator light

2. On/Off switch

3. Cover

4. Chamber release lever

5. Sealing gasket

6. Lower sealing gasket

Operation

Note: THIS APPLIANCE IS DESIGNED TO BE USED WITH THE BAGS SUPPLIED. OTHER BAGS MAY NOT SEAL CORRECTLY.
CONTACT YOUR VACUUM PACK MACHINE SUPPLIER FOR SUITABLE REPLACEMENT BAGS.

Sealing Food

1. Place the food inside in the bag.

Note: Ensure the bag is at least 8cm longer than the length of the food to be sealed.

1. Remove any excess liquid or food residue from the bag.

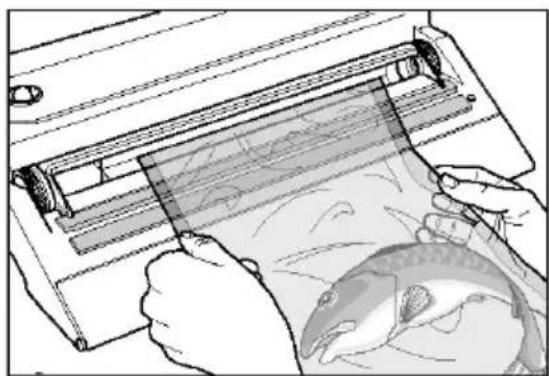

2. Place the open end of the bag inside the vacuum chamber. Press the end of the bag against the plate in the vacuum chamber.

UK

1. Lower the lid and press down for several seconds; this begins the vacuum sealing process. The yellow vacuum indicator light flashes.
2. The sealing indicator light flashes as the appliance seals the bag.
3. Both lights turn Off when the bag is sealed.
4. With the bag still in place, press the vacuum button to expel the air removed from the sealed bag.
5. Once complete lift the lid and remove the baq.

Note: If you need to stop the process at anytime press the STOP button followed by the Vacuum button.

1. Examine the new seal. If airtight then there should be a stripe across the seal and be totally flat. A wrinkled seal could indicate that the seal is not complete.

Alter Vacuum Level

The level of vacuum can be changed by stopping the vacuum process at anytime.

While the air is being drawn out, and the vacuum indicator is flashing:

1. Press the Stop button at the desired level of vacuum.
2. The sealing indicator turns on and the appliance seals the bag.
3. When both lights go out lift the lid and remove the bag.

Overheat Cut-out

The appliance is fitted with a safety cut-out should the operating temperature exceed safe levels.

If the cut-out is activated then lift the lid and allow anything up to 30 minutes for the appliance to cool down.

Cleaning, Care & Maintenance

• Use warm, soapy water and a damp cloth for cleaning parts and the exterior of the appliance.
  • D r y t h o r o u g h l y
• A BUFFALO dealer or qualified technician should carry out repairs if required.

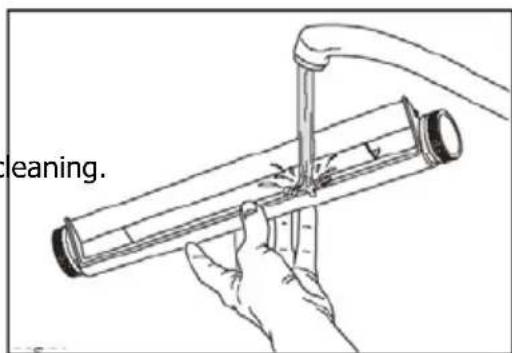

• Rinse the removable vacuum chamber under running water.

after c

WARNING: Do not allow any water to spill into the appliance when cleaning.

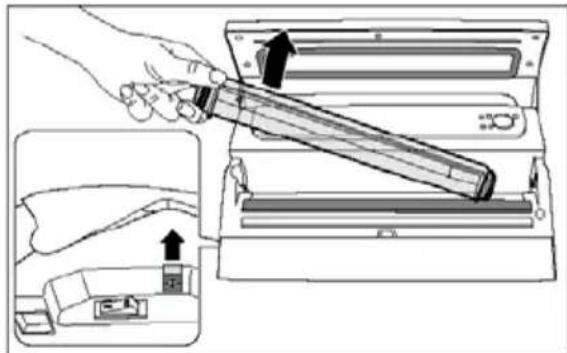

Removing the Vacuum Chamber

I. Pull the chamber release lever.
2. Lift the vacuum chamber and remove it from the appliance.

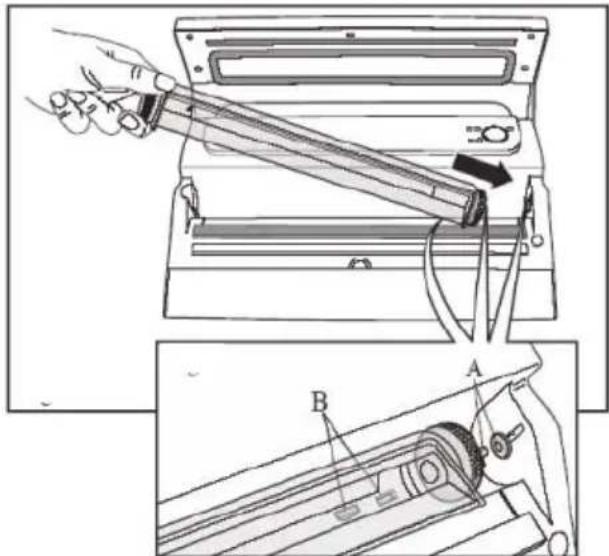

Replacing the Vacuum Chamber

I. Slot the right end of the chamber into the recess.
2. Ensure the suction nozzle (A) connects securely with the vacuum chamber, and the positioning knob (B) sits securely in its seat.
3. Press the left side of the chamber down until the release lever clicks back into place.

Troubleshooting

Fault Probable Cause	Use Action
The unit is not working The unit	is not switched on Check the unit	it is plugged in correctly and switched on
	Plug and lead are damaged Call	BUFFALO agent or qualified technician
	Fuse in the plug has blown Rep	ace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO	O agent or qualified technician
Appliance does not remove all the air from the bag	Open end of bag not completely inserted	Open lid and reposition bag
	Gaskets dirty Clean gaskets
	Open end of bag is dirty	Clean bag
	Bag may be punctured	Line bag with paper towels to protect against foodstuffs with sharp edges
		Replace bag
	Incorrect bags used Call Vacuum	Pack machine supplier
Bags are not sealing correctly	Sealing bar is overheating	Open lid and allow sealing bar to cool down
	Incorrect bags used Call Vacuum	Pack machine supplier

Technical Specifications

Model	Voltage Power	Current		Vacuum pressure (approx.)	Dimensions h x w x d mm	Weight (kg)
S097 230V 50Hz 300W		1.3A -0.8 bar	90 x 380 x	240 3

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

Specifications techniques

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Sikkerhedstips

Technical Specifications

Model	Spending Strøm	Strømsty rke	Vakuumtryk (ca.)	Mål h x b x d mm	Vaegt (kg)
S097 230V 50Hz 300W	1,3A -0,8 bar	90 x 380 x	240 3

El-kabler

1. Legg matvaren inn i posen

Merk: Sørg for at posen er minst 8 cm

DECLARATION OF CONFORMITY

• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärgung • Dichiarazione di conformità •

• Declaración de conformidad - Declaração de conformidade - Überensstämmlseförsakran
  Overensstemmelseserklaering • Konformitetserklaring • Selvitys vaatimustenmukaisuudesta •

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
