CD969 - Vacuum packaging machines BUFFALO - Free user manual and instructions

Product Type	Vacuum Packaging Machine
Brand	BUFFALO
Model	CD969
Dimensions (H x W x D)	270 x 415 x 410 mm
Weight	12.6 kg
Power Supply	230 V ~ 50 Hz, 350 W, 1.5 A
Vacuum Pressure (approx.)	-950 mbar
Vacuum Time Setting	20 to 99 seconds
Seal Time Setting	3 to 9 seconds
Functions	Automatic vacuuming, automatic sealing, manual sealing, emergency stop (Cancel), vacuum gauge
Housing Material	Stainless steel and plastic
Recommended Bag Type	Bags or rolls specially designed for vacuum packaging
Package Contents	Vacuum packaging machine, instruction manual
Care and Cleaning	Warm soapy water and damp cloth; dry thoroughly; do not immerse; do not let water enter
Safety	Do not immerse; hot sealing bar; unplug after use; use recommended bags; do not use for other purposes
Repairability	Repairs by qualified technician or BUFFALO representative; replacement of sealing bar not covered by warranty
Power Cord	Removable IEC type cable, grounding mandatory
Display	Digital displays for vacuum time and seal time

Frequently Asked Questions - CD969 BUFFALO

The device does not turn on, what to do?

Check that the device is properly plugged in and turned on. If the plug or cord are damaged, contact a qualified technician. The fuse inside the plug may have blown: replace it.

Why is the air not completely removed from the bag?

Make sure the bag is correctly positioned, its open end is clean and it is not punctured. Use bags suitable for vacuum packaging.

The bags do not seal correctly, why?

Check that there is no moisture on the part to be sealed. Ensure the end of the bag is properly placed on the sealing bar. Use suitable bags. If the problem persists, the sealing bar must be replaced.

What does error code E1 mean?

Error code E1 indicates poor contact of the lid with the chamber. Clean the lid gasket and the tank. If the gasket is deformed or broken, replace it. If the problem persists, contact a qualified technician.

What does error code E2 mean?

Error code E2 indicates a safety switch fault or an electronic problem. Contact a qualified technician.

How to clean the device?

Let the device cool down. Clean with a damp cloth and soapy water. Dry thoroughly. Never let water enter the device. Do not use abrasive products.

Can I use ordinary bags for vacuum packaging?

No, use exclusively bags or rolls specially designed for vacuum packaging, recommended by the manufacturer.

Does the device heat up during use?

Yes, the sealing bar heats up. Do not touch it during or just after use. Let it cool before cleaning.

How to adjust the vacuum time?

Use the '+' and '-' buttons under the Vacuum Time display to adjust the duration (20 to 99 seconds). The default setting is suitable for most foods.

Can I interrupt the current cycle?

Yes, press the Cancel button to stop the cycle and release the lid. You can also press Manual Seal to immediately proceed to sealing.

USER MANUAL CD969 BUFFALO

Vacuum Pack Machine Instruction Manual

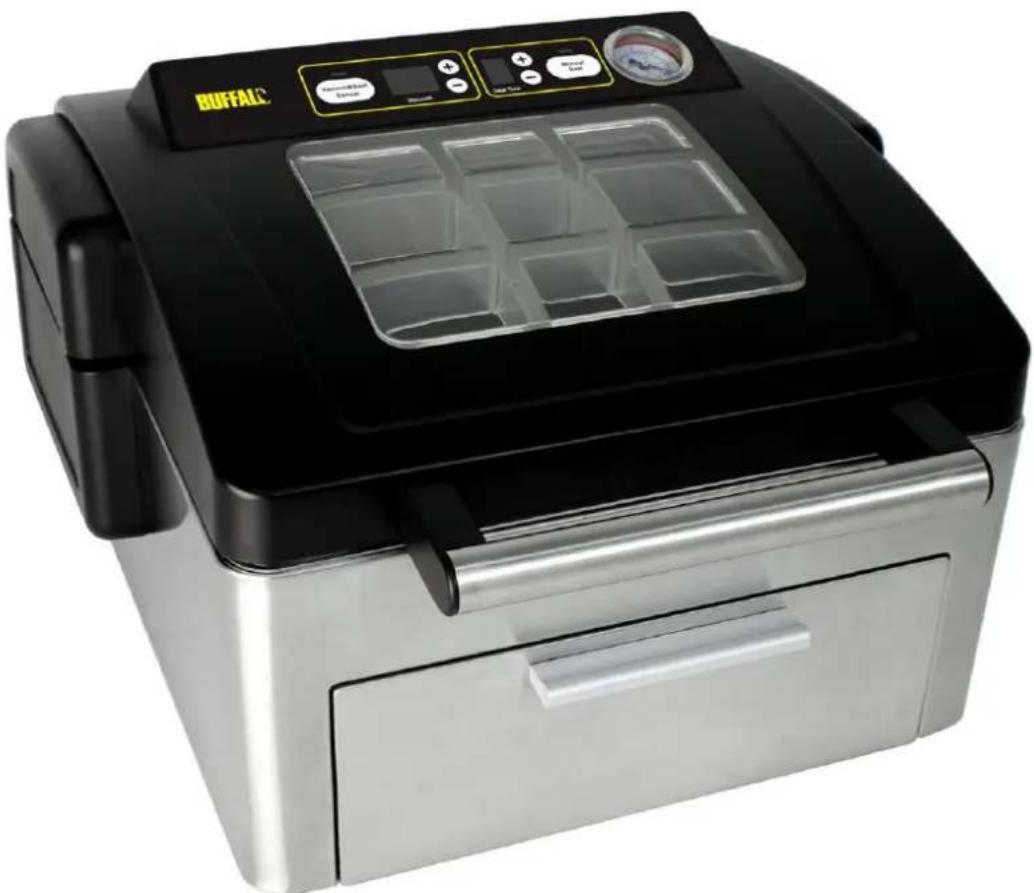

Exterior view of a stainless steel multiflorine food processing machine (no visible text or symbols)

Model . Modèle . Modell . Modello . Modelo . Malli CD969

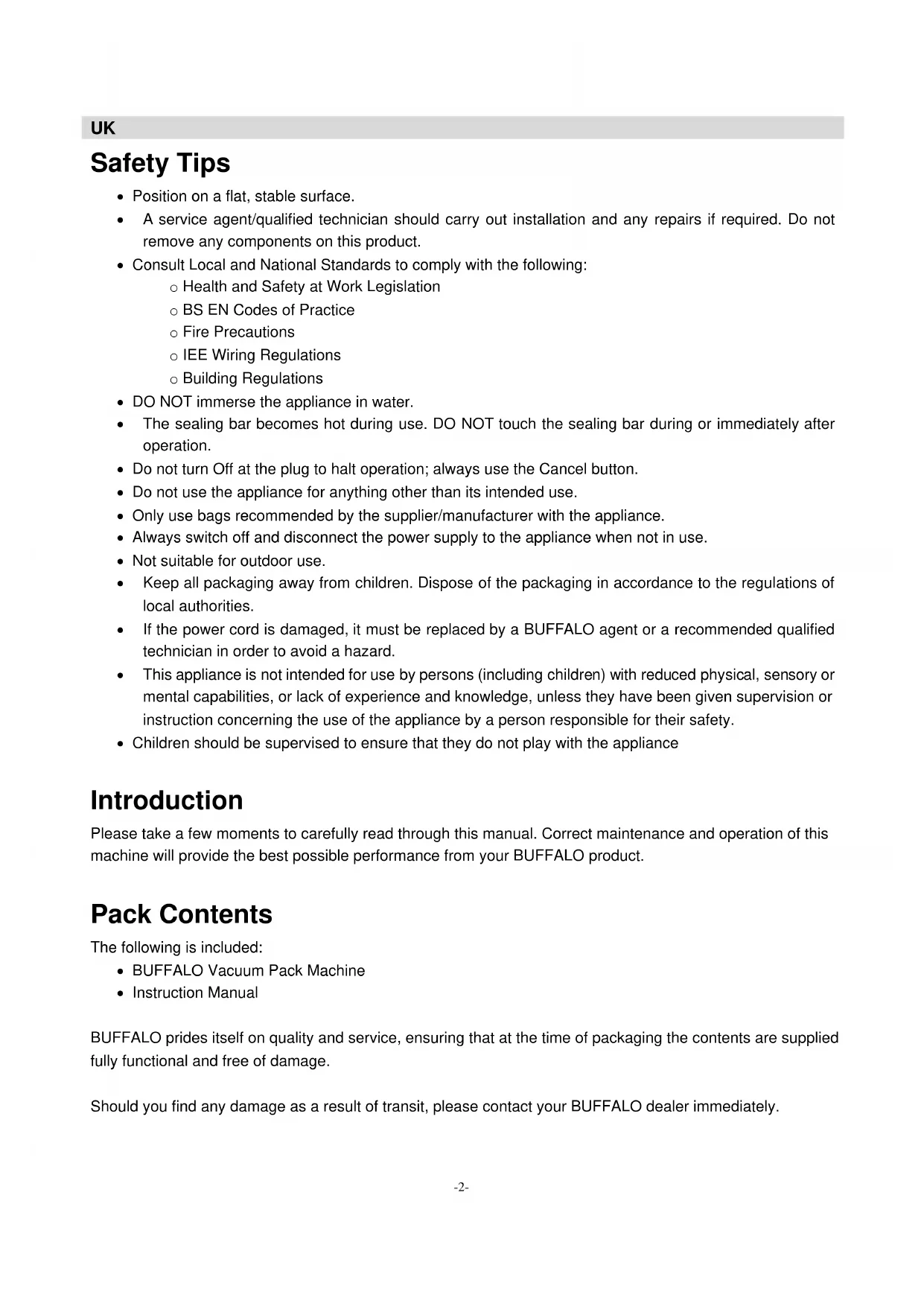

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

o Health and Safety at Work Legislation
- BS EN Codes of Practice
- Fire Precautions
○ IEE Wiring Regulations
○ Building Regulations

• DO NOT immerse the appliance in water.
• The sealing bar becomes hot during use. DO NOT touch the sealing bar during or immediately after operation.
• Do not turn Off at the plug to halt operation; always use the Cancel button.
• Do not use the appliance for anything other than its intended use.
• Only use bags recommended by the supplier/manufacturer with the appliance.
• Always switch off and disconnect the power supply to the appliance when not in use.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Vacuum Pack Machine
- Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

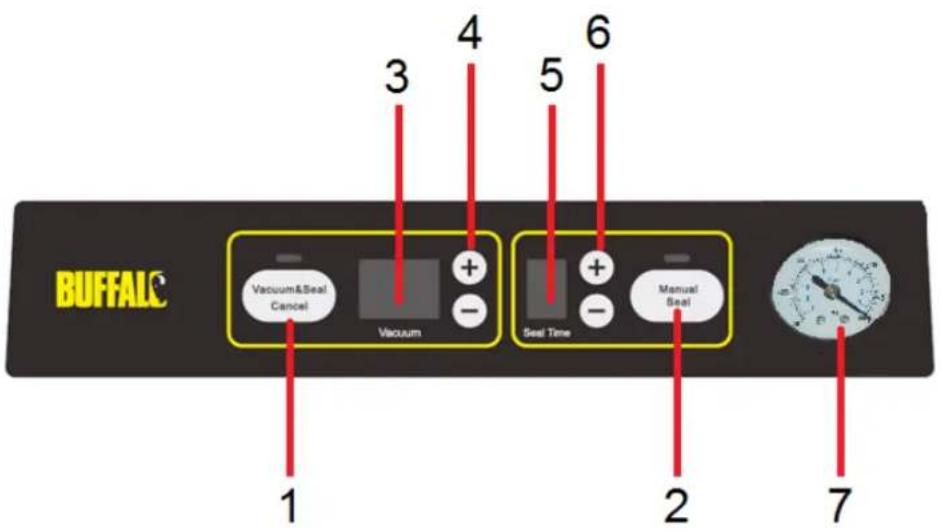

Location of Controls

BUFFAL® 1 2 3 4 5 6 7 Vacuum&Seal Cancel Vacuum + - Seal Time + - Manual Seal

Controls

1. Vacuum & Seal Button / Cancel

• Press to start automatic operation of vacuuming the bag and then automatically seals the bag when vacuum is completed
• Press to stop the Vacuum cycle and release lid.

2. Manual Seal

• Use to seal open end of a bag when making bags from roll.
• During automatic 'Vacuum and Seal' function press to immediately start the bag sealing process (to avoid crushing delicate items)

3. Vacuum Time Screen

• Shows the working time and progress of vacuuming

4. Vacuum Time Adjusting Button (Vac Time "+" or "-" )

- Simply adjust the vacuum time "up" or "down" by using "+" or "-" buttons.

5. Seal Time Screen

• Shows the working time and progress of sealing function

6. Seal Time Adjusting Button (Seal Time "+" or "-"

- Simply adjust the seal time "up" or "down" by using "+" or "-" buttons.

7. Vacuum Gauge

• Shows the vacuum level inside the vacuum chamber.

Operation

Plug in Vacuum Pack Machine and turn on Power Switch. The machine is now ready for use.

Vacuum Packing Food

1. Place the food inside in the bag
2. Allow minimum of 25mm-50mm of space at the top of bag to ensure a good seal.
3. Place the open end of the bag across the sealing bar. Close lid
4. Press the Vacuum/Seal button
5. The machine goes to vacuum cycle. When vacuuming, vacuum time will be shown on the Digital Display and count down from default setting to 0.
   (Note: Vacuum time is adjustable from 20-99 seconds.)
6. At anytime during vacuum cycle pressing the 'Manual Seal' button will override timer and complete the vacuuming and sealing cycle.
7. After the vacuum process the machine automatically goes to sealing cycle.
8. When sealing, seal time will be shown on the Digital Display and count down from default setting to 0.
   (Note: Seal time is adjustable from 3-9 seconds. If the setting time is 0, the machine will not seal)
9. Take out the bag and check the vacuum and seal. (Note: A good seal will look clear upon inspection. If the seal is spotty, incomplete, wrinkled, white or milky, remove sealed portion and run vacuum and seal process again.)
10. Press "Cancel" button to stop the machine at any time.

Please store the vacuumed items properly. All perishable foods must be refrigerated or frozen to prevent spoilage.

Cleaning, Care & Maintenance

• Always allow to cool before cleaning.
• Use warm, soapy water and a damp cloth to clean the appliance.
• Dry thoroughly after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

WARNING: Do not allow any water to spill into the appliance when cleaning.

Troubleshooting

Fault	Probable Cause	Action
The unit is not working	The Unit is not switched on	Check the unit is plugged in correctly and switched on
	Plug and lead are damaged	Call BUFFALO agent or qualified technician
	Fuse in the plug has blown	Replace the plug fuse
	Power supply	Check Power Supply
	Internal wiring fault	Call BUFFALO agent or qualified technician
Appliance does not remove all the air from the bag	Bag not correctly positioned	Open lid and reposition bag
	Open end of bag is dirty	Clean bag
	Bag may be punctured	Replace bag
	Incorrect bags used	Call Vacuum Pack machine supplier
Bags are not sealing correctly	Moisture in bag under the sealing bar	Ensure inside of the bag is dry and free from moisture where it is to be sealed
	Incorrect bags used	Call Vacuum Pack machine supplier
	End of bag not placed above sealing bar	Move end of bag over sealing bar
	Sealing Bar requires replacement	Call BUFFALO agent or qualified technician
Error message E1 in Digital Display	Lid in poor contact with chamber	Clean lid gasket and chamber
	Lid Gasket distorted or broken	Replace the lid gasket
	Internal system leak	Call BUFFALO agent or qualified technician
Error message E2 in Digital Display	Safety switch / electronic fault	Call BUFFALO agent or qualified technician

NOTE: Sealing bar replacement is not covered under warranty

Technical Specification

Model	Voltage	Power	Current	Vacuum Pressure (approx.)	Dimensions h x w x d mm	Weight (kg)
CD969	230v 50hz	350W	1.5A	-950mbar	270 x 415 x 410	12.6

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit. If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities. BUFFALO products have been approved to carry the following symbol:

Simple line drawing of a trash bin with two crossed lines above and below (no text or symbols)

C€

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice

Veiligheidstips

1. Vacuum & Seal / Cancel

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

BUFFALC 1 2 3 4 5 6 7 Vacuum/Attest Canset Vacuum + - + - Vacuum/Attest Canset Vacuum + - + - Vacuum/Attest Canset

Bedienelemente

1. Vacuum & Seal / Cancel

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

1. Vacuum & Seal / Cancel

Simple line drawing of a trash bin with two crossed lines above and a solid black rectangle below (no text or symbols)

C€

1. Vacuum & Seal / Cancel

Simple line drawing of a trash bin with two crossed lines and a solid rectangle below (no text or symbols)

C€

Simple line drawing of a trash bin with two crossed lines above and below (no text or symbols)

C€

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

- Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

Standards

Standaarden • Normes • Normen • Standard • Estándares • Normas

Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC RoHS Directive 2011/65/EU

EN 60335-2-45:2002, EN 60335-1:2012

EN 62233:2008, EN 55014-1:2006 EN 55014-2:1997, EN 61000-3-2:2006 EN 61000-3-3:2013, IEC 62321/1CD

Buffalo

Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
