USER MANUAL GJ459 BUFFALO

White and black industrial paper cutting machine with handle and control panel (no visible text or symbols)

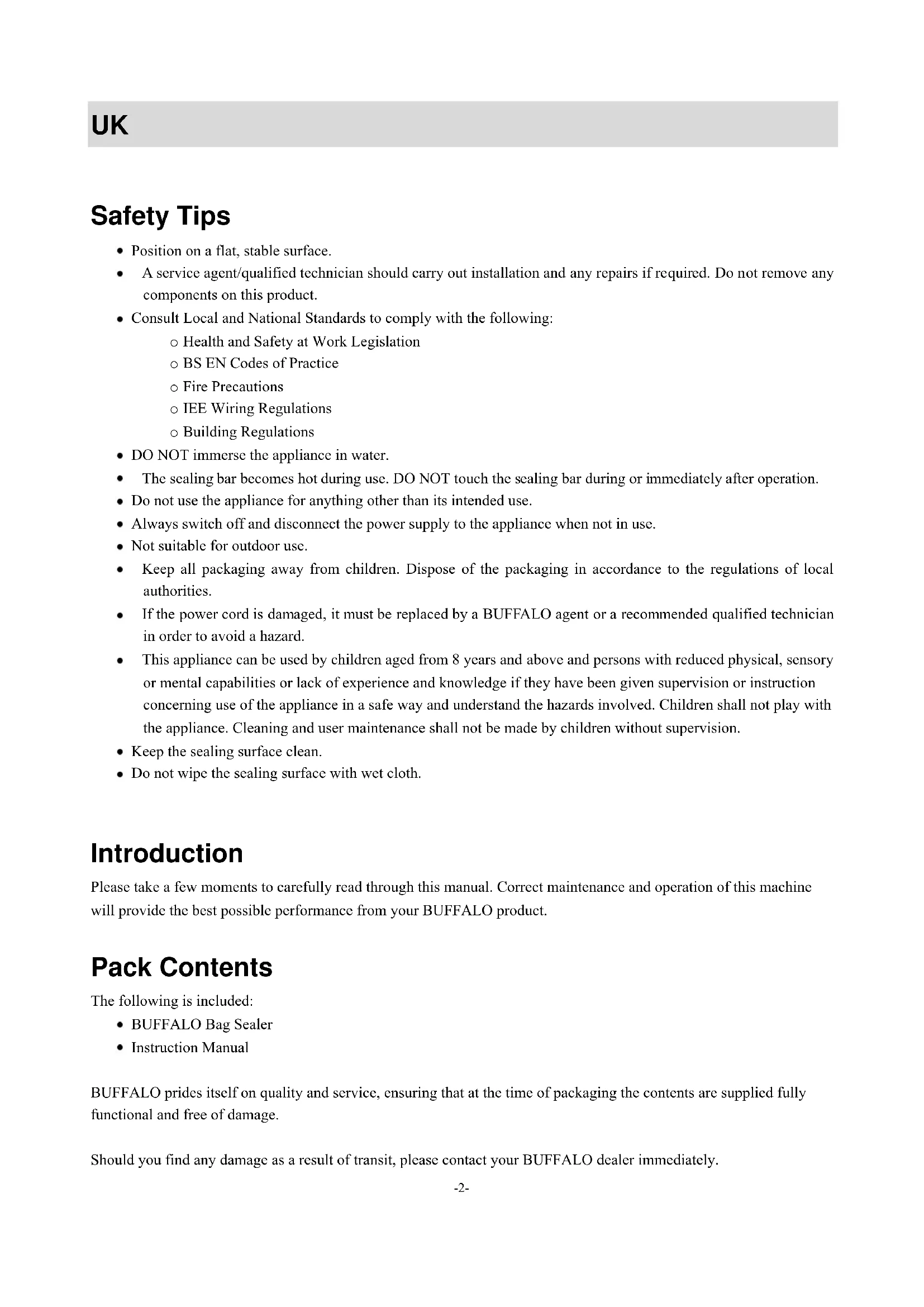

- Position on a flat, stable surface.

- A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.

- Consult Local and National Standards to comply with the following:

o Health and Safety at Work Legislation
o BS EN Codes of Practice
o Fire Precautions
○ IEE Wiring Regulations
○ Building Regulations

• DO NOT immerse the appliance in water.
• The sealing bar becomes hot during use. DO NOT touch the sealing bar during or immediately after operation.
- Do not use the appliance for anything other than its intended use.
• Always switch off and disconnect the power supply to the appliance when not in use.
- Not suitable for outdoor use.
- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Keep the sealing surface clean.
- Do not wipe the sealing surface with wet cloth.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Bag Scaler
• Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Controls

Handle Sealing Strip Sealing Bar Indicator Light Timer Knob BUFFALC

Operation

1. Place the open end of the bag across the Sealing Bar
2. Press the Handle down firmly. Indicator light will turn red
3. When sealing is complete indicator light will turn off. Bag should now be sealed.
4. Remove bag and inspect bag and seal.

(Note: A good seal will look clear upon inspection. If the seal is spotty, incomplete, wrinkled, white or milky, adjust timer knob and reseal.)

Cleaning, Care & Maintenance

• Always allow to cool before cleaning
- Disconnect from Power Supply
- Use warm, soapy water and a damp cloth to clean the appliance.
• Dry thoroughly after cleaning.
- A BUFFALO dealer or qualified technician should carry out repairs if required.

WARNING: Do not allow any water to spill into the appliance when cleaning.

Troubleshooting

Fault	Probable Cause	Action
The unit is not working	The Unit is not switched on	Check the unit is plugged in correctly and switched on
	Plug and lead are damaged	Call BUFFALO agent or qualified technician
	Fuse in the plug has blown	Replace the plug fuse
	Power supply	Check Power Supply
	Internal wiring fault	Call BUFFALO agent or qualified technician
Bags are not sealing correctly	Moisture in bag under the sealing bar	Ensure inside of the bag is dry and free from moisture where it is to be sealed
	End of bag not placed above sealing bar	Move end of bag over sealing bar

Technical Specification

Model	Voltage	Power	Current	Max Sealing Length	Dimensions h x w x d mm	Weight (kg)
GJ459	230V 50Hz	260W	1.1A	305mm	235 x 430 x 85	2.85

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 10 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

C€

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

C€

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

Simple line drawing of a trash bin with two crossed lines above and below (no text or symbols)

C E

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

Standards

Standaarden • Normes • Normen • Standard • Estándares • Normas

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
