USER MANUAL CC771 BUFFALO

Location of Controls 2

Operation 2

Setting the Sealing Time 2

Setting the Suction Time 3

Vacuum Packing Food 3

Safety Cut-out 3

Auto-Standby 3

Cleaning, Care & Maintenance 4

Technical Specifications 5

Compliance 6

NL

Inhoudsopgave

Veiligheidstips 7

Inleiding 7

Verpakkingsinhoud 7

Spcifications techniques 18

Raccordement electrique 18

Conformité 18

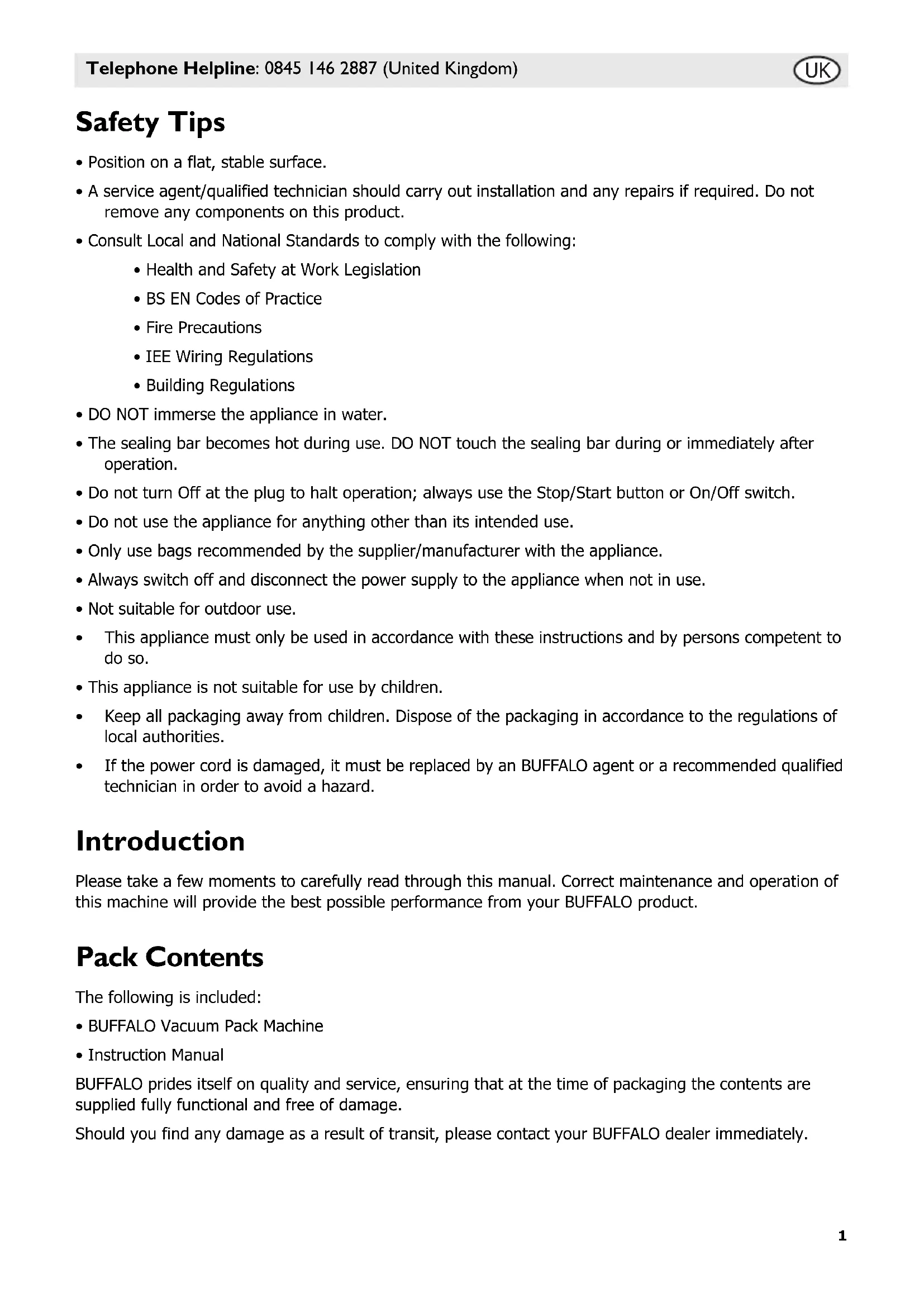

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation
BS EN Codes of Practice
Fire Precautions
- IEE Wiring Regulations
Building Regulations

DO NOT immerse the appliance in water.
- The sealing bar becomes hot during use. DO NOT touch the sealing bar during or immediately after operation.
- Do not turn Off at the plug to halt operation; always use the Stop/Start button or On/Off switch.
- Do not use the appliance for anything other than its intended use.
- Only use bags recommended by the supplier/manufacturer with the appliance.
- Always switch off and disconnect the power supply to the appliance when not in use.
- Not suitable for outdoor use.
This appliance must only be used in accordance with these instructions and by persons competent to do so.
- This appliance is not suitable for use by children.
- Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Vacuum Pack Machine
• Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

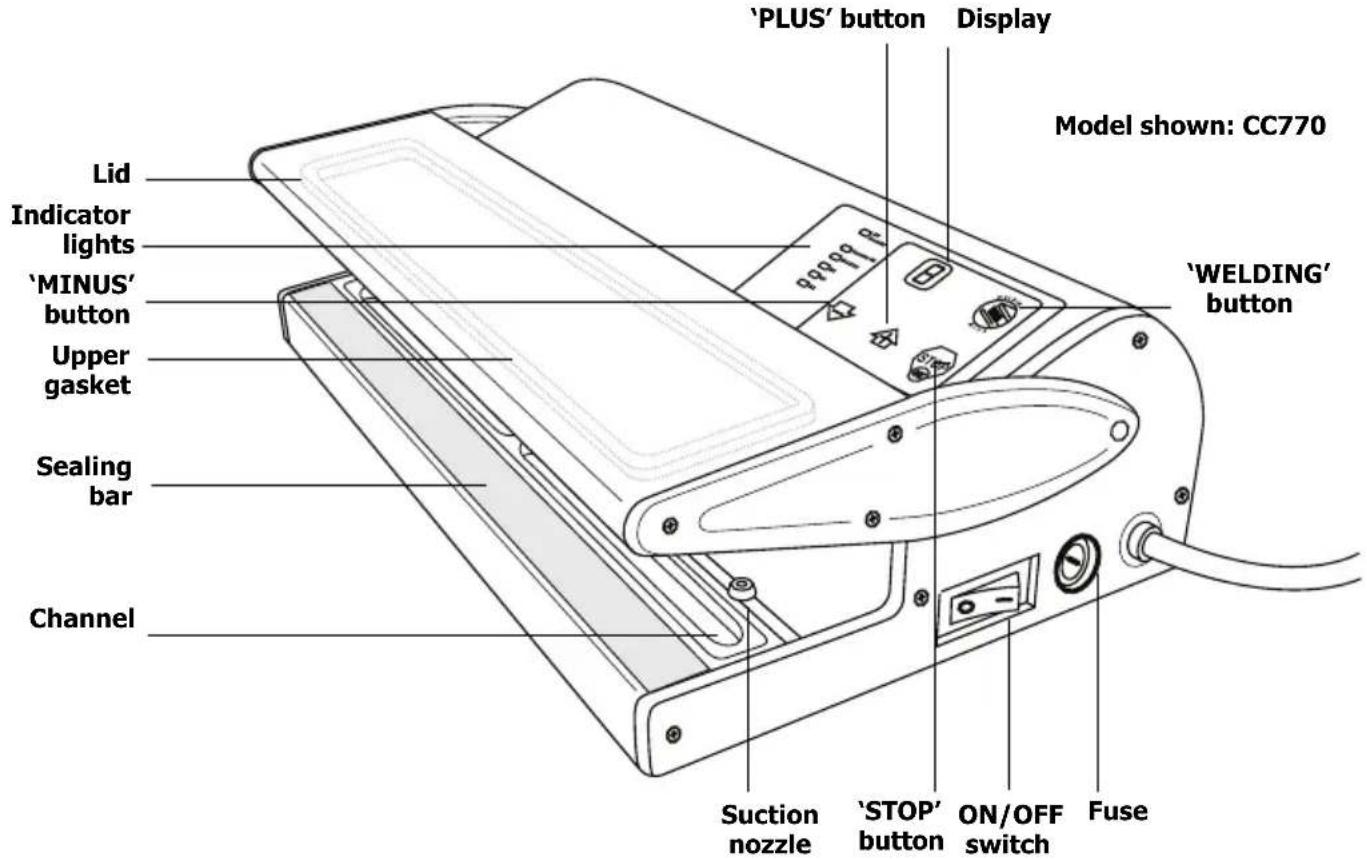

Location of Controls

Operation

Note: THIS APPLIANCE IS DESIGNED TO BE USED WITH THE BAGS SUPPLIED. OTHER BAGS MAY NOT SEAL CORRECTLY. CONTACT YOUR VACUUM PACK MACHINE SUPPLIER FOR SUITABLE REPLACEMENT BAGS.

Setting the Sealing Time

This appliance has three programmable sealing settings; M1-M3.

1. Connect the appliance to the mains power supply and turn the power switch On [I].

2. Raise the lid. This activates the appliance ready for use.

3. The value shown in the 'TIMER' display window is the default sealing time, shown in seconds.

Note: The default value (2 seconds) is suitable for the bags supplied by the appliance.

1. Press and hold the WELDING button. The M1 indicator flashes on the panel.

2. To adjust the sealing time, press and hold the or button until the required time is shown on the display.

Note: A period after the value (e.g. '4.) indicates an increment of half a second for more accurate timing.

1. Repeat steps 4 and 5 for M2 and M3.
2. Press and hold the WELDING button. All three indicators flash.
3. Press and hold the WELDING button again to store the sealing time presets.

Setting the Suction Time

1. Press and hold the STOP (STOP) button for two seconds. The default suction time flashes on the display.

Note: The default value is 90 seconds (CC771 is 95 seconds).

Note: Each unit is equal to 10 seconds (e.g. 4 equals 40 seconds). A period after the value (e.g. '4.') indicates an increment of five seconds for more accurate timing.

1. To adjust the sealing time, press and hold the or buttons until the required time is shown on the display. Maximum programmable time is 90 seconds.

2. Press and hold the STOP button to save the suction time and exit. The Sealing time is displayed.

WARNING: Constantly using excessive suction times will shorten the operational life of the appliance.

Vacuum Packing Food

1. Place the food inside in the bag and remove any excess liquid or food residue.
2. Lift the lid of the appliance. The lid will lock in place once lifted high enough.

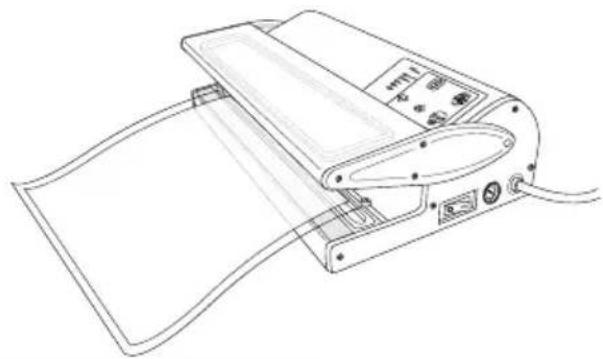

3. Place the open end of the bag over the channel.
4. Lower the lid and press down gently to start the suction process. Maintain a firm pressure on the lid for best results.

Note: The process can be stopped at any time by pressing the STOP STOP button.

1. CC771 Only - The pressure within the bag is displayed before the sealing countdown begins.
2. Once the programmed suction time is reached the sealing process begins.
3. 'E' flashes on the display ('END' on CC771) when the appliance has finished sealing the bag. Lift the lid by the sides and remove the bag.

WARNING: Never lift the lid from underneath. The sealing bar remains hot.

Note: The lid may be hard to open for a few seconds after operation due to vacuum pressure. Allow the pressure to dissipate for the lid to open freely.

Safety Cut-out

This appliance is fitted with an automatic safety system to help prevent any damage from misuse.

If during suction the pressure gets too great (no air left in the bag), the appliance automatically switches to the sealing process.

Auto-Standby

The appliance will revert to standby mode if it is not used for a period of 412 minutes.

Vacuum Packed Shelf Life

The following table shows the APPROXIMATE shelf life of produce once vacuum packed.

Note: Values are APPROXIMATE. Various factors including produce quality, best before dates and the quality of vacuum packing all affect shelf life.

Foodstuff Storage	temperature Approximate shelf life
Bread	-2°C to 25°C	6-8 days
Pasta 12 months
Rice 12 months
Flour 12 months
Ground Coffee/Tea 12 months
Red Meat (raw)	-2°C to 5°C	8-9 days
White Meat (raw) 6-9 days
Fish (raw/whole) 4-5 days
Game (raw) 5-7 days
Soft Cheese 14-20 days
Hard Cheese		25-60 days
Vegetables		7-10 days
Fruits		14-20 days
Pasta/Rice (cooked)		6-8 days
Meats (cooked)		10-15 days
Meats	Frozen (to -18°C)	15-20 months
Fish		10-12 months
Vegetables		18-24 months

Cleaning, Care & Maintenance

• Always allow to cool before cleaning.
• Remove the channel and empty of any fluids after each use.
• Use warm, soapy water and a damp cloth to clean the appliance.
• D r y t h o r o u g h l y after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

WARNING: Do not allow any water to spill into the appliance when cleaning.

Troubleshooting

Fault Probable Cause	Cause Action
The unit is not working The unit	is not switched on Check the unit	is plugged in correctly and switched on
	Plug and lead are damaged Call	BUFFALO agent or qualified technician
	Fuse in the plug has blown Rep	ace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO	O agent or qualified technician
The unit is not working - 'E' flashes on the display	Safety cut-out activated Allow a	appliance to rest for indicated time before using again
The unit is not working - '0' flashes on the display	‘Lid closed’ switch faulty Call BUFFALO	agent or qualified technician
Appliance does not remove all the air from the bag	Open end of bag not completely inserted	Open lid and reposition bag
	Gaskets dirty Clean gaskets
	Open end of bag is dirty Clean bag
	Bag may be punctured	Replace bag
	Incorrect bags used Call Vacuum	Pack machine supplier
	Suction nozzle blocked Clear suction nozzle
Bags are not sealing correctly	Sealing bar is overheating	Open lid and allow sealing bar to cool down
	Moisture in bag under the sealing bar	Ensure inside of bag is dry and free from moisture where it is to be sealed
	Incorrect Sealing Time set	Alter sealing time
	Bag too thick	Use thinner bag
	Incorrect bags used Call Vacuum	Pack machine supplier
	End of bag not placed above channel	Move end of bag over channel
	Indicator light comes on but there is no weld	Inspect heating element for breaks. Replace if necessary
	Imperfect weld	Inspect Teflon fabric heating element cover for breaks or damage. Replace if necessary
		Inspect silicon rubber pressure pad for damage. Replace if necessary
		Inadequate "cooling time". Allow at least one second between operations
		Eventually certain components such as the heater element and the Teflon fabric heater cover will require replacement through "normal wear and tear"
		Inspect lower Teflon, replace if worn otherwise element will short out on body of machine

To replace the Teflon fabric heater cover

Disconnect machine from mains supply. Remove the screws that locate the retaining plates. The Teflon fabric can be lifted clear and replaced by a new part and the retaining plate and screws replaced.

Technical Specifications

Model	Voltage Power	Current	Vacuum pressure (approx.)	Max. bag length	Dimensions h x w x d mm	Weight (kg)
CC770	230V 50Hz	300W 1.3A	0.8bar 300mm	95 x 348 x 1	90 3.9
CC771	230V 50Hz	400W 1.7A	0.8bar 400mm	95 x 458 x 1	90 5.2

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.
