Tokio - Stroller Foppapedretti - Free user manual and instructions
Find the device manual for free Tokio Foppapedretti in PDF.
| Product type | Stroller |
| Brand | Foppapedretti |
| Model | Tokio |
| Recommended age | From 6 months |
| Maximum supported weight | 15 kg |
| Safety standard | EN 1888:2012 |
| Basket capacity | 5 kg |
| Harness type | 5-point harness with safety buckle |
| Backrest adjustment | Yes (by strap) |
| Parking brake | Yes (red/blue pedal) |
| Swivel front wheels | Yes, with lock |
| Canopy | Yes, foldable with locking levers |
| Armrest | Removable and articulated |
| Folding mechanism | Yes, with closure hook |
| Materials | Metal frame, synthetic fabric |
| Maintenance | Cleaning with warm water and mild detergent |
| Lubrication | WD-40 on moving parts (except removable wheels) |
| Warranty | 12 months (manufacturer's standard warranty) |
| Included accessories | Rain cover, leg cover (depending on version) |
| Country of origin | Italy (Foppa Pedretti S.p.A.) |
Frequently Asked Questions - Tokio Foppapedretti
User questions about Tokio Foppapedretti
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stroller in PDF format for free! Find your manual Tokio - Foppapedretti and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Tokio by Foppapedretti.
USER MANUAL Tokio Foppapedretti
PUSHCHAIR - Assembly instructions
This seat is not suitable for children under 6 months, maximum weight 15kg - Complies with EN 1888:2012
BUGGY - Montageanweisungen
GB. IMPORTANT! READ THE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
F. IMPORTANT! LIRE ATTENTIVEMENT ET CONSERVER SOIGNEUSMENT A PORTEE DE MAIN POUR UNE UTILISATION ULTERIEURE
D. WICHTIG! AUFMERKSAM LESEN UND FÜR ZUKUNFTIGE REFERENZEN AUFBEWAHREN
E. IMPORTANTE! LEER ATENTAMENTE Y CONSERVAR PARA FUTURAS REFERENCIAS
NL. BELANGRIJK! AANDACHTIG LEZEN EN BEWAREN VOOR TOEKOMSTIG GEBRUIK
GR. ΣHMANTIKO: KPATHES TIE OΔHIGE ΓIA NA TIE ΣYMBOYAEYEESTE ΣTO MEΛΛON - ΠPOΥΤΙTE BHΜΑTEJIbHO
P. IMPORTANTE! LER ATENTAMENTE E GUARDAR PARA FUTURA CONSULTA
RU. BAXHAR INHΦOPMALIa! BHIMATEJIbHO IPOYTTE N COXPAHNTEДЛЯ DAJIbHEIWEI OIOJIb3OBAHnA

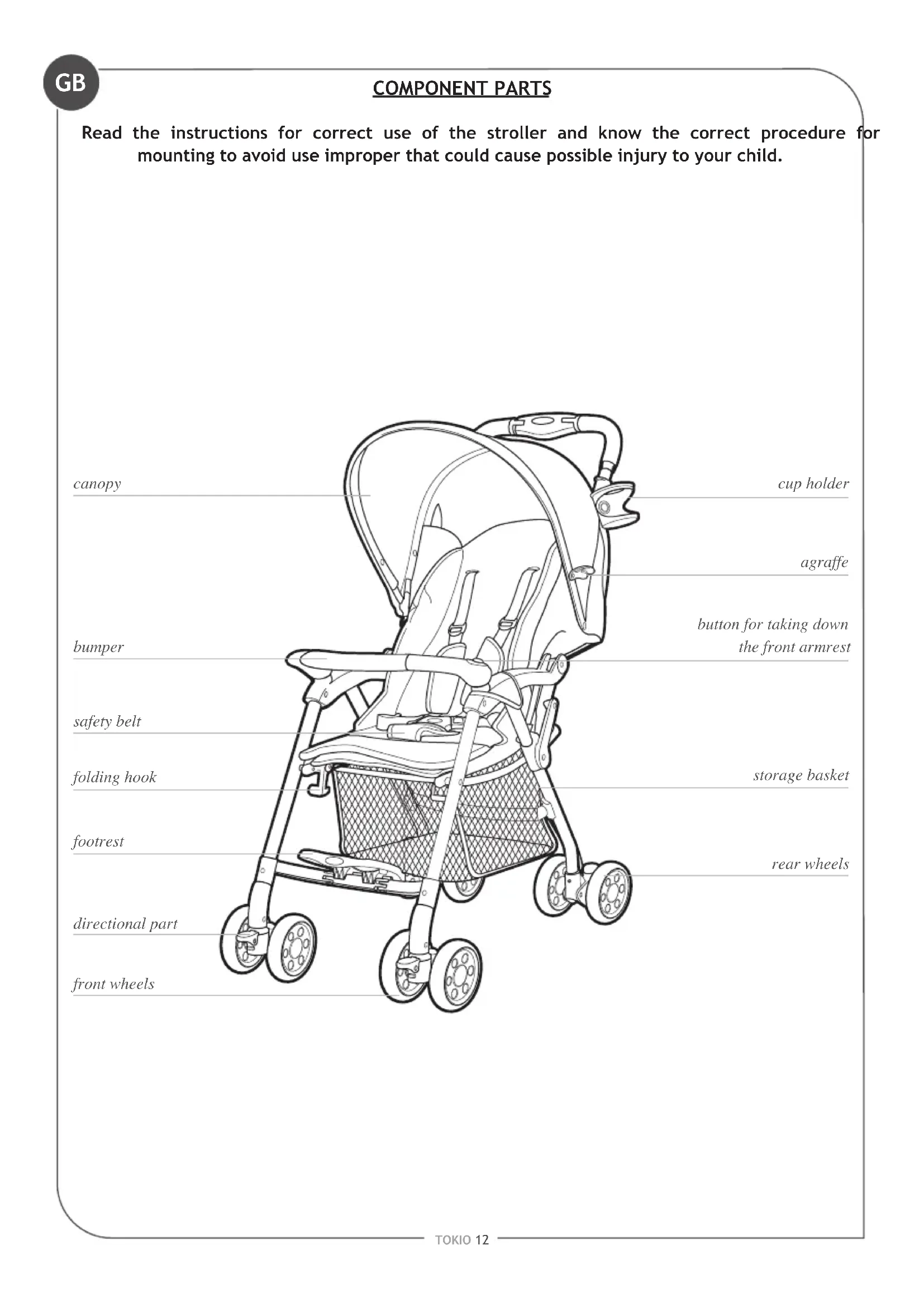

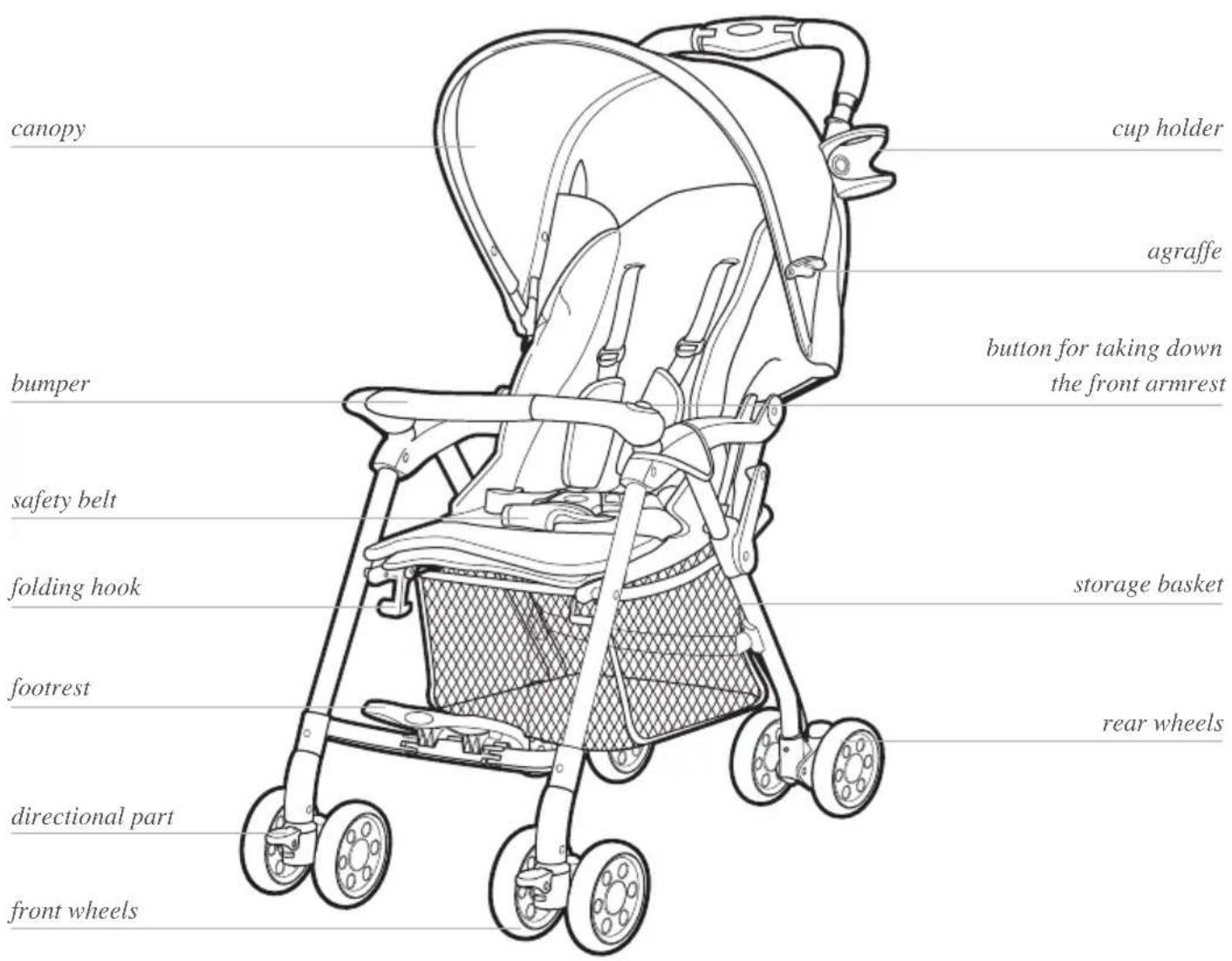

COMPONENTI
Read the instructions for correct use of the stroller and know the correct procedure for mounting to avoid use improper that could cause possible injury to your child.
The iconograph is to better illustrate the operation means and structure of the product. When there are some differences between the practical and the inset, the practical is confirmed. In order to better improving the quality, we may make some change on some parts of the structure and appearance without informing, please understand.

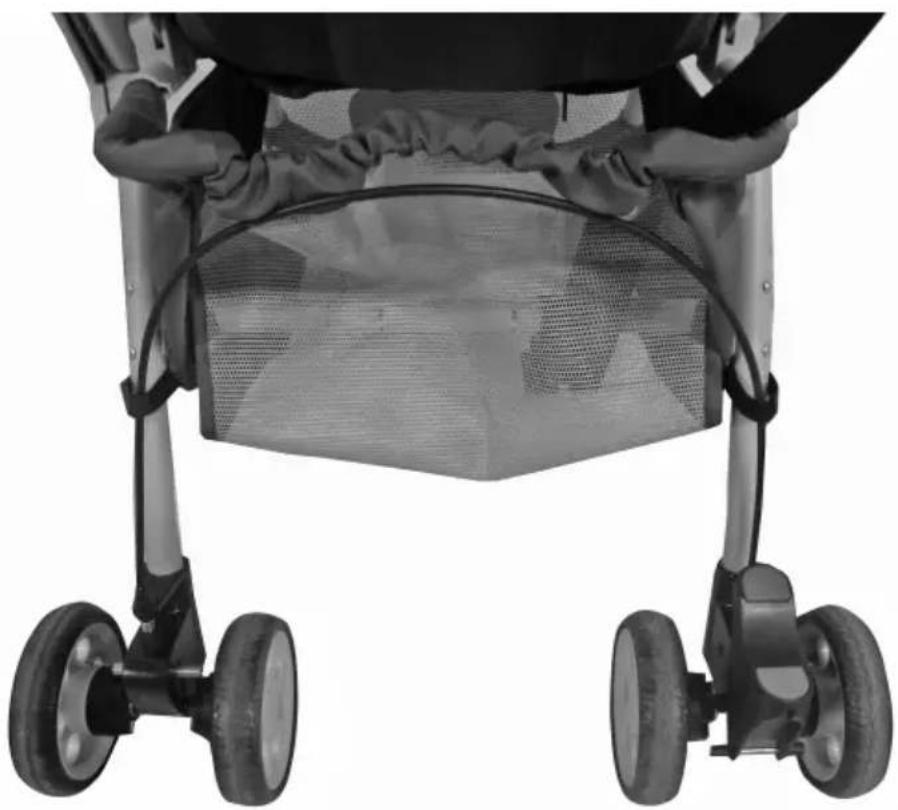

Note:
Fix the brake line to the frame using the Velcro on both sides. Keep the brake line outside of the basket. The wheel with brake could be fixed on either side of the strol
TO INSTALL

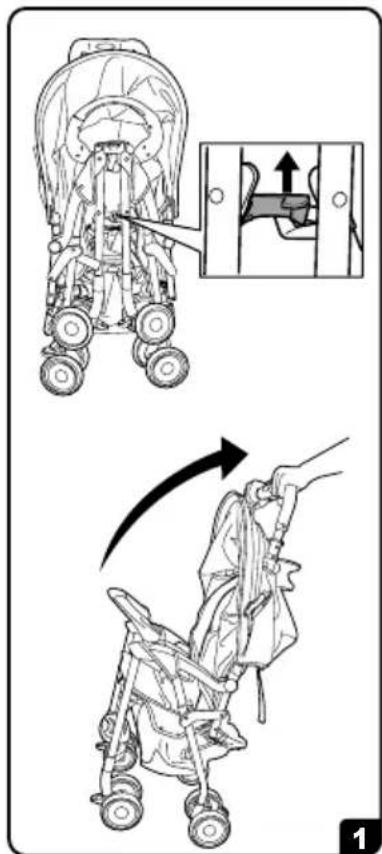

1. OPEN THE FRAME
As picture 1, put up the folding hook, pull the frame backward, then the frame can be opened. If you heard 'click', it shows the frame is in position.

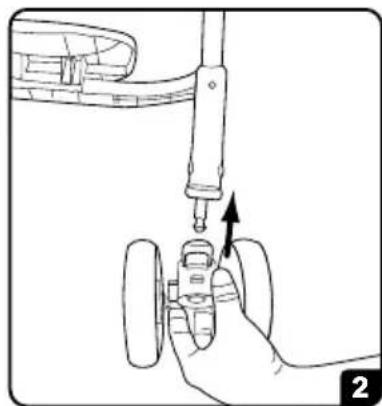

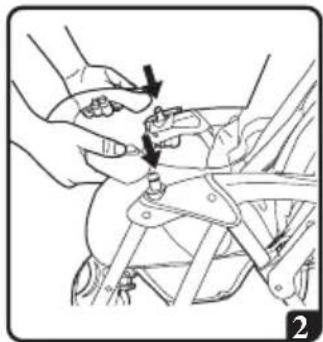

2.INSSTALL THE FRONT WHEELS
As picture 2, Support the frame with one hand, hold the front wheels with the other hand, at the same time, push the front wheels airward. If you heard 'click', it shows the front wheels are in position.

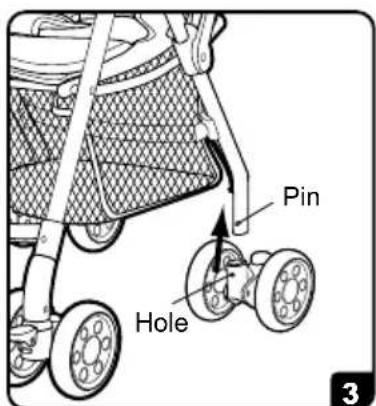

3. INSTALL THE REAR WHEELS
As picture 3, Aim the hole on the rear wheels at the pin on the pole, then push the rear wheels airward. If you heard 'click', it shows the rear wheels are in position.
Fix the brake line to the frame using the Velcro on both sides.
Keep the brake line outside of the basket.

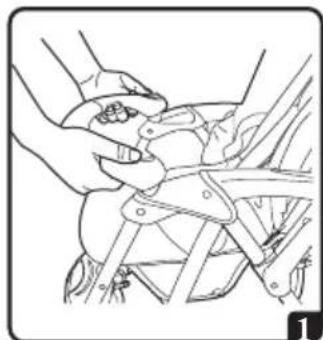

1. USE THE FRONT ARMREST
As picture 1, when you need to seat the baby or take down the front armrest, press the two buttons on the front armrest, pull the front armrest upward, then you could take down the front armrest.
- As picture 2, when you need to install the front armrest, aim the front armrest at the side armrest, then press downward. If you heard 'click', it shows the front armrest is in position.

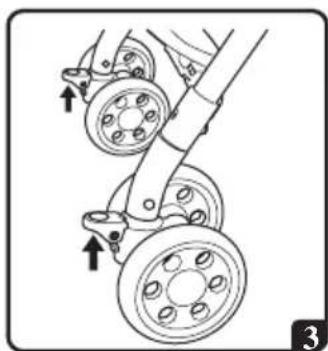

3. FIX THE DIRECTION OF THE FRONT WHEELS
As picture 3, put up the directional part upward.

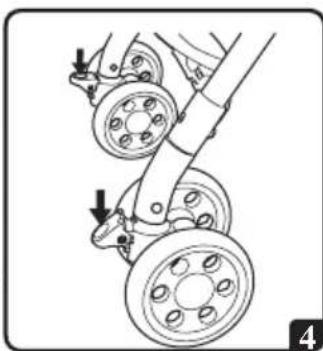

4. TURN THE DIRECTION OF THE FRONT WHEELS
As picture 4, press the directional part down, then you could turn the direction of the front wheels freely.

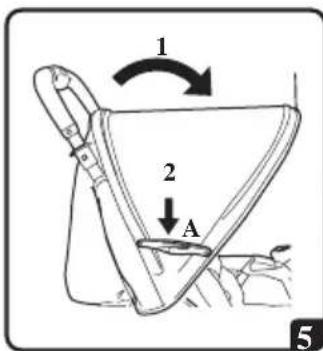

5. OPEN THE CANOPY
As picture 5, follow the arrowhead, pull the canopy pole and press down the agraffe, then the canopy can be opened.

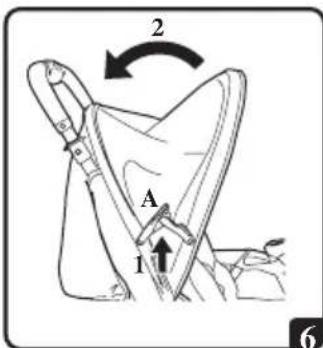

6. FOLD THE CANOPY
Follow the arrowhead, put up the agraffe upward, then push the canopy, the canopy can be folded (pic. 6).
Important: Never close the canopy without first undo the stretchers.
The canopy could be damaged.

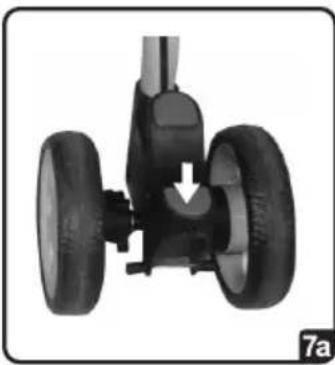

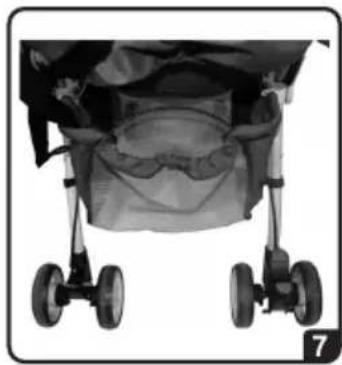

7. USE THE BRAKE
Press down the red pedal to lock the brake wheels.
Press down the blue pedal to unlock the brake wheels

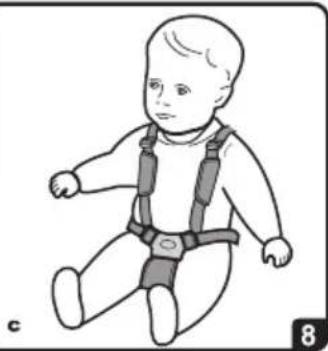

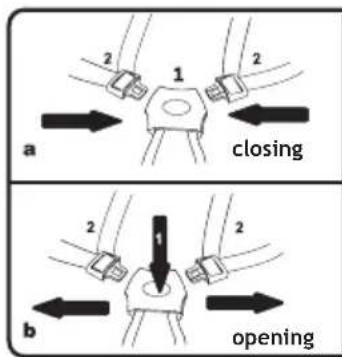

8.FASTEN THE SAFETY BELT
Fasten: As picture a, insert the two pins of the safety buckle into the two safety jacks. If you heard 'click', it shows you have fastened the safety belt in position.
OPEN THE SAFETY BELT
As picture b, press down the buttons "1" of the safety jacks, pull the safety pins outward "2", then you could open the safety belt. Important:
the safety belt has to be used always and only correctly fasten, including all components, as shown in pic.8.
9. THE BACKREST CAN BE ADJUSTED FREELY
As picture 9, pull the belt with one hand, hold the backrest adjustment part with the other hand, then push it airwards, the backrest can be adjusted higher.
Pull the backrest adjustment part outward, then the backrest can be adjusted lower.
Please don't adjust the backrest when the child is in the stroller.

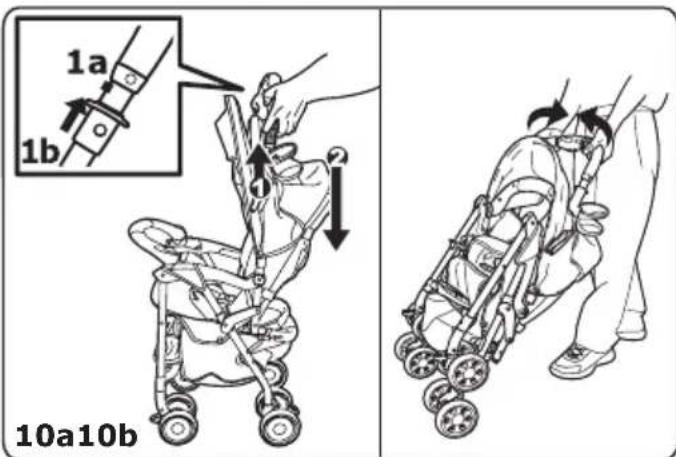

10. FOLD
Fold the canopy.
Lock the front wheels.
a. Push the button 1a on the right side and pull the two folding handles 1b, then press the handles downwards 2.
b. Hold the two sides of the handle, fold the stroller.

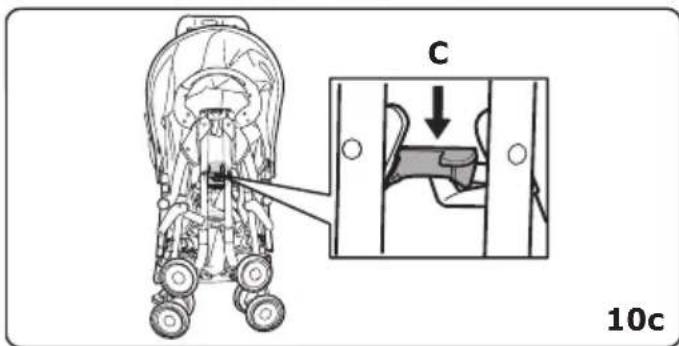

c. Hang the folding hook, the the frame can be folded. The stroller can stand after folding.
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE.
WARNING: A CHILD'S SAFETY IS YOUR RESPONSIBILITY.
WARNING: Never leave child unattended. Always keep child in view when in stroller
WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
WARNING: Do not let your child play with this product.
WARNING: Always use the restraint system.
WARNING: The parking device shall be engaged when placing and removing the children.
WARNING: Accessories which are not approved by the manufacturer shall not be used.
WARNING: This seat is not suitable for children under 6 months, maximum weight 15kg . For new born baby, do not recline seat back to sitting position (should be in full reclining position) as the baby doesn't have ability to control its head.
WARNING: Use seat belt, avoid serious injury from falling or sliding out always.
WARNING: Ensure that all the locking devices are engaged before use.
WARNING: Use a harness as soon as your child can sit unaided.
WARNING: Any load attached to the handle affects the stability of the pram/pushchair.
WARNING: Always use the crotch strap in combination with the waist belt.
WARNING: Check that the pram body or seat unit attachment devices are correctly engaged before use.
WARNING: Ensure your child wears a correctly fitted and adjusted harness at all times. D-rings are provided on the existing harness for the attachment of a separate safety harness approved to BS 6684 or BS En 13210 should this be required.
Verify regularly that the safety belts are correctly fastened, not damaged or frayed.
WARNING: Only one child for one stroller.
WARNING: This product is not suitable for running or skating.
WARNING: Check that the seat unit attachment devices are correctly engaged before use.
WARNING: Do not add a mattress thicker than 25mm
WARNING: When folding, unfolding or adjusting before using stroller, keep child away from moving parts.
WARNING: Do not place or hang parcels, bags or accessories on any part of the stroller including the handle. Failure to comply with this warning may cause, hazardous, unstable conditions to exist.
WARNING: Always use the brakes when stroller is stopped.
WARNING: Never fold the stroller, not even partly, when your child is in it.
A basket is provided for the carriage of 5kg of goods, evenly distributed.
The product must be assembled by an adult.
Only the minder can operate the recline adjuster.
Never use the stroller if any part of it is damaged or any component is missing.
Do not allow children to play with or hang onto the stroller.
This vehicle requires regular maintenance by the user.
Do not use replacement parts or accessories other than those approved by the supplier as they may render the pushchair unsafe.
Overloading, incorrect folding, and the use of non-approved accessories or spare parts may damage or break this pushchair and could render the product unsafe. Read the instructions.
Do not overload this pushchair with additional children, goods or accessories. Bags and other items must not be hung from the handle.
Never leave rain covers on indoors, in a hot atmosphere or near a heat source as the baby could
WARNING
overheat.
Ensure all users are familiar with the products operation. It should always open and fold easy. If it does not, do not force the mechanism - stop and read the instructions.
Do not use your pushchair in a manner for which it is not designed.
Do not allow your child to climb unassisted into, play with or hang onto your pushchair.
Hold on to your pushchair when close to moving road vehicles or trains. Even with the brake on the draught from the vehicle may move the pushchair.
Exercise caution when mounting or dismounting a kerb.
Remove your children and fold the pushchair when ascending or descending stairs or escalators.
Ensure the folded pushchair is stored away from children so that it does not fall and cause injury.
Do not use replacement parts or accessories, e.g. child seats, bags, hooks, trays, rain covers etc. other than those approved by the supplier, they may render the pushchair unsafe.
Never carry a third child on your pushchair.
Do not use any platforms or attachments that allow transportation of third child.
CARE
Your pushchair has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
The chassis is strong but will weaken should the back wheels be bumped down stairs or kerbs.
continual impact will cause damage. If your child wears hard shoes these might damage the soft fabric.
Storing a damp pushchair will encourage mildew to form.
After exposure to damp conditions, dry off with a soft cloth, open fully and allow to dry thoroughly before storing.
Store your pushchair in a dry, safe place.
Do not leave the pushchair in sunlight for prolonged periods - some fabrics may fade.
This pushchair requires regular maintenance by the user.
This product is designed to operate with minimum maintenance, however regular
lubrication of moving parts will extend the life of your pushchair and make opening and folding easier.
Should parts of your pushchair become stiff or difficult to operate, apply a light
application of a spray lubricant e.g. WD 40. Do not use oil or grease. WD 40 should not be used to lubricate the running of removable wheels.
If necessary, these should be removed and cleaned with a soft dry cloth.
Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixings to ensure they are secure and in full working order.
Brakes, wheels and tyres are subject to wear and should be replaced if necessary.
Your pushchair should be serviced and reconditioned before using it for a second baby, or within 18 months, whichever is the sooner.

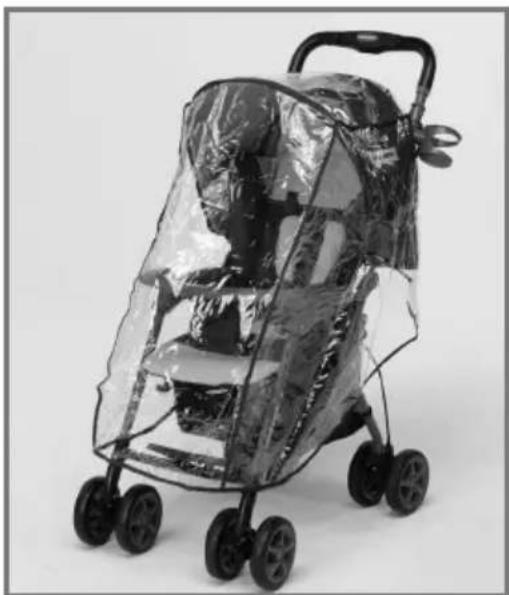

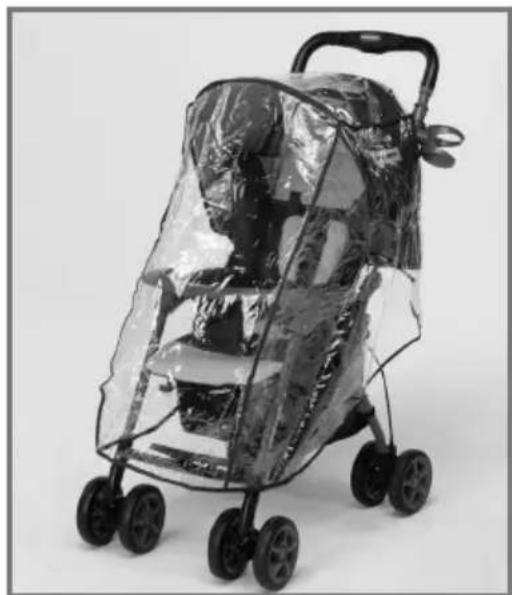

Rain Cover
Place the rain cover as the image shows. Fix the rain cover to the frame, using the straps of Velcro.
CLEANING
The fabric may be cleaned by sponging lightly using warm water and a mild detergent.
Plastic and metal parts may be sponged clean with warm water and a mild detergent.
Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

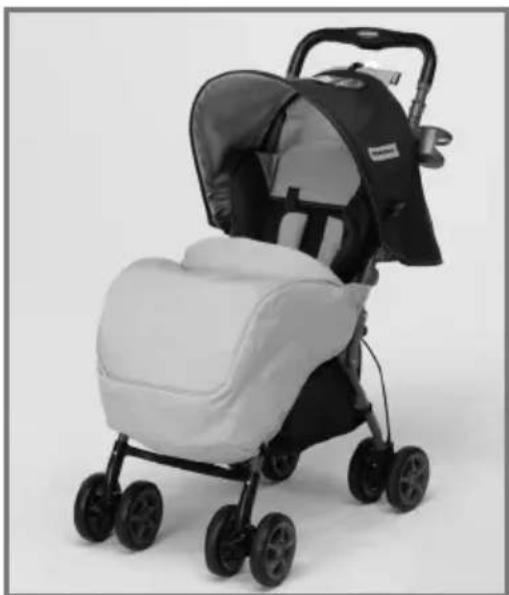

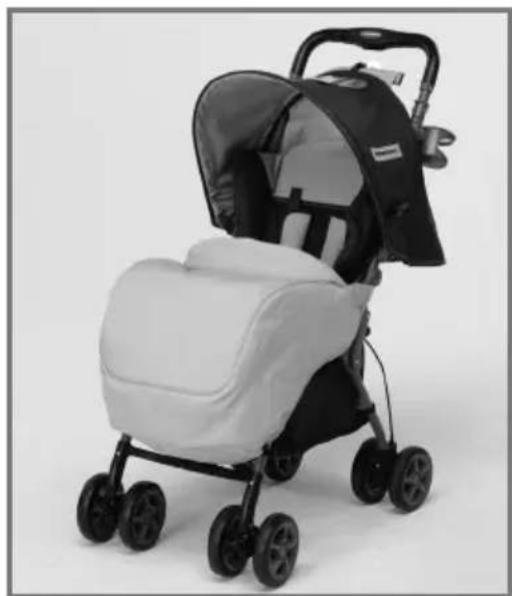

Foot Muff
Place the foot muff as the image shows. Fix the foot muff to the frame, using the straps of Velcro.
KaK noka3aHo Ha pncyHke 4, HaxKaTb BnI3 Ha o6apbIayKa.
5. PACKPbITNE KANIIOHOHA
KaK noka3aHo Ha pncyHke 5,packpbITb KaIIOsoHn HaxTaHa pbuaXKn "A".
6. CKJIADbIBAHNE KANIOWOHA
IpoBepbTe, yTO6bl CLOXeHHa KOLrCKa HaxOuInacb B HeIOCTyHOM IJIa DeTei MeCTe N He MoTla yNaCTb Ha HnX, HaHeCra paHeHn.
He nCnoIb3OBAt b akceccyapb nn IIOJOnHeHn, He BXoJaIeB KOMPJIeK T NOCTaBKn nn HeyTBePxddHhble KOMpaHne-13rTOBUTeIeM, TaKne KaK DeTCKNe KpecNa, CymKn, KpUQKn, PNOHOCbl N T.I., TaK KaK OHN MOryt cdeLaT KoJACKy He6e3OpacHOH.
He nCnoJIb3OBaTb dOIOJIHnTeJIbHbIe NIOCTaBKn npn nepeBO3Ke pe6EHa.
BHIMMAHNE
Bawa nporyoohna kOJcKa OTBeaet Tpe6OBaHnM 6e3OnacHOCTN, npeDyCMOTpeHHbIM cTaNapTOM, n npu COOTBeCTByUoem yxode 3a He npocIyXnt Bam doJIrne rOdbI, He MeHra CBOINx EKcnIyaTaCuIOHHbIX KaueCTB.
Uaccn - ouehb npoHoe, Ho n erO moXHO NOBpeiNb, ecnn 3aHne KOJIeCa NOBBepraOTcaype3MePbIM Harpy3kam npn cnYcKe co cTyneHeJ neCTHnCbl nll c 6OpDIOpa TpoTyapa. NocToHHbIe Harpy3Kn MOryt npNBecT K NOJOMKe.
MaKa TkaHeBa O6uBka MoKeT 6bItb NOBpeXkeHa,ecIn pe6EHOK HOCHT JcETKyo 06yBb.
Pnp xpaheHHn nporyloHou KOJIaCKN BO BlaXHOM BIne MoKeT o6pa3OBaTbCn PnecHeB.
EcnKoJRA KaN OOBepraIacb Bo3JeCTBnIO BnaI, IIN MOKpa, npOTpnte e cyXoTKaHbIO, paCKpoTe N OCTaBbTe BblCOxHyTb NepeI TeM, KaK CkJaAdbBaTb.
XpaHnTe BaU npOryNoUHy KOJIaCKy B CyXOM N HaJExKHom MecTe.
He octabJyIe nporylouHyo KOLaCKy HaoIro NOd BO3deIcTBnEM npAmbix COJIHeuHbIX Lyuei - HeKOTOpBle TkaHm MOryt BblCBeCTN.
yXoI
AKCECCYAPbl
3Ta nporylouHaJ KOJIeKa HxKdaetcB peRyIaPHom yXoJe, BbINONHReMOM NOLb3OBaTeJem.
3TOT yxod - MHHMaIbHbI. PeryIpaHra cma3ka DBNxxuXcra YacteIN NO3BOJNT yBeJIuHTb CPOK Cnyk6bl nporyloUHO KOLrCKn I CdeLaTb 6OJee JERKIMN OepaUN No eE packJaDbBaHIO N CKJaDbBaHIO.
B TOM cnyae, ecn HeKOTOpbIe qactN KOJIaCKN pa6oTaIOT JecTko NJIc TpydOM,
HaHecnte Ha MeTo He6OJbIooe KOJIueCTBO Cma3Kn B BnIe cnpE, HapPImep WD 40. He nCnoJb3OBaTb Cma3OuHoe MaCIO NIN KOHCnCTeHTHyO Cma3Ky. He nCnoJb3yInTe cnpE-CMA3Ky WD 40 dNra Cma3Kn cbEMhBix KOnEc. Pn Heo6xOJIMOCtN, CHMnTe KOnEc a N OUnCTnte IN CyXON MRAKON TKaHBIO.
Perynphno npOBepaTe 6loKnpyUoNe yCTpoNCTBa, Topmo3a, Koneca, peMHn, pbuarr, peryIaTOpbl CndeHb, CoeHNHeHn uYCTPOINCTBa KpeJIeHn, y6eINBwncb B TOM, qTO OHn HAdEJKHO 3aKpeNIIeHbI n npabInbHo yHKUOHNpyIOT.
KoIeCa noBepraOTcHIOHcy I DOJXHbI BOBpeM 6bITb 3aMeHeHbI npn Heo6xOIMocTn.
PpOBeHtTe TuaTeIbHyU npOBepKu Ha npaBnIbHOCTb
yHKcIOHnpOBaHn npOryLooHOn KOJACKn NO
ncTeueHnn 18 MecaeB kcnnyatau, nocne
dINTeHoro npocToI nepeD nCNoIb3ObaHnem e
dIra BTOPOr pe6EHa.
YUCTKA
OuHaaTb TkaHb ry6ko, CMOeHHoB OdoC HeHTpaJIbHbIM MOUcIM CpeICTBOM.
MeTAnJIuYeCKNe I NpIaCTMaCCOBbIe YacTn MoXHO OUHaaTb r6KoN, CMOueHHo TEnIOBdoOn C HeITpaIbHbIM MOUOIM CpeDCTBOM.
HnkOrda He nCnoIb3OBaTb IJy uNCTKn a6pa3NBbIe cpeIcTBa IIIN Ha OCHOBe aMMnaka, OT6JIINBaTeJIa IIIN cKIIuIAPA.
Kanot otdoxna
YcTaHOBnTe KAnOT OT DoXJa, KaK NOKa3aHo Ha pncyHke.
PpNkpeNte KANOT OT DOxKJ K waccn, o6epHyB BOKpyr CTpykTypbl N pncTeRhyB Kpaar C JeHTOnIynyko.
YexonДяHor
YcTaHOBnTe YexoJ nIa Hor, KaK NOKa3aHo Ha pncyHke.
PpKpeNte no 6okam K ctpyktpe neHToIJIpykoI.
The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A.
FORMAL GUARANTEE
Foppa Pedretti S.p.A. the head office of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer.
This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer's rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product.
To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer's address, the date of purchase of the Product with the Retailer's stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above.
The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product.
EXCLUSIONS TO THE FORMAL GUARantee.
The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorized spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure.
In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manua l or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot : "Check your baby constantly. Make sure that the sheets and blankets do not cover the baby's head...").
Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.
