USER MANUAL Ciao Foppapedretti

CAREFULLY AND KEEP FOR FUTURE

CAREFULLY AND KEEP FOR FUTURE

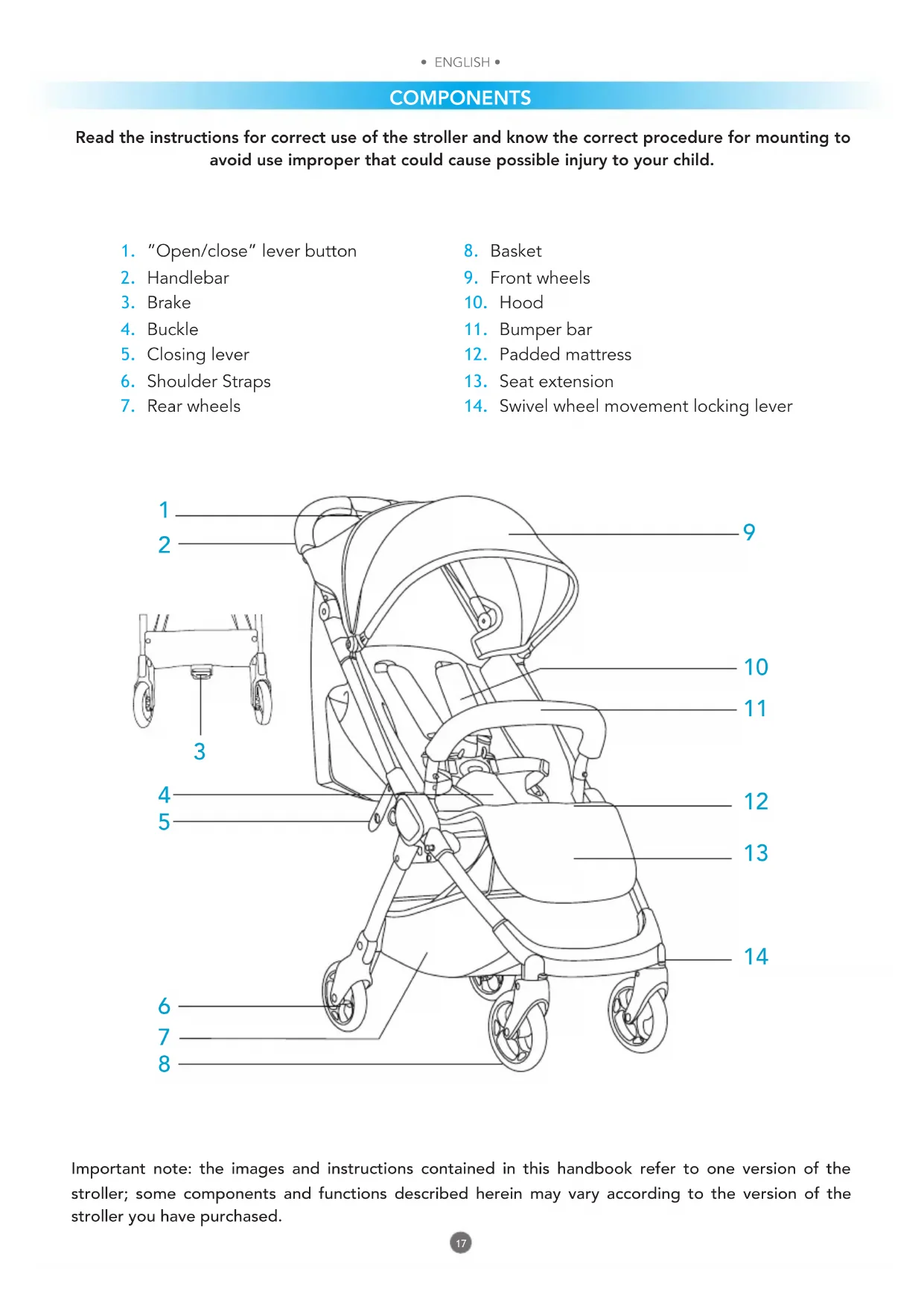

Important note: the images and instructions contained in this handbook refer to one version of the stroller; some components and functions described herein may vary according to the version of the stroller you have purchased. Read the instructions for correct use of the stroller and know the correct procedure for mounting to avoid use improper that could cause possible injury to your child.

• IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• WARNING: THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING.

• WARNING: A CHILDS SAFETY IS YOUR RESPONSIBILITY.

• WARNING: Ensure that all the locking devices are engaged before use.

• WARNING: Always keep child in view when in stroller.

• WARNING: This product is suitable for child from birth up to 22 kg or 4 years, whichever comes rst.

• For babies under 6 months of age, only use the pushchair with the backrest fully reclined.

• For new born baby, do not recline seat back to sitting position (should be in full reclining position) as the baby doesn’t have ability to control its head.

• WARNING: Use seat belt, avoid serious injury from falling or sliding out Always.

• Verify regularly that the safety belts are correctly fastened, not damaged or frayed.

• WARNING: Ensure your child wears a correctly tted and adjusted harness at all times.

• WARNING: Only one child for one stroller.

• WARNING: This product is not suitable for running or skating.

• WARNING: Check that the seat unit attachment devices are correctly engaged before use.

• WARNING: Do not place or hang parcels, bags or accessories on any part of the stroller including the handle. Failure to comply with this warning may cause hazardous, unstable conditions to exist.

• WARNING: Always make sure that the brake is engaged when positioning the child into the stroller seat or taking him/her out.

• WARNING: Always use the parking brake, even when standing still for only a few moments.

• WARNING: When parking check if the brake is properly engaged by moving forward/ rearward the stroller.

• WARNING: Never fold the stroller, not even partly, when your child is in it.

• A basket is provided for the carriage of 2kg of goods, evenly distributed.

• The product must be assembled by an adult.

• Only the minder can operate the recline adjuster.

• Never use the stroller if any part of it is damaged or any component is missing.

• Do not allow children to play with or hang onto the stroller.

• This vehicle requires regular maintenance by the user.

• Do not use replacement parts or accessories other than those approved by the supplier as they may render the pushchair unsafe.

• Any load applied to the handle and/or the backrest and/or laterally to the product can compromise the stability of the product.

• Do not overload this pushchair with additional children, goods or accessories. Bags and other items must not be hung from the handle.

• Ensure all users are familiar with the products operation. It should always open and fold easy. If it does not, do not force the mechanism - stop and read the instructions.

• Do not use your pushchair in a manner for which it is not designed.

• Do not allow your child to climb unassisted into, play with or hang onto your pushchair.

• Hold on to your pushchair when close to moving road vehicles or trains. Even with the brake on the draught from the vehicle may move the pushchair.

• Exercise caution when mounting or dismounting a kerb.

• Remove your children and fold the pushchair when ascending or descending stairs or escalators.

• Ensure the folded pushchair is stored away from children so that it does not fall and cause injury.

• Do not use replacement parts or accessories, e.g. child seats, bags, hooks, trays, rain covers etc. other than those approved by the supplier, they may render the pushchair unsafe.

• Never carry a second child on your pushchair.

• Do not use any platforms or attachments that allow transportation of the child.

• CARE: Your pushchair has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.

• The chassis is strong but will weaken should the back wheels be bumped down stairs or kerbs. continual impact will cause damage.

• If your child wears hard shoes these might damage the soft fabric.

• Storing a damp pushchair will encourage mildew to form.

• After exposure to damp conditions, dry off with a soft cloth, open fully and allow to dry thoroughly before storing.

• Store your pushchair in a dry, safe place.

• Do not leave the pushchair in sunlight for prolonged periods - some fabrics may fade.

• Only replacement parts supplied or recommended by the manufacturer / distributor shall be used. RAINCOVER optional, sold separately

FITTING THE PUSHCHAIR RAINCOVER

Fit the raincover over the hood. Fasten the edges at the back of the raincover using the Velcro tabs. Attach the aps with the press studs, to the chassis of the pushchair using the Velcro tabs.• ENGLISH • • ENGLISH •

• Use under an adult surveillance.

• When in use make sure the rain cover does not come in contact with the face of the child as it may cause suffocation

• Don’t use the raincover on the product without a hood that can hold it.

• Never leave rain covers on indoors, in a hot atmosphere or near a heat source as the baby could overheat.

• Do not use on products other than those recommended by the Manufacturer.

• Hand wash at 30° C. HOW TO OPEN THE PUSHCHAIR (g.1) Unhook the locking device (a). Press button “b”, as shown in the gure, and lever “c” at the same time. Lift the handlebar until the chassis opens completely. A click will indicate that is has been fastened. Before using the stroller, make sure it is opened properly and the mechanisms are properly locked.

INSTALL FRONT WHEELS

Fitting the front wheels (g. 2): Insert the end bushing into the slot situated in the center of the wheel block. A click will indicate that it is inserted correctly. Check that both the wheels have been fastened correctly, if they are pulled downwards they should not be released. Removing the front wheels (g.3): Press the steel button “a” front wheel released.

FITTING THE BUMPER BAR

Fitting the bumper bar (g.4): line the bumper bar up with the slots and press on both sides. A click indicates that it has been fastened correctly. Removing the bumper bar (g. 5): press button "A" on both sides of the bumper bar and at the same time pull to remove it.

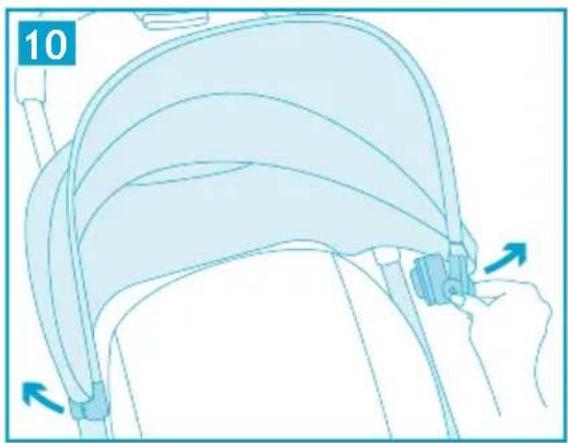

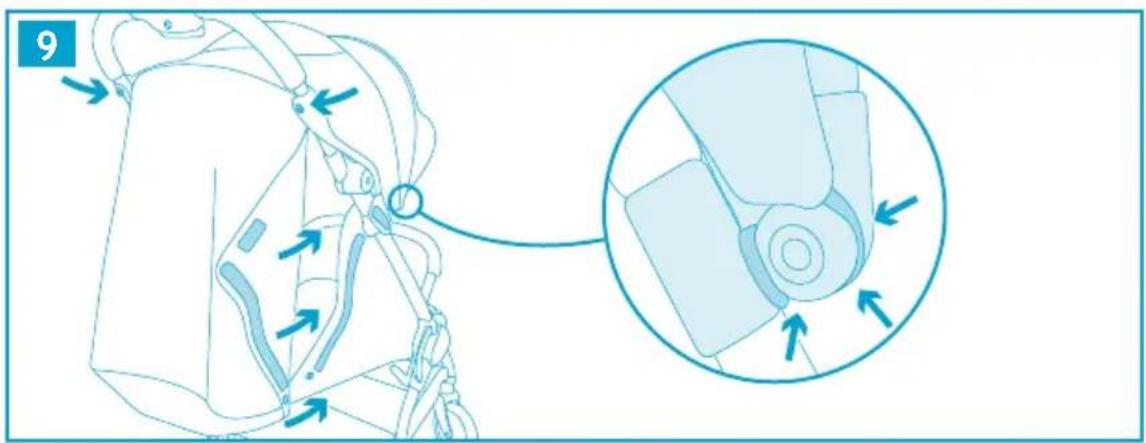

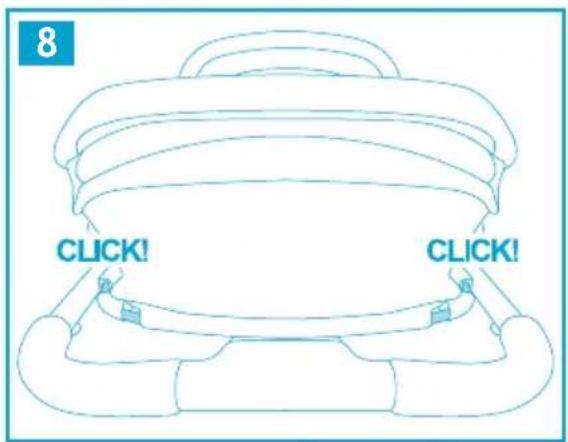

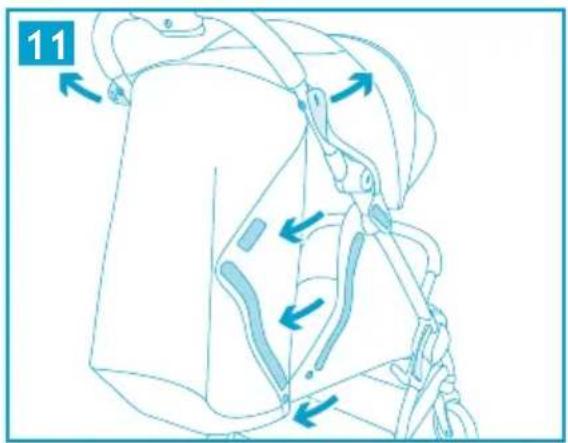

Assembly: Place the hood support on the side of the frame in the attachment position, between the stroller closing hinge and the screw in the lower part of the frame (g. 6). Press to t the hood support onto the frame. Check it is correctly attached. Repeat on the opposite side. Insert the front arch of the canopy into the support: you will hear a “click” when it is attached correctly. Repeat on both sides (g. 7, 8). Position the elastic bands around the hood hinge (g. 9). Fasten the Velcro aps to the side and back of the seat (g. 9). Disassembly (g.27): Pull the hood support lever outwards to release the fastener (g. 10). Repeat on the opposite side. Unfasten the Velcro aps and release the back lateral side of the hood from the fastener on the handle to remove the hood (g. 11). With a at-tipped tool, pry open and slightly lift up tab “a” on the rear canopy support and, at the same time, remove the arch (g. 12). Repeat on both sides. WARNING

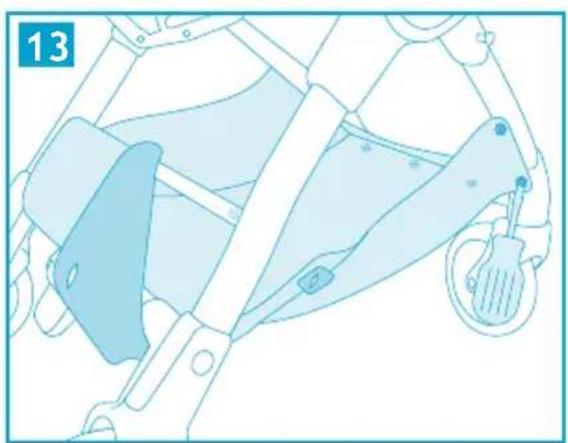

LOWER BASKET (g.13) The basket is screwed onto the lower part of the frame and attached to the back side with a fabric ap that slots onto the frame. Unscrew and release the ap to remove the basket. It is recommended to empty the basket before closing the stroller.

WARNING: the maximum transportable weight inside the basket is 4 kg.

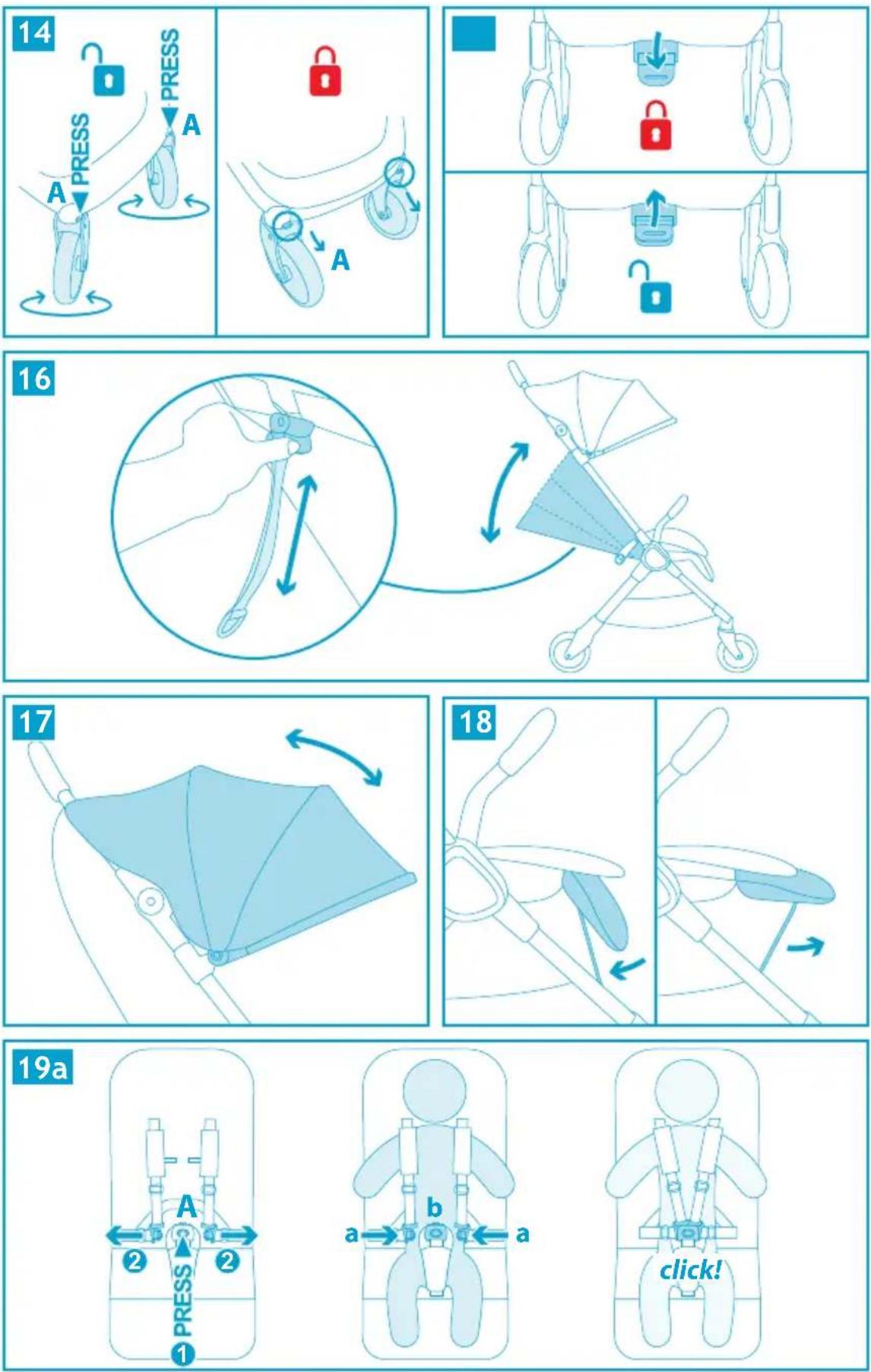

TO DIRECT THE FRONT WHEEL (g.14) To activate the movement: push lever “A” towards the stroller. To block the movement: push lever “A” away from the stroller. PARKING BRAKE (g. 15) To apply the brake: Press the brake lever, push the pushchair forward gently to ensure the brake has been applied correctly. To release the brake: Lift the brake lever as shown. THE BACKREST CAN BE ADJUSTED FREELY (g. 16) As picture 16, pull the belt with one hand, hold the backrest adjustment part with the other hand,then push it airwards, the backrest can be adjusted higher. Pull the backrest adjustment part outward, then the backrest can be adjusted lower. Please don’t adjuste the backrest when the child is in the stroller. IMPORTANT: For babies under 6 months of age, the backrest must only be regulated in the fully reclined, horizontal position at all times. ADJUSTING THE CANOPY (g. 17) Extend the hood according to requirements to protect baby from the sun. NOTE: babies’ skin is very delicate. NEVER leave baby under direct sunlight. Always make sure that the hood has been adjusted correctly. ADJUSTING THE FOOTREST (g. 18)

• Fold the metal support bracket outwards to extend the footrest.

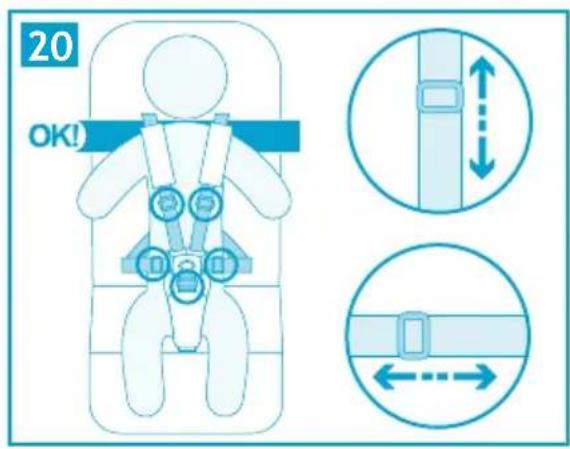

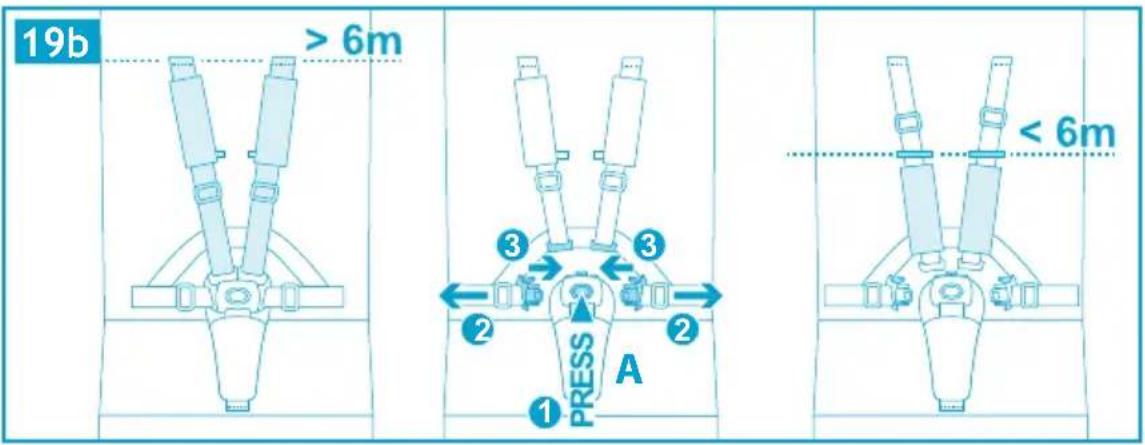

• Fold the metal support bracket inwards to fold the footrest away. SAFETY HARNESS (g. 19a) Put the brakes on before sitting your child in the stroller. Releasing the buckle: Press button “A” and pull out the parts. Place your child in the stroller and adjust the harness to t him/her (g. 20). Fastening the buckle: Insert part “a” in part “b”, a click will indicate proper fastening. Always fasten the restraint system properly. IMPORTANT: If baby is less than 6 months old, the harness belts must be inserted through the lower slots (g. 19b). FOLDING

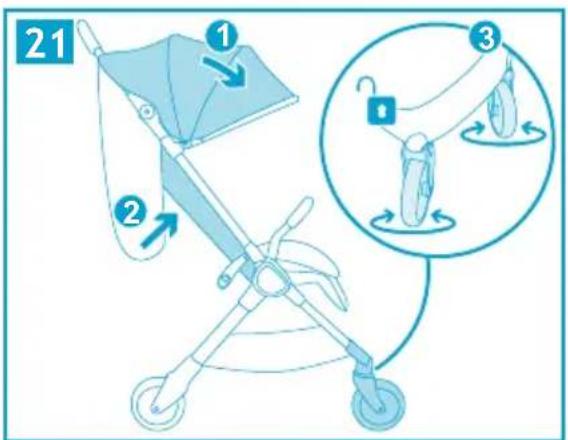

• Open the hood to maximum extension (g. 21)

• Ensure the wheels are free to swivel

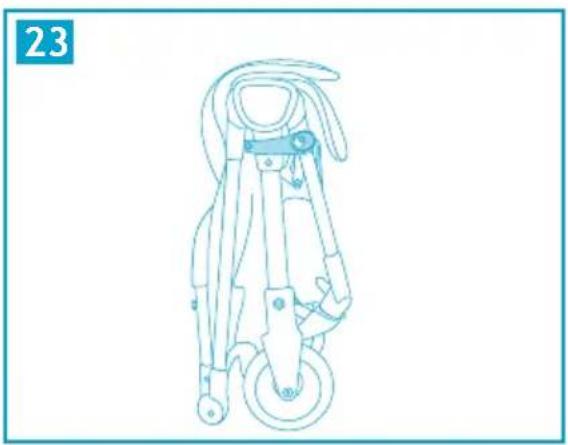

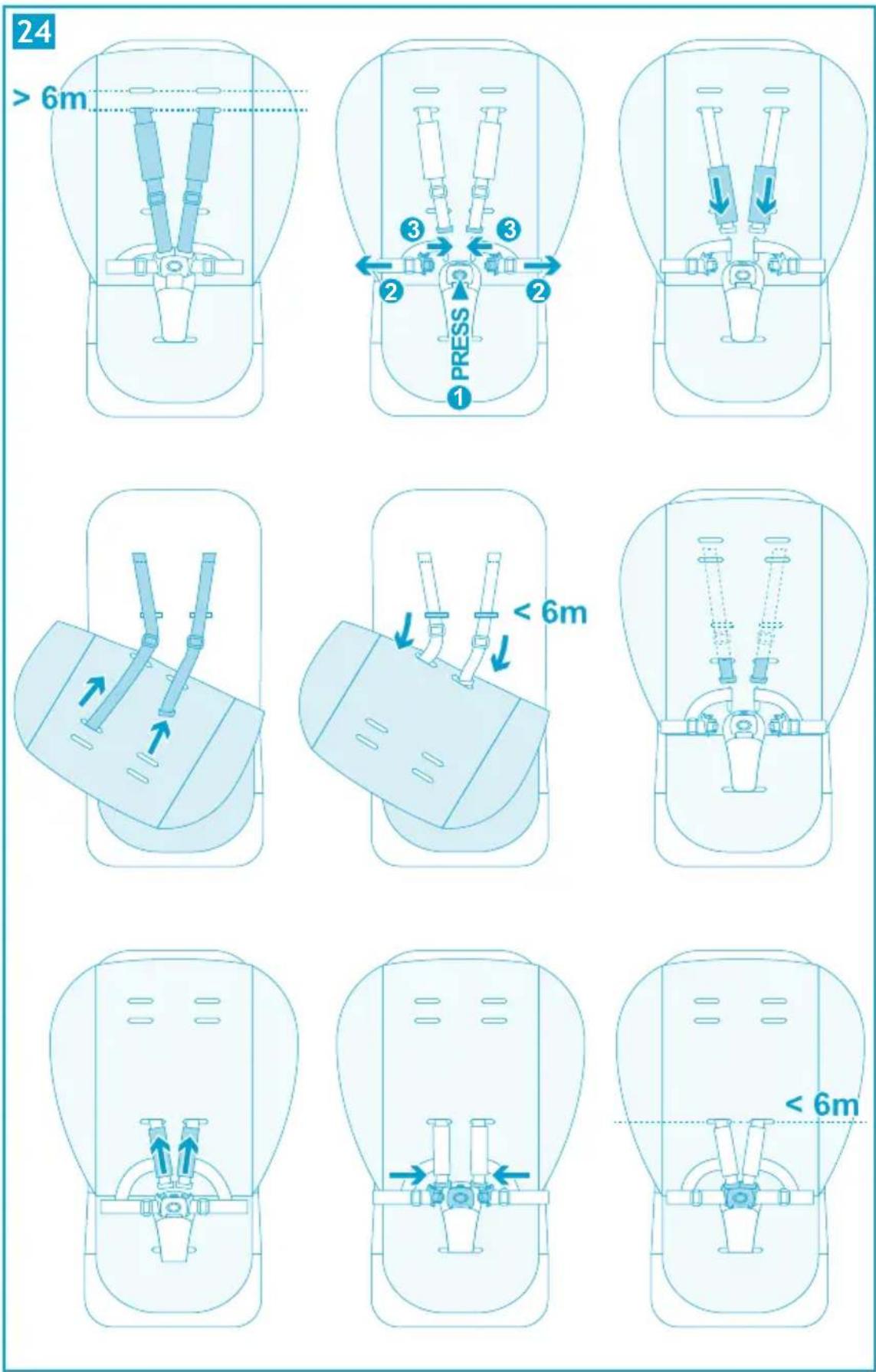

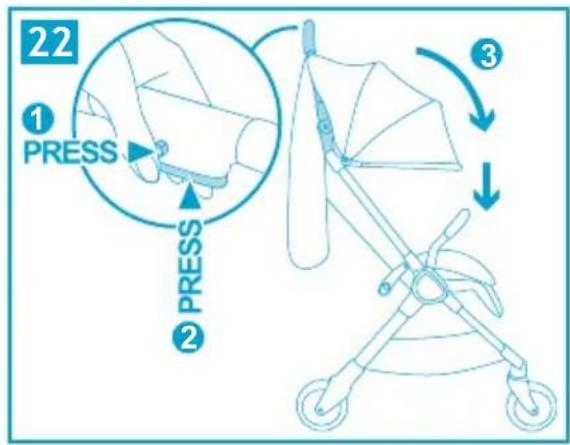

Press the button on the rear of the handle and the “closing lever” button on the lower part of the handle at the same time (g. 22). Fold the handle forward until it meets the backrest. The frame will fold automatically like a book (g. A). Once closed, hook the closing lever to the side to prevent the stroller from opening accidentally (g. 23). Using with the padded mattress (g. 24) Position the padded mattress inside the stroller. Insert the chest and lap straps into the respective horizontal slots in the padded mattress backrest. Insert the crotch strap into the central slot in the seat of the padded mattress. Attach the front part of the padded mattress to the stroller seat with the Velcro straps. If the child is under 6 months, the chest straps must be inserted into the lower loops of the backrest and then into the lower loops of the padded mattress backrest. If the child is over 6 months, the chest straps must be inserted into the central or upper loops of the reducer backrest. The chest straps must be inserted into the slots at the same height. The lap straps must be inserted into the lower loops of the padded mattress, vertical slots. MAINTENANCE

• This pushchair requires regular maintenance by the user.

• This product is designed to operate with minimum maintenance, however regular lubrication of moving parts will extend the life of your pushchair and make opening and folding easier.

• Should parts of your pushchair become stiff or difcult to operate, apply a light application of a spray lubricant e.g. WD 40. Do not use oil or grease. WD 40 should not be used to lubricate the running of removable wheels.

• If necessary, these should be removed and cleaned with a soft dry cloth.

• Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and xings to ensure they are secure and in full working order.

• Brakes, wheels and tyres are subject to wear and should be replaced if necessary.

• Your pushchair should be serviced and reconditioned before using it for a second baby, or within 18 months, whichever is the sooner. CLEANING

• The fabric may be cleaned by sponging lightly using warm water and a mild detergent.

• Plastic and metal parts may be sponged clean with warm water and a mild detergent.

• Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A. FORMAL GUARANTEE Foppa Pedretti S.p.A. the head ofce of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer. This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer’s rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product. To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer’s address, the date of purchase of the Product with the Retailer’s stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above. The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/ or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product. EXCLUSIONS TO THE FORMAL GUARANTEE. The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure. In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manua l or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot : “Check your baby constantly. Make sure that the sheets and blankets do not cover the baby’s head…”). Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.
