220 - Scale SECA - Free user manual and instructions

Product type	Measuring rod (stadiometer)
Brand	Seca
Model	220
Dimensions (W x H x D)	55 x 784 x 34 mm
Weight	Approximately 700 g
Measuring range	60 - 200 cm / 24 - 78 inches
Graduation	1 mm / 1/8 inch
Accuracy	± 5 mm
Material	Aluminum profile, synthetic material cursor
Use	Height measurement for children and women, as a complement to a Seca scale
Installation	Attachment to Seca scale column (models 700/711/712, etc.) using supplied spacer and screws
Operating temperature	+10 °C to +40 °C
Medical classification	Class I medical device (Directive 93/42/EEC)
Cleaning	Household cleaner or common disinfectant, follow the manufacturer's instructions
Warranty	2 years for material and manufacturing defects (excluding removable parts)
Safety	Fold down the cursor after use; installation exclusively on Seca scales

Frequently Asked Questions - 220 SECA

How to install the Seca 220 measuring rod on a scale?

First screw the supplied spacer to the back of the scale column (for models 700/711/712, on the front side). Then attach the measuring rod to the spacer. Ensure the cursor and scale are facing outward from the platform for models 709, 710, 709f, and 710f, and inward for other models.

How to adjust the accuracy of the Seca 220 measuring rod?

Position the head stop at a reference value (e.g. 150 cm). Measure the actual distance between the platform (or the floor for some models) and the head stop using another measuring rod. Loosen the adjustment screw, move the slider up or down according to the measured difference, then retighten. Check the height again.

What is the measuring range of the Seca 220?

The measuring range is 60 to 200 cm (24 to 78 inches), with a graduation of 1 mm (1/8 inch).

How to correctly use the Seca 220 measuring rod?

Snap the cursor into horizontal position. Push it upward according to the person's height. For measurements between 130.5 and 200 cm, use the main scale. For measurements below 130.5 cm, use the lower part. The person should stand straight, with the cursor resting gently on the head. Read the height on the scale.

How to clean the Seca 220 measuring rod?

Clean it with a household cleaner or common disinfectant. Follow the cleaning product manufacturer's instructions.

What is the accuracy of the Seca 220?

The accuracy is approximately ± 5 mm, provided the usage instructions are followed.

What safety instructions should be followed?

Attach the measuring rod only to a Seca scale using the supplied mounting hardware. After measurement, fold down the cursor to avoid injury. Do not open the device without authorization.

Is the Seca 220 measuring rod compatible with all Seca scales?

It is designed for Seca column scales. Compatible models include the 700, 709, 710, 711, 712, 799 series, etc. Check compatibility in the manual.

What to do if the measuring rod seems misaligned after moving the scale?

Use the adjustment screw to adjust the slider position. Remeasure the distance from floor/platform to the head stop and correct the deviation. The scale is offset to compensate for the height difference, so always measure to the stop, not to the scale.

What is the warranty period of the Seca 220?

The warranty is 2 years from delivery date for material and manufacturing defects. It does not cover removable parts (batteries, cables, etc.) nor transport damage if the original packaging is not used.

USER MANUAL 220 SECA

Precision for health

Deutsch	Seite 3
English	Page 6
François	Page 9
Italiano	Pagina 12
Espanol	Págrina 15
Dansk	Side 18
Svenska	Sida 21
Norsk	Side 24
Suomi	Sivu 27
Nederlands	Pagina 30
Português	Págrina 33
Ελληνικό	Σελίδα 36
日本語	39
Polski	42

In the seca 220 measuring rod, you have acquired an accurate and at the same time sturdy rod for measuring the height of children and adults.

It is manufactured from stable, easy-care aluminium profile. The measuring slide is made of plastic and can be folded.

The seca 220 measuring rod is for measuring height and thus for assessing the state of health of patients and for detecting and monitoring pathological nutritional or other physiological disorders.

It is attached to the column of seca column scales using the assembly material supplied.

In combination with a scale, therefore, the measuring rod serves as a complete measuring and weighing station.

The seca 220 measuring rod is used with a seca column scale primarily in hospitals, general practice and measuring and nursing facilities on wards.

Safety

Before using the new measuring rod, please take a little time to read the following safety instructions:

• Follow the operating instructions.
• Attach the measuring rod only to seca column scales.

• Use the assembly material supplied.

• When assembling, ensure that screws are tight and that the rod has been assembled correctly (see chapter entitled "Assembly instructions").

• Fold down the measuring slide after height has been measured to avoid the risk of injury.

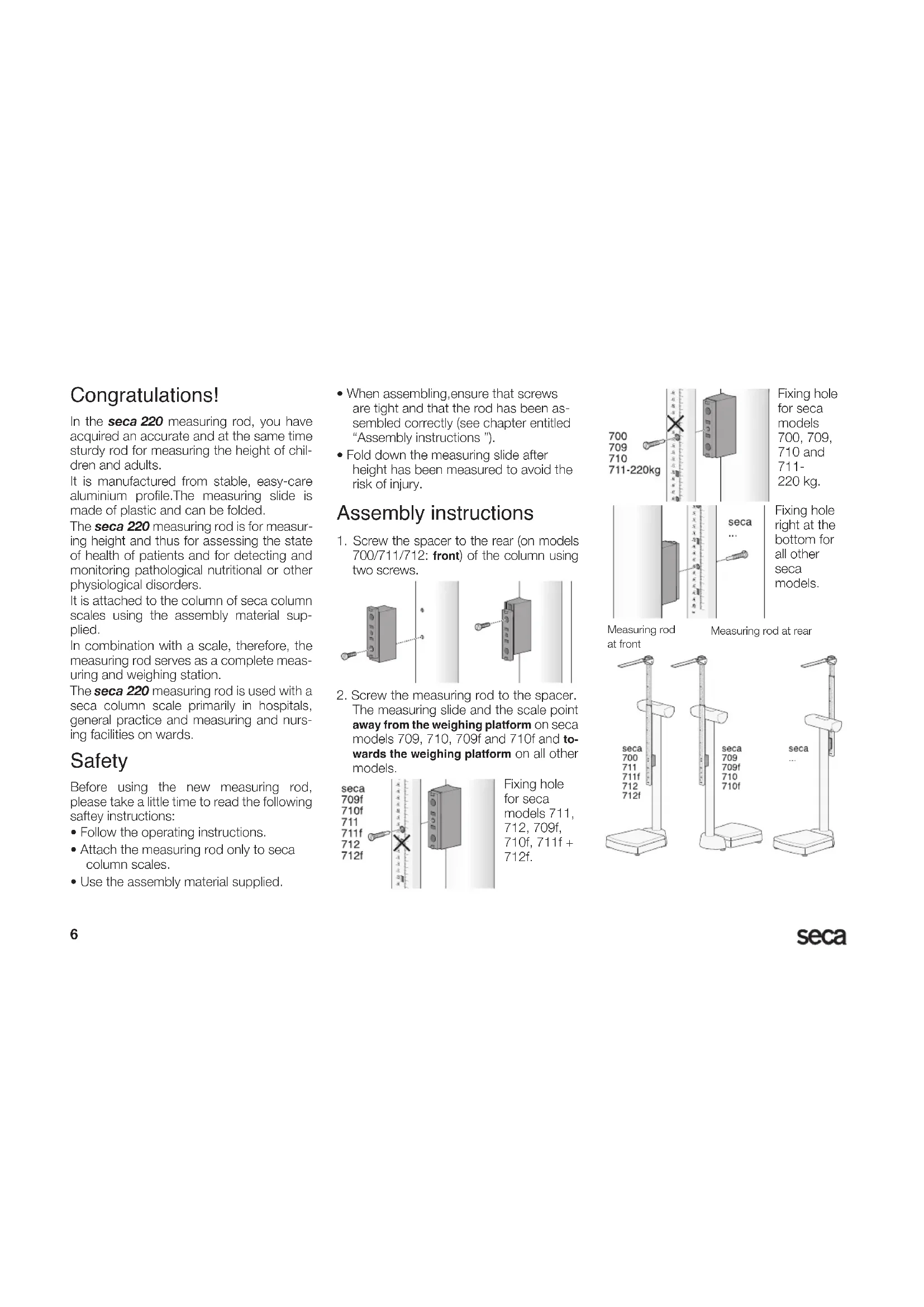

Assembly instructions

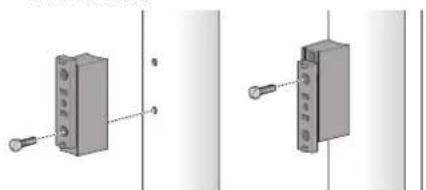

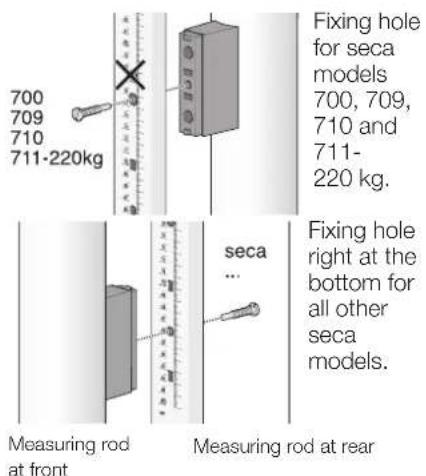

1. Screw the spacer to the rear (on models 700/711/712: front) of the column using two screws.

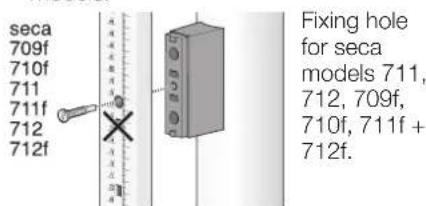

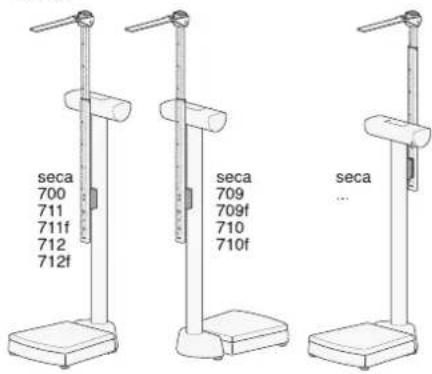

1. Screw the measuring rod to the spacer. The measuring slide and the scale point away from the weighing platform on seca models 709, 710, 709f and 710f and towards the weighing platform on all other models.

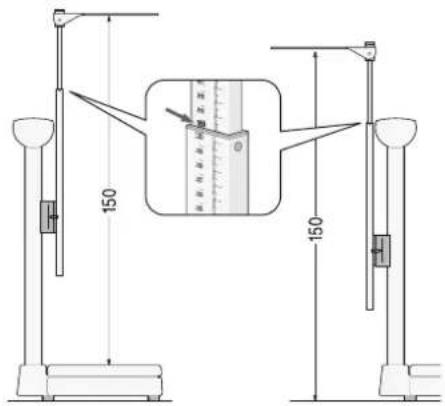

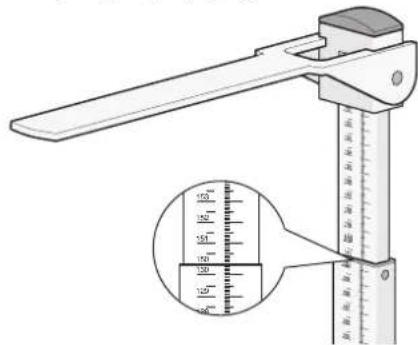

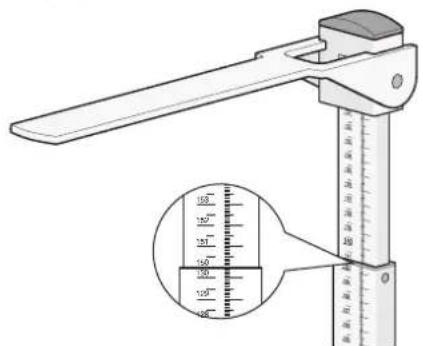

1. Set measuring slide to a value, e.g. 150 cm.

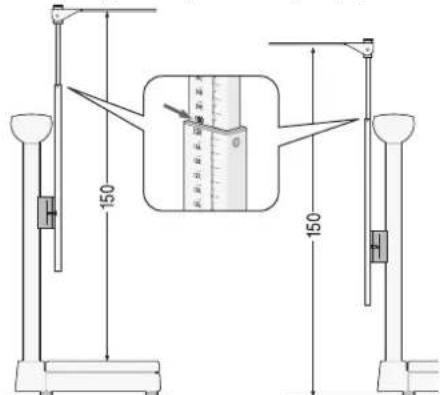

1. Using another measuring rod, measure the difference from the platform (models 704, 709, 710, 709f, 710f, 799: from the floor) to the measuring slide and note the difference.

Model 2207

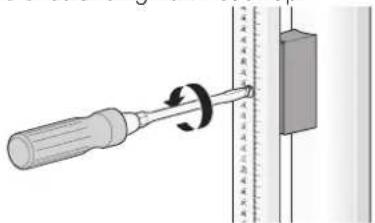

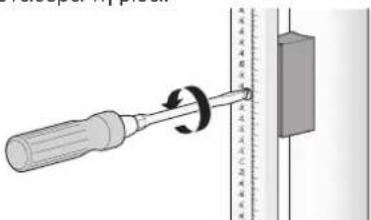

1. Undo the screw on the measuring rod somewhat, move the slide and measuring rod up or down according to the difference and tighten it back up.

1. Check height again and correct if necessary.

The measuring rod is also easily readjusted in this manner if the scale is moved and realigned using the adjustable feet.

Note:

For fine-adjustment of the measuring rod, it is essential to measure from the floor/platform to the measuring slide. Do not measure from the floor/platform to the relevant height on the scale. The scale is displaced a few centimetres to compensate for the difference in height between the read-off mark and the measuring slide.

7.Once you have screwed the spacer for the measuring rod to the scale column and aligned it, affix the "Calibration Seal" label supplied to the spacer as shown in the diagram above.

Operation

How to measure properly...

1. Engage measuring slide in the horizontal position for measuring.

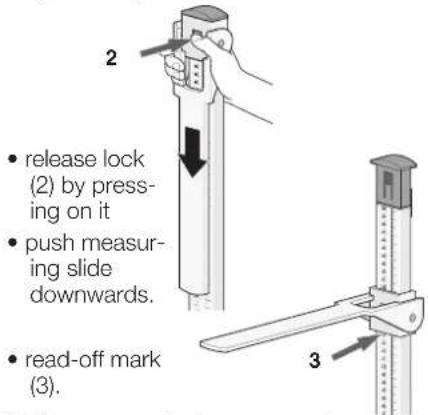

2. Push measuring slide upwards according to the height of the person to be measured.

For measuring from 130.5 cm to 200 cm (from 51.3 inch to 78.7 inch):

• read-off mark (1)

for measuring below 130.5 cm (51.3 inch):

1. The person to be measured positions him or herself under the measuring slide.The back and head must be straight.
2. The measuring slide is pushed onto the head to that the measuring slide abuts without bending.
3. Read off body height at the read-off mark. If the above-mentioned instructions are followed, accuracy greater than ± 5mm can be achieved.

Cleaning

Clean the measuring rod as required using a domestic cleaning agent or commercially-available disinfectant. Follow the manufacturer's instructions.

Technical data

Measurement range: 60-200 cm / 24-78 inch

Graduations: 1mm /1/8 inch

Accuracy greater than ± 5mm

Dimensions

(WxHxD):55×784×34mm

Weight: ca.700 g

Temperature range: +10^ up to +40^

Medical product in

accordance with

Directive 93/42/EEC: Class I with measuring function

Disposal

Should the measuring rod no longer be able to be used, the responsible waste disposal association will be glad to give you information about the measures necessary to dispose of it properly.

Warranty

A two-year warranty from date of delivery applies to defects attributable to poor materials or workmanship. All moveable parts - batteries, cables, mains units, rechargeable batteries etc. - are excluded. Defects which come under warranty will be made good for the customer at no charge on production of the receipt. No further claims can be entertained. The costs of transport in both directions will be borne by the customer should the equipment be located anywhere other than the customer's premises. In the event of transport damage, claims under warranty can be honoured only if the complete original packaging was used for any transport and the merchandise secured and attached in that packaging just as it was when originally packed. All the packaging should therefore be retained.

A claim under warranty will not be honoured if the equipment is opened by persons not expressly authorised by seca to do so.

We would ask our customers abroad to contact their local sales agent in the event of a warranty matter.

Felicitations

Congratulations vivissime

Mäl (B × H × D): 55 × 784 × 34 mm

Egenvægt: ca.700 g

Temperaturomrade: +10^ til +40^

Medicinsk produit

iht.direktiv

• Affleesmarke-ring (1)

NL

3.PuOJIaTeToOnmuIe OvAoToAICI TnKeOaIcOTyTm,150cm.

1. MetpnoTe e aaoa oetpnT nTv axoataon aoTnV naTphiopma (ovrTa 704,709,710,709f,710f,799:anto to
   danoe) expoiTo oneio avatoanC TNC Kefaaic Kaonneiwate Tdiapox

5.Auote Aio Tn Bia OTo Mepntn,
muattoniote To EAnBpo Me To Meptnn
ovaloya Te n DiaOpop npoc Ta eTAAw
npoc Ta KATW KAI BiDawte NAI
Otahepa Tn Bia.

Declaration of conformity

Certificat de conformité

The equipment for measuring length

Batch no.: see back of measuring rod

Medical Scales and Measuring Systems

seca gmbh & co. kg.

Hammer Steindamm 9-25

22089 Hamburg · Germany

Phone ^+ 490402000000

Fax ^+ 4904020000050

E-mail • [e-mail]

All contact data under www.seca.com
