USER MANUAL 786 SECA

Line drawings of three different scale meters, each with a circular dial and a base plate (no text or symbols)

seca 786 seca culta seca cultura

D Bedienungsanleitung und Garantieerklärung 2
GB Instruction manual and guarantee 7
F Mode d'emploi et garantie 12
I Manuale di istruzioni e garanzia 17
E Manual de instrucciones y garantia 22
PL Instrukcja obsługi i gwarancja 27

Technical line drawing of a pressure gauge and a standard balance scale (no text or symbols)

Montage der Säule

Line drawing of a pressure scale instrument with a central dial and base (no text or symbols)

Lasthebel zunge

Technical line drawing of a mechanical component with no visible text or symbols

Zugstange

Line drawing of a vertical support structure with directional arrows indicating movement (no text or symbols)

4. Bedienung

Richtiges Wiegen

Diagram showing a hand holding a dial with a pointer and arrow indicating direction, labeled with numbers 10, 140, 130, 120, 110, and 50.

1. Signed and sealed

CE 0123

DER GRÜNE PUNKT

With seca products, you are not only purchasing technology which has been perfected over 100 years, but also quality with official legal certification confirmed by institutions. seca products comply with European directives, standards and national laws. When you buy seca, you buy the future.

Products bearing this symbol -meet the applicable regulatory requirements of the European Community, especially the following:

• Directive 93/42/EEC for medical devices

seca's professionalism is also recognized by official testing agencies. TÜV Süd Product Service, the appointed office for medical devices, confirms with this certificate that as a medical devices manufacturer, seca consistently complies with the strict legal requirements. seca's quality assurance system includes the areas of design, development, production, sales and service of medical scales and length measuring systems as well as software and measuring systems for assessing state of health and nutrition.

seca helps the environment. Saving natural resources is very important to us. We therefore make every effort to save on packaging -materials wherever it makes sense and whatever is left over can be conveniently disposed of on site via the recycling system.

2. Safety

Before using the new scale, please take a little time to read the following safety instructions.

• Follow the instructions in the instructions for use.
• Do not drop the scale. Never expose the scale to other forces (such as pressure, tension or stress).

- Have repairs carried out only by authorised persons.

3. Before you start...

Unpacking

- Remove the packaging.

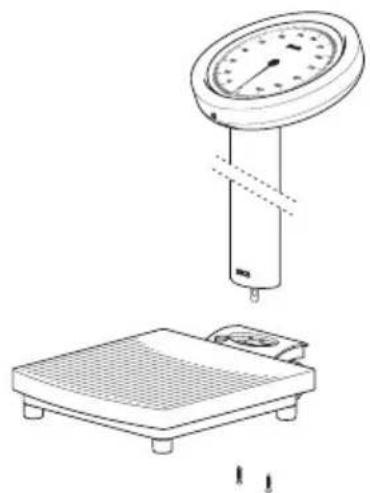

The scope of supply includes:

• weighing platform,
  • column with display
• 2 mounting screws.

Line drawing of a pressure gauge and a digital balance scale (no text or symbols)

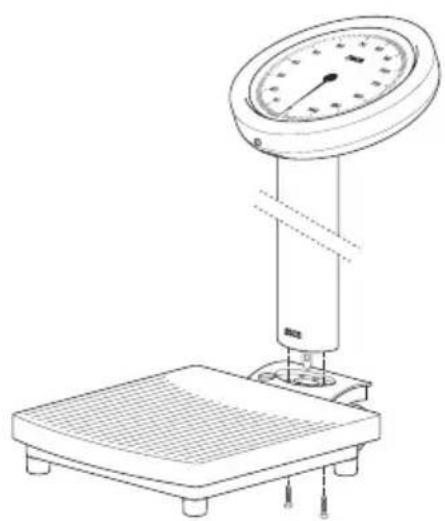

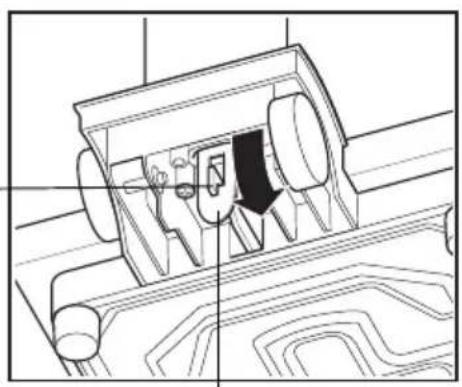

Fitting the column

On the seca 786 cultura, the column is already fitted. On the other models, please proceed as follows:

• turn the column so that the display faces the weighing surface.
• pass the connecting rod through the opening and place the column in the opening.

• Screw the column to the weighing platform from underneath.

• If necessary, lay the scale carefully on its side to tighten up the screws.

• Hook the connecting rod over the load lever tongue.
• Then place the scale upright again.

Line drawing of a pressure scale instrument with a dial and base (no text or symbols)

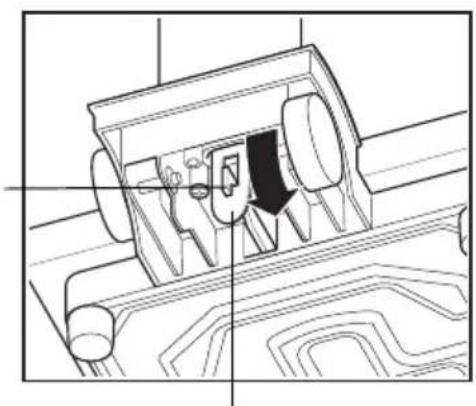

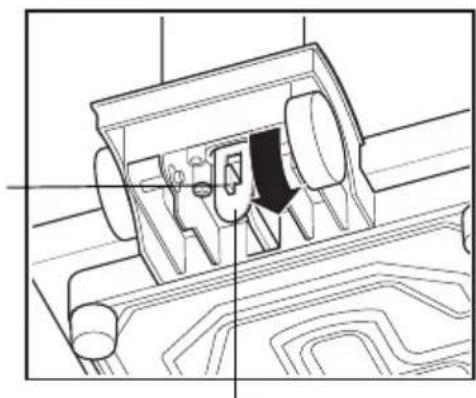

load lever- tongue

Technical line drawing of a mechanical component with no visible text or symbols

connecting rod

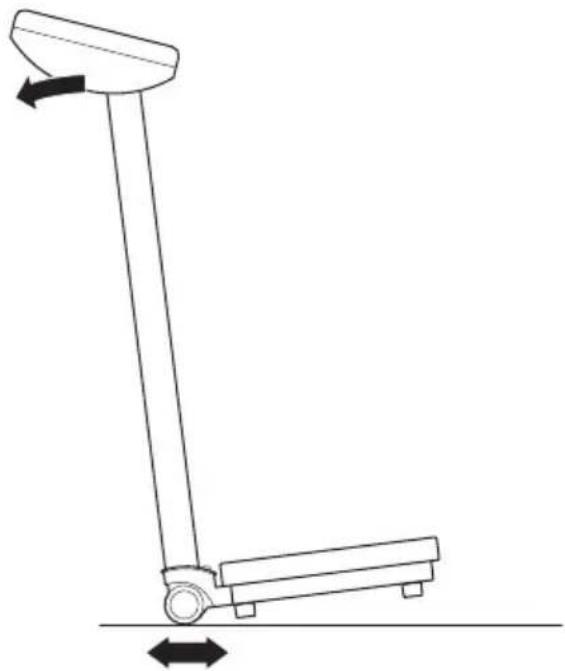

Your scale is mobile...

It has two castors at the rear.

- For mobile use, the seca 786/culta/cultura scale can be tipped backwards a little way and then moved on the castors.

Line drawing of a vertical support structure with two legs and a handle, showing motion arrows (no text or symbols)

4. Operation

How to weigh properly

- Tare the scale to zero by turning the small wheel at the front under the display head.

- Read the weighing result off the analogue display.

- The maximum load on all models is 150 kg.

Diagram showing a hand holding a dial with a pointer and arrow indicating direction, labeled with numerical values from 10 to 140.

5. Cleaning

Clean the outside of the scale as required using a domestic cleaning agent or a commercially-available disinfectant. Follow the manufacturer's instructions.

Under no circumstances use abrasive or acid cleaning agents, spirit, petroleum spirit or similar to clean the scale. Such substances may damage the high-quality surfaces.

6. What do I do if...

... if the hand is not deflected when there is a load on the scale?

- Check whether the connecting rod is properly suspended.

... the hand is not on 0 before weighing commences?

– Tare the scale to zero before placing a load on it.

7. Servicing

Your seca scale leaves the factory with an accuracy of ±0,8% . To ensure that this degree of accuracy is maintained, the product must be carefully set up and regularly serviced. Depending on frequency of use, we recommend servicing at intervals of 3 to 5 years. Please note that a qualified servicing agent should be used for this. If you are in doubt, seca Customer Service will give you more information.

8. Technical data

Maximum capacity 150 kg /330 lbs/23 sts

Graduations 500 g / 1 lbs

Accuracy ± 0,8 %

Temperature range +10 °C to +40 °C

Model seca 786

Dimensions

Width: 29 2 mm

Depth: 515 mm

Height: 900 mm

Weight approx. 6.5 kg

Model culta (long column)

Dimensions

Width: 310 mm

Depth: 536 mm

Height: 900 mm

Weight approx. 6.5 kg

Model cultura (short column)

Dimensions

Width: 310 mm

Depth: 536 mm

Height: 396 mm

Weight approx. 5.9 kg

9. Disposal

Disposing of the scale

If the scale can no longer be used, the responsible waste disposal association will be glad to advise you on the measures necessary to dispose of it properly.

10. Warranty

A two-year warranty from date of delivery applies to defects attributable to poor materials or workmanship. All moveable parts - batteries, cables, mains units, rechargeable batteries etc. - are excluded. Defects which come under warranty will be made good for the customer at no charge on production of the receipt. No further claims can be entertained. The costs of transport in both directions will be borne by the customer should the equipment be located anywhere other than the customer's premises. In the event of transport damage, claims under warranty can be honoured only if the complete original packaging was used for any transport and the scale secured and attached in that packaging just as it was when originally packed. All the packaging should therefore be retained.

A claim under warranty will not be honoured if the equipment is opened by persons not expressly authorised by seca to do so.

We would ask our customers abroad to contact their local sales agent in the event of a warranty matter.
