USER MANUAL WG168E.9 WORX

1. THREE SPEED SETTINGS
2. AUXILIARY HANDLE
3. AUXILIARY HANDLE LOCKING CLAMP
4. SAFETY GUARD
5. EDGE GUIDE
6. SHAFT LOCKING KNOB
7. ON/OFF SWITCH
8. LOCK OFF SWITCH
9. BATTERY PACK
10. LINE CUTTER
11. TRIMMER HEAD COVER (See Fig. 12)
12. CAP RELEASE LATCH (See Fig. 12)
13. SPOOL (See Fig. 12)
14. TRIMMER HEAD (See Fig. 12)
15. EYELET (See Fig. 12)

16. LINE FEED BUTTON (See Fig. I1)

17. Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WG168E WG168E.9 (1-designation of machinery, representative of Cordless grass Trimmer)

	WG168E	WG168E.9
Voltage	40V = Max**
No load speed	8300/min
Cutting diameter	33cm
Line diameter	2.0mm
Charging time	1hr
Machine weight	3.5kg	2.7kg

** Voltage measured without workload. Initial battery voltage reaches maximum of 40 volts. Nominal voltage is 36 volts.

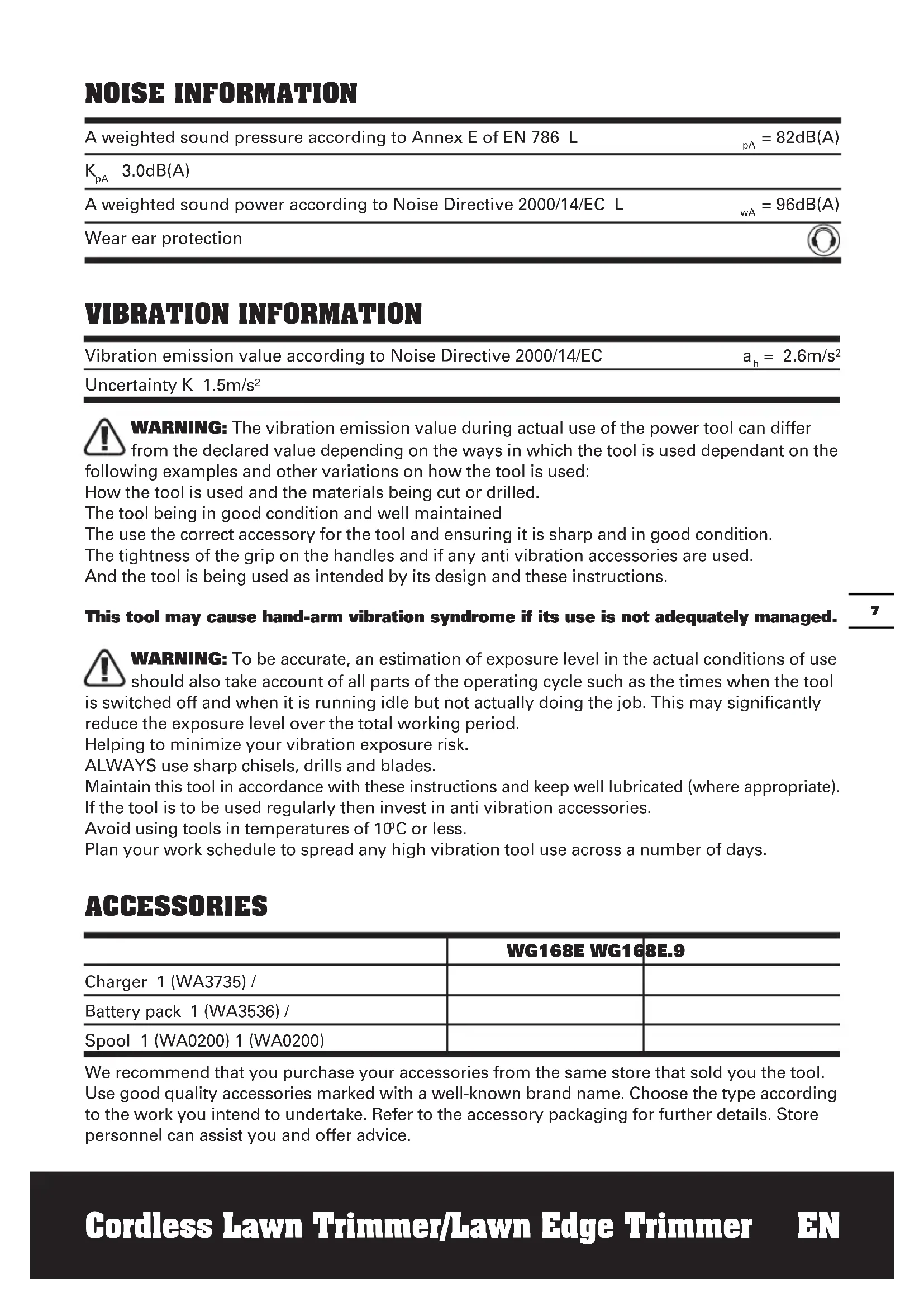

NOISE INFORMATION

A weighted sound pressure according to Annex E of EN 786 L	pA = 82dB(A)
KpA 3.0dB(A)
A weighted sound power according to Noise Directive 2000/14/EC L	wA = 96dB(A)
Wear ear protection

VIBRATION INFORMATION

Vibration emission value according to Noise Directive 2000/14/EC	ah= 2.6m/s2
Uncertainty K 1.5m/s2

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the

following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool

is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSIONS

	WG168E	WG168E.9
Charger 1 (WA3735) /
Battery pack 1 (WA3536) /
Spool 1 (WA0200) 1 (WA0200)

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

LAWN / EDGE TRIMMER SAFETY WARNINGS

WARNING: When using the machine the safety rules must be followed. For your own safety and bystanders please read the instructions before using the machine. Please keep the instructions safe for later use.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
  a) Read instruction manual.
  b) Keep bystanders away.
  c) Wear eye protection.
  d) Do not expose to moisture.
  e) Never allow children or people unfamiliar

with the instructions to use the machine;
f) Stop using the machine while people, especially children, or pets are nearby;
g) Only use the machine in daylight or good artificial light;
h) Before using the machine and after any impact, check for signs of wear or damage and repair as necessary;
i) Never operate the machine with damaged guards or without the guards in place;
j) Keep hands and feet away from the cutting means at all times and especially when switching on the motor;
k) Take care against injury from any device fitted for trimming the filament line length. After extending new cutter line always return the machine to its normal operating position before switching on;
I) Never fit metal cutting elements;
m) Never use replacement parts or accessories not provided or recommended by the manufacturer;
n) Always ensure that ventilation openings are kept clear of debris;
o) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
p) Be familiar with the controls and proper use of the equipment;

SYMBOL

Warning

Read instruction manual

Wear eye protection

Keep bystanders away

Do not expose to moisture.

Do not expose to rain or water

Do not burn

Li-lon

Li-Ion

Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point.

This product has been marked with a symbol relating to removing electric and electronic waste. This means that this product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European Directive 2002/96/CE. It will then be recycled or dismantled in order to reduce the impact on the environment. Electric and electronic equipment can be hazardous for the environment and for human health since they contain hazardous substances.

Edging

Trimming

ASSEMBLY

1. ASSEMBLY OF THE MAIN HANDLE (See Fig.A1,A2)

Align and insert the shaft into the upper housing until a click can be heard. Make sure the grooves are correctly matched. (See Fig. A1). Tighten the shaft locking knob in the direction indicated to lock (See Fig. A2).

NOTE: Make sure that the handle is firmly locked in place

2. ASSEMBLY OF THE AUXILIARY HANDLE (See Fig.B1,B2)

Slide the auxiliary handle onto the grooves of auxiliary handle support until a click can be heard. And make sure the auxiliary handle locking clamp is closed. (See Fig. B1)

NOTE: Make sure the handle is firmly secured in place.

If the handle is loose, then tighten the 2 side screws. (See Fig. B2)

3. ASSEMBLY OF THE SAFETY GUARD (See Fig.C1,C2,C3)

Remove the screw from the bottom of the trimmer head - then attach the safety guard to the housing.

Secure the guard in place by the refitting of the screw.

Remove the line cutter protection tape.

(See Fig. C3)

OPERATION INSTRUCTIONS

INTENDED USE

The machine is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that can not be reached with the lawn mower.

WARNING! The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because of an electrical failure and hazard will occur.

1. BEFORE USING YOUR CORDLESS GRASS TRIMMER

The battery pack included is shipped UNCHARGED. You must charge before first use.

The battery charger supplied was designed to only charge the Li-Ion battery also supplied.

Do not use another battery charger.

The Li-lon battery is protected against deep discharging. When the battery is empty, the machine will switch off by means of a protective circuit: The trimmer head no longer rotates.

In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging.

3. TO REMOVE OR INSTALL BATTERY PACK (See Fig. D1, D2)

Depress the battery release button to release battery pack from your trimmer (See Fig. D1). After recharging, insert the battery pack into trimmer's battery port (See Fig. D2). A simple push and slight pressure will be sufficient until a click is heard.

NOTE: When removing the battery pack, hold it firmly to avoid dropping and injury.

4. BATTERY STATUS LED'S (See Fig. E) NOTE: The Status LED's will indicate the battery condition when the button on the battery is pressed.

The LED's constantly senses and displays the battery condition as follows:

Press the button "POWERTEST", the light button is illuminated.

When the three green lights are illuminated, the battery is in a highly charged condition.

When two lights ( are illuminated, the battery is in a moderately charged condition. When only one green light ( is illuminated, the battery charge is depleted.

IMPORTANT:

When only one light is illuminated, your battery is overly discharged, even though the trimmer may still be capable

of cutting grass. Continuing to operate your trimmer with the battery in this discharged condition may reduce the life and performance of your battery.

5. SAFETY ON/OFF SWITCH (See Fig. F)

Your trimmer has two Lock OFF switches (8) to prevent accidental starting. Depress the Lock OFF switches and the On/OFF lever (7) to start your trimmer. To switch off, just release the on/off switch.

WARNING! The cutting head continues to rotate after the

trimmer has been switched off; wait until it has completely stopped then lay down the tool.

6.THREE SPEED SETTINGS (See Fig. F)

Your machine is fitted with a 3 Speed selector button

Speed 1 -Used for basic light trimming of short grass

Speed 2 -Used for medium / longer grass trimming -ie. trimming against walls/fences etc.

Speed 3 -Used for tough over grown area's of long grass

7. ADJUSTMENT OF AUXILIARY HANDLE (See Fig. G)

Release the auxiliary handle locking clamp, move the the auxiliary handle to the most comfortable and balanced position. Close the clamp to tighten the handle.

NOTE: Make sure the handle is firmly secured in place.

OPERATION

WARNING: Always wear the eye protection. Never lean over the

trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and cause blindness or other serious injury. When operating unit, check for the following:

Wear eye protection and heavy clothing. Hold front handle with one hand and auxiliary handle with the other hand. Keep unit below waist level. Work only from your right to your left to ensure debris is thrown away from you.

Without bending over, keep line near and

parallel to the ground (perpendicular when edging) and not crowded into material being cut.

WARNING: Make sure that line is not fed out before operation. Make motor is up to full speed before tuning.

WARNING: Use only 2.0mm

diameter cutting line. Other sizes of

line will not feed properly and will result in improper cutting head function or can cause serious injury. Do not use other material such as wire, string, rope, etc. Wire can break off during cutting and become a dangerous projectile that can cause serious injury.

Trimming

Postion the trimmer head as shown in Fig. H1 for trimming.

Keep the bottom of the trimmer head just above the ground and at an angle. Allow only the tip of line to make contact. Do not force trimmer line into work area.

Edging (See Fig. H2, H3, H4)

ALWAYS REMOVE THE BATTERY

PACK BEFORE ADJUSTING THE

TRIMMER HEAD POSITION

For edging, position the trimmer head as Fig. H2.

To rotate the trimmer head to edging—first hold the trimmer shaft as shown in fig H3--- then with your other hand hold the trimmer head - Push down and rotate 180 degrees and then release- the trimmer will then lock into the edging position automatically--fig H4 NOTE: The trimmer head will only rotate in one direction. While rotating, please remove the battery from your tool for your safety. The edge guide helps protect the unit and keeps the unit from contacting the ground. Take extra caution while edging as objects can be thrown from the trimmer line.

AUTOMATIC LINE FEED SYSTEM

When initially switching ON the trimmer, a small length of line is fed out.

A 'clattering' noise will be heard when the lines hit the line cutter. DO NOT BE

ALARMED, this is normal. After about 5

seconds the line will be cut to the correct length and the noise will reduce as the motor receives full speed.

If the noise of the line being cut can't be heard, more line will need to be fed out. To feed more line, it is first necessary to allow the trimmer to stop completely, then restart, allowing the motor to reach full speed.

Repeat above until you hear the lines hitting against the line cutter.

TO MANUALLY FEED THE LINE (See Fig. 11)

ALWAYS REMOVE THE BATTERY

PACK BEFORE ADJUSTING THE

TRIMMER HEAD POSITION

If required, line can be feed out manually To operate, press and release manual line feed button (16), while gently pulling out the line until it is long enough to reach the line cutter. If the line extends past the line cutter, too much line has been fed out.

If too much line is fed out, remove the spool cap and turn spool counter-clockwise until the line is at the desired length.

TO REMOVE THE CAP (See Fig. 12)

• Press and hold the two latches (12).
• Pull cap away from the spool holder
• When refitting the spool cap, keep all areas of the cap and spool holder clean.
• Replace the cap, pressing firmly downwards towards the spool holder to ensure cap is fully located into position.
• Check that the cap is correctly fitted by trying to remove it without depressing the two latches.

REPLACE THE TRIMMER LINE AND SPOOL (See Fig. J).

ALWAYS REMOVE THE BATTERY

PACK BEFORE ADJUSTING THE

TRIMMER HEAD POSITION

• Remove Spool Cap Cover.
• For your convenience it is recommended you buy replacement spools with the trimmer line preinstalled.

• Remove the old Spool from Spool Holder. Clear any broken line or cutting debris from the spool area.

• Pull the line from the new replacement Spool through the eyelet of the Spool Holder.

• Place new Spool into the holder with the cut out areas of the Spool facing inward or down. When installed into the Spool Holder, the smooth side of the Spool should be visible.
• Release line from cleat on the Spool.
• Refit the Spool Cap Cover.

TO MANUALLY WIND LINE

(See Fig. K1-K4)

Take approximately 6m of line. Insert 2mm of line into the Spool holes and wind line in the direction of the arrows on the top of the Spool.

Leave approximately 100mm of line unwound and place into the cleat.

Ensure that the line is neatly coiled on the Spool. Failure to do so will impair the efficiency of the automatic line feed.

Then fit the Spool as described above in

"Replace the trimmer line and Spool"

STORING YOUR GRASS TRIMMER

Always remove the battery pack from your trimmer after use.

Store in a dry place where the trimmer and battery can be protected from damage.

MAINTENANCE

Always remove the battery pack from your trimmer after use.

Always check the product prior to being used for any damage.

Never operate your product if it is damaged Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.

Always store your power tool in a dry place.

Keep the motor ventilation slots clean. Keep all working controls free of dust.

TROUBLESHOOTING

The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify and correct the problem, contact your service agent.

WARNING: Switch the machine off and remove the battery prior to any troubleshooting.

Problems Possible	Causes Corrective Action
Trimmer fails to operate.	Battery discharged.	Recharge battery; also see the content in charger manual.
	Battery too hot/cold.	Allow to cool/warm.
	Motor is broken.	Contact Service Agent.
	Internal wiring of machine damaged.	Contact Service Agent.
Trimmer runs intermittently.	Motor is broken.	Contact Service Agent.
	Battery not fully charged.	Recharge battery.
	On/Off switch defective.	Contact Service Agent.
Excessive vibrations/noise.	Machine defective.	Contact Service Agent.
	Line spool is not wound well.	Rewind the line. See "To fit spool and line assembly."
Cutting time per battery charge too low.	Battery has not been used for long period or only charged for short term.	Fully charge battery; also see the content in charger manual.
	Grass too high.	Cut in stages.
	Battery defective.	Replace the battery.
Machine does not cut.	Line broken.	Replace the line.
	Battery not fully charged.	Recharge battery; also see the content in charger manual.
	Motor is broken (speed is too low).	Contact Service Agent.
	Grass entangled around cutting head.	Remove grass.
Continuous lighting of the battery charge indicator No charging procedure possible.	Battery not (properly) inserted.	Properly insert battery into battery charger.
	Battery contacts contaminated.	Clean the battery contacts (e.g. by inserting and removing the battery several times) or replace the battery.
	Battery defective.	Replace the battery.
Battery charge indicator does not light up.	Plug of battery charger not plugged in (properly).	Insert mains plug (fully) into the socket outlet.
	Socket outlet, mains cable or battery charger defective.	Check the mains voltage; have the battery charger checked by an authorized after-sales service agent.
Auto feed does not work	Cutting line is not wound well.	Manually feed the line, if still can not feed out, remove the Spool out and rewind the line.
	The line is tangled.	Replace with a new line spool.
	Line is used up.

ENVIRONMENTAL PROTECTION

This product has been marked with a symbol relating to removing electric and electronic waste. This means that

this product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European Directive 2002/96/CE. It will then be recycled or dismantled in order to reduce the impact on the environment. Electric and electronic equipment can be hazardous for the environment and for human health since they contain hazardous substances.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Cordless Lawn

Type WG168E WG168E.9 (1-designation of machinery, representative of Cordless grass Trimmer)

Function Cutting grass and weeds

Complies with the following Directives,

2006/42/EC

2004/108/EC

2011/65/EU

2000/14/EC amended by 2005/88/EC.

• Conformity Assessment Procedure as per

Annex VI

• Measured Sound Power Level 94.8dB(A)

• Declared Guaranteed Sound Power Level 96dB(A)

-The notified body involved

Name: Intertek Testing & Certification Ltd

Address: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Standards conform to:

EN 60745-1 EN 786

EN ISO 3744 EN 55014-1

EN 55014-2

The person authorized to compile the technical file,

Name: Russell Nicholson

Address: Positec Power Tools (Europe)

Ltd, PO Box 152,Leeds,LS10 9DS,UK

2013/11/18

Leo Yue

POSITEC Quality Manager

INFORMATIONS RELATIVES AUX VIBRATIONS

Nom: Intertek Testing & Certification Ltd

Adresse: Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL

Responsible qualite POSITEC

1. IMPOSTAZIONE DELLE TRE VELOCITÀ

2. IMPUGNATURA SECONDARIA

3. LEVA DI REGOLAZIONE IMPUGNATURA SECONDARIA

4. PROTEZIONE

5. GUIDA DI BORDATURA

6. GHIERA DI BROCCO ASTA TELESCOPICA

7. INTERRUTTORE D'ACCENSIONE/SPEGNIMENTO

8. INTERRUTTORE DI SICUREZZA CONTROL L'AVVIAMENTO ACCIDENTALE

9. UNITÀ BATTERIA

10. LINEA DI TAGLIO

11. COPERCHIO DELLA BOBINA DI TAGLIO (Vedi Fig. I2)

12. TASTI DI RILASCIO BOBINA (Vedi Fig. I2)

13. BOBINA (Vedi Fig. I2)

14. CONTENITORE BOBINA (Vedi Fig. I2)

15. OCCHIELLI USCITA FILO (Vedi Fig. I2)

16. PULSANTE DI RILASCIO FILO (Vedi Fig. I1)

Codice WG168E WG168E.9 (1-

Indirizzo: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Conformera:

EN 60745-1 EN 786

EN ISO 3744 EN 55014-1

EN 55014-2

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR VERMOGENSMACHINE

Standards in overeenstemming met:

EN 60745-1 EN 786

EN ISO 3744 EN 55014-1

EN 55014-2

Cim: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Denumire: Intertek Testing & Certification Ltd

Adresă: Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL

Director Calitate POSITEC

1. NASTAVENİ TRİ PREVODOVÜCH STUPNJÜ

2. PRİDAVINÁ RUKOJEΤ

3. ZAJISTOVACİ PRİCHYTKA PRİDAVINÉ RUKOJETI

4. BEZPEÇNOSTNÍ KRYT

5. VODİTKO PRO SEKÁNİ OKRAJÜ

6. ZAJISTOVACİ SROUB H|RİDELE

7. SPÍNAČ

8. POJISTNÉ TLACKİTKO

9. BATERIE

10. ZKRACOVACİ NUŽ STRUNY

11. KRYT HLAVY SEKAČKY (Viz Obr. I2)

12. ZAPADKA PRO UVOLNěNI KRYTU (Viz Obr. I2)

13. CIVKA (Viz Obr. I2)

14. HLAVA SEKAČKY (Viz Obr. I2)

15. OČKO (Viz Obr. I2)

16. TLACKİTKO PRO POSUV STRUNY (Viz Obr. I1)

INFORMACE TYKAJICI SE HLUČNOSTI

Plan your work schedule to spread any high vibration tool use across a number of days.

PRÍSLUŠENSTVÍ

	WG168E	WG16	8E.9
Nabiječka 1 (WA3735) /
Baterie 1 (WA3536) /
Cívka 1 (WA0200) 1 (WA0200)

Adresa: Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL

Použité normy,

EN 60745-1 EN 786

EN ISO 3744 EN 55014-1

EN 55014-2

Copyright © 2013, Positec. All Rights Reserved. 2CGT07APK11000A1
