USER MANUAL X89464MV01 AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at: www.aeg.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containersto recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

PNC

Serial Number

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120~mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in or

der to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

2. USE

• The extractor hood has been designed exclusively for do

mestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

3. MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any

maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

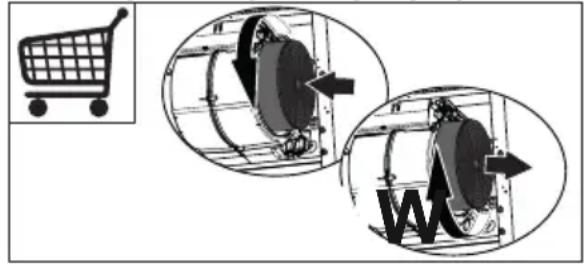

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

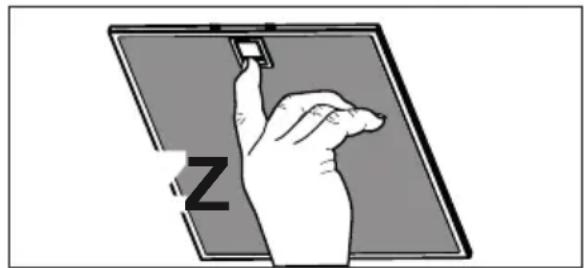

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Control lights, if present.

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Function Led
A Changes the intensity of the Lighting each time the Button is pressed, in cycle, passing via Off.		-
B Motor off. The Leds indicating the Speed of the motor		turn off.
Enables / Enables Keyboard Lock mode if presed and held for 5 seconds.		All the Leds light up in cycle and run a start-up sequence.
C Activates speed one. The Leds indicating Speed one and Motor		d Motor Off turn on.
D Activates speed two. The Leds indicating Speed two and Motor		Motor Off turn on.
E Activates the speed Intensive 1. This speed is timed to run for 10 minutes. At the end of this time the system will return to the speed set previously. It is disabled by pressing the Button or turning the Motor off.		The LED flashes.
F Activates the speed Intensive 2. This speed is timed to run for 8 minutes. At the end of this time the system will return to the speed set previously. It is disabled by pressing the Button or turning the Motor off.		The LED flashes.
G Activates / Deactivates Delay mode, with automatic shutdown of the Motor and the Lighting after 15 minutes. It is disabled by pressing the button or turning the motor off.		The Led lights up.
Pressing and holding the button for 5 seconds enables the remote control and the H2H function. Pressing and holding the button for 5 seconds disables the remote control and the H2H function.		2 flashes from Leds on Buttons B+C. 1 flash from Leds on Buttons B+C.
H With the filter alarm triggered, press the button to Reset the alarm. These indications are only visible when the motor is turned off.		When the procedure terminates, the indication shown previously turns off: Led H on = Indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. Led H flashing = Indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on/off.		2 flashes from Leds on Buttons B+H = A.C filter alarm activated. 1 flash from Leds on Buttons B+H = A.C. filter alarm deactivated.

5. LIGHTING

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7 W. Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

• For replacement contact technical support ("To pur-chase contact technical support").
