USER MANUAL KCM 207 Koenic

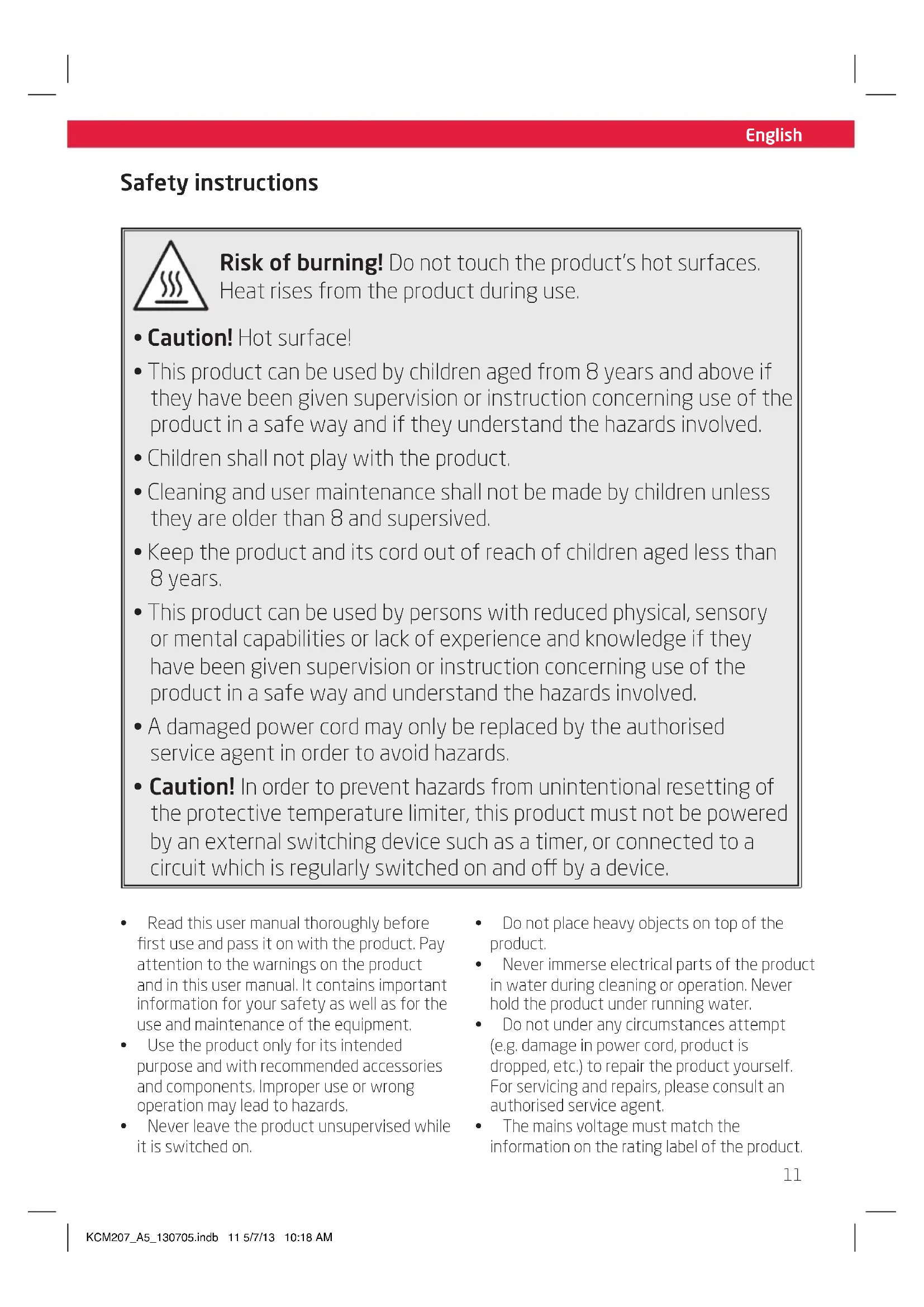

Risk of burning! Do not touch the product’s hot surfaces. Heat rises from the product during use.

• Caution! Hot surface!

• This product can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the product in a safe way and if they understand the hazards involved.

• Children shall not play with the product.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supersived.

• Keep the product and its cord out of reach of children aged less than 8 years.

• This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Caution! In order to prevent hazards from unintentional resetting of the protective temperature limiter, this product must not be powered by an external switching device such as a timer, or connected to a circuit which is regularly switched on and o by a device. Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

• Never leave the product unsupervised while it is switched on.

• Do not place heavy objects on top of the product.

• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

• Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

• Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ... - when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Place the product on a flat, sturdy and slip- resistant surface.

• Never use, expose or put the product near to: - direct sunlight and dust; - fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

• This product is not intended for commercial use. It is designed for household use and similar applications only, such as for example: - in employee cafeterias, in stores, oces and other working environments; - by customers in hotels, motels and other residential facilities; - in Bed and Breakfast establishments; - in farm houses.”

• Risk of burning! The product’s housing becomes very hot during use. Touch the thermo jug only by its handle.

• Do not move or transport the product during use or while there is hot water in the thermo jug. Spraying hot water poses a risk of burning.

• Never place the thermo jug on a hot stove top, hotplate or other heat source.

• Do not disassemble the thermo jug.

• Never submerge the thermo jug in water or other liquids to prevent water from entering the space between the interior and exterior walls.

• The thermo jug is not dishwasher-safe.

• Never use the thermo jug if it is damaged. Handle the thermo jug carefully.

• Cease using the thermo jug if the handle is loosened or lost its stability.

• The thermo jug is intended exclusively for use with this coee maker.

• Never attempt to replace parts yourself. If a part needs to be replaced, contact authorised service agent.

• Make sure not to overfill the water tank.

• Do not operate the product when there is no water in the water tank.

• Fill the product with water only when it is unplugged.

• Clean the product and all other accessories after each use.

• Follow the instructions in the chapter Cleaning and care. KCM207_A5_130705.indb 12 5/7/13 10:18 AM13 English Content 1 x Coee maker 1 x Filter holder 1 x Thermo jug 1 x User manual Technical data Rated voltage 220-240 V~ Rated input power 840-1000 W Rated frequency 50/60 Hz Preparation

1. Clean the coee maker before using it for

the first time. Also clean the product if it has not been used for a significant period of time, and after each descaling operation.

2. Open the lid and fill the water tank with

3. Do not fill the water below the 2 marking

or over max marking.

5. Place the thermo jug on the stand.

6. Press the power switch to I position to turn

on the product. The power indicator lights up.

7. Allow of the water to drain through. Press

the power switch to O position to turn o the product. Let the product cool down for approx. 5 minutes. Repeat this process two or three times. Pour any water away before each process.

8. Clean the thermo jug and the filter holder.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Congratulations! Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference. Intended use The product is intended for making coee. Any other use may result in damage to product or injuries. Before first time use Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care. Control elements

Power switch with indicator light

Power cord with plug

1. Open the lid and fill the water tank with

2. Do not fill the water below the 2 marking

or over max marking.

3. Put the filter holder into the filtersystem.

4. Make sure it is locked on each side.

5. Put the paper filter (1x4, not included) in

the filter holder and insert the requested amount of ground coee inside the paper filter.

7. Place the thermo jug on the stand.

8. Connect the power plug to a suitable

9. Press the power switch to I position. The

power indicator lights up. 15 minutes after the brewing cycle the coee maker will turn o automatically. Note Stop the brewing process at any time by pressing the power switch to 0 position. KCM207_A5_130705.indb 14 5/7/13 10:18 AM15 English Cleaning and care

• Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).

• Clean the thermo jug and the filter holder after use with warm water and a little dishwashing detergent. Then dry.

• Clean the stand and the lid regularly with a slightly damp cloth and then dry. Descaling

• Descale your product regularly depending on your water’s lime content and frequency of use.

• Use an o-the-shelf decalcifier and follow the provided instructions.

• Pour fresh water and the specified amount of decalcifier into the water tank.

• Start brewing and let the water run through completely. Empty the thermo jug. If necessary, repeat this process.

• After descaling, rinse the product several times by brewing water with no coee to remove any decalcifier residue.
