Product type	Filter coffee maker
Brand	Koenic
Model	KCM100
Dimensions (L x W x H)	approx. 20 cm x 18 cm x 30 cm
Weight	approx. 1.5 kg
Power supply	220-240 V, 50 Hz, 900 W
Carafe capacity	approx. 1.25 L (10 cups)
Coffee type	ground coffee
Main functions	Filter coffee brewing, automatic shut-off, warming plate
Maintenance and cleaning	Regular cleaning of the water tank, filter basket, and carafe; periodic descaling
Safety	Automatic shut-off, overheat protection
Spare parts and repairability	Water tank, filter basket, glass carafe available
Color	Black / Stainless steel (depending on variant)
Warranty	2 years

Frequently Asked Questions - KCM100 Koenic

How to prepare coffee with the Koenic KCM100?

Fill the water tank with cold water, place a paper filter in the basket, add ground coffee (about 7 g per cup), then press the start button. The machine will heat the water and brew the coffee automatically.

How to clean my Koenic KCM100 coffee maker?

After each use, let the machine cool down, remove the filter basket and carafe, wash them with warm soapy water. Wipe the exterior with a damp cloth. Never immerse the base in water.

What to do if my machine does not turn on?

Check that the machine is plugged in and the power button is pressed. Ensure the water tank is properly in place. If the problem persists, contact customer service.

How often should I descale the machine?

It is recommended to descale the machine every 3 months or after 40 use cycles to prevent limescale buildup. Use a suitable descaling agent or diluted white vinegar.

Can I use reusable filters?

Yes, you can use a permanent filter if its dimensions match the filter basket (about 12 cm in diameter). Make sure it does not block water circulation.

How to set the automatic shut-off?

The automatic shut-off is usually preset at the factory (about 40 minutes after brewing ends). It can be disabled on some models by holding the power button for 5 seconds. Refer to the manual for more details.

Why does the coffee taste bitter?

Bitter coffee can be due to too fine a grind, too high a dose, water that is too hot, or a dirty machine. Try adjusting the grind, reducing the amount of coffee, or descaling the machine.

Is the glass carafe dishwasher safe?

Yes, the glass carafe can generally be washed in the dishwasher. However, the lid and base must be hand washed to avoid damaging electrical parts.

Can I heat milk with the machine?

No, the Koenic KCM100 is a classic filter coffee maker without a milk heating function. For café au lait, heat the milk separately.

Where to find spare parts for the KCM100?

Spare parts such as the water tank, filter basket, or carafe are available from Koenic customer service or on approved spare parts websites. Check compatibility with your model.

USER MANUAL KCM100 Koenic

Coffee Maker Comfort Stainless Steel

KCM100

DE Gebrauchsanweisung
EL Οδηγίες χρήσης
EN User Manual
ES Manual de instrucciones
FR Mode d'emploi
HU Kezelési leírás
IT Manuale dell'utente
NL Gebruiksaanwijzing
PL Instrukcja obsługi
PT Instruções de utilização
RU Руководство пользователя
SV Bruksanvisning
TR Kullanım Kilavuzu
ZH 用户手册

Exterior view of a modern KOENIC coffee maker with black and white casing (no visible text or symbols on the device itself)

Deutsch	4 - 7
Ελληνικά	8 - 11
English	12 - 15
Español	16 - 19
Français	20 - 23
Magyar	24 - 27
Italiano	28 - 31
Nederlands	32 - 35
Polski	36 - 39
Português	40 - 43
Русский	44 - 47
Svenska	48 - 51
Türkçe	52 - 55
汉语	56 - 59

Close-up of a white electrical outlet plug with a black socket and red arrow pointing to the outlet (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a kitchen setup with a pot, water being poured into a stand mixer (no text or symbols visible)

Close-up of a black thermosink with a red arrow pointing to the lid area, no visible text or symbols.

Close-up of a black industrial blender with a red arrow pointing to its interior (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

Close-up of a black coffee maker with a red arrow pointing to the side (no text or symbols visible)

Close-up of a white electrical outlet plug with a black socket and red arrow pointing to the outlet (no text or symbols visible)

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

Close-up of a kitchen setup with a pot, water being poured into a container, and a hand pouring liquid from a glass container (no text or symbols visible)

Close-up of a black thermosink with a red arrow pointing to the lid area, no visible text or symbols.

Close-up of a black and white object with a red arrow pointing to a circular opening, possibly indicating a step or process (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

Close-up of a black coffee maker with a red arrow pointing to the side (no visible text or symbols)

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• Make sure the voltage indicated on the appliance corresponds to your local mains voltage.
• For safety reasons, this class I appliance is provided with a plug with earth connection. Always connect this appliance to a mains socket outlet with a protective earthing connection.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.
• WARNING: Do not immerse appliance in water. Danger of electric shock.
• Only use the appliance with the accessories provided. Switch off the appliance before removing the jug from its stand.
  • Appliance intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environment, bed and breakfast type environments.
• This appliance is only intended for making filter coffee. Do not heat or boil any other liquids or food, in order to avoid hazardous situations.
  • Always place the appliance and jug on a dry, flat and stable surface.
• Do not use this appliance outdoors or for commercial purposes. This unit is intended for household use only.
• Do not expose this appliance to rain or humidity. Do not touch with wet hands.

• Regularly check if the supply cord, appliance or extension cable are defective. If found defective, do not put appliance into operation. Immediately pull the plug.

• Place the supply cord or any extension cord in a way that pulling or tripping over it is impossible. Do not allow the supply cord to hang down within easy reach.

• Never carry or pull the appliance by the supply cord. Do not pull the supply cord over sharp edges. Do not jam or bend it.
• Switch the appliance off and disconnect the plug from the mains when not in use.
• Never pull the plug by the supply cord or with wet hands. Disconnect the mains plug in case of faults during use, before cleaning or moving the appliance, and after use.
• Fill the reservoir with water only – do not use any other liquids.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• The base unit, supply cord and plug must not come in contact with water. Should this happen, disconnect the plug immediately.
• Never put the appliance or supply cord on hot surfaces or near open flames.
  • Always switch the appliance off before filling with water.
• Do not touch the housing during and some time after operation. It will get very hot. Only lift the jug by the handle.
• If coffee is prepared for several times consecutively, always switch off the device for about 5 minutes before operating again.
• Danger of injuries caused by scalding! Do not open the top cover during operation.
• Do not leave the appliance unattended while turned on or plugged in.
• Do not use the appliance in explosive or flammable environments.
• Ensure the top cover is closed before starting operation.

EN

Intended use

This appliance is only intended for preparing filter coffee. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Observe the safety instructions.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

English

Congratulations

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Before first time use

For a perfect taste, run the appliance 2 or 3 times with cold, fresh water (without coffee). Each time the water has run through, switch off the appliance and let it cool down for 5 minutes.

Making coffee

1. Fill the water tank with cold, fresh water to desired level. Do not fill below 2 cups or beyond maximum mark, as shown on the water level indication.
2. Place the funnel correctly. Lower the handle until it locks into place.
3. Insert a paper filter (1x4) and fill with the desired amount of ground coffee. Close the top cover.
4. Switch on the appliance. When all the water has run through, the brewing process is finished. Switch off the appliance.
5. Remove the jug from the stand.
6. Coffee can be kept warm on hotplate while appliance is switched on.

Cleaning and care

1. Unplug the coffee maker from the mains supply and allow it to cool down.

2. Clean the base unit with a slightly damp, lint-free cloth. Do not immerse in water.

3. Rinse the inside of the glass jug with water. Wipe the outside of the jug with a damp cloth. Do not dismantle the jug.
4. Clean the funnel in hot sudsy water; rinse and dry thoroughly.
5. Do not use any abrasive cleaning agents.
6. Descale appliance after 30 to 40 operations. Refer to chapter DESCALING.

Close-up of a white electrical outlet plug with a black socket and red arrow pointing to the outlet (no text or symbols visible)

Before use, plug in the appliance.

Close-up of a black electrical plug with a red arrow pointing to its socket (no text or symbols visible)

After use unplug the appliance.

Close-up of a kitchen setup with a pot, water being poured into a container, and a hand pouring liquid from a glass container (no text or symbols visible)

Fill the water tank with water.

Do not exceed the maximum level.

Close-up of a black thermosink with a red arrow pointing to the lid area, no visible text or symbols.

Place funnel. Insert paper filter and ground coffee.

Close-up of a black and white object with a red arrow pointing to a circular opening, possibly indicating a step or process (no text or symbols visible)

and ground coffee.

Close-up of a mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

Place jug with closed lid and switch appli-ance on.

Close-up of a black coffee maker with a red arrow pointing to the side (no text or symbols visible)

When brewing process is finished, remove jug.

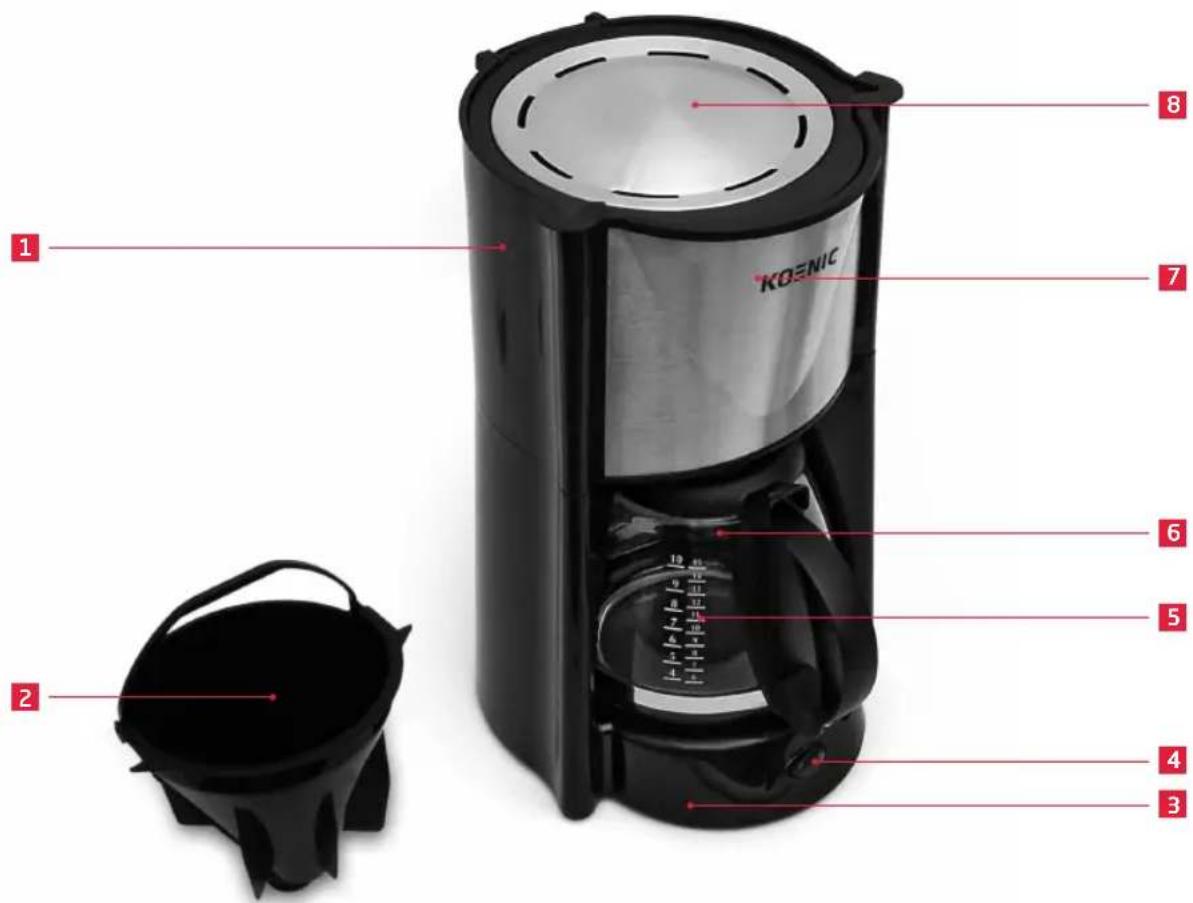

1 Water tank
2 Funnel
3 Stand
4 Power switch with indicator

5 Water level indication
6 Glass jug
7 Funnel holder
8 Top cover

Descaling

1. Add 2-3 tablespoons of vinegar essence to approx. 250 ml cold water.
2. Pour this mixture into the water tank. Place a paper filter into the funnel (without ground coffee) and operate the appliance as described in section MAKING COFFEE. Repeat the descaling process if necessary.
3. Ventilate the room during the descaling process and do not breathe in the vinegar vapours.
4. After descaling, let the appliance run three more times with only water rinsing off any vinegar or scale residue.

Technical Data

Rated voltage: 220-240 V

Rated power input: 1000 W

Rated frequency: 50 Hz
