USER MANUAL KHM400 Koenic

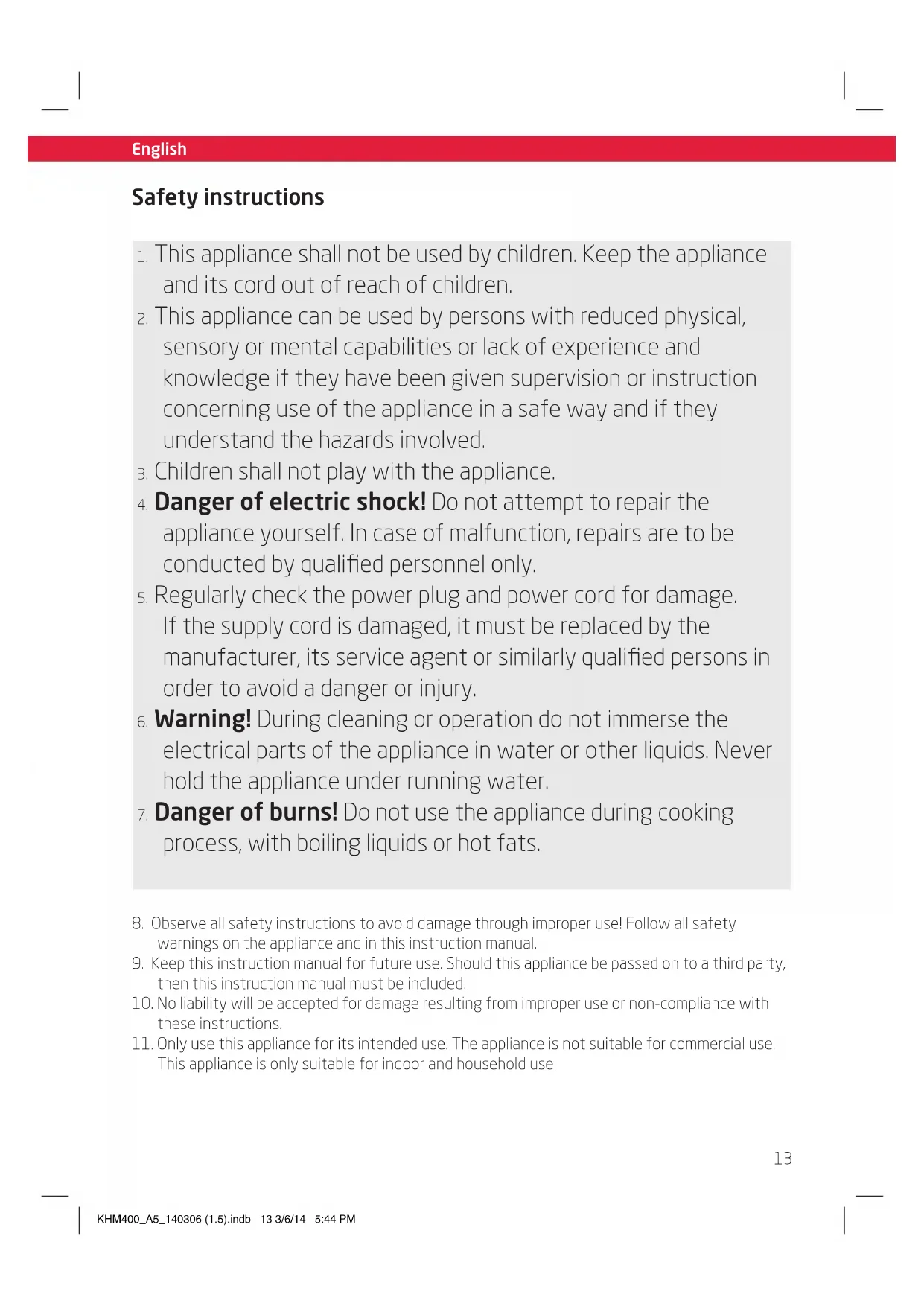

1. This appliance shall not be used by children. Keep the appliance

and its cord out of reach of children.

2. This appliance can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

3. Children shall not play with the appliance.

4. Danger of electric shock! Do not attempt to repair the

appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

5. Regularly check the power plug and power cord for damage.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.

6. Warning! During cleaning or operation do not immerse the

electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

7. Danger of burns! Do not use the appliance during cooking

process, with boiling liquids or hot fats.

8. Observe all safety instructions to avoid damage through improper use! Follow all safety

warnings on the appliance and in this instruction manual.

9. Keep this instruction manual for future use. Should this appliance be passed on to a third party,

then this instruction manual must be included.

10. No liability will be accepted for damage resulting from improper use or non-compliance with

11. Only use this appliance for its intended use. The appliance is not suitable for commercial use.

This appliance is only suitable for indoor and household use. KHM400_A5_140306 (1.5).indb 13 3/6/14 5:44 PM14 English English Safety instructions

12. Before connecting the appliance to the

power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.

13. Never use a damaged appliance!

Disconnect the appliance from the electrical outlet and contact your supplier if it is damaged.

14. To avoid damaging to the power cord, do

not squeeze, bend or rub it on sharp edges. Keep it away from hot surfaces and open flames as well.

15. Place the cord in such a way that no

unintentional pulling or tripping over it is possible.

16. If an extension cord is used, its capacity

needs to be suitable for the power consumed by the appliance.

17. Do not operate the appliance with wet

hands or while standing on a wet floor. Do not touch the power plug with wet hands.

18. Do not open the appliance casing under any

circumstances. Do not insert any foreign objects into the inside of the casing.

19. Do not place heavy objects on top of the

appliance. Do not place objects with open flames, e.g. candles, beside the appliance. Do not place objects filled with water, e.g. vases, near the appliance.

20. Keep the appliance away from any hot

surfaces and open flames. Protect the appliance against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.

21. Do not wrap the power cord around the

22. Connect the power plug to an easily

reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch o the appliance. Use the power plug as the disconnection device.

23. For additional protection, we recommend

the use of a residual current device (RCD) with a tripping current not exceeding 30 mA in the electrical circuit supplying power to your appliance. The installation should be done by an experienced electrician.

24. Should the appliance fall into water, unplug

the power plug first before reaching into the water.

25. Do not leave the appliance unattended, if it

is in use or the power plug is connected to an electrical outlet.

26. Never add ingredients to the container

while the mixer is operating.

27. The appliance is suitable for a short time

operation only. After an operation time of 5 minutes let it cool down before next use. In turbo mode the operation time must not exceed 1 minute. Do not overload the appliance.

28. Never let the mixer face towards anybody

while operating the appliance.

29. Avoid contacting moving parts. Keep hands,

hair, clothing, as well as spatulas and other utensils away from attachments during operation to reduce risk of injury to persons, and/or damage to the mixer.

30. Always disconnect the appliance from

the power supply, if it is left unattended and prior to assembling, disassembling or cleaning. KHM400_A5_140306 (1.5).indb 14 3/6/14 5:44 PM15 English Congratulations! Thanks for your purchase of this KOENIC product. Please read this manual carefully and keep it for future reference. Intended use This appliance is designed for mixing and kneading ingredients, such as flour, cream, butter, eggs etc. This appliance is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the appliance or injury. Before first use

• Remove all packaging materials.

• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.

• Clean the appliance ( Cleaning and care). Content 1 x Motor unit 2 x Beaters 2 x Dough hooks 1 x Instruction manual 1 x Warranty card Technical data Rated voltage: 220-240 V~, 50/60 Hz Rated power: 400 W Protection class: Class II Components

Power cord with plug

Receptacles for attachments

23. For additional protection, we recommend

the use of a residual current device (RCD) with a tripping current not exceeding 30 mA in the electrical circuit supplying power to your appliance. The installation should be done by an experienced electrician.

24. Should the appliance fall into water, unplug

the power plug first before reaching into the water.

25. Do not leave the appliance unattended, if it

is in use or the power plug is connected to an electrical outlet.

26. Never add ingredients to the container

while the mixer is operating.

27. The appliance is suitable for a short time

operation only. After an operation time of 5 minutes let it cool down before next use. In turbo mode the operation time must not exceed 1 minute. Do not overload the appliance.

28. Never let the mixer face towards anybody

while operating the appliance.

29. Avoid contacting moving parts. Keep hands,

hair, clothing, as well as spatulas and other utensils away from attachments during operation to reduce risk of injury to persons, and/or damage to the mixer.

30. Always disconnect the appliance from

the power supply, if it is left unattended and prior to assembling, disassembling or cleaning. KHM400_A5_140306 (1.5).indb 15 3/6/14 5:44 PM16 English English Attention Always ensure the appliance is disconnected from the power supply before it is fully and correctly assembled! Do not exceed the maximum operation time of 5 minutes in order to avoid overloading of the appliance. In Turbo mode, the operation time must not exceed 1 minute. Operation

Selecting attachments: Select desired attachments before use. Beaters Mixing Dough hooks Kneading

Mixing: Attach both beaters to the receptacles. Make sure they are well attached.

Kneading: Attach both kneading hooks to the receptacles.

Set the speed switch to the 0 position. Connect the power plug to a suitable electrical outlet.

Lower the attachments into the ingredients to be processed.

Switching on: Use the speed switch. The speed can be adjusted from 1 to 5 according to the ingredients to be mixed. Speed & Accessory Use Weight & Time 1 (Low) To combine liquids, fold in dry ingredients, egg whites and whipped cream. 1000 g 30 s 2 (Low) To prepare sauces, puddings, muns and quick breads. 1200 g 60 s 3 (Medium) To prepare batters and mixes. 800 g 180 s 4 (Medium) To cream butter and sugar, make cookie dough, cake mixes and frostings. 800 g 180 s 5 (Highest / Turbo) To whip light and fluy mixtures, whip cream, beat eggs (white, yolks, whole), and mash potatoes. 1000 g 300 s 5 (Highest speed) Kneading a mixture of flour (900 g) & water (650 g) 300 s KHM400_A5_140306 (1.5).indb 16 3/6/14 5:45 PM17 English

Slide the Turbo switch backward anytime to reach the maximum speed.

Switching o: Set the speed switch to the 0 position.

Unplug the appliance.

Press the eject button to release the attachments. Now pull the attachments out of their receptacles for cleaning. Hints

• For best results use deep but narrow mixing containers.

• Operation speed depends on the amount and consistency of the food to be mixed, as well as on the form and size of the container.

• When mixing liquids use a tall container or mix small quantities at a time to reduce spillage.

• Never add ingredients to container while appliance is operating.

• Always start mixing at a low speed, and then gradually increase it. Cleaning and care Warning Before cleaning, make sure to switch o the appliance and disconnect it from the electrical outlet and let it cool completely.

Cleaning the motor unit: Use a soft, slightly damp cloth. Warning Make sure that no moisture is entering the appliance during cleaning. Never immerse the motor unit in water or other liquids. Never hold the appliance under running water.

Cleaning the beaters and dough hooks: Use warm water and a mild cleaning agent. Rinse them thoroughly after cleaning and dry. The attachments are dishwasher safe.

• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your appliance.

• Dry the appliance thoroughly after cleaning.

• Store the appliance in a cool, dry location, away from children and pets. Disposal The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
