USER MANUAL KHB 610 Koenic

Diagram of a digital brush with labeled parts, showing a lever and cup setup

50.4

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

2014年1月7日

Deutsch

Sicherheitshinweise

1. This appliance is only suitable for private household use and it is not designed for commercial purpose.

2. Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

3. Warning! During cleaning or operation do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

4. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

5. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

6. Children shall not play with the appliance.

7. Danger of burns! Do not use the appliance during the cooking process, with boiling liquids or hot fat.

8. Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.

9. Danger of injury! Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

10. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

11. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

12. Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the appliance. Only use original parts and accessories.

13. Do not continuously operate the appliance for too long to avoid overheating the motor. The continuous operation time must not exceed the processing guide given in the instruction manual. Let the appliance cool down if the appliance housing becomes too hot.

English

Safety instructions

1. Never add ingredients to the container while the appliance is operating.
2. Never let the blade face towards anybody while operating the appliance.
3. Do not touch the blade, blade guard and moving parts. Keep fingers, hair, clothing and utensils away from all moving parts.

4. During operation, keep hands and utensils out of the container to reduce the risk of severe personal injury and/or damage to the blender. Only use a scraper when the appliance is not running.

5. Observe all safety instructions to avoid damage through improper use!

6. Keep this instruction manual for future use. Should this appliance be passed on to a third party, then this instruction manual must be included.
7. Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.
8. Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged.
9. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well. Do not let rotating blades touch the power cord.
10. Lay out the cord in such a way that no unintentional pulling or tripping over it is possible.
11. If an extension cord is used, its capacity needs to be suitable for the power consumed by the appliance.
12. Do not operate the appliance with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
13. Do not open the appliance casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
14. Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. Protect the appliance against

heat, dust, direct sunlight, moisture, dripping and splashing water.

1. Do not place heavy objects on top of the appliance. Do not place objects with open flames, e.g. candles, on top of or beside the appliance. Do not place objects filled with water, e.g. vases, on or near the appliance.

2. Do not pull the power plug out of the electrical outlet by the power cord and do not wrap the power cord around the appliance.

3. Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance. Use the power plug as the disconnection device.

4. Disconnect the power plug from the electrical outlet when not in use and before cleaning.

5. If the power cord should overheat, stop using the appliance and disconnect the appliance from the electrical outlet.

6. Do not place the appliance on hot plates (gas, electric, coal cooking range, etc.). Keep the appliance away from hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

7. Never leave the appliance unattended during use.

8. Dry the appliance and all accessories before connecting to the power supply and prior to attaching the accessories.

English

Congratulations!

Thanks for your purchase of this KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The appliance is exclusively intended to mix and blend foodstuffs. This appliance is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the appliance or injury.

Before first use

• Remove all packaging materials.
• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.
• Clean the appliance (→Cleaning and care).

Content

1 x Motor unit
1 x Hand blender attachment
1 x Measuring cup
1 x Anti-skid mat
1 x Instruction manual
1 x Warranty card

Technical data

Rated voltage: 230-240 V\~, 50 Hz

Rated power: 600 W

Protection class: Class II

Components

A Power cord with plug
B Stepless speed control
c Speed button I
D Speed button II
E Motor unit
F Hand blender attachment
G Blade
H Measuring cup
Anti-skid mat

English

Attention

Always ensure the appliance is disconnected from the power supply before it is fully and correctly assembled!

Danger of hand injury! Handle the blade with care as it is very sharp!

Never use your hands to reach into the food container. Always use wooden or plastic spatulas, and only when the hand blender is not running.

Do not use this appliance for processing ice, hot liquids, heavy batter/dough, or hard foods.

Pre-cut the food into small and even pieces

Note

When pureeing food, make sure to use enough liquid (juice, milk, etc.) to obtain a smooth mixture. Adjust the consistency of the mixture by adding more liquid or soft solids

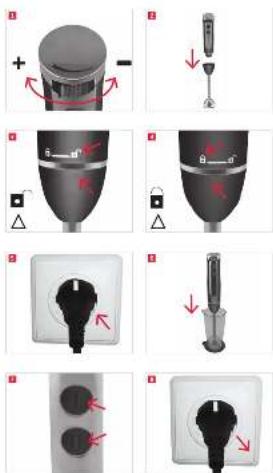

Speed settings

1 The processing speed corresponds to the setting of the speed control. Rotate stepless speed control to adjust the speed. The higher the setting, the faster the blending results. Maximum speed can be achieved by pressing the speed button II (Turbo).

Blending

Suitable for: Blending juices and shakes, mixing soft ingredients, pureeing cooked ingredients.

2 Mount the motor unit on the hand blender.

3 To do so, align the motor unit's □con with the blender's △con.

4 Rotate the blender in a clockwise direction until it clicks in place (now and lions are aligned).

5 Connect the plug to a suitable outlet.

6 Fill foodstuff into the measuring cup. Observe the maximum marking on the measuring cup. Dip the blender bar as deeply as possible into the ingredients. Work through the ingredients by moving the appliance gently up and down. Hold the blender vertically. Tilting it might lead to splashing foodstuff.

7 Set the desired speed selection. Press and hold speed button I. Turbo can be achieved by pressing and holding speed button II.

8 After use: Release the speed button and disconnect the plug.

9 The anti-skid mat can be taken out as a lid to cover the measuring cup and store inside the fridge.

English

Processing guide

Caution

The continuous operation time must not exceed the processing guide below.

700 ml measuring cup

Food Max.	weight	Time (sec)	Food Preparation
Carrot 100	g 12 l - 2	cm
Onions *1	100 g	4-8 l - 2 cm
Compote 8	0 g 8 /
Garlic 80 g	4-8 /
Cheese 50	g 12 l - 2	cm
Eggs 3 yolks	4-8 Boiled
Ham 70 g	10 Sliced
Liquid *2	400 ml	120 /

*1 Onions: Peeled
*2 Liquid: Soup, milk, water, etc.

Cleaning and care

Warning

Before cleaning, always switch off the appliance and disconnect the plug from power.

10 Cleaning the motor unit: Use a soft, slightly damp cloth.

Warning

Make sure that no moisture is entering the appliance during cleaning.

Never immerse the motor unit in water or other liquids.

11 Cleaning the measuring cup and mat: Use warm water and a mild cleaning agent.

12 Cleaning the hand blender
& attachment: Wash the blending bar
13 under running water. Make sure that no liquid enters the hollow shaft. Dry thoroughly.

• Wash all other parts in warm soapy water, then rinse and dry thoroughly.
• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your appliance.
  • Dry the appliance thoroughly after cleaning.
• Store the appliance in a cool, dry location, away from children and pets.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and

electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Español

1. This appliance is only suitable for private household use and it is not designed for commercial purpose.
2. Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
3. Warning! During cleaning or operation do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
4. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
5. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
6. Children shall not play with the appliance.
7. Danger of burns! Do not use the appliance during the cooking process, with boiling liquids or hot fat.
8. Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.
9. Danger of injury! Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
10. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
11. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
12. Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the appliance. Only use original parts and accessories.
13. Do not continuously operate the appliance for too long to avoid overheating the motor. The continuous operation time must not exceed the processing guide given in the instruction manual. Let the appliance cool down if the appliance housing becomes too hot.

English

Safety instructions

1. Never add ingredients to the container while the appliance is operating.
2. Never let the blade face towards anybody while operating the appliance.
3. Do not touch the blade, blade guard and moving parts. Keep fingers, hair, clothing and utensils away from all moving parts.

4. During operation, keep hands and utensils out of the container to reduce the risk of severe personal injury and/or damage to the blender. Only use a scraper when the appliance is not running.

5. Observe all safety instructions to avoid damage through improper use!

6. Keep this instruction manual for future use. Should this appliance be passed on to a third party, then this instruction manual must be included.
7. Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.
8. Never use a damaged appliance!
   Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged.
9. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well. Do not let rotating blades touch the power cord.
10. Lay out the cord in such a way that no unintentional pulling or tripping over it is possible.
11. If an extension cord is used, its capacity needs to be suitable for the power consumed by the appliance.
12. Do not operate the appliance with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
13. Do not open the appliance casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
14. Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. Protect the appliance against

heat, dust, direct sunlight, moisture, dripping and splashing water.

1. Do not place heavy objects on top of the appliance. Do not place objects with open flames, e.g. candles, on top of or beside the appliance. Do not place objects filled with water, e.g. vases, on or near the appliance.

2. Do not pull the power plug out of the electrical outlet by the power cord and do not wrap the power cord around the appliance.

3. Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance. Use the power plug as the disconnection device.

4. Disconnect the power plug from the electrical outlet when not in use and before cleaning.

5. If the power cord should overheat, stop using the appliance and disconnect the appliance from the electrical outlet.

6. Do not place the appliance on hot plates (gas, electric, coal cooking range, etc.). Keep the appliance away from hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

7. Never leave the appliance unattended during use.

8. Dry the appliance and all accessories before connecting to the power supply and prior to attaching the accessories.

English

Congratulations!

Thanks for your purchase of this KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The appliance is exclusively intended to mix and blend foodstuffs. This appliance is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the appliance or injury.

Before first use

• Remove all packaging materials.
• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.
  • Clean the appliance (→ Cleaning and care).

Content

1 x Motor unit
1 x Hand blender attachment
1 x Measuring cup
1 x Anti-skid mat
1 x Instruction manual
1 x Warranty card

Technical data

Rated voltage: 230-240 V\~, 50 Hz Rated power: 600 W Protection class: Class II

Components

A Power cord with plug
B Stepless speed control
Speed button
D Speed button II
€ Motor unit
F Hand blender attachment
G Blade
H Measuring cup
Anti-skid mat

English

Attention

Always ensure the appliance is disconnected from the power supply before it is fully and correctly assembled!

Danger of hand injury! Handle the blade with care as it is very sharp!

Never use your hands to reach into the food container. Always use wooden or plastic spatulas, and only when the hand blender is not running.

Do not use this appliance for processing ice, hot liquids, heavy batter/dough, or hard foods.

Pre-cut the food into small and even pieces

Note

When pureeing food, make sure to use enough liquid (juice, milk, etc.) to obtain a smooth mixture. Adjust the consistency of the mixture by adding more liquid or soft solids

Speed settings

1 The processing speed corresponds to the setting of the speed control. Rotate stepless speed control to adjust the speed. The higher the setting, the faster the blending results. Maximum speed can be achieved by pressing the speed button II (Turbo).

Blending

Suitable for: Blending juices and shakes, mixing soft ingredients, pureeing cooked ingredients.

2 Mount the motor unit on the hand blender.
3 To do so, align the motor unit's ▶ icon with the blender's △ icon.
4 Rotate the blender in a clockwise direction until it clicks in place (now ⏻ and △ icons are aligned).
5 Connect the plug to a suitable outlet.
6 Fill foodstuff into the measuring cup. Observe the maximum marking on the measuring cup. Dip the blender bar as deeply as possible into the ingredients. Work through the ingredients by moving the appliance gently up and down. Hold the blender vertically. Tilting it might lead to splashing foodstuff.
7 Set the desired speed selection. Press and hold speed button I. Turbo can be achieved by pressing and holding speed button II.
8 After use: Release the speed button and disconnect the plug.
9 The anti-skid mat can be taken out as a lid to cover the measuring cup and store inside the fridge.

English

Processing guide

Caution

The continuous operation time must not exceed the processing guide below.

700 ml measuring cup

Food	Max. weight	Time (sec)	Food Preparation
Carrot	100 g	12	1 - 2 cm
Onions *1	100 g	4-8	1 - 2 cm
Compote	80 g	8	/
Garlic	80 g	4-8	/
Cheese	50 g	12	1 - 2 cm
Eggs	3 yolks	4-8	Boiled
Ham	70 g	10	Sliced
Liquid *2	400 ml	120	/

*1 Onions: Peeled
*2 Liquid: Soup, milk, water, etc.

Cleaning and care

Warning

Before cleaning, always switch off the appliance and disconnect the plug from power.

10 Cleaning the motor unit: Use a soft, slightly damp cloth.

Warning

Make sure that no moisture is entering the appliance during cleaning.

Never immerse the motor unit in water or other liquids.

11 Cleaning the measuring cup and mat: Use warm water and a mild cleaning agent.

12 Cleaning the hand blender
& attachment: Wash the blending bar under running water. Make sure that no liquid enters the hollow shaft. Dry thoroughly.

• Wash all other parts in warm soapy water, then rinse and dry thoroughly.
• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your appliance.
  • Dry the appliance thoroughly after cleaning.
• Store the appliance in a cool, dry location, away from children and pets.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and

electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Español
