USER MANUAL KHB 800 Koenic

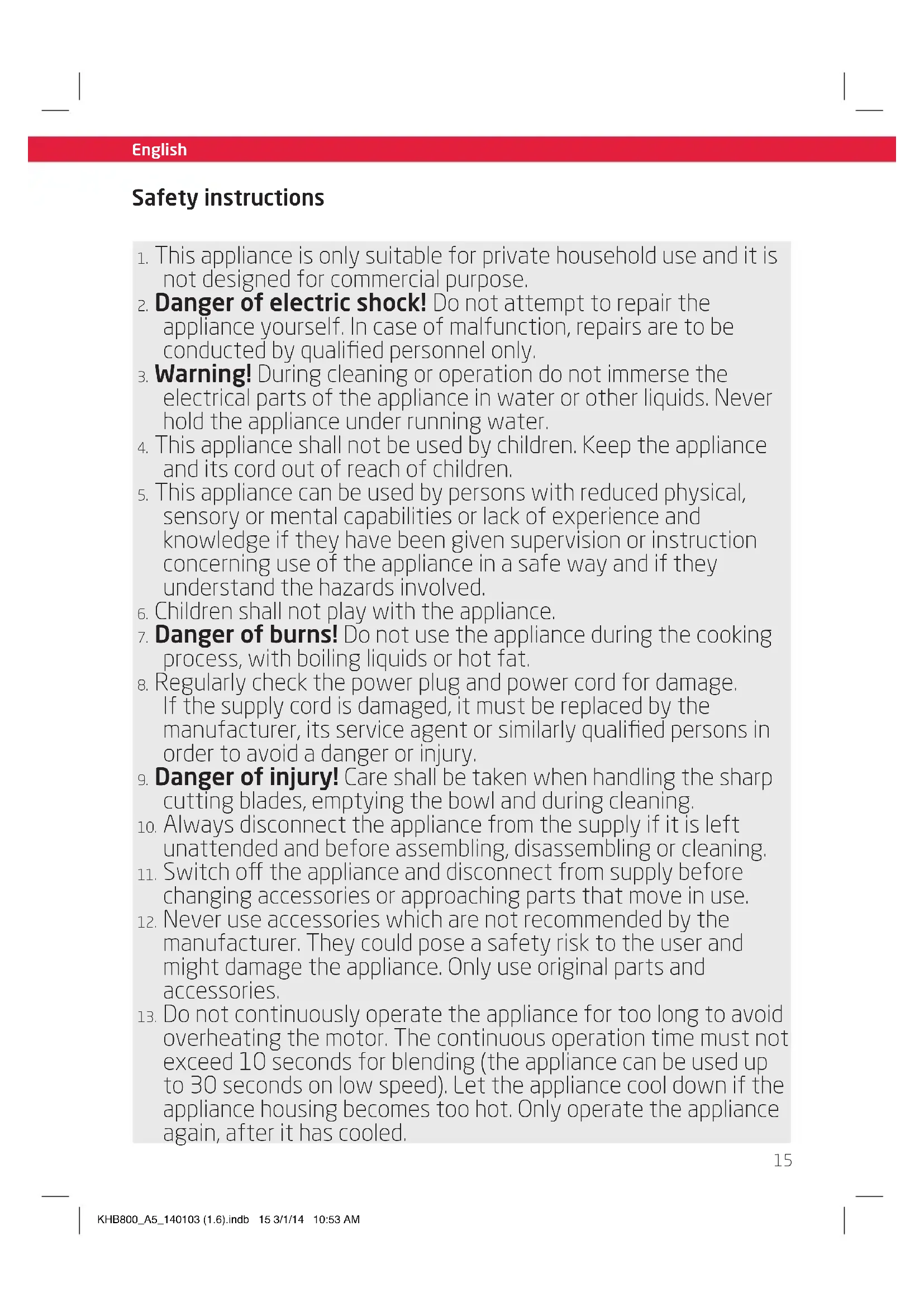

1. This appliance is only suitable for private household use and it is

not designed for commercial purpose.

2. Danger of electric shock! Do not attempt to repair the

appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

3. Warning! During cleaning or operation do not immerse the

electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

4. This appliance shall not be used by children. Keep the appliance

and its cord out of reach of children.

5. This appliance can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

6. Children shall not play with the appliance.

7. Danger of burns! Do not use the appliance during the cooking

process, with boiling liquids or hot fat.

8. Regularly check the power plug and power cord for damage.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.

9. Danger of injury! Care shall be taken when handling the sharp

cutting blades, emptying the bowl and during cleaning.

10. Always disconnect the appliance from the supply if it is left

unattended and before assembling, disassembling or cleaning.

11. Switch o the appliance and disconnect from supply before

changing accessories or approaching parts that move in use.

12. Never use accessories which are not recommended by the

manufacturer. They could pose a safety risk to the user and might damage the appliance. Only use original parts and accessories.

13. Do not continuously operate the appliance for too long to avoid

overheating the motor. The continuous operation time must not exceed 10 seconds for blending (the appliance can be used up to 30 seconds on low speed). Let the appliance cool down if the appliance housing becomes too hot. Only operate the appliance again, after it has cooled. KHB800_A5_140103 (1.6).indb 15 3/1/14 10:53 AM16 English English Safety instructions

18. Observe all safety instructions to avoid

damage through improper use!

19. Keep this instruction manual for future

use. Should this appliance be passed on to a third party, then this instruction manual must be included.

20. Before connecting the appliance to the

power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.

21. Never use a damaged appliance!

Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged.

22. To avoid damaging the cord, do not

squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well. Do not let rotating blades touch the power cord.

23. Lay out the cord in such a way that no

unintentional pulling or tripping over it is possible.

24. If an extension cord is used, its capacity

needs to be suitable for the power consumed by the appliance.

25. Do not operate the appliance with wet

hands or while standing on a wet floor. Do not touch the power plug with wet hands.

26. Do not open the appliance casing under any

circumstances. Do not insert any foreign objects into the inside of the casing.

27. Keep the appliance away from any hot

surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. Protect the appliance against heat, dust, direct sunlight, moisture, dripping and splashing water.

28. Do not place heavy objects on top of the

appliance. Do not place objects with open flames, e.g. candles, on top of or beside the appliance. Do not place objects filled with water, e.g. vases, on or near the appliance.

29. Do not pull the power plug out of the

electrical outlet by the power cord and do not wrap the power cord around the appliance.

30. Connect the power plug to an easily

reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch o the appliance. Use the power plug as the disconnection device.

31. Disconnect the power plug from the

electrical outlet when not in use and before cleaning.

32. If the power cord should overheat, stop

using the appliance and disconnect the appliance from the electrical outlet.

33. Do not place the appliance on hot plates

(gas, electric, coal cooking range, etc.). Keep the appliance away from hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

34. Never leave the appliance unattended

35. Dry the appliance and all accessories before

connecting to the power supply and prior to attaching the accessories.

14. Never add ingredients to the container while the appliance is

15. Never let the blade face towards anybody while operating the

16. Do not touch the blade, blade guard and moving parts. Keep

fingers, hair, clothing and utensils away from all moving parts.

17. During operation, keep hands and utensils out of the container

to reduce the risk of severe personal injury and/ or damage to the blender. Only use a scraper when the appliance is not running. KHB800_A5_140103 (1.6).indb 16 3/1/14 10:53 AM17 English Congratulations! Thanks for your purchase of this KOENIC product. Please read this manual carefully and keep it for future reference. Intended use The appliance is exclusively intended to mix, blend and chop foodstus. This appliance is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the appliance or injury. Before first use

• Remove all packaging materials.

• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.

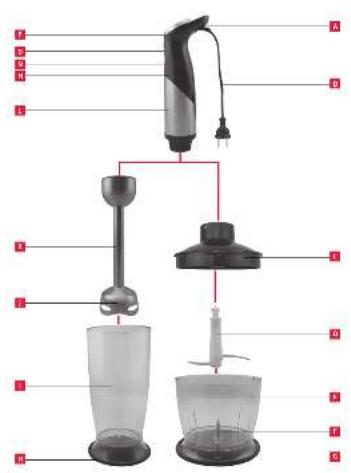

• Clean the appliance ( Cleaning and care). Content 1 x Motor unit 1 x Hand blender attachment 1 x Chopper 1 x Measuring cup Technical data Rated voltage: 220-240 V~, 50/60 Hz Rated power: 800 W Protection class: Class II Components

Power cord with plug

Anti-skid mat (chopper)

Anti-skid mat (measuring cup)

Measuring cup for blender (100 to 800 ml)

Hand blender attachment

Stepless speed control (

to +) heat, dust, direct sunlight, moisture, dripping and splashing water.

28. Do not place heavy objects on top of the

appliance. Do not place objects with open flames, e.g. candles, on top of or beside the appliance. Do not place objects filled with water, e.g. vases, on or near the appliance.

29. Do not pull the power plug out of the

electrical outlet by the power cord and do not wrap the power cord around the appliance.

30. Connect the power plug to an easily

reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch o the appliance. Use the power plug as the disconnection device.

31. Disconnect the power plug from the

electrical outlet when not in use and before cleaning.

32. If the power cord should overheat, stop

using the appliance and disconnect the appliance from the electrical outlet.

33. Do not place the appliance on hot plates

(gas, electric, coal cooking range, etc.). Keep the appliance away from hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

34. Never leave the appliance unattended

35. Dry the appliance and all accessories before

connecting to the power supply and prior to attaching the accessories. KHB800_A5_140103 (1.6).indb 17 3/1/14 10:53 AM18 English English Attention Always ensure the appliance is disconnected from the power supply before it is fully and correctly assembled! Danger of hand injury! Handle the blade with care as it is very sharp! Never use your hands to reach into the food container. Always use wooden or plastic spatulas, and only when the hand blender is not running. Do not use this appliance for processing ice, hot liquids, heavy batter/dough, or hard foods. Select a stable flat surface for chopping. Always take the chopper blade by its hub, make sure not to touch the blade. Pre-cut the food into small and even pieces Note When pureeing food, make sure to use enough liquid (juice, milk, etc.) to obtain a smooth mixture. Adjust the consistency of the mixture by adding more liquid or soft solids Speed settings

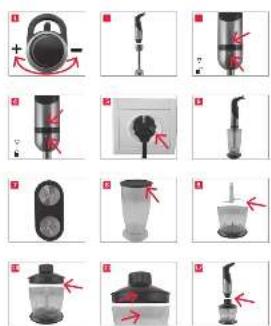

The processing speed corresponds to the setting of the speed control. Rotate stepless speed control to adjust the speed. The higher the setting, the faster the chopping results. Maximum speed can be achieved by pressing the MAX (Turbo) button. Blending Suitable for: Blending juices and shakes, mixing soft ingredients, pureeing cooked ingredients.

Rotate the blender in a clockwise direction until it clicks in place ( and icons are now aligned).

Connect the plug to a suitable outlet.

Fill foodstu into the measuring cup. Observe the MAX markings on the measuring cup. Dip the blender bar as deeply as possible into the ingredients. Work through the ingredients by moving the appliance gently up and down. Hold the blender vertically. Tilting it might lead to splashing foodstu.

Set the desired speed selection. Press and hold ON button. Turbo can be achieved by pressing and holding the MAX button.

The anti-skid mat can be taken out as a lid to cover the measuring cup and store inside the fridge. KHB800_A5_140103 (1.6).indb 18 3/1/14 10:53 AM19 English Chopping Suitable for: Chopping meat (pre-cut to cubes), de-cored and peeled fruits/vegetables.

Insert ingredients into the chopper. Close the lid. Make sure it is locked by the pins.

Rotate lid to let lid snap into place on the chopper.

Mount the chopper on the motor unit:

Rotate the chopper in a clockwise direction until it clicks in place ( and icons are now aligned).

Connect the plug to a suitable outlet.

Set the desired speed selection. Press and hold ON button. Turbo can be achieved by pressing and holding the MAX button.

The anti-skid mat can be taken out as a lid to cover the chopper bowl and store inside the fridge. Processing guide 500 ml chopper bowl Food Max. weight Time Food Preparation Meat 250 g 8 sec 1 - 2 cm *

Meat: Raw meat will take longer than cooked meat.

Dough: 300 g flour, 190 g water, 10 g sugar, 10 g baking powder, 10 g butter, 10 g salt Cleaning and care Warning Before cleaning, always switch o the appliance and disconnect the plug from power.

Cleaning the motor unit: Use a soft, slightly damp cloth. Warning Make sure that no moisture is entering the appliance during cleaning. Never immerse the motor unit in water or other liquids. Speed settings

The processing speed corresponds to the setting of the speed control. Rotate stepless speed control to adjust the speed. The higher the setting, the faster the chopping results. Maximum speed can be achieved by pressing the MAX (Turbo) button. Blending Suitable for: Blending juices and shakes, mixing soft ingredients, pureeing cooked ingredients.

Rotate the blender in a clockwise direction until it clicks in place ( and icons are now aligned).

Connect the plug to a suitable outlet.

Fill foodstu into the measuring cup. Observe the MAX markings on the measuring cup. Dip the blender bar as deeply as possible into the ingredients. Work through the ingredients by moving the appliance gently up and down. Hold the blender vertically. Tilting it might lead to splashing foodstu.

Set the desired speed selection. Press and hold ON button. Turbo can be achieved by pressing and holding the MAX button.

The anti-skid mat can be taken out as a lid to cover the measuring cup and store inside the fridge. KHB800_A5_140103 (1.6).indb 19 3/1/14 10:53 AM20 English

Cleaning the chopper bowl and blade, measuring cup, mats: Use warm water and a mild cleaning agent.

Cleaning the hand blender

attachment: Wash the blending bar

under running water. Make sure that no liquid enters the hollow shaft. Dry thoroughly.

• Wash all other parts in warm soapy water, then rinse and dry thoroughly.

• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your appliance.

• Dry the appliance thoroughly after cleaning.

• Store the appliance in a cool, dry location, away from children and pets. Disposal The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. KHB800_A5_140103 (1.6).indb 20 3/1/14 10:53 AM21 Español Instrucciones de seguridad
