TA 2987 - Toaster CLATRONIC - Free user manual and instructions

Product Type	Toaster
Brand	Clatronic
Model	TA 2987
Power Supply	230 V, 50 Hz
Number of Slices	2 (one per removable rack)
Removable Racks	Yes, with plastic tabs
Timer	5 browning positions (1 to 5)
Automatic Shut-off	Yes, with audible signal
Crumb Tray	Yes, removable for cleaning
Cool Walls	Cool touch, but metal parts hot
First Use	Run empty up to 3 times
Cleaning	Damp cloth, no corrosive products, empty crumb tray
Safety	Do not use unattended, do not insert utensils, keep away from flammable objects
Warranty	24 months from date of purchase
Weight	Approximately 1.5 kg (estimate)
Dimensions (approx.)	30 x 20 x 25 cm (estimate)
Color	Not specified, typically white or black
Included Accessories	Removable racks, crumb tray

Frequently Asked Questions - TA 2987 CLATRONIC

How many slices of bread can I toast at once?

You can toast one slice per rack, i.e. two slices total. Only insert one slice per rack to avoid risks.

How to adjust the browning level?

Use the rotary timer: from position 1 (lightest) to 5 (darkest). If in doubt, start with a low setting.

What to do if the bread starts burning?

The appliance stops automatically at the end of the cycle. If the bread burns before, unplug immediately and remove the racks. Never leave the appliance unattended.

How to clean the toaster?

Unplug the appliance and let it cool. Clean the exterior with a damp cloth (no corrosive products). Open the crumb tray, discard residues and close.

Can I toast bread that is already buttered or topped?

No, never spread butter, fat or cheese on the bread before toasting. This could catch fire on contact with the hot heating elements.

Why is there smoke and odor during first use?

This is normal. The protective coating on the heating elements burns off. Run the appliance empty up to 3 times before first use, in a well-ventilated area.

Is the appliance safe for children?

The metal parts become very hot. Keep the appliance out of reach of children and do not let the cord hang. Never use unattended.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by a qualified technician, the manufacturer or its after-sales service to avoid any danger.

How to open the removable racks?

To open the racks, squeeze the plastic tabs between your fingers. They then come off easily.

Does the appliance shut off automatically?

Yes, when the selected time has elapsed, an audible signal sounds and the appliance turns off automatically. Then remove the racks.

USER MANUAL TA 2987 CLATRONIC

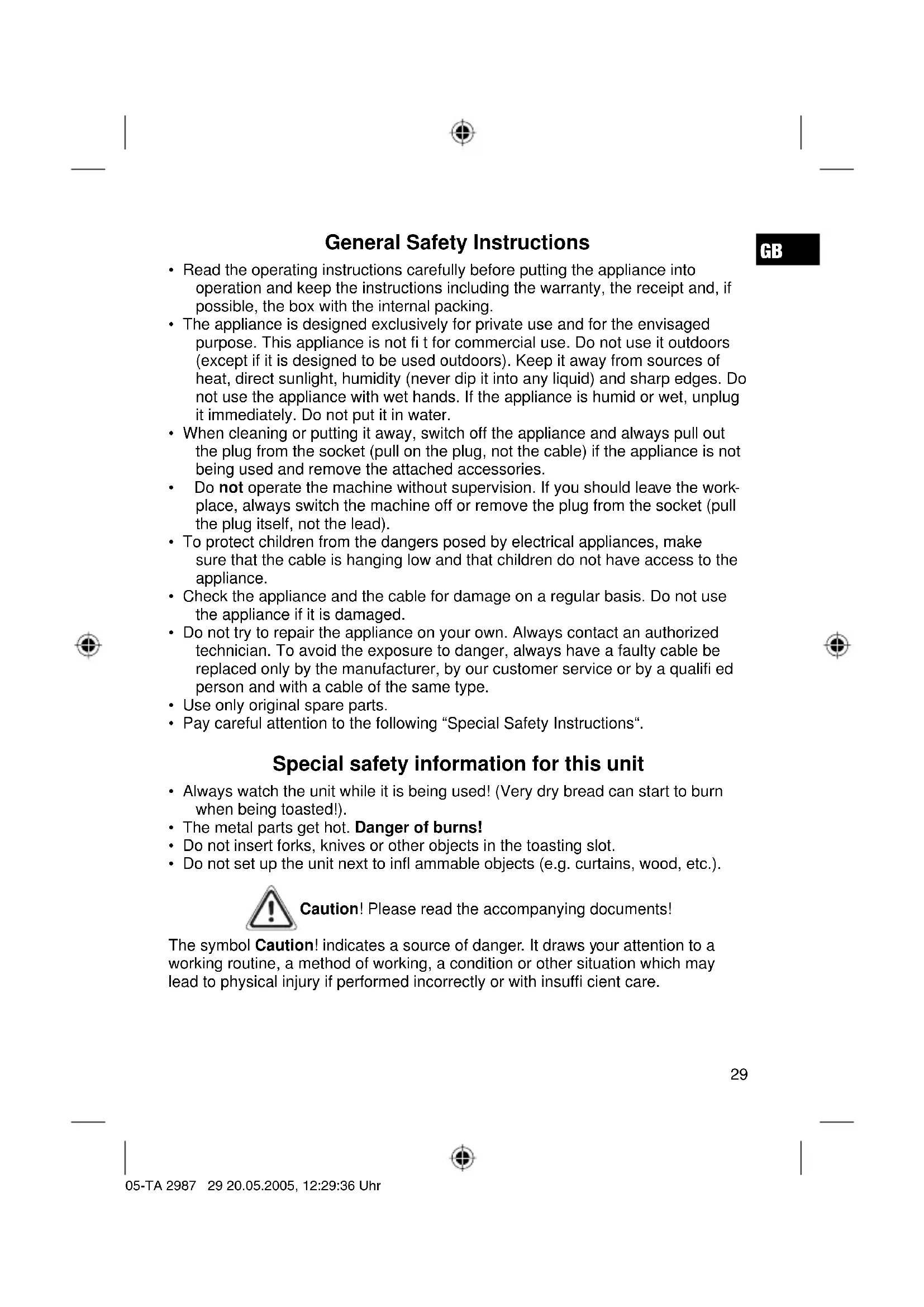

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety information for this unit

• Always watch the unit while it is being used! (Very dry bread can start to burn when being toasted!).
• The metal parts get hot. Danger of burns!
• Do not insert forks, knives or other objects in the toasting slot.
• Do not set up the unit next to infl ammable objects (e.g. curtains, wood, etc.).

Caution! Please read the accompanying documents!

The symbol Caution! indicates a source of danger. It draws your attention to a working routine, a method of working, a condition or other situation which may lead to physical injury if performed incorrectly or with insufficient care.

GB

Before Initial Use

In order to remove the protective layer on the heating coil you should operate the machine approximately three times when it is empty. Please select the maximum level of browning. Any smoke or smells produced during this procedure are normal.

Please ensure sufficient ventilation.

Operation

1. Only connect the unit to a properly installed and earthed power socket (230 volts, 50 Hz).
2. Open the toast tongs by squeezing the plastic blades together.
3. Insert a slice of bread into one or both of the toast tongs, as required.

• Only one slice of toast should be inserted into each tong!
• Do not spread butter or other fats on the bread as these may ignite on the glowing heating elements!

• Do not put cheese or similar items on the bread as these ingredients may drip down and catch fire!

• Insert the toast tongs into the toaster.

• Timer: With the timer it is possible to adjust the browning time from the shortest level (1) to the longest (5). If you are not sure start with a lower setting. (The mark on the selector switch shows you the setting).
• The appliance starts the toasting. Once the pre-set browning time has been reached a beep is heard and the device switches off automatically. The toast tongs can now be removed.

The appliance has a heat-insulated „cool-touch“ housing. During operation the exposed metal parts become hot. Please allow the device to cool down before storing it away.

Cleaning

• Pull the mains plug out of the mains socket before you clean the unit and allow the unit to cool down.
• Only use a slightly damp cloth to clean the outside of the unit.
• Do not use abrasive or aggressive cleaners.
• Remove the crumb tray from the slot, remove the crumbs and insert the tray again.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GB

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.
