Product type	Vertical rotisserie electric barbecue
Brand	Redmond
Model	RBQ0252E
Rated voltage	220-240 V, 50/60 Hz
Rated power	900 W
Electrical protection	Class I
Spit rotation speed	2 rpm
Dimensions (L × W × H)	215 × 180 × 465 mm
Net weight	1.8 kg
Number of spits	6
Number of skewer supports	5
Maximum capacity	Up to 6 skewers
Heating element type	Heating conductor
Safety sensor	Automatic shut-off if dropped (vertical position sensor)
Usage	Indoor use only
Cleaning of removable parts	Washing with soapy water, thorough drying
Cleaning of the body	Wipe with a damp cloth, do not immerse
Included accessories	Hood, spits (6), skewer supports (5), user manual, service booklet
Control type	On/off button
Required safety clearance	50 cm above, 25 cm on sides and back
Preheating time	5 minutes

Frequently Asked Questions - RBQ0252E Redmond

How to install the Redmond RBQ0252E barbecue?

Place the appliance on a stable surface, keeping at least 50 cm of free space above and 25 cm on the sides. Make sure the outlet is grounded. Before first use, heat the appliance empty for 20-25 minutes.

Can I use this barbecue outdoors?

No, outdoor use is prohibited. Moisture or foreign objects can damage the appliance and cause accidents. Use it only indoors.

How to thread the meat onto the spits?

Thread the marinated meat leaving free space on the tip and handle side. Then insert each spit into its opening, the tip into the bottom of the holder and the twisted part into the top disc.

What to do if the appliance falls during cooking?

The appliance is equipped with a vertical position sensor that automatically cuts off the heating element if it falls. Once returned to vertical position, it turns back on automatically.

How to clean the spits and holders?

Wash the removable parts with soapy water and a soft sponge, then dry them thoroughly. Do not use abrasive cleaners. Do not put them in the dishwasher.

Can I leave the appliance unattended during cooking?

It is not recommended to leave the appliance unattended. Although it has safety features, stay alert to avoid any risk of burns or fire.

What type of meat is suitable for this barbecue?

This barbecue is ideal for marinated meat skewers (chicken, beef, lamb, etc.). Cut the meat into appropriately sized pieces for even cooking.

The appliance emits a new smell at first start, is this normal?

Yes, a slight new smell is normal during the first uses. It disappears after a few cycles. Make sure to ventilate the room well.

How to store the appliance after use?

Clean and dry all parts. Store the appliance in a dry, well-ventilated place, away from direct sunlight and heat sources.

What to do if the appliance does not turn on?

Check that the power cord is properly plugged in and that the outlet works. If the problem persists, contact an authorized service center. Do not attempt to repair it yourself.

USER MANUAL RBQ0252E Redmond

Electric BBQ Grill RBQ-0252-E

User manual

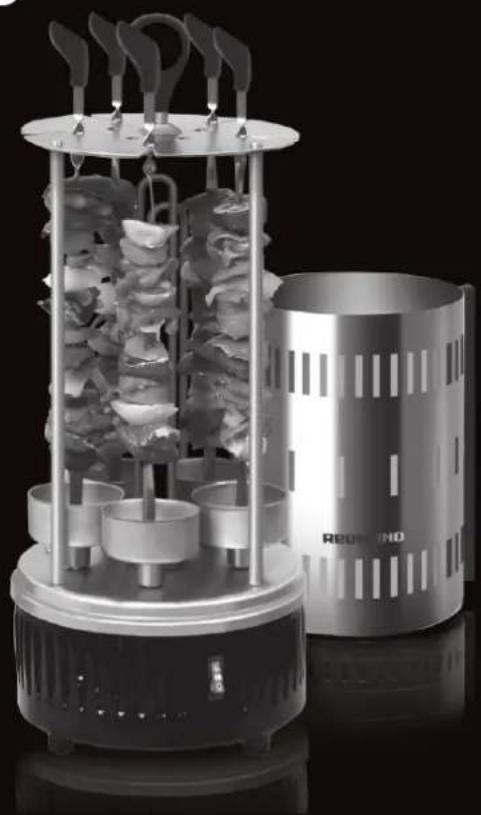

Modern kitchen appliance with spiral-shaped heating unit and circular storage unit (no visible text or symbols)

GBR 4
FRA 7
DEU 10
NLD 13
ITA 16
ESP 19
PRT 22
DNK 25
NOR 28
SWE 31
FIN 34
LTU 37
LVA 40

EST 43
ROU 46
HUN 49
BGR 52
HRV 55
SVK 58
CZE 61
POL 64
RUS 67
GRE 70
TUR 73
UKR 76
KAZ 79

REDOMOND

Read the user manual carefully and keep it as a reference book. Proper use of the appliance will significantly prolong its life.

The safety measures and instructions contained in this manual do not cover all possible situations that may arise during the operation of the appliance. When operating the device the user should be guided by common sense, be cautious and attentive.

IMPORTANT SAFEGUARDS

• The manufacturer is not responsible for any failures arising from the use of this product in a manner inconsistent with the technical or safety standards.
• This appliance is intended to be used in household and similar applications.
• Before installing the appliance, check that the device voltage corresponds with the supply voltage in your home (refer to rating plate or technical data).
• While using the extension cord, make sure that its voltage is the same as specified on the device. Using different voltage may result in a fire or other accident, causing appliance damage or short circuit.
• Use only earthed electric sockets as this is an obligatory safety requirement. Use an earthed extension cord as well.
• Always unplug the device after use, before cleaning or moving. Never handle the plug with wet hands. Do not pull the power cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Keep the power cord away from hot surfaces (gas or electric ovens) or sharp edges. Do not let the cord hang over edge of a table or a counter.

REMEMBER: damaging the cord may lead to a failure that will not be covered by the warranty. If the cable is damaged or requires replacing, contact an authorized service center only to avoid all risks.

- Never place the device on soft surfaces to keep ventilation slots clear of any obstruction.

• During use the appliance becomes hot! Care should be taken to avoid touching the housing, or any other metal parts while operating. Make sure your hands are protected before handling the device.
• Do not operate the appliance outdoors, to prevent water or any foreign object or insect from getting into the device. Doing so may result in serious damage of the appliance.
• Always unplug the device and let it cool down before cleaning. Follow cleaning and general maintenance guidelines when cleaning the unit.

TOP DO NOT immerse the device in water or wash it under running water!

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the packaging (film, foam plastic and other) out of reach of children as they may choke on them.

- No modifications or adjustments to the product are allowed. All the repairs should be carried out by an authorized service center. Failure to do so may result in device and property damage or injury.

TOP CAUTION! Do not use the appliance in case of any failure.

CAUTION! Hot surface.

Technical Specifications

Type of the appliance ....electric BBQ grill

Model RBQ-0252-E

Voltage 220-240 B, 50/60 Hz

Rated power 900 W

Electrical safety......class I

Skewers rotation frequency 2 rpm

Overall dimensions 215 × 180 × 465 mm

Net weight 1.8 kg

Package Includes

Electric BBQ grill....1 pc.

Casing....1 pc.

Skewers 6 pcs.

Cup 5 pcs.

User manual....1 pc.

Service booklet 1 pc.

Manufacturer reserves the right to make any modifications to design, packaging, or technical specifications of the product without prior notice. The specification allows an error of ±10% .

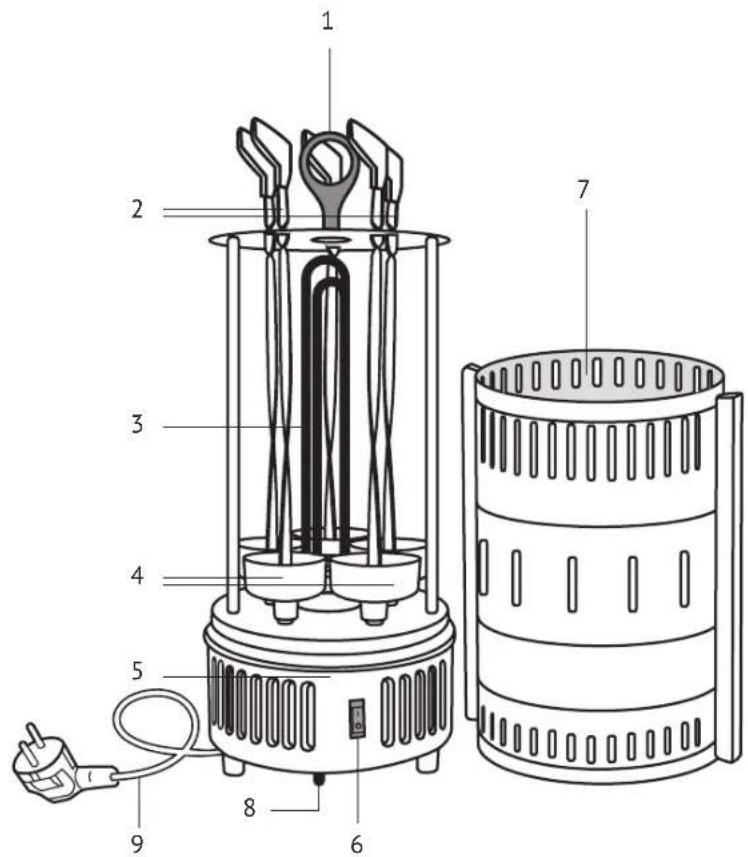

Parts of Appliance (scheme A1, p. 3)

1. Handle

2. Skewers

3. Heating element

4. Cups

5. Housing

6. On/Off button

7. Casing

8. Vertical position sensor

9. Power cord

I. PRIOR TO FIRST USE

Carefully remove the unit and its accessories from the packaging. Dispose of all packaging materials and promotional stickers.

Keep all warning labels, warning stickers (if any), and the serial number identification label located on the housing.

After transportation or storage at low temperatures allow the appliance to stay at room temperature for at least 2 hours before use.

Completely unwind the power cord. Wipe the unit with a moist cloth. Rinse the removable details with soapy water; dry all elements of the appliance before plugging in. Unwanted odour during the first use doesn't signify the appliance defect.

II OPERATION

Assembling and Installation

Ensure the appliance is plugged off before assembling.

Select an appropriate place. It should conform to the following conditions: free space from above should be no less than 50 cm, on the sides - 25 cm, between back of the appliance and the wall no less than 25 cm.

Prior to first use plug in the empty appliance and run it for 20-25 minutes. Then plug it off and allow to cool. The appliance is ready for use.

Use

1. Plug in the appliance; switch the On/Off button to the "I" position. Let the appliance heat for 5 minutes, the casing and skewers should be removed.
2. Prepare marinated meat for kebab. String the meat so that there is space on the skewer from the tip and the handle side.
3. After the heater is warmed, put the skewers back by turn. Put the skewer down so that the tip fits a special hole on the bottom of the cup, and the twisted part enters the hole of the top disk.

When working with the electric BBQ grill use oven cloth and towel, do not touch heated parts of the appliance to avoid burns.

1. Set all the skewers and ensure they can rotate. Cover the electric BBQ grill with the casing.
2. After the end of frying switch the On/Off button to the "0" position, unplug the appliance, remove the upper casing holding by the handles and remove the skewers with the kebab.

In case the BBQ grill falls the heating element will be automatically disabled. Take into account that after the appliance is returned to the vertical position the heating will be automatically resumed!

III. CLEANING AND MAINTENANCE

Before you start cleaning the appliance, make sure that it is unplugged and has completely cooled down. Always keep the appliance clean.

Use soft cloth and mild soap to clean. DO NOT use a sponge or tissue with hard or abrasive surface or abrasive pastes.

DO NOT immerse the appliance in water or wash under running water!

DO NOT wash the appliance in a dishwasher.

Before repeated operation or storage completely dry all parts of the appliance. Store the assembled appliance in a dry, ventilated place away from heating appliances and direct sunlight. During transportation and storage, do not expose the device to mechanical stress, that may lead to damage of the device and/or violation of the package integrity.

Keep the device package away from water and other liquids.

REOMOND

IV. BEFORE APPLYING TO SERVICE CENTRE

Problem Possible causes Solution
The appliance does not work	Power cord is not plugged in Ensure the appliance is plugged in correctly
	Power supply failure	Ensure the appliance is plugged into a working outlet

In case you didn't manage to eliminate the defects, please, refer to the authorized service centre.

Environmentally friendly disposal (WEEE)

The packaging, user manual and the device itself shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw away the electronic waste to help protect the environment.

Old appliances must not be disposed with other household waste but must be collected separately. Municipal disposal of recyclable wastes is free of charge. The

owners of old appliances are required to bring it to a waste facility centre. With this little extra effort, you can help to ensure that valuable raw materials are recycled and pollutants are treated as appropriate.

This appliance is labelled in accordance with European Directive 2012/19/EU – concern-ing used electrical and electronic appliances (waste electrical and electronic equipment WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Reproduction, transfer, distribution, translation or other reworking of this document or any part thereof without prior written permission of the legal owner is prohibited.
