Product Type	Electric Kettle
Brand	Redmond
Model	RK-M113
Capacity	1.7 L
Power	1500 W
Voltage	220-240 V ~ 50/60 Hz
Material	Stainless Steel Body with Plastic Lid
Dimensions (W x D x H)	21 x 15 x 24 cm
Weight	0.8 kg
Cord Length	0.7 m
Heating Element	Concealed Stainless Steel
Water Level Indicator	Yes
Filter	Removable Lime Scale Filter
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Keep Warm Function	No
Lid Opening	Push-Button with Wide Opening
Base	360° Rotational Cordless Base
Cleaning	Descale Regularly with Vinegar or Citric Acid
Spare Parts Available	Lid, Filter, Base

Frequently Asked Questions - RK-M113 Redmond

How do I descale the Redmond RK-M113 kettle?

To descale, fill the kettle with a mixture of 1 part vinegar or citric acid to 2 parts water, boil, let it sit for 30 minutes, then rinse thoroughly. Repeat if necessary.

Can I boil milk or other liquids in this kettle?

No, this kettle is designed for water only to prevent damage and safety hazards.

What is the maximum capacity of the RK-M113?

The maximum capacity is 1.7 liters. Do not fill above the 'MAX' mark to avoid boiling over.

How do I clean the removable filter?

Remove the filter from the spout, rinse under running water, and use a soft brush to remove scale. Do not use abrasive cleaners.

Why does the kettle shut off before boiling?

This may be due to scale buildup on the heating element. Descale the kettle to restore proper function.

Is the RK-M113 suitable for use in all countries?

It operates on 220-240 V only. Check voltage compatibility and use a suitable plug adapter if needed.

What is the warranty period?

Redmond typically offers a 1-year warranty. Keep your purchase receipt for service.

Can I open the lid while the kettle is boiling?

No, wait until the kettle has finished boiling as steam can cause burns. Use the lid button only when the kettle is off.

How do I replace the lid or filter?

Spare parts can be ordered from Redmond authorized dealers. Installation is straightforward: snap the new filter into place or align the lid hinge and press down.

Why is there white residue on the bottom?

That is limescale from hard water. Regular descaling with vinegar or citric acid will remove it.

USER MANUAL RK-M113 Redmond

INSTRUCTION MANUAL

ИНСТРУКЦИЯ

DEAR CUSTOMER!

Thank you for preferring the domestic appliance manufactured by REDMOND.

REDMOND means quality, reliability and thoughtful attitude towards our clients. We hope that in future you will also prefer products of our company.

Коллекция 2010-2011

Redmond Industrial Group LLC USA
Redmond Industrial Group, LLC USA

REDMOND
Professional series

VI (K) RI-C205

VIKCI RI-C206

VIKOI RI-A207

VIO RI-C208

VIKOI RI-C209

VIKCI RI-C210

VIRO RI-C211

V KO RI-A212

Миколо RHM-2101

Becri RS-714

Белендер AHB-2904

RHB-M2904

RS-M711

Byteoboredin a RSM-M1402

REDMOND

Electric kettle

Чайник

RK-M113

INSTRUCTION MANUAL

ИНСТРУКЦИЯ

Redmond RK-M113 electric kettle is a stylish assistant in your kitchen. Just for couple of minutes you can easy boil the water for tea, coffee and fastfood with minimal energy consumption.

Чайник Redmond RK- M113 it is a strong appliance with stainless steel body, made from non-polluting materials, which correspond to all European and Russian quality standards.

Beautiful internal illumination lights up at switching on mode. Three level protection system provides safety of the appliance.

Exclusive kettle design can decorate your home, while unique technical characteristics can significantly easily your everyday life.

Product specification

Model arrangement

I. BEFORE OPERATING

Safety measures

Prior to the first use

II. OPERATING OF A KETTLE

III. CLEANING AND MAINTENANCE

IV. BEFORE CONSULTING THE SERVICE CENTER

V. GUARANTEE

СОДЕРЖАНИЕ

Комплектация

Material of body stainless steel

Kettle base rotation 360° +

Inside illumination +

Heating element Stainless steel disk

Automatic shut-off when boiling +

Automatic shut-off when no water +

Detachable anti-lime filter +

Cord length 0.7 m

COMPLETE SET

Kettle: 1 pc.

Kettle base: 1 pc.

Service booklet: 1 pc.

Instruction manual: 1 pc.

The manufacturer has the right of making modifications to design, delivered set and technical data of the device in the course of improvement of the products without additional notifying of such modifications.

While operating the appliance, follow the instructions given below. If used properly, it will serve you for many years.

■ Before connecting the appliance to electric outlet, check that the mains voltage coincides with supply voltage of the appliance.

The later can be found in technical data or on the factory nameplate of the appliance.

■ If you want to use an extension cord, make sure that it suits the power consumed by the appliance.

Different voltage can lead to a short-circuit failure or to the cable ignition.

■ Do not carry the appliance holding it by the power cord; do not close the door when the cord in the door aperture.

■ Connection of the appliance should be provided only to grounded sockets.

Otherwise the appliance will not correspond to the requirements of protection against electric shock.

■ If you want to disconnect the appliance from electric outlet, pull the power cord while holding the plug with your dry hands, but not the cord.

Otherwise, the cord rupture or an electric shock may follow.

■ Do not stretch the power cord near sharp edges or corners.

This may lead to failures not covered by the guarantee.

■ Watch over the cord so that it didn't twist and bend over the edge of table. Place appliance only on dry flat surface.

Also keep generally accepted safety rules during work with appliance.

■ It is not allowed to use the appliance and packing materials as children toys.

■ Do not allow children to use the appliance until they are explained and understood the safety operation instructions.

Never leave little children beside the working appliance unattended.

■ Do not use the appliance

outdoors. There is a danger of malfunction because of rain and other weather conditions.

■ It is prohibited to immerse the appliance in water or any liquids.

This may result in serious damages.

■ It is prohibited to use an appliance in case of any malfunctions.

If it is faulty or functions incorrectly, disconnect it from mains, taking plug off the socket, and contact the authorized service center.

■ Unassisted repair or modification of appliance is prohibited.

All works related to maintenance and repair should be carried out by an authorized service center.

The work carried out non-professionally can cause breakage, injuries and property damaging.

■Use device according to it's purpose. Using it for something else is considered as violation of generally accepted safety rules while operating the appliance.

Use device only domestically, it is not designed for industrial purposes.

■ It is prohibited to open the boiling kettle lid. Do not open the lid at once after it has boiled.

Do not touch the kettle's body during the work, take the appliance only by handle.

■ Watch out the hot surfaces of the appliance, careless usage may cause injuries or property damage.

ATTENTION!

It is prohibited to use an appliance in case of any malfunctions. The manufacturer has no responsibility for any damage caused by violation of safety rules and operating instructions.

This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Note! Keep this instruction manual for further use.

PRIOR TO THE FIRST USE

Remove all packing and advertising stickers carefully. Completely unwind power cord.

Wipe appliance with damp cloth, then wipe it dry. Wet the detachable anti-lime filter with suds, then make it dry.

Note! The manufacturer recommends to boil water in the kettle for several times before the first using to remove extraneous smell and disinfection of the appliance!

II. OPERATING OF A KETTLE

Unwind the power cord for necessary length, insert the plug into the mains. The power cord length is limited, use the extension cord if necessary.

Place the kettle on the flat surface. When placing the kettle watch out the steam at water boiling does not reach the furniture, walls, kitchen electric appliances, etc.

Take the kettle off the base. Open the lid, pour water into the kettle. Don't fill water above «MAX» mark. Close the lid of the kettle and place it on a base.

Press on/off button – switch the kettle in heating mode. When the water boils, kettle will shut-off automatically.

You can stop boiling manually by pressing On/Off button.

Lift the kettle from the base carefully, do not touch any parts of kettle besides the handle, they are very hot. Do not pour off the water harshly and at the big angle.

Note! while lifting the kettle from the base you may find steam condensate or water drops. this is normal phenomenon. it must not be a reason of your worry.

Security system

1. The appliance is equipped with automatic switch off system when boiling.
2. If you switch on the kettle without water, overheat protection will be activated and turn off the power.
3. If you took the kettle off the base, during the operating, it will switch off automatically.

III. CLEANING AND MAINTENANCE

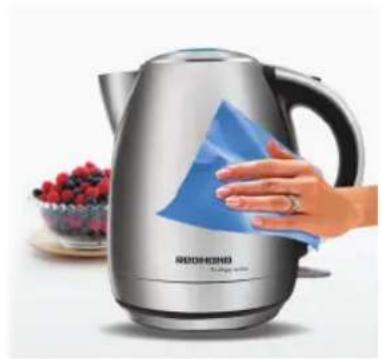

Cleaning the kettle body

1. Clean the body of appliance with damp fabric wet in suds.
2. Do not use sponges with abrasive cover, do not use abrasive washing-up liquids or solvents like gasoline or acetone.
3. Dry the appliance carefully before switch on

Scale removal

1. Let the kettle cool down completely before cleaning.
2. Disconnect it from mains.
3. Boil up one litre of water, disconnect it from the mains. Take the kettle off the base, put 50 g of crystalline lemon acidity and leave the appliance with content for some time.
4. Pour off the water and wash the kettle by cold water carefully.
5. Wipe the kettle with damp fabric for removal all signs of solution and scale.

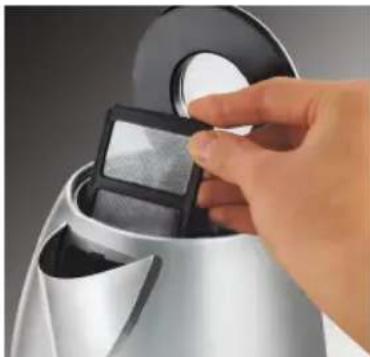

Filter cleaning

1. Take anti-lime filter off.
2. Put it into solution with crystalline lemon acid.
3. Then wash it and dry carefully.
4. Put the anti-lime filter in back.

NOTE!

Do not use chemical or abrasive substance for cleaning of appliance.

Attention! Before the secondary use, make sure the electric contacts are completely dry.

IV. BEFORE CONSULTING THE SERVICE CENTER

Trouble Probable cause Remedy
The appliance does not work (indicator does not light)	There is no voltage in the plug	Turn off the appliance and check the voltage in your socket
The kettle is switched off too early/ does not boil	There is a scale on heating element.	Clean the heating element following the chapter «Scale Removal»
The kettle is switched off in several seconds	There is no water in kettle, protection of switching on without water was activated	Recommended minimal volume of water in the kettle – 500 ml

V. GUARANTEE

The period of guarantee for the product is 12 months from the selling date.

The guarantee covers defects of material and workmanship.

Under the present guarantee, the manufacturer undertakes to repair or replace any part recognized as faulty on condition that the product is sent to the seller.

The present guarantee shall be valid only in case the product was used in compliance with this instruction, no modifications were made to it, it was not repaired or disassembled by unauthorized persons, or was not damaged due to improper handling. Also, the complete set of the product must be retained.

This guarantee does not cover natural wear of the product as well as brittle objects such as ceramic components, lamps, etc.

The guarantee shall not become effective unless the date of purchase is confirmed by the seller's signature and seal on the guarantee coupon.

Any repair under this guarantee shall not extend the period of guarantee and shall not initiate the beginning of a new guarantee.

In compliance with paragraph 2, article 5 of the Federal Law of the RF «On protection of consumers' rights», the manufacturer has established a minimum service life for this product, which is 2 years from the date of manufacture on condition that the product is used in strict compliance with this manual and technical requirements.

Примечание!

Produced by Redmond Industrial Group LLC, USA

1801 S Treasure Drive, 515, North Bay Village, Florida 33141, USA

http://www.redmond-ig.com

Made in P.R.C.
