Product Type	Electric Vertical Rotisserie Grill
Model	RBQ-0251-E
Brand	Redmond
Rated Voltage	220-240 V, 50 Hz
Rated Power	1000 W
Spit Rotation Frequency	2 rotations per minute
Number of Spits Supplied	5
Number of Forks Supplied	5
Body Material	Metal and heat-resistant plastic
Recommended Use	Domestic, indoor only
Heating	Integrated heating element
Protective Cover	Yes, included
Maintenance	Wash removable parts with soapy water, wipe the body with a damp cloth
Safety	Do not immerse the body, do not use outdoors, unplug after use
Warranty	2 years
Estimated Service Life	3 years
Included Accessories	User manual, service booklet
Number of Pages in the Manual	152

Frequently Asked Questions - RBQ0251E Redmond

How to install the RBQ0251E barbecue for the first time?

Before first use, unpack the appliance, remove all packaging, wipe the body with a damp cloth and wash the removable parts with soapy water. Run the appliance empty for 20-25 minutes, then let it cool. Ensure that the free space above is at least 50 cm, on the sides 25 cm, and at the back 25 cm.

What is the voltage and power of this appliance?

The barbecue operates on a voltage of 220-240 V, 50 Hz, with a rated power of 1000 W.

How to thread the meat onto the spits?

Prepare the marinated meat, then thread it onto the spits leaving free space near the tip and the handle. Place each spit in the preheated appliance by inserting the tip into the opening at the bottom of the fork and the twisted part into the opening of the upper disc.

Can I use this barbecue outdoors?

No, outdoor use is prohibited. Moisture or foreign objects in the body of the appliance may cause damage. Use it only indoors.

How to clean the barbecue after use?

Unplug the appliance and let it cool completely. Wash the removable parts (spits, forks) with soapy water using a soft sponge. Wipe the body with a damp cloth. Do not use abrasive or chemical cleaners, and never immerse the body in water.

What to do if the appliance does not work?

First check that the power cord is properly plugged in and that the socket works. If the problem persists, contact an authorized service center. Do not attempt to repair it yourself.

How many spits are supplied with the appliance?

The appliance comes with 5 spits and 5 forks.

What is the warranty period for the RBQ0251E?

The warranty is 2 years from the date of purchase, subject to presentation of the receipt and the duly completed service booklet. The warranty covers defects in materials or workmanship.

Can I use extension cords?

Yes, provided the extension cord is compatible with the power consumption of the appliance (1000 W). An unsuitable extension cord may cause short circuit or fire.

How to know the manufacturing date of my appliance?

The manufacturing date is encoded in the 13-digit serial number on the identification label. The 6th and 7th digits indicate the month, the 8th digit indicates the year of manufacture.

USER MANUAL RBQ0251E Redmond

Modern kitchen appliance with skewers and a cylindrical storage unit containing colorful food items (no visible text or symbols)

User manual

GBR 4
FRA 9
DEU 15
NLD 21
ITA 27
ESP 33
PRT 39
DNK 45
NOR 50
SWE 55
FIN 60
LTU 65
LVA 70
EST 75
RUS 80
POL 86
CZE 92
ROU 97
HUN 103
BGR 109
HRV 115
SRB 120
SVK 125
GRC 131
TUR 137
ARE 144

REDMOND

Read the user manual carefully and keep it as a reference book. Proper use of the appliance will significantly prolong its life.

Important safeguards

• The manufacturer is not responsible for any failures arising from the use of this product in a manner inconsistent with the technical or safety standards.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• Before installing the appliance, check that the device voltage corresponds with the supply voltage in your home (refer to rating plate or technical data).
• While using the extension cord, make sure that its voltage is the same as specified on the device. Using different voltage may result

in a fire or other accident, causing appliance damage or short circuit.

• Always unplug the device after use, before cleaning or moving. Never handle the plug with wet hands. Do not pull the power cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Keep the power cord away from hot surfaces (gas or electric ovens) or sharp edges. Do not let the cord hang over edge of a table or a counter.

⚠ REMEMBER: damaging the cord may lead to a failure that will not be covered by the warranty. If the cable is damaged or requires replacing, contact an authorized service center only to avoid all risks.

- Never place the device on soft surfaces to keep ventilation slots clear of any obstruction.

CAUTION! During use the appliance becomes hot! Care should be taken to avoid touching the housing, or any other metal parts while

REDMOND

operating. Make sure your hands are protected before handling the device.

• Do not operate the appliance outdoors, to prevent water or any foreign object or insect from getting into the device. Doing so may result in serious damage of the appliance.
• Always unplug the device and let it cool down before cleaning. Follow cleaning and general maintenance guidelines when cleaning the unit.

Do not immerse the device in water or wash it under running water!

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user

maintenance shall not be made by children without supervision.

- Any modifications or adjustments to the product are not allowed. All the repairs should be carried out by an authorized service center. Failure to do so may result in device and property damage or injury.

CAUTION! Do not use the appliance in case of any malfunctions.

Technical specifications

Type of the appliance	electric BBQ grill
Model	RBQ-0251-E
Voltage	220-240 B, 50 Hz
Rated power	1000 W
Skewers rotation frequency	2 rpm

Package includes

Electric BBQ grill	1 pc.
Casing	1 pc.
Skewers	5 pcs.
Cups	5 pcs.
User manual	1 pc.
Service booklet	1 pc.

Manufacturer reserves the right to make any modifications to design, packaging, or technical specifications of the product without prior notice.

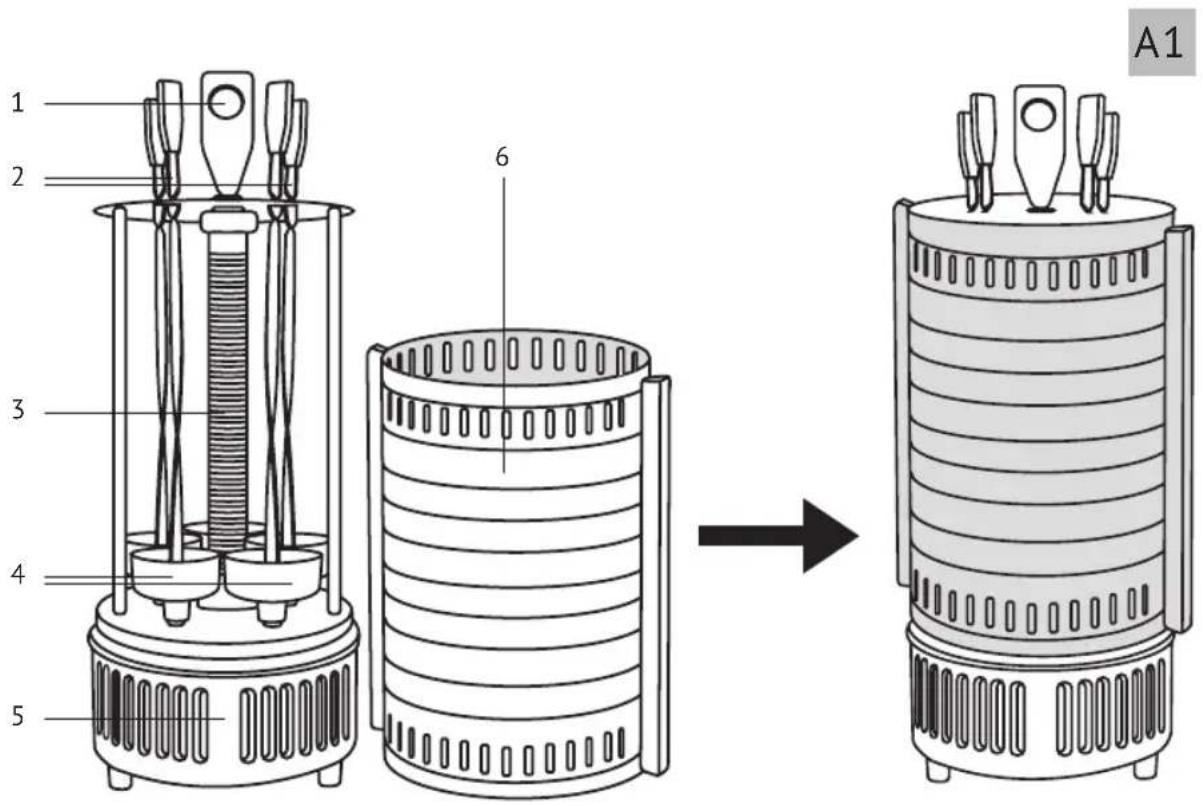

Parts of appliance A1

1. Handle

2. Skewers

3. Heating element

4. Cups

5. Housing

6. Casing

I. PRIOR TO FIRST USE

Carefully remove the unit and its accessories from the packaging. Dispose of all packaging materials and promotional stickers.

Keep all warning labels, warning stickers (if any), and the serial number identification label located on the housing. The absence of the serial number will deprive you of your warranty benefits!

Completely unwind the power cord. Wipe the unit with a moist cloth. Rinse the removable details with soapy water; dry all elements of the appliance before plugging in. Unwanted odour during the first use doesn't signify the appliance defect.

After transportation or storage at low temperatures allow the appliance to stay at room temperature for at least 2 hours before use.

REDMOND

II. OPERATION

Assembling and installation

Ensure the appliance is plugged off before assembling.

Select an appropriate place. It should conform to the following conditions: free space from above should be no less than 50 cm, on the sides - 25 cm, between back of the appliance and the wall no less than 25 cm.

Prior to first use plug in the empty appliance and run it for 20–25 minutes. Then plug it off and allow to cool. The appliance is ready for use.

Use

1. Plug in ready for use electric BBQ grill and leave it to warm for 5 minutes. The casing and skewers should be removed.
2. Prepare marinated meat for kebab. String the meat so that there is space on the skewer from the tip and the handle side.
3. After the heater is warmed, put the skewers back by turn. Put the skewer down so that the tip fits a special hole on the bottom of the cup, and the twisted part enters the hole of the top disk.
4. Set all the skewers and ensure they can rotate. Cover the electric BBQ grill with the casing.
5. After the end of kebab grilling plug off the appliance, remove the protective casing and skewers with the kebab.

When working with the electric BBQ grill use oven cloth and towel, do not touch heated parts of the appliance to avoid burns.

III. CLEANING AND MAINTENANCE

Before you start cleaning the appliance, make sure that it is unplugged and has completely cooled down. Always keep the appliance clean.

Use soft cloth and mild soap to clean. DO NOT use a sponge or tissue with hard or abrasive surface or abrasive pastes.

DO NOT immerse the appliance in water or wash under running water!

DO NOT wash the appliance in a dishwasher.

IV. PRIOR TO APPLYING TO SERVICE CENTRE

Problem Possible causes Solution
The appliance does not work	Power cord is not plugged in	Ensure the appliance is plugged in correctly
	Power supply failure	Ensure the appliance is plugged into a working outlet.

V.PRODUCT WARRANTY

We warrant this product to be free from defects for a period of 2 years from the date of purchase. If the appliance fails to operate properly within the warranty period and is found to be defective in material or workmanship, we will repair or replace it free of charge. This warranty comes into force only in case an original warranty service coupon with a serial article number and an accurate impress of the company of the seller proves the purchase date. This limited warranty does not cover damage caused by the failure to use this product for its normal purpose or in accordance with the instructions on the proper use and maintenance of the product, or any kind of repair works. Do not try to disassemble the appliance and keep all package contents. This warranty does not cover normal wear of the appliance and its parts (filters, bulbs, non-stick coating, gaskets, etc.).

Service life and the applicable product warranty period start on the date of purchase or the date of manufacture (if the purchase date cannot be established).

You can determine manufacture date by serial number, located on the identification label on the housing of the appliance. The serial number consists of 13 digits. 6th and 7th digits of the serial number identify the month, 8th digit the year of manufacture.

Service life of the product, established by the manufacturer is 3 years from the date of purchase, provided that the unit is used and maintained in accordance with the user manual and applicable technical standards.

The packaging, user manual and the appliance itself shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw away the electronic waste with household trash to help protect the environment.

II. APPARATETS DRIFT

© REDMOND. All rights reserved. 2014

Reproduction, transfer, distribution, translation or other reworking of this document or any part thereof without prior written permission of the legal owner is prohibited.

Produced by Redmond Industrial Group LLC

One Commerce Plaza, 99 Washington Ave, Ste. 805A

Albany, New York, 12210, United States

www.redmond.company

www.multicooker.com

Made in China

RBQ-0251E-UM-1
