Congratulations on buying a Kenwood. With such a wide range of attachments available, it's more than just a mixer. It's a state-of-the-art kitchen machine. We hope you'll enjoy it. Robust. Reliable. Versatile. Kenwood.

Français

know your Kenwood kitchen machine

safety

• Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning.
• This machine is not intended for use by young children or infirm persons without supervision.
• Keep your fingers away from moving parts and fitted attachments.
• Never leave the machine on unattended.
• Never use a damaged machine. Get it checked or repaired: see 'service', page 8.
• Never use an unauthorised attachment or more than one attachment at once.
• Never exceed the maximum capacities on page 4.
• Don't let children play with this machine.
• When using an attachment, read the safety instructions that come with it.
• Only use this machine for domestic food preparation.

important - UK only

before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of your machine.
• The wires in the cord are coloured as follows: Blue = Neutral, Brown = Live.
• This machine complies with European Economic Community Directive 89/336/EEC.

before using for the first time

1 Remove all packaging.
2 Wash the parts: see 'care and cleaning', page 8.

attachment outlets

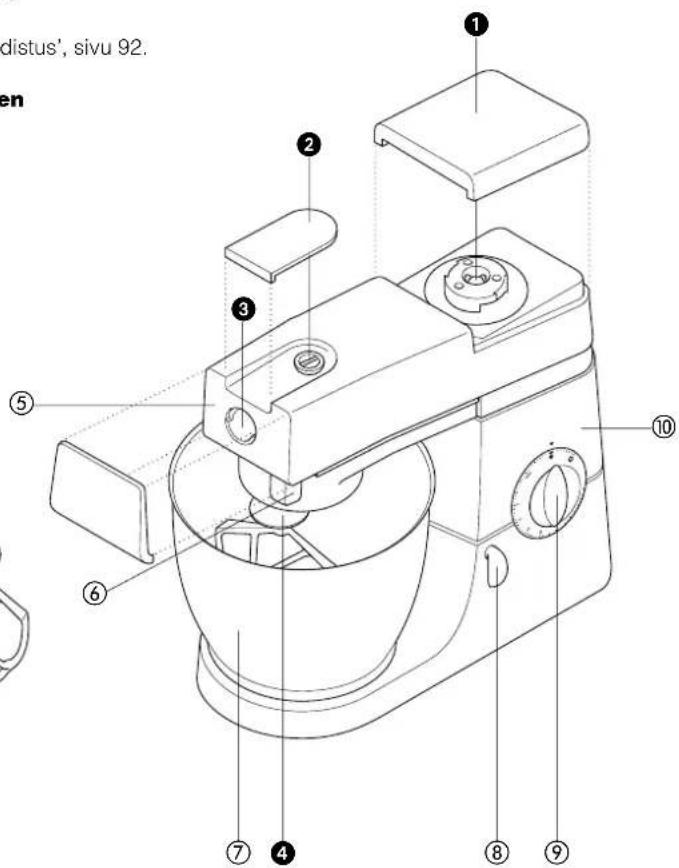

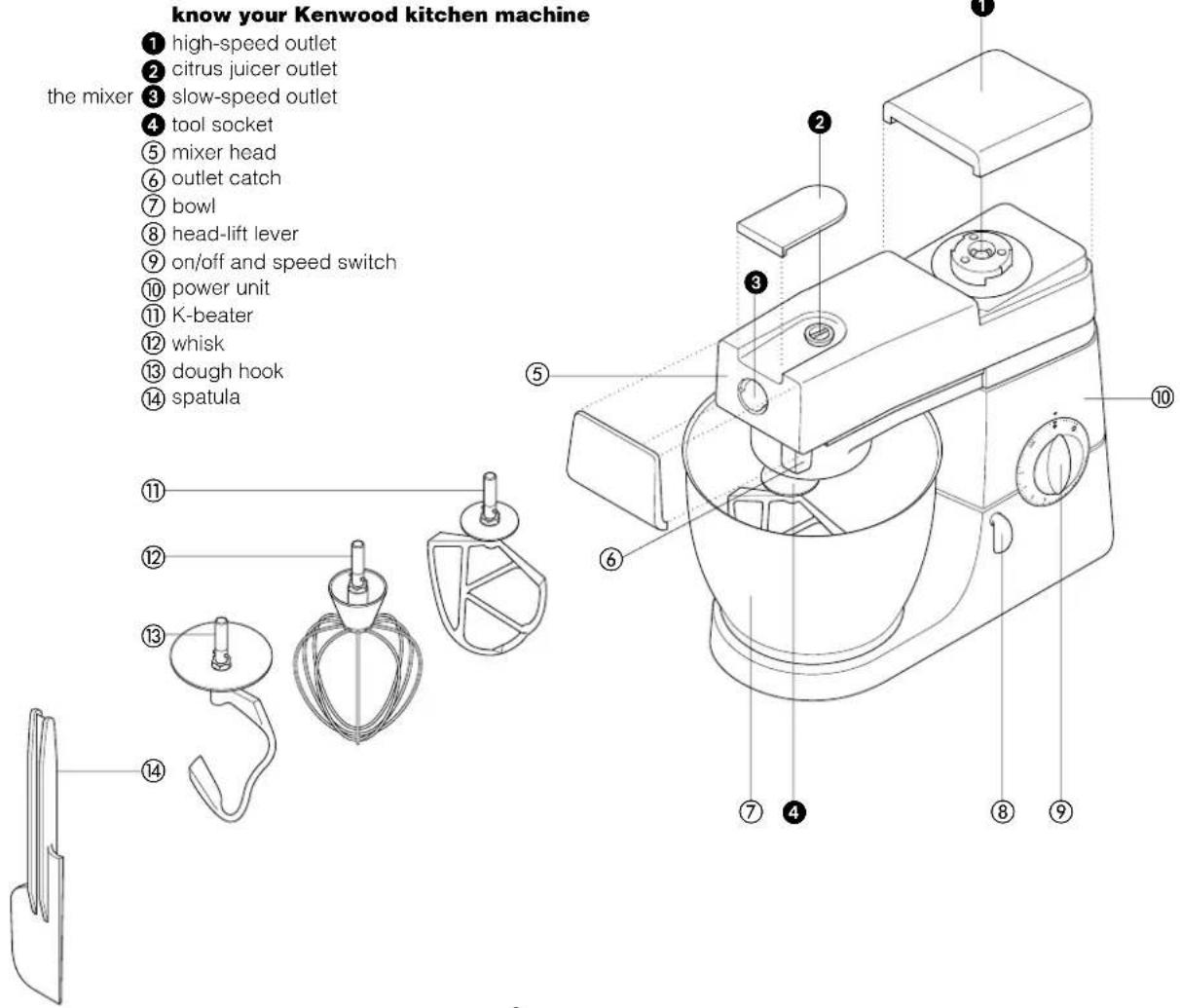

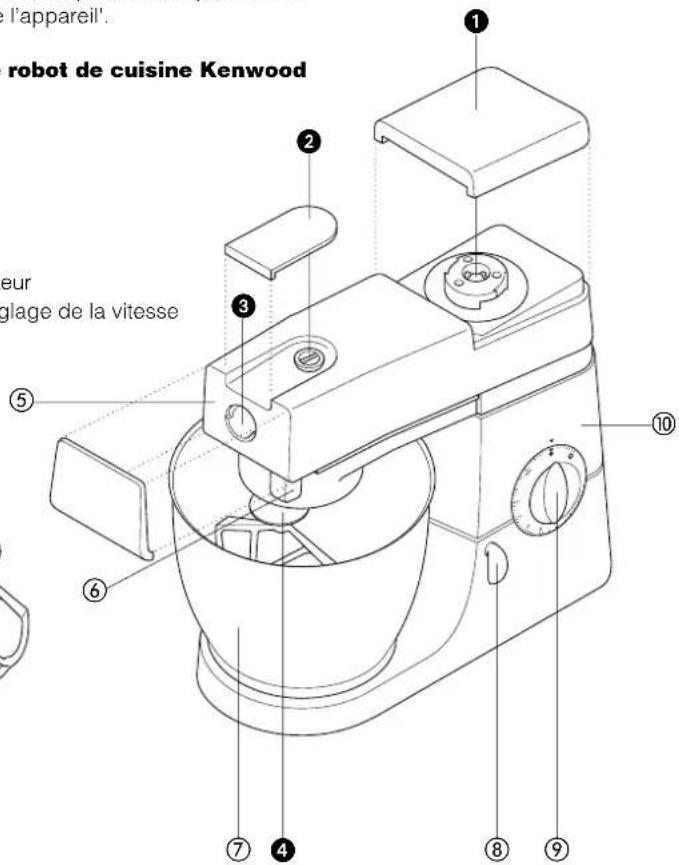

know your Kenwood kitchen machine

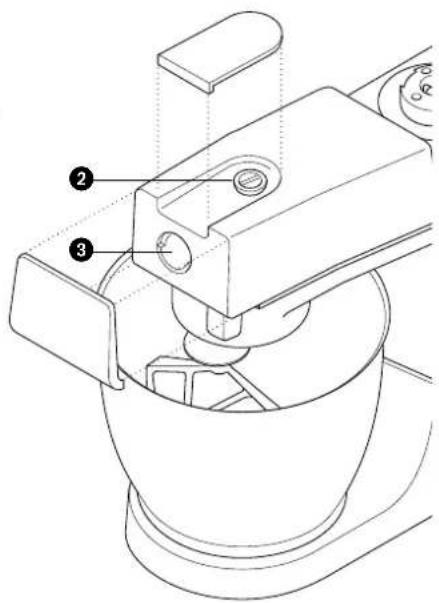

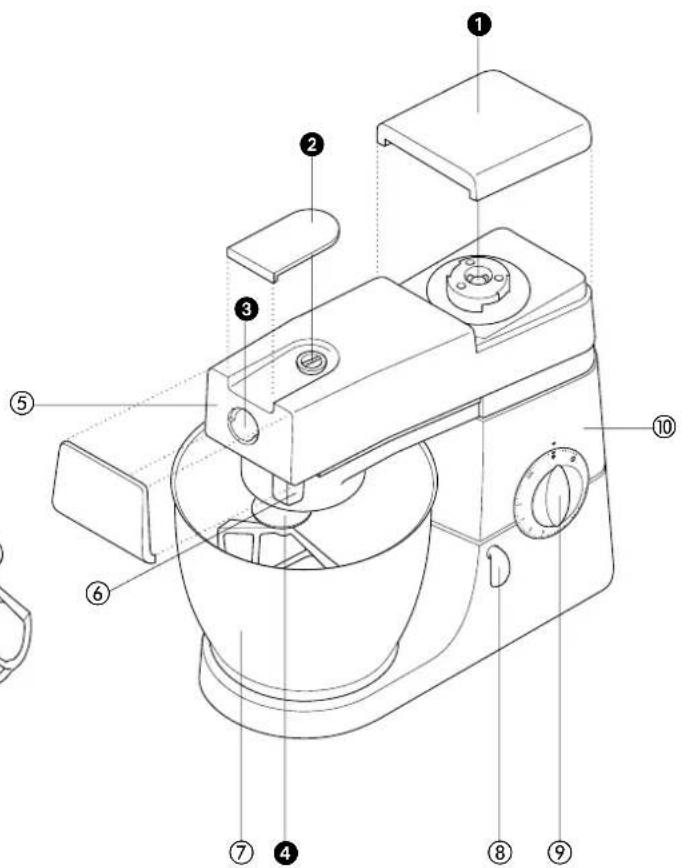

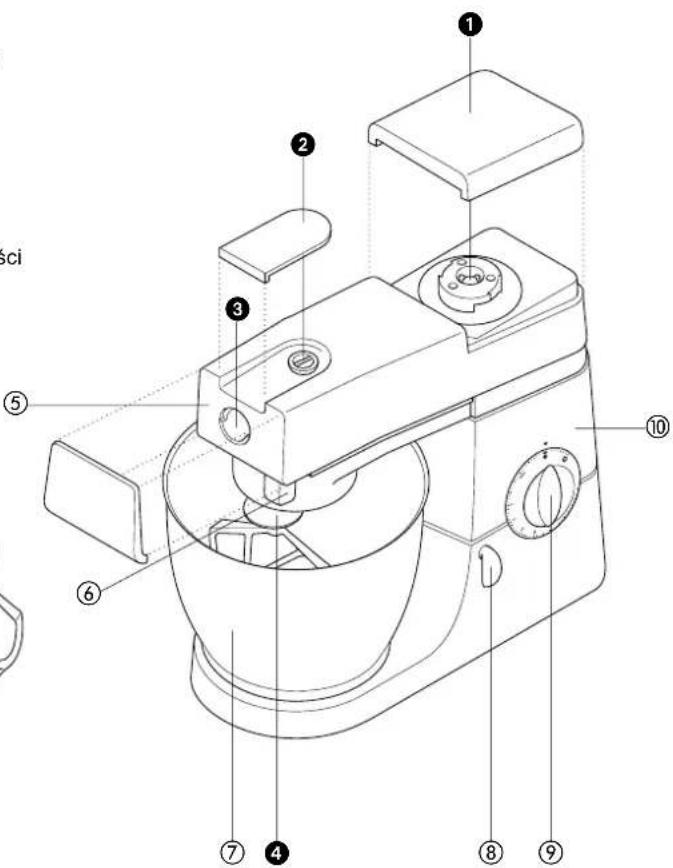

① high-speed outlet
② citrus juicer outlet
③ slow-speed outlet
4 tool socket
⑤ mixer head
⑥ outlet catch
⑦ bowl
⑧ head-lift lever
⑩ power unit
⑪ K-beater
⑫ whisk
⑬ dough hook
⑭ spatula

⑨ on/off and speed switch

know your Kenwood kitchen machine ① high-speed outlet ② citrus juicer outlet the mixer ③ slow-speed outlet ④ tool socket ⑤ mixer head ⑥ outlet catch ⑦ bowl ⑧ head-lift lever ⑨ on/off and speed switch ⑩ power unit ⑪ K-beater ⑫ whisk ⑬ dough hook ⑭ spatula

the mixer

the mixing tools and some of their uses

K-beater • For making cakes, biscuits, pastry, icing, fillings, éclairs and mashed potato.
whisk • For eggs, cream, batters, fatless sponges, meringues, cheesecakes, mousses, soufflés. Don't use the whisk for heavy mixtures (eg creaming fat and sugar) - you could damage it.
dough hook • For yeast mixtures.

to use your mixer

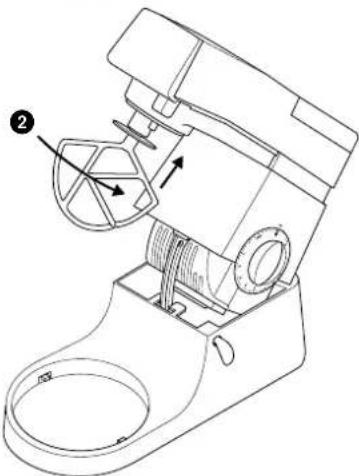

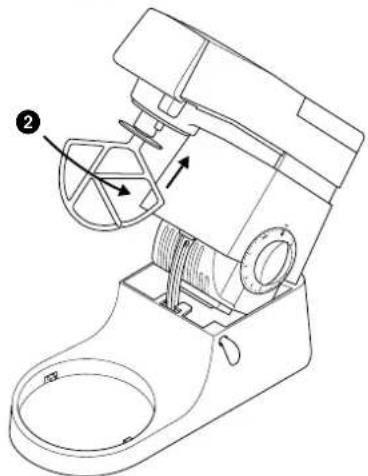

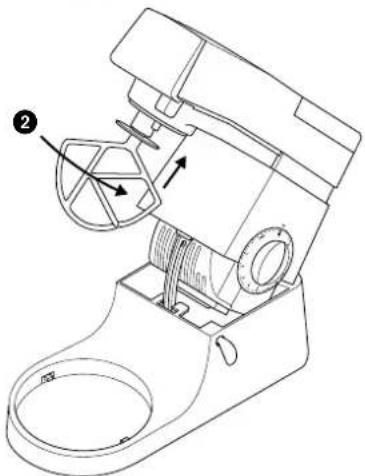

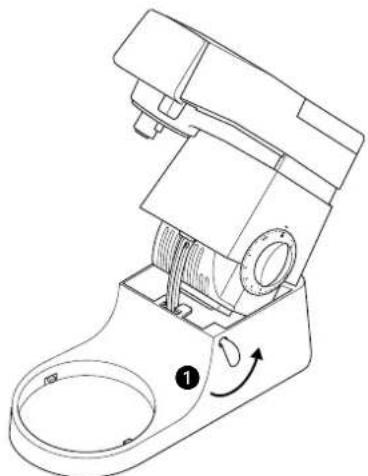

1 Turn the head-lift lever anti-clockwise ① and raise the mixer head till it locks.
to insert a tool 2 Turn till it stops ② then push.

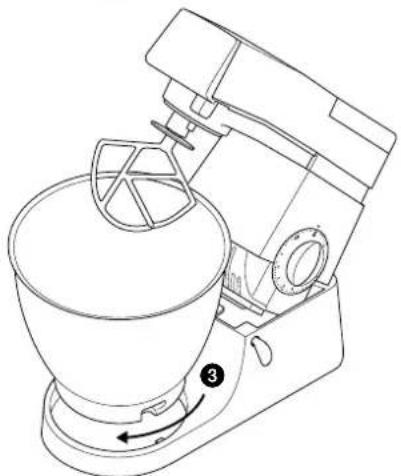

3 Fit the bowl onto the base - press down and turn clockwise ③
4 Turn the head-lift lever anti-clockwise and lower the mixer head till it locks.
5 Select a speed, then switch on by turning the speed switch.
- Switch to pulse P for short bursts.
to remove a tool 6 Unscrew.

hints • Switch off and scrape the bowl with the spatula frequently.
• Eggs at room temperature are best for whisking.
- Before whisking egg whites, make sure there's no grease or egg yolk on the whisk or bowl.
- Use cold ingredients for pastry unless your recipe says otherwise.

points for bread making

important • Never exceed the maximum capacities below - you'll overload the machine.
- If you hear the machine labouring, switch off, remove half the dough and do each half separately.
• The ingredients mix best if you put the liquid in first.

maximum capacities

KM300, 400, 410 models KM600, 800, 810 models

shortcrust pastry	Flour weight: 680g - 1lb 8oz	Flour weight: 910g - 2lb
stiff yeast dough	Flour weight: 1.36kg - 3lb	Flour weight: 1.5kg - 3lb 5oz
British type	Total weight: 2.18kg - 4lb 13oz	Total weight: 2.4kg - 5lb 5oz
soft yeast dough	Flour weight: 1.3kg - 2lb 14oz	Flour weight: 2.6kg - 5lb 12oz
continental type	Total weight: 2.5kg - 5lb 8oz	Total weight: 5kg - 11lb
fruit cake mix	Total weight: 2.72kg - 6lb	Total weight: 4.55kg - 10lb
egg whites	12 16

speeds 4

K-beater • creaming fat and sugar start on min, gradually increasing to max.
- beating eggs into creamed mixtures 4 - 'max'.
- folding in flour, fruit etc Min - 1.
- all in one cakes start on min speed, gradually increase to max.
• rubbing fat into flour min - 2.
whisk • Gradually increase to 'max'.
dough hook • Start on 'min', gradually increasing to 1.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a kitchen mixer with a stand mixer and control panel (no text or symbols)

min 4 max 7 C y S B ④

troubleshooting

problem

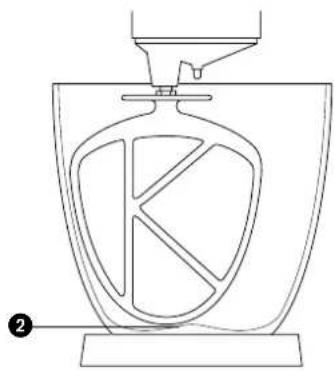

• The whisk or K-beater knocks against the bottom of the bowl or isn't reaching the ingredients in the bottom of the bowl.

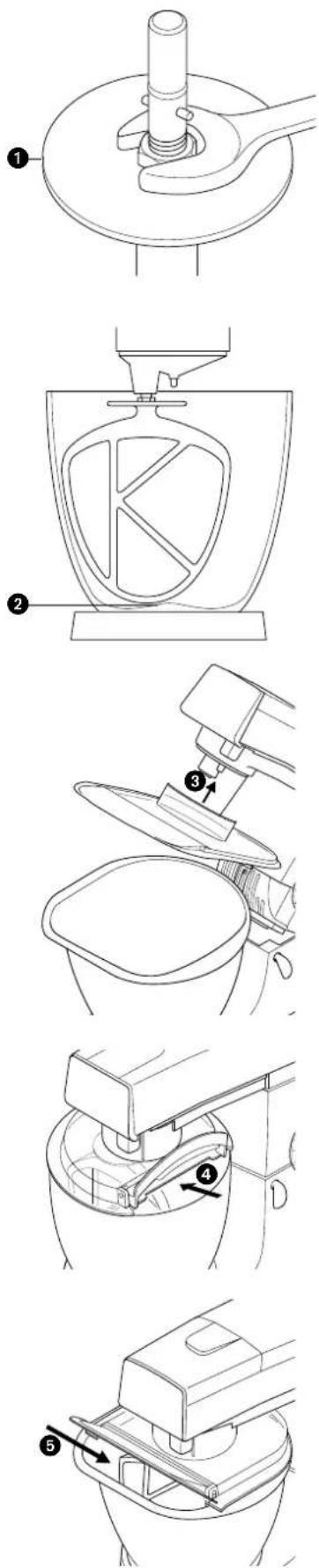

• Adjust the height. Here's how:

1 Unplug.
2 Raise the mixer head and insert the whisk or beater.
3 Hold it, then loosen the nut 1
4 Lower the mixer head.

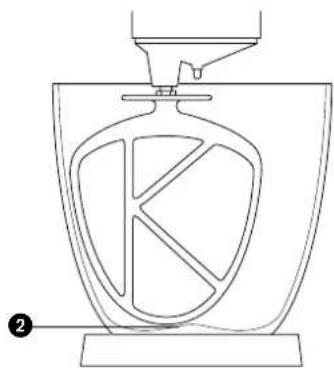

5 Adjust the height by turning the shaft. Ideally the whisk/K-beater should be almost touching the bottom of the bowl ②
6 Raise the head, hold the whisk/K-beater and tighten the nut.

to fit and use your round/D-shaped splashguard (if supplied)

1 Raise the mixer head until it locks.
2 Fit the bowl onto the base.

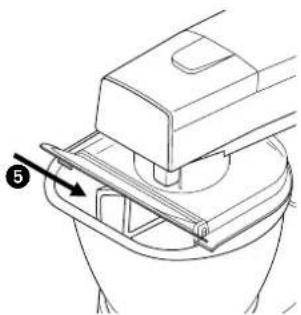

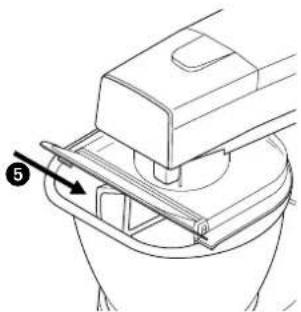

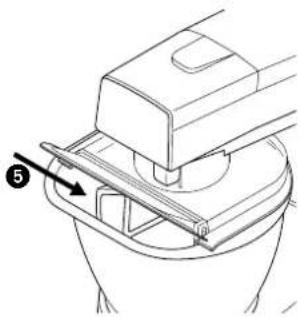

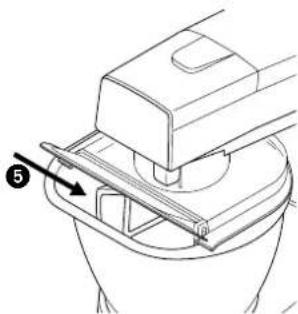

3 Push the splashguard on until fully located ③. The hinged section should be positioned as shown round ④ and D-shaped ⑤
4 Insert required tool.
5 Lower the mixer head ensuring the splashguard follows the shape of the bowl.
- During mixing, ingredients can be added directly to the bowl via the hinged section of the splashguard.
- You do not need to remove the splashguard to change tools.
6 Remove the splashguard by raising the mixer head and sliding it down.

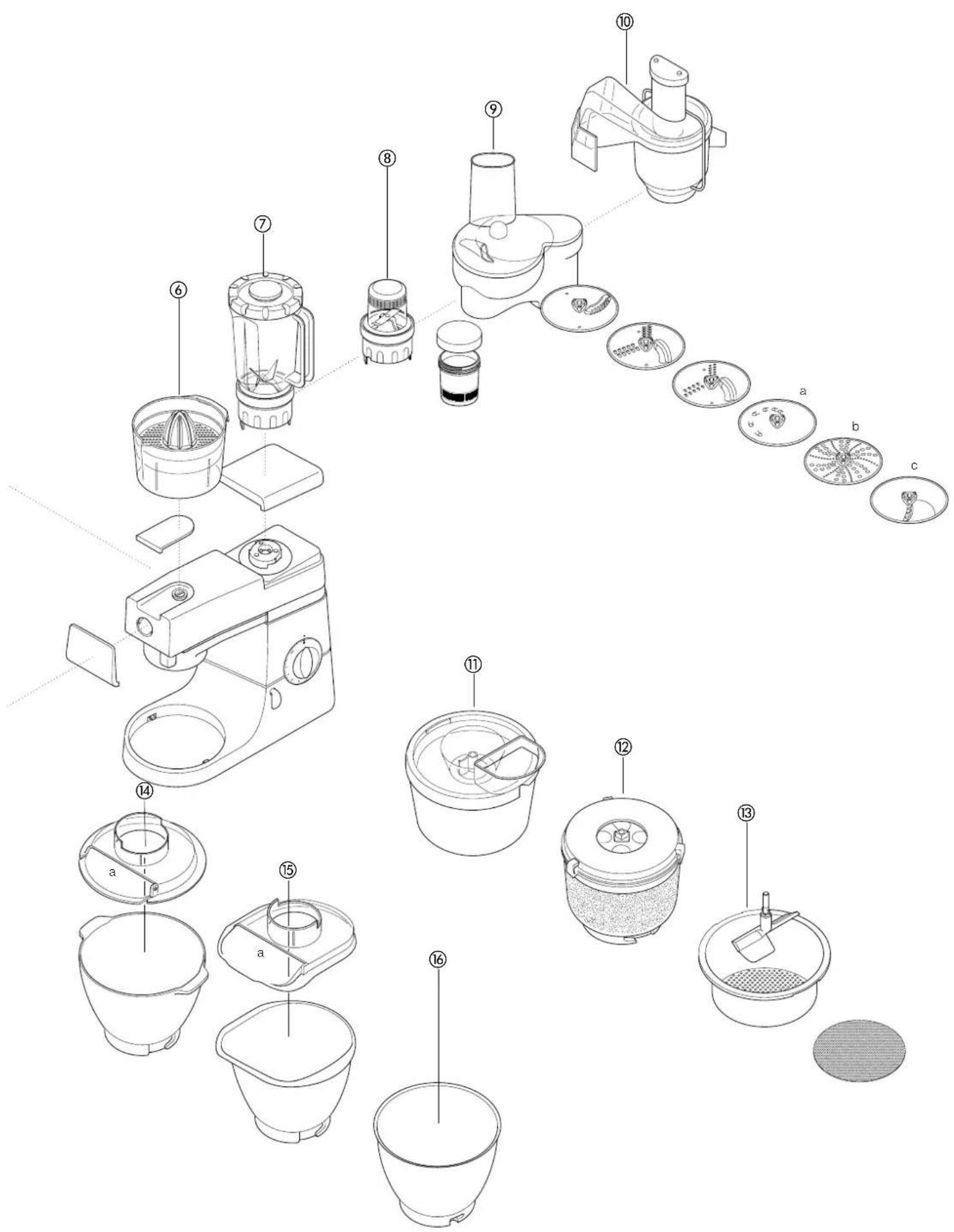

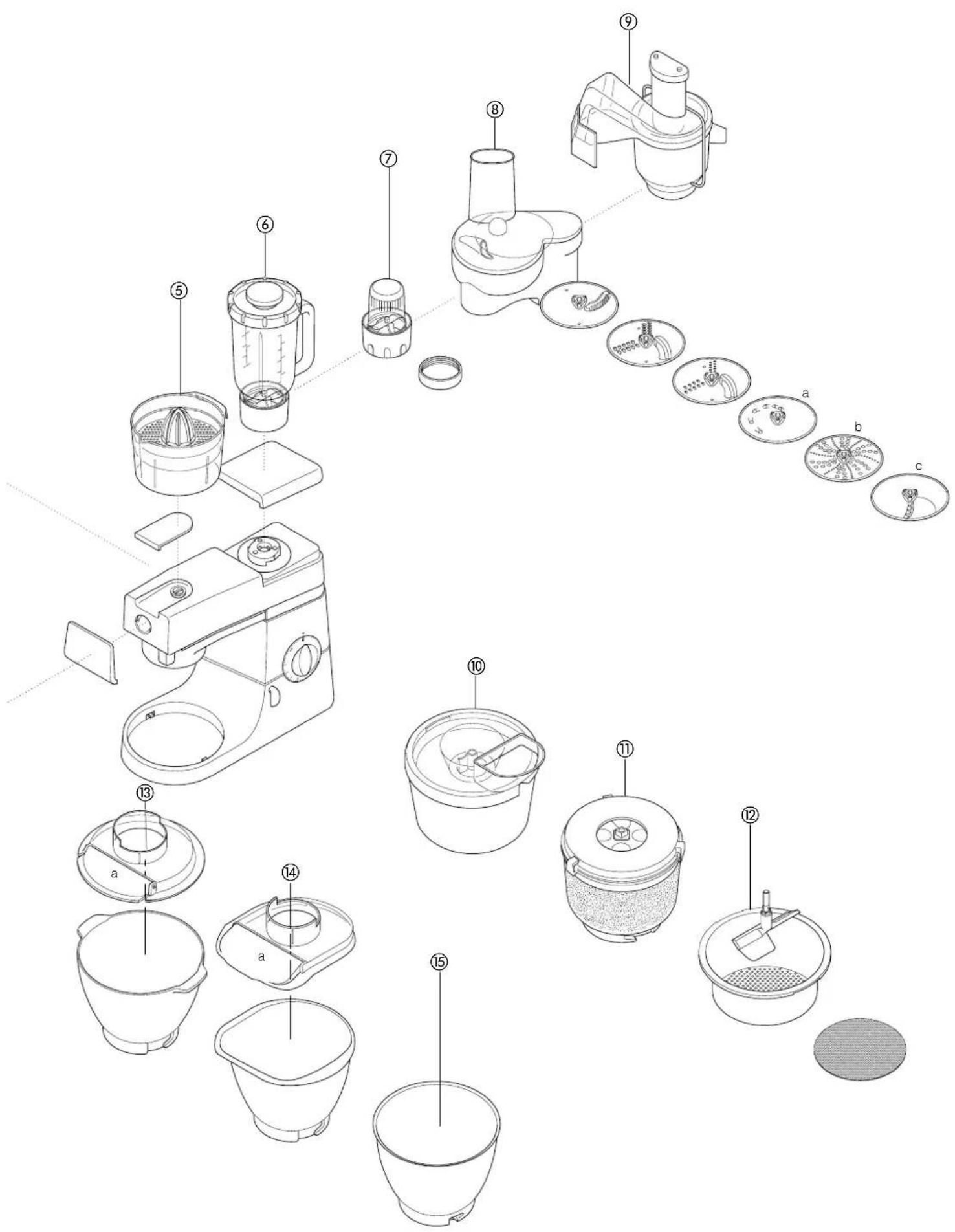

the attachments available

To buy an attachment not included in your pack, call your KENWOOD repairer.

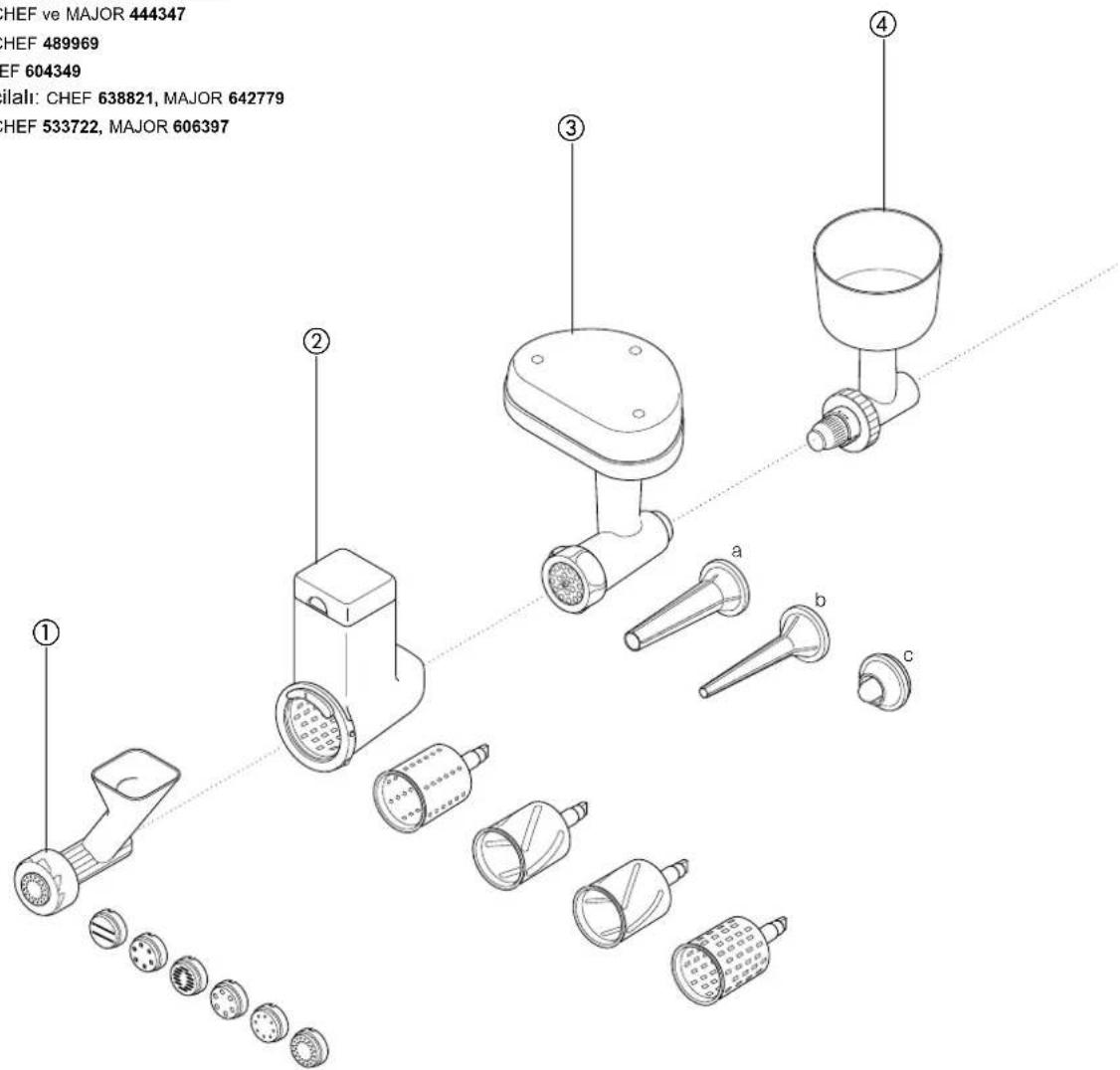

attachment attachment code

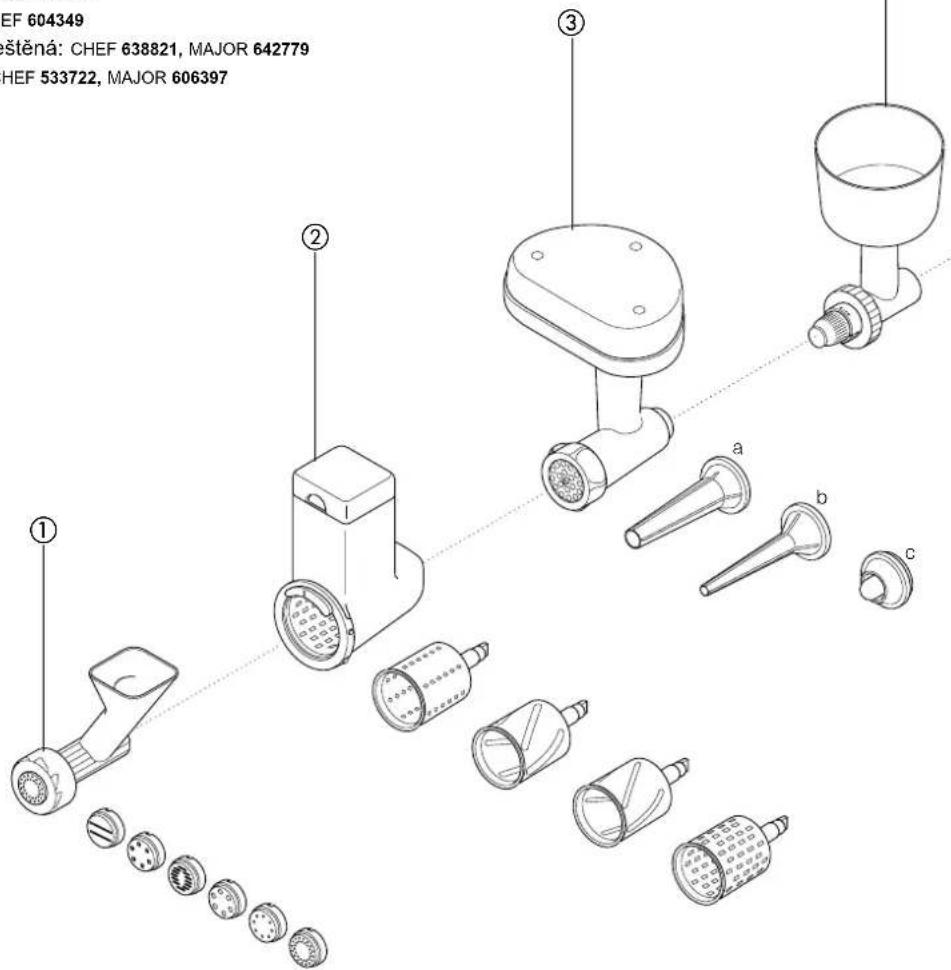

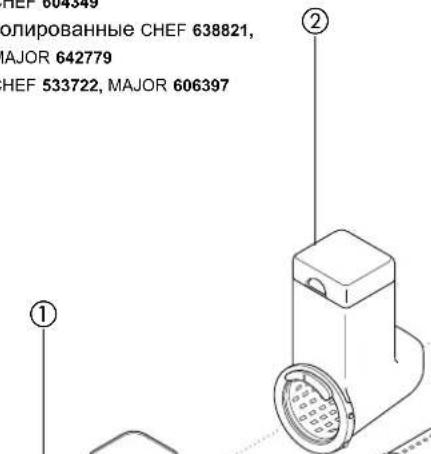

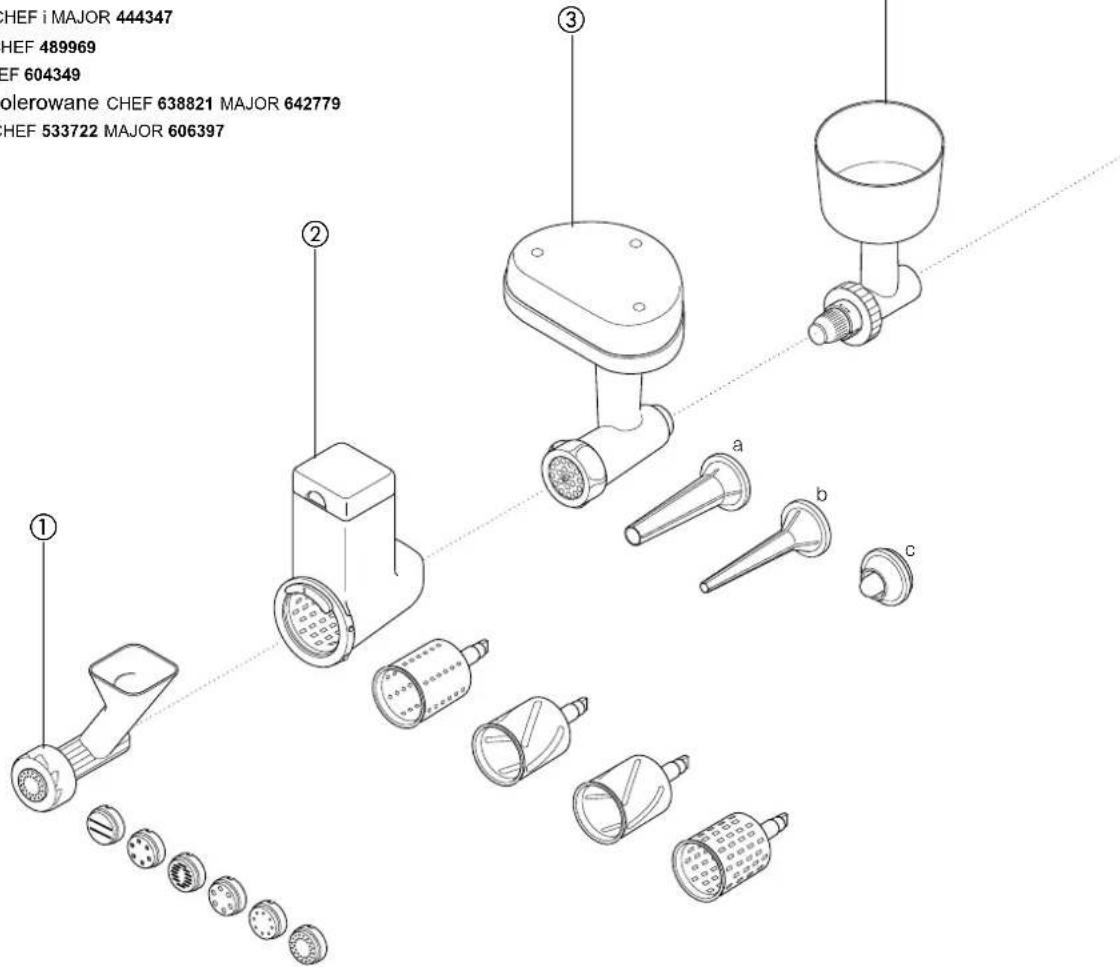

flat pasta maker ① A970

additional pasta attachments A971 tagliatelle (not shown) used in conjunction A972 taglionlini with A970 A973 trenette

A974 spaghetti

pasta maker ② A936 comes with 6 screens

slow speed slicer/shredder ③ A948 comes with 4 drums

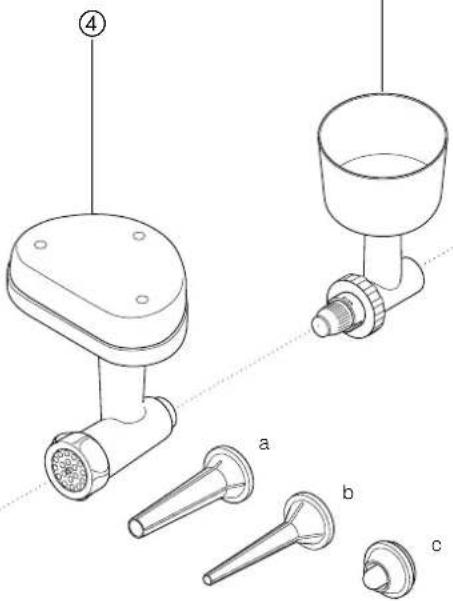

super mincer ④ A950 comes with

a large sausage nozzle b small sausage nozzle c kebbe maker

grain mill ⑤ A941

citrus press ⑥ A995

liquidiser ⑦ 1.2 | acrylic A993A, 1.2 | glass A994A, 1.5 | stainless steel A996A

multi-mill ⑧ A938A comes with 3 glass jars and 3 lids for storage

high speed slicer/shredder ⑨ A998 comes with 3 cutting plates

optional plates a extra coarse shredder part number 639021
b rasping plate part number 639150
c standard chipper part number 639083

continuous juice extractor ⑩ A935

ice-cream maker ⑪ CHEF A953, MAJOR A954

potato peeler ⑫ CHEF A934, MAJOR A952

colander and sieve ⑬ CHEF A992, MAJOR A930

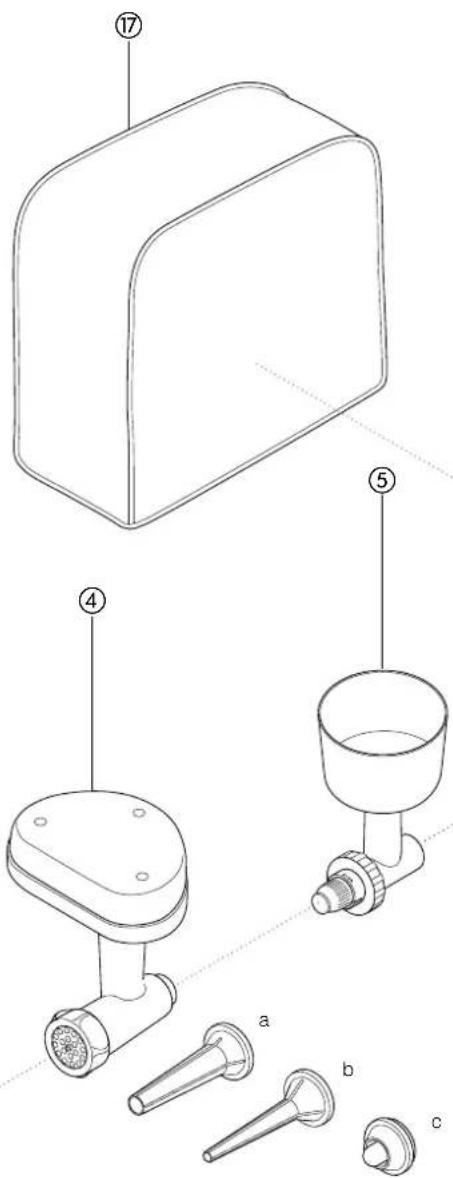

kenlyte round bowl ⑭ CHEF 265026, MAJOR 412095

round splashguard a CHEF & MAJOR 444347

kenlyte D-shaped bowl ⑮ CHEF 489969

D-shaped splashguard a CHEF 604349

stainless steel bowls ⑯ polished: CHEF 638821, MAJOR 642779

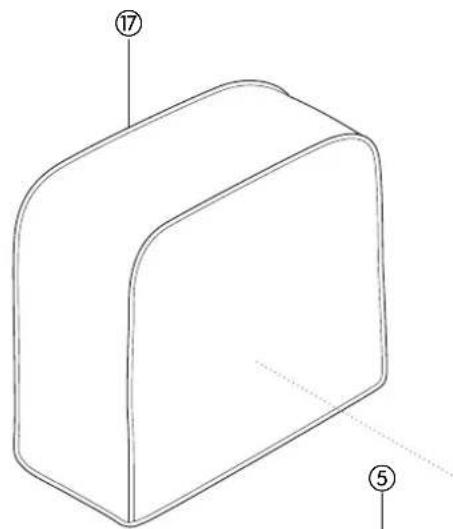

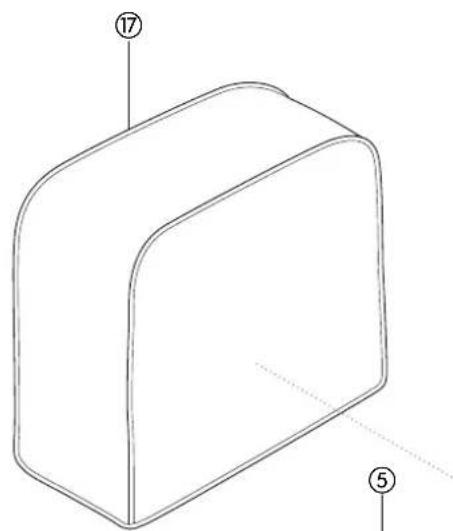

cover ⑰ CHEF 533722, MAJOR 606397

Technical line drawing of a mechanical component with a labeled point (1), no text or symbols present.

Simple line drawing of a 3D rectangular prism with labeled points (17 and 5) and no text or symbols beyond labels

Technical line drawing of a mechanical component with labeled part (4), no readable text or symbols present.

Exploded view diagram of a kitchen appliance with numbered parts for identification

cleaning and service

care and cleaning

• Always switch off and unplug before cleaning.
- A little grease may appear at outlets ② and ③ when you first use them. This is normal - just wipe it off.

power unit • Wipe with a damp cloth, then dry.
- Never use abrasives or immerse in water.
bowls • Wash by hand, then dry thoroughly.
- If you have a stainless steel bowl, never use a wire brush, steel wool or bleach. Use vinegar to remove limescale. The stainless steel bowl may also be washed in the dishwasher.
- Keep away from heat (cooker tops, ovens, microwaves).
tools • Wash by hand, then dry thoroughly.
- Discolouration of the K beater, whisk and dough hook may occur if placed within a dishwasher.
splashguard • Wash by hand, then dry thoroughly.

service and customer care

- If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

UK If you need help with:

• using your machine
• servicing or repairs (in or out of guarantee)

call KENWOOD on 023 92392333 and ask for Customer Care.

Have your model number ready - it's on the underside of the mixer. Alternatively, contact your authorised KENWOOD repairer: look in Yellow Pages under 'Electrical appliance repairs'.

Eire • See our advertisement in Golden Pages. other countries • Contact the shop where you bought your machine.

guarantee UK only

If your machine goes wrong within one year from the date you bought it, we will repair or replace it free of charge provided:

• you have not misused, neglected or damaged it;
• it has not been modified;
• it is not second-hand;
• it has not been used commercially;
• you have not fitted a plug incorrectly; and
• you supply your receipt to show when you bought it.

This guarantee does not affect your statutory rights.

Technical diagram of a kitchen mixer with labeled parts 2 and 3

recipes

See important points for bread making on page 4.

white bread stiff British-type dough

ingredients • 1.36kg (3lb) strong plain flour

• 15ml (3tsp) salt
• 25g (1oz) fresh yeast; or 15g/20ml (1/oz) dried yeast + 5ml (1tsp) sugar
• 750ml (1½pts) warm water: 43°C (110°F). Use a thermometer or add 250ml (9fl oz) boiling water to 500ml (18fl oz) cold water
  • 25g (1oz) lard

method 1 dried yeast (the type that needs reconstituting): pour the warm water into the bowl. Then add the yeast and the sugar and leave to stand for about 10 minutes until frothy.

fresh yeast: crumble into the flour.

other types of yeast: follow the manufacturer's instructions.

2 Pour the liquid into the bowl. Then add the flour (with fresh yeast if used), salt and lard.
3 Knead at minimum speed for 45 - 60 seconds. Then increase to speed 1, adding more flour if necessary, until a dough has formed.
4 Knead for 3 - 4 more minutes at speed 1 until the dough is smooth, elastic and leaves the sides of the bowl clean.
5 Put the dough into a greased polythene bag or a bowl covered with a tea towel. Then leave somewhere warm until doubled in size.
6 Re-knead for 2 minutes at speed 1.
7 Half fill four 450g (1lb) greased tins with the dough, or shape it into rolls. Then cover with a tea towel and leave somewhere warm until doubled in size.
8 Bake at 230°C/450°F/Gas Mark 8 for 30 - 35 minutes for loaves or 10 - 15 minutes for rolls.
- When ready, the bread should sound hollow when tapped on the base.

white bread soft continental-type dough

ingredients

This quantity is for models KM600,

800 and 810. For models KM300,

400 and 410, halve the quantities

and add all the flour in one go

• 2.6kg (5lb 12oz) ordinary plain flour
• 1.3 litre (2½pts) milk
- 300g (10oz) sugar
• 450g (1lb) margarine
• 100g (4oz) fresh yeast or 50g (2oz) dried yeast
- 6 eggs, beaten
- 5 pinches salt

method 1 Melt the margarine in the milk and bring to 43°C (110°F).

2 dried yeast (the type that needs reconstituting): add the yeast and sugar to the milk and leave to stand for about 10 minutes until frothy.

fresh yeast: crumble into the flour and add the sugar.

other types of yeast: follow the manufacturer's instructions.

3 Pour the milk into the bowl. Add the beaten eggs and 2kg (4lb 6oz) flour.
4 Mix at minimum speed for 1 minute, then at speed 1 for a further minute. Scrape down.
5 Add the remaining flour and mix at minimum speed for 1 minute, then at speed 1 for 2 - 3 minutes until smooth and evenly mixed.
6 Half fill some 450g (1lb) greased tins with the dough, or shape it into rolls. Then cover with a tea towel and leave somewhere warm until doubled in size.
7 Bake at 200^ C/ 400^ F/Gas Mark 6 for 20 - 25 minutes for loaves or 15 minutes for rolls.
8 When ready, the bread should sound hollow when tapped on the base.

- Makes about 10 loaves.

recipes continued

strawberry and apricot gâteau

ingredients: sponge • 3 eggs

• 75g (3oz) caster sugar
• 75g (3oz) plain flour

filling and decoration • 150ml (¼pt) double cream

• Sugar to taste
  • 225g (8oz) strawberries
  • 225g (8oz) apricots

method 1 Halve the apricots and remove the stones. Cook gently in very little water, adding sugar to taste, until soft.

2 Wash and halve the strawberries.
3 To make the sponge, whisk the eggs and sugar at maximum speed until very pale and thick.
4 Remove the bowl and the whisk. Fold in the flour by hand using a large metal spoon - do this carefully to keep the sponge light.
5 Put the mixture into two 18cm (7") greased and lined sandwich tins.
6 Bake at 180°C/350°F/Gas Mark 4 for about 20 minutes until the cake springs back when lightly touched.
7 Turn out onto a wire rack.
8 Whisk the cream at maximum speed until stiff. Add sugar to taste.
9 Roughly chop the apricots and a third of the strawberries. Fold them into half the cream.
10 Spread this over one of the sponges, then put the other sponge on top.
11 Spread the remaining cream on top and decorate with the remaining strawberries.

meringues

ingredients • 4 egg whites

• 250g (9oz) icing sugar, sieved

method 1 Line your baking tray with non-stick baking parchment.

2 Whisk the egg whites and sugar at maximum speed for about 10 minutes until it stands in peaks.
3 Spoon the mixture onto the baking tray (or use a piping bag with a 2.5cm (1") star nozzle).
4 Bake at 110°C/225°F/Gas Mark 14 for about 4 - 5 hours until firm and crisp. If they start to brown, leave the oven door slightly ajar.
- Store meringues in an airtight tin.

shortcrust pastry

ingredients • 450g (1lb) flour, sieved with the salt

• 5ml (1tsp) salt
  • 225g (8oz) fat (mix lard and margarine straight from the fridge)
  • About 80ml (4tbsp) water

hint • Don't overmix

method 1 Put the flour into the bowl. Chop the fat up roughly and add to the flour.

2 Mix at speed 1 until it resembles breadcrumbs. Stop before it looks greasy.
3 Add the water and mix at minimum speed. Stop as soon as the water is incorporated.
4 Cook at around 200°C/400°F/Gas Mark 6, depending on the filling.

beefburgers

ingredients • 250g (9oz) prime sinewless beef

method 1 Cut into 2.5cm (1") cubes.

2 If you don't have a mincer, use your liquidiser and mince small amounts at a time. Use speed 2 for 15 seconds maximum. Clean around the blades between one batch and the next.
3 Mix with seasonings such as chopped onion, mixed herbs (fresh or dried), coarse black pepper, and the juice and rind of a lemon.
4 Shape into 2 beefburgers and grill on medium to high heat until thoroughly cooked.

Français

Technical diagram of a mechanical device with numbered parts, likely for assembly or identification.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a kitchen mixer with control panel and fan (no text or symbols)

mm 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a heated heating device.

Technical diagram showing three steps of a mechanical assembly with labeled components

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a kitchen appliance with labeled parts including a plate, funnel, and accessories

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a kitchen mixer with numbered components and labeled parts (e, s)

recettes

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a kitchen mixer with a stand mixer and control panel (no text or symbols)

min 0° Q 4° 1 2 3 4 5 6 7 8 FEN

Fehlersuche

Problem

Technical line drawing of a mechanical clamp or fastener assembly (no text or symbols)

Simple line drawing of a laboratory apparatus with a funnel and container (no text or symbols)

Technical diagram showing a mechanical assembly with labeled component 3 and a circular base structure.

Technical diagram of a mechanical device with labeled component 4 and directional arrow

Technical diagram showing a mechanical component with labeled part 5 and an arrow indicating direction

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a 3D rectangular prism with labeled points (17 and 5) and no text or symbols beyond labels

Technical diagram of a hairdryer with labeled parts including a tool, spray can, and three different tools (a, b, c)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a control panel and fan (no text or symbols)

min 4 max 7 C 4 5 8

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical assembly with numbered components, likely illustrating a procedure or assembly.

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a 3D rectangular prism with labeled points (17 and 5) and no text or symbols beyond labels

Technical diagram of a hairdryer with labeled parts including a brush, a cup, and three variants (a, b, c)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a mechanical device with numbered components, likely for assembly or maintenance instructions.

ricette

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a kitchen mixer with a stand mixer and control panel (no text or symbols)

mm 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a heated tube.

Technical diagram showing three steps of a mechanical assembly with labeled components

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a 3D rectangular prism with labeled points (17 and 5) and no text or symbols beyond labels

Technical diagram of a hairdryer with labeled parts including a tool, spray can, and three different tools (a, b, c)

Exploded view diagram of a kitchen appliance with numbered parts for identification

reiniging en service

• service of reparaties

Technical diagram of a mechanical device with numbered components, likely for assembly or maintenance instructions.

recepten

- Ongeveer 80ml water

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a control panel and fan (no text or symbols)

min o ④ max o 5 6 7 8 9 c d

posibles problemas

problema

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical assembly with labeled components

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a kitchen appliance with labeled parts including a plate, funnel, and accessories

Exploded view diagram of a kitchen appliance with numbered parts for identification

limpieza y servicio

Technical diagram of a mechanical device with numbered components, likely for assembly or maintenance instructions.

recetas

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a kitchen mixer with a control panel and directional arrow (no text or symbols)

min s s s max 4

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a kitchen appliance with labeled parts including a door, funnel, and accessories

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a mechanical device with numbered components, likely for assembly or maintenance instructions.

receitas

Technical diagram of a medical device with numbered parts labeled 11 to 14

Technical diagram of a kitchen mixer with numbered parts for identification

mixeren

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a kitchen mixer with a stand mixer and control panel (no text or symbols)

min 4 max 7 8 9 4

fejlfinding

problem:

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical assembly with labeled components

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a kitchen appliance with labeled parts including a plate, funnel, and accessories

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a mechanical device with numbered components, likely for assembly or maintenance instructions.

opskrifter

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a rotating fan and handle (no text or symbols)

min 0° 45° 60° 4 7 c 1

felsökning

problem

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical assembly with labeled components

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a 3D rectangular prism with labeled points (17 and 5) and no text or symbols beyond labels

Technical diagram of a hairdryer with labeled parts including a tool, spray can, and three different tools (a, b, c)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a kitchen mixer with numbered components labeled 2, 3, and 4

recept

Technical diagram of a catheter device with numbered parts labeled 11 to 14

Technical diagram of a kitchen mixer with numbered parts for identification

Mikseren

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a control panel and fan (no text or symbols)

min 0° 45° 60° 4 7 1 c d

Løsning på problemer

Problem

Technical line drawing of a mechanical assembly with a cylindrical component and a base (no text or symbols)

Simple line drawing of a laboratory apparatus with a funnel and container (no text or symbols)

Technical diagram showing a mechanical assembly with labeled component 3 and a container-like structure below.

Technical diagram of a mechanical device with labeled component 4 and directional arrow

Technical diagram showing a mechanical component with an arrow indicating a step number labeled '5'

Ekstra tilbehør

Technical line drawing of a mechanical component with a labeled point (1), no text or symbols present.

Technical diagram of a kitchen appliance with labeled parts including a plate, funnel, and accessories

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a kitchen mixer with labeled parts 2 and 3

Oppskrifter

Se huskeregler for brøddeig på side 80.

Technical diagram of a medical device with numbered parts, likely for anatomical or technical reference.

distus', sivu 92. en ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

yleiskone

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a stand mixer and control panel (no text or symbols)

mm 4 4 2 5 8 4 4 4 4 4

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical device with labeled components, likely for assembly or maintenance instructions.

lisälaitteet

Exploded view diagram of a mechanical device with labeled parts including motor, brush, and various accessories

Exploded view diagram of a kitchen appliance with numbered parts for identification

puhdistus ja huolto

tärkeää

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a control panel and fan (no text or symbols)

min 7 c 4 6 5 FSS 4

sorun giderme

sorun

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical assembly with labeled components and directional arrows

ek parçalar

Isometric line drawing of a 3D rectangular block with a curved top surface and a numbered label (16) pointing to its top edge.

CHEF ve MAJOR 444347 CHEF 489969 CHEF 604349 ilali: CHEF 638821, MAJOR 642779 CHEF 533722, MAJOR 606397

Exploded view diagram of a kitchen appliance with numbered parts for identification

temizlik ve bakım

temizlik ve bakım

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a rotating fan and handle (no text or symbols)

mm 4 4 5 6 7 8 9 10 NEW

Technical line drawing of a mechanical assembly with a cylindrical component and a base (no text or symbols)

Simple line drawing of a laboratory apparatus with a funnel and container (no text or symbols)

Technical diagram showing a mechanical assembly with labeled component 3 and directional arrow

Technical diagram showing a mechanical assembly with labeled component 4 and directional arrow D

Line drawing of a mechanical component with a handle and lever, no text or symbols present

Isometric line drawing of a 3D rectangular block with a curved top surface and a numbered label (16) pointing to its top edge.

IEF 604349 sěstěná: CHEF 638821, MAJOR 642779 HEF 533722, MAJOR 606397

Exploded view diagram of a kitchen appliance with numbered parts for identification

čištění a servis

čištění a péče

Technical diagram of a kitchen mixer with labeled parts and directional indicators

recepty

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a kitchen mixer with a rotating fan and handle (no text or symbols)

mm 4 4 2 5 8 10 40 40 40 40

hibakeresés

a hiba

Technical line drawing of a mechanical assembly with a cylindrical component and base (no text or symbols)

Line drawing of a mechanical device with internal components and a base, no text or symbols present

Technical diagram showing a mechanical assembly with labeled component 3 and a circular component below

Technical diagram showing a mechanical assembly with labeled component 4 and directional arrow

Technical diagram showing a mechanical component with a labeled part (5) pointing to a lever or pivot.

Exploded view diagram of a mechanical device with labeled parts including motor, brush, and various accessories

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a catheter device with numbered parts labeled 11 to 14

sci ① ② ③ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

ubijanie/zagniatanie

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a labeled component (no text or symbols present)

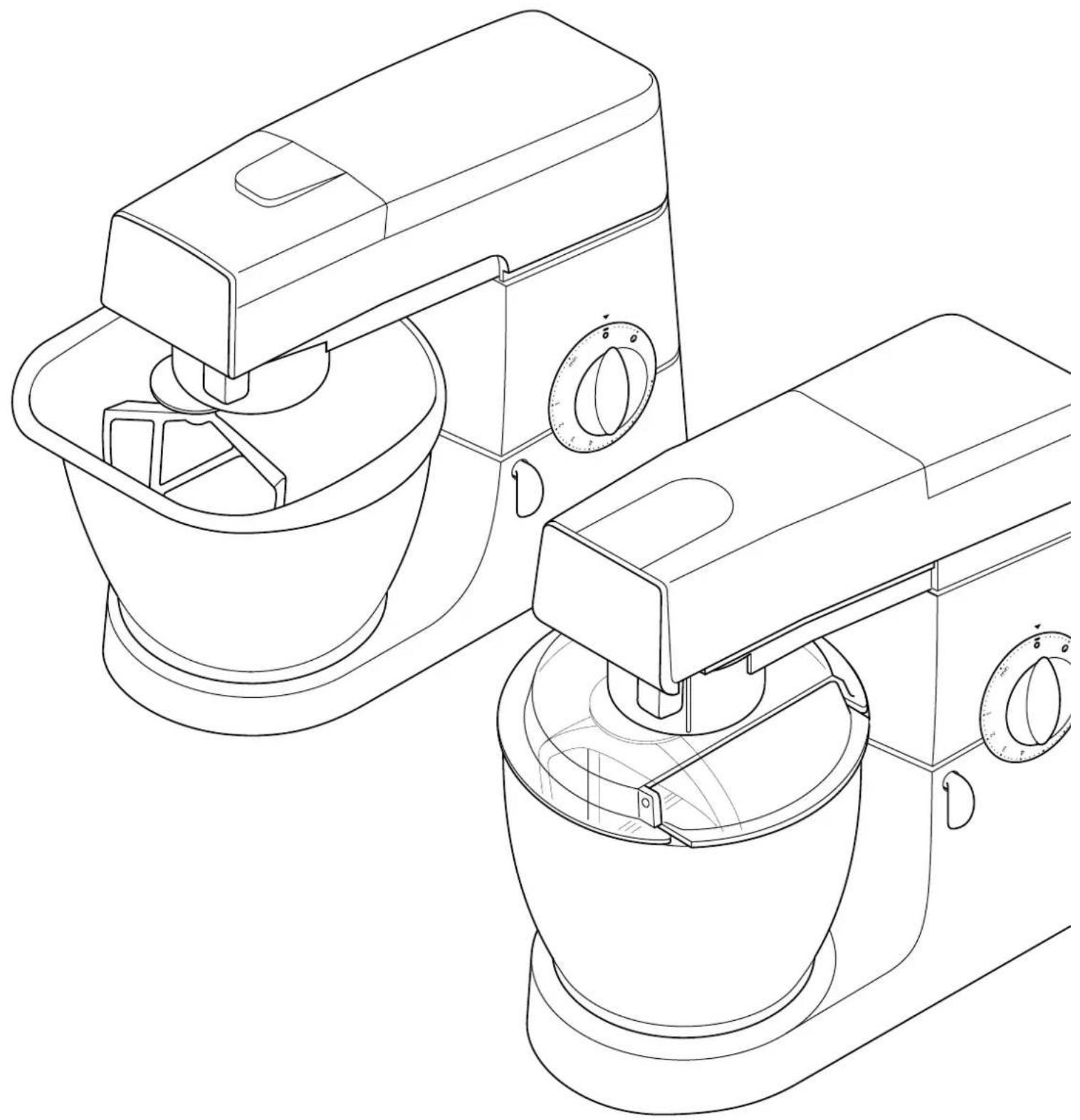

Line drawing of a kitchen mixer with a stand mixer and control panel (no text or symbols)

min 4 4 5 6 8 max

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical assembly with labeled components

Isometric line drawing of a 3D rectangular block with a curved top surface and a numbered label (16) pointing to its top edge.

CHEF i MAJOR 444347 CHEF 489969 CHEF 604349 Dolerowane CHEF 638821 MAJOR 642779 CHEF 533722 MAJOR 606397

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a mechanical device with numbered components labeled 2, 3, and 4

przepisy

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a stand mixer and control panel (no text or symbols)

min 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing a mechanical assembly with labeled component 3 and directional arrow

Technical diagram showing a mechanical assembly with labeled component 4 and directional arrow

Technical line drawing of a mechanical component with a labeled part (5), showing no text or symbols beyond the number and an arrow.

Isometric line drawing of a 3D rectangular prism with a labeled point (16) on top, no text or symbols present.

HEF A953, MAJOR A954

⑪ CHEF A934, MAJOR A952

⑫ CHEF A992, MAJOR A930

⑬ CHEF 265026, MAJOR 412095

a CHEF и MAJOR 444347

b CHEF 489969

CHEF 604549 ОЛИРОВАНЫЕ CHEF 638821, MAJOR 642779 CHEF 533722, MAJOR 606397

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Exploded view diagram of a kitchen appliance with numbered parts for identification

ОЧИСТКА И УХОД

Уход и очистка

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a kitchen mixer with a rotating fan and handle (no text or symbols)

mm 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Technical diagram showing two stages of a mechanical device: top view with a cylindrical component and base, bottom view with a labeled component.

Technical diagram showing three steps of a mechanical assembly with numbered annotations indicating different states or components.

Isometric line drawing of a 3D rectangular prism with an arrow pointing to its top face (no text or symbols present)

HEF A992, MAJOR A930

HEF 265026, MAJOR 412095

HEF & MAJOR 444347

HEF 489969

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a circular base and a handle, labeled with number 2 (no text or symbols on the device itself)

Technical line drawing of a mechanical tool or device with labeled component (no text or symbols present)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical diagram of a mechanical device with numbered components and dimension lines

συνταγές

Technical diagram of a mechanical assembly with numbered components labeled 2 and 3

الله بُمْرَّة

A970 ① A971 taglatelle A972 taglotilin A973 tenette A974 spaghetti A985 ② A986 ③ A996 ④ A997 ⑤ A998 ⑥ A999 ⑦ A999 ⑧ A999 ⑨ A999 ⑩ A999 ⑪ A999 ⑫ A999 ⑬ A999 ⑭ A999 ⑮ A999 ⑯ A999 ⑰ A999 ⑱ A999 ⑲ A999 ⑳ A999 ㉑ A999 ㉒ A999 ㉓ A999 ㉔ A999 ㉕ A999 ㉖ A999 ㉗ A999 ㉘ A999 ㉙ A999 ㉚ A999 ㉛ A999 ㉜ A999 ㉝ A999 ㉞ A999 ㉟ A999 ㉓ A999 ㉔ A999 ㉕ A999 ㉖ A999 ㉗ A999 ㉘ A999 ㉙ A999 ㉚ A999 ㉛ A999 ㉜ A999 ㉔ A10-4835 ⑩ 10-4835 ⑪ 10-4835 ⑫ 10-4835 ⑬ 10-4835 ⑭ 10-4835 ⑮ 10-4835 ⑯ 10-4835 ⑰ 10-4835 ⑱ 10-4835 ⑲ 10-4835 ⑳ 10-4835 ㉑ 10-4835 ㉒ 10-4835 ㉓ 10-4835 ㉔ 10-4835 ㉕ 10-4835 ㉖ 10-4835 ㉗ 10-4835 ㉘ 10-4835 ㉙ 10-4835 ㉚ 10-4835 ㉛ 10-4835 ㉜ 10-4835 ㉝ 10-4835 ㉞ 10-4835 ㉟ 10-4835 ㉟c 10-4835 ㉟d 10-4835 ㉟e 10-4835 ㉟f 10-4835 ㉟g 10-4835 ㉟h 10-4835 ㉟i 10-4835 ㉟j 10-4835 ㉟k 10-4835 ㉟l 10-4835 ㉟m 10-4835 ㉟n 10-4835 ㉟o 10-4835 ㉟p 10-4835 ㉟q 10-4835 ㉟r 10-4835 ㉟s 10-4835 ㉟t 10-4835 ㉟u 10-4835 ㉟v 10-4835 ㉟w 10-4835 ㉟x 10-4835 ㉟y 10-4835 ㉟z 10-4835 ㉟w 10-4835 ㉟x 10-4835 ㉟y 10-4835 ㉟z 10-4835 ㉟w 10-4835 ㉟y 10-4835 ㉟z 10-4835 ㉟w 10-4835 ㉟y

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 40.

الله بُمْرَّة

Exploded view diagram of a kitchen appliance with numbered parts for identification

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a circular component and base mount (no text or symbols)

J | 2 | 1 | 0 | 0 | 0 | 0 | 0 |
2
3
1. 100%
1
1.

• ٢٠٣١٤٣٢٠٣٠

Technical line drawing of a mechanical assembly with a cylindrical component and a curved handle (no text or symbols)

الله بُمْرَ

•

•

• ٢٥٠١٣١٤٠١٢٠١٢٠١٢٠١٢٠١٢٠١٢٠-٨
• 1613
• 170257 170367, 170489 170510 17052-
• ٢٠٥١٣٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠٠١

max. كيل جل ك لس.

^1

4

الجنس

•

• 11:2023-11:2023

Technical diagram of a mechanical component with labeled parts (PL, EL, ZL, LL)

Technical diagram of a mechanical device with numbered components for identification

74

⑬

⑫

⑪ K.J.

⑩

⑥

⑧

② 57

⑨

⑤

4

3

②

L

1966

• _1 = 2 (with the following elements:

• 1718.2016.11507-11507-11507-11507-11507-130

• 136

• 171 2023年1月1日

• 17182F1720000000000000000000000000000

• 121000000000000000000000000000000000000000

- 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54. 55. 56. 57. 58. 59. 60. 61. 62. 63. 64. 65. 66. 67. 68. 69. 70. 71. 72. 73. 74. 75. 76. 77. 78. 79. 80. 81. 82. 83. 84. 85. 86. 87. 88. 89. 90. 91. 92. 93. 94. 95. 96. 97. 98. 99. 100

• 1620-1798-1799-1800-1801-1802-1803-1804-1805-1806-1807-1808-1809-1810-1811-1812-1813-1814-1815-1816-1817-1818-1819-1820-1821-1822-1823-1824-1825-1826-1827-1828-1829-1830-1831-1832-1833-1834-1835-1836-1837-1838-1839-1840-1841-1842-1843-1844-1845-1846-1847-1848-1849-1850-1851-1852-1853-1854-1855-1856-1857-1858-1859-1860

الله بُمْرَّةٍ

הְרָׁהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִם

Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK www.kenwoodworld.com
