Product type	Multifunction food processor
Brand	Kenwood
Model	Chef Elite KVC5300S
Dimensions (W x D x H)	Approx. 40 x 30 x 35 cm
Weight	Approx. 10 kg
Power supply	220-240 V, 50/60 Hz
Power	Variable depending on accessory (max. mini-chopper)
Bowl material	Stainless steel
Maximum capacity (K-beater)	2.72 kg (9-egg mixture)
Speeds	Continuous variable + pulse (P)
Main functions	Beating, whisking, kneading, mixing, high and low speed outlets for accessories
Included accessories	K-beater, whisk, dough hook (depending on model), spatula, splash guard, head cover
Optional accessories	Wide range via high and low speed outlets (Twist KAX system)
Bowl and accessories maintenance	Hand wash or dishwasher safe
Motor unit maintenance	Wipe with a damp cloth, do not immerse
Safety	Overload and overheat protection, automatic shut-off, indicator light
Repairability	Kenwood authorized repair centers
Warranty	In accordance with legal provisions of the country of purchase
Country of manufacture	China
Color	Silver (depending on model)

Frequently Asked Questions - Chef Elite KVC5300S KENWOOD

How to install the bowl and accessories?

Raise the head using the lever. Place the bowl on the base and turn it clockwise to lock. Insert the accessory into the shaft, push and turn to secure. Then lower the head and lock it.

How to adjust the height of the K-beater or whisk?

Unplug the appliance. Lift the head and insert the tool. If the gap is not correct, loosen the nut with a wrench (15 mm for KVC51, 19 mm for KVL61). Turn the shaft to adjust the height: counterclockwise to bring closer, clockwise to move away. Retighten the nut and check.

What to do if the machine stops while operating?

This may be due to overload or overheating. Set the speed control to 'O', unplug, remove some ingredients and let cool for 15 minutes. Plug in and restart. If the problem persists, contact customer service.

How to clean the machine?

Always unplug before cleaning. The bowl, whisk, K-beater, and dough hook can be hand washed or in the dishwasher. The motor unit and covers should be wiped with a damp cloth and dried. Do not use abrasive cleaners and never immerse the motor unit.

Can I use accessories from other brands?

It is recommended to use only Kenwood-approved accessories. Accessories for the slow speed outlet must be compatible with the Twist connection system (code KAX). For older accessories with Bar system, an adapter KAT002ME is required.

What is the maximum capacity for the dough hook?

For bread dough (firm yeast dough), the maximum flour quantity is 1.36 kg for the Chef Elite model, with a total dough weight up to 2.18 kg. Never exceed these capacities to avoid overload.

The indicator light is flashing, what should I do?

If the light flashes when you turn it on, check that the speed control is set to 'O' and the head is properly locked down. If the machine stops and the light flashes rapidly, there is likely an overload: unplug, remove ingredients, let cool for 15 minutes and restart.

Can I use the whisk for thick mixtures?

No, the whisk is designed for light preparations like egg whites or cream. Do not use it for thick mixtures (e.g., sugar and fats) as this could damage the whisk and the machine.

How to use the pulse function?

The 'P' position on the speed control allows short bursts at maximum speed. Turn the knob to 'P' and release quickly for a pulse. Hold for longer pulses. Use this function for chopping or quickly mixing in.

Where to find spare parts or get the appliance repaired?

For any repairs, contact an authorized Kenwood repair center. Visit www.kenwoodworld.com to find the nearest center. Do not attempt to repair the appliance yourself.

USER MANUAL Chef Elite KVC5300S KENWOOD

Labeled diagram of a kitchen mixer with numbered parts for identification and assembly reference.

Gray circular icon with a warning triangle above an open book and lines, symbolizing education or risk (no text present)

K beater max min Dough hook 1 min Whisk max

Technical diagram showing three-step assembly of a mechanical device, with numbered annotations indicating step-by-step changes.

Know your Kenwood Stand Mixer

Congratulations on buying a Kenwood. With such a wide range of attachments available, it's more than just a mixer. It's a state-of-the-art Stand Mixer. We hope you'll enjoy it.

Robust. Reliable. Versatile. Kenwood.

Safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• If the plug or cord is damaged it must, for safety reasons, be replaced by Kenwood or an authorised Kenwood repairer in order to avoid a hazard.
• Turn the speed control to ‘O’ OFF position and unplug before fitting or removing tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
• Never leave the Stand Mixer unattended when it is operating.
• Never use a damaged appliance. Get it checked or repaired: see ‘Service and customer care’ section.
• Never operate the Stand Mixer with the head in the raised position.
• Never let the cord hang down where a child could grab it.
• Never let the power unit, cord or plug get wet.
• Never use an unauthorised attachment or more than one attachment at once.
• Never exceed the quantities stated in the maximum capacity chart.
• When using an attachment, read and follow the safety instructions that are supplied with it.
• Take care when lifting this appliance as it is heavy. Ensure the head is correctly latched in the down position and that the bowl, tools, outlet covers and cord are secure before lifting.
• When moving the appliance always pick up by the pedestal base and mixer head. Do not lift or carry the appliance by the bowl handle.

- Do not move or raise the mixer head with an attachment fitted as the Stand Mixer could become unstable.

- Do not operate your appliance near the edge or overhanging the work surface or apply force to an attachment when fitted, as this may cause the unit to become unstable and tip over, which may result in injury.

- Take care when removing bowl tools after extended use as they may get hot.

- Ensure the cord is fully unfolded from the cord storage compartment ⑫ before using the Stand Mixer.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not operate your appliance near the edge of a work surface.

- The short power-supply cord is used to reduce risk resulting from becoming entangled in or tripping. Extension cords may be used if care is exercised in their use. If an extension cord is used: 1) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance; and 2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. 3) The extension cord should be an earthed-type 3-wire cord. The electrical rating of the appliance is listed on the bottom of the unit.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Misuse of your appliance can result in injury.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- The maximum rating is based on the mini chopper/mill attachment that draws the greatest load. Other attachments may draw less power.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of your machine.
• This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Know your Stand Mixer

Key

Attachment outlets

① high-speed outlet
② slow-speed outlet
③ bowl tool socket

Mixer

④ high speed outlet cover
⑤ mixer head
⑥ head release lever
⑦ mixer ready indicator light
⑧ on/off and speed control
⑨ power unit
⑩ bowl
⑪ slow speed outlet cover
⑫ cord storage compartment
⑬ K-beater
⑭ whisk
⑮ a dough hook (if supplied)
⑮b spiral dough hook (if supplied)
⑯ spatula
⑰ splashguard (if supplied)
⑱ splashguard (if supplied)

Ⓐ head shield

⑧ splashguard

Note: Spanner 13 shown is for illustration purposes only and is not supplied in pack.

Before using for the first time

- Wash the parts: see ‘care and cleaning’ section.

Optional attachments

There are a range of optional attachments available to use with your Stand Mixer.

See the attachment leaflet included in your pack or visit www.kenwoodworld.com to see the full range and how to buy an attachment not included in your pack.

Note: Slow Speed outlet attachments

The slow speed outlet on your Stand Mixer model features the Twist Connection System. It is designed to accept Twist Connection System attachments.

When purchasing new attachments for the slow speed outlet you should check compatibility with your Stand Mixer. All Twist Connection System attachments can be identified by the product code which starts with KAX and also by

the Twist logo TWIST which is visible on packaging. For more information visit www.kenwoodworld.com/twist.

If you own attachments featuring the Bar Connection System 📄 BAR you will need to use the KAT002ME adaptor to connect these to the Twist Connection System 📋 on your Stand Mixer.

For more information visit

www.kenwoodworld.com/twist.

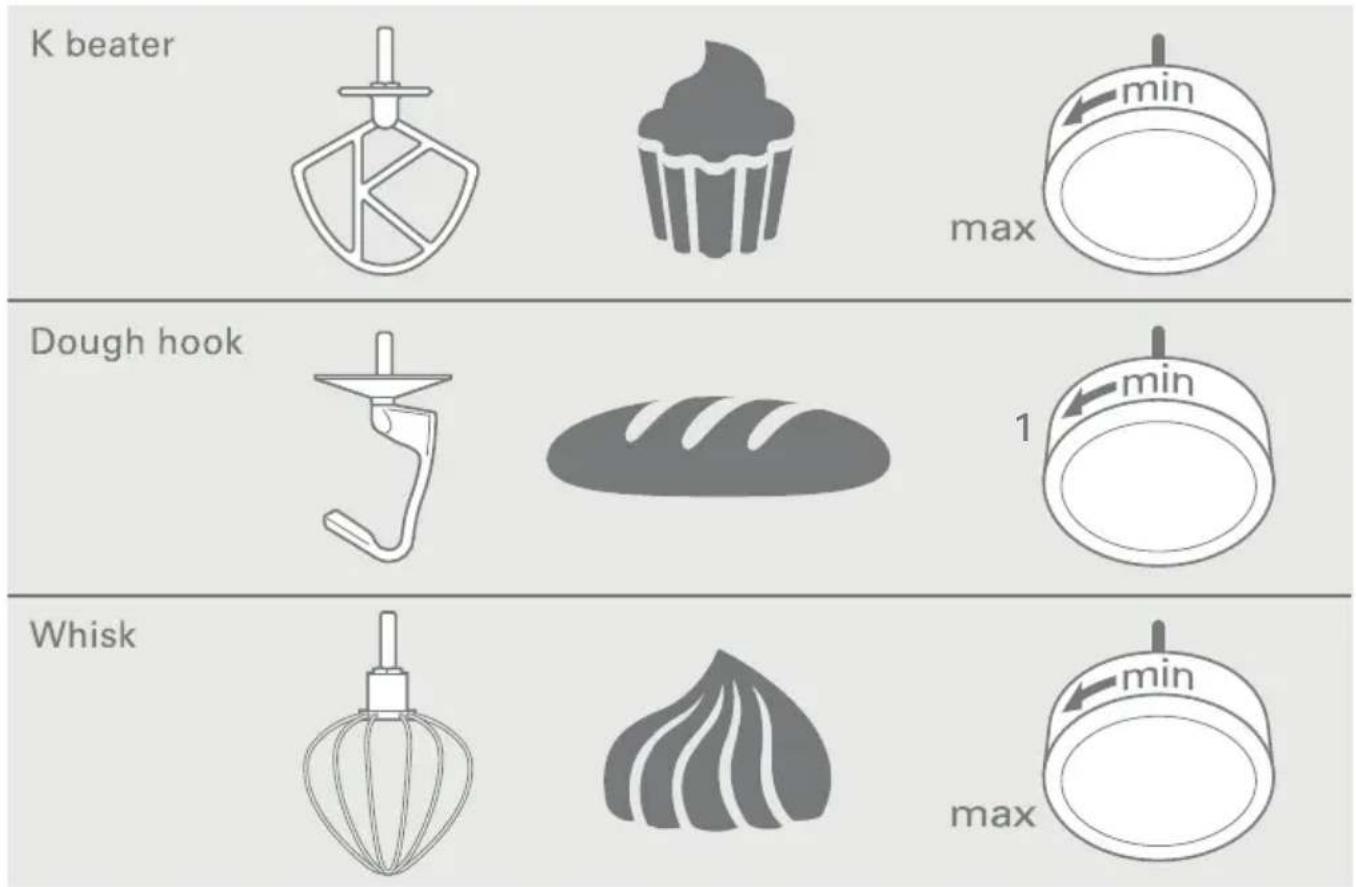

The bowl tools and some of their uses

K-beater

For making cakes, biscuits, pastry, icing, fillings, éclairs and mashed potato.

Whisk

For eggs, cream, batters, fatless sponges, meringues, cheesecakes, mousses, soufflés. Do not use the whisk for heavy mixtures (e.g. creaming fat and sugar) - you could damage it.

Dough Hook

For yeast mixtures only.

To use your bowl tools

Ensure the cord is fully unfolded from the cord storage compartment ⑫ before using the Stand Mixer.

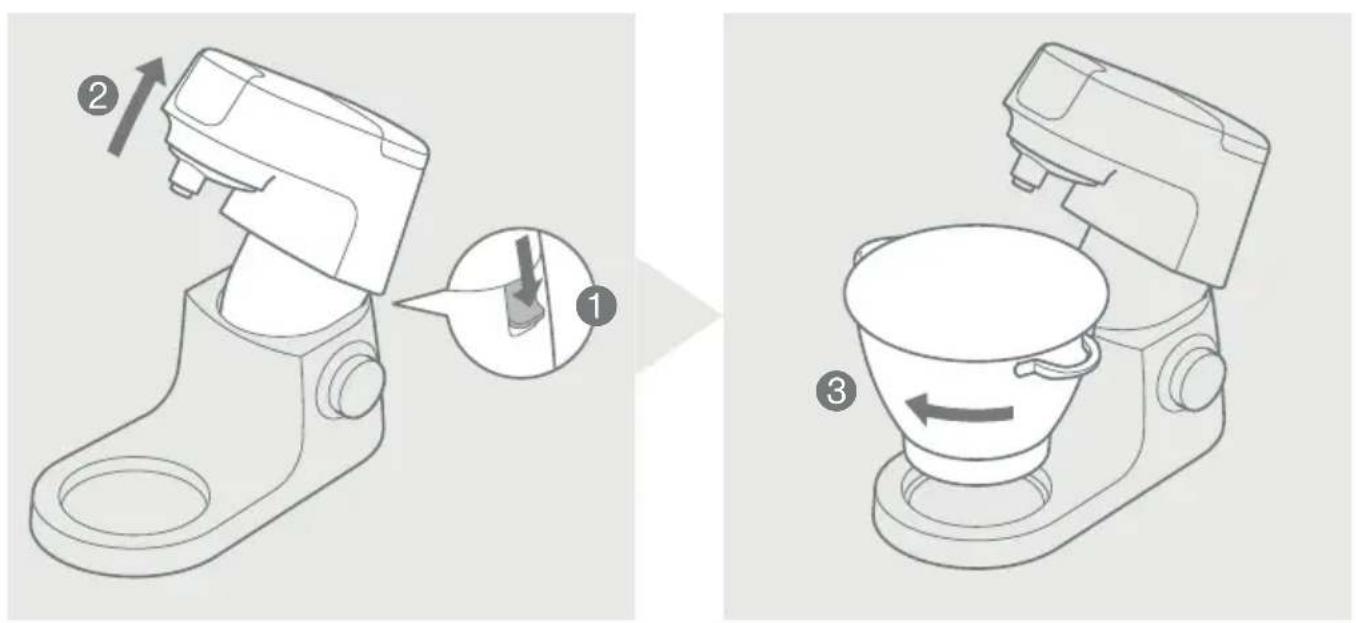

1 Push the head-lift lever ① down and raise the mixer head until it locks ②.
2 Fit the bowl on the base and turn clockwise ③ to secure in position.
3 Place the required tool into the socket. Then push up ④ and turn ⑤ the tool to lock into position.
Note: If the K-beater or Whisk are not picking up ingredients from the bottom of the bowl refer to the “Tool Adjustment” section.
4 Lower the mixer head by pushing the head release lever down ⑥ and lower the mixer head until it locks ⑦.
5 Plug into the power supply and the ‘mixer ready indicator light’ will illuminate.
6 Start the machine by turning the speed control to the desired speed setting. Use the pulse (P) position for short bursts of maximum speed.
7 After use, return the speed control to 'O' OFF position and unplug your Stand Mixer.

8 Release the tool by turning clockwise to unlock from the tool socket and then remove.

Hints

- The fold function can be used for folding light ingredients into heavier mixtures for example meringues, mousses, fruit fools, Genoese sponges and soufflés, and to slowly incorporate flour and fruit into cake mixtures. The mixer will operate at a constant slow speed.

Important

Ensure that no bowl tools are fitted or stored in the bowl when using other outlets.

Recommended Usage Chart
Tool Recipe/ Process Maximum Capacities			Chef Chef XL		Min → Max	4 • To avoid splashing of ingredients gradually increase the speed. When creaming fat and sugar for cake mixes, always use the fat at room temperature or soften it first. To fully incorporate the ingredients stop mixing and scrape down the bowl with the spatula frequently. Use cold ingredients for pastry unless your recipe says otherwise.
K-beater	Creaming butter/margarine and sugar		2.72kg (9 Egg mix)	4.55kg (15 Egg mix)	Min → Max	1 – 4
	Beating eggs into cake mixes				Min → Max	30 – 60 secs
	Folding in flour, fruit etc				Fold → 1	2
	Pastry & Biscuits – rubbing fat into flour	Flour Weight 680g 910g			Min → 2	2
	All In one cake mixes	Total Weight 2kg 5kg			Min → Max	45 – 60 secs
Whisk	Egg whites 12 (455g) 16 (605g)				Min → Max	112 - 2	ImportantTo avoid splashing of ingredients gradually increase the speed.The whisk is not suitable for making all in one cake mixes as these mixes are too heavy and will damage it.Best results achieved when eggs are at room temperature.Before whisking egg whites, make sure there is no grease or egg yolk on the whisk or the bowl.
	Fatless sponges 620g		(6 Egg Mix)	930g (9 Egg Mix)		4 – 6
	Cream(Fresh whipping Cream used, 38% fat content. Processing times may vary, depending on fat content of cream)		1L 2L		Min → 4-6	112 - 3
	Mayonnaise	Egg yolk	2		Max	1 - 112	For best results scrape down the bowl after the addition of the oil and run for a further 10 secs at max speed.
		Mustard	10g
		Vegetable Oil	200ml
	Pancake Batter	Flour	250g		'Min' speed for 10 secs. Then increase to max speed for 45 – 60 secs	1 • Add flour to the bowl first, followed by the wet ingredients.Mix on minimum speed to incorporate ingredients.
		Milk	500g
		Eggs	200g

Eggs sizes used = medium sized (Weight 53 - 63g)
* This is for guidance only and will vary depending on the exact recipe and ingredients being processed

Tool Recipe/ Process Maximum Capacities					∅	∅* (Minutes)	Hints and Tips
Dough Hook (For Yeasted Dough Mixes)	Bread Dough(stiff yeasted)	Flour Weight	350g - 1.36kg	350g - 1.6kg	Min 60 secs		ImportantNever exceed the maximum capacities stated – you may overload the machine.If you hear the machine labouring, switch off, remove half the dough and do each half separately.The ingredients mix best if you put the liquid in first.YeastDried yeast(the type that needs reconstituting): pour the warm water into the bowl. Then add the yeast and the sugar and leave to stand for about 10 minutes until frothy.Fresh yeast:crumble into the flour.Other types of yeast:follow the manufacturer's instructions.Put the dough into a greased polythene bag or a bowl covered with a tea towel. Then leave somewhere warm until doubled in size.
					1	3-4
		Total Weight	564g - 2.18kg	564g - 2.58kg	Re-kneadSpeed 1	60 secs
	Soft yeasted dough(enriched with butter and eggs	Flour Weight 2	50g - 1.3kg	250g - 1.6kg	Min 60 secs
		Total Weight 4	78g - 2.5kg	478g - 3.1kg	1	3-4
					Re-kneadSpeed 1	60 secs

Eggs sizes used = medium sized (Weight 53 - 63g)
* This is for guidance only and will vary depending on the exact recipe and ingredients being processed

To fit and use your Splashguard

Splashguard ⑰

1 Raise the mixer head until it locks.
2 Fit the bowl onto the base.
3 Push the splashguard onto the underside of the mixer head ⑧ until fully located. The hinged section should be positioned as shown.
4 Insert required tool.
5 Lower the mixer head.

- During mixing, ingredients can be added directly to the bowl via the hinged section of the splashguard ⑨.

- You do not need to remove the splashguard to change tools.

6 Remove the splashguard by raising the mixer head and pushing it down.

Splashguard ⑱

The splashguard assembly consists of

2 pieces: the head shield Ⓐ and the splashguard Ⓑ.

• The splashguard cannot be fitted to the bowl unless the shield is fitted.
  1 Clip the head shield upwards onto the underside of the mixer head ⑩ until fully located.
  2 Rest the splashguard on the bowl rim and then slide forward until fully located ⑪.

Tool Adjustment

K-beater & Whisk

The tools are set to the correct height for the bowl supplied in the factory and should not require adjustment.

However, if you wish to adjust the tool use a suitable sized spanner:

TYPE KVC51 = 15mm

TYPE KVL61 = 19mm

Then follow the instructions below:

1 Unplug the appliance. 2 Raise the mixer head and insert the whisk or beater.
3 Lower the mixer head. If the clearance needs to be adjusted, raise the mixer head and remove the tool. Ideally the whisk and K-beater should be almost touching the bottom of the bowl 12.
4 Using a suitable spanner loosen the nut sufficiently to allow adjustment of the shaft 13. To lower the tool closer to the bottom of the bowl, turn the shaft anticlockwise. To raise the tool away from the bottom of the bowl turn the shaft clockwise.
5 Re-tighten the nut.
6 Fit the tool to the mixer and lower the mixer head. (Check its position see points above).
7 Repeat the above steps as necessary until the tool is set correctly. Once this is achieved tighten the nut securely.
- Note: Spanner 13 shown is for illustration purpose only.

Dough Tool

This tool is set at the factory and should require no adjustment.

Care & Cleaning Recipe

• Always switch off and unplug before cleaning.
• A little grease may appear at the slow speed outlet ② when you first use it. This is normal – just wipe it off.

Power Unit And Outlet Covers

• Wipe with a damp cloth, then dry.
• Never use abrasives or immerse in water.
• Store excess cord into the cord storage compartment ⑫ at the back of the machine.

Bowl

• Wash by hand, then dry thoroughly or wash in the dishwasher.
• Never use a wire brush, steel wool or bleach to clean your stainless steel bowl. Use vinegar to remove limescale.
• Keep away from heat (cooker tops, ovens, microwaves).

Whisk & Splashguard

- Wash by hand, then dry thoroughly or wash in the dishwasher.

K beater & Dough Tool

- Wash by hand, then dry thoroughly or wash in the dishwasher.

chilli marinade

200g cold clear runny honey (refrigerated overnight)

1 chilli (whole)
20g (1tsp) crunchy peanut butter Seasoning

1 Place all the ingredients into the mini chopper/mill.
2 Fit the attachment to the Stand Mixer and allow the ingredients to settle around the blade.
3 Switch to pulse for 4 seconds.
4 Use as required.

Service and Customer Care

• If you experience any problems with the operation of your appliance, before requesting assistance refer to the “Troubleshooting guide” section in the manual or visit www.kenwoodworld.com.
• Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
• If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
• Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Troubleshooting guide

Problem	Cause	Solution
The whisk or K-beater Tool knocks against the bottom of the bowl or not reaching the ingredients in the bottom of the bowl.	at the wrong Adjust the height and needs spanner adjusting. section.	ght using a suitable see “Tool Adjustment”
Slow speed attachment Check your attachment Attachment must have the KAX cannot be fitted. is compatible for twist connection system [BWH6] to fit use with your model. the outlet. Twist connection If you own attachments featuring system required (Model KAX)		the Bar Connection System you will need to use the KAT002ME adaptor to connect these to the Twist Connection System on your Stand Mixer. For more information visit www.kenwoodworld.com/twist
‘Mixer ready indicator light’ flashing when Stand Mixer first plugged in. Mixer head in the raised position or not locked down correctly.	Speed control not in the ‘O’ position. to the ‘O’ position. Check Stand Mixer head is locked down correctly.	Check and turn speed control
The Stand Mixer stops during operation. ‘Mixer ready indicator light’ flashing rapidly.	Overload protection or overheat system activated. Turn the speed maximum capacity exceeded. If this still does not resolve the problem, unplug and allow to stand for 15 minutes. Plug in and reselect the speed. If the machine does not restart following the above procedure contact “Customer care” for further advice.	Unplug and check for obstruction or overloading. control to “O” and then restart. If the machine will not operate, remove some of the ingredients to reduce the load and restart.
‘Mixer ready indicator light’ off whilst machine plugged in. being operated and has gone into Standby mode.	Stand Mixer has been left plugged in for more than 30 minutes without machine.	Turn the speed control to ‘min’ then return to ‘O’ to reset the machine.

Eggs sizes used = medium sized (Weight 53 - 63g)
* This is for guidance only and will vary depending on the exact recipe and ingredients being processed

Û38tR Û3R1η Ûr3T1S Û38tōH It3rd tIT

Ληδφfr

nǐHìiǐ8IJRdT

īTǐ lùÛR̃ t̄d̄r̃3l t̄ŋ8d̄t̄nÕIJT ʌlǐHÍJÍlʌR̄H̄T

3I 3fU1 3TΔIdR 3IdrUtI8 IJiTutTt

3η88 1η8ij3r̃ ÂS̃H ZdS1T3ηΔηTIfIJI IJη

ΗΗΙΙ8ΙJRdΤ ̇UTI Λ8tΗR̈ 3ɪḟU₃ΙΙJι ∧ Z

I_3 88 8 ± 3

ΗΙ ΑΩητ3SsIf ü3RüS

3i_3S8

ÂeH̃n ÛT̃I 3îrÛ̃3l̃J̃ 3i 3lÛT̃R
