SAFETY AND INSTRUCTIONS FOR USE

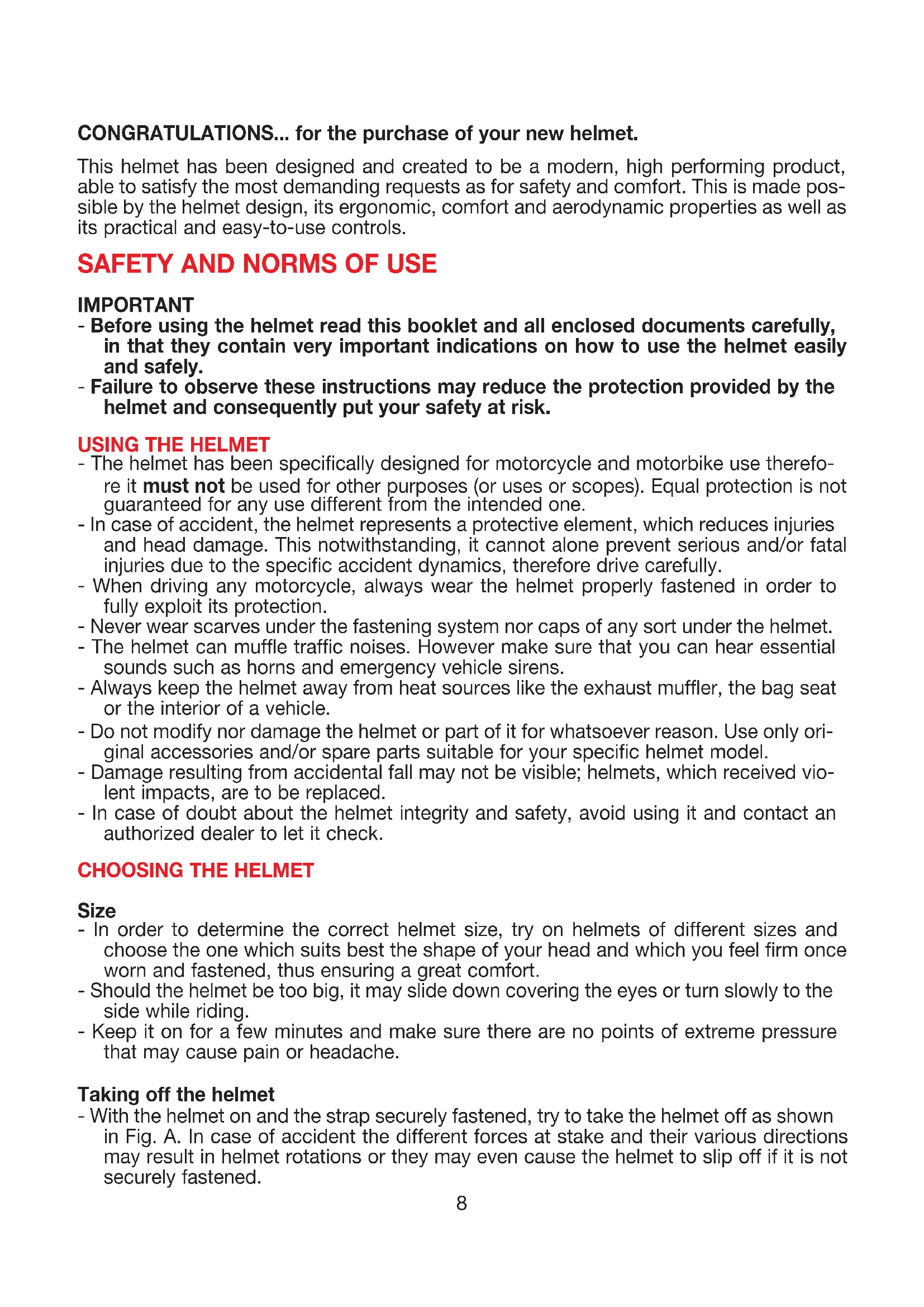

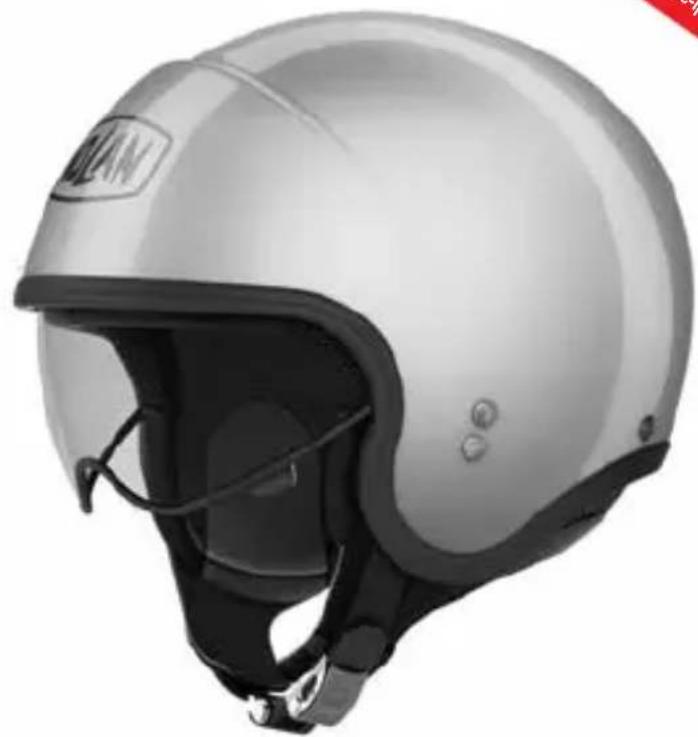

CONGRATULATIONS... for the purchase of your new helmet. This helmet has been designed and created to be a modern, high performing product, able to satisfy the most demanding requests as for safety and comfort. This is made pos- sible by the helmet design, its ergonomic, comfort and aerodynamic properties as well as its practical and easy-to-use controls.

SAFETY AND NORMS OF USE

IMPORTANT - Before using the helmet read this booklet and all enclosed documents carefully, in that they contain very important indications on how to use the helmet easily and safely. - Failure to observe these instructions may reduce the protection provided by the helmet and consequently put your safety at risk.

- The helmet has been specifically designed for motorcycle and motorbike use therefo- re it must not be used for other purposes (or uses or scopes). Equal protection is not guaranteed for any use different from the intended one. - In case of accident, the helmet represents a protective element, which reduces injuries and head damage. This notwithstanding, it cannot alone prevent serious and/or fatal injuries due to the specific accident dynamics, therefore drive carefully. - When driving any motorcycle, always wear the helmet properly fastened in order to fully exploit its protection. - Never wear scarves under the fastening system nor caps of any sort under the helmet. - The helmet can muffle traffic noises. However make sure that you can hear essential sounds such as horns and emergency vehicle sirens. - Always keep the helmet away from heat sources like the exhaust muffler, the bag seat or the interior of a vehicle. - Do not modify nor damage the helmet or part of it for whatsoever reason. Use only ori- ginal accessories and/or spare parts suitable for your specific helmet model. - Damage resulting from accidental fall may not be visible; helmets, which received vio- lent impacts, are to be replaced. - In case of doubt about the helmet integrity and safety, avoid using it and contact an authorized dealer to let it check.

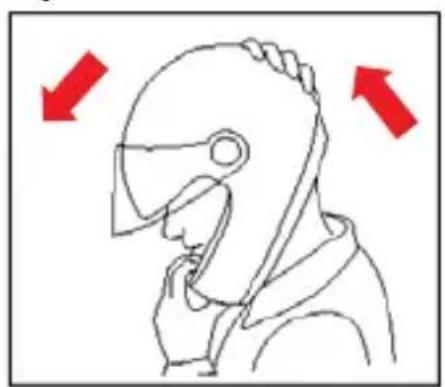

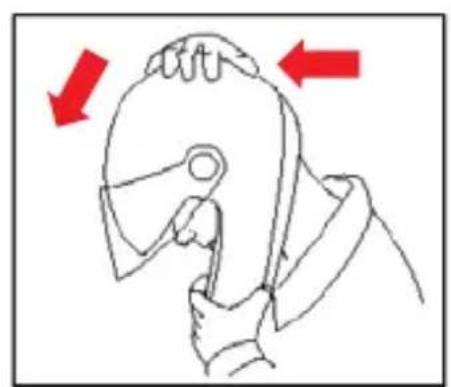

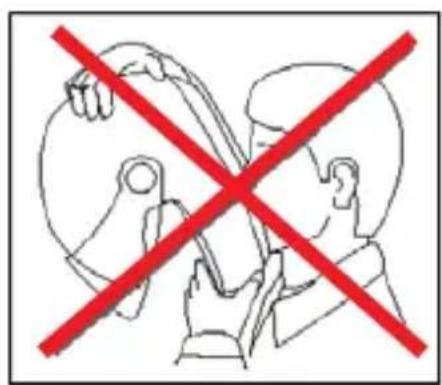

Size - In order to determine the correct helmet size, try on helmets of different sizes and choose the one which suits best the shape of your head and which you feel firm once worn and fastened, thus ensuring a great comfort. - Should the helmet be too big, it may slide down covering the eyes or turn slowly to the side while riding. - Keep it on for a few minutes and make sure there are no points of extreme pressure that may cause pain or headache. Taking off the helmet - With the helmet on and the strap securely fastened, try to take the helmet off as shown in Fig. A. In case of accident the different forces at stake and their various directions may result in helmet rotations or they may even cause the helmet to slip off if it is not securely fastened.- The helmet should not rotate nor move on the head and should not slide off. Should the contrary happen, adjust strap length or change helmet size. Repeat test. Retention System - The retention system (strap) is factory-adjusted at a standard length. Before use, check that it is correctly pre-adjusted. - Make sure the strap is properly fastened and tightened so as to keep the helmet firmly in place. Anyway, before riding, make sure that the strap is well fastened under the chin, as close as possible to the throat, but without being uncomfortable. - The correct strap tension should allow normal breathing and swallowing, but without leaving the space of a finger between strap and throat. - Attention: the button which may be present on the strap only prevents its end from flapping once the strap has been fastened properly. VISOR - If the visor is damaged or deeply scratched causing reduced visibility, this means that the protective treatment is probably damaged so the visor is to be replaced. - The visor can be used only for the intended helmet model. - Do not paint nor apply stickers.

MAINTENANCE AND CLEANING

- Damage resulting from accidental fall may not be visible; helmets, which received violent impacts, are to be replaced. - Attention: Helmet and visor may be seriously damaged by some common substances without the damage being however visible. Use only lukewarm water and mild soap to clean helmet and visor, and then let them dry at room temperature away from sunrays and/or heat sources. - Attention: Never use petrol, thinner, benzene, solvents nor other chemicals which may:

Irreparably damage the helmet;

Modify optical properties, reduce mechanical ones and weaken the visor protective treatment. Fig. A

VISOR (VPS LIGHT BLUE) To lift up or lower the inner visor push its left side flap upwards or pull it downwards (Fig. 1).

1. Visor Disassembly

1.1. Lower the visor completely. 1.2. Hold the left lateral part of the visor and pull it toward the outside of the helmet (Fig. 2). 1.3. Repeat the same steps on the right side of the visor and remove it from the helmet.

2.1. Insert the visor left end into the left side guide until the grip pawl is hooked in the shell housing (Fig. 2). 2.2. Repeat the same operation on the right side of the visor. WARNING - Make sure that the mechanisms are working properly. Open and close the visor making sure that the mechanisms hold it in the different positions. If necessary, repeat the above-mentioned steps. - Do not use the helmet if the visor has not been assembled properly. - Do not remove the side mechanisms from the shell. - Should any of the side mechanisms fail or be damaged, please refer to a Nolan authorized dealer.

VISOR LOWER EDGE TRIM

The lower visor profile is moulded with a printed trim attached to the visor with faste- ning elements.

3. Visor Trim Disassembly

To release the trim from the lower edge of the visor, first remove the visor from the helmet (see instructions above). 3.1. Pull the trim right end downwards to release the first fastening from the visor (Fig. 3). 3.2. Continue releasing the other fastenings one by one, moving towards the other end of the visor (Fig. 4). 3.3. Pull out the trim form the visor left side flap (Fig. 4). 3.4. Release the trim left end and completely remove it from the visor (Fig. 5).

4. Visor Trim Assembly

4.1. Insert the left side flap of the visor in its slot on the trim (Fig. 6). 4.2. Press the trim left end against the visor to attach it to the relevant fastening element (Fig. 4). 104.3. Continue hooking the other fastenings one by one, moving towards the other end of the visor (Fig. 4). 4.4. Push the trim right end against the visor to attach it to the last fastening ele- ment (Fig. 3). 4.5. Push the trim against the visor aligning it with all the fastening elements in order to attach it evenly along the whole visor lower edge; check that all the fastening elements are correctly attached and that the trim and the visor fit together tightly. Finally, fit the visor on the helmet (see instructions above). WARNING - Never use the helmet without having correctly assembled the visor lower edge trim. - Make sure that the mechanisms are working properly. Open and close the visor, making sure that the mechanisms hold it in the different positions and check that the visor lower edge trim does not come out of the visor. If neces- sary, repeat the above-mentioned steps. - In case of malfunctioning or damages, please contact an authorised Nolan dealer.

To remove the inner comfort padding, open the visor completely (see instructions above). 5.1. Open the chin strap (see specific instructions). 5.2. Hold the left front part of the liner and pull it upwards in order to remove the liner flap from the support fixed to the polystyrene inner shell (Fig. 7). Then repeat the same steps for the central front and right flap 5.3. Remove the left and right sides of the comfort padding from the cavity between the inner polystyrene shell, the outer shell and the visor side guides (Fig. 8). 5.4. Unhook the left rear flap of the liner from the support fixed to the polystyrene inner shell by slightly pulling the comfort padding towards the inside of the hel- met (Fig. 9). Then repeat the same steps for the central and right flap. 5.5. Remove the chin straps from the elastic loops on the straps and the from the liner side slots (Fig. 10A). 5.6. Completely remove the liner from the helmet.

6. Inner Comfort Padding Assembly

6.1. Insert the liner correctly into the helmet and fit it well against the base 6.2. Pull the left rectangular textile extension of the liner (Fig. 10B) and insert the chin strap into the corresponding slot in the lateral side of the liner (Fig. 10A) then fold the rectangular textile extension of the liner inside the padding. Follow the same steps on the right side of the helmet. 116.3. Insert the right and left sides of the liner in the cavity between the inner poly- styrene shell, the outer shell and the visor side guides (Fig. 8). 6.4. Insert the central rear flap of the liner into its seat on the support fixed to the polystyrene inner shell and push it downwards until it is completely locked. Follow the same steps for the right and left rear flaps. (Fig. 9). 6.5. Insert the left front flap of the liner into its seat on the support fixed to the poly- styrene inner shell and push it downwards until it is completely locked. Follow the same steps for the central and right flap (Fig. 7). NOTE: Check the correct assembly of the liner front area by lifting and lowe- ring the visor. These movements should be smooth. If this is not the case, repeat the steps 5.2 and 6.5. 6.6. Insert the chin straps in the elastic loops on the straps and pull it towards the inside of the helmet. WARNING - Remove the inner comfort padding only when cleaning or washing is required. - Never use the helmet if the all parts of inner comfort padding have not been correctly and completely reassembled - Before washing the inner comfort padding, make sure to remove all the remo- vable sponge parts. Replace them correctly after washing. - Delicately hand-wash in lukewarm water (max. 30° C) and neutral soap. - Rinse with cold water and allow drying at room temperature, away from direct sunlight. - Never machine-wash the inner comfort padding. - The inner polystyrene is an easily deformable material. It is apt to change or get partially destroyed to help absorb shocks. - Do not modify or alter the helmet’s internal polystyrene components in any way. - Clean the inner components with a damp cloth only and allow it to dry at room temperature away from direct sunlight. - Never use tools or equipment of any sort to carry out the steps described above.

Some versions of this helmet feature a metallic ring called HELMET LOCK RING (Fig. 11), that can be used for hanging the helmet to the special hook placed on many motorbikes. WARNING - Only use the HELMET LOCK RING to hang the helmet to the motorbike. - Check that - when hung to the hook- the helmet is not directly exposed to heat sources or other stresses that may modify its characteristics or damage it. - The HELMET LOCK RING is not related to the helmet retention system (strap) and/or its adjustment (see specific instructions).

12- Never use the HELMET LOCK RING to fasten the helmet to the head and/or to

This helmet is manufactured in a plant respecting the environment. At the end of its use, it is recommended to dispose of it according to specific regulations in force over the place or Country of residence.
