USER MANUAL SMS 349 CB BOMANN

STABMIXER-SET SMS 349 CB

Staafmixerset • Set mixer • Juego de varilla batidora • Batedeira • Set frullatore a barra

Black and white photo of a BOMANN brand blender with a whisk, a small bowl, and a metal stand (no text or symbols visible on the main objects)

Overview of the Components ...... Page 3

Instruction Manual......Page 39

Technical Data Page 42

Disposal Page 43

JEZYK POLSKI

Spis treści

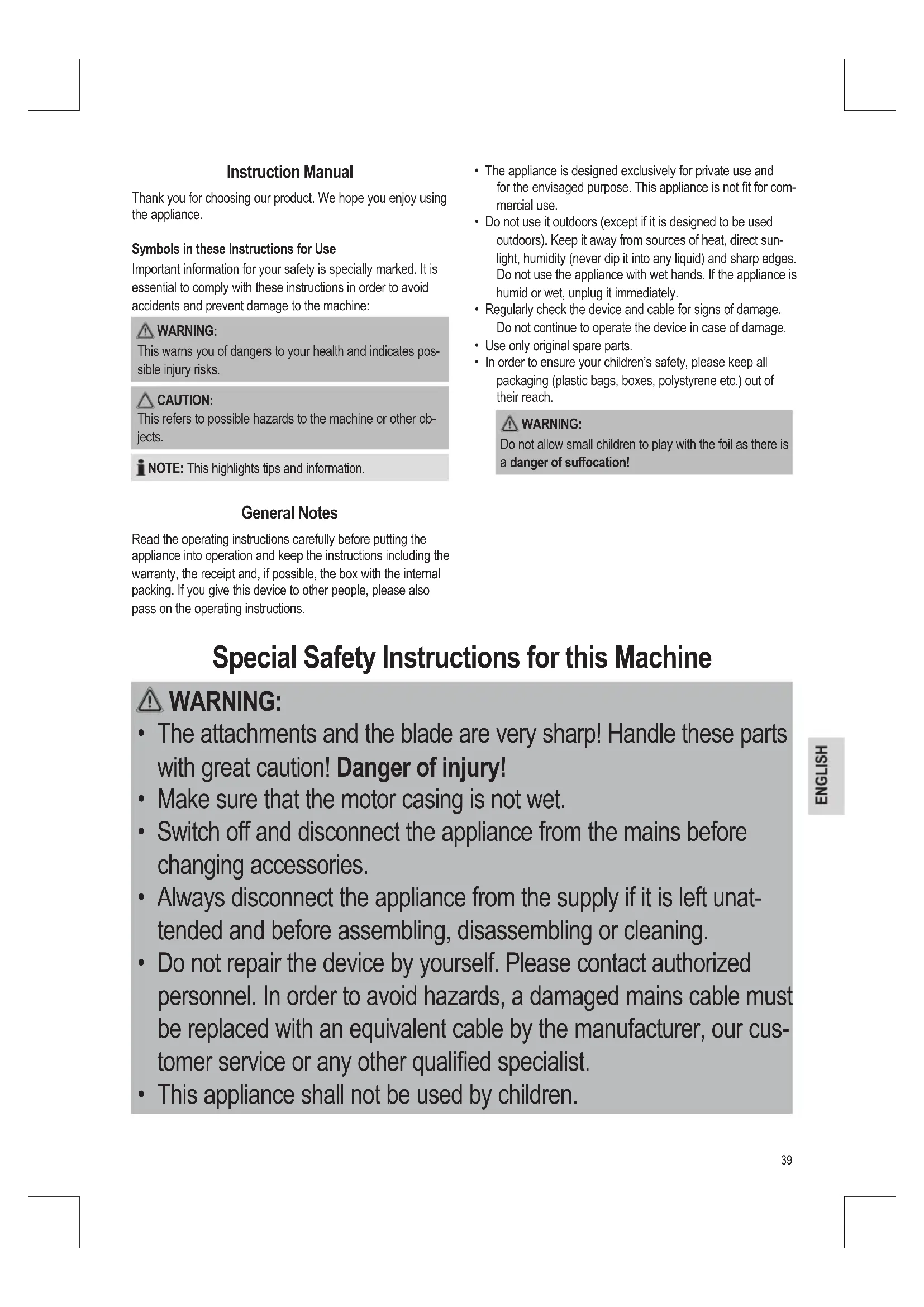

Thank you for choosing our product. We hope you enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil as there is a danger of suffocation!

Special Safety Instructions for this Machine

WARNING:

• The attachments and the blade are very sharp! Handle these parts with great caution! Danger of injury!
  • Make sure that the motor casing is not wet.
• Switch off and disconnect the appliance from the mains before changing accessories.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
  • This appliance shall not be used by children.

WARNING:

• Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

CAUTION:

• Do not use this appliance to chop up any hard food such as ice cubes, nutmeg, or large pieces of cooking chocolate. This can destroy the blade!
• This appliance is not designed to be immersed in water during cleaning. Please follow the instructions that we have included for you in the chapter on “Cleaning”.

Overview of the Components

1 Two-level control switch
2 Motor casing
3 Mixing rod, removable
4 Adapter for whisk
5 Whisk
6 Lid of the chopping machine
7 Multi-purpose blade
8 Transparent beaker (for the chopper)
9 Accessory holder

Accessories (not shown)

Mixing bowl

Before Use

1. Take out all the parts carefully out of the packing.
2. Clean the device before using it for the first time as described in "Cleaning and Maintenance".

Attaching Accessories

Attaching the Mixing Rod

1. Place the motor housing (2) on the mixing rod (3) (see illustration A).

2. Tighten the motor housing in a clockwise direction by turning it as far as it will go. Check that it is tight.

Remove the mixing rod

Remove the mixing rod from the motor housing by turning it briefly in an anticlockwise direction.

Whisk

If you would like to use the whisk (5), replace the mixing rod by the adapter (4).

1. Lock the whisk into place by applying moderate pressure to the driveshaft of the adapter (see Illustration B).
2. Place the motor housing (2) on the adapter (4).
3. Tighten the motor housing in a clockwise direction by turning it as far as it will go. Check that it is tight.

Dicer

1. Place the blade (7) (sharp edges facing downwards) on the metal axle in the container.

WARNING:

The multi-blade is very sharp! Danger of injury!

1. Place the lid (6) level on the container and tighten it. (see Illustration C).
2. Place the motor housing in position and lock it into place by turning in a clockwise direction.

Function and Accessories

Instructions

• The appliance is designed for the mashing and mixing of food and drinks and for chopping together with the multi-chopper.
• Chop up large pieces of solid food before mashing (max. ∅ 1.5 cm) and add a little liquid.
• The appliance is designed to process only small quantities of food! Fill the container with the maximum quantities specified in the table!

Adapt the capacity to the foaming behavior of the food to be mixed. Decrease the amount if necessary.

• Pay attention to the slowing down of the motor after shutting off.
• Short-time operating: The appliance is designed to be operated for short periods of a maximum of 60 seconds. Before using again, allow to cool for approx. 60 seconds.
• Do not process hot food. There is a risk of injury from hot liquids. The attachments are also only suitable for a temperature of up to 60^ .

Two-level control switch (1)

Level I: This provides the slowest speed and cannot be regulated.

Level II: This provides the maximum speed and cannot be regulated.

- You can achieve pulse operation by pressing the button at intervals and then releasing it.

Attachment	Function Speed		Operating Time
Mixing rod (3)	For mixing and stirring shakes, drinks, omelette mixtures, sauces, puréeing soups and sauces	Level I or Level II	max. 1 Min.
Whisk (5) For beating cream, egg white and blanc-mange and whipping up sauces, sponge cake mixture and other airy and foamy foods		Level I or Level II	max. 1 Min.
Multiple blade (7)	For chopping and dicing onions, nuts, herbs etc.	Level I or Level II	max. 1 Min.

Switch off the appliance

- The device switches itself off when the button is released.

• Always wait until the knife on the stick blender / multi-chopper or egg whisk has come to a complete stop!
- Pull out the plug from the socket after use. Clean and put the device away as described in "Cleaning and Maintenance".

Using the Mixing Rod and Whisk

1. Make sure that the plug is not inserted! Unwind the mains lead completely.
2. Select an accessory. Please note the section "Attaching Accessories".
3. Follow the instructions above in the "Instructions" section.
4. Place the food into the mixing bowl. Insert the mixing rod or whisk completely.
5. Hold the device in such a way that you are able to operate the two-level control switch (1) with your fingers.
6. Only connect the machine to a properly installed safety socket.
7. Press one of the buttons of the two-level control switch. Move the mixing rod or whisk up and down.

Using the Multi-chopper

1. Make sure that the appliance's plug is not inserted in the socket!
2. Fit the multi-chopper as described in the section "Attaching Accessories / Dicer"
3. Place the multiple chopping machine on a flat, level surface.
4. Cut the food to be mixed beforehand into small pieces. Fill the transparent beaker (8). Do not fill the beaker to the rim, but only 34 of the beaker capacity. Please note the following table.

Table

Food type Preparation		Maximum Quantity	Maximum Time
Boiled eggs peeled, diced		300g (1/4 pieces)	10 sec.
Herbs 150g			15 sec. or pulse
Walnuts/hazelnuts	without shells! 200g	15 sec.
Almonds without shells! 200g 15 sec.
Garlic peeled	200g		15 sec. or pulse
Onions	2 cm pieces	250g	15 sec. or pulse
Parsley	washed, destalked	60g	10 sec.
Bread (bread crumbs)	2 cm pieces	40g	15 sec. or pulse
Meat	2 cm pieces	250-400g	15 sec. or pulse
Parmesan cheese	1 cm pieces	100g	15-20 sec

Of course, you can chop also other foods that are not specified herein. In order to determine the maximum time for a type of food that is not specified herein, compare it with the hardness of another type of food provided in the table, i.e. an Apple has the same insistence of onion.

1. Seal the bowl again with the lid; the recesses on the lower edge of the lid and on the upper edge of the bowl must interlock.

2. Place the motor casing on the upper opening of the lid and fasten the multi-chopper by turning it to the right.

3. Only connect the machine to a properly installed safety socket. Allow the multi-chopper to stand on the surface during operation until you remove the multi-blade (7). Hold the multi-chopper firmly with a hand.

4. Press one of the buttons on the two-level control switch.
5. After use: Release the motor housing from the multiple chopping machine by turning it and then remove it from the lid.
6. Remove the lid and pull the multi-blade out carefully.

WARNING:

The multi-blade is very sharp! Danger of injury!

1. Pour the contents of the beaker into a container or plate.

Cleaning and Maintenance

WARNING:

• Always pull the plug out of the socket before cleaning!
- Under no circumstances should you immerse the motor housing in water in order to clean it. Otherwise this might result in an electric shock or fire.
- The multi-purpose knife and the knife on the stick blender are very sharp. Handle these parts with care! There is a risk of injury!

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• To clean thoroughly, detach the stick blender or egg whisk from the motor housing.
• Removable parts which have come into contact with food (tool and container) can be cleaned in soapy water. You can add a commercially available washing-up liquid.
• Rub the outside of the motor casing with a moist towel to clean it when necessary and then wipe it with a dry cloth.
• After cleaning, store the mixing rod in the accessory holder supplied (see illustration D). Tighten the attachments and the mixing rod with one clockwise turn to prevent the attachments from falling down.

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 88 dB(A) (no limit)

Technical Data

Model: ......SMS 349 CB

Power supply: 230V\~, 50 Hz

Power consumption: 200 W

Protection class: ....II

Filling quantity: 0.1 - 0.5 Litre

Net weight:......approx. 1.1 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
