USER MANUAL CB 307C BOMANN

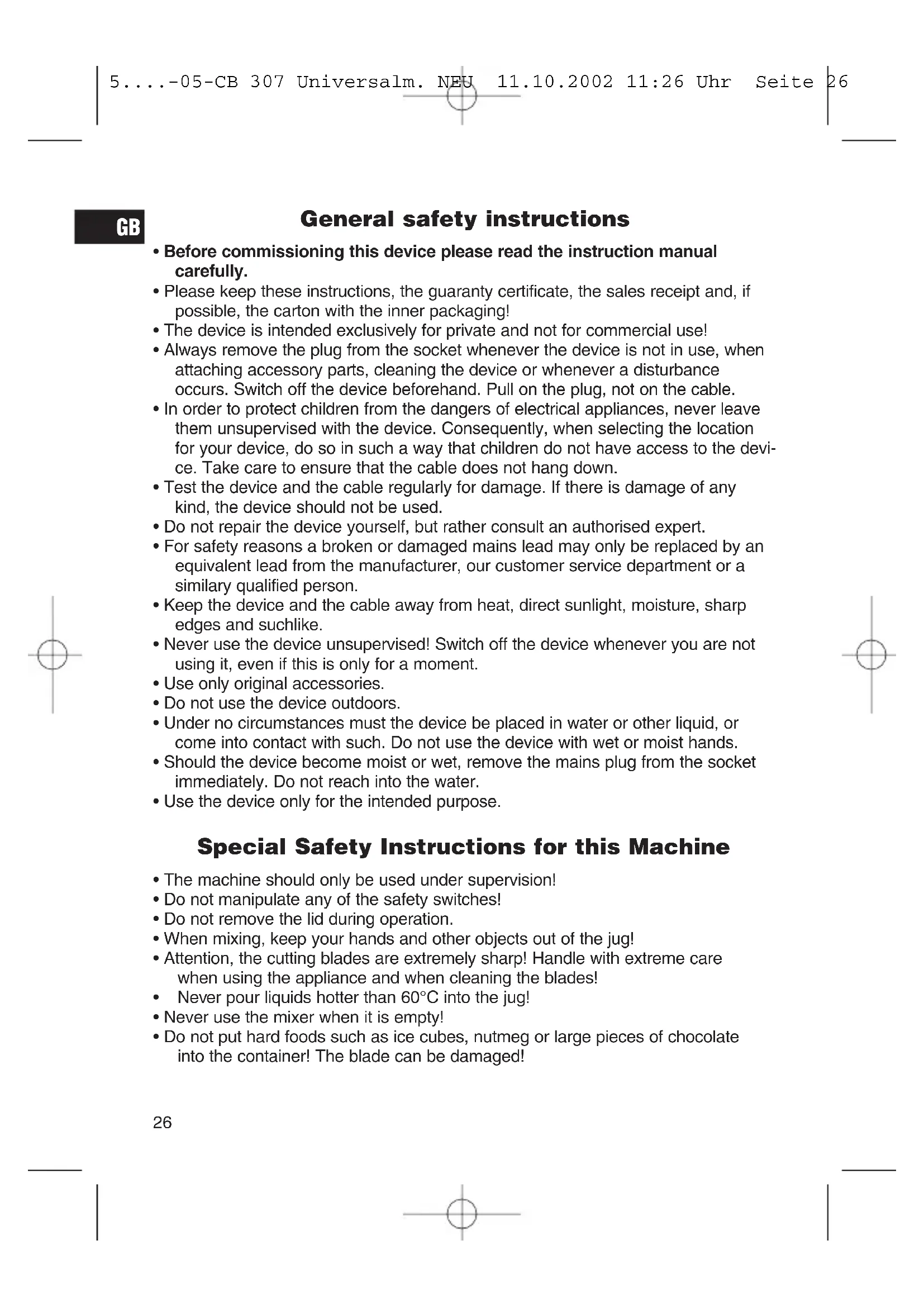

• Before commissioning this device please read the instruction manual carefully.

• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!

• The device is intended exclusively for private and not for commercial use!

• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.

• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the devi- ce. Take care to ensure that the cable does not hang down.

• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.

• Do not repair the device yourself, but rather consult an authorised expert.

• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similary qualified person.

• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.

• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.

• Use only original accessories.

• Do not use the device outdoors.

• Under no circumstances must the device be placed in water or other liquid, or come into contact with such. Do not use the device with wet or moist hands.

• Should the device become moist or wet, remove the mains plug from the socket immediately. Do not reach into the water.

• Use the device only for the intended purpose. Special Safety Instructions for this Machine

• The machine should only be used under supervision!

• Do not manipulate any of the safety switches!

• Do not remove the lid during operation.

• When mixing, keep your hands and other objects out of the jug!

• Attention, the cutting blades are extremely sharp! Handle with extreme care when using the appliance and when cleaning the blades!

• Never pour liquids hotter than 60°C into the jug!

• Never use the mixer when it is empty!

• Do not put hard foods such as ice cubes, nutmeg or large pieces of chocolate into the container! The blade can be damaged!

List of Parts 1 Knife block 5 Filler lid 9 Covering plate 2 Motor housing 6 Lid (with pin) 3 Rotary switch 7 Carafe 10 Sealing ring 4 Cable slot 8 Safety switch Putting into operation

1. Before starting, make sure that the knob is positioned on „0“ and that the plug is

2. Check the decanter. The blade block, the cover disc and the gasket must be

mounted in the right order. See „Overview of Components“.

3. Place the decanter on the motor casing. The decanter must be positioned so

that the safety pin of the transparent cover disc is located on the surface of the safety switch on the edge of the chromed casing.

4. Connect the plug to a duly installed 230V/50Hz socket.

5. Fill the ingredients into the decanter and cover with the lid. The lid must be

fastened tightly. The decanter must be held firmly during the mixing.

6. For constant mixing (continuous mode):

When operating in levels 1 or 2 snap the selector into the desired position: Level 1 = low rpm Level 2 = high rpm Shift the selector to „0“ to switch off the appliance.

7. For pulse mode (mixing at brief intervals) shift the switch to „0“ position. The

switch snaps into place. The appliance is off now. Turn the switch now to position „P“. The switch must be kept in this position for the desired interval. When the switch is released, it returns automatically to „0“ position.

8. Before putting the mixer away, wrap the cable around the slot on the motor

casing. Cleaning Always disassemble the mixer after use. Wash and dry all the parts of the decanter.

Warning: The electric plug must be removed before the mixer is taken apart!

All the parts of the decanter can be washed in the uppermost rack of the dishwas- her. After cleaning and drying the decanter must be reassembled so that the gasket is located between the blade block and the decanter. See „Overview of Components“. Before using each time the blade block must be screwed securely onto the decan- ter. Dry the external surface of the mixer base with a moist cloth. 5....-05-CB 307 Universalm. NEU 11.10.2002 11:26 Uhr Seite 27Important notice on the safety switch The all-purpose mixer is equipped with a safety switch that avoids that the motor run without the decanter mounted on it (danger of injury!). When the decanter is mounted, the safety pin on the transparent cover disc pres- ses against the safety switch of the motor casing. The all-purpose mixer can now be switched on. If the safety pin does not press correctly against safety switch, the motor does not run. For example, this is the case when the position of the transpa- rent cover ring is changed when cleaning. Make sure that the safety pin is in the right position. For right-handed users the safety pin must be located below the handle. For left-handed users the safety pin must be located below the pour spout. This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice! Guarantee We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt). During the life of the warranty we shall provide for the repair or replacement of the appliance owing to material or manufacturing defects absolutely free of charge. Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase. Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer. You are not entitled to the replacement of the appliance owing to broken glass parts and faulty accessories. However, said parts will be replaced free of charge. In this case only the faulty accessory needs to be ordered without sending back the whole appliance! The cleaning, servicing and replacement of wear parts are not covered by this war- ranty and hence are to be paid for. The warranty is terminated in case of handling on the part of Third parties. After the warranty Once the warranty has expired, repairs can be carried out by specialized technici- ans or repair services against the payment of the service.
