USER MANUAL UHW MEDISANA

Please read carefully!

A dire attentivement s.v.p.!.

Please fold out this page and leave it folded out for quick reference.

Mist outlet
ON/OFF switch and rotary knob for controlling mist intensity
ON/OFF button for night illumination
5 Float
Aair outlet
Brush
LED indicator lamp
9 Ultrasonic transducer

FR 1 Reservoir

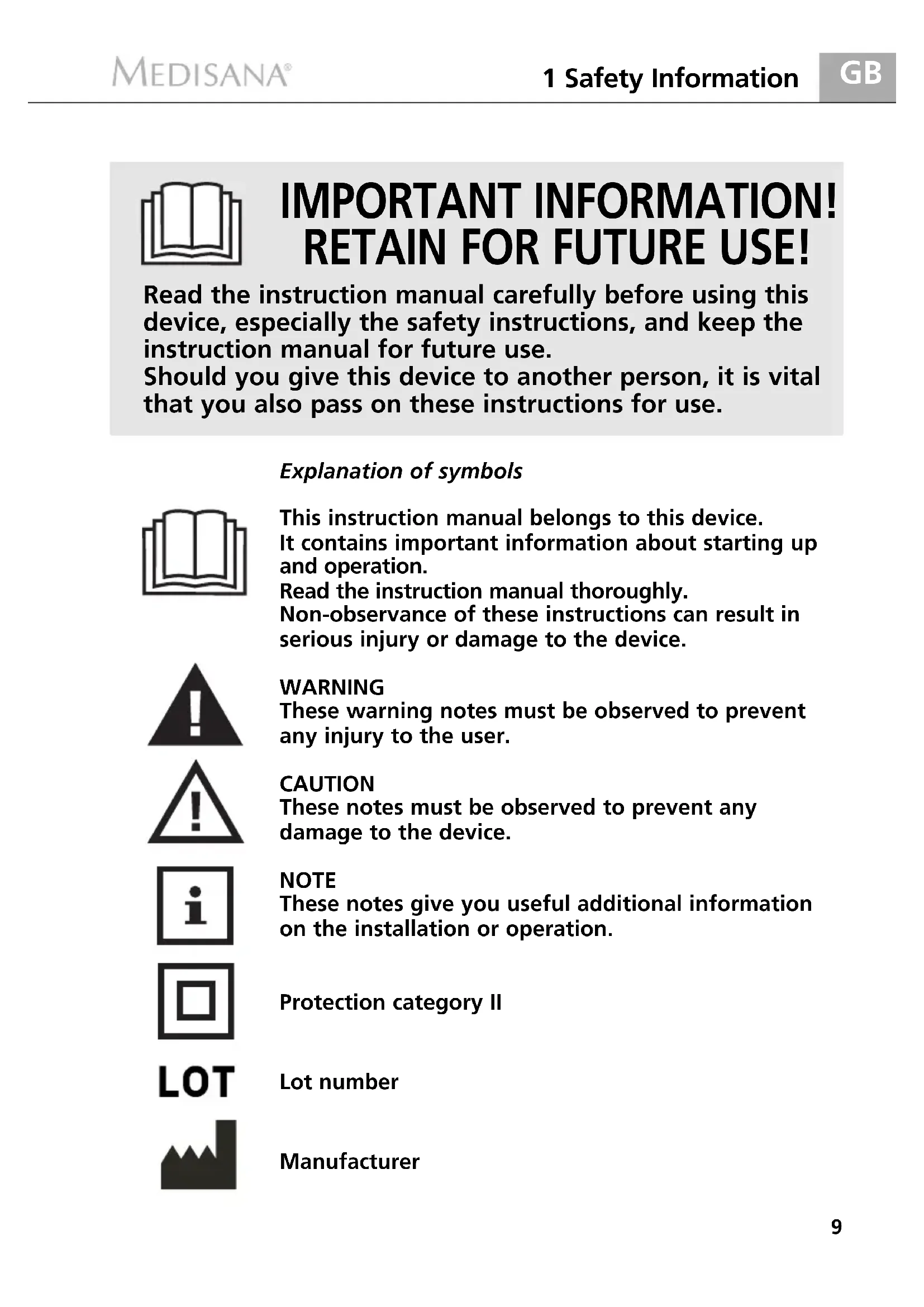

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use.

Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device. It contains important information about starting up and operation.

Read the instruction manual thoroughly.

Non-observation of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation or operation.

Protection category II

Lot number

Manufacturer

Power supply

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• Only connect the mains plug to the wall socket when the device is switched off.
• Never carry, pull or turn the device by the electricity cable and do not squeeze the cable.
• Position the mains cable so as to avoid the danger of falling.
• Do not touch the mains plug when you are standing in water and always take hold of the plug with dry hands.

For special people

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• In the event of an allergic respiratory problem, consult your doctor before using the appliance.
• Should you experience medical complaints during use talk to your doctor. Should this be the case, stop using the device immediately.

Operating the device

• The device is not determined for commercial use.
• Only use the device for its intended use as in the instruction manual. If misused, all guarantee rights shall become null and void.
• Do not use the device if it or the power supply cable is damaged, if it does not work properly or if it has been dropped or fallen into water.
• Keep the device and its power cable away from hot surfaces.

• Place the device on a firm floor area when in use so that it cannot tip over.

• Do not take hold of a device if it falls into water. Unplug the mains cable immediately.

• Do not use the device if the water tank is empty or does not contain enough liquid.
• Do not use distilled oils (e.g. eucalyptus or menthol), since these could damage the device.
• Keep the ventilation slits on the underside of the unit free of dust and impurities.
• Switch off all functions after use and remove the plug from the mains supply.

Maintenance and cleaning

• You may only clean the device yourself. If the device malfunctions do not repair it yourself as this leads to the automatic expiry of all guarantee rights. Ask your specialist dealer and have repairs carried out by the MEDISANA service.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not immerse the device in water or other fluids.
• If, nonetheless, liquid should penetrate the device, unplug the mains cable immediately.
• Store the unit in a dry place.

Thank you very much

Thank you for your confidence in us and congratulations on your purchase! You have acquired a quality product with your purchase of the MEDISANA personal humidifier UHW. To ensure the best results and long-term satisfaction with your MEDISANA personal humidifier UHW, we recommend that you read the following operating and maintenance instructions carefully.

2.1 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use it and contact your supplier or your service centre.

The following parts are included:

1 MEDISANA personal humidifier UHW
1 Cleaning brush
- 1 Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your supplier without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2 Intensive personal humidifier

Very dry air increases susceptibility to infection and respiratory diseases and leads to fatigue and lack of concentration. Healthy air should have a relative atmospheric humidity of 40 to 55% . The quiet, energy-saving ultrasound technology of the personal humidifier uses oscillation to convert water into a fine mist that increases the moisture level of the air. This improves the air quality and prevents the mucous membranes and skin from drying out.

The capacity of the device is suitable for a room with a maximum area of 30m^2 . You can adjust the level of humidity to the size of the room using the knob for the mist intensity 3.

Pay special attention to the notes on cleaning and care.

CAUTION

Over-intensive operation can result in saturating the room with moisture, which can affect the walls, windows and objects in the room. Therefore, use a hygrometer at regular intervals to check that the level of relative air humidity does not exceed 55% .

CAUTION

Make sure that the MEDISANA air humidifier is operated on a surface which is resistant to water, and that it cannot tip over. In particular, when operated with mineralised water / aromatic essences, condensation / residues may be produced.

You can turn the the mist outlet 2. Make sure that the mist being issued is not directed towards electronic appliances, furniture or walls.

3.1 Filling and emptying the water tank

Detach the water tank 1 from the device and turn it over. Unscrew the cap. Rinse out the water tank and then fill it up with a maximum of 4.2 l drinking water. Seal the tank again by screwing the cap back in. Turn the water tank over again and place it back in the device so that it audibly engages. Do not move the unit when the water chamber is full. Dispose of the leftover water after use and rinse out the tank with fresh drinking water. Before using again, fill the tank with fresh drinking water. When you have switched off the unit and do not intend to use it for an extended period of time, remove and empty the water tank.

CAUTION

Only use fresh drinking water in the device. You can also use demineralised water, if the water is very hard and calciferous. Clean the device at regular intervals and remove lime and other deposits, to maintain its efficiency.

3.2 Switching the unit on and off

Plug the device into a properly installed power socket. Switch on the personal humidifier by turning the ON/OFF switch and the knob for the mist intensity 3 from OFF to ON. The built-in LED lights up green under the water tank. When the water tank is empty, it lights up red.

Then set the device depending on the room requirements at a position from the lowest to the highest blower intensity. After a few seconds the mist from the outlet 2 will be visible.

Switch the device off after use or when the water in the tank has almost been used up (the LED lights up red) by moving the ON/OFF switch and the rotary mist intensity knob 3 to OFF. The device switches itself off automatically when the water tank is empty. The device has a blue night illumination. When the device is switched on, press the ON/OFF button for the night illumination 4. Press the button 4 again to switch off the night illumination.

3.3 Operating time

Operation time is approx. 14 hours at the maximum setting (300ml / h) with 4200~ml of water.

3.4 Faults and Fault Remedying

• Device will not switch on (LED not illuminating): Plug in the plug; Check power circuit, socket and fuse.
• No mist (LED lights up red): Fill water tank.
• No mist although tank full: Move rotary knob 3 to Place device on a level surface; Clean atomiser and generator using provided brush and fill tank with clean water; Rinse device with clean water.
• White deposits: Use clean water or at least 1/2 distilled water / 1/2 fresh tap water. If a fault cannot be remedied using the described method, please contact your service centre.

4 Miscellaneous

4.1 Cleaning and maintenance

• During everyday use it is advisable to give the device a thorough cleaning at least every three days. Also clean device before and after long storage periods.
• Before cleaning the device, make sure that it is turned off and the mains plug is removed from the socket.
• Remove the water tank from the device and empty it.
• Clean the outside of the unit with a soft, damp cloth.
• Please do not use any aggressive substances for cleaning, such as scouring cream or other detergents, as these may damage the surfaces and reduce the atomisation effect.
• You can rinse out the water tank with hot water (>65^) or an alcohol of at least 75% vol. The atomiser chamber should be cleaned using an alcohol-soaked cloth and cotton bud. Take care to ensure that no water gets inside the humidifier.
• The ultrasound generator is the most sensitive component in the device. It is important for it to be kept clean and handled with care. Please use the provided brush to remove deposits and dirt particles from the outlets. Never clean the ultrasound generator using metal objects.
• If you do not intend to use the unit for an extended period of time, empty any remaining water from the tank and dry off the unit.
• Limescale can be removed using a mild descaling agent such as citric acid.
• Store the unit in a cool, dry place, preferably in its original packaging.
• Remove cap from underside of the water tank and store separately to prevent sleeve gasket from sticking.
• If there are extended periods of non-use, drain the device and tank to prevent contamination/algae from the outset. Disinfect with alcohol now and then.

4.2 Descaling

When using hard water, or water with a high mineral content, the device must be regularly descaled. Please use only citric acid for descaling (powder preparation from the chemist). (No liquid descaler! No descaling tablets! No vinegar!).

• Empty out the device completely (tank and lower section).

Ensure that no liquid runs into the air outlet 6 of the lower section.

• Place 4 tablespoons (approx.100g) of pure citric acid in the tank and fill up with 2000ml of water at 60^ . Screw the tank shut and gently shake until the citric acid powder has dissolved.

4.3 Disposal

4.4 Technical specifications

• Place the tank on the lower section. DO NOT SWITCH ON THE DEVICE!
• Allow the descending solution to cool in the tank/device (at least 3 hours).
• Remove the tank from the device and, with a suitable brush (bottle brush or similar), scrub the interior and the mist chamber. Empty the contents of the tank and rinse well.
• Empty the lower section. Make sure no liquid gets into the air outlet 6. Rub off persistent lime scale using the brush 7 supplied, a cloth or cotton buds. Take care around the ultrasonic transducer 9!

(For easier cleaning, the perforated ring over the ultrasonic transducer can be removed and then reinserted afterwards)

• Rinse the lower section well (Ensure that no liquid runs into the air outlet of the lower section).

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your local authority or your supplier for information about disposal.

Name and model : MEDISANA personal humidifier UHW

Current supply : 220 - 240 V~ 50Hz/60Hz

Output : approx. 30 W

Tank contents : 4.2 |

Atomizer capacity : maximum approx. 300 ml/h

Dimensions W x H x D : approx. 26.5 x 33 x 20 cm

Weight : approx. 1,46 kg

Storage conditions : clean and dry

Item number : 60065

EAN number : 40 15588 60065 4

In accordance with our policy of continual product improvement, we reserve the right to make technical and visual changes without notice.

The current version of this instruction manual can be found under www.medisana.com

Warranty and repair terms

Please contact your supplier or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be corrected free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observation of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA GmbH

Jagenbergstraße 19

41468 NEUSS

GERMANY

The service centre address is shown on the attached leaflet.
