Portable Boombox 18502 - Loudspeaker TRUST - Free user manual and instructions

Product Type	Portable Bluetooth speaker
Brand	Trust
Model	Portable Boombox 18502
Power Supply	Built-in rechargeable battery, charges via USB (5V)
Battery Life	Approximately 8 hours (estimated)
Charging Time	3 hours
Connectivity	Bluetooth, 3.5 mm audio input
Bluetooth Range	Up to 10 meters
Functions	Play/Pause, volume control, track skipping, call answering, source switching
Controls	Physical buttons (on/off, standby, volume +/-, previous/next, play/pause, source switch)
LED Indicator	Mode indicator (blue/red flashing for pairing, solid blue for Bluetooth, solid red for audio input)
Compatibility	iOS, Android, Windows, Mac
Weight	Approximately 500 g (estimated)
Dimensions (W x D x H)	Approximately 20 x 10 x 10 cm (estimated)
Box Contents	Speaker, USB cable, user manual
Care and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water or excessive heat. Use only the supplied charger.
Spare Parts and Repairability	No user-serviceable parts. Contact technical support for any issues.
General Information	Model code: 18502. Manufactured by Trust. Manual available in several languages.

Frequently Asked Questions - Portable Boombox 18502 TRUST

How do I pair the speaker with my phone?

Make sure the speaker is in pairing mode (LED flashes blue and red). Enable Bluetooth on your phone, search for devices, and select Trust BT Audio. If a password is requested, use 0000.

What should I do if I cannot connect the speaker?

Check that the speaker is in pairing mode (press and hold the play/pause button for 5 seconds). Bring it closer to your device (max range 10 m). Clear the internal memory by pressing play/pause for 5 seconds, then try again. Make sure no other device is already connected.

Why is there no sound?

Check that Bluetooth is enabled on your device and the volume is high enough. If using Bluetooth, disconnect any audio cable from the 3.5 mm input. Follow the standard setup steps for your device.

The sound is choppy or stuttering, what should I do?

The speaker may be too far from the source (max 10 m). Charge the battery. Keep it away from metal surfaces and other wireless devices (routers, wireless mice). Walls and floors reduce the range.

How do I adjust the volume?

Use the Volume + and Volume - buttons on the speaker. You can also adjust the volume from your source device.

How do I skip to the next or previous track?

Press the Next and Previous buttons (marked E and F on the diagram) to navigate between tracks.

The LED still flashes blue and red after pairing, is this normal?

Yes, this can happen after the first pairing. Put the speaker into standby mode (press the standby button) then turn it on again. The LED should then stay solid blue.

How do I charge the speaker?

Connect the supplied USB cable to your computer's USB port or a USB wall charger, then to the USB power input on the speaker. Let it charge for 3 hours.

Can I use the speaker while charging?

Yes, you can use the speaker while it is charging. Simply plug it into a USB power source.

How do I reset the speaker?

To clear the internal memory and reset, press and hold the play/pause button for 5 seconds. The speaker will return to pairing mode.

USER MANUAL Portable Boombox 18502 TRUST

www.trust.com/18502/faq

Trust

Quick Installation Guide

Wireless Speaker

18502

Trust

Bluetooth Audio Speaker - USER'S MANUAL

Index
Language		page
English		2
Deutsch		6
Français	10
Itallano	14
Espanol	18
Portugues	22
Nederlands	26
Dansk	30
Suomi	34
Norsk	38
Svenska	42
Polski	46
Česky		50
Slovenčina		54
Magyar	58
România		62
Бulgariatskii		66
Руccskii		70
Еλλυκά		74
Türkce		78
Hrvatski	82
Slovenski	86
C. pâncki		90

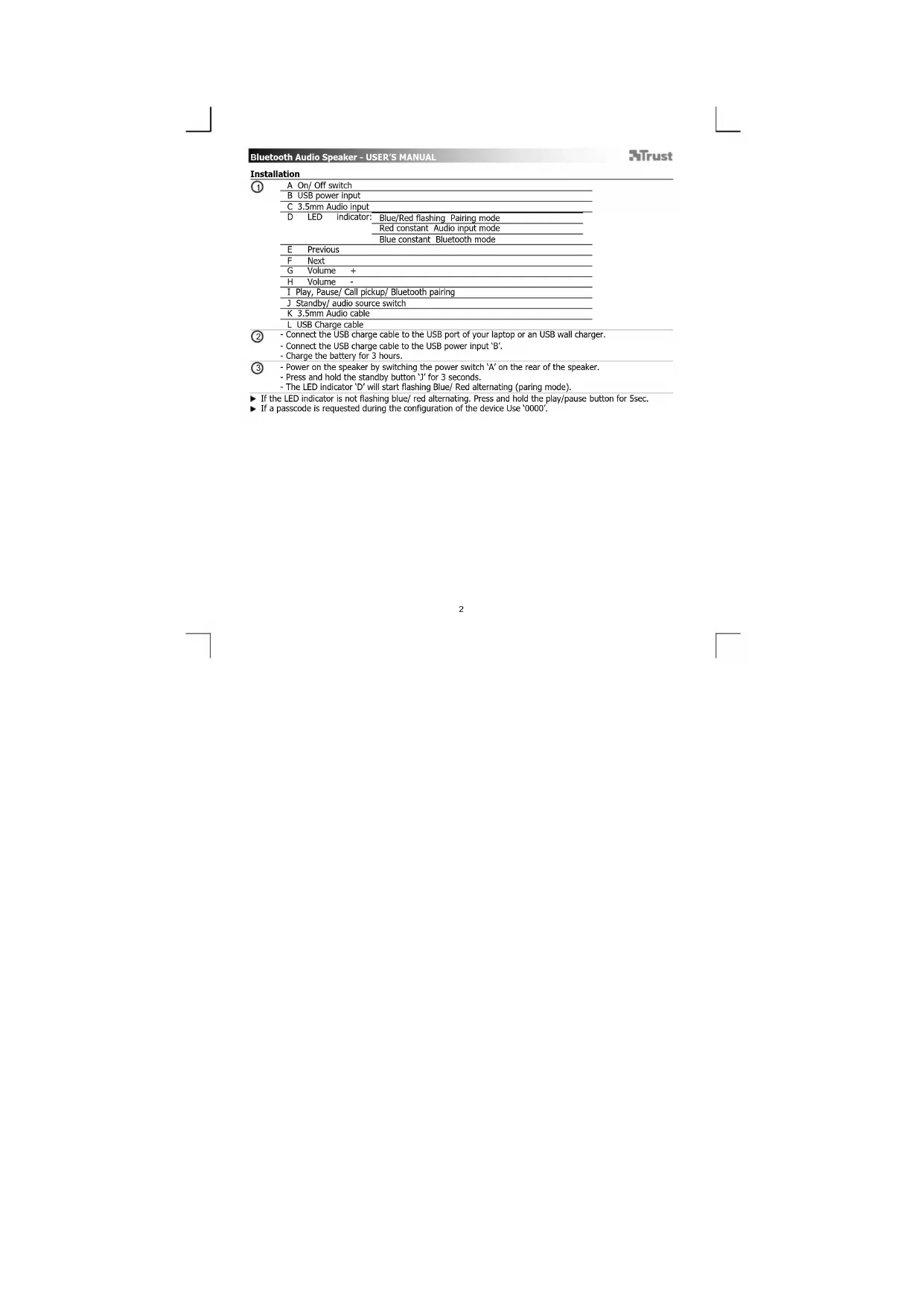

Bluetooth Audio Speaker - USER'S MANUAL

Trust

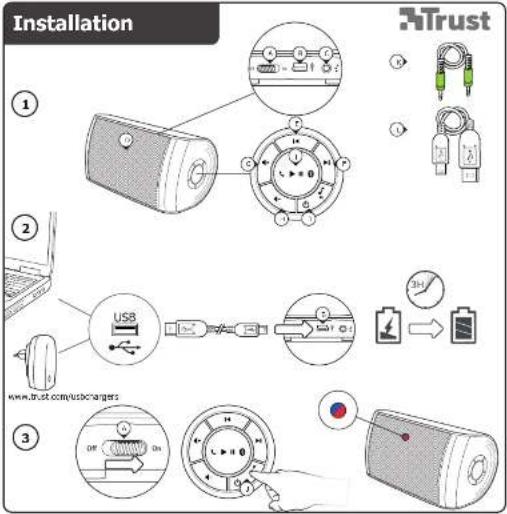

Installation

A On/Off switch B USB power input C 3.5mm Audio input D LED indicator: Blue/Red flashing Pairing mode Red constant Audio input mode Blue constant Bluetooth mode

E Previous
F Next
G Volume +
H Volume -
I Play, Pause/ Call pickup/ Bluetooth pairing
J Standby/ audio source switch
K 3.5mm Audio cable

• Connect the USB charge cable to the USB port of your laptop or an USB wall charger.
• Connect the USB charge cable to the USB power input 'B'.

• Charge the battery for 3 hours.

• Power on the speaker by switching the power switch 'A' on the rear of the speaker.

• Press and hold the standby button 'J' for 3 seconds.
• The LED indicator 'D' will start flashing Blue/ Red alternating (paring mode).

If the LED indicator is not flashing blue/ red alternating, Press and hold the play/pause button for 5sec. If a passcode is requested during the configuration of the device Use '0000'.

Bluetooth Audio Speaker - USER'S MANUAL

Trust

Standard Configuration

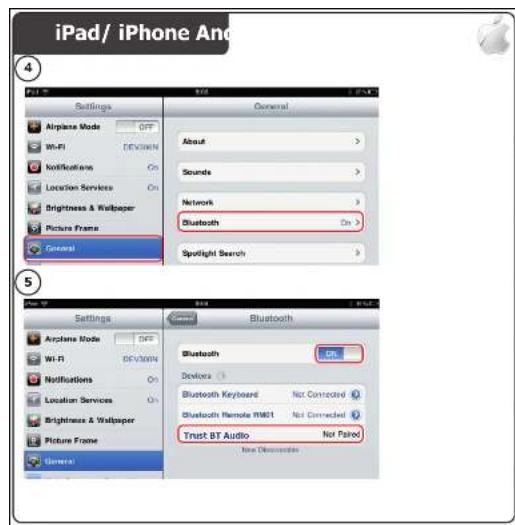

iPad/ iPhone

④ -Go to 'Settings'.-Go to the General's

• Go to 'Bluetooth'.
• Make sure that Bluetooth is on.
• Select 'Trust BT Audio' in the list of Bluetooth devices. (make sure the speaker is in pairing mode) When the device status is 'paired', your device is ready to use.

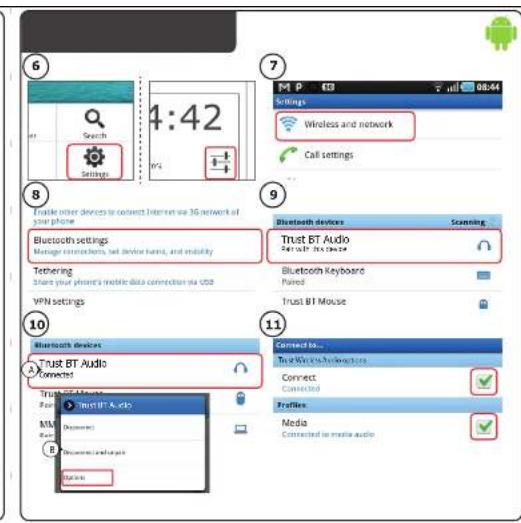

Android

Go to Settings.
For Android 4.0 systems the settings button can be found under the clock.
Go to 'Wireless and network'.
Go to 'Bluetooth settings' and press 'search for devices' if needed.
Select Trust BT Audio' in the list of Bluetooth devices (make sure the speaker is in pairing mode).
Press and hold 'Trust BT Audio' to go to the options menu of the wireless audio device.
Make sure that the device is 'Connected' and the 'Media' profile is selected. Your device is ready to use.

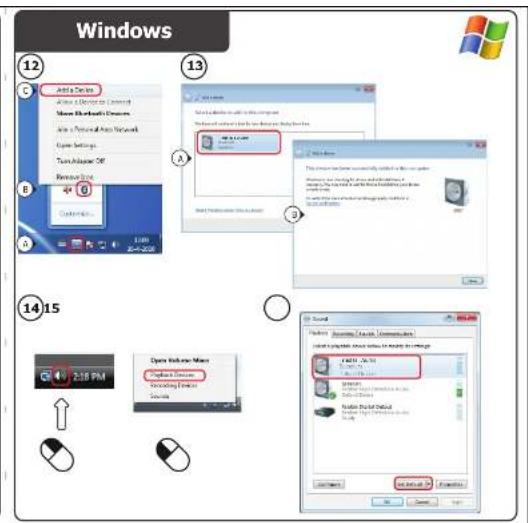

Windows

12A.Open the taskbar Icons.

B. Click on the Bluetooth icon.

C. Click on 'Add a device'.

• Select 'Trust BT Audio' in the list of Bluetooth devices (make sure the speaker is in pairing mode). When the device is successfully added, your device is ready to use.

14 - Right click the speaker icon in the taskbar.

• Open the 'Playback devices'.

• Set the 'Trust BT Audio' device as your default device.

Bluetooth Audio Speaker - USER'S MANUAL

Trust

Configuration on a Mac system

• Click on the Bluetooth icon in the taskbar.
• Make sure Bluetooth is on.
• Go to 'set up Bluetooth device...'.
• Select 'Trust BT Audio' in the list of Bluetooth devices (make sure the device is in pairing mode).
• Click on 'Continue'
• If the pairing attempt was unsuccessful, Go to 'Passcode options'.
• Select 'Use a specific passcode'.
• The passcode to use is '0000'.
  Click on 'ok'
• Click on 'Continue'.
  Your device is now ready to use.

Advanced Controls

Previous/Next (E,F) Press to skip to the previous or next song.

Play, Pause/Call pickup/Bluetooth pairing (I)
Press the play/pause button. To pause or play music.
When receiving a phone call press this button to answer the call.
Volume control (G,H)
Press the volume +/- to regulate the volume.
Change audio source (1)
Press to switch between Bluetooth and the 3.5mm audio input.

Trouble shooting

Problem	Solution
Can't connect the BT speaker to my device	- Make sure that the BT speaker is powered on and not in standby mode. See step 3.- Make sure that the BT speaker is in pairing mode. Press and hold the play/pause button for 5 sec. to activate the pairing mode.- Move the BT speaker closer to your audio source (maximum distance 10m under ideal circumstances)- Repeat the standard configuration steps for your device (iPod/iPhone, Android, Windows, Mac).- The speaker can only be paired with one device simultaneously.- If a passcode is requested. Use '0000'.
No Sound Distorted Sound	- Make sure that Bluetooth is enabled on your device.- When using Bluetooth, make sure that there is no audio cable connected to the 3.5mm audio input.- Repeat the standard configuration steps for your device. (iPod/iPhone, Android, Windows, Mac) - Your BT speaker is too far from your device (maximum distance 10m under ideal circumstances).- Charge the speaker- If you are using the product around large metal surfaces, remove the metal surface or move you product away from the metal surface.- Walls and Floors drastically reduce the range of the product. Move the BT speaker closer to your audio source.- Move the BT speaker away from other wireless devices (like Wireless network routers, mouse and keyboard).
Sound volume is low LED light keeps blinking re/blue after pairing	- Check the volume setting of your device. (Tablet, Smartphone, PC)- This is common behaviour after the first time pairing with a device. Put the speaker in standby and power the speaker back on.

If your problem is not solved, please contact the helpdesk at www.trust.com/18502/faq

Bluetooth Audio Speaker - USER'S MANUAL

Trust

Installation

F. Prccident (Blvctoth unquigment)

5.1.1.1 (Bleach test)

Sulvant (Bleedout/Bliquection)

G volume +

H Volume

I Lecture, Pause/Decrocher appel/Apparlement Bluetooth /Bluetooth

uniquement)

K. Cable audio 3.5 mm

Configuration standard iPad/iPhone

7 Gaaar 'Wireless and network' [Draadloos & netwerk]

Ga narr 'Bluetooth settings' [Bluetooth-installingen] en druk indien nodig op "find nearby devices"

[apparaten in de buurt vinden].

Odstranovani problem

Configurare in system Mac

Ecn np6nMa He yctpaHe, opaaaiTeB CnpaoHny cnykby www.trust.com/18502/fag

EykaTaOaon
