| Product type | Hi-Fi system |
| Brand | AEG |
| Model | MC 4410 |
| Power supply | 230 V, 50 Hz |
| Output power | 100 W PMPO |
| Protection class | II |
| Radio receiver | FM 88-108 MHz / AM 540-1600 kHz |
| Disc player | CD, CD-R, CD-RW, MP3 |
| Remote control | Infrared, range up to 5 m |
| Playback functions | Programming, repeat, intro, search |
| Speaker connections | SPEAKERS R/L terminals (rear) |
| Headphone jack | Yes (PHONES, front) |
| Antenna | Removable FM wire antenna |
| Laser | Class 1 |
| Remote control power | 2 AAA batteries (not included) |
| Cleaning | Damp cloth without additives |
| Warranty | 24 months |
| Repairability | Repair by specialist only |
Frequently Asked Questions - MC 4410 AEG
User questions about MC 4410 AEG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-fi system in PDF format for free! Find your manual MC 4410 - AEG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MC 4410 by AEG.
USER MANUAL MC 4410 AEG
Instruction Manual...... Page 33
Technical Data Page 36
Guarantee Page
JEZYK POLSKI
Spis tres'ci
OPMERKING: Compact discs
(CD / OFF / AM / FM)
12 Touche ▶II CD Lecture/Pause
REMARQUE: Disques compacts
(CD / OFF / AM / FM)
6 Escala de emissores
7
Tecla
REPEAT
(repetição)
8 VOLUME MIN./MAX. (volume do som) regulador
9
Display
LCD
10
TUNING
regulador
11
OPEN/CLOSE
tecla para abrir o compartimento de CDs
(CD / OFF / AM / FM)
MW / AM 540 \~ 1600 kHz

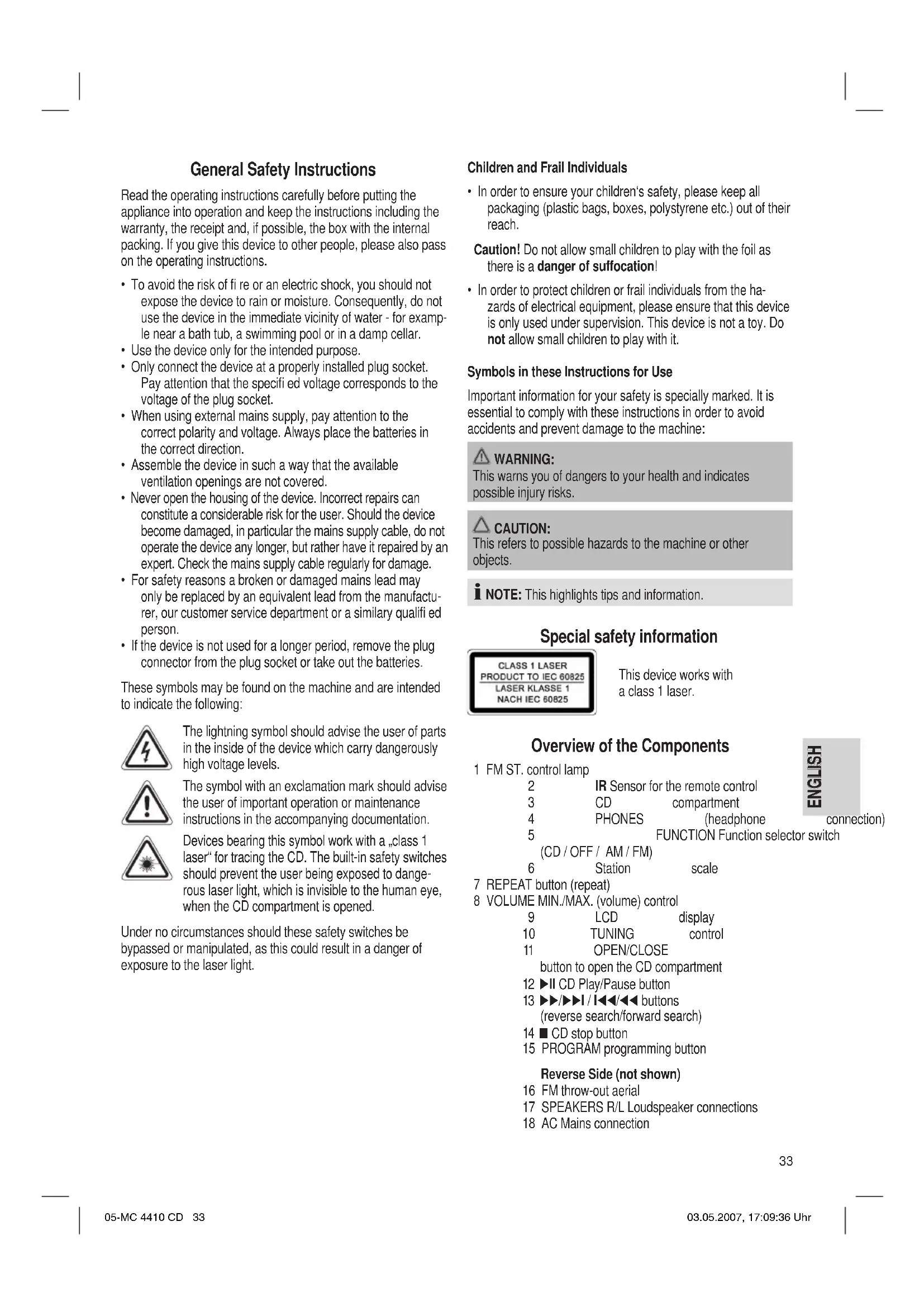

General Safety Instructions
Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.
- To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.
- Use the device only for the intended purpose.
- Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.
- When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.
- Assemble the device in such a way that the available ventilation openings are not covered.
- Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.
- For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
- If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.
These symbols may be found on the machine and are intended to indicate the following:
The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.
The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.
Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.
Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.
Children and Frail Individuals
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
Caution! Do not allow small children to play with the foil as there is a danger of suffocation!
- In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.
Symbols in these Instructions for Use
Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:
WARNING:
This warns you of dangers to your health and indicates possible injury risks.
CAUTION:
This refers to possible hazards to the machine or other objects.
NOTE: This highlights tips and information.
Special safety information
This device works with a class 1 laser.
Overview of the Components
1 FM ST. control lamp
2 IR Sensor for the remote control
3 CD compartment
4 PHONES (headphone
5 FUNCTION Function selector switch
(CD / OFF / AM / FM)
6 Station scale
7 REPEAT button (repeat)
8 VOLUME MIN./MAX. (volume) control
9 LCD display
10 TUNING control
11 OPEN/CLOSE
button to open the CD compartment
12 ▶II CD Play/Pause button
13 ▶▶/▶▶I / I◀◀/◀◀ buttons
(reverse search/forward search)
14 ■ CD stop button
15 PROGRAM programming button
Reverse Side (not shown)
16 FM throw-out aerial
17 SPEAKERS R/L Loudspeaker connections
18 AC Mains connection
connection)
Remote Control
| A | ▶II Play/Pause button | |
| B | STOP | button |
| C | INTRO | button |
| D | PROGRAM | button |
| E | I◀◀/◀◀/▶▶/▶▶I SKIP/SEARCH buttons(reverse search/forward search) | |
F REPEAT button (repeat)
Start-up of the device/Introduction
- Read the operating instructions thoroughly before the start-up!
- Select an appropriate location for the device, e.g. a dry, flat, non-slip surface on which the device can be easily operated.
- Make sure that the device is adequately ventilated!
- Connect the loudspeakers to the back of the music centre to the sockets market „Speaker R and L“ (17).
CD deck transport protection
- Please open the CD compartment by pressing the OPEN/CLOSE button (11).
- Remove the transport protection from the CD player if present before use.
Power supply
- Insert the plug (18) into a properly installed 230 V, 50 Hz power socket.
- Please ensure that the mains voltage corresponds to the information on the type plate.
Inserting the Batteries (not supplied)
- Open the lid of the battery compartment on the back of the remote control.
- Insert 2 batteries of type R03 „AAA“ 1.5 V. Please ensure that the polarity is correct (see the floor of the battery compartment or the inscription on the outside)!
- If the remote control is not used for a prolonged period, remove the batteries in order to prevent battery acid leaking.
• Now close the battery compartment. - Different battery types or new and used batteries must not be used together.
CAUTION:
Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.
WARNING:
Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!
General Operation
i NOTE:
Some keys are to be found both on the device itself and on the remote control. Keys with the same designation have the same function.
Switch-off
The machine is switched off when the function selector switch (5) is turned to the OFF position. Unplug the device.
Volume
The desired volume can be sent using the VOLUME regulator (8).
PHONES (4)
Insert the plug of a set of headphones into the headphone socket – the loudspeakers are „muted“. If your headphone plug does not fit, please use a suitable adapter.
Infrared remote control
For operating the music centre from a distance of up to 5 metres without a lead. If the range of the remote control is reduced, the batteries have to be replaced. During operation ensure that there is nothing blocking the direct line between the remote control and the sensor (2) on the machine.
Listening to the Radio
- Turn the function selector switch (5) to the FM or AM position.
- Tune in the desired station with the station adjustment knob TUNING (10).
- The FM.ST control lamp (1) only lights up if the selected station is being received in stereo quality. If reception is too weak and there is noise on the station being received, this lamp will fl icker. Try to improve reception by turning and bending or twisting and altering the length of the antenna (16).
- An aerial is integrated into the device for the reception of AM stations. The machine can be aligned to the station by turning it. In this frequency band programs are transmitted in „mono“ only.
$$ \text { Medium wave } = \mathrm{AM(mono)}; \mathrm{VHF} = \mathrm{FM} $$
Playing CDs
This is how you play a CD
- Turn the function selector switch (5) to the „CD“ position.
- In order to open the CD compartment, press the OPEN/CLOSE button (11).
- Insert an audio CD with the printed side facing upwards on to the central cone so that the CD clicks into place and then close the lid of the CD compartment.
-
“--” appears in the display (9) followed by the number of tracks.
-
Press th▶II button (12/A) in order to play the CD. The CD will play from the first title. The track currently being played, ▶ or ▶ MP3 are shown in the display (9).
- To remove a CD, press the ■ STOP key (14/B), open the CD deck with the OPEN/CLOSE key (11) and take out the CD carefully.
Always keep the CD deck closed.
i NOTE:
- If a disc has been inserted the wrong way round, or no disc has been inserted, the symbol „--“ appears in the display followed by „no“.
- Playback of CDs produced by the user cannot be guaranteed due to the large variety of software and CD media available.
Description of the CD buttons
▶II (12/A)
You can briefly interrupt and resume playback using this button. The symbol ▶ fl ashes in the display. Pressing again continues playback.
▶▶/▶▶▶ I / I◀◀/◀◀ SKIP/SEARCH (13/E)
With an audio CD or a CD in MP3 format playing:
With ▶▶/▶▶I (13/E) you can jump to the next or previous track etc.
- If the button is kept pressed down, the machine starts to search through the tracks.
- If the button is kept pressed down in stop mode the machine quickly plays through the songs until the desired track is reached. When the ▶II button is pressed the track begins to play back.
The I◄◄/◄◄ button (13/E) can be used as follows:
Press once = This starts the current track again from the beginning.
Press twice = This jumps back to the previous track.
Press three times = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks. If the button is kept pressed down in stop mode the machine quickly plays through the songs until the desired track is reached. When the ▶II button is pressed the track begins to play back.
■ STOP (14/B)
The CD stops.
REPEAT (7/F)
Press once: (the REPEAT emits a fixed light). The current track is repeated continuously.
Press twice: (the REPEAT ALL emits a fixed light). The whole CD is played continuously.
Press three times: All functions are cancelled. The normal play mode is resumed.
INTRO (C on the remote control)
Press the INTRO button (INTRO appears in the display). Each track on the CD is played for 10 seconds. Press this button again to stop searching. The currently selected track is played.
Programmed Play
This can be used to program any desired sequence of tracks.
- Press th STOP key (14/B).
- Press the PROGRAM key (15/D). The number „P01“ (storage location) and the symbol PROG flash in the display (9). Use the ▶▶/▶▶I / I◀◀/◀◀ buttons (13/E) to select the desired track and then press the PROGRAM button (15/D) again. The display changes to memory slot P02.
- Select the next track with the I ◀◀/▶▶I key and press the PROGRAM key again. Repeat the procedure until all the desired tracks are selected.
- Press th▶II key (12/A). The playback starts. The selected track numbers are shown in the display in the correct order and the symbol ▶ or ▶ MP3 and PROG light up. Press this button to pause briefly the playback.
- Press once the ■ STOP key (14/B) to stop the playback while retaining the program.
- To resume the playback of the program press first the PROGRAM key (15/D) once and then the ▶II key (12/A).
- To delete the program, press the ■ STOP key (14/B) twice. The PROG control lamp goes out.
The device stops automatically once the entire sequence of programmed tracks is completed. The programmed order of tracks remains in the memory until you change to a different mode, remove the CD from the CD compartment or switch off the device.
It is also possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the REPEAT button (7/F) up to three times and then you can use the functions as described under „REPEAT“.
Playing back Music in MP3 Format
With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types: CD, CD-RW, CD-R.
This machine of is able to play MP3 CDs. Up to 200 tracks can be compressed and stored on these CDs. Your machine detects an MP3 CD automatically (the total number of tracks and MP3s appears in the display). If you would like to play one of these CDs, proceed as described under „Playing CDs“. Tracks can be programmed as described under „Playing Back Programmed Tracks“.
Please note:
There are a number of different recording and compression methods, as well as quality differences between CDs and self-recorded CDs.
Furthermore, the music industry does not adhere to fixed standards (copy protection).
For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device.
Cleaning and Maintenance
• Always remove the mains plug before cleaning the machine.
- Any marks on the surface can be wiped off with a slightly damp cloth without any additives.
i NOTE: Compact Disks
- This device is able to play CDs with a diameter of 8 cm and 12 cm.
i NOTE:
Only place one disc in the CD compartment at a time.
- Only audio CDs, CD-R and CD-RW disks can be played on this machine.
- Always place the CD into the CD compartment with the label facing upwards. Compact discs can only be played on one side.
- Fingerprints and dust should be carefully removed from the recorded side of the CD (the side without the label) with a soft cloth. Wipe off in straight lines from the centre to the edge.
• After being played, CDs should be returned to their case so that they do not become scratched. - Do not expose CDs to direct sunlight, high humidity levels or prolonged high temperatures in order to prevent them from warping.
- Do not adhere any paper to the CD or write on it.
- Do not spray any cleaning agents or antistatic sprays on to the CD as in the case of phonographs.
Technical Data
Model: MC 4410 CD/MP3
Power supply: 230 V, 50 Hz
Output rating: 100 W PMPO
Protection class: ......II
Radio section:
Frequency ranges: FM 88 \~ 108,0 MHz
MW / AM 540 \~ 1600 kHz
This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.
Subject to technical changes without prior notice!
Guarantee
The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).
During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
The guarantee lapses in case of unauthorized tampering.
After the expiry of the guarantee
After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
Meaning of the "Dustbin" Symbol
Protect our environment: do not dispose of electrical equipment in the domestic waste.
Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.
This helps avoid the potential effects of incorrect disposal on the environment and human health.
This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.
Information concerning where the equipment can be disposed of can be obtained from your local authority.
