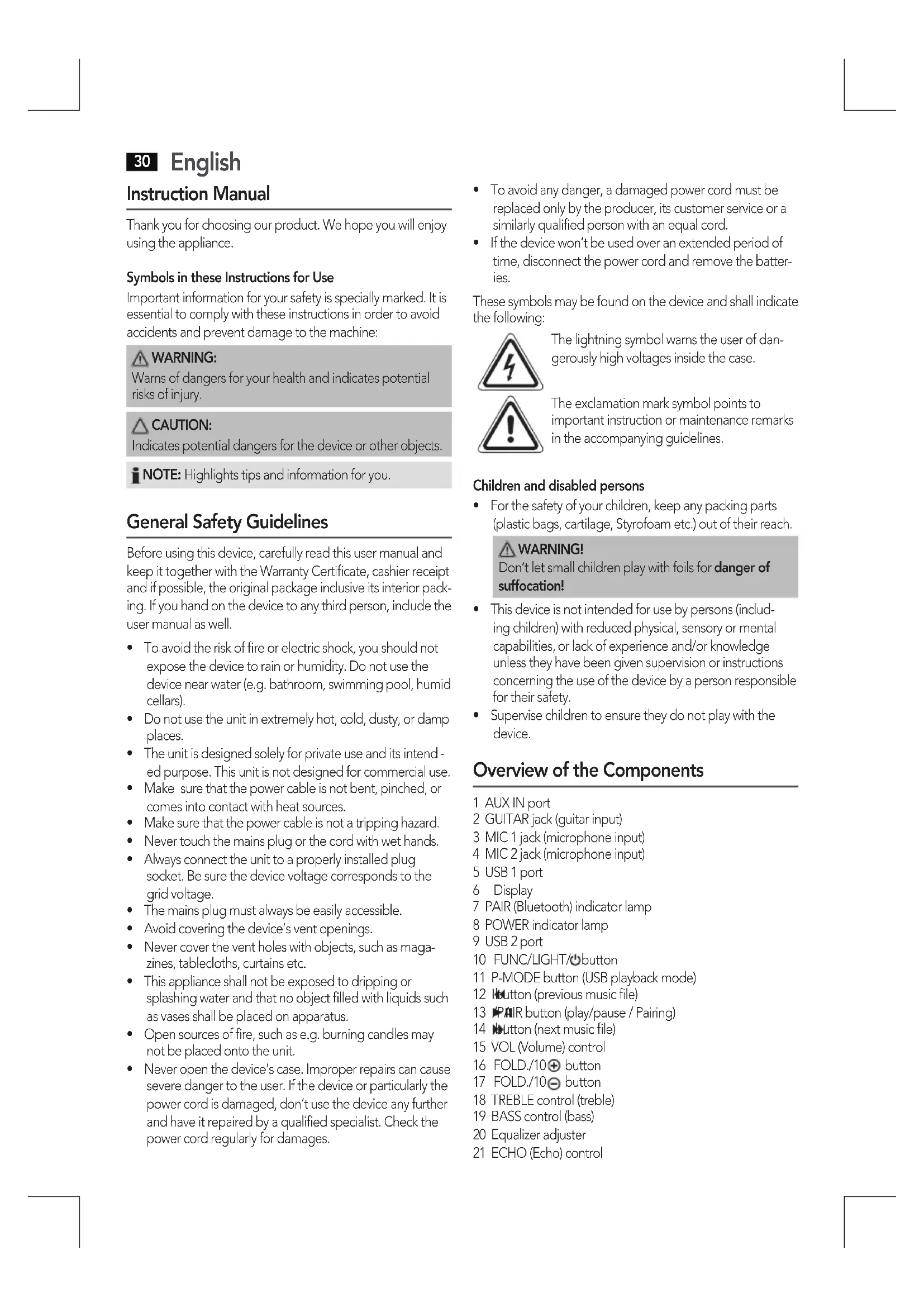

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

Warns of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the device or other objects.

NOTE: Highlights tips and information for you.

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• To avoid the risk of fire or electric shock, you should not expose the device to rain or humidity. Do not use the device near water (e.g. bathroom, swimming pool, humid cellars).
• Do not use the unit in extremely hot, cold, dusty, or damp places.
• The unit is designed solely for private use and its intended purpose. This unit is not designed for commercial use.
• Make sure that the power cable is not bent, pinched, or comes into contact with heat sources.
  • Make sure that the power cable is not a tripping hazard.
• Never touch the mains plug or the cord with wet hands.
• Always connect the unit to a properly installed plug socket. Be sure the device voltage corresponds to the grid voltage.
  • The mains plug must always be easily accessible.
• Avoid covering the device's vent openings.
• Never cover the vent holes with objects, such as magazines, tablecloths, curtains etc.
• This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on apparatus.
• Open sources of fire, such as e.g. burning candles may not be placed onto the unit.

• Never open the device's case. Improper repairs can cause severe danger to the user. If the device or particularly the power cord is damaged, don't use the device any further and have it repaired by a qualified specialist. Check the power cord regularly for damages.

• To avoid any danger, a damaged power cord must be replaced only by the producer, its customer service or a similarly qualified person with an equal cord.

• If the device won't be used over an extended period of time, disconnect the power cord and remove the batteries.

These symbols may be found on the device and shall indicate the following:

The lightning symbol warns the user of dangerously high voltages inside the case.

The exclamation mark symbol points to important instruction or maintenance remarks in the accompanying guidelines.

Children and disabled persons

- For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.
• Supervise children to ensure they do not play with the device.

Overview of the Components

1 AUX IN port
2 GUITAR jack (guitar input)
3 MIC 1 jack (microphone input)
4 MIC 2 jack (microphone input)
5 USB 1 port
6 Display
7 PAIR (Bluetooth) indicator lamp
8 POWER indicator lamp
9 USB 2 port
10 FUNC/LIGHT/O button
11 P-MODE button (USB playback mode)
12 I button (previous music file)
13 🚠PAIR button (play/pause / Pairing)
14 ▶ button (next music file)
15 VOL (Volume) control
16 FOLD./10⊕ button
17 FOLD./10⊖ button
18 TREBLE control (treble)
19 BASS control (bass)
20 Equalizer adjuster
21 ECHO (Echo) control

22 MIC VOL (Microphone volume) control

23 POWER ON/OFF mains switch

24 GUITAR VOL control (guitar volume)

A Markings for installation of the microphone holder

Back (not shown)

AC IN \~ power cord connection

POWER ON/OFF mains switch

Extendable handle

Delivery scope (not shown)

1x Microphone
1x Microphone holder (with two crosshead screws)
1x Mains cable

First Use of the Device/Introduction

• Select a proper place for the device. A dry, level, and slip proof surface is suitable.
  • Make sure the device is ventilated sufficiently!
• Remove the protective film from the device, if present.
• You can attach the included holder for the microphone as required on the rear of the unit. Use the included cross-head screws for this, and screw them into the indicated holes (A) (see the illustration on page 3).

Power supply

1. Make sure the grid voltage corresponds to the specifications on the rating plate.
2. Connect the supplied power cord with the AC IN \~ connection on the back.
3. Insert the mains plug to a properly installed socket.

i NOTE:

Disconnect from mains power supply during longer periods of non-use.

Operation

Turn the device on/off

• Set the mains switch on the rear of the device to the "ON" position.
• Then set the POWER switch (23) to "ON" to turn on the device.

i NOTE:

After about 15 minutes without signal or in the case of a weak signal, the system will automatically switch to standby. Press the button FUNC./LIGHT/ ⏻ to use the device again.

• To turn the device off, set the POWER switch (23) to the "OFF" position.
• To fully disconnect the device from the power supply, set the mains switch on the rear of the device to the "OFF" position.

Volume

Use the VOL control (15) to adjust the volume as desired.

Select the operating mode

Repeatedly press the FUNC./LIGHT/ button (10) to select the desired operating mode.

$$ \mathrm{USB} - 1 - \rightarrow \mathrm{USB} - 2 - \text { Bluetooth AUX } $$

Switching on the light

Hold the button depressed repeatedly to select one of the different illumination modes for the speaker. The setting "OFF" deactivates this function.

Sound settings (18/19/20)

• You can adjust treble and bass with the controls TREBLE and BASS.
• The EQ OPERATION controls can be used to set an individual sound.

i NOTE:

• If necessary, adjust the EQ settings on your playback device in order to generate a better sound.
• The settings with the controls do not influence the acoustic sound of the microphone or a connected e-guitar.

Microphone operation

You may switch on the microphone for the Karaoke function during any playback mode.

Using the microphone

i NOTE:

In order to prevent an acoustic "build-up", turn both controls (MIC VOL and ECHO) anticlockwise to the left as far as they will go. Only then plug the microphone cable into the jack.

1. Connect the microphone with the port MIC 1 or MIC 2 (3/4).
2. Slide the switch on the microphone upward in the direction "ON".
3. Adjust the microphone volume with the MIC VOL control (22).
4. Use the ECHO control (21) to generate echo effects.
5. Turn off the microphone when you do not use it. Slide the switch downward in the direction "OFF".

CAUTION:

To avoid audio feedback (sharp whistling sound), use the microphone outside of the speaker's reverberation distance.

32 English

Guitar operation

You have the option to connect an e-guitar to the loudspeaker.

1. Connect your e-guitar to the GUITAR jack (2).
2. Control the guitar volume with the GUITAR VOL control (24).

Playing back music files

You can play back your own music files in three ways: Via cable, cordless via Bluetooth, or via the USB port (USB1 or USB2).

By cable (Cable not included)

1. If required, use a suitable adapter (not included).

Connect the external device as follows:

- Connect to the AUX IN socket (1) using a 3.5 mm stereo jack plug cable.

1. Use the FUNC./LIGHT/ ⏻ button (10) to select AUX mode.
2. Start the playback of your audio source. Listen to the sound playback via the speaker.
3. For the further procedure, please refer to the user manual of the external audio source.

i NOTE:

If possible, adjust the volume of the external unit to a comfortable level.

Cordless via Bluetooth

Bluetooth involves a technology for wireless radio connection of devices over a short distance. Devices with Bluetooth standard are transmitting between 2.402 and 2.480 GHz in the ISM band (Industrial, Scientific and Medical). Interference can be caused for example by WLAN-networks, DAB radios, cordless phones, or microwave ovens which work on the same frequency band.

This device offers you the possibility to use a Bluetooth-enabled device. The functional radius is limited to approx. 15 metres depending on the surroundings and the unit used.

If your playing device supports the A2DP profile (Advanced Audio Distribution Profile) and has a music-player function, then you can also wirelessly transfer music to the device. The A2DP profile involves a multi-vendor Bluetooth profile. By streaming, stereo-audio signals are wirelessly transferred between the playing device (source) and the receiving device. To be able to remotely control the source, the playback device must support the AVRCP profile (Audio Video Remote Control Profile).

Due to the different device manufacturers, models, and software versions, a full functionality cannot be guaranteed.

- Logging on devices (Pairing)

Before you listen to music via the unit, you must pair the devices.

1. Ensure, that the Bluetooth function is activated in your player (e.g. mobile phone). For this, refer to the operation manual of your player.
2. Use the FUNC./LIGHT/ ⏻ button (10) to select Bluetooth mode. The PAIR indicator lamp flashes. After a few seconds, a beep sounds, indicating that the pairing mode has been activated.
3. Choose the Bluetooth menu in your player and register the device in your player. For this, refer to the operation manual of your player. The device "AEG EC 4834" will show in your player as a selection.

i NOTE:

Only one playback unit can be connected to the speaker. If the speaker is already connected to another playback unit, the speaker will not appear in the BT selection menu.

1. Now enter the password "0000" in your player, depending on the device manufacturers, model, and software version.

After successful registration, a beep will sound and the PAIR indicator lamp will light up. For the further procedure, please refer to the user manual of the playback unit. If possible, adjust the volume of the external unit to a comfortable level.

NOTE:

• Depending on the device manufacturer, you need to perform the registration (PAIRING) again to connect the devices.
• The Bluetooth compatibility cannot be ensured for devices (e.g. mobile phones) getting released in the future.
• To ensure an optimal connection, make sure that the battery of your player is completely charged.
• Some of the mobile phone brands have an energy-saving mode. Deactivate the energy-saving mode as it can otherwise result in problems during the data transfer through Bluetooth.
• To be able to transfer audio data, Bluetooth needs to stay activated in your player. Observe the operation manual of your player.
• If a mobile phone on which you are playing music receives a call, the music will be interrupted. The sound however is not played back via the speaker. After you have ended the call, the devices are connected to each other again and playback continues.

USB ports (5/9)

This device has been developed in line with the latest technical advances in the USB field. The wide range of different USB storage devices of all types which are currently on the market, unfortunately do not allow us to guarantee full compatibility with all USB storage devices. For this reason, in rare cases there may be problems in playing back files from USB storage devices. This is not a malfunction of the device. Only use commercially available USB sticks!

English

1. Connect a USB storage device directly into the port.
2. Select the USB port with the FUNC./LIGHT/ Button (-1 - or -2 -). Playback will automatically start after a few seconds.

For operation, please refer to the section "Description of the controls".

i NOTE:

• Always directly connect a USB storage medium to the USB port to prevent any malfunctions.
• The USB port is not designed for charging external devices.
• Please note: The USB port is only intended for playing music from USB sticks. It only provides a low power (100 mA) power supply. This USB port is not suitable for using external 2.5" hard drives with start-up currents of up to 1100 mA. In order to play music from your smartphone, iPod, or iPhone, connect the designated AUX IN socket.

CAUTION:

Switch the device to a different operating mode before you remove the USB storage device.

Description of the controls

i NOTE:

Depending on your playback unit, not all functions might be supported.

▶ II/PAIR (13)

• You can pause and continue music playback. Press again to continue playback.
• Hold the button depressed in Bluetooth mode to disconnect an existing Bluetooth connection.

◀(12)

Press 1 x = Restart of the song from the beginning. (Not during USB-mode)

Press 2 x = Skip to the previous song.

Press 3 x = Skip to the song before the previous song.

When you hold down the button in USB mode, a music search is started.

▶▶ (14)

Press to skip to the next song and the following songs.

When you hold down the button in USB mode, a music search is started.

P-MODE (11) (only during USB operation)

Press 1 x = " ➡" appears in the display. The current song will be played repeatedly.

Press 2 x = " EODDER" appears in the display. The selected folder will be played repeatedly.

Press 3 x = "RAND" appears in the display. All songs will be played in random order.

Press 4 x = "appears in the display. All songs will be played repeatedly.

Press 5 x = All functions are deactivated and the device continues normal playback.

FOLD./10⊕/⊖ buttons (16/17) (only during USB operation)

• Press one of the buttons to skip 10 songs forward or backwards respectively, provided there are more than 10 songs available.
• Press and hold one of the buttons to jump to the previous or next folder. Playback starts from the selected folder.

Cleaning

CAUTION:

Do not submerge the device in water.

• Before cleaning disconnect from mains power supply.
- Clean the device with a soft damp cloth without detergents.

Troubleshooting

Fault Cause Solution
Unit cannot be operated.	Unit crashes and “hangs”.	Disconnect from the mains for around 5 seconds. Then switch the unit on again.
No audio signal via the Bluetooth connection.	Speaker is not paired to the audio source.	Check whether a connection exists. If necessary, pair the speaker again to the audio source.
	Volume too low. Increase	ase the volume on the speaker.
		Increase the volume on the audio source.
Speaker cannot be connected.	Pairing does not work.	Check whether the audio source supports the A2DP protocol.
	Audio source is switched off.	Switch on the audio source.
	Bluetooth is switched off at the audio source.	Switch on the Blue-tooth function in the audio source.
	Bluetooth version is not supported.	Use a different play-back unit.
Sharp whistling sound during microphone operation.	Audio feedback. Use	the microphone outside of the speaker's reverberation distance.

34 English

Technical Data

Model: EC 4834

Power supply: AC 230 V, 50 Hz

Power Consumption: 360 W (max.)

Protection class:....II

Net weight: approx. 22.5 kg

Bluetooth

Bluetooth support: V3.0

Range:......approx. 15 metres

Transmission frequency: 2.402-2.480 GHz

Protocols:....A2DP/AVRCP

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
