USER MANUAL MC 4413 CDMP3 AEG

2. Prima as teclas I

5. Mantenha as teclas I

3. Sintonize com as teclas I

accionando as teclas com as setas

2. Prima as teclas I

FM o AM. UKW = FM, Onda Media = MW (Mono)

I (SKIP DOWN/UP)-tastene (8/3/4) for å velge frekvens.

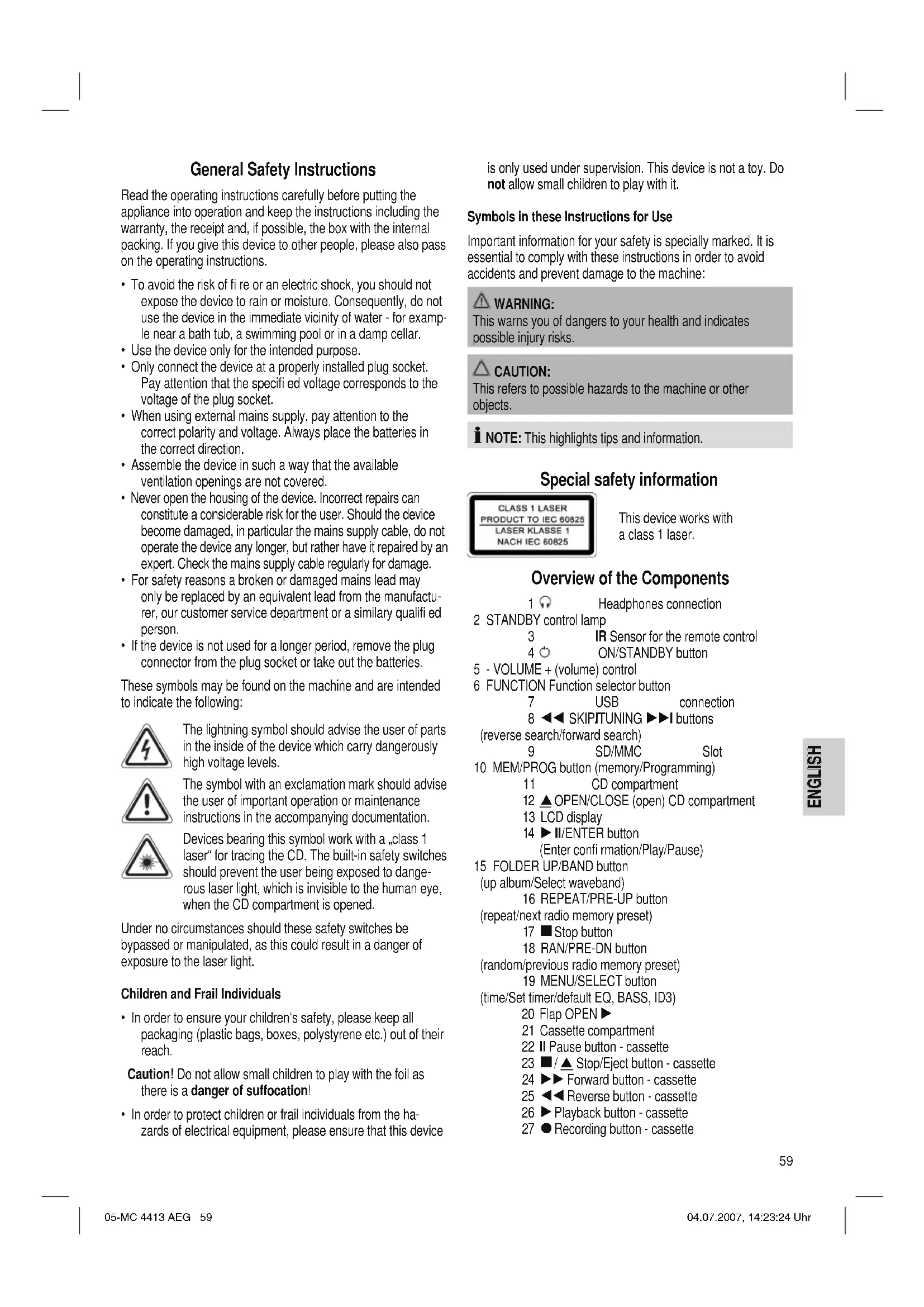

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• To avoid the risk of fi re or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for examp- le near a bath tub, a swimming pool or in a damp cellar.

• Use the device only for the intended purpose.

• Only connect the device at a properly installed plug socket. Pay attention that the specifi ed voltage corresponds to the voltage of the plug socket.

• When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.

• Assemble the device in such a way that the available ventilation openings are not covered.

• Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufactu- rer, our customer service department or a similary qualifi ed person.

• If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries. These symbols may be found on the machine and are intended to indicate the following: The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels. The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation. Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dange- rous laser light, which is invisible to the human eye, when the CD compartment is opened. Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light. Children and Frail Individuals

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• In order to protect children or frail individuals from the ha- zards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. Special safety information This device works with a class 1 laser. Overview of the Components 1 Headphones connection 2 STANDBY control lamp 3 IR Sensor for the remote control 4 ON/STANDBY button

I buttons (reverse search/forward search) 9 SD/MMC Slot 10 MEM/PROG button (memory/Programming) 11 CD compartment

OPEN/CLOSE (open) CD compartment 13 LCD display

21 Cassette compartment 22 II Pause button - cassette

• Read the operating instructions thoroughly before the start-up!

• Select an appropriate location for the device, e.g. a dry, fl at, non-slip surface on which the device can be easily operated.

• Make sure that the device is adequately ventilated!

• Connect the loudspeakers to the back of the music centre to the sockets market „Speaker R and L“ (28).

• Insert the plug into a properly installed 230 V, 50 Hz power socket. The clock 00:00 appears, the display is dark. Please ensure that the mains voltage corresponds to the informati- on on the type plate.

• Unwind the FM dipole aerial (30) if necessary.

• The stored time and stations are lost as soon as the power supply is interrupted. Switching on (ON) Turn the device on with the ON/OFF switch (31) on the back of the device. Switching off (OFF) In order to turn the device completely off, turn the ON/OFF switch on the back of the device to „OFF“. Setting the Time

I (SKIP DOWN/UP) buttons (8/3/4) to set the hours. Keep the button pressed down until the desired hour is reached. Press the

3. The minutes fi gures start to fl ash. In order to set the minutes

I (SKIP DOWN/UP) buttons (8/3/4). Keep the button pressed down until the desired minutes are reached.

II ENTER/PLAY/PAUSE button (14/1) again to store the time. NOTE: It is possible to set the clock and the timer in both standby mode and when the power is on. Press the MENU/SELECT button (19/19 on the remote control). Remote Control Batteries (not supplied)

• Open the lid of the battery compartment on the back of the remote control.

• Insert 2 batteries of type LR3 „AAA“ 1,5 V. Ensure that the polarity is correct (see the fl oor of the battery compartment)!

• If the remote control is not used for a prolonged period, remove the batteries in order to prevent battery acid leaking.

• Different battery types or new and used batteries must not be used together. CAUTION: Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer’s.

Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fi re. There is a danger of explosion! CD deck transport protection Please open the CD compartment (11) by pressing the

OPEN/CLOSE (open) button (12). Remove the transport protec- tion from the CD player if present before use. General Operation NOTE: Some keys are to be found both on the device itself and on the remote control. Keys with the same designation have the same function. ON/STANDBY (4/12) Switch the device to the standby mode with the ON/STANDBY button (4/12) (the time display appears, the display is dark). If this button is pressed once more, the device switches on again. 05-MC 4413 AEG 60 04.07.2007, 14:23:26 UhrENGLISH ENGLISH ENGLISH

The display lights up in blue and “HELLO” appears briefl y. The display changes to the current function, e.g. TUNER. Volume (5/10) This is used to set the individual volume. The letters „VOL“ and a fi gure appear in the display (13). Headphone Socket (1) Please use headphones with a 3.5 mm stereo jack plug; these should be inserted into the headphone socket. The loudspea- kers are then switched off. Infrared remote control For operating the music centre from a distance of up to 5 metres without a lead. If the range of the remote control is reduced, the batteries have to be replaced. During operation ensure that there is nothing blocking the direct line between the remote control and the sensor (3) on the machine. USB Connexion (7) This device has been developed in accordance with the latest technical developments in the USB fi eld. Unfortunately the large number of different types of USB storage media on offer today makes it impossible to guarantee full compatibility with all USB storage media. For this reason there may be problems in rare cases with playing back from USB storage media. This is not a malfunction of the device.

1. In order to switch on the device please press the ON/

3. Connect a USB storage medium.

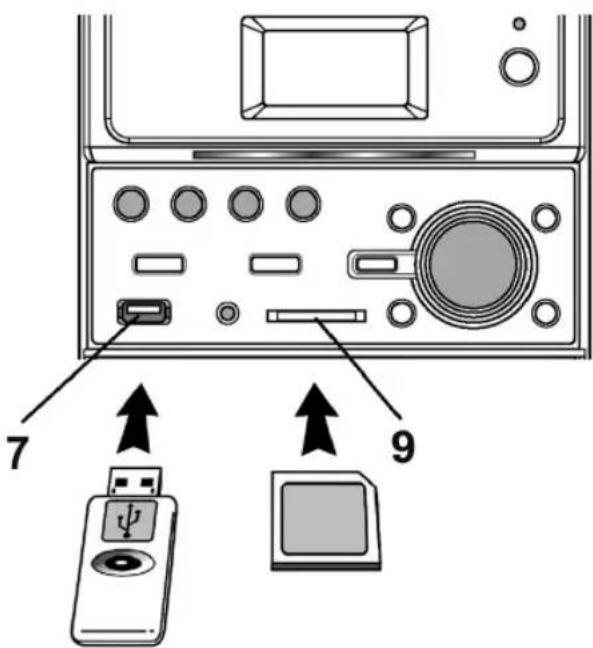

NOTE: Insert the medium in the way shown in Fig. 5. Otherwise the medium might be damaged. The USB storage medi- um is switched off. The following appear in the display: “USB”, “MP3” or “WMA”, the track number, track name, ar- tist (if stored on the storage medium), the elapsed playing time and the number of the folder (e.g. F01).

I (SKIP DOWN/UP) (8/3/4) pressed down during playback to increase or reduce the elapsed playing time. If the buttons are kept down in stop mode, a fast search begins until the desired track or folder is reached. Press the

II ENTER/PLAY/PAUSE button to start playing back the track. For operating instructions please see the section “Playing CDs/MP3s”. NOTE:

• With the SD/MMC card inserted it is not possible to switch over to the USB connection.

• If you have problems with operation using the USB connexion, please use an appropriate adapter cable and proceed as described under USB. CAUTION: Before you remove the USB storage medium, turn the device to a different mode, e.g. TUNER, by the FUNCTION button (6/8). Illustration 5 SD/MMC Card Slot (9)

1. If you would like to play back data on an SD/MMC card

please insert it into the opening provided. NOTE: Insert the medium as shown in Fig. 5. Press the card in until it locks in place. Otherwise the medium might be damaged.

2. Now press the FUNCTION button (6/8) to select the SD/

MMC mode (The display changes automatically to CARD mode). The following appear in the display: “CARD”, “MP3” or “WMA”, the track number, track name, artist (if stored on the storage medium), the elapsed playing time and the number of the folder (e.g. F01).

4. Press the card in to remove it.

For operating instructions please see the section “Playing CDs/MP3s”. Listening to the Radio

1. Press the FUNCTION button (6/8) repeatedly until the word

between FM or MW. VHF = FM, Medium wave = MW (mono) 05-MC 4413 AEG 61 04.07.2007, 14:23:27 UhrENGLISH ENGLISH

3. Tune in to the desired station with the help of the I

I (SKIP DOWN/UP) buttons (8/3/4). If the button is kept pressed down a fast search starts. Once the frequency has been found, press the button (8/3/4) again.

4. The FM.ST control lamp ( ) (in the display) only lights

up if the selected station is being received in stereo quality. If reception is too weak and there is noise on the station being received, this lamp will fl icker. Try to improve reception by turning and bending or twisting and altering the length of the antenna (30). In the case of FM stations you can use the MONO/ST button (17 on the remote control) to switch between MONO and STEREO reception. Where reception is bad we recommend switching to MONO.

5. An aerial is integrated into the device for the reception of

AM stations. The machine can be aligned to the station by turning it. In this frequency band programs are transmitted in „mono“ only.

6. If you have found the desired station, press the MEM(ORY)/

PROG(RAM) button (10/6). The word MEM lights up and the station memory number fl ashes.

7. In order to select the program location, press the REPEAT/

PRE-UP / RAN(DOM)/PRE-DN buttons (16/18/5/7). In order to select the frequency, press the I

button (10/6). Please note that the programme storage loca- tion must be entered within 10 seconds as the procedure is then cancelled. To select a stored station press the REPEAT/PRE-UP or RAN(DOM)/PRE-DN button. Cassette Operation Playing Cassettes

1. Press the FUNCTION button (6/8) repeatedly until the word

stop/eject button (23) to open the cassette compartment (21).

3. Push a recorded audio cassette, with the tape downwards

and the listening side facing forwards, into the compartment (full reel to the left). Then close the cassette compartment (21) again.

playback key (26) to listen to the tape.

stop/eject key you can stop playback.

6. Wind the tape forwards or backwards if necessary in the

direction of the arrow keys

stop/eject key (23) when changing the direction or stopping the tape. This prevents damage to the machine and the tape.

stop/eject button is pressed again the fl ap of the cassette compartment opens.

9. In order to interrupt playback briefl y, press the II pause

button (22). Pressing again continues playback. Recording Cassettes

1. Insert an audiocassette with the side on which you wish

to record facing forwards (full reel on the left). Ensure that the cassette is not copy-protected (the copy protection tab on the top narrow side of the cassette must not have been removed).

2. Select the recording source with the FUNCTION button (6/8)

and then start this source. The sound source which you are listening to is the one from which the recording is made. The recording level is controlled automatically. Any changes to the sound and volume do not affect the recording. NOTE: Do not press the MUTE button (9) during recording.

record button (27) (the

playback button is automatically pressed down at the same time). Recording now begins. All previous recordings are automati- cally erased.

4. The recording can be interrupted briefl y using the II pause

key (22), or stopped by means of the

stop/eject button (23). Playing CDs/MP3 This is how you play a CD

1. Press the FUNCTION button (6/8) repeatedly until „CD“

appears in the display.

2. In order to open the CD compartment (11), press the

OPEN/CLOSE (open) button (12).

3. Insert an audio CD with the printed side facing upwards on

to the central cone so that the CD clicks into place and then close the lid of the CD compartment.

The word “READING” fl ashes briefl y in the display. This is followed by “CD”, the number of tracks and the total playing time. Press the

II ENTER/PLAY/PAUSE button (14/1) to play back the CD. The CD is played from the fi rst track onwards. The track currently being played and the time that has elapsed are shown in the display. CDs in MP3 Format: In the display the symbols “MP3” appear together with the number of folders e.g. 04 and the total number of tracks. Press the

II ENTER/PLAY/PAUSE key (14/1) to play the CD. The CD is played back from the fi rst track onwards and from the fi rst folder. The song currently being played and the time that has elapsed are shown in the display. With the FOLDER UP/BAND button (15/13) you can select the individual folders.

STOP key (17) (2 on the re- mote control), open the CD deck with the

OPEN/CLOSE (open) key (12) and take out the CD carefully. Always keep the CD deck closed. 05-MC 4413 AEG 62 04.07.2007, 14:23:29 UhrENGLISH ENGLISH ENGLISH

• Playback of CDs produced by the user cannot be guaran- teed due to the large variety of software and CD media available. Description of the CD buttons

II ENTER/PLAY/PAUSE (14/1) You can briefl y interrupt and resume playback using this button. The playing time that has elapsed fl ashes in the display. Pres- sing again continues playback.

I /SKIP UP (8/4) you can jump to the next or previous track etc. If the button is kept pressed down, the machine starts to search through the tracks. The I

SKIP/TUNING/SKIP DOWN button (8/3) can be used as follows: Press once = This starts the current track again from the beginning. Press twice = This jumps back to the previous track. Press three times = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks. In CD, USB and SD/MMC mode: Keep I

I (SKIP DOWN/UP) (8/3/4) pressed down during playback to increase or reduce the elapsed playing time. If the buttons are kept pressed down in stop mode, a fast search begins to the desired title or folder. Press the

ENTER/PLAY/PAUSE button to begin playing back the track. NOTE: When the music search is activated for MP3, USB or SD/ MMC, the sound is muted. In radio mode: To tune the desired radio station. Number buttons (11) Enter the number of the desired track with the help of the number buttons on the remote control. After a short time this track begins to play back.

STOP (17/2) The CD stops. MUTE (9 on the remote control) Used for switching off the sound immediately. The word „MUTE“ fl ashes in the display (13). To cancel this function, press the MUTE key again. MONO/ST (17 on the remote control) To change between STEREO and MONO. INTRO (18 on the remote control) Use the FUNCTION button (6/8) to change to CD or USB mode. Press the INTRO button (INTRO appears in the display). Each track on the CD is played for 10 seconds. Press this button again to stop searching. The currently selected track is played. MENU/SELECT button (19/19) There are various modes available, which are displayed after each press of the button: CLOCK: see section „Setting the Time“. TIMER: see section „Alarm Function“. EQ: see item „EQ“. BASS: see item „BASS“. ID3: see item „ID3“. EQ (16 on the remote control) (Preset equalizer function). Various sound modes are available (CLASSIC, POP, FLAT, ROCK, JAZZ). ((EQ)) appears in the display except in the case of FLAT. Press the button (19/19) until EQ appears. Confi rm your entry with the

II ENTER/PLAY/PAUSE button (14/1). Press the MENU/SELECT button and select a mode. Confi rm with the button (14/1). EQ appears in the display. BASS (20 on the remote control) To increase or decrease the bass output. BASS ON = on (BASS in the display), BASS OFF = off. Press the button (19/19) until BASS appears. Confi rm your entry with the

II ENTER/PLAY/PAUSE button (14/1), BASS ON appears in the display. If the MENU/SELECT button is pressed, BASS OFF appears; confi rm your selection with the button (14/1). ID3 If it has been burned on the MP3 CD, the ID3-Tag information is shown in the display as a moving image. You can switch the ID3 tag information on and off. Follow the steps as described under “BASS”. REPEAT/PRE-UP (16/5) Press once: (the emits a fi xed light). The current track is repeated continuously. 05-MC 4413 AEG 63 04.07.2007, 14:23:31 UhrENGLISH ENGLISH

Press two and three times: You can defi ne a freely selected passage to be repeated automatically. To do so, proceed as follows:

• Mark the beginning of the passage to be repeated. In order to do this, press the button twice during playback. You will now see the image A in the display.

• Mark the end of the passage to be repeated by pressing the button a third time. Image A B appears in the display. The previously marked section is now repeated. Press four times: (the ALL emits a fi xed light). The whole CD is played continuously. Press fi ve times: all functions are cancelled. The normal play mode is resumed. Only for CDs in MP3 format The steps for pressing 1 to 4 times are repeated; see paragraph above. Press fi ve times: the selected folder of the MP3 CD is repea- ted continuously ( FOLDER appears in the display). With the FOLDER UP/BAND button (15/13) you can select the individual folders. Press six times: the function is deactivated and the CD is played in the normal mode. RAN(DOM)/PRE-DN (18/7) Press once: the display (13) contains the word RAN and the track number that is to be played fi rst. All tracks are played back in random order. Press twice: the function is deactivated and the CD is played in the normal mode. FOLDER UP/BAND button (15/13) For a CD in MP3 format: Press this button during playback to change to a folder further down. The display, e.g. F01, fl ashes briefl y. Then the MP3 CD begins to play back automatically. In radio mode: For selecting the FM (frequency modulation) or MW (medium wave) bands. Alarm Function TIMER (15 on the remote control) You can set the device so that it switches on and off again at a certain time. Setting the Timer

II ENTER/ PLAY/PAUSE button (14/1) twice; ON TIME appears in the display fi rst and then the hours fi gures begin to fl ash.

I (SKIP DOWN/UP) buttons (8/3/4) to set the switch-on time (hours). Keep the button pressed down until the desired hour is reached. Press the

3. The minutes fi gures begin to fl ash. In order to set the

minutes fi gures of the switch-on time, press the I

I (SKIP DOWN/UP) buttons (8/3/4). Keep the button pressed down until the desired minutes are reached.

II ENTER/PLAY/PAUSE button (14/1). Set the switch-off time as described above. Confi rm with the

6. appears in the display and the timer is activated.

7. In order to deactivate the timer, briefl y press the TIMER

button. The word disappears from the display. NOTE: You can only use the timer function in CD (MP3) and TUNER mode and with an SD/MMC card.

• Insert a CD beforehand and select CD mode. Set the volume beforehand. The device starts to play back the CD automatically.

• Tune into the station and set the volume beforehand.

• Push the card into the slot beforehand. Adjust the volume. Delayed Shut-Off SLEEP (14 on the remote control) With the device switched on this sets the period in 10-minute steps from 90 to 10 minutes after which the device switches to standby. Press the button repeatedly until the required duration is shown in the display. With this function activated the word SLEEP appears in the display. The device switches off auto- matically after the set time. In order to call up the remaining time press the SLEEP button. This time can also be subsequently shortened or switched off again (00 Min). Automatic Alarm Interval SNOOZE (21 on the remote control) The automatic alarm function (timer) can be switched off with the SNOOZE button for approx. 10 minutes. Programmed Play This can be used to program any desired sequence of tracks.

(memory location) appears in the display (13) together with the abbreviation PROG. In MP3 format the number of the fi le (00) fl ashes, while the track number (000), the word PROG and the memory storage number P-01 are shown. 05-MC 4413 AEG 64 04.07.2007, 14:23:33 UhrENGLISH ENGLISH ENGLISH

I (SKIP DOWN/UP) buttons (8/3/4) to select the desired track and then press the MEM(ORY)/PROG(RAM) button (10/6) again. The display changes to memory slot P-02.

3. Select the next track with the I

I (SKIP DOWN/UP) key and press the MEM(ORY)/ PROG(RAM) key again. Repeat the procedure until all the desired tracks are selected. In MP3 format fi rst select the folder. Press the MEM(ORY)/PROG(RAM) button and then select the desired track.

STOP key (17/2) to stop the playback while retaining the program. The PROG control lamp goes out.

6. To resume the playback of the program press fi rst the

MEM(ORY)/PROG(RAM) key once and then the

7. To delete the program (in stop mode) fi rst press the

MEM(ORY)/PROG(RAM) button and then the

STOP button. The device stops automatically once the entire sequence of programmed tracks is completed. The PROG control lamp goes out. The programmed order remains in the memory until you change to a different mode, remove the CD from the CD compartment, switch the device off or to standby mode. It is also possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the REPEAT/PRE-UP button (16/5) up to three times and then you can use the functions as described under „REPEAT“. Playing back Music in MP3 Format With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types: CD, CD-RW, CD-R. This machine of is able to play MP3 CDs. Up to 200 tracks can be compressed and stored on these CDs. Your machine detects an MP3 CD automatically (the total number of tracks and MP3s appears in the display). If you would like to play one of these CDs, proceed as described under „Playing CDs/MP3“. Tracks can be programmed as described under „Playing Back Programmed Tracks“. Please note: There are a number of different recording and compression methods, as well as quality differences between CDs and self- recorded CDs. Furthermore, the music industry does not adhere to fi xed standards (copy protection). For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device. Cleaning and Maintenance

• Always remove the mains plug before cleaning the machine.

• Any marks on the surface can be wiped off with a slightly damp cloth without any additives. Technical Data Model: ........................................................... MC 4413 CD/MP3 Power supply: ........................................................ 230 V, 50 Hz Output rating:........................................................ 100 W PMPO Protection class: ...................................................................... ΙΙ Radio section: Frequency ranges: .............................FM 87,5 ~ 108,0 MHz ................................ AM 522 ~ 1620 kHz This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. 05-MC 4413 AEG 65 04.07.2007, 14:23:34 UhrENGLISH ENGLISH

Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisati- on of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. 05-MC 4413 AEG 66 04.07.2007, 14:23:36 UhrENGLISH
