USER MANUAL Level box mini EOSG900 SAMSUNG

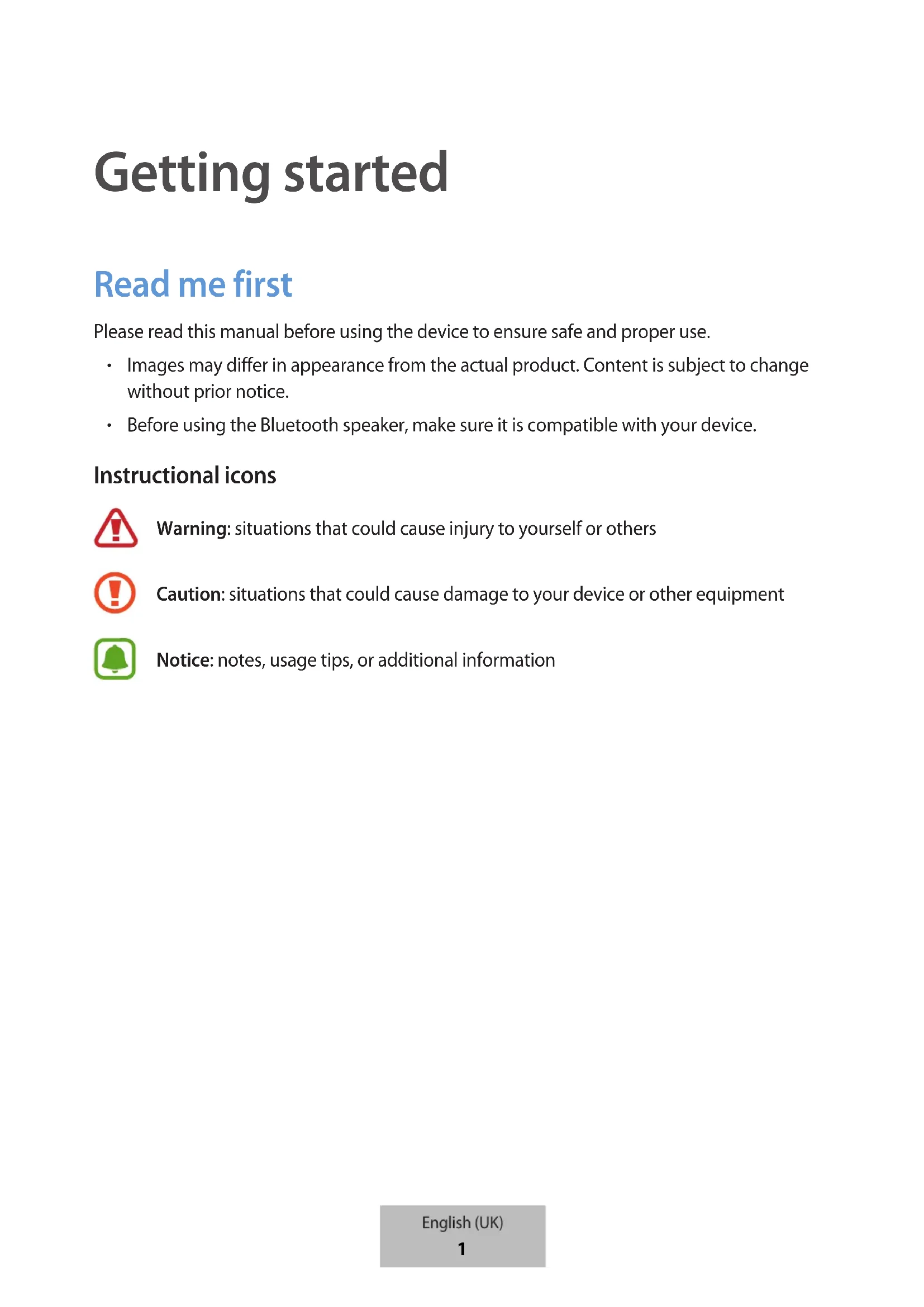

Please read this manual before using the device to ensure safe and proper use.

• Images may differ in appearance from the actual product. Content is subject to change without prior notice.
• Before using the Bluetooth speaker, make sure it is compatible with your device.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Maintaining water resistance

Your device supports water-resistance. Follow these tips carefully to maintain the water-resistance of your device. Failure to do so may result in damage to your device.

• Do not immerse the device in water deeper than 1m or keep it submerged for more than 30 minutes.
• Do not expose the device to water moving with force.
• If the device is exposed to clean water, dry it thoroughly with a clean, soft cloth. If the device is exposed to other liquids, such as salt water, ionised water, or alcoholic beverage, rinse it with clean water and dry it thoroughly with a clean, soft cloth. If you do not follow these instructions, the device's performance and appearance may be affected.
• If the device has been immersed in water or the microphone or speaker is wet, sound may not be heard clearly during a call. Wipe the device with a dry cloth or dry it thoroughly before using it.
• Your device has been tested in a controlled environment and certified to be water-resistant in specific situations (meets requirements of classification IPX7 as described by the international standard IEC 60529-Degrees of Protection provided by Enclosures [IP Code]; test conditions: 15 - 35^ , 86-106 kPa, 1 metre, 30 minutes). Despite this classification, it is still possible for your device to be damaged in certain situations.

About the Level Box Slim

You can use this product as a Bluetooth speaker or as a battery pack for other devices.

Package contents

Check the product box for the following items:

• Bluetooth Speaker
• Quick start guide
  Power sharing cable
  USB cable

• The items supplied with the device and any available accessories may vary depending on the region or service provider.
• The supplied items are designed only for this device and may not be compatible with other devices.
• Appearances and specifications are subject to change without prior notice.
• You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.
• Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

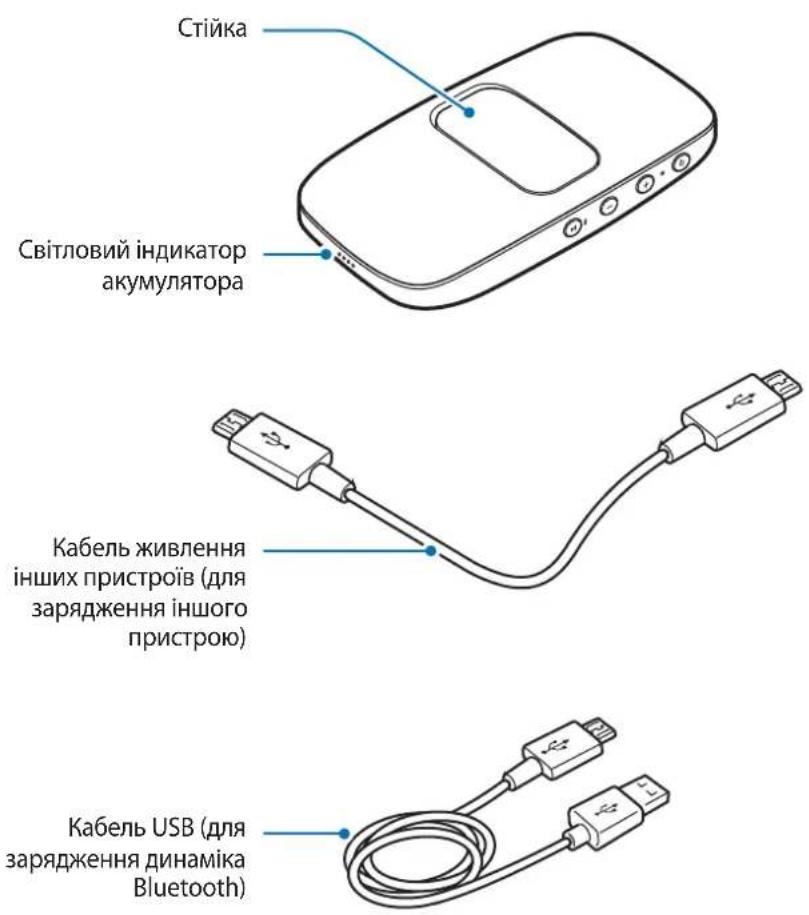

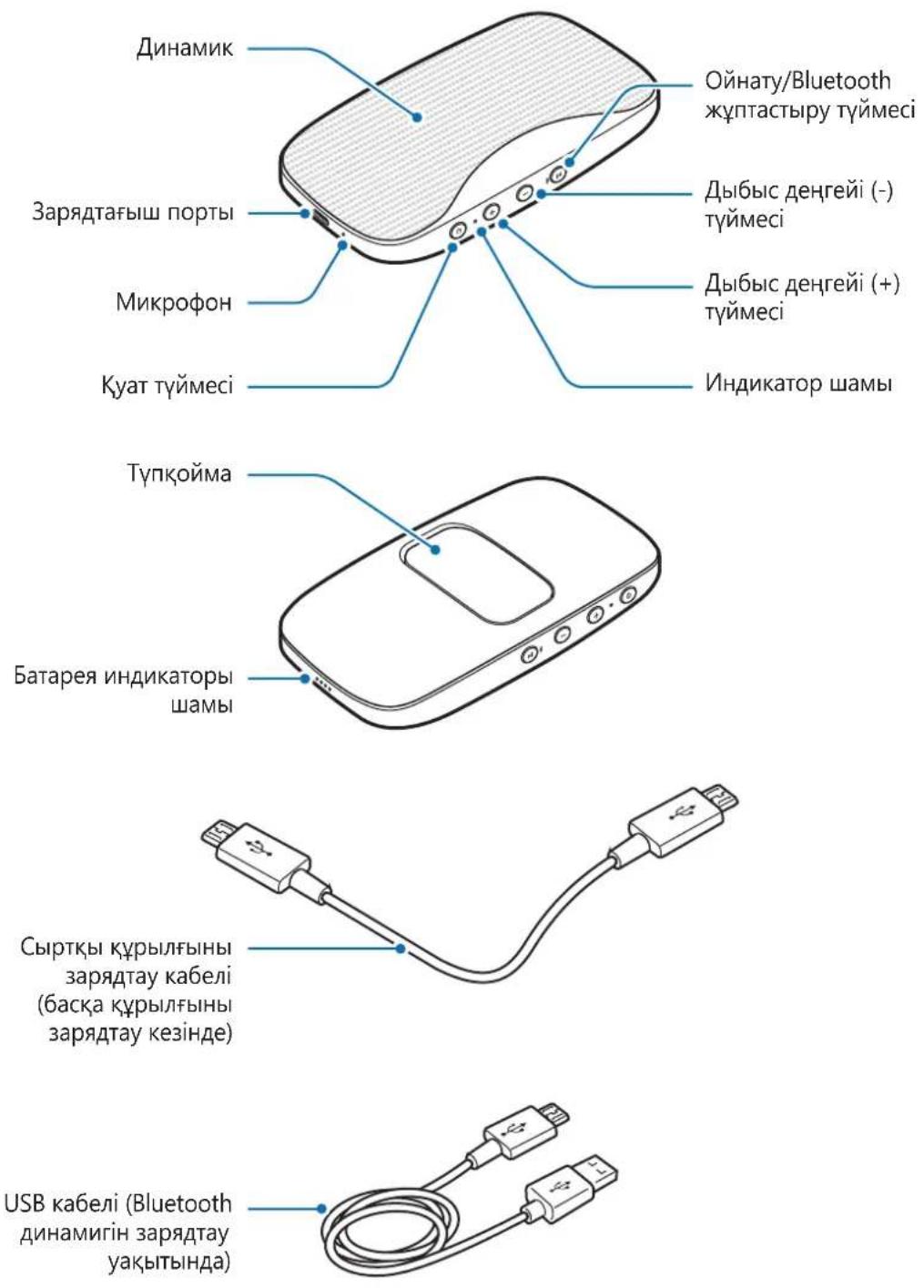

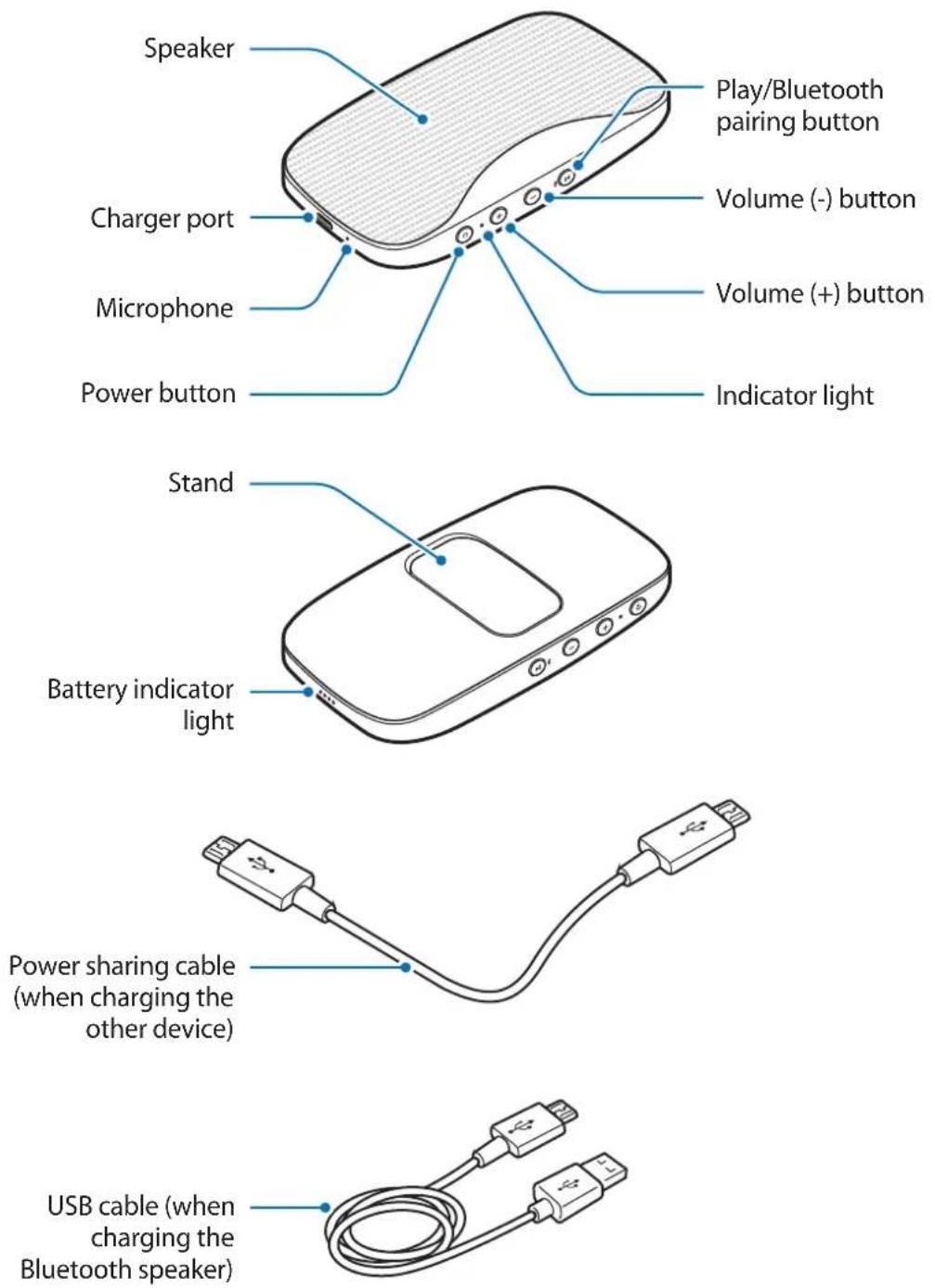

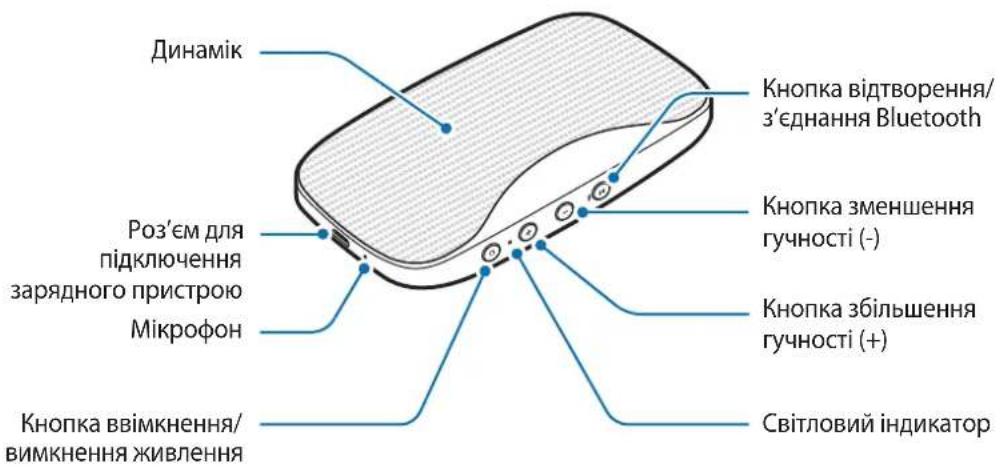

Device layout

Use the stand to support the device.

Buttons

Button Function
Power button	·Press and hold to turn the Bluetooth speaker on or off. ·Press to check the remaining battery power. ·Press to begin charging an external device when using the Bluetooth speaker as a battery pack.
Volume (+) button	·Press to increase the volume. ·Press and hold to skip to the next song during music playback.
Volume (-) button	·Press to decrease the volume. ·Press and hold to skip to the previous song during music playback.
Play/Bluetooth pairing button	·Press and hold to enter Bluetooth pairing mode. ·Press for approximately one second to launch S Voice when the Bluetooth speaker is connected to another device via Bluetooth. ·Press to reconnect devices when the Bluetooth connection is lost. ·Press to pause or resume music during music playback. ·Press to answer an incoming call. ·Press and hold to reject an incoming call. ·Press to end the current call.

Indicator light

The indicator light alerts you to the Bluetooth speaker status.

Colour Status
Flashes blue threetimes	The Bluetooth speaker is powering on
Flashes red three times The Bluetooth speaker is powering off
Flashes red and blue The Bluetooth speaker is in Bluetooth pairing mode
Blue Bluetooth is connected
Red Bluetooth is not connected

Battery

Battery charging tips and precautions

• You can charge the Bluetooth speaker using the charger (sold separately).
• If the battery is completely discharged, the Bluetooth speaker cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the Bluetooth speaker.
• Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.
• The Bluetooth speaker can be used while it is charging, but it may take longer to fully charge the battery.
• If the Bluetooth speaker receives an unstable power supply while charging, it may not function. If this happens, unplug the charger from the Bluetooth speaker.

• While charging, the Bluetooth speaker and the charger may heat up. This is normal and should not affect the Bluetooth speaker lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

• Charging the Bluetooth speaker while the charger port is wet may damage the speaker. Dry the speaker thoroughly if it becomes wet.

• If the Bluetooth speaker is not charging properly, take the Bluetooth speaker and the charger to a Samsung Service Centre.
• The charging time may vary depending on the charger specification.

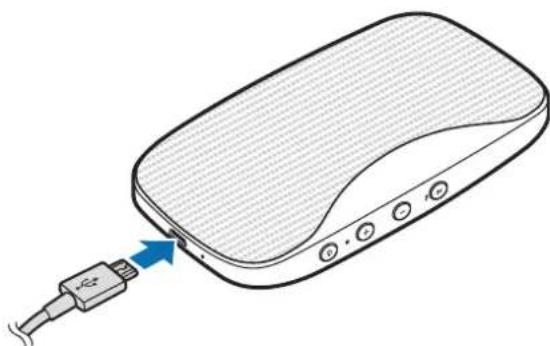

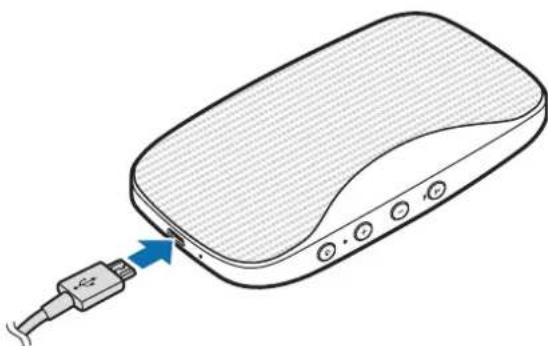

Charging the battery

Charge the Bluetooth speaker before using it for the first time or when it has been unused for extended periods.

Use only Samsung-approved chargers (5 V/2 A or higher). Unapproved chargers can cause the battery to explode or damage the Bluetooth speaker.

1 Connect the Bluetooth speaker to a charger.

Connecting the charger improperly may cause serious damage to the Bluetooth speaker. Any damage caused by misuse is not covered by the warranty.

If the charger port is wet, the four battery indicator lights will blink when you connect the Bluetooth speaker to a charger.

2 After fully charging, disconnect the Bluetooth speaker from the charger.

• To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and be easily accessible while charging.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

Checking the remaining battery power

Press the Power button to check the remaining battery power.

Remaining battery power Battery indicator light status

70-100 % Four indicator lights on

40-70 % Three indicator lights on

20-40 % Two indicator lights on

10-20 % One indicator light on

0-10 % One indicator light blinking

Auto power saving mode

Save battery power by activating auto power saving mode.

Press and hold the Power button and the Volume (+) button simultaneously to activate auto power saving mode. The Bluetooth speaker is automatically turned off when one hour has passed since the media file playback paused.

To deactivate auto power saving mode, press and hold the Power button and the Volume (-) button simultaneously.

When you turn on the Bluetooth speaker for the first time, it automatically enters auto power saving mode.

Using the Bluetooth speaker

Turning the Bluetooth speaker on and off

Press and hold the Power button to turn the Bluetooth speaker on or off.

When you turn on the Bluetooth speaker for the first time, it enters Bluetooth pairing mode.

• If your Bluetooth speaker is frozen and unresponsive, press and hold the Power button more than eight seconds.
• Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.

Connecting to another device

Notices for using Bluetooth

Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to various devices over short distances. It can connect and exchange data with other Bluetooth enabled devices, such as mobile devices, computers, printers, and other digital home appliances, without connecting via cables.

• To avoid problems when connecting your Bluetooth speaker to another device, place the devices close to each other.
• Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m). The distance may vary depending on the environment the devices are used in.
• Ensure that there are no obstacles between the Bluetooth speaker and a connected device, including human bodies, walls, corners, or fences.

• Do not touch the Bluetooth antenna of a connected device.

• Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products.

• Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your Bluetooth speaker.
• Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes).

Connecting device via Bluetooth

Pair the Bluetooth speaker with an available Bluetooth device. Once the devices are paired, the Bluetooth speaker will automatically connect to the mobile device whenever you turn on the Bluetooth speaker.

1 Bluetooth speaker Press and hold the Play/Bluetooth pairing button for more than three seconds to enter Bluetooth pairing mode.

The indicator light will flash red and blue.

When you turn on the Bluetooth speaker for the first time, it enters Bluetooth pairing mode.

2 Other device Activate the Bluetooth feature and search for Bluetooth devices.

For more information, refer to the other device's user manual.

3 Other device Tap [Speaker] Level Box Slim (0000) from the list of available devices.

The indicator light will flash blue.

• The PIN for the Bluetooth speaker is the four-digit number in parenthesis displayed on the other device's Bluetooth settings screen. The number differs depending on the Bluetooth speaker.
• If the Bluetooth connection fails or the other device cannot locate the Bluetooth speaker, remove the device's information from the other device's list. Then, try to connect again.
• The Bluetooth connection range and sound quality may vary depending on the connected devices.

Disconnecting or reconnecting devices

Press and hold the Play/Bluetooth pairing button for more than three seconds. The current connection will end.

You can also end the connection by deactivating the Bluetooth feature on the connected device.

If the Bluetooth connection ends due to the distance between the devices, bring the devices closer together within a certain period of time. The devices will automatically reconnect.

• You can also end the connection by turning off the Bluetooth speaker or deactivating the Bluetooth feature on the connected device. When you turn on the Bluetooth speaker again and the devices are in range, or activate the Bluetooth feature on the connected device, the devices will automatically reconnect.
• If the Bluetooth connection ends because of a device malfunction, use the Bluetooth menu on the disconnected device to reconnect the devices.
• Noise may occur if the Bluetooth connection is disconnected improperly.

Connecting to other devices

After ending the connection between the Bluetooth speaker and the currently connected device, you can connect the Bluetooth speaker to another device.

1 Press and hold the Play/Bluetooth pairing button for more than three seconds. The Bluetooth speaker will end the current Bluetooth connection and enter Bluetooth pairing mode.
2 Connect the Bluetooth speaker to another device.

Connecting additional devices

The Bluetooth speaker can connect to a maximum of two Bluetooth-enabled devices at the same time. When you connect the Bluetooth speaker to two devices, the last device you connect is recognised as the primary device. The other device is recognised as the secondary device.

1 Connect the Bluetooth speaker and a device via Bluetooth. Refer to Connecting device via Bluetooth for more information.
2 Press and hold the Play/Bluetooth pairing button for approximately three seconds to enter Bluetooth pairing mode.

The indicator light will flash red and blue and the first device will be disconnected.

3 Follow the same connection procedure used for connecting the first device to connect the Bluetooth speaker to second device.
4 Tap [Speaker] Level Box Slim (0000) from the first device's list to reconnect the Bluetooth speaker to the first device.

This feature may not be supported on some devices.

Listening to music

Listen to music played on the connected device.

Press the Play/Bluetooth pairing button to play music.

Pausing or resuming playback

Press the Play/Bluetooth pairing button to pause or resume music playback.

Adjusting the volume

Press the Volume (+) button or Volume (-) button to adjust the volume.

Skipping to other songs

Press and hold the Volume (+) button to skip to the next song during music playback.

Press and hold the Volume (-) button to skip to the previous song during music playback.

Using call features

When the Bluetooth speaker is connected to a mobile device, you can answer and control calls from the connected mobile device.

Answering or rejecting a call

Press the Play/Bluetooth pairing button to answer a call.

Press and hold the Play/Bluetooth pairing button to reject an incoming call.

Adjusting the volume

Press the Volume (+) button or Volume (-) button to adjust the volume during a call.

Answering a second call

When a second call comes in during a call, the Bluetooth speaker will emit a beep.

Press and hold the Play/Bluetooth pairing button to reject an incoming second call during a call.

Press the Play/Bluetooth pairing button to place a call on hold and answer a second call.

Press the Play/Bluetooth pairing button to switch between two calls.

Ending a call

Press the Play/Bluetooth pairing button to end a call.

Press and hold the Play/Bluetooth pairing button to end a current call and answer the held call.

Using the Samsung Level

On the connected device, download the Samsung Level app from Play Store or Galaxy Apps. With the Samsung Level app, you can check the remaining battery power and adjust the volume. You can also set the Bluetooth speaker to notify you via voice notification when you have notifications on the connected device.

Also, on the connected mobile device, launch the Samsung Level app to share audio with another Bluetooth speaker. If you activate the sound separation feature with the Samsung Level app, you can also use two speakers to separate the left and right speaker into different channels. Refer to Using the dual sound feature for more information.

For more information, refer to the help menu of the Samsung Level.

The Samsung Level app is compatible with Samsung mobile devices running Android 4.2.2 or higher. Some features may differ or may not work on your Bluetooth speaker depending on the connected device or the operating system.

Using the dual sound feature

This Bluetooth speaker supports the Dual Sound feature. You can connect two Bluetooth speakers to share the same audio. You can also use two speakers to separate the left and right speaker into different channels.

Ensure that the Bluetooth speaker that you want to share audio with is turned on.

• Your Bluetooth speaker must be connected to a mobile device. If your Bluetooth speaker is not connected to a mobile device, or is connected to more than two mobile devices, you cannot activate the Dual Sound feature.
• If the distance between your Bluetooth speaker and the connected devices is too great, there is an obstacle obstructs the signal, or the Wi-Fi signal is strong, the audio quality may be poor.
• If you restart your Bluetooth speaker while using the Dual Sound feature, it will try to reactivate the Dual Sound feature automatically. However, if your other Bluetooth speaker is connected to another mobile device, the Dual Sound feature will not reactivate automatically.
• If your other Bluetooth speaker is turned off while using the Dual Sound feature, the connection between the two Bluetooth speakers will end. When you turn it on again, it will automatically reconnect to the mobile device that it was connected to before activating the Dual Sound feature.
  While sharing audio, the voice notification feature will be disabled.
• Visit www.samsung.com to view the product specifications for the other Bluetooth speaker to confirm that it supports the Dual Sound feature.

1 Other Bluetooth speaker Press and hold the Play/Bluetooth pairing button and Volume (-) button simultaneously for approximately one second.
2 Bluetooth speaker Press and hold the Play/Bluetooth pairing button and Volume (+) button simultaneously for approximately one second.

The audio will be shared.

Press and hold the Volume (+) and Volume (-) button on Bluetooth speaker simultaneously for approximately one second to stop sharing audio.

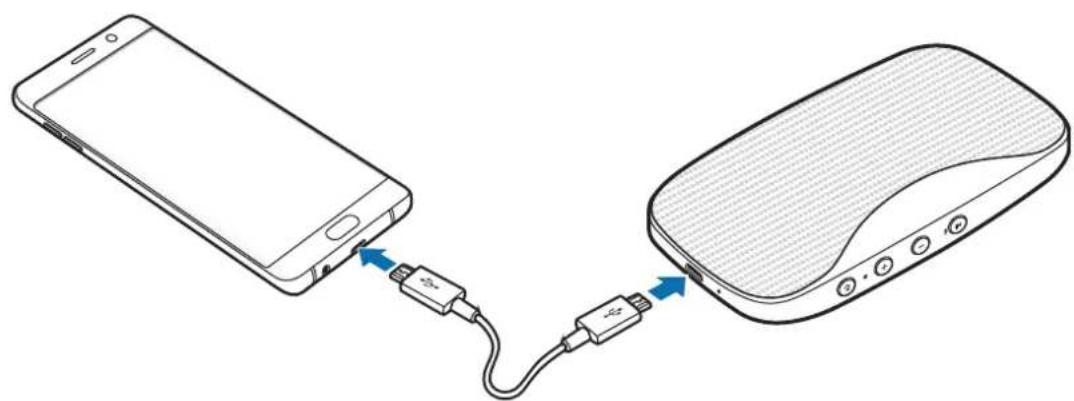

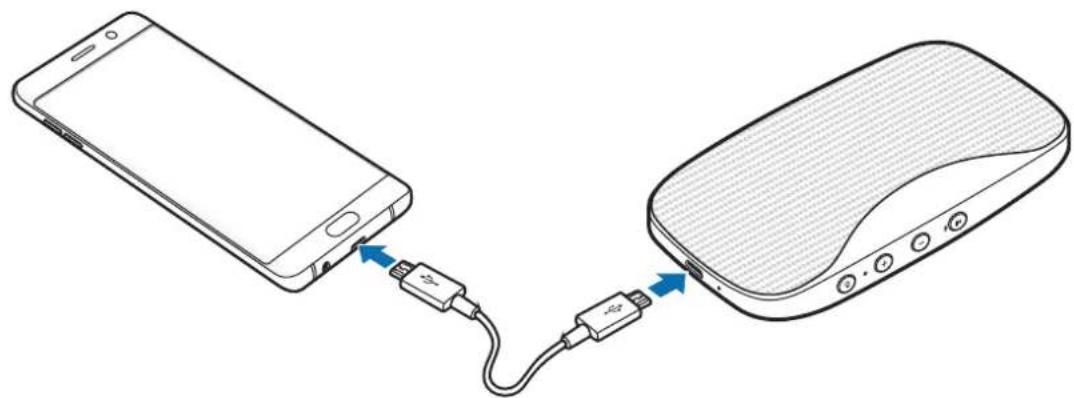

Using as a battery pack

Use the Bluetooth speaker as a battery pack while connecting to another device via the power sharing cable.

1 Bluetooth speaker Insert the power sharing cable into the charger port.

2 Charged device Insert the other end of the power sharing cable into the multipurpose jack.

3 Bluetooth speaker Press the Power button to start charging the battery.
4 After fully charging, disconnect the power sharing cable from the Bluetooth speaker and other device for charging.

• You can use the Bluetooth speaker while charging the other device. However, if the battery power is low, some features may be limited.
• The actual capacity (Wh) is measured based on the battery's output current and voltage. It may differ from the capacity (Wh) indicated on the device, depending on the output power condition, the connected device's circuit configuration, and the operation environment.

Appendix

Troubleshooting

Before contacting a Samsung Service Centre, please attempt the following solutions.

Your Bluetooth speaker does not turn on

When the battery is completely discharged, your Bluetooth speaker will not turn on. Charge the battery completely before turning on the Bluetooth speaker.

Your Bluetooth speaker freezes

If the Bluetooth speaker freezes or hangs, try to resolve it by turning off the Bluetooth speaker and then turning it on again.

If the Bluetooth speaker is still unresponsive, end the Bluetooth connection and reconnect it. To do this, press the Play/Bluetooth pairing button for approximately three seconds. When the Bluetooth speaker enters Bluetooth pairing mode, connect the devices again, and then check the operation of the Bluetooth speaker.

If the problem is still not resolved, contact a Samsung Service Centre.

The battery does not charge properly (For Samsung-approved USB cables and chargers)

• Ensure that the USB cable or the charger is connected properly.
• Check whether your speaker has enough battery power before using it as a battery pack. If the tips above do not solve the problem, contact a Samsung Service Centre.

Another Bluetooth device cannot locate your Bluetooth speaker

• Ensure that your Bluetooth speaker is in Bluetooth pairing mode.
• Restart your Bluetooth speaker and search for the Bluetooth speaker again.
• Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).

If the tips above do not solve the problem, contact a Samsung Service Centre.

Your Bluetooth speaker cannot connect to another Bluetooth device

• Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).
• On the device you want to connect with, disconnect all paired devices and try to connect again.

Bluetooth connection is often disconnected

• If there are obstacles between the devices, the operating distance may be reduced.
• Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).
• When using the Bluetooth speaker with other Bluetooth devices, the connection may be affected by electromagnetic waves. Use the Bluetooth speaker in environments with fewer wireless devices present.

The Bluetooth speaker works differently as described in the manual

Available functions may differ depending on the connected device.

The battery depletes faster than when first purchased

• When you expose the Bluetooth speaker or the battery to very cold or very hot temperatures, the useful charge may be reduced.
• The battery is consumable and the useful charge will get shorter over time.

Removing the battery

• To remove the battery, contact an authorised service centre. To obtain battery removal instructions, please visit www.samsung.com/global/ecodesign_energy.
• For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe.
• Samsung does not accept liability for any damage or loss (whether in contract or tort, including negligence) which may arise from failure to precisely follow these warnings and instructions, other than death or personal injury caused by Samsung's negligence.

Copyright

Copyright © 2016 Samsung Electronics

This manual is protected under international copyright laws.

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

Trademarks

• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
• Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
• All other trademarks and copyrights are the property of their respective owners.

Démarrage

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Alternatively, you can use the following two methods to connect to a Wi-Fi device.

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

www.samsung.com/global/ecodesign_energy.

I3KIIIOUBaHe I IOBTOpHO CBbp3BaHe Ha yCTpoiCTBa

HaTnCHete 3aApbXte 6yToHa 3a Bb3PpOn3BexJaHe/cDBoRaHe c Bluetooth 3a nobuee ot Tprn cekyHn. Tekuata Bpb3ka ige 6bde npekpaTeHa.

Moxete cBIO da npekpaTne Bpb3kaTa Upe3 DeaKTnBupaHe Ha Bluetooth fynKcnaTa Ha Cbbp3aHOTO yCTpOietBO.

Ako Bluetooth Bpb3kaTa npekbcHe nopadn pa3ctoHneTo Mejdy yctpoiCTBaTa,do6nHexe Te yctpoiCTBaTa B pAMKITE Ha onpeJeH nepnoI OT BpeMe. YcTpoiCTBaTa ige ce cBbpxaT OTHOBO aBTOMaTuHNo.

• MojkeTe nДа npeKpaTne Bpb3kaTa Upe3 n3KnIOUbaHe Ha Bluetooth BucOKorOBopuTeJIte
• nIype3 DeakTNBupaHe Ha Bluetooth ФуннкцЯТа Ha CBbp3aHOTO yCTpoIcTBo. Korato
• BKIOUHTe OTHOBO Bluetooth BucOKOROBOpuTeJIy uCTpoIcTBaTa ca B o6XbAT, nIIN
• aKO akTNBupaTe Bluetooth ФуннкцЯТa Ha CBbp3aHOTO yCTpoIcTBO, DBeTe yCTpoIcTBa
• ABTomaTNUHO Μe ce CBbpXaT.
• Ako Bluetooth Bpb3kata npeKbche npaDi NOBPeDa B HjaKoe OT yCTpOCTBaTa, n3noJ3BaIte Bluetooth MeHIOTo Ha HeCbbp3aHOTy yCTpOICTBO, 3a Da CbbpXeTe yCTpOICTBaTa OTHOBo.
  Mozhe na Bb3nKHe wym, ako Bluetooth Bp3kata 6bJe HnpabuHNo npeKpaTeHa.

Cbbp3BaHe Ha npyru yctpoicTba

Cne KaTo npeKpaTnTe Bpb3KaTa Mexy Bluetooth BnCOKOROBOpnteN TeKyUcCBp3aHOTo Mo6uHNO yCTpoIcTB0, MoXeTe Da CBpbXeTe BnCOKOROBOpnteN KbM DpyrO yCTpoIcTB0.

1 Hatnche Te 3aepbxte 6yToHa 3a Bb3npOn3BexJaHe/cDBoRaHe c Bluetooth 3a noBeue ot Tprn ceKyuHn.

PpneMaHe nn OTXBbPnHe Ha NOBnKBaHn

HaTnCHHe 6yToHa 3a Bb3npOn3BexKaHe/cDBoRABaHe c Bluetooth, 3a da OTROBOpTe Ha NOBnKBaHe.

HaTnchete n 3aApbKte 6yToHa Bb3Pon3BexKaHe/cDBoJaHe c Bluetooth, 3a da oTxBbPnTe BxOJaIO NobuKBaHe.

PerynipaHe Ha cnlaTa Ha 3Byka

HaTnuchete 6yToH (+) 3a yBeneucaBaHe Ha 3ByKa, nIIy6yToH (-) 3a HamaJraBaHe Ha 3ByKa, 3a da perynipaTe cnlaTa Ha 3ByKa no BpeMe Ha o6axdaHe.

Copyright © 2016 Samsung Electronics

ToBa pbkoBOIDCTBO e 3aunTeHO OT MeKdyHapOHN 3aKOHN 3a ABTOPCKn npaba.

HnKoJtO pBkoBODCTBOTo He MoKe da 6bJe Bb3POn3BexJaHa, pa3npocTpaHraHa, npeBexJaHa nn npexBpIHa NOD KaKBaTO I Da e fOpMa nn NO KaKBbTO I Da e Naun, eneKtponeH nn MExAHueH, B TOBa YncNo fOTOKOpnpaHe, 3anC nn CbXpaHeHne B KaKBaTO I Da e CnCTema 3a HfOpMaunHO CbXpaHHeHne I n3BnuHae, 6e3 npedBapntelHoto pa3peHne Ha Samsung Electronics.

TbproBcN MapKn

SAMSUNG n IoroTo Ha SAMSUNG ca pernctpupaH TbproBckn MapKn Ha Samsung Electronics.
- Bluetooth® e périçtrpùpaHa TbproBcka Mapka Ha Bluetooth SIG, Inc. 3a ÇeɪnəcBЯT.
- Bcnyn npytn Tbprobckn Mapkn n aBtOpckn npaba ca co6CTBeHocT ha CbOTBeHTHe IM co6CTBeHnCn.

Kako započeti

Najprije pročitajte

Prije uporabe uredaja pažljivo procitajte ovaj prisucnik kako biste osigurali sigurnu i pravilnu uporabu.

Copyright © 2016 Samsung Electronics

Ovaj je prisucnik zasticen medunarodnim zakonima o zastiti autorskih prava.

Niti jegan dio ovog prisučnika ne smije se reproducirati, distribuirati, prevoditi ili prenositi u bilo kojem obliku, ni na koji način, elektronici ili mehanički, uključujuci fotokopiranje, snimanje ili pohranjivanje na bilo kojem mediju za pohranu informacije i sustavu dohvata podataka, bez prethodnog pisanog dopustejena Samsung Electronicsa.

Zašitni znakovi

Copyright © 2016 Samsung Electronics

Ovaj prisucnik je zasticen medunarodnim zakonima o autorskim pravima.

Nijedan deo ovog prisučnika se ne sme reprodukovati, distribuirati, prevoditi niti prenositi ni u Jednom obliku niti bilo kojim putem, elektronskim niti mehaničkim, što podrazumeva fotokopiranje, snimanje i skladistenje u okviru bilo kog skladišta informacija i systemdama za preuzimanje, bez prethodne dozvole kompanije Samsung Electronics u pisanom obliku.

Trgovačke marke

• SAMSUNG i SAMSUNG logotip su registrovane trgovace marke kompanije Samsung Electronics.
• Bluetooth® je registrovana trgovačka marka kompanije Bluetooth SIG, Inc. širom sveta.
  Sve ostale trgovačke marke i autorska prava su vlasništro njihovih vlasnika.

Começar

Leia primeiro

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

Telif hakki © 2016 Samsung Electronics

Jgssll gglll jglgll lgsjglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglggl

1

Jg jge Jg 1 g

1

[Speaker] Level Box Slim (0000)

jgljgl

0j 1

a

Jaiil jglil ie glaia yjll gaoi gai i e laaiy

aagall jgglj ggl jg jy/ jie

aaii 1

aaii i 1

G

.（）g（+）

s

gall llll ylll yiey ll bill (+) gall s j 1e

gall lll aill 111 gbiill (-) gall sss jgc sb bi

Jauaii

Jooaall jgealln 1e 50 11 11 11 11 11 11 11 11 11 11 11 11

Jiaolil

gaa

aalS a 1

a 1

gai guaa b

aillsoj! cii i gall s gina biai (-) g (+) gai s gina zlaia

s

. 1

aalso 1j! aaiiaai aaii aaiiaai

aaiia aalssie 1y ylll llll jgjglll jj j j b

.

aollso sglj

aalSo aegiy 1g jyglj yj jyj jbc

J 1

Samsung Level

Galaxy Apps Play Store Samsung Level

Samsung Level

Jlalll jll lcljaiy d 11 11

Samsung Level

Samsung Level

y

Lgalea Jy jao Jgall

Samsung Level

Android 1

4.2.2 4.2.2

jai jia jia jia jia jia jia

iilil

.

aaii i 1

J 1

Jg 1 Jg 1 Jg 1 Jg 1

1

iWif

J 1

Jg Jg jg jg jg jg g g g g g g g g g g g g g g g g g g g g g g

i 1

J 1

j 1 j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

ilil lglll jjio huiuuii iaiiaicui

aai gall jleyj y jia jbi jn w gall aS jia o lii

t t 11111111111111111111111111111111111111

i 1

1

1

gss s g j 1j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

1. 1

aas

gll gglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglggl

jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg j

.

g

i 117

aJgdl gglg 10000000000000000000000000000

a 1

JgLg 1

i 1

a

.

Bluetooth SIG, Inc.

oJai

i

1 1

1

15

J 1

gai slai

j 1

1

Sui ci 1u b1 y oai i (sai)

i

J 1 J

.

.

S 1

J 1 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

ii

1

1 1

IEC 60529 45

j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 1.9 19

1

Level Box Slim

o 100

12 < 1a < 32 ②

Jg

:du 1

（）

J

USB

i 1

jL jL jL jL oK 1000000000000000000000000000000000000

.

.

j 1 j 1 j 1 j 1 j 1 j 1 j 1

A^ D = 90^

j 1

s

J 1

1

aaii iiaaii aaii iaii iaii iaii

J 1

1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

s

1

%1. . . [V. . .]

%V. . . [Y. . .]

%Y. . . [Z. . .]

%Y. . . [W. . .]

%1. . . [Z. . .]

J 1

. 1

J 1 +) Volum 12000000000000000000000000000000000000000000000

1 (-) Volume 120

. 1

i 1

g g g g g g g g g g

.

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1

S ACD = S COD + S_ DCE

jolaiw 45 jilw jay g lay gaa iila y jka jdoa piai gla Jaoell jswg Jraa aas

15

J

i

1 1

Copyright © 2016 Samsung Electronics

.

Samsung Electronics j 1j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j

J 14 j j j j j j j j j j j j j j j j j j

sJgsl

Samsung Electronics

Bluetooth SIG, Inc.

.

Hauza lo pa60tbl

IOnHnTeBhIe CBeHeHn CM. B pyKOBoCTBe NOb3ObaTeN K npromy yCToPoiCTBy.

3 DpyroeyctpoiCTBO BbI6epnte npHKT [Speaker] Level Box Slim (0000) B cncKe doctyihbx yctpoiCTB.

CBeTOBOHnHnKATOPMURAeTcHUM.

PIN-KoI 6ecnpoBOHO ayDnOKOLOHKn -3TO YeTbIpex3HaUHbI HOMep B CkO6kax, KOTOpbI OTo6paKaETcRa Ha 3KpaHe HAcTpoE kpyrOу cTpoiCtBa Bluetooth. Homep OTnuaetcB 3aBnCIMOCTN OT TnPa 6ecnpoBOHO ayDnOKOLOHKn.
- Ecn npon3oienct c6oN noKluueHnra Bluetooth nnn dpyromy yctpoiCTBy He ydaCTc8 o6napxntb 6ecnpoBOnHyu ayDnokOLOHky, ydaIInTe cBeJeHnro 6 ycTpoiCTBe n3 cnNcKa yctpoiCTB. 3aTeM NOBToprte NOnblTKy noKluueHnra.
PaDnyc DeiCTBnA Bluetooth n KaueCTBO 3Byka 3aBnCt OT Tnna POnkNIOUeHHbIX yCTpoIcTB.

IopKIOUeHne n OTKIOUeHne yCTPOIcTB

Haxmnte u ydepknaTe KhoNky Bocnpoun3Beene/conpJKeHn no Bluetooth Ha npotJKeHn 6oJe Tpex cekynd. Tekuee coeHHne 6ydt pa3OpBaHo.

CoeHHeHne MoKHO 3aBepuTb, BbIKIOUHb FyHKUIO Bluetooth Ha NOkIIOueHHOM yCTpOInCTBe.

Ecnn nodknueHne no Bluetooth 6ydt npepBaHO n3-3a 6oIbIoro paCCToHnMa MeJy yCTpoiCTBaMn, pa3MeTnte yCTpOiCTBa pIOM dpyr C dpyrom Ha HeKOTOpoe BpeMn. NOBTOHoe eoKJIouHne MeJy yCTpOiCTBaMn 6ydt yCTaHOBNeHO aBTOMaTHueCKn.

CoeINHeHne MoXHO 3aBepuNTb, BbIKIOUHb 6ecpOBOHyU aYIOKOnOHky IIn fYHKcIIO Bluetooth Ha noKIOUeHHOM yCTpoICTBe. CoeINHeHne MExNy UcTPOICTBaAMN 6yIET BOCCTaHOBHeO ABtOMaTnueCKn, KaT ToJIbKO 6ecpOBOHaayIOKOnOHka 6yIET BKIOUeHa CHOBA N yCTPOICTBa OKaJyTCB 3OHe DeIcTBnA NOkIOUeHHa IIn KaT ToJIbKO Ha noKIOUeHHOM yCTpoICTBe 6yIET BKNIOUeHa fYHKcIua Bluetooth.
- Ecni nodklouhe nno Bluetooth 6ydt npepBaHO n3-3a HeucnpaBHOCTn yCTPOICTBa, BocnoJIb3yInTeCb MeHIO Bluetooth Ha oTKIOUeHHOM yCTPOICTBe IIN NOBTOPHOro noDKlouheny yCTPOICTB.
- Ecni nodklouehne Bluetooth otknioyeho HekoppeKTHO, MoryT cnblaTaBcra yMbI.

IopKIOUeHne KdpYrIM yCTpoiCTBaM

IocJIpeKpaueHnnoKIOUeHn6ecnpoBOHOaYdIOKOLOHKn NOKJIoueHHOMy B HactOaMIMOMeHT MObNbHOMy yCTpOJCTBy ee MoXHO noKIOUChTb K dpyromy yCTpOJCTBy.

1 Haxmnte u ydepkuaite KhoNky Bocnpoun3BedeHn/conpJxHn no Bluetooth Ha npotjxHn 6oJee Tpex cekyHd.

Iopknouehne 6ecnpoBODno aynokOJHKn no Bluetooth 6ydt 3aBepseHo n OHa nepeiDeT B pexm copjxehna no Bluetooth.

2 IopKlnuHte 6ecnpoBOAnHyU aynIOKOLOHky KdpYROMy yCTpOInCTBy.

AkkymyIaTOp pa3pJxKaeTc8 6bIcTpee, yem o6bIuHo

• ΘΦΦeKTnBhI 3apRd aKKymyIaTopa 6ecnpoBOJHO ayINOKOJHKn MoXeT CHNJaTBcR npN CnIuKOM Hn3KoI INCnUkOM BbICOKO TeMnepaType OKpyKaIOSeI cpebl.
• Akkymyatop yBnEeTcpaXoHbIM MaTePnaIOM, n erO 3ΦΦeKTHBbI 3apd 6ydt co BpeMeHem CHNXaTbcra.

© Samsung Electronics, 2016.

Данhoe рукововсBO 3aшишно мждуharopним 3akohamn 6abTOpcknx npabax.

3a npesaaetc BOCpOuN3BOoNTb, paCnpocTpaHrTb, nepeBoUHTb IINI nepeDaBaTb KaKne-Jn6o Yactn DaHHoro pyKOboCTBa B IIO6oI FOpmE N IIO6bIM CnOCo6OM, 3JeKTPoHbIM IINI MExaHueckm, BKIOUay ATOKOpNoPobAHne, 3aNcB N XpaHEnE B IIO6oI CnCTeMe XpaHEny INoNcKa INΦopMaun, 6e3 PpeBapntbHO rnoNcbMehHOrpoa3peSeHnKOMpaHnn Samsung Electronics.

Tobaphe 3HaKn

SAMSUNG and SAMSUNG are the first 3apaertpnpoBaHHbIMN TOBapHbIMN 3HaKaAMN KOMpaHnSamsung Electronics.
- Bluetooth®явяется заразистриповаим Товарным 3нakомBluetooth SIG, Inc. BO Всем м范围内
OCTaIbHbIe aBTOpCKn IpaBa n TOBapHbIe 3HaKn IaJIyOTc CO6CTBeHHOCtBu INx BlaJeNbUeB.

Початок роботи

OzhahomTece nepei noaTKOM BnKOpncTaHna

Дя 6e3neuHOro Ta HanexKHorO KOpNCTyBaHHЯ npnctpoem nepw 3a BCE yBaXHo O3HaJOMTeC8 3UIM nociHnikom.

3OBHiiHnBnI BnrrnI npOdykTu MoKe BiDpi3HrTncB iD 3o6paXeHHa. Bmict MoKe 3miHIOBaTnC8e3 3aBuachoro nonepdXeHHa.
- Pered BnKOpNCTaHHm DnHaMika Bluetooth nepekoHaTecr, 0o BOHO cymiHo i3 npnstpoem.

PONCHIOBAJIbHi 3HaayKn

PonepeJxHn: Cntyaui, 0o MoKytb npu3Becn do TpaBMyBaHHa6e a6o iHux oci6

Ybara: cnTuayi, iO MOxKyb npn3BecTIO NO WKOJKeHHN pnpCTPOo a6o IHwOrO 6bnHaHNN

PpIMitKa: npMItK, npaI 3 KopnctyBaHna 6o doaTKoBa iHopMaucia

3aTepeXeHNa ⅢOdo CTiKoCTi Do BVnBy BODn

Baw npnna d cikn do Bnny Bo. Dny 36epxeHHra ckiKoCTi npcTpoIO DO BnHy BoN peTeJbHO
doTpmyntecb HabeDeHnx HxKue peKomeHdaui. HeDopumHaHry ix MoKe npn3BeCTn Do NookoJxehn
npncTPOIO.

He 3aHypioTe npictri y BODy Ha rIbHy noHa1 M a6o He TpMaTe Ioro y BODi DOBwe 30xbuInH.
He nidaabaTe npictpi i CnIbHoro HAnopy BOni.
-ЯкwoHa npictriП notpanna 3BuaHа BODa,peTeNbHO BVtpiTb Ioro 3a DOnomorOu YnCToi M'koI TkaHH.ЯкsoHa npictriП notpanna iHsa piHNa, HapnKlaD, coLoHa BODa,IOHIzOBaHa BODa abo aJIkorOblHn HaII, npOMInTe NOrO 3BuaaHIO BOHO Ta peTeNbHO BVtpiTb 3a DOnomorOu YnCToi M'koI TkaHH.Якso He DotpIMyBaTnC aHx IHctpyKci, ce MoKe BnINHyTu Ha po6Otu Ta 3OBHIshi BVrIaN pnpCTpoU.
- Y pa3i 3aHypenHn npncIpoU y BODy a6o NotpanJIHHB OBDn Ha MIKpOfoH cN dINHAMiK, 3ByK nID qac BnKInky MoKe 6yTu HeuITkM. PpOTpiTb npncIpi CxOIO TKAHNHO a6o peTeJbHO BucyWitb nepeD BnKOpNCtAHHM.
Bnnp6ybaHna npncptpo Bid6ybaocB KOHTpObBOaHOMy cepedOBu. Bin 6yb ceptnphiKobAHn k npctpi, cTikn do BnNBy Bodn y BN3NaeHx yMOBX (npntpi BIDNOiAe BmOram KlaacnphiKaui IPX7, k 3a3NaeHO y MIXnapoHOMy cTaHapTi IEC 60529 «Ctynh 3axnCTy, 3o 3a6e3neUeTbc o6oONkAmn [KoD IP]'; yMOBN Bnnp6yBaHn: 15-35 ^ C 86-106 KPa, 1 M, npotraom 30 xBnInH). He nBnqncb Ha Klaacnphiauio, icHyc BiporidHicTh noWKoJKeHH na pncptpo B OKpeMnx cnTuayix.

Пробпострий Level Box Slim

Bn moxete BnKOpncToBvBaTn uei npOdyKT k DnHaMik Bluetooth a6o k akymyIaTOP dI iHux npicctpoIB.

Komпleckая

IpebeipTe HABHICTb y KOMNNEKTi TAKNX KOMNHOHTiB:

-ДиHamikBluetooth
KopoTkn noci6nK KopncTyBaHa
Ka6eIbXnBHeHnHiNx npucTpoB
Ka6eJb USB

KOMnoHeHTn, rki BXoJaTb Do KOMnIeKTy npNcTpoU, MoKyTB p3HNTncs 3aIexHo BiD KpaIHn a6o onepaTopa 3B'ra3Ky.
KOMnoHeHTN, 1o nocTauaOTbcB KOMnIeKTI, po3pO6JIeHI cneuaIbHO Ira ZbOrO npNCtpoTo Ta MoKyTB 6yTN HeCymicHIMM 3 iHIMM npNCtpoAM.
3OBHIHINBnI xapaKTePncTNI KMOKyTB 3MIHOBaTnC86e3 3aBuachoro nonepdXeHH.
-ДоаТКОВIakceCyapnMoKHa npu6aTn B MiceBOro noCTaaybHnka Samsung.пердix npu6aHHmpekeHOaTeCra,цBOHc cyMiCiHi i3 cIM npicStpoEM.
Bukopnctobyte Iiwe akcecyapn, pekomehoBaHi KOMnHiO Samsung. BnkOpncTahHepeKomeHIOBAHnx akcecyapimOke npn3BeCTn Do BnHKnHeHHn pO6Jem y po6oti Ta HecnpapBHOCTe, Ha kI He pO3NOBCIOJxYETbCra rapaHTi.
- Доступнисту усix akcesуаров може зminюватися заlexно вд компай-Bиробнков. Достаков сю по достуни akcesуаров можна дзотся на Be6-caTi Samsung.

3OBHiushiBvrgIaI npncTroIO

BnKopncOByte cIy dI py nItpmKn npncptpo.

Khonkn

Коньka Функця
Коньka ВВIMKHeHн/ BIMKHeHнЖИВлЕн	• Дцоб ВВIMKHyтп abо ВIMKHyтп дINHamik Bluetooth habиситы ta утимуITE кONКУ ВВIMKHeHн/ВIMKHeHн. • Habits, сцоб пеевитп рIBN зараду akumylтopa, сцо 3алшИВСЯ. • Habits, сцob поати зарджанн зовишього prinstpoю рп використанни дINamika Bluetooth уякостi akumyЛТОпа.
Коньka 36IbWeHnrgунocti (+)	• Habits, сцob 36IbWeHnrgунICTь. • Habits Ta утимуITE, сцob пеевп do HaCTynhoi nichi пid чac вidTBOPeHн.
Коньka 3MeHsEHNrgунocti (-)	• Habits, сцob 3MeHsEHNrgунICTь. • Habits Ta утимуITE, сцob пеевп do nonepedhboi nichi пid чac вidTBOPeHн музчнх phaIIIB.
Коньka BiTbOpeHn/ 3'EdHahnry Bluetooth	• Habits i утимуITE, сцob увIMKHyтп ржим 3'EDHaHня за допомorTobluetooth. • Habits i утимуITE пояблиЗно odniči sekyнддя зауSCy S Voice кOLДунAMik Bluetooth 3'EDHaHн 3 iInsmm prinstpoEM 3a дopomorTobluetooth. • Habits, сцob 3NoBv piДКlIOUHTN рпистоi, якшо 3'EDHaHн, BCTAHOBLeNe 3a дopomorToBLeeth, bUpLoВtrapeHo. • Habits i quac посуХobYBaHну музIK, сцob ризуПИNTN a60 noHOBtN BiTbOpeHн. • Habits, сцob BiD nobiCTn Na BxIDnB VIMKnK. • Habits i утимуITE сцo KONКU, сцob BiDxHJIITN BIVKnK. • Habits, сцob заBERPHTN NOToCHy poZMOBy.

CbitIOBni iHdkaTop

CbitIOBn iHdNkATOp nobiOmIe npo nToUHn cTaH dHaMiKa Bluetooth.

Lf yHKiMoKe He NiTpmyBaTnca Ha deaKnx npncTopx.

NoHETbcnIbHe BiTbOpEHNaayiofoaayy.

Дя npиненспього biTbpeнгаayiofoaayHaTNCiTB odHocHO KHONK 36IbweHHrayhocti (+) ta 3meHseHnrgyhocti (-) Ha dInHaMiky Bluetooth i yTpmyTe ix npu6n3Ho npotrrom Ondhi cekyn.

Bvnkopnctahnnaakymyjtopa

Pn nkiuoyehni do iHoro npictpoo 3a donomoro k6eJIO XINBHeHHI INxN pncptoiB BnkopncTOByte dHaMik Bluetooth akymyIATOp.

1 Dnhamik Bluetooth BCTaBTe Ka6eIb JxNBJIeHn IInuX npNCTpoIB y po3'EM nIiKnIOueHn 3apAnHO npNCTPOU.

2 3apJxByBn npucpiPi dHaTe iHnn KHeCb Ka6eIoo XNBneHHa Hux npucpoB do npoty Micro USB.

3 Dnhamik Bluetooth HATNCIb KHOKNy BBIMKHeHHB/BBIMKHeHHJ XNBLeHH, 06 noaTn 3apdKeHH aKymyIaTopa.
4Пия noBHorO 3apJxKeHHaKymyIaTopa BiD'EnHaIte Ka6eJIb KINBHeHHa IHnIX npicTroB BID nHaMiKa Bluetooth Ta iHoro npicTroIO.

-Пд ус зардженин орпостю ви можete викорочьВaTN duHaMik Bluetooth. Потe,у раз iиькоу зарду akumлгета,викорочандаякx Функui може 6ут n obmexжehm.
-ФaktnuHa emHicb (Bt-r) BmipHOeTbc Ha akymyIaTOpi i dopiBnOe BnxiDHomy ctpmy Ta Hanpy3i Ha HbOMy.BoHa moKe BiDiPI3NaTcB iD EmHOCTi (Bt-r), kA BiIO6paXaETbcR Ha npICrpoi, B 3aJIexKHOCTi BiD BNXIDHOI NotJxHOCTi, KOHfIgypaui eJeKTPnuHOI cxEMn NiID'EDHaHOrO pncrpoU yMOB HABKONlHbOro cepedOBuua.

ДодаТOK

YcyuHnHa HenoJaDOK

Nepw Hix 3BepHyTnca Do cepBicHoro ceHTpy Samsung, cnpo6yTe cKOpNCaTnca TaKIMn piWeHHaMn.

Диhamik Bluetooth He BMnkaetbca

Kkto akymyTOp nobHicTo p03pAKeHn, dHaMik Bluetooth He yBIMKHeTbCra. NobHicTo 3aprAdt b akymyTOp, nepw hIX yBIMKHyTu dHaMik Bluetooth.

Диhamik Bluetooth замер3

Jkuo dHamik Bluetooth 3amep3 a60 3aBncae, nBriuieHHn np6nmeN cnp6yTe BIMKHyTn DnHaMk Bluetooth Ta BBIMKHyTn Noro 3HOBy.

Якwo dinamik Bluetooth Bce ue He pearye, 3aBepuItb πiKluoyenHra 3a donomoro Bluetooth i πiKluoyitb ii NobtopHo. Дяцboro NaTuschItb i UTPMuyte KHOKNy BiITBOpEHn/pexmmy 3'EDHaHHa 3a donomoro Bluetooth 6n3bko Tpbox cekyHd.Якwo Ha dinamiky Bluetooth 3anyuSeHo pexim 3'EDHaHHa 3a donomoro Bluetooth, nobtopHo BCTAHOBiTb πiKluoyenHra MIX npictpoamTu nepebiTe, cn npaioe dinamik Bluetooth.

Якwo npo6nemy He Bdaetbc8 ycyHyTu, 3BepHITbc8 do cepbichoro ueHTpy Samsung.

AkymyIaTOp He 3apJkaeTbCra HaleXHm YInHom (dЯ Ka6eJIb USB i 3apJdHnx npinCTpoiB, peKOMeHdoBaHnx KOMnaiHeio Samsung)

Samsung Electronics, 2016

IeHn6HK KOpNCTyBaHa 3axuueHO 3rJIO 3 MIXHapOHNM 3aKOHAMN 0do ABTOPCbKnx npab.

3a6opoheno biTbopouBaTu, po3noBcOJkyBaTu, nepeKnaIaTu a6o nepeJaBaTu B 6ydb-akii fOpMi a6o 6yb-kaIMN 3ac06aMn, eJeKTpoHHmN a6o MexaHicNHmN, BKlIOUHO i3 KcepOKoiOBaHHam,

3aHcCyBaHHaM a6o 36epirAHnMa Ha 6ydb-akomy npncTrooi dIra 36epiraHHaDaHx uB iHOpMaiziHo- noUykoBii cIcTeMi, KODHy qacTInHy cboRo noci6Hnka 6e3 nonepedhboro rncbMOBoro do3BOny KomnaHii Samsung Electronics.

TobapHi 3HaKn

SAMSUNG i Iorotn SAMSUNG e 3apeectpoBaHmTuBapHmN 3HaKaMn KOMnaHii Samsung Electronics.
- Bluetooth® € 3apeεctpoBaHIM TOBAPHIM 3HaKOM KOMnaii Bluetooth SIG, Inc. Bycbomy cbiti.
- Yci iHsi TOBapHi 3HaKn i ABTOPcbKi npaba HaLeXkaTb BiIDIOBIDHM BlaacHnKaM.

Kmbictbi 6actay

Kymbictbi 6actamac 6ypbIH OKbIHbl3

Kayinci3 api dypbic naaalaHy ywiH kypbilfbHbI naaalaH6ac 6ypbIH OCBI HyCKaylbIKTbIOKbIN WblfbIHbI3.

CypeTepdiH cbIpTkbl Typi HaKTbI eHimHeh epeKwJeHyi MymKiH. Ma3Myn aJdbH aa eceptyci3 03reptinyi MymKiH.
Bluetooth dHnAMnKti naJaIaHydBiH, aIbIHda, OHbIH KypblfbiHbI36eH yIleCIMdi eKeHiTEkcepH3.

HycayIbIK 6elriwepep

Eckepy: e3iHizH HeMece 6acKaIapDbH XapaKaT aIybiHa eKeJyIMyMKiH KaFdaIap

A6aIHaHbI: KypblfblHbI Hemece 6acka Xa6dbIKTb3aKbIMaybl MYMKIH XaFdaIap

Eckepim: eckepTuJIep, naДaIaNHy TpyaJIbI KeHecTeP Hemece KocbIMwa aKnapaT

Cy etki36ey ka6iJeTih caKtay

Kypblfby cy etki36ey kaibineH KOlaNbI. WaHa Te3imdiikTi caKtay ywiH, 6ydaH api KeTipilreH YcbHbICTapdb MyKnT opbIHdaHbI3. KepiciHwe XaFdaJa KaYpbIbnfbl 6y3blnybIMMknH.

KypbIITbIHbI 1 M TepeH cyfa 6aTbIPMaHbI3 Hemece 30 MNHyTTaH KEN yaKaBt cy actbHa yCTaMaHbI3.
KypbIfblHbI Kywnen Ko3FaJatbIH cy acepiHeH KopfaHbI3.
- Erep Kypblfba Ta3a cy Tnce, OHbTa3a, Xymca Wybepekneh KeNTipiH3. Erep KypblfbaTsy3daHaH, NOHaJaFah Cy Hemece aKORoJb CysHbCnAeKTBi Backa CyBtIK Tnce, OHbTa3a Cymen WaBbIn, Ta3a, Kypfak Wybepekneh KypFaTbIn CypTih3. Erep OcbHvckaynapOpbHdAlMaCa, Kypblfbl eHIMdiIirHe XaHe KepiHicHe Kepi ocep etyi MymkiH.
- Erep KypbIbI cyfa 6aTbIpbIca Hemece MKNpOoH He dINHaMnK bINFaIaHca, KOhbpay 6apbcihda db6bc aHbK ecTImeyi yMkH. KypblfbHbI Kypfak wYbepeKeH cypTiH3 Hemece naJaIahy aIdbIHda dypbICTan KeNTipiH3.
KypbIbI 6aCKapblaTbIH opTaHa cblHaIbI JxHe 6eIriI 6ip KzaFdaIaPda cy KopFaHbIcblHa cepTNphiKaTTaIbI (IEC 60529-KopnyctapMeH 6epiIreH KOpfaHbIC DeHreIepi [IP KoIbI] xaIbIKapaIbIK cTAHdApTBlnDa CnPaTTaIFaHdA INPX7 XikTey TaIaNTapblHa cMKeC; cblHaK JxAFdaIaPbI: 15-35 ^ C 86-106 KPa, 1 MeTp, 30 MmHyT). OcbI cbIHbITAmafa KapamacTaH, KypbIbI Kei6ip XaFdaIaTTa 6opi6ip 6y3blNybl MYMKiH.

Level Box Slim kypbIJIfblcbl TypaIbl

C3 6yI 6yIbIMdbI 6aKa Kypblfblap ywiH Bluetooth dHaMnri Hemece 6atape Tontamacbi petiHde KOJaHa aJAcbl3.

Opama Kypambl

ΘHIM Kopa6bHaMbHa 3aTap 6ap eKeHH TeKcepii3:

• Bluetooth ДИнамаги
  XbIJaam6actayHcyckayIbIFbl
  CbipTKbl KypblfblHbI 3apTay ka6eJI
  USB ka6eJI

KypbIfBImeH 6ipre 6epiIReH 3JeMeHTTep XaHe Ke3 KeJIReH KOJI XeTIIMdi KocalKbl KypaIap aMakKa Hemece KbI3MeT KOpCetUwIRE 6aJlaHbICTbI O3repin OTbIPybl MymKIn.
- Бернген Демп对接Tek Ocbi Крьлфыа apHaJfah XaHe 6acka КрьлфыapMeH - Улесимдболмaybl MymKin.
CbipTkblTypi kHe cunattamanap eckepTci3 e3reptinyi MymkiH.
KocbIMwa KocaIKbl KypalapdbI JepriikTi Samsung catyubicihan catbn anyfa 6oJadbl. Catbn any aIdbHda oJapdbIH KypblfBIme H yIecimDi eKeHH TeKcepiH3.
Tek Samsung pyKcat etKeH KocalkbI KypaIapdbI fHa naJaIahbIHb3. BekiTImereH KocalkbI KypaIapdbI naJaIahy KeiJIkTe KaMTbIMaFahn OHIMdiIK Macelepein XHe aKaylbIKTapdbI TydbIPybIMMKIN.
KocalkbI KypaIapdbH, KOJ XeTIMdiIiri Tek eHdpywi KOMnHaNnaIapfa fHa 6aIahbictbI 6oIaDbI. KoJ XeTIMdi KocalkbI KypaIap TypaIbI KocbIMwa aKnapaT, Samsung Be6-caTbIHda YcblHbIHaH.

KypbIFbIHbIH CbIPTKbIKepiHici

TynKoMa KypbIbIbHbKoJaaywH KOJaHbIaDbI.

Tуйменер

ABTomaTbI Tpye KyaT yHemdey peXmHiH KEmerIme H 6aTapeaHbH KyaTbH YHemDeHiz.

ABTomaTTbI TypDe Kyat yHemdey peKmIH 6eJIceHdipy ywiH Kyat Tymeci MeH dIb6bc DeHrei (+) tymecih 6ip yaKbTTa 6acbln TpybIHb3. MyIbTImMeHaJIbIK faiJbIH OHaTbJIybl TOKtaTbIFah catten 6actan 6ip caFAT etKeH ke3e Bluetooth nnHAMrI abTomaTTbI TypDe ceHei.

ABTOMaTTbI Tpyde KyaT yHemDey pexnmiH aayayuH Kyat TYmeci MeH dblbic deHreii (-) TYmecin 6ip yaKbTTa 6acbln TypbHb3.

Bipinpi pe icke kockan ke3e Bluetooth dHaMri aBTOMaTbI Typde KyaT yHemdey peKIMHe 03diirHe hEedi.

Bluetooth ДиHamnirnпайдалану

3 BaKa Kypblfbl KoJxetimdi Kypblfblap tiImiHi iHHeH [Speaker] Level Box Slim (0000) TaHaHbI3.

Hdkatop 1aMbI Kek TycnEH XbInbIbIKTaIbI.

BluetoothДиHamriH PIN KoIbI,6aKa KypblfblHn Bluetooth napametpJIepi 3KpaHbIHda KepeTilreH JkaKa iuiHderi Tep TnOpdaH TypaTBn CaH 6oJbIN Ta6bIaN. Can BluetoothДиHamriHc BaIahbICTb epeKweJeHei.
- Bluetooth Kocblmbi cTci3 aKtaIca Hemece ekHwi Kypblfbl Bluetooth dHaMriH aHbIKa aImaca, ekHwi KypblfblHbIH Ti3IMHeH KypblfblHbIH aKnapaTbIH KObIHbI3. CodaH Kein Kocblny apekeTIH KaNTaIahbI3.
Bluetooth KocblbIM aykbmbI MeH dI6bc Canacbl, Kocblfahn Kypblfblapfa 6aIahbictbl e3repin OTbIPybl MymKiH.

KypblfblapdblaXkbipaty Hemece Kaeta Kocy

OuHaTy/Bluetooth xynTay tyMeCih yw cekyHdTah aca 6acbIn typbHb3. AfbIMdafti KocblbIm axbipaTbIaTbIH 6oIaBl.

Kocblmbdi, Kocblfah Kypblfdafti Bluetooth MymkiHirih eWipy apkbliaarKaTayfa 6oIaIbI.

Erep Bluetooth Kocblmbi Kypblfblapdbi apacbHdafti KaWbIKtbK ce6e6iHeh y3iIce, Kypblfblapdbi 6ipa3 yaKbit 6oNb i6ip-6ipiHe XaKaBHaTbHbI3. Kypblfblap aBTOMaTTbI Tpyde KaTa Kocbladbl.

Kocblimbl, Bluetooth dHAmriH eipy Hemece Kocblfah Kypblfdaftbl Bluetooth MymkiHirin eipy apkblb aayTayfa 6oIadbl. Bluetooth dHAmriH kaTadaH KockaHa JxHe KypblfbIap aykbIMhbiH iwiHde 6oIFaHda Hemece Kocblfah Kypblfda Bluetooth MymkiHirin 6eIceHdipreHde, KypblfbIap abTomattbl Tpyde KaTata KocblatbH 6oIadbl.
- Erep Bluetooth Kocblmbi KypblfblbH, aKaylbflc6e6iHeH y3iCe, KypblfblapdbkaiTa Kocy wih axbipatblfah Kypblfbldaftbl Bluetooth m3ipin naJaIaHaBb13.
Bluetooth KocbIbIMbi Dypbc AxbipaTbImaFaH 60Jca, yj ectiJy i MymKIn.

BaKa KypblIbnapFa KaIay

Bluetooth dInhamrIm MeH aftbIMda KocblfAH KypblfBhlh apacblHaBfbl KocblbIM axbipatblfAHnH KeiH, Bluetooth dInhamrIH 6acka KypblfBa fKa Kocyfa 6oIaBl.

1 OHaTy/Bluetooth KyIay TyImeCIn yIcKHyIaH aca 6acbI TypbIHb3.

Bluetooth dHAmriri aBIMdafti Bluetooth Kocblmbin aKaTaNbIXaHe Bluetooth xynTay pexmIne etedi.

2 Bluetooth dHnAmnirin 6aKa KypbIrfiFa Kocblhbl3.

KocbIMwa KypblfblapdbI Kocy

Bluetooth dinhamirip yaKbTTa eh K6bi eki Bluetooth KoJaTbIH Kypblffa Kocbla aIadbl.
Bluetooth dinhamirih eki Kypblffa KockaHda coHfbi KockaH Kypblfbi Herizri Kypblfbi peiHde TaHbIaBl. Ekinwi Kypblfbi KocbIMwa Kypblfbi peiTHe TaHbIaBl.

1 Bluetooth dinhammi MeH Kypblfblnbl Bluetooth apkblbI xaIHaHb3. KocbIMwa aKnapaTbI KypblfbHbl Bluetooth apkblbI xaIay 6eImiHeH kapaHb3.
2 Bluetooth xynay pexnime He kipy yuih OHaTy/Bluetooth xynay Tymecin uamameh yu cekynd 6oynb6acbin TypbHb3.

Hndkatop wambl Kblbl XaHe KeK TycTe XaHbIn, 6ipihwi Kypblfbl aXbipTaIJaIbI.

3 Bluetooth dHAmirin ekiwi Kypblfba Jxafay ywiH 6ipihw KiypblfbHbJ xafay ywiH KOJaHbIHaH 6ipdei KocblbIM ic pacimH opbiHaB13.
4 Bluetooth ДИнамагин 6iPihwi KypblfbaKaIHa KaIHa Kocy yuHn 6ipihwi Kypblfbl TizimHeH [Speaker] Level Box Slim (0000) TaHdaHbI3.

ByI MymKiHdiKti Kei6ip Kypblfblap Kollamaybl MymKiH.

My3bikaHbITbIHday

Kocblfah Kypblfda OHaTbIaTbIH My3bIKaHbI TbIH aHbI3.

My3bikaHbI OHaTy ysiH OHaTy/Bluetooth KyntAcTbipy TyuMeciH 6acblb3.

OHaTydbi KiIdipty HeMece KaIfactbipy

My3bika OiHaTydbi KiipTy Hemece XaIFactbipy ywiH OiHaTy/Bluetooth xynTay Tymecin 6acblb13.

IbI6bcIeHrein peTtey

Дыбьс дeнг_REин peTrey yшiH dbl6bIC deHreii (+) Tymecin Hemece dbl6bIC deHreii (-) Tymecin 6acblb3.

BaKa aHdepdi oTKi3in xi6epy

My3bika OiHaTy 6apbIcbIHda KeIeCi faiHa eTu ywiH dbl6bc DeHrei (+) TyImeCIn 6acBIn TpybIHbI3.

My3bika oHaty 6apbcihda aIdbihfbl aHre ety ywiH dbibc deHrei (-) tyMecin 6acbl TpybHb3.

KoNsIpaYIapIbIh MymKiHdIkTepiH naJaIaHy

Bluetooth dInHAMNK MO6nIbI Kypblfba KaOcbIraH Ke3e KocblraH YaIbI Kypblrbl KoHbpayapbIH Ka6bldayFa XaHe 6ackapyfa 6oIaBl.

KoHbIpayFa Jxayan 6epy Hemece Ka6bldAmay

Kohbpayfα kayan 6epy ywiH OuiHaTy/Bluetooth xynTay TyMecin 6acbIb3.

Kipic KOnbipaydbKa6bIJaMaay ysiH OHaTy/Bluetooth xynTay TymeciH 6acbl typbHb3.

BaTapeHbIH KyaTbI, caTbIN aIFaHHaH KeiHri cOTke KaPafHaTaTe3 TaycblaIbI

• Erep Bluetooth ДИнамаги He Mece 6aTapeЯfa eTe TEmeH Hemece eTe JxOfarbI TeMnepaTypa acep eTce, NaДаЛы 3apRd KblCKapybl MymKIn.
  Batape T03aIbIXeHne naIdaIbI 3aprJaKbIT eTe KeJe KbcIcapa 6epei.

EAC

ABTOPbIK KyKbIK

Copyright © 2016 Samsung Electronics

Byn HcyckayIbIK XaIbIKapaIbIK aBTOpIbIK KyKbIKTap TypaJIbI 3aHapMeH KopfaiHaH.

Samsung Electronics KOMnHaHcBbIH aIbIH aIa Xa36aHa pyKcTaHcbI 6yI HycaylbIKbIH e6ip 6eJIirH Ke3 KeIReH TypDe Hemece Ke3 KeIReH aDic, 3JeKTPOHdbIK Hemece MexaHnKaIbIK, coBH iWiHde, fOToKeWipy, Xa3y Hemece Ke3 KeIReH aKnapaTbIK KOImada XHe IbIFapbIn aIy JxueCInDe caTay apKbIbI KeWipyre, TapaTyfA, aydapyfA Hemece TaCbIMaJdAyfA 6oImaNDbI.

Cayda 6eIrilepi

SAMSUNG XaHe SAMSUNG Iorotnpi — Samsung Electronics KOMnaHcBbH, tipKeJIreH cayda 6eIriepi.
- Bluetooth® — Bluetooth SIG koprnapauncbln anemderi tipkejreh cayda 6enrici.
- BapIbIK 6acKa cayda 6eIriepi XaHe aBTOpIbIK KYKbIKTap caKeC nelepiH MeHsiRi 6oJIbIn Ta6blnAdbI.

Getting started

Read me first

Please read this manual before using the device to ensure safe and proper use.

• Images may differ in appearance from the actual product. Content is subject to change without prior notice.
• Before using the Bluetooth speaker, make sure it is compatible with your device.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Maintaining water resistance

Your device supports water-resistance. Follow these tips carefully to maintain the water-resistance of your device. Failure to do so may result in damage to your device.

• Do not immerse the device in water deeper than 1m or keep it submerged for more than 30 minutes.
• Do not expose the device to water moving with force.
• If the device is exposed to clean water, dry it thoroughly with a clean, soft cloth. If the device is exposed to other liquids, such as salt water, ionised water, or alcoholic beverage, rinse it with clean water and dry it thoroughly with a clean, soft cloth. If you do not follow these instructions, the device's performance and appearance may be affected.
• If the device has been immersed in water or the microphone or speaker is wet, sound may not be heard clearly during a call. Wipe the device with a dry cloth or dry it thoroughly before using it.
• Your device has been tested in a controlled environment and certified to be water-resistant in specific situations (meets requirements of classification IPX7 as described by the international standard IEC 60529-Degrees of Protection provided by Enclosures [IP Code]; test conditions: 15 - 35^ , 86-106 kPa, 1 meter, 30 minutes). Despite this classification, it is still possible for your device to be damaged in certain situations.

About the Level Box Slim

You can use this product as a Bluetooth speaker or as a battery pack for other devices.

Package contents

Check the product box for the following items:

• Bluetooth Speaker
  Quick start guide
  Power sharing cable
  USB cable

• The items supplied with the device and any available accessories may vary depending on the region or service provider.
• The supplied items are designed only for this device and may not be compatible with other devices.
• Appearances and specifications are subject to change without prior notice.
• You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.
• Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Device layout

Use the stand to support the device.

Buttons

Button Function
Power button	·Press and hold to turn the Bluetooth speaker on or off. ·Press to check the remaining battery power. ·Press to begin charging an external device when using the Bluetooth speaker as a battery pack.
Volume (+) button	·Press to increase the volume. ·Press and hold to skip to the next song during music playback.
Volume (-) button	·Press to decrease the volume. ·Press and hold to skip to the previous song during music playback.
Play/Bluetooth pairing button	·Press and hold to enter Bluetooth pairing mode. ·Press for approximately one second to launch S Voice when the Bluetooth speaker is connected to another device via Bluetooth. ·Press to reconnect devices when the Bluetooth connection is lost. ·Press to pause or resume music during music playback. ·Press to answer an incoming call. ·Press and hold to reject an incoming call. ·Press to end the current call.

Indicator light

The indicator light alerts you to the Bluetooth speaker status.

Color Status
Flashes blue threetimes	The Bluetooth speaker is powering on
Flashes red three times The Bluetooth speaker is powering off
Flashes red and blue The Bluetooth speaker is in Bluetooth pairing mode
Blue Bluetooth is connected
Red Bluetooth is not connected

Battery

Battery charging tips and precautions

• You can charge the Bluetooth speaker using the charger (sold separately).
• If the battery is completely discharged, the Bluetooth speaker cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the Bluetooth speaker.
• Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.
• The Bluetooth speaker can be used while it is charging, but it may take longer to fully charge the battery.
• If the Bluetooth speaker receives an unstable power supply while charging, it may not function. If this happens, unplug the charger from the Bluetooth speaker.

• While charging, the Bluetooth speaker and the charger may heat up. This is normal and should not affect the Bluetooth speaker lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

• Charging the Bluetooth speaker while the charger port is wet may damage the speaker. Dry the speaker thoroughly if it becomes wet.

• If the Bluetooth speaker is not charging properly, take the Bluetooth speaker and the charger to a Samsung Service Center.
• The charging time may vary depending on the charger specification.

Charging the battery

Charge the Bluetooth speaker before using it for the first time or when it has been unused for extended periods.

Use only Samsung-approved chargers (5 V/2 A or higher). Unapproved chargers can cause the battery to explode or damage the Bluetooth speaker.

1 Connect the Bluetooth speaker to a charger.

Connecting the charger improperly may cause serious damage to the Bluetooth speaker. Any damage caused by misuse is not covered by the warranty.

If the charger port is wet, the four battery indicator lights will blink when you connect the Bluetooth speaker to a charger.

2 After fully charging, disconnect the Bluetooth speaker from the charger.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and be easily accessible while charging.

Checking the remaining battery power

Press the Power button to check the remaining battery power.

Remaining battery power Battery indicator light status

70-100 % Four indicator lights on

40-70 % Three indicator lights on

20-40 % Two indicator lights on

10-20 % One indicator light on

0-10 % One indicator light blinking

Auto power saving mode

Save battery power by activating auto power saving mode.

Press and hold the Power button and the Volume (+) button simultaneously to activate auto power saving mode. The Bluetooth speaker is automatically turned off when one hour has passed since the media file playback paused.

To deactivate auto power saving mode, press and hold the Power button and the Volume (-) button simultaneously.

When you turn on the Bluetooth speaker for the first time, it automatically enters auto power saving mode.

Using the Bluetooth speaker

Turning the Bluetooth speaker on and off

Press and hold the Power button to turn the Bluetooth speaker on or off.

When you turn on the Bluetooth speaker for the first time, it enters Bluetooth pairing mode.

• If your Bluetooth speaker is frozen and unresponsive, press and hold the Power button more than eight seconds.
• Follow all posted warnings and directions from authorized personnel in areas where the use of wireless devices is restricted, such as airplanes and hospitals.

Connecting to another device

Notices for using Bluetooth

Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to various devices over short distances. It can connect and exchange data with other Bluetooth enabled devices, such as mobile devices, computers, printers, and other digital home appliances, without connecting via cables.

• To avoid problems when connecting your Bluetooth speaker to another device, place the devices close to each other.
• Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m). The distance may vary depending on the environment the devices are used in.
• Ensure that there are no obstacles between the Bluetooth speaker and a connected device, including human bodies, walls, corners, or fences.

• Do not touch the Bluetooth antenna of a connected device.

• Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products.

• Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your Bluetooth speaker.
• Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes).

Connecting device via Bluetooth

Pair the Bluetooth speaker with an available Bluetooth device. Once the devices are paired, the Bluetooth speaker will automatically connect to the mobile device whenever you turn on the Bluetooth speaker.

1 Bluetooth speaker Press and hold the Play/Bluetooth pairing button for more than three seconds to enter Bluetooth pairing mode.

The indicator light will flash red and blue.

When you turn on the Bluetooth speaker for the first time, it enters Bluetooth pairing mode.

2 Other device Activate the Bluetooth feature and search for Bluetooth devices.

For more information, refer to the other device's user manual.

3 Other device Tap [Speaker] Level Box Slim (0000) from the list of available devices.

The indicator light will flash blue.

• The PIN for the Bluetooth speaker is the four-digit number in parenthesis displayed on the other device's Bluetooth settings screen. The number differs depending on the Bluetooth speaker.
• If the Bluetooth connection fails or the other device cannot locate the Bluetooth speaker, remove the device's information from the other device's list. Then, try to connect again.
• The Bluetooth connection range and sound quality may vary depending on the connected devices.

Disconnecting or reconnecting devices

Press and hold the Play/Bluetooth pairing button for more than three seconds. The current connection will end.

You can also end the connection by deactivating the Bluetooth feature on the connected device.

If the Bluetooth connection ends due to the distance between the devices, bring the devices closer together within a certain period of time. The devices will automatically reconnect.

• You can also end the connection by turning off the Bluetooth speaker or deactivating the Bluetooth feature on the connected device. When you turn on the Bluetooth speaker again and the devices are in range, or activate the Bluetooth feature on the connected device, the devices will automatically reconnect.
• If the Bluetooth connection ends because of a device malfunction, use the Bluetooth menu on the disconnected device to reconnect the devices.
• Noise may occur if the Bluetooth connection is disconnected improperly.

Connecting to other devices

After ending the connection between the Bluetooth speaker and the currently connected device, you can connect the Bluetooth speaker to another device.

1 Press and hold the Play/Bluetooth pairing button for more than three seconds. The Bluetooth speaker will end the current Bluetooth connection and enter Bluetooth pairing mode.
2 Connect the Bluetooth speaker to another device.

Connecting additional devices

The Bluetooth speaker can connect to a maximum of two Bluetooth-enabled devices at the same time. When you connect the Bluetooth speaker to two devices, the last device you connect is recognized as the primary device. The other device is recognized as the secondary device.

1 Connect the Bluetooth speaker and a device via Bluetooth. Refer to Connecting device via Bluetooth for more information.
2 Press and hold the Play/Bluetooth pairing button for approximately three seconds to enter Bluetooth pairing mode.

The indicator light will flash red and blue and the first device will be disconnected.

3 Follow the same connection procedure used for connecting the first device to connect the Bluetooth speaker to second device.
4 Tap [Speaker] Level Box Slim (0000) from the first device's list to reconnect the Bluetooth speaker to the first device.

This feature may not be supported on some devices.

Listening to music

Listen to music played on the connected device.

Press the Play/Bluetooth pairing button to play music.

Pausing or resuming playback

Press the Play/Bluetooth pairing button to pause or resume music playback.

Adjusting the volume

Press the Volume (+) button or Volume (-) button to adjust the volume.

Skipping to other songs

Press and hold the Volume (+) button to skip to the next song during music playback.

Press and hold the Volume (-) button to skip to the previous song during music playback.

Using call features

When the Bluetooth speaker is connected to a mobile device, you can answer and control calls from the connected mobile device.

Answering or rejecting a call

Press the Play/Bluetooth pairing button to answer a call.

Press and hold the Play/Bluetooth pairing button to reject an incoming call.

Adjusting the volume

Press the Volume (+) button or Volume (-) button to adjust the volume during a call.

Answering a second call

When a second call comes in during a call, the Bluetooth speaker will emit a beep.

Press and hold the Play/Bluetooth pairing button to reject an incoming second call during a call.

Press the Play/Bluetooth pairing button to place a call on hold and answer a second call.

Press the Play/Bluetooth pairing button to switch between two calls.

Ending a call

Press the Play/Bluetooth pairing button to end a call.

Press and hold the Play/Bluetooth pairing button to end a current call and answer the held call.

Using the Samsung Level

On the connected device, download the Samsung Level app from Play Store or Galaxy Apps. With the Samsung Level app, you can check the remaining battery power and adjust the volume. You can also set the Bluetooth speaker to notify you via voice notification when you have notifications on the connected device.

Also, on the connected mobile device, launch the Samsung Level app to share audio with another Bluetooth speaker. If you activate the sound separation feature with the Samsung Level app, you can also use two speakers to separate the left and right speaker into different channels. Refer to Using the dual sound feature for more information.

For more information, refer to the help menu of the Samsung Level.

The Samsung Level app is compatible with Samsung mobile devices running Android 4.2.2 or higher. Some features may differ or may not work on your Bluetooth speaker depending on the connected device or the operating system.

Using the dual sound feature

This Bluetooth speaker supports the Dual Sound feature. You can connect two Bluetooth speakers to share the same audio. You can also use two speakers to separate the left and right speaker into different channels.

Ensure that the Bluetooth speaker that you want to share audio with is turned on.

• Your Bluetooth speaker must be connected to a mobile device. If your Bluetooth speaker is not connected to a mobile device, or is connected to more than two mobile devices, you cannot activate the Dual Sound feature.
• If the distance between your Bluetooth speaker and the connected devices is too great, there is an obstacle obstructs the signal, or the Wi-Fi signal is strong, the audio quality may be poor.
• If you restart your Bluetooth speaker while using the Dual Sound feature, it will try to reactivate the Dual Sound feature automatically. However, if your other Bluetooth speaker is connected to another mobile device, the Dual Sound feature will not reactivate automatically.
• If your other Bluetooth speaker is turned off while using the Dual Sound feature, the connection between the two Bluetooth speakers will end. When you turn it on again, it will automatically reconnect to the mobile device that it was connected to before activating the Dual Sound feature.
• While sharing audio, the voice notification feature will be disabled.
• Visit www.samsung.com to view the product specifications for the other Bluetooth speaker to confirm that it supports the Dual Sound feature.

1 Other Bluetooth speaker Press and hold the Play/Bluetooth pairing button and Volume (-) button simultaneously for approximately one second.
2 Bluetooth speaker Press and hold the Play/Bluetooth pairing button and Volume (+) button simultaneously for approximately one second.

The audio will be shared.

Press and hold the Volume (+) and Volume (-) button on Bluetooth speaker simultaneously for approximately one second to stop sharing audio.

Using as a battery pack

Use the Bluetooth speaker as a battery pack while connecting to another device via the power sharing cable.

1 Bluetooth speaker Insert the power sharing cable into the charger port.

2 Charged device Insert the other end of the power sharing cable into the multipurpose jack.

3 Bluetooth speaker Press the Power button to start charging the battery.
4 After fully charging, disconnect the power sharing cable from the Bluetooth speaker and other device for charging.

• You can use the Bluetooth speaker while charging the other device. However, if the battery power is low, some features may be limited.
• The actual capacity (Wh) is measured based on the battery's output current and voltage. It may differ from the capacity (Wh) indicated on the device, depending on the output power condition, the connected device's circuit configuration, and the operation environment.

Appendix

Troubleshooting

Before contacting a Samsung Service Center, please attempt the following solutions.

Your Bluetooth speaker does not turn on

When the battery is completely discharged, your Bluetooth speaker will not turn on. Charge the battery completely before turning on the Bluetooth speaker.

Your Bluetooth speaker freezes

If the Bluetooth speaker freezes or hangs, try to resolve it by turning off the Bluetooth speaker and then turning it on again.

If the Bluetooth speaker is still unresponsive, end the Bluetooth connection and reconnect it. To do this, press the Play/Bluetooth pairing button for approximately three seconds. When the Bluetooth speaker enters Bluetooth pairing mode, connect the devices again, and then check the operation of the Bluetooth speaker.

If the problem is still not resolved, contact a Samsung Service Center.

The battery does not charge properly (For Samsung-approved USB cables and chargers)

• Ensure that the USB cable or the charger is connected properly.
• Check whether your speaker has enough battery power before using it as a battery pack. If the tips above do not solve the problem, contact a Samsung Service Center.

Another Bluetooth device cannot locate your Bluetooth speaker

• Ensure that your Bluetooth speaker is in Bluetooth pairing mode.
• Restart your Bluetooth speaker and search for the Bluetooth speaker again.
• Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).

If the tips above do not solve the problem, contact a Samsung Service Center.

Your Bluetooth speaker cannot connect to another Bluetooth device

• Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).
• On the device you want to connect with, disconnect all paired devices and try to connect again.

Bluetooth connection is often disconnected

• If there are obstacles between the devices, the operating distance may be reduced.
• Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).
• When using the Bluetooth speaker with other Bluetooth devices, the connection may be affected by electromagnetic waves. Use the Bluetooth speaker in environments with fewer wireless devices present.

The Bluetooth speaker works differently as described in the manual

Available functions may differ depending on the connected device.

The battery depletes faster than when first purchased

• When you expose the Bluetooth speaker or the battery to very cold or very hot temperatures, the useful charge may be reduced.
• The battery is consumable and the useful charge will get shorter over time.

Copyright

Copyright © 2016 Samsung Electronics

This manual is protected under international copyright laws.

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

Trademarks

SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
- Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
- All other trademarks and copyrights are the property of their respective owners.

Para comenzar

Copyright © 2016 Samsung Electronics

Copyright © 2016 Samsung Electronics

本手册受國際版權法保護。
