Portable Bluetooth Speaker PPA120BT-B/W

(Modell: PPA120BT-W)

1. Taste -
2. Taste PAIR

Zubehör:

Close-up of a black plastic plug with two leads and a USB cable, labeled with number 1 (no text or symbols on the plug itself)

② DCJV AUX IN

blauе LED weiße LED (PPA120BT-B) rote LED (PPA120BT-W)

Close-up of a black cable with a droplet tip, labeled with number 6 (no text or symbols on the object itself)

Deutsch

Close-up of a black plastic plug connected to a USB cable, with no visible text or symbols.

② DC5V AUX IN 10.0

Close-up of a black cable with a dotted line extending from its tip, against a plain background (no text or symbols)

Important safety advice

1. Follow all safety instructions in order to prevent damage being caused by incorrect use!
2. Keep the user manual for further use. If you pass this appliance on to third parties, you must also deliver this user manual with it.
3. Never use an appliance that is damaged! Disconnect the USB connection and contact your supplier if the appliance is damaged.
4. Never try to repair the appliance yourself. In the event of any malfunction, repairs are to be conducted by qualified personnel only.
5. Do not open the appliance casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
6. Warning! During cleaning or operation do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
7. Do not operate the appliance with wet hands or while standing on a wet floor.
8. The appliance should not be used near water – for example, near a bathtub, wash bowl, kitchen sink, in a wet basement, or near a swimming pool.
9. Never use accessories (adaptor, USB cable, etc.) which are not sold together with this product by the manufacturer. They could pose a safety risk to the user and might damage the appliance. You must therefore use original accessories only.
10. The appliance is only suitable for use at moderate degrees of latitude. Do not use in the tropics or in particularly humid climates.

English

1. Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. Protect the appliance against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.
2. Do not place heavy objects on top of the appliance. Do not place objects with open flames, e.g. candles, on top or beside the appliance. Do not place objects filled with water, e.g. vases, on or near the appliance.
3. Never pull on the cord to disconnect the appliance from the USB port and never wind the cord around the appliance.
4. Prior to each cleaning, disconnect the USB plug from the USB port.
5. Important! The USB port is intended only for appliances equipped with an USB connection. Other devices cannot be used with this USB connection. Only use provided USB cable.
6. In case of malfunction based on electrostatic discharge and electrical fluctuations, reset the appliance by disconnecting it from the USB port, wait a few seconds and then reconnect the appliance to the USB port.

Intended use

• The product serves as an audio output device and features wireless or wired connection.
• No liability for any damage that occurs can be accepted in the event of improper use or incorrect handling.
• Use the appliance for the intended use only. The appliance is not suitable for commercial use. This appliance has been designed exclusively for household use. Do not use the appliance outdoors or in a bathroom.

English

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste.

Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Do not dispose of in the household waste, as the appliance contains a built-in battery.

Components

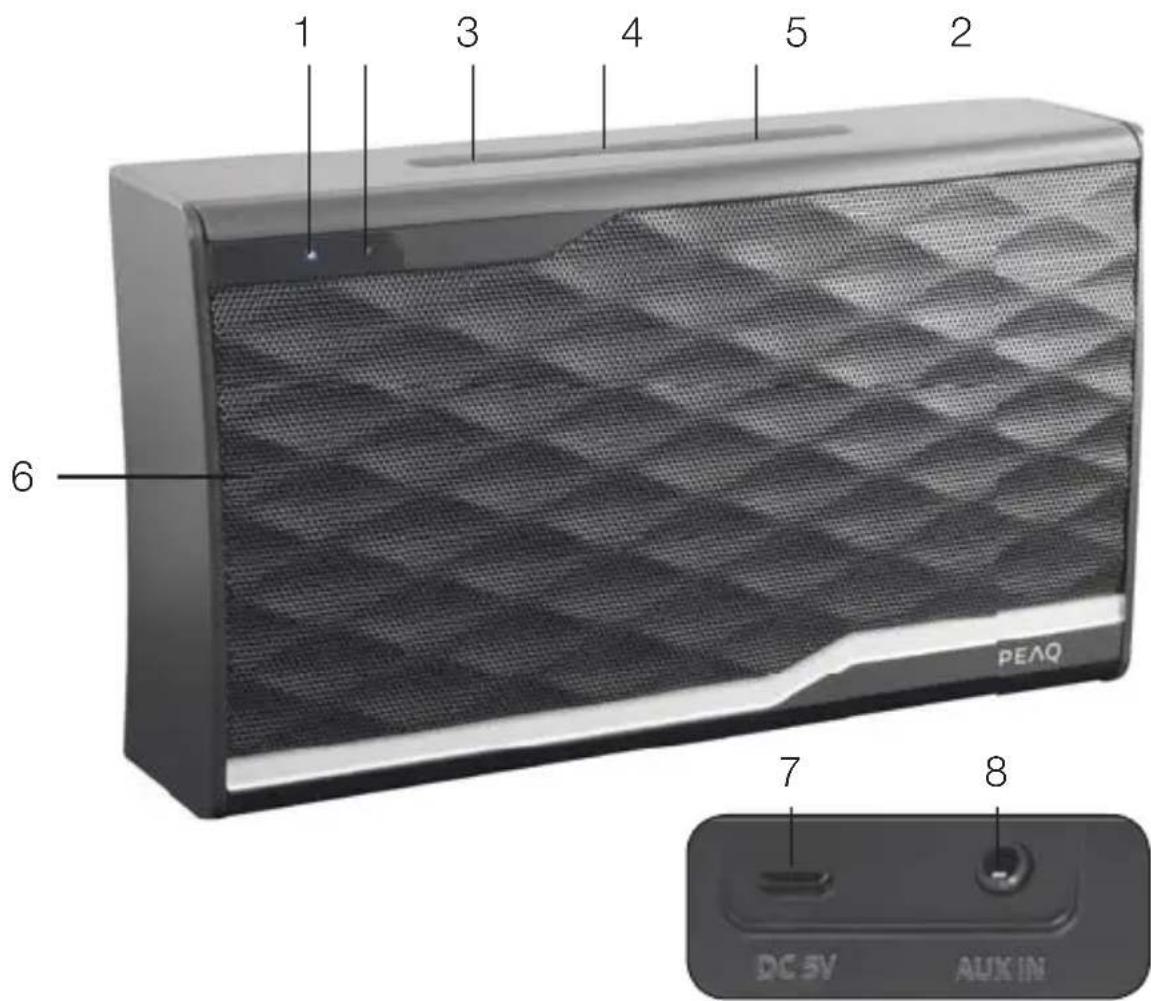

1 3 4 5 2 6 PEAQ 7 8 DC 5V AUX IN

1. Blue LED
2. White LED

(Model: PPA120BT-B) / Red LED

(Model: PPA120BT-W)

1. • button
2. PAIR button

Accessories:

1 x Pouch
1 x Adaptor
1 x USB cable

1. • button
2. Speaker

Back of the appliance:

1. USB port
2. Audio jack

1 x Audio cable
1 x User manual

Charging battery

Attention! Charge the internal battery completely before first use.

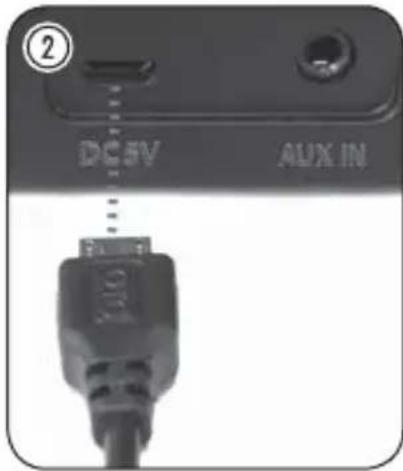

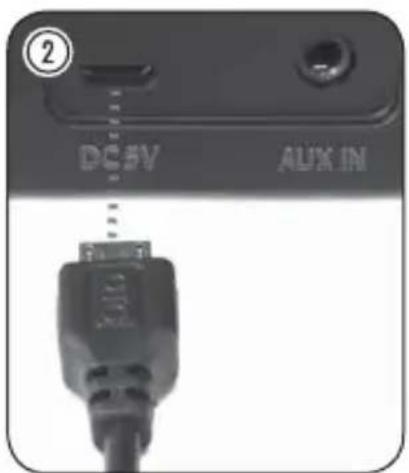

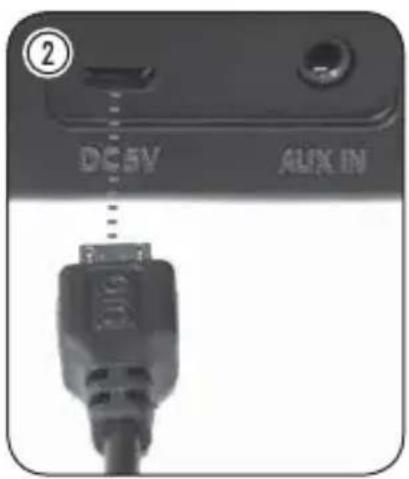

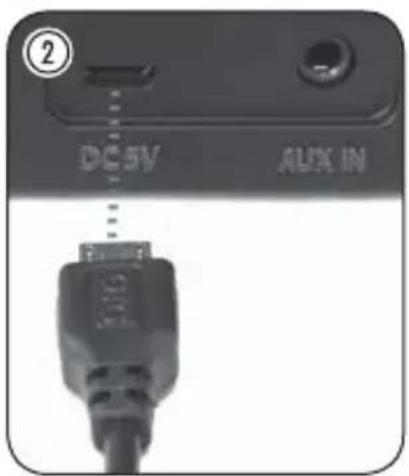

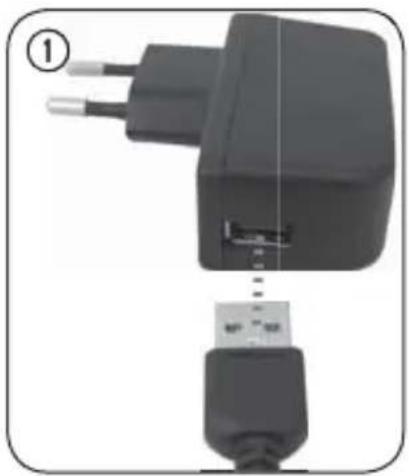

1. Connect USB plug to the USB socket at the adapter (fi g. 1) and connect the micro-USB plug to the socket on back side of the speaker (fi g. 2).
2. Connect the power adapter to a power outlet.

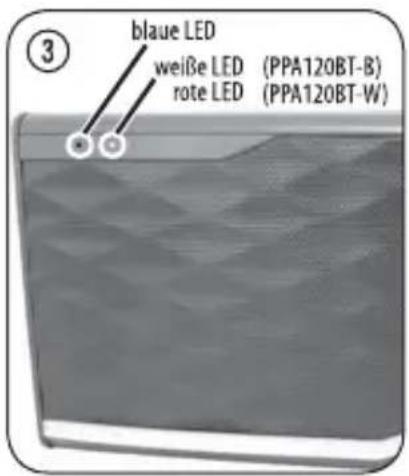

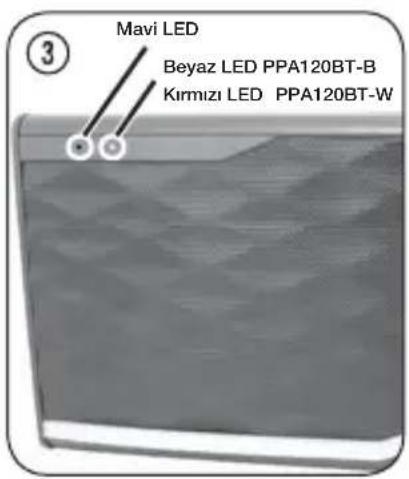

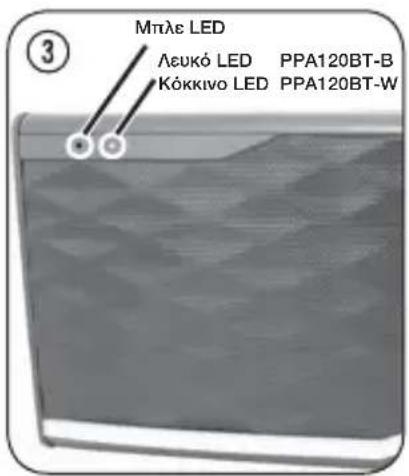

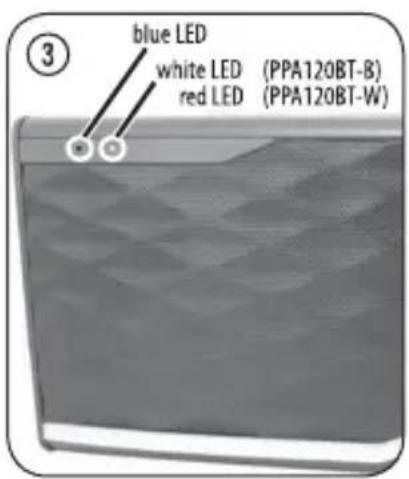

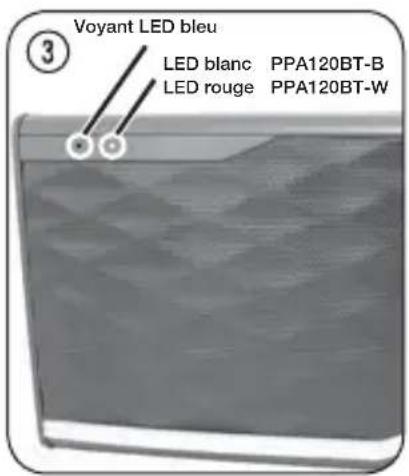

3. The white LED (PPA120BT-B) / red LED (PPA120BT-W) (fi g. 3) on the speaker's front fl ashes to indicate battery is being charged. The LED will go out when the battery is completely charged.
4. After charging is finished, disconnect the power adapter from the speaker and from the power outlet.

Notes:

• Recharge the battery, when both LEDs (fi g. 3) on the front flash alternately.
• Alternatively, you may charge the battery by connecting the speaker to a computer USB port using the provided USB cable.
• Partial charging does not impair battery's lifetime.
• Charging and audio playback possible at the same time.

Close-up of a black plastic plug with two pins inserted into a USB socket, showing internal structure (no text or symbols visible)

② DC5V AUX IN

blue LED white LED (PPA120BT-B) red LED (PPA120BT-W)

Setting up Bluetooth connection

Attention! Make sure that before or during transmission via Bluetooth no plug is connected to the AUX IN socket on the speaker's rear side.

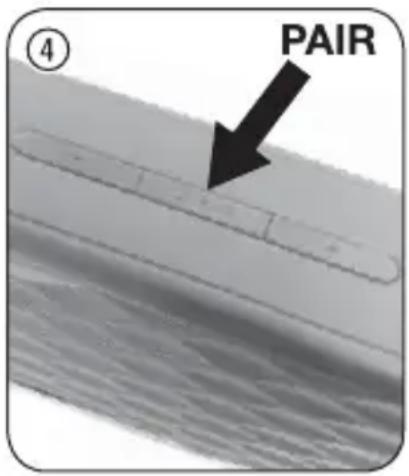

1. Press the PAIR button on the top to turn on the speaker (fi g. 4). An acoustic signal sounds.
2. The blue LED (fi g. 3) on the front fl ashes and thus signalizes, that the speaker is ready to be connected with another Bluetooth device.

④ PAIR

Note:

If no connection to another Bluetooth device is established within 5 minutes, the speaker will be turned off automatically.

1. Activate the Bluetooth function of the audio source (e.g. smartphone, MP3 player, notebook, etc.). Browse for devices and select "PPA120BT". If necessary, select the speaker as audio output device. Refer to the audio source's instructions.
2. After the connection is established, the blue LED (fi g. 3) lights up steadily. An acoustic signal sounds simultaneously.
3. Firstly, set the audio source's volume to a low level and only then start the audio playback. After only a few seconds the speaker starts to emit the audio signal.

English

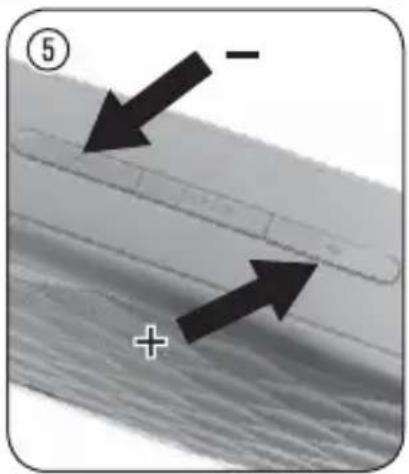

1. Now set the volume using the + and - buttons on the speaker's top (+ = up, - = down) (fi g. 5). In addition, you may increase the volume on the audio source.

2. Turn off the speaker using the PAIR button (fi g. 4). The LED goes off and an acoustic signal sounds.

⑤ -

Notes:

- The speaker's maximum transmission range is about 10 metres. This range depends on different factors (e.g. room layout, wall material, audio source's transmission range).

- Make sure that the audio source supports the A2DP standard.

Wired connection

1. Connect one of the included audio cable's jack plugs to the AUX IN input on the speaker's rear side (fi g. 6).

2. Connect the other end of the audio cable to the audio source's headphone socket.

3. Press the PAIR button on the top to turn on the speaker (fi g. 4). The LED on the right side (white or red colour) (fi g. 3) of the speaker's front lights up steadily and an acoustic signal sounds.

Close-up of a black cable with a dotted line extending from its tip, against a plain background (no text or symbols)

English

1. Firstly, set the audio source's volume to a low level and only then start the audio playback.
2. Now set the volume using the + and - button on the speaker's top (+ = up, - = down) (fi g. 5). In addition, you may increase the volume on the audio source.
3. Turn off the speaker using the PAIR button (fig. 4). The LED goes off and an acoustic signal sounds.

LED signals

LED colour LED status Meaning
Left side:Blue	Flashes Ready for Bluetooth connection
	Lights up steadily	Bluetooth connection established
Right side:• White LED (PPA120BT-B)• Red LED (PPA120BT-W)	Flashes Battery is being charged
	Lights up steadily	Wired connection established
Both LEDs Flash	alternately	Low battery

English

Cleaning

• Turn off the speaker before cleaning and disconnect all cables.
• Use a dry, soft cloth.
• Avoid contact with water.
• Do not use aggressive cleaning agents.

Technical data

Adaptor

Input: 100 – 240 V\~, 50/60 Hz, 0.5 A

Output: 5 =, 1.2 A V

Speaker

Charging voltage (via USB or

provided adaptor): 5 V

Speaker output power: 2 x 3 Watts RMS

Battery voltage: 3.7 V

Battery capacity: 2000 mAh

Battery run-time: approx. 6 hours

Impedance: 4 Ω

Frequency response: 60 Hz – 20 kHz

Signal-to-noise ratio: >50 dB

Speaker ∅: 50 mm

Dimensions (W x H x D): 200 x 150 x 60 mm

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Close-up of a black-and-white photo of a plug connected to a USB cable, showing internal components and wiring (no text or symbols visible)

DC5V AUX IN

LED azul LED blanco PPA120BT-B LED rojo PPA120BT-W

Close-up of a black cable with a pointed tip emitting a dotted line, against a plain background (no text or symbols)

Close-up of a black plastic plug with two pins, showing internal structure and connection to a separate USB port (no text or symbols visible)

② DC5V AUX IN

Voyant LED bleu LED blanc PPA120BT-B LED rouge PPA120BT-W

Configuration de la connexion Bluetooth

Close-up of a black cable with a connector inserted into a dark container, labeled with number 6 (no text or symbols on the object itself)

Français

Close-up of a black plastic charger plug with two pins, connected to a USB cable (no text or symbols visible)

② DC5V AUX IN

Megjegyzések:

Close-up of a black cable with a dotted line extending from its tip, against a plain background (no text or symbols)

(Modello: PPA120BT-W)

1. • pulsante
2. Pulsante PAIR

Accessori:

Close-up of a black plastic plug with two USB connectors, showing internal port and cable attachment (no text or symbols)

② DC5V AUX IN

LED blu LED bianco PPA120BT-B LED rosso PPA120BT-W

Close-up of a black cable with a dotted line extending from its tip, against a plain background (no text or symbols)

Italiano

Close-up of a black plastic plug with a USB connector inserted, showing internal components (no text or symbols visible)

② DC5V AUX IN

Opmerkingen:

Blauwe LED Witte LED PPA120BT-B Rode LED PPA120BT-W

De Bluetooth-verbinding instellen

Close-up of a black cable with a dotted line extending from its tip, against a plain background (no text or symbols)

Laadspanning (via USB of

meegeleverde adapter): 5 V

Close-up of a black plastic plug with two pins, connected to a separate USB port (no text or symbols visible)

② DC5V AUX IN

Uwagi:

3 Niebieska dioda LED Biała dioda LED Czerwona dioda LED PPA120BT-B PPA120BT-W

Close-up of a black cable with a dotted line extending from its tip, against a plain background (no text or symbols)

Polski

(Modelo: PPA120BT-W)

1. • botão
2. Botão PAIR

Acessórios:

1 x Bolsa
1 x Adaptador
1 x Cabo USB

1. • botão

2. Coluna

Close-up of a black plastic charger plug with a USB connector inserted, showing internal components (no text or symbols visible)

② DC5V AUX IN

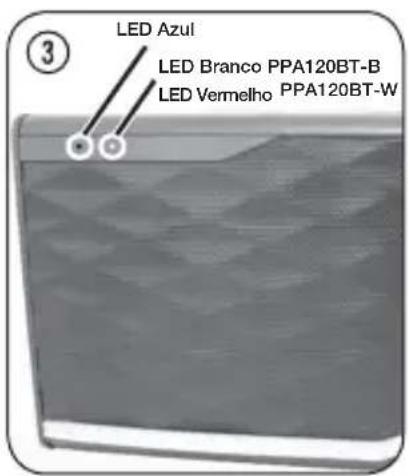

LED Azul LED Branco PPA120BT-B LED Vermelho PPA120BT-W

Close-up of a black cable with a pointed tip emitting a dotted line, against a plain background (no text or symbols)

Português

Close-up of a black plastic plug connected to a USB cable, with no visible text or symbols.

② DC5V AUX IN 3.0

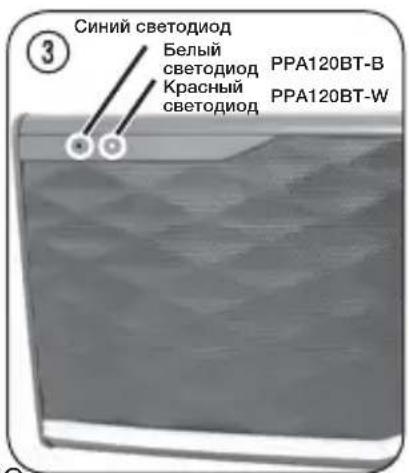

Синий светодиод Белый светодиод Красный светодиод PPA120BT-B PPA120BT-W

Close-up of a black cable with a dotted line extending from its tip, against a plain background (no text or symbols)

(Modell: PPA120BT-W)

1. • -knapp
2. PAIR-knapp

Tillbehör:

1 x Påse
1 x Adapter
1 x USB-kabel

1. • -knapp
2. Högtalare

Close-up of a black plastic plug with two pins, connected to a USB cable (no text or symbols visible)

② DE5V AUX IN K10

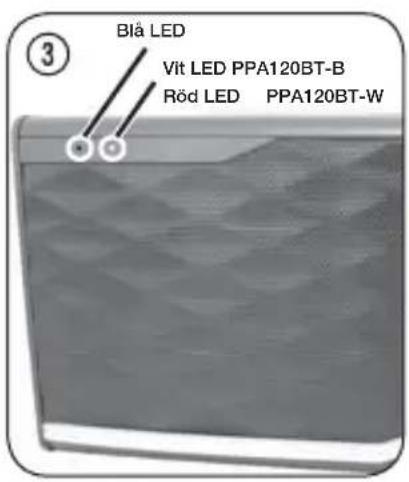

③ Biå LED Vit LED PPA120BT-B Röd LED PPA120BT-W

Close-up of a black cable with a pointed tip emitting a dotted line, labeled with number 6 (no text or symbols on the cable itself)

Swedish

(Model: PPA120BT-B) /

Kırmızı LED

(Model: PPA120BT-W)

Close-up of a black plastic charger plug with a USB cable inserted, showing internal components (no text or symbols visible)

② DC3V AUX.IN

Mavi LED Beyaz LED PPA120BT-B Kirmizi LED PPA120BT-W

Close-up of a black cable with a dotted line extending from its tip, against a plain background (no text or symbols)

Türkçe
