USER MANUAL BY 33 BEURER

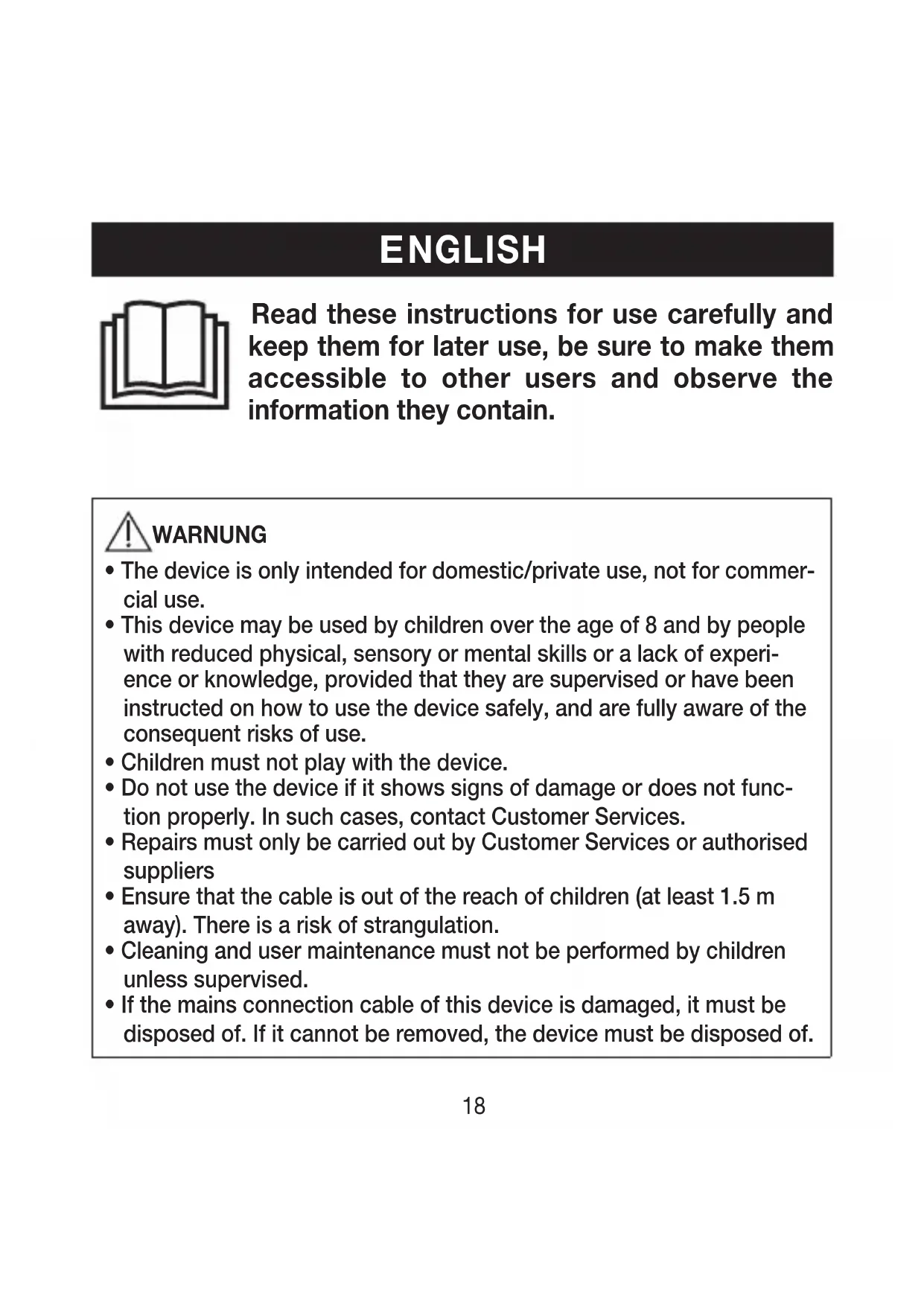

NGLISH Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain. WARNUNG

• The device is only intended for domestic/private use, not for commer- cial use.

• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experi- ence or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.

• Children must not play with the device.

• Do not use the device if it shows signs of damage or does not func- tion properly. In such cases, contact Customer Services.

• Repairs must only be carried out by Customer Services or authorised suppliers

• Ensure that the cable is out of the reach of children (at least 1.5 m away). There is a risk of strangulation.

• Cleaning and user maintenance must not be performed by children unless supervised.

• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.19 Dear customer, Thank you for choosing a product from our range. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage, beauty, air and baby. With kind regards, Your Beurer team Functions of the baby monitor This baby monitor enables you to monitor your baby whilst you pursue activi- ties in other rooms or in the garden. The DECT technology ensures a virtually interference-free connection. The device has the following functions:

mode for reduced transmission power

300 m range with a clear view

Warning when the range is exceeded or if there are interferences to the connection

1. Included in delivery ........................20

2. Signs and symbols ........................20

3. Warnings and safety notes ............21

9. What if there are problems? ..........28

1. Included in delivery

Check that the device packaging has not been tampered with and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

Baby monitor consisting of baby unit and parent unit

These instructions for use

2. Signs and symbols

The following symbols appear in these instructions: WARNING Warning instruction indicating a risk of injury or damage to health IMPORTANT Safety note indicating possible damage to the device/accessory Product information Note on important information Read the instructions Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE Manufacturer Only use indoors.21 CE labelling This product satisfies the requirements of the applicable European and national directives.

PAP Dispose of packaging in an environmentally friendly manner Certification symbol for products that are exported to the Russian Federation and members of the CIS

Energy efficiency class 6

3. Warnings and safety notes

mode you can minimise the radiation between the baby and parent units when the baby is quiet. This ensures the safety of your baby as there is no exposure to any unnecessary radiation. The device automatically switches to Eco

mode, as soon as no noise is being transmitted. Safety notes

Always position the device and power cord out of the reach of children. The power cord could result in strangulation or cause in- jury to children.

Keep small parts out of the reach of children (risk of swallowing).

Keep packaging material away from children (risk of suocation).

Never place the baby unit in the cot or within the reach of your child.

Place the baby unit 1.5 m away from your baby, in order to mini- mize the possibility of electrosmog pollution and noise pollution.

Make sure that cables are out of the reach of your child (risk of electric shock).22

Always make sure that the devices are fully functioning before use and check that the devices have suciently charged batteries when on battery operation.

Only use the power supply units included with the delivery (risk of fire and electric shock). Important: To avoid damage to the device, please observe the following:

Never submerge the devices in water. Never rinse it in running water.

Never use the devices in a damp environment.

Do not use the cable to pull the adapter plug out of the socket.

Disconnect the adapter plug from the mains when the device is not in use.

The device and the power supply unit should not come into con- tact with hot surfaces or sharp-edged objects.

Do not use any additional parts that are not recommended by the manufacturer or oered as equipment.

The plug-in power unit must be operated only from a power sup- ply as specified on it.

The appliance should only be operated with the power unit provided.

After use, before cleaning and changing any accessory parts, the power unit should always be disconnected. Notes on handling batteries

Swallowing batteries can be extremely dangerous. Keep batteries out of the reach of small children. Should a battery be swallowed, seek medical assistance immediately.

Batteries must not be recharged, taken apart, thrown into an open fire or short circuited.23

Batteries can contain toxins that are harmful to health and the en- vironment. Always dispose of batteries in accordance with appli- cable legal regulations. Do not dispose of batteries with the nor- mal household waste.

Do not expose the batteries to excessive heat such as sunlight, fire, etc. Important:

Replace weak batteries before they discharge completely.

Leaking batteries may damage the device. If you do not intend to use the device for longer periods, remove the batteries from the battery compartment.

If a battery has leaked, put on protective gloves and clean the bat- tery compartment with a dry cloth. General notes

Repairs must only be carried out by Customer Services or author- ized suppliers. Under no circumstances should you open or repair the device yourself, as faultless functionality could no longer be guaranteed thereafter. Failure to comply will invalidate the warranty.

If you should have any questions about using our devices, please contact either your retailer or Customer Services.

Only use the device to monitor your baby when you cannot mind your baby directly. It is not a substitute for your own personal, responsible su- pervision!

The device is only intended for domestic/private use, not for commercial use.

This device is not intended for use by people (including children) with re- stricted physical, sensory or mental skills or a lack of experience and/or a24 lack of knowledge, unless they are supervised by a person who has respon- sibility for their safety or are instructed by him in how to use the device.

Children should be supervised around the device to ensure they do not play with it.

Improper use can be dangerous.

Baby unit Operation with mains part Position the baby unit so that it is in an elevated position and is not in proxi- mity to any other devices that may cause interference. Using the mains part plug, connect the baby unit to a socket. The device automatically switches on. The power LED will light up green. To switch the device o press the ON/OFF button for at least 2 seconds or unplug the mains part. The power LED will go out. To switch the device on again press the ON/OFF button for approx. 2 seconds. Parent unit Set up the parent unit in the room where you are going to be. Battery operation – charging To ensure optimal safety, the parent unit is designed so that it can only be operated with batteries inserted.26 The battery must be charged for at least 16 hours before the device can be first used independently of the mains; you may use the device during this period. Switch the parent unit on by pressing the button for 2 seconds. The power LED of the parent unit will light up green. The device is active. If the parent unit battery is low the unit will beep twice. If the device is not connected to a socket, it will switch o automatically after a short period. The power LED will go out. Operation with mains part Using the mains part plug, connect the parent unit incl. battery to a socket. The device automatically switches on. The power LED will light up green. If the mains part plug is unplugged the device will switch to battery operation. The standby time will depend on the battery charge status. To switch the de- vice o press the button for approx. 2 seconds, the power LED will go out. If there is no connection between the devices (baby unit not switched on or out of range), an acoustic warning will sound on the parent unit.

Adjusting the volume You can adjust the volume in 5 levels on the parent unit by pressing the or button. The sound intensity is also pictured using an LED noise level light display so that the device can also be used by those with a hearing impairment.27 Useful information about the baby monitor

Battery operation of the baby monitor minimizes electrosmog from electri- cal and magnetic alternating fields.

You can increase the range of the baby monitor by positioning the baby unit as high up as possible near a door or window and ensuring that the batteries are not too weak.

Other radio waves may interfere with the transmission of the baby moni- tor. Therefore, do not position the baby monitor near devices such as mi- crowaves, WLAN, etc.

The following other factors can interfere with the baby monitor’s transmis- sion or shorten its range: covering the units, furniture, walls, houses, trees, environmental factors (such as fog, rain). Replacing/charging the batteries If the batteries are too flat, then the units will switch o automatically. The batteries must then be replaced or recharged (see Initial use).

When changing the batteries, use batteries of the same type, make and capacity.

Always replace all batteries at the same time.

Use batteries free from heavy metals.

8. Cleaning and maintenance

The service life of the devices depends on careful use. Important:

Remove the batteries from the parent unit if the unit is not in use for an extended period.

You will get the maximum capacity from your battery if you run down the battery at least once every 6 months. To do this, discon- nect the device from the mains and run the battery down through normal use. Then fully charge the battery up again.28

The maximum battery capacity can only be reached after it has been charged several times and is dependent on many factors (battery state, ambient temperature, means and frequency of charging, etc.).

Protect the devices from knocks, damp, dust, chemicals, drastic changes in temperature, electromagnetic fields and nearby sourc- es of heat (ovens, heaters).

If dirty, wipe the device with a soft, dry cloth.

Clean the device with a dry cloth. Do not use any abrasive clean- ing products.

9. What if there are problems?

Faults Actions Power LED does not light up after switch-on. Check whether the relevant adapter plug is properly plugged in, The batteries are full or the rechargeable battery needs charging or is damaged (parent unit). An acoustic signal sounds from the parent unit. Check whether the maximum range has been exceeded the power supply unit for the baby unit is correctly connected the baby unit is switched on The batteries are full or the rechargeable battery needs charging or is damaged (parent unit).29 Faults Actions The signal is weak, the connection keeps breaking up or there is interfe- rence. If another technical device such as a microwave is in the area between the parent and baby units, remove the device or switch it o. Check whether other factors, such as trees etc. are in the path of the two devices, and change the position of the devices until the parent unit signals a connection. Check whether the baby and parent units are inside the respective receiving range. No acoustic signal sounds from the parent unit. Adjust the volume on the parent unit. A device switches itself o. Replace the batteries or recharge the battery (parent unit).

For environmental reasons, do not dispose of the devices in the household waste at the end of their useful life. Dispose of the unit at a suitable local col- lection or recycling point. Observe the local regulations for material disposal. Please dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any queries, please contact the appropriate local authorities.30

11. Technical specifications

technology DECT frequency 1.882-1.897 MHz

ransmission power max. 22,20 dBM channels 120 digital Dimensions Parent unit: 6,7 x 10,1 x 4,3 cm Baby unit: 7 x 6,9 x 4,3 cm, Parent unit: ~100 g, (with. batteries) Weight: Baby unit: ~ 48 g, Mains part (each): approx. 56 g Range 300 m range with a clear view Operation Baby unit: Supplied mains part (6 V DC/400 mA) Parent unit: NiMH battery (2 x 1.2 V/550 mAh) and supplied mains part (6 V DC/400 mA) Mains part Manufacturer: Dongguan Everest Industrial Co., Ltd. Model no.: EP19-A-060040WXEZ Supply Input: 100 -240 V AC 50/60 Hz Output: 6,0 V DC 0,4 A 2.4 W Average active eciency ≥ 73,93% No-load power consumption ≤ 0,042 W Rechargeable battery life (dependent on battery state, ambient temperature, means and frequency of charging, etc.) Parent unit: 10 hours31 We hereby confirm that this product complies with the European RED Direc- tive 2014/53/EU. The CE Declaration of Conformity for this product can be found under: https://www.beurer.com/web/we-landingpages/de/cedeclarationofconformity.php

12. Warranty / Service

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Beurer”) provides a warranty for this product, subject to the requirements below and to the extent described as follows. The warranty conditions below shall not aect the seller’s statutory war- ranty obligations which ensue from the sales agreement with the buyer. The warranty shall apply without prejudice to any mandatory statutory provisions on liability. Beurer guarantees the perfect functionality and completeness of this pro- duct. The worldwide warranty period is 3 years, commencing from the purchase of the new, unused product from the seller. The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use. German law shall apply. During the warranty period, should this product prove to be incomplete or defective in functionality in accordance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.32 If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses. The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documenta- tion is required. A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with - a copy of the invoice/purchase receipt, and - the original product. The following are explicitly excluded from this warranty: - deterioration due to normal use or consumption of the product; - accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cus, seals, electrodes, light sources, attachments and nebuliser accessories); - products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer; - damage that arises during transport between manufacturer and customer, or between service centre and customer; - products purchased as seconds or as used goods; - consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions). Repairs or an exchange in full do not extend the warranty period under any circumstances. Subject to error and change33 FRANÇAIS Lisez attentivement cette notice, conservez-la pour un usage ultérieur, mettez-la à disposition des autres utilisateurs et suivez les consignes qui y figurent. WARNUNG
