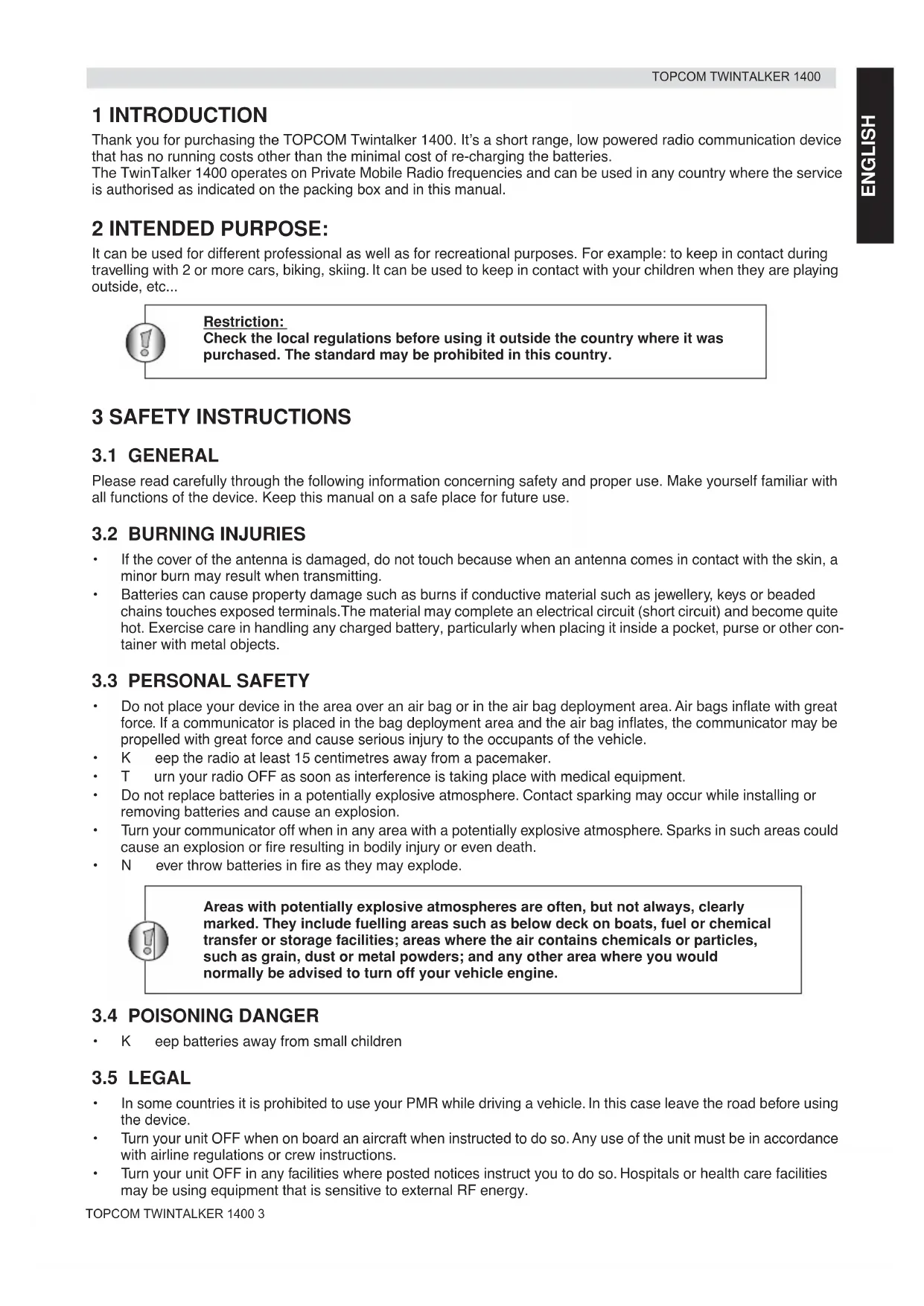

Thank you for purchasing the TOPCOM Twintalker 1400. It's a short range, low powered radio communication device that has no running costs other than the minimal cost of re-charging the batteries.

The TwinTalker 1400 operates on Private Mobile Radio frequencies and can be used in any country where the service is authorised as indicated on the packing box and in this manual.

2 INTENDED PURPOSE:

It can be used for different professional as well as for recreational purposes. For example: to keep in contact during travelling with 2 or more cars, biking, skiing. It can be used to keep in contact with your children when they are playing outside, etc...

Restriction:

Check the local regulations before using it outside the country where it was purchased. The standard may be prohibited in this country.

3 SAFETY INSTRUCTIONS

3.1 GENERAL

Please read carefully through the following information concerning safety and proper use. Make yourself familiar with all functions of the device. Keep this manual on a safe place for future use.

3.2 BURNING INJURIES

• If the cover of the antenna is damaged, do not touch because when an antenna comes in contact with the skin, a minor burn may result when transmitting.
• Batteries can cause property damage such as burns if conductive material such as jewellery, keys or beaded chains touches exposed terminals. The material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects.

3.3 PERSONAL SAFETY

• Do not place your device in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a communicator is placed in the bag deployment area and the air bag inflates, the communicator may be propelled with great force and cause serious injury to the occupants of the vehicle.
  • K eep the radio at least 15 centimetres away from a pacemaker.
  • T urn your radio OFF as soon as interference is taking place with medical equipment.
• Do not replace batteries in a potentially explosive atmosphere. Contact sparking may occur while installing or removing batteries and cause an explosion.
• Turn your communicator off when in any area with a potentially explosive atmosphere. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
  • N ever throw batteries in fire as they may explode.

Areas with potentially explosive atmospheres are often, but not always, clearly marked. They include fuelling areas such as below deck on boats, fuel or chemical transfer or storage facilities; areas where the air contains chemicals or particles, such as grain, dust or metal powders; and any other area where you would normally be advised to turn off your vehicle engine.

• K eep batteries away from small children

3.5 LEGAL

• In some countries it is prohibited to use your PMR while driving a vehicle. In this case leave the road before using the device.
- Turn your unit OFF when on board an aircraft when instructed to do so. Any use of the unit must be in accordance with airline regulations or crew instructions.
- Turn your unit OFF in any facilities where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.

- Replacing or modifying the antenna may affect the PMR radio specifications and violate the CE regulations. Unauthorised antennas could also damage the radio.

3.6 NOTES

• Do not touch the antenna while transmitting, it could affect the range.
• Remove the battery if the device is not going to be used for a long period.

4 CLEANING AND MAINTENANCE

• To clean the unit, wipe with a soft cloth dampened with water. Don't use a cleaner or solvents on the unit; they can damage the case and leak inside, causing permanent damage.
• Battery contacts may be wiped with a dry lint-free cloth.
• If the unit gets wet, turn it off and remove the batteries immediately. Dry the battery compartment with a soft cloth to minimize potential water damage. Leave the cover off the battery compartment overnight or until completely dry. Do not use the unit until completely dry.

5 DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner. Do not dispose of batteries in a normal household garbage.

6 USING A PMR DEVICE

To communicate between PMR devices they need to be set all on the same channel and within receiving range (up to max. 3 km in open field). Since these devices use free frequency bands (channels), all devices in operation share these channels(total 8 channels). Therefore, privacy is not guaranteed. Anybody with a PMR set to your channel can overhear the conversation.

If you want to communicate (transmitting a voice signal) you need to press the PTT - button (Push to talk). Once this button pressed, the device will go into transmit mode and you can speak into the microphone. All other PMR devices in range, on the same channel and in standby mode (not transmitting) will hear your message. You need to wait until the other party stops transmitting before you can reply to the message. At the end of each transmission the unit will send a beep. To reply, just press the PTT button and speak into the microphone.

If 2 or more users press the button at the same time the receiver will receive only the longest signal and the other signal (s) will be suppressed. Therefore you should only transmit a signal (press button) when the channel is free.

7 GETTING STARTED

a b c

7.1 REMOVING/INSTALLING THE BELT CLIP

1. To remove the clip from the unit, push the belt clip (b) towards the antenna, while pulling the clip tab (a).
2. When re-installing the belt clip, a click indicates the BeltClip is locked into position.

+ 1.4mA - VW + 1.4mA - VW + 1.4mA

7.2 BATTERY INSTALLATION

1. Remove the belt clip (§ 7.1).
2. Press the battery cover and slide it away from the antenna. (c)
3. Install three ‘AAA’ alkaline or rechargeable batteries following the polarity as shown.
4. Re-install the Battery Cover (c) and Belt Clip (§ 7.1).

8 L OW BATTERY INDICATION

When the battery charge level is low, a beep will be heard every 10 minutes to indicate that the batteries needs to be replaced.

Dispose of batteries at a designated battery disposal unit and not in the household waste. Do not short-circuit & dispose of in fire. Remove the batteries if this device is not going to be used for a long period.

9 BUTTONS

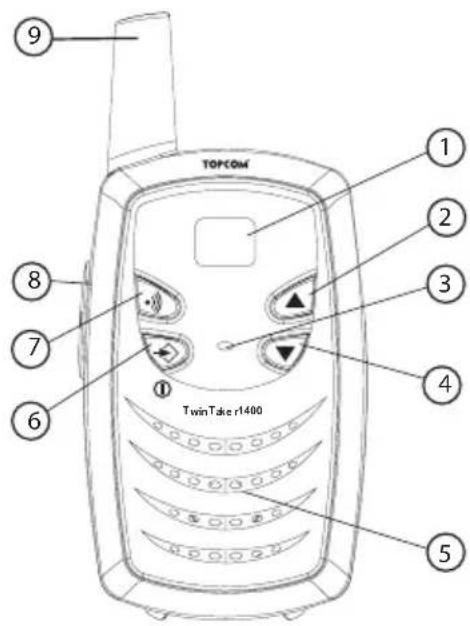

TOPCOM TwinTake r1400

1. LCD Display

2. UP button

• Increase the speaker volume

• Select the next item in the menu.

• Microphone

• DOWN button

• Decrease the speaker volume

• Select the previous item in the menu.

• Speaker

• MENU/ON-OFF button

• Turn the power On or Off.

• Enter menu.

• CALL button

- Transmit a call tone

1. PUSH TO TALK button

• Press To Talk or release to listen

• Confirm a setting in the menu

• Antenna

10 LCD DISPLAY INFORMATION

z v 13 12 10 11

1. Channel number/Volume level indication
2. TX frame. Displayed when transmitting
3. Volume icon. Displayed while setting the speaker Volume.
4. Scan icon. Displayed during the CHANNEL SCAN mode.

11 USING THE TWINTALKER 1400

Display

11.1 TURNING THE UNIT ON/OFF

To tum ON:

• Press and hold the ⬤ - button. The unit will "beep" and the LCD display will display the current channel.
  To switch OFF
• Press and hold the - button. The unit will "beep" and the LCD display will turn blank.

11.2 ADJUSTING SPEAKER VOLUME.

• Press the - button in stand-by-mode to increase the speaker volume. The volume level is displayed together with the Volume icon.
• Press the - button to decrease the speaker volume.

11.3 RECEIVING A SIGNAL

The unit is continuously in the RECEIVE mode when the unit is switched ON and not transmitting.

Display

In order for other people to receive your transmission, they must also be on the same channel.

11.4 TRANSMITTING A SIGNAL

- Press and hold the - button to TRANSMIT. The TX Frame is displayed.

- Hold the unit in a vertical position with the MICROPHONE 10cm from the mouth and speak into the microphone.

- Release the - button when you want to stop transmitting.

To check the channel activity use the monitor function (§ 11.8). The maximum transmitting time is limited to 1 minute. Release and the press Ⓞ button to restart transmitting.

11.5 CHANGING CHANNELS

• Press the - button once, the current channel number flashes on the display.
• Press the - button or the - button to change the channel.
• Press the - button to select the desired channel and return to stand-by mode.

11.6 CALL TONES

A call tone alerts others that you want to start transmitting.

- Press the - button briefly. The call tone will be transmitted for 2 seconds on the set channel.

11.7 CHANNEL SCAN

CHANNEL SCAN performs searches for active signals in an endless loop from channel 1 to 8.

11.7.1 Activate channel scan

• Press the - button 2 times.
• Press the - button or the - button until 'Y' is displayed, to activate scanning.
• Press the - button to confirm your selection.
• When activity on one of the 8 channels is detected the channel scan will stop and you can listen to the conversation on this channel.
• Press the - button or the - button to skip the channel.
• I f no button is pressed and no activity has been detected, the channel scan will continue automatically after 5 seconds.

You can not change the speaker volume in channel scan mode.

11.7.2 De-active channel scan

• Press the - button 2 times.
• Press the - button or the - button, until '-' is displayed, to de-activate scanning.
• Press the - button to confirm your selection.

11.8 CHANNEL MONITOR.

11.8.1 Activate monitor mode

• Press the ⏻ - button 3 times to start monitoring the channel activity, The set channel is displayed.
• Press the - button to increase or the - button to decrease the speaker volume level.
  • Channel monitor automatically stops after 5 seconds

11.8.2 De-activate monitor mode

- I n monitor mode, press the - button or the P button to de-activate the monitor mode or wait 5 seconds for monitoring to stop automatically.

11.9 ROGER BEEP ON/OFF

After the PTT - button is released, the unit will send out a roger beep to confirm that you have stopped talking.

To disable the roger beep.

• T urn the units off (§11.1)

- Press and hold the - button while turning the unit on. (§11.1)

To enable the roger beep, follow the same instructions.

12 TROUBLESHOOTING

No power Clean the battery contacts with a soft cloth. Replace the batteries
No transmission	Make sure the button is pressed completely before you speak. Monitor the channel activity and switch to another channel if the current is used.
No reception Check the speaker volumeMake sure that you are in thereception range of the sender and change if necessary your location
Limited Range and noise during transmission The talking range depends on the terrain. Steel constructions, concrete buildings or the use in vehicles have a bad influence on the range.Try to avoid as many obstacles as possible and communicate in a clear line of sight.Change your locations.
Interference	The receiver and transmitter are to close. The minimum distance between 2 units must be 1,5m.

13 TECHNICAL SPECIFICATIONS

ChannelsFrequencyRangeBatteriesTransmission PowerModulation TypeChannel spacing

8446.00625MHz - 446.09375 MHzUp to 3 Km (Open field)3 x AAA Alkaline or NiMH rechargeable=< 500mW ERPFM - F3E12,5 Khz

Channel Frequency Chart:
Channel	Frequency (MHz)
1	446,00625
2	446,01875
3	446,03125
4	446,04375
5	446,05625
6	446,06875
7	446,08125
8	446,09375

14 WARRANTY

14.1 WARRANTY PERIOD

Topcom units have a 24-month warranty period. The warranty period starts on the day the new unit is purchased.

Consumables or defects causing a negligible effect on operation or value of the equipment are not covered.

The warranty has to be proven by presentation of a copy of the original purchase receipt, on which the date of purchase and the unit-model are indicated.

14.2 WARRANTY HANDLING

A faulty unit needs to be returned to an authorized service centre including a valid purchase note. If the unit develops a fault during the warranty period, the service centre will repair any defects caused by material or manufacturing faults free of charge.

The service centre will at its discretion fulfil its warranty obligations by either repairing or exchanging the faulty units or parts of the faulty units. In case of replacement, colour and model can be different from the original purchased unit.

The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit is exchanged or repaired by the appointed service centres.

14.3 WARRANTY EXCLUSIONS

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories are not covered by the warranty.

The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation.

No warranty can be claimed if the serial number on the unit has been changed, removed or rendered illegal.

The CE symbol indicates that the unit complies with the essential requirements of the R&TTE directive.
