USER MANUAL Classic 2 DOMETIC

Black-and-white photo of a portable camping setup with a gas cylinder, a briefcase, and a portable stove (no visible text or symbols)

Classic1, Classic2

EN

Portable grill

Operating manual ....5

DE

Koffergrill

Exploded view diagram of a battery pack with numbered parts for identification

2 A 1. 2. 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

1 2 3

1 2 4

Please read this manual carefully before installation and starting up the device. Keep it in a safe place for future reference. If you pass on the device to another person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols....6
2 General safety instructions....6
3 Scope of delivery 9
4 Optional extras....10
5 Intended use ....10
6 Technical description....10
7 Before initial use .... 11
8 Using the portable grill 12
9 Troubleshooting....16
10 Cleaning the portable grill....17
11 Guarantee....17
12 Disposal....17
13 Technical data....18

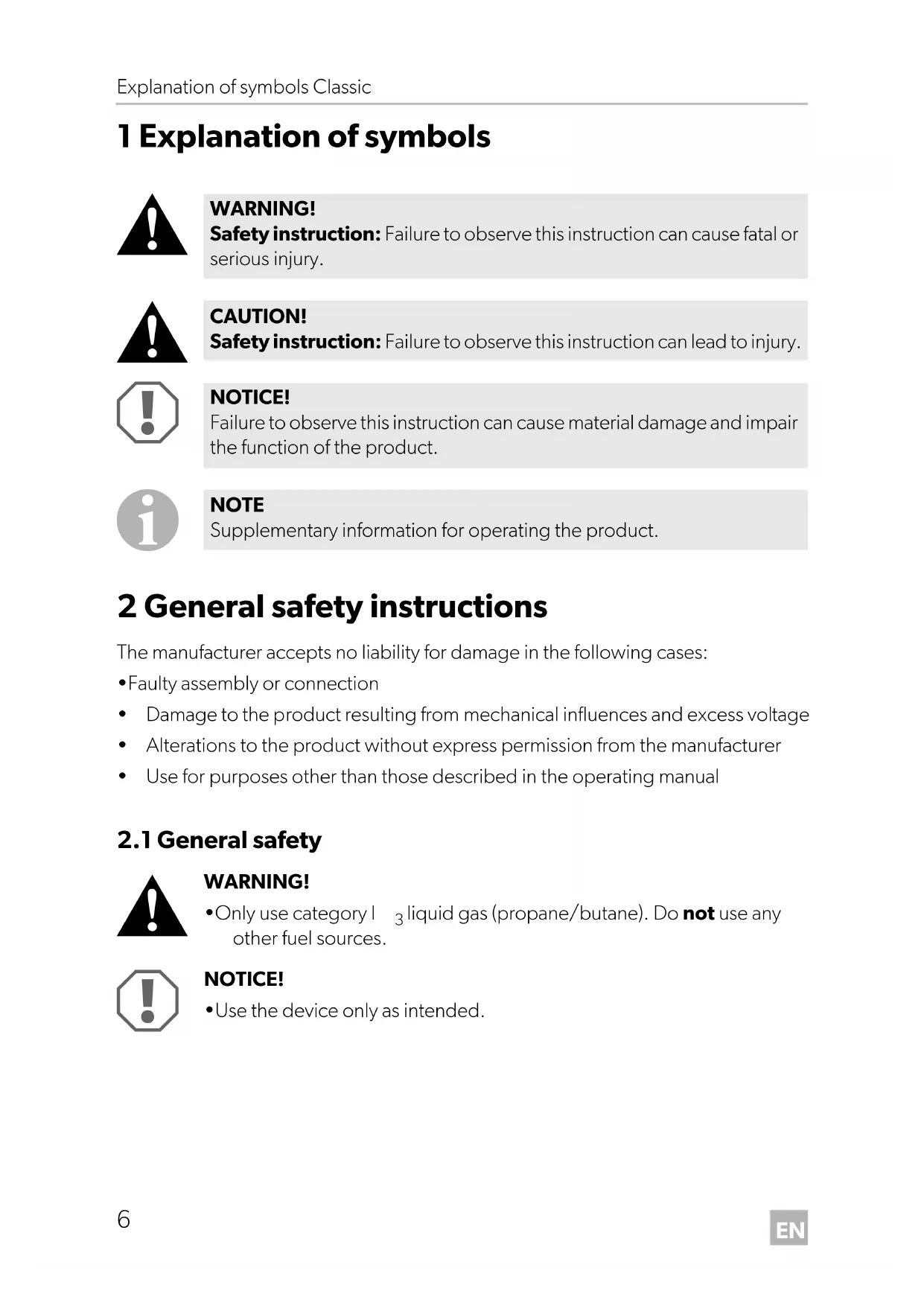

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection

• Damage to the product resulting from mechanical influences and excess voltage
  • Alterations to the product without express permission from the manufacturer
  • Use for purposes other than those described in the operating manual

2.1 General safety

WARNING!

- Only use category I _3 liquid gas (propane/butane). Do not use any other fuel sources.

NOTICE!

- Use the device only as intended.

2.2 Safety precautions when handling liquid gas

WARNING!

• Keep combustible materials away from heating or cooking devices and other light or heat sources.
• Compare the pressure information on the type plate with the pressure information on the propane or butane gas cylinder.
• Never store liquid gas cylinders in unventilated areas or below ground level (funnel shaped holes in the ground).
• Keep liquid gas cylinders away from direct sunlight. The temperature may not exceed 50 °C.

2.3 Operating the device safely

WARNING!

•Beware of suffocation.

While burning liquid gas, the device also consumes oxygen. When used indoors, there is a risk of suffocation due to insufficient oxygen.

Only use the device outdoors.

- If you smell gas:

• Close the valve on the gas cylinder and keep it closed until the error is rectified.
• Never attempt to find a gas leak with a naked flame.

- This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and knowledge, providing they are supervised, or have been taught how to use the device safely and are aware of the resulting risks.

• Children must be supervised to ensure that they do not play with the device.
• Never leave the device unattended when in use for prolonged periods of time.
• Use long matches or a suitable lighter. Check the gas outlets when you ignite the burners. Do not ignite the burners if you cannot see them directly.

Take your hand away quickly once the burner is ignited.

- Wear appropriate clothing when using the portable grill.

Do not wear loose-fitting clothing which could easily catch fire.

• Leave the portable grill to cool down properly before you touch it with bare hands.
• Replace porous or damaged hoses immediately.
• Never change the nozzles, injector or burners.

NOTICE!

• Never use the rack without the drip tray.
• Hot parts should not be allowed to come into contact with oil, water or any other liquids.
• Never move the device when it is still hot.
• Only use pots and pans with a level base and a diameter of 10 to 20 cm.
• Ensure that pots and pans are stable when cooking.
• Never allow pot or pan handles to protrude over the edge of the portable grill. Turn all the handles inwards. This reduces the risk of spillage, the ignition of flammable materials and serious scolding.
• Proceed with caution when heating oil or fat, as they can ignite under excessive heat.
• Only use dry pot holders to avoid steam build-up. Do not use towels or cloths as these can catch fire.
• Never leave the portable grill unattended while in use. Pots which boil over can cause smoke and fires.

3 S c o p e o f d

No. in

fig. 1,

page 3

Quantity Designation

11 Burner with hob

2 2 Injector (on burner)

31 Drip tray with rack

41 Grill rack holder

5 4 L e g s

61 Roasting spit

7 2 Meat clamps

8 1 C a s e

9 1 H a n d

10 1 Lock

11 2 Side panel

- 2 Screws and nuts M3

- 1 Screw and nut M4

-1 Operating manual

4 O p t i o n a l e

Available as accessory (not included in scope of delivery):

Designation Item no.
Grill trays 9103300804
Grill basket midi 9103300800
Grill basket maxi 9103300801
Grill motor battery (1.5 V) 9103300802
Combination grill motor (1.5 V/230 V) 9103300807
Network motor battery (230 V) 9103300803
Grill cover Classic 1 9103500360
Grill cover Classic 2	9103500361

5 Intended use

The Classic 1 and Classic 2 portable grills from Dometic are intended for mobile use outdoors.

The Classic 1 and Classic 2 portable grills allow you to cook on cooking rings at the top at the same time as barbecuing. You can also connect the portable grill to a gas cylinder or gas socket of a mobile home by means of a suitable gas hose (not included in delivery).

The portable grill must not be used in enclosed spaces (such as tents and awnings). Leave the portable grill to cool down completely before putting it in a tent or awning.

6 Technical description

The portable grill can be dismantled and is easy to transport. All the parts fit into the case.

Category I_3 (propane/butane) liquid gas is used as fuel.

6.1 Specifications for the portable grill models

The portable grill is available in different models and with different connections:

• Classic 1: portable grill with three cooking rings
• Classic 2: portable grill with two cooking rings

All models are available with the following connections:

• Connection pressure 30 mbar
• Connection pressure 50 mbar

6.2 Gas pressure

The permitted gas pressure can be found on the type plate in the bottom of the case.

Models with a gas cylinder connection must be used with a pressure reducing valve.

Only use pressure reducing valves that have been specified and approved in your country.

WARNING! Beware of injury

The outlet pressure of the valve must always match the connection pressure (gas pressure) of the portable grill.

7 Before initial use

Proceed as follows (fig. 1, page 3):

▶ Remove the protective film from the top of the burner (1).
▶ Screw the handle (9) into the lower part of the case with both the screws M3.
▶ Attach the lock (10) to the lid of the case with the screw M4.
▶Clean the rack and the drip tray with a standard cleaning agent.

▶Only when connecting to gas cylinders:

• Use a suitable gas hose and a pressure reduction valve (both not included in delivery).
• Connect the pressure reduction valve to the free end of the gas hose.

▶ Only when connecting to gas sockets: Use a suitable gas hose (not included in delivery).
▶ Connect the gas hose to the injector (2).

Table of adapters

NOTICE! Beware of damage

To ensure proper operation, an adapter supplied by the manufacturer (item no. 9103300168 or 9103300169) must be used. If you have any questions, please contact the manufacturer's branch in your country (see the back for the addresses).

Country Adapter

D	A	CH					-
DK	E	FIN	N	RUS	S		9103300168

Rest of Europe 9103300169

8 Using the portable grill

8.1 Mounting the portable grill

When selecting the location for barbecuing, observe the following instructions:

• Set up the portable grill outside in a well-ventilated place. Do not place it in a dip to prevent any gases from accumulating there.
• The ground must be firm, level and stable.
• Keep the portable grill protected from the wind.
• Never place the portable grill near flammable materials, even when cooling down. Keep a distance of at least 20 cm.
• Observe the safety instructions, see chapter "Safety precautions when handling liquid gas" on page 7.

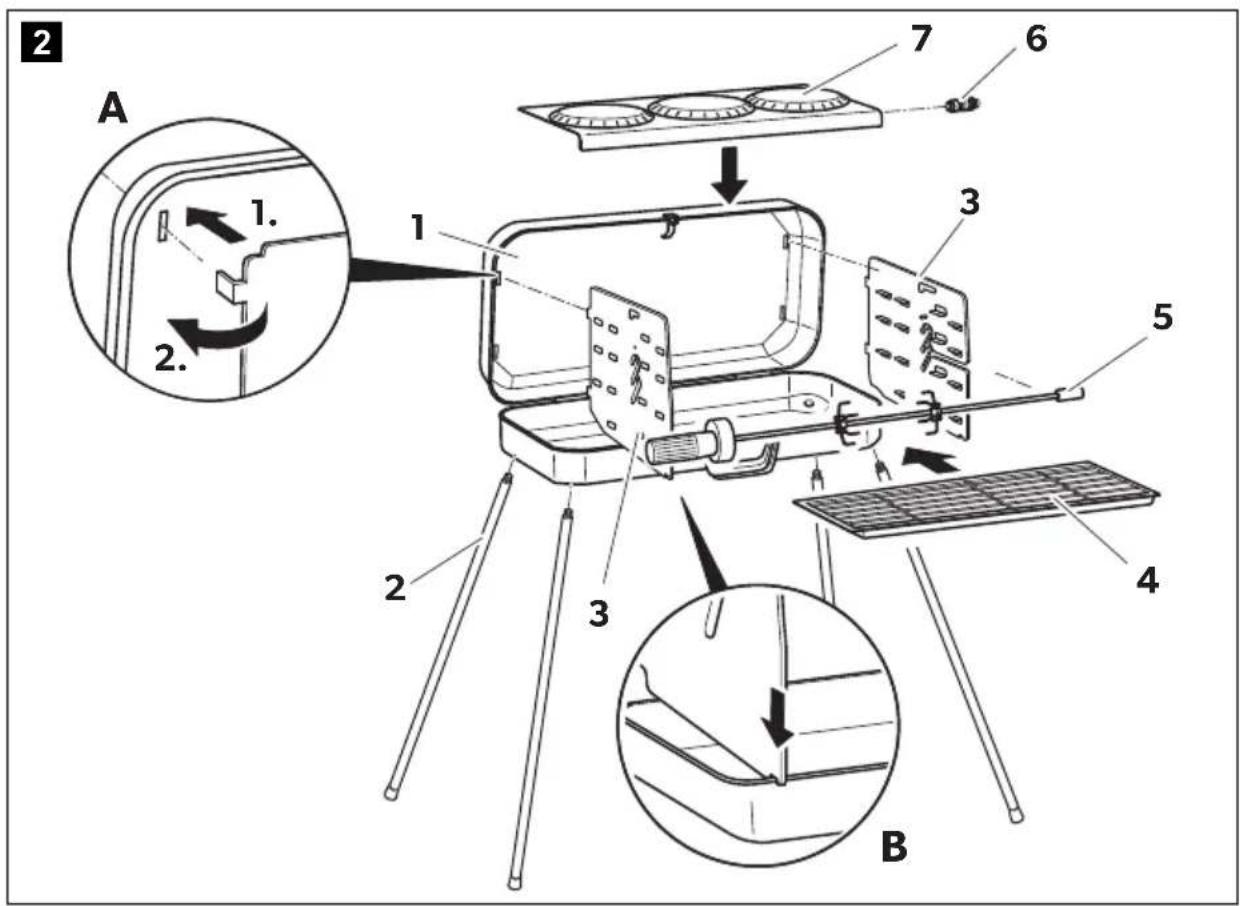

Proceed as follows (fig. 2, page 3):

▶ Screw the stands (1) onto the base.
▶Gather all the individual parts and put them to one side.
▶ Turn the stand (2) by hand in the fastening plates.

▶ Attach the side panels:

• Hang the side panel (3) in the slot in the upper part of the portable grill (1) (A).
• Fold it down.
  – Hook the side panel onto the front of the grill base (B).

NOTICE!

Never use the device without the drip tray. Without a drip tray the signs in the base of the portable grill could get dirty, damaged from the heat and illegible.

▶ Always slide the rack in at the required height together with the drip tray (4).
▶ If required, insert the roasting spit (5) into the rails on the side panels.

8.2 Installing the burner

Proceed as follows (fig. 2, page 3):

▶ Place the burners (7) onto the side panels.
▶ Insert the injector (6) into the burner (7) until you hear it click.

8.3 Connecting the portable grill to the gas cylinder

WARNING! Beware of injury

• Only use propane or butane gas cylinders with an approved pressure reducing valve and a suitable head.
• Compare the pressure information on the type plate with the information on the pressure reducing valve.

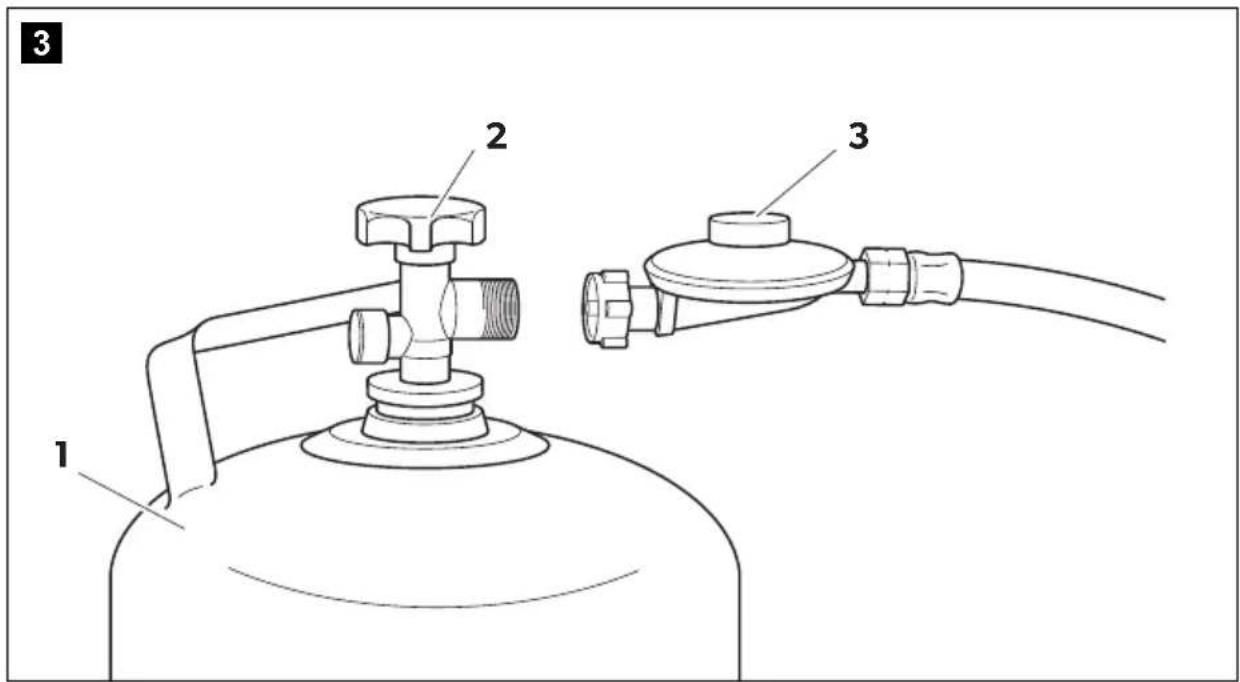

Proceed as follows (fig. 3, page 4):

▶ Place the gas cylinder (1) upright and at least 50 cm away from the portable grill.
▶ Check that the valve (2) on the gas cylinder is closed.
▶ Screw the pressure reducing valve (3) onto the gas cylinder firmly by hand.
▶Make sure that the gas hose

• is not crushed or kinked
• is a safe distance from the burner

▶ After connecting the device to the gas supply, check the gas pipe for leakage using a foaming agent, e. g. with soap.

8.4 Connect the portable grill to the gas socket

▶Plug the gas hose into the gas socket.
▶Make sure that the gas hose

- is not crushed or kinked

– is a safe distance from the burner

▶ After connecting the device to the gas supply, check the gas pipe for leakage using a foaming agent, e. g. with soap.

8.5 Igniting the portable grill

WARNING! Beware of injury

• Do not leave the portable grill unattended while in use.
• Ignite the burners as soon as you have turned on the gas supply. Otherwise gas can accumulate in the burner area and could cause an explosion.
• The complete ignition process must be visible from above and must not be hidden by pots placed on top of the hob.

NOTE

• While it is operating, you will be able to hear a slight noise caused by the gas flowing out. This is completely harmless.
• Smoke can occur when using it for the first time. This is caused by deposits of machine oil burning and stops after approx. 10 minutes.
• The stainless steel burners turn blue from the high temperature. This does not affect the operation or the quality of the material.

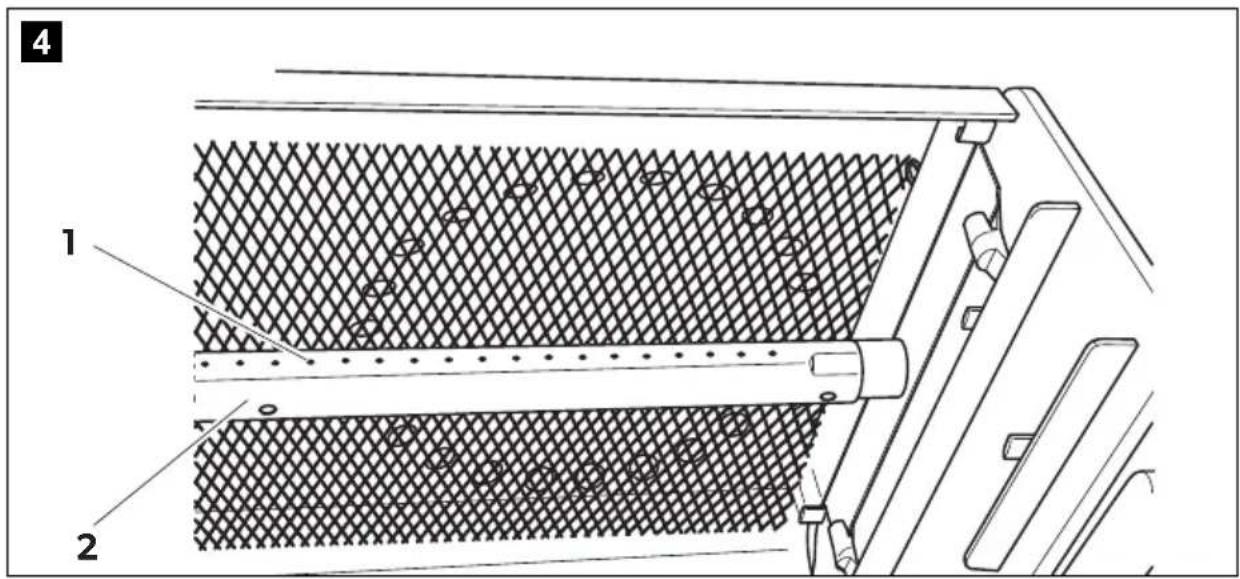

Proceed as follows (fig. 4, page 4):

▶Turn on the gas supply.
Ignite the burner straight away at the gas outlet (1) using a long match or a suitable lighter.
Remove your hand quickly as soon as the burner is lit.
▶ After lighting, check that the burner is burning properly. The flames must be burning along the whole length of both sides of the burner pipe (2).

8.6 Barbecuing

Please observe the following instructions when barbecuing:

CAUTION! Danger of burns

• Always use the grill rack holder when you want to raise or lower the drip tray and spit while hot.

• Remove the grill rack holder while you are barbecuing. Otherwise it gets very hot.

• When barbecuing, control the temperature by raising or lowering the drip tray and rack using the holder.

• The very top recesses at the sides are intended for barbecuing steaks quickly with intense heat.
• Never use the device without the drip tray. Without a drip tray the signs in the base of the portable grill could get dirty, damaged from the heat and illegible. Using the drip tray also allows the heat from the burners to be used more efficiently.
• Attach the food, such as poultry or a joint for roasting, with the two meat clamps on the spit. Place the spit in the holders on the portable grill.
• A grill motor (optional extra) is ideal here for turning the joint. First attach the grill motor to the left side panel by putting the fastener into the keyhole. Then plug in the head of the roasting spit into the motor.
• When barbecuing with the roasting spit, the meat juices in the drip tray can be used for making sauces according to taste.

8.7 Cooking

Please observe the following instructions when cooking:

• Do not use any pots with curved bases.
• Only use pots with a diameter between 10 cm and 20 cm.

8.8 Switching off the portable grill

▶Turn off the gas supply.
√The flames go out.

8.9 Dismantling the portable grill

CAUTION! Beware of burns

The portable grill is very hot when you use it. Leave the portable grill to cool down before you clean, dismantle or transport it.

▶Disconnect the portable grill from the gas supply.
▶Dismantle the portable grill once it has cooled down.
▶Clean the individual parts (see chapter "Cleaning the portable grill" on page 17).
▶Store the individual parts in the case.
▶Close the case with the zip.

8.10 Replacing the gas cylinder

WARNING! Beware of injury

Change the gas cylinder in a well-ventilated location.

Ensure that there are no open flames in the vicinity.

Only replace the gas cylinder when the portable grill is switched off.

▶Completely close the valve on the gas cylinder.
▶Unscrew the pressure reducing valve from the cylinder.
▶Check the condition of the gas hose.
Replace the hose line if the material is brittle or porous.
▶ Tightly screw the pressure reducing valve by hand onto the new cylinder.

9 Troubleshooting

Repairs to the gas supply parts on the device may only be carried out by a qualified technician.

▶Shut off the gas supply immediately if a fault occurs.
▶ Check again that the device has been assembled correctly and the parts are undamaged, especially the gas hose and injector.
▶Replace the damaged parts.
▶Only use the device again once all the faults have been rectified.

10 Cleaning the portable grill

NOTICE!

Do not use any sharp or hard objects for cleaning since they may damage the device.

Only use standard cleaning agents.

▶Allow the device to cool down properly before cleaning it.
▶Clean the surfaces. Pay special attention to removing sticky fat and oil residue.
▶ Do not use a steam cleaner to clean the device under any circumstances.
▶Allow the device to dry before packing and storing.

11 Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

12 Disposal

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

13 Technical data

Description, connection pressure Item no.

Portable grill Classic 1, 30 mbar 9103300172

Portable grill Classic 1, 50 mbar 9103300173

Portable grill Classic 2, 30 mbar 9103300174

Portable grill Classic 2, 50 mbar 9103300175

	Dometic Classic 1
Gas consumption: 385 g/h
Gas category: Category I	3, propane/butane
Number of cooking rings: 3
Burner output: 5300 W
Dimensions: Closed portable grill: 620 x 128 x 288 mmDrip tray with rack: 544 x 238 mm
Weight: 10 kg
Inspection/certification:
	Dometic Classic 2
Gas consumption: 320 g/h
Gas category: Category I	3, propane/butane
Number of cooking rings: 2
Burner output: 4300 W
Dimensions:	Closed portable grill: 510 x 128 x 288 mmDrip tray with rack: 435 x 238 mm
Weight:	8 kg
Inspection/certification:

6 Description technique

▶Kontrollér, at gasslangen

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

1800 212121

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

Neudorferstraße 108

A-2353 Guntramsdorf

[phone]

[phone]

Mail: [e-mail]

BENELUX

Dometic Branch Office Belgium

Zincstraal 3

B-1500 Halle

[phone]

[phone]

Mail: [e-mail]

BRAZIL

Dometic DO Brasil LTDA

Avenida Paulista 1754, conj. 111

SP 01310-920 Sao Paulo

[phone]

[phone]

Dometic Group Asia Pacific

Suites 2207-11 · 22/F · Tower 1

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Zrt. Sales Office

Kerékgyártó u. 5.

H-1147 Budapest

[phone]

[phone]

Dometic Italy S.r.l.

Via Virgilio, 3

I-47122 Forlì (FC)

[phone]

[phone]

Mail: [e-mail]

JAPAN

Dometic KK

Maekawa-Shibaura, Bldg. 2

2-13-9 Shibaura Minato-ku

Tokyo 108-0023

[phone]

[phone]

Mail: [e-mail]

MEXICO

Circuito Médicos No. 6 Local 1

Colonia Ciudad Satélite

CP 53100 Naucalpan de Juárez

Estado de México

[phone]

[phone]

Mail: [e-mail]

NETHERLANDS

Dometic Benelux B.V.

Ecustraat 3

NL-4879 NP Etten-Leur

[phone]

[phone]

Mail: [e-mail]

NEW ZEALAND

Dometic New Zealand Ltd.

PO Box 12011

Penrose

Auckland 1642

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

∅sterøyveien 46

N-3232 Sandefjord

[phone]

[phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

PL-02-801 Warszawa

[phone]

[phone]

Mail: [e-mail]

PORTUGAL

Dometic Spain, S.L.

Komsomolskaya square 6-1

RU-107140 Moscow

[phone]

[phone]

Mail: [e-mail]

SINGAPORE

Dometic Pte Ltd

18 Boon Lay Way 06-140 Trade Hub 21

Singapore 609966

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia s.r.o. Sales Office Bratislava

Nádražná 34/A

900 28 Ivánka pri Dunaji

/ [phone]

Mail: [e-mail]

SOUTH AFRICA

Dometic (Pty) Ltd.

Regional Office

South Africa & Sub-Saharan Africa

2 Avalon Road

West Lake View Ext 11

Modderfontein 1645

Johannesburg

[phone]

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang

[phone]

[phone]

Mail: [e-mail]

UNITED ARAB EMIRATES

Dometic Middle East FZCO

P.O.Box17860

S-D 6, Jebel Ali Freezone

Dubai

[phone]

[phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House, The Brewery

Blandford St. Mary

Dorset DT119LS

[phone]

[phone]

Mail: [e-mail]

USA

Dometic RV Division

1120 North Main Street

Elkhart, IN 46515

[phone]
