USER MANUAL IR Link B EBODE

IR Link Series– Extend your remote! IR Link B – Battery Powered InfraRed Remote Control Extender

1 IRHUBB with 3 IR Emitters and battery clip attached

3 extra replacement adhesives for the IR Emitters

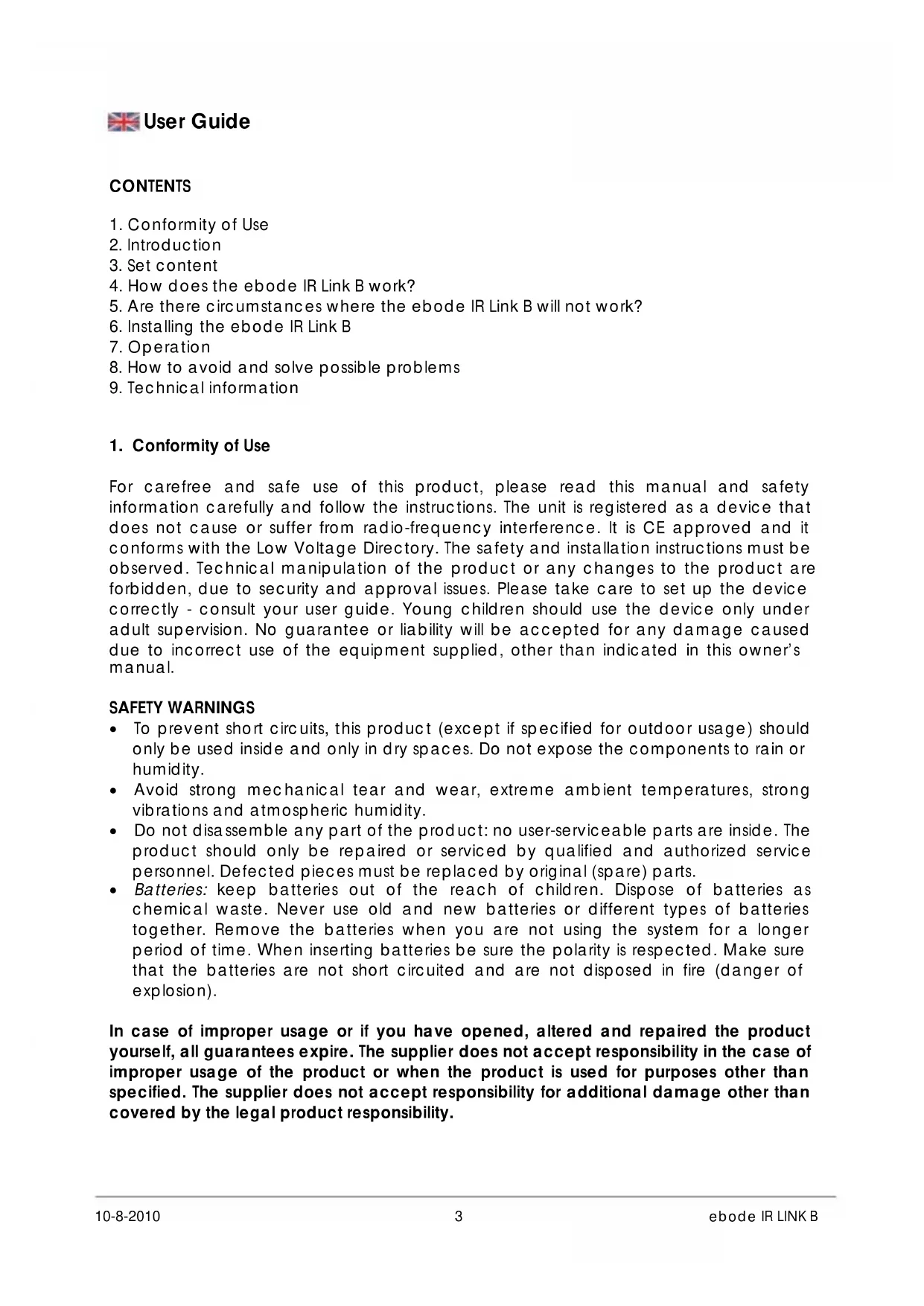

1. Conformity of Use

4. How does the ebode IR Link B work?

5. Are there circumstances where the ebode IR Link B will not work?

8. How to avoid and solve possible problems

1. Conformity of Use

For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner’s manual. SAFETY WARNINGS

• To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity.

• Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity.

• Do not disassemble any part of the product: no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.

• Batteries: keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. When inserting batteries be sure the polarity is respected. Make sure that the batteries are not short circuited and are not disposed in fire (danger of explosion). In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.10-8-2010 4 ebode IR LINK B

Congratulations on purchasing the ebode IR Link B. Our ebode proprietary eIR

(pronounce Irex) Technology guarantees a high level of immunity for InfraRed noise of direct sunlight, CFL lighting and Flat Panel TV’s (including Plasma, LCD and LED). It provides accurate reproduction of the latest generation InfraRed codes that are used in remote controls of, for instance, Set-Top Boxes and Media Players (incl. RC5/6, RCMM, XMP, SKY HD). The ebode IR Link B is an InfraRed Extender System that allows full InfraRed remote control operation of A/V components located behind closed cabinet doors or other concealed and/or out-of-sight locations. An InfraRed Extender in general consists of an IR (InfraRed) capture device, the receiver, a distribution circuit/connecting block, the Hub, and finally the IR LED output, the Emitter, which flashes the IR signal to the A/V component.

The ebode IR Link B consists of 2 parts -1 IRLB Mouse IR Receiver -1 IRHUBB with battery clip and 3 InfraRed Emitters (model IREDB) attached - 3 replacement adhesives for the IR Emitters The ebode IR Link B system has a (EN22/PP3) 9VDC battery connector (battery not included). The IR Emitters have a self adhesive film on one surface of each emitter. This allows them to be “stuck” to the IR sensor “window” on your source equipment. The cord to the Emitters is permanently attached to the distribution circuit of the IR Link B Hub.

4. How does the ebode IR Link B work?

The ebode IR Link B Receiver, placed on a shelf or cabinet, receives IR signals from your remote controls. It then amplifies the remote control signal and passes it to the attached Emitters. The small Emitters each contain an IR transmitting LED and blink visibly when remote commands are passed. They allow control of IR remote controlled audio/video components (such as your A/V Receiver, DVR, Satellite Box, Cable Tuner, etc.) and are attached to the IR sensor “window” on such components by a self adhesive film. When a handheld remote control is operated and aimed at the ebode IR Link B, the IR commands will be passed to the controlled equipment.

5. Are there circumstances where the ebode IR Link B will not work?

Most brands and models of IR controlled equipment can be operated with your ebode IR Link B, with some exceptions like those using high frequency IR carriers, such as Bang&Olufsen (ask your dealer).

6. Installing the ebode IR Link B

Step 1: Place the ebode IR Link B Receiver in any convenient location so that the InfraRed beam from your remote control has a direct view to the front of the unit (within range of the device (4 - 8 meters)). The IRLB Receiver can be fixed to the surface by using the double side tape pad or via a slide on screw hole on the bottom of the unit. Step 2: Run the wire of the IR Receiver through the back of your cabinet and put the plug into the socket of the Hub. Step 3: Install the small Emitters onto your controlled components, using the following procedure:10-8-2010 5 ebode IR LINK B Remove the paper backing from one of the IR Emitters, exposing the adhesive surface. Apply the Emitter directly onto the centre of the sensor “window” on one of your components. Note: The Emitters have self-adhesive tape on the back. Use this to stick them onto the IR eye of your equipment. This should be done very carefully and precisely. Test the position of the IR Emitters first, before you finally stick them onto the eye. Step 4: Place a 9 Volt battery (EN22 or PP3) to the battery connector of the IR Hub circuit. Be sure to observe correct polarity! ATTENTION: If you are only using one appliance, then you do not need to use the additional IR Emitters. Never remove these from the wire! Just dress up the wire and leave close to the Hub.

Normally your ebode IR Link B Receiver will be in a “sleep” mode to maximize battery life. When in sleep mode, the range between it and your handheld remote is limited to approx. 4 meter or less. To activate the system, simply point your remote at the ebode IR Link B IR Receiver from a nearby location and press one of the buttons. The LED in the front of the receiver will flash to confirm reception and that the unit is activated to full sensitivity. When activated, the IR Link B will operate up to a distance of 4 – 8 meters over an angle of ± 30 degrees off axis. The ebode IR Link B will automatically go back into “sleep” mode after approx. 1 minute.

8. How to avoid and solve possible problems

Although the ebode IR Link B is equipped with proprietary eIR

(pronounced Irex) Technology, which guarantees a high level of immunity of InfraRed noise of direct sunlight, CFL lighting and Flat Panel TV’s (including Plasma, LCD and LED), in rare cases, the IR Receiver may have to be moved to a different location if the unit is picking up unexpected interference. This interference may, in severe cases, prevent the system from working. You can identify interference when the InfraRed Emitters are lit or blinking, even when you’re not using a remote control transmitting at the time. After repositioning, check to see if the ebode IR Link B operates the satellite Receiver or other components. If the ebode IR Link B still does not work, reposition the IRED Emitter(s). It may not be located directly over the component’s InfraRed receiving "window". Consult the owner's manual of the unit or the manufacturer for the exact location of the InfraRed "window". Do you still have questions? Please refer to www.ebodeelectronics.eu

Power: 9VDC EN22 / PP3 battery (not included) IR Emitter cable: 3 IR LEDs Cable length: 3 m, 1 m from IRHUBB to IR LEDs Receiver dimensions: 55x40x25mm10-8-2010 6 ebode IR LINK B Bedienungsanleitung INHALT

DECLARATION OF CONFORMITY

Hereby, ebode electronics, declares that this ebode IR Link B is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of eco design requirements for energy-using Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol: Environmental Information for Customers in the European Union European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.10-8-2010 28 ebode IR LINK B
