USER MANUAL PowerMid Premium EBODE

Extend the signal of your remote control through walls and ceilings PM28

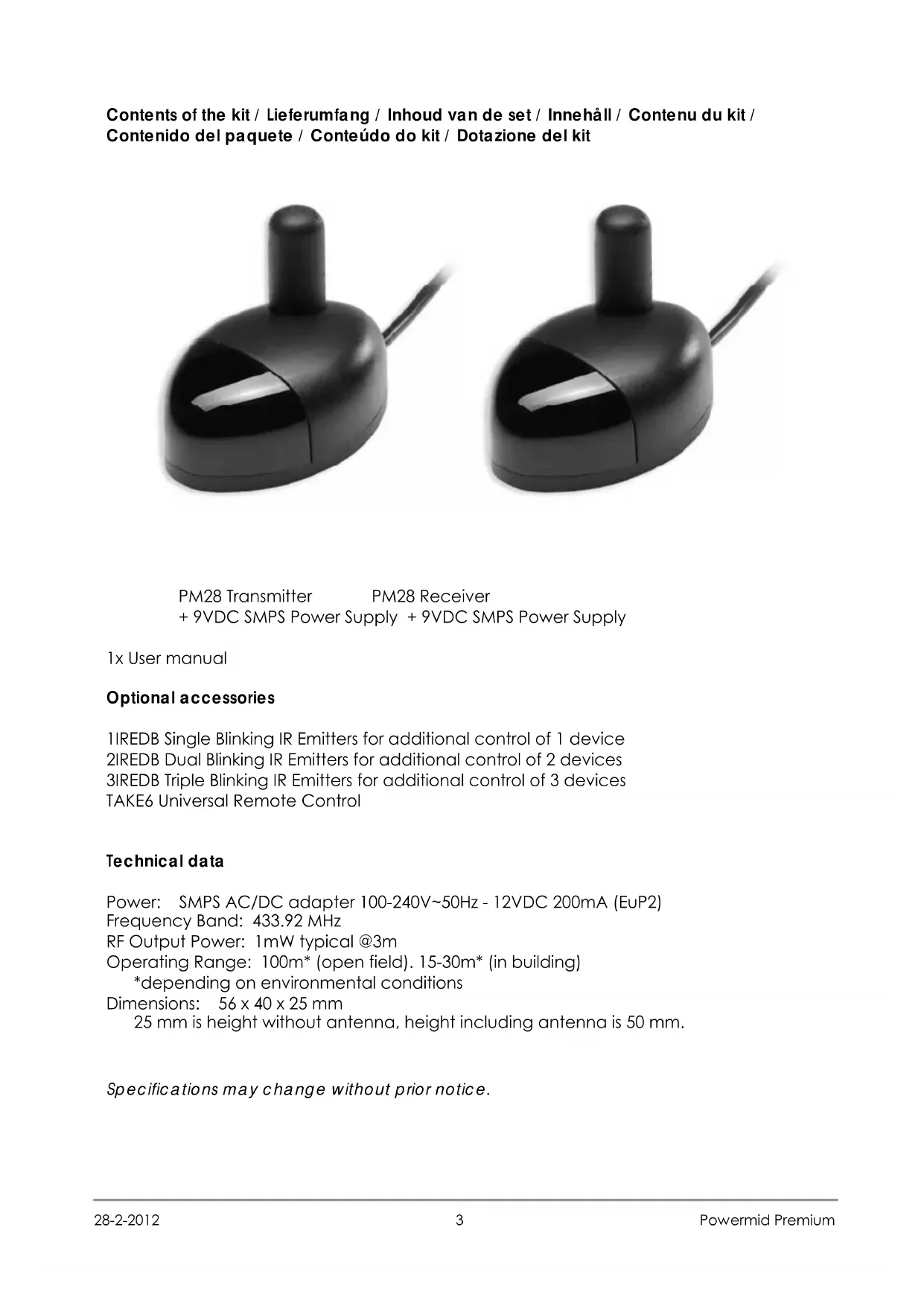

PM28 Transmitter PM28 Receiver + 9VDC SMPS Power Supply + 9VDC SMPS Power Supply 1x User manual Optional accessories 1IREDB Single Blinking IR Emitters for additional control of 1 device 2IREDB Dual Blinking IR Emitters for additional control of 2 devices 3IREDB Triple Blinking IR Emitters for additional control of 3 devices TAKE6 Universal Remote Control

Technical data Power: SMPS AC/DC adapter 100-240V~50Hz - 12VDC 200mA (EuP2) Frequency Band: 433.92 MHz RF Output Power: 1mW typical @3m Operating Range: 100m* (open field). 15-30m* (in building) *depending on environmental conditions Dimensions: 56 x 40 x 25 mm 25 mm is height without antenna, height including antenna is 50 mm. Specifications may change without prior notice.28-2-2012 4 Powermid Premium User Guide CONTENTS

1. Conformity of Use

For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner’s manual. SAFETY WARNINGS

• To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity.

• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the rating labels. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier. If there is any danger of a thunderstorm, it is a good precaution to unplug the power supply from the mains network in order to protect it from lightning. The same applies if the system is to be out of action for any length of time.

• Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity.

• Do not disassemble any part of the product: the device contains live parts and no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.

• Batteries: keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. When inserting batteries be sure the polarity is respected. Make sure that the batteries are not short circuited and are not disposed in fire (danger of explosion). In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.28-2-2012 5 Powermid Premium

Thank you for buying the ebode Powermid Premium. This kit allows you to control remotely any A/V distant appliance, TV, VCR, Hi-Fi, satellite and cable box, just by using your existing remote control! The remote control signal is transmitted through walls and ceilings, up to 100 meters away (open field, about 30 meters through walls and ceilings). Our ebode proprietary eIR

(pronounce Irex) Technology guarantees a high level of immunity for infrared noise of direct sunlight, CFL lighting and Flat Panel TV’s (including Plasma, LCD and LED). Provides accurate reproduction of the latest generation Infrared codes that are used in remote controls of, for instance, set-top boxes and media players (incl. RC5/6, RCMM, XMP).

1 Transmitter: converts IR signals of remote controls into 433.92 MHz RF messages and transmits them to the Receiver, even through walls and ceilings. 1 Receiver: converts RF messages back into IR signals to control the selected A/V source. 2 Mains power supply wall adapters 230V~50Hz to 9VDC 200mA

4. Transmission of your original remote control signals

Point your original remote control at the PowerMid Transmitter. As soon as you press a button, the transmitter captures the IR command, converts it into a RF message, and transmits it through the walls to the PowerMid Receiver. This unit converts the signal into an IR message back, in order to control the selected A/V source. For example, you can change channels on your satellite receiver while viewing it in another room. The remote control signal is transmitted through walls and ceilings, up to 30 meters away.

5. Installing the system

1. Plug the PowerMid Transmitter power supply adapter into a 230V~ outlet in the room

where you want to use your remote control (up to 20 feet/6 meters away from where you normally sit). Plug the power supply adapter lead plug into the connector at the end of the cable of the transmitter.

2. Plug the PowerMid Receiver power supply adapter into a 230V~ outlet in the room

where your TV, VCR, Stereo, etc. is located (up to 20 feet/6 meters from it). Plug the power supply adapter lead plug into the connector at the end of the cable of the receiver.

3. Point the front of the Receiver towards the TV, VCR, stereo etc.

4. Point your remote control at the Transmitter. It receives the signals and transmits them

to the Receiver. The Receiver then re-transmits these infrared signals to your TV, VCR, stereo, etc.28-2-2012 6 Powermid Premium

6. Expanding the system

-Add more Transmitters to use your remote controls in several rooms. -Add more Receivers to control equipment in different rooms. -Add an Infrared Extender (sold separately) if you need to place the PowerMid Receiver next to your equipment instead of in front of it, or if your equipment is located inside a closed cabinet.

7. Troubles shooting

Note: The Transmitter and Receiver will most likely be in different rooms (up to 30 meters away). Range depends on:

1. The number of floors and walls the signal has to travel through and material these walls

and floors are made of.

2. Other 433MHz sources (e.g. wireless head phones, wireless speakers) can affect the

range. The best range will be achieved when these sources are switched off while using the PowerMid. Cordless phones will not affect the PowerMid.

3. Some satellite receivers require more careful positioning of the PowerMid system. If any

difficulty is encountered, try to move the PowerMid (Receiver) a little to various positions until it operates correctly.28-2-2012 7 Powermid Premium Bedienungsanleitung INHALTSVERZEICHNIS

DECLARATION OF CONFORMITY

Hereby, ebode declares that this PM28 is in compliance with the essential requirements and other relevant provisions of the following Directives:

1) Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on

radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

2) Directive 2004/108/EC of the European Parliament and of the Council of 15 December

2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

3) Directive 2006/95/EC of the European Parliament and of the Council of 12 December

2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

4) Directive 2002/95/EC of the European Parliament and of the Council of 27 January

2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

5) Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005

establishing a framework for the setting of eco design requirements for energy-using Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.
