USER MANUAL 740 ARIETE

CE MOD. 740 Steakhouse Grill -Ariete

-Ariete

Via San Cuilico, 820 ©2013 Camp Desempo FI - Italy E-Unit [e-mail] Internet www.aniete.net

Technical diagram of a device with numbered parts, showing exploded and assembled views

Fig. 1

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Two identical diagrams of a mechanical or electrical component with no visible text, numbers, or symbols.

Fig. 2

Fig. 7

Fig. 8

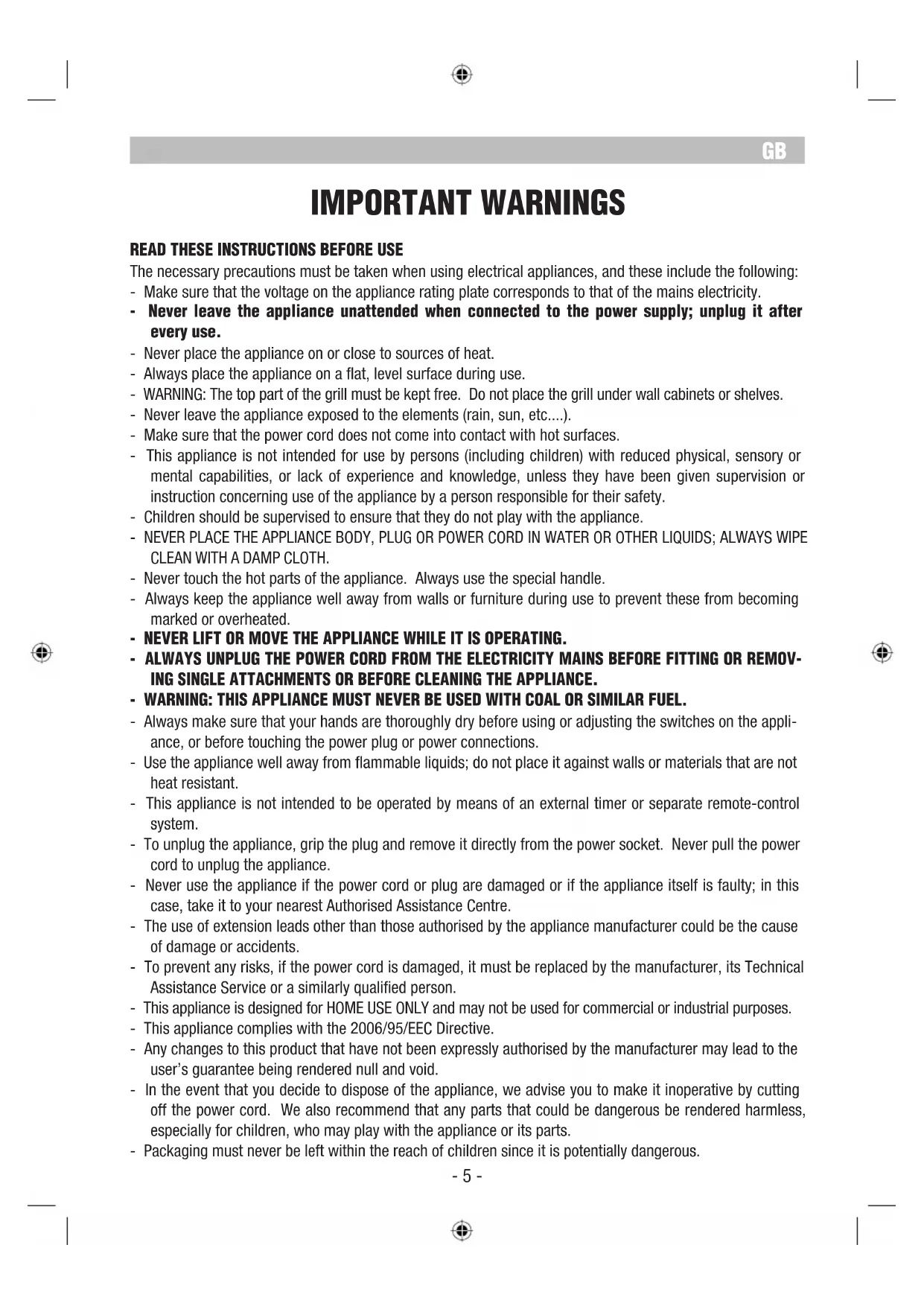

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

The necessary precautions must be taken when using electrical appliances, and these include the following:

- Make sure that the voltage on the appliance rating plate corresponds to that of the mains electricity.

- Never leave the appliance unattended when connected to the power supply; unplug it after every use.

- Never place the appliance on or close to sources of heat.

- Always place the appliance on a flat, level surface during use.

- WARNING: The top part of the grill must be kept free. Do not place the grill under wall cabinets or shelves.

- Never leave the appliance exposed to the elements (rain, sun, etc....).

- Make sure that the power cord does not come into contact with hot surfaces.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER OR OTHER LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

- Never touch the hot parts of the appliance. Always use the special handle.

- Always keep the appliance well away from walls or furniture during use to prevent these from becoming marked or overheated.

- NEVER LIFT OR MOVE THE APPLIANCE WHILE IT IS OPERATING.

- ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

- WARNING: THIS APPLIANCE MUST NEVER BE USED WITH COAL OR SIMILAR FUEL.

- Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.

- Use the appliance well away from flammable liquids; do not place it against walls or materials that are not heat resistant.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- To unplug the appliance, grip the plug and remove it directly from the power socket. Never pull the power cord to unplug the appliance.

- Never use the appliance if the power cord or plug are damaged or if the appliance itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.

- The use of extension leads other than those authorised by the appliance manufacturer could be the cause of damage or accidents.

- To prevent any risks, if the power cord is damaged, it must be replaced by the manufacturer, its Technical Assistance Service or a similarly qualified person.

- This appliance is designed for HOME USE ONLY and may not be used for commercial or industrial purposes.

- This appliance complies with the 2006/95/EEC Directive.

- Any changes to this product that have not been expressly authorised by the manufacturer may lead to the user's guarantee being rendered null and void.

- In the event that you decide to dispose of the appliance, we advise you to make it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.

- Packaging must never be left within the reach of children since it is potentially dangerous.

GB

DO NOT THROW AWAY THESE INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE (Fig. 1)

1 Grill rack retainer ring
2 Tray handle
3 Drip tray
4 I-0 (on-off) dial
5 Plate distance regulation dial
6 Power adjustment dial
7 On/off light
8 Heating element retainer clip
9 Heating element retainer pin
10 Removable plate
11 Heating element
12 Grill plate handles
13 Grill plates
14 Grill plate rotation slider
16 Grill rack

15 Grill plate automatic adjustment spring

The steak grill is ideal for creating that perfect outdoor barbecue effect, even indoors. The fact that the grill cooks upright means a lot less smoke and therefore, that the appliance can even be used on the table.

The vertical cooking process means that food stays healthier as well as keeping all of its flavour, since any fat will tend to drip into the drawer at the bottom of the appliance. Plates with adjustable opening mean that it is possible to grill a host of different foods, including: fish, prawns, chops and steaks, chicken, lamb cutlets, brochettes, frankfurters, and sausages.

INSTRUCTIONS FOR USE

WARNING: Remove any protective film from the appliance before use.

WARNING: Place the appliance on a smooth, flat and level surface that is stable and has plenty of light.

• Remove the grill rack (16) by turning the plate distance regulation dial (5) clockwise as far as it will go and then sliding out the rack (16) upwards (Fig. 2).
• Turn the plate distance regulation dial (5) anticlockwise to close the plates again.
• Plug the power cord into a mains socket and switch on the grill by turning the I-O dial (4); at this point the light (7) will switch on.
• Use the dial (6) to set the cooking temperature level.

WARNING: If the dial (6) is set to minimum, the plate may not switch on. In this case, slightly increase power until the red light (7) switches on.

- While the plates are heating up, you can place the food to be cooked on the grill rack (16).

For perfect and even cooking results, the food should be placed in the centre of the grill rack (16). Make sure the rack is perfectly closed with the special ring (Fig. 3).

The grill rack (16) has springs (15) to adapt the plate distance to the thickness of the food being cooked.

WARNING: It is advisable only to cook foods of the same thickness together.

WARNING: Position the food so that it does not come out of the openings in the rack; this is to stop it from coming into contact with the heating elements and possibly causing smoke.

• Set the plates at the maximum distance, by turning the plate opening dial (5) clockwise (Fig. 2).
• Insert the grill rack (16) containing the food so that the two feet on the bottom part of the grill rack fit per-

fectly into the slots inside the appliance. Move the grill plates back together by turning the plate opening dial (5) anticlockwise.

- Adjust the distance between the plates (13) according to the food being cooked by turning the dial (5) (Fig. 2).

WARNING: To prevent smoke from forming, never place the heating elements up against the grill rack when this contains food to be cooked.

This system of moving the sides closer together or further apart offers the following benefits when it comes to cooking:

• it adapts to food thickness and keeps the heating elements at the perfect distance;
• it is possible to move the heating elements closer to or further away from the food and therefore, to vary cooking according to taste.

WARNING: Before cooking, make sure that the grill rack (16) has been correctly inserted into the appliance, that the grill plate (13) is perfectly locked into place and the drip tray is in position.

- It is possible to check foods while they are cooking: after opening the plates with the dial (5) (Fig. 2), open the right-hand plate by moving the plate rotation slider (14) upwards and then turning it downwards (fig. 4).

WARNING: Never force the other plate open.

WARNING: Never touch the heating elements (11) while the appliance is operating, as there is a serious risk of burns.

The plate distance can also be regulated while the appliance is operating.

Only use the handle (12) to open the plate, as there is a serious risk of burns.

• Excess fat will drip onto the drip tray (3) inside the drawer (2) (Fig. 5) and away from the heating elements, which means no smoke or unpleasant smells.
• When the food is cooked, switch off the appliance by turning the dial (4) to 0. Unplug the appliance from the mains power and remove the grill rack (16) by pulling it upwards after first opening the plates with the dial (5).

RECOMMENDED COOKING TIMES

WARNING: It is advisable only to cook foods with a maximum thickness of 5 cm.

Food Weight Cooking time

Steak (rare) 1 kg 8 min.
Steak (medium) 1 kg 10 min.
Steak (well done) 1 kg 12 min.
Aubergines *	8 slices (2 cm)	8 min.
Aubergines *	8 slices (1 cm)	6 min.
Courgettes *	2 portions (1 cm)	5 min.
Sausages	10 pieces	5 min. (grill plates together)+7 min. (grill plates 1 cm apart)
Radicchio	2 portions	6-8 min.
Chicken	1 kg	30 min.
Pork chops	2 portions	12 min.
Pepper	2 portions	15 min.
Sword fish 2 portions (400 g)	8 min.
Bass	2 portions (300 g)	14 min.
Bream	2 portions (250 g)	10 min.
Scampi	1 portion	5 min.

GB

IMPORTANT NOTICE: For particularly fatty foods, such as sausages or frankfurters, pork chops or steak, we recommend that you set the grill plates (13) to about 0.5 - 1 cm away from the grill rack (16) to prevent any smoke from forming.

* For the best results, sprinkle the cut slices with salt at least 10 minutes before cooking.

CLEANING AND MAINTENANCE

WARNING: Before cleaning the appliance or removing any parts, always make sure that it has been unplugged from the power mains and has cooled down.

WARNING: Never place the appliance or power cord in water or other liquids.

• Remove the drip tray (3), pulling it by the handle (2) (Fig. 6).
• Rinse the tray in running water and do not use abrasive substances or “scouring pads” so as not to damage the surfaces; only use a liquid detergent of your choice.
• Open the plates (13) and remove the grill rack (16).
• Release the heating elements (11) by removing the clips (8) from the retainer pins (9) (Fig. 7) and move them inwards. At this point, remove the plate (10) by pulling it upwards (Fig. 8).
• Wipe all of the parts clean with a slightly damp cloth only. Clean the grill rack (16) with hot water and a normal non-abrasive washing-up detergent.

WARNING: Dry each part thoroughly before refitting it to the appliance, following the above steps in reverse order.

Clean the removable plates (10) taking care not to bend them, and then refit them so that they return to their original position.

If the plates are not correctly fitted after each use, the grill will not switch on.
