USER MANUAL BT160 JABRA

Scandinavian support.no@jabra.com © 2006 Jabra, GN Mobile A/S (GN Netcom A/S). All rights reserved. Jabra® is a registered trademark of GN Mobile A/S (GN Netcom A/S). All other trademarks included herein are the property of their respective owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Mobile A/S (GN Netcom A/S) is under license.(Design and specifications subject to change without notice)Fig. 1 Fig. 4

2. Turn on your headset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. Pair it with your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4. Wear it how you like it

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5. How to... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6. What the lights mean

7. Troubleshooting & FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

9. Taking care of your headset

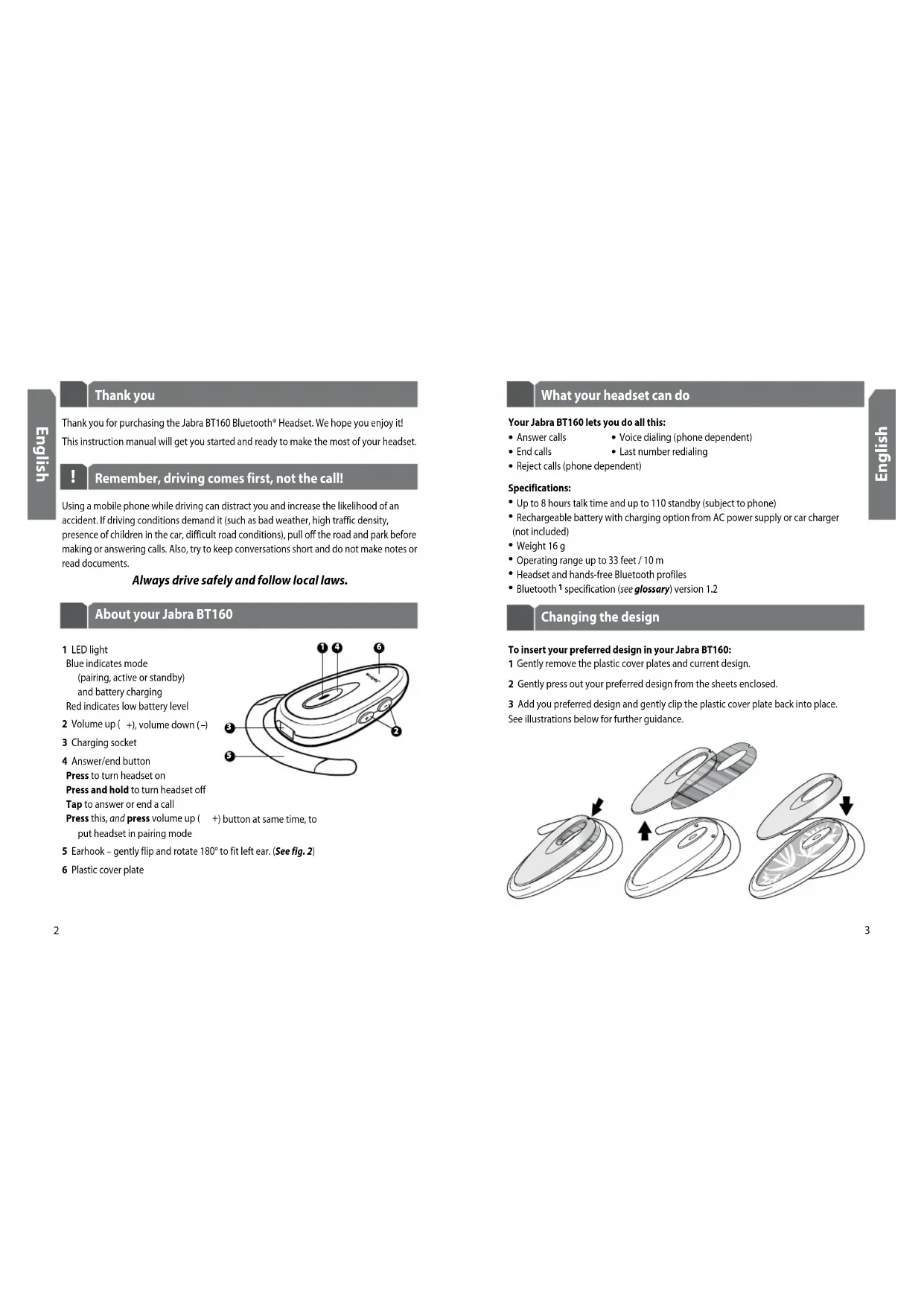

English Your Jabra BT160 lets you do all this: • Answer calls • Voice dialing (phone dependent) • End calls • Last number redialing • Reject calls (phone dependent)Specifications: • Up to 8 hours talk time and up to 110 standby (subject to phone) • Rechargeable battery with charging option from AC power supply or car charger (not included) • Weight 16 g • Operating range up to 33 feet / 10 m • Headset and hands-free Bluetooth profiles • Bluetooth 1 specification (see glossary) version 1.2 What your headset can do Thank you for purchasing the Jabra BT160 Bluetooth® Headset. We hope you enjoy it! This instruction manual will get you started and ready to make the most of your headset. Thank you Using a mobile phone while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls. Also, try to keep conversations short and do not make notes or read documents. Always drive safely and follow local laws.

Remember, driving comes first, not the call!

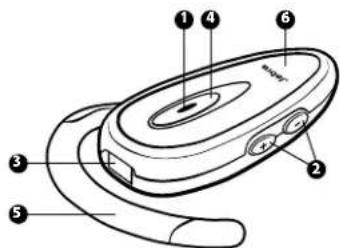

About your Jabra BT160 1 LED light Blue indicates mode

(pairing, active or standby) and battery charging Red indicates low battery level 2 Volume up ( + ), volume down ( –

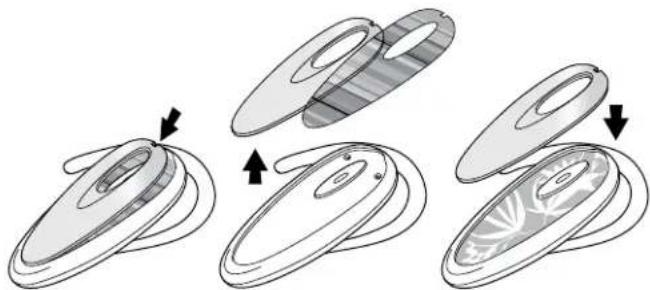

) 3 Charging socket4 Answer/end button Press to turn headset on Press and hold to turn headset off Tap to answer or end a call Press this, and press volume up ( + ) button at same time, to put headset in pairing mode5 Earhook – gently flip and rotate 180° to fit left ear. (See fig. 2)6 Plastic cover plate Changing the design To insert your preferred design in your Jabra BT160: 1 Gently remove the plastic cover plates and current design.2 Gently press out your preferred design from the sheets enclosed.3 Add you preferred design and gently clip the plastic cover plate back into place.See illustrations below for further guidance. 2

3Wear it how you like it

The Jabra BT160 is ready to wear on your right ear. If you prefer the left, gently flip and

rotate the earhook 180°. (See fig. 2)

For optimal performance, wear the Jabra BT160 and your mobile phone on the same side

of your body or within line of sight. In general, you will get better performance when

there are no obstructions between your headset and your mobile phone. (See fig. 5)

Tap the answer/end button on your headset to answer a call

Tap the answer/end button to end an active call

Reject a call (Dependent on your phone supporting this feature)

Press the answer/end button when the phone rings to reject an incoming call.

Depending on your phone settings, the person who called you will either be

forwarded to your voice mail or hear a busy signal

When you make a call from your mobile phone, the call will (subject to phone

settings) automatically transfer to your headset

Activate voice dialing (Dependent on your phone supporting this feature)

Tap the answer/end button. For best results, record the voice-dialing tag through

your headset. Please consult your phone’s user manual for more information about

Redial last number (Dependent on your phone supporting this feature)

Press the answer/end button

Adjust sound and volume

Press the volume up or down (

Before you use your Jabra BT160, you need to pair it with your mobile phone.

1. Put the headset in pairing

Make sure that the headset is on.

Press the answer/end button and press the volume up (

) button at the same time,

until a solid blue light comes on.

2. Set your Bluetooth phone to ‘discover’ the Jabra BT160

Follow your phone’s instruction guide. This usually involves going to a ‘setup,’

‘connect’ or ‘Bluetooth’ menu on your phone and selecting the option to ‘discover’

or ‘add’ a Bluetooth device.* (See example from a typical mobile phone in fig. 4)

Pair it with your phone

Turn on your headset

Press the answer/end button to turn on your headset

Press and hold the answer/end button to turn off your headset

Make sure that your Jabra BT160 headset is fully charged before you start using it. Use

the AC adaptor to charge from a power socket. Connect your headset as shown in fig. 3.

When the LED is solid blue, your headset is charging. When the solid blue LED turns off,

it is fully charged.

The Jabra BT160 is easy to operate. The answer/end button on the headset performs

different functions depending on how long you press it. Instruction: Duration of press:Tap Press brieflyPress Approx: 1 secondPress and hold Approx: 5 seconds Getting started

3. Your phone will find the Jabra BT160

Your phone then asks if you want to pair with it. Accept by pressing ‘Yes’ or ‘OK’ on

the phone and confirm with the passkey or PIN

Your phone will confirm when pairing is complete. In case of unsuccessful pairing,

repeat steps 1 to 3.7

Troubleshooting & FAQ

I hear crackling noises

For the best audio quality, always wear your headset on the same side of the body

as your mobile phone.

I cannot hear anything in my headset

Increase the volume on the headset

Ensure that the headset is paired with the phone

Make sure that the phone is connected to the headset – if it does not connect

either from the phone’s Bluetooth menu or by tapping the answer/end button,

follow the pairing procedure (

I have trouble pairing BT160 with my phone

1. You may have deleted your headset pairing in your mobile phone. Follow the

pairing instructions in section 3

2. You can pair your BT160 with up to 8 different phones or bluetooth devices. If your

BT160 is connected to another phone or other bluetooth device, disconnect the

BT160 from the previously used phone using the phone set up menu.

3. There is also the possibility that the BT160 is searching for a device to connect to.

Wait 30 seconds and try again.

4. Check the phone screen to ensure that the BT160 is not awaiting a response from

your mobile phone set up menu.

I cannot use Reject call, Call on hold, Redial or Voice dialling

These functions are dependent on your phone supporting them. Please check your

phone’s manual for further details.

Web: www.jabra.com (for the latest support info and online User Manuals)

See the inside cover for details of customer support

What the lights mean

What you see What this means about your headset

Flashing blue light Flashing every second: active on a call

Flashing blue light Flashing every three seconds: in standby mode

Flashing red light Running low on battery

Solid blue light Charging

Solid blue light off Fully charged

Solid blue light In pairing mode – (

Will the Jabra BT160 work with other Bluetooth equipment?

The Jabra BT160 is designed to work with Bluetooth mobile phones. It can also

work with other Bluetooth devices that are compliant with Bluetooth version 1.1 or

1.2 and support a headset and/or hands-free profile.

Taking care of your headset

1. Always store the Jabra BT160 with power off and safely protected.

2. Avoid storage at high temperatures (above 60°C / 134°F) – such as in a hot vehicle

or in direct sunlight. (Storage at high temperatures can degrade performance and

reduce battery life).

3. Do not expose the headset or any of its supplied parts to rain or other liquids.

Jabra (GN Netcom) warrants this product against all defects in material and

workmanship for a period of two years from the date of original purchase. The

conditions of this warranty and our responsibilities under this warranty are as follows:

The warranty is limited to the original purchaser

A copy of your receipt or other proof of purchase is required.

The warranty is void if the serial number, date code label or product label is

removed, or if the product has been subject to physical abuse, improper installation,

modification, or repair by unauthorized third parties

The responsibility of Jabra (GN Netcom) products shall be limited to the repair or

replacement of the product at its sole discretion

Any implied warranty on Jabra (GN Netcom) products is limited to two years from the

date of purchase on all parts, including any cords and connectors9

Certification and safety approvals

CE This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC).

Hereby, GN Netcom, declares that this product is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

For further information please consult http://www.jabra.com

Within the EU this device is intended to be used in Austria, Belgium, Cyprus, Czech

Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal, Slovakia, Slovenia, Spain,

Sweden, The Netherlands, United Kingdom, and within EFTA in Iceland, Norway and

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use

of such marks by GN Netcom is under license. Other trademarks and trade names are

those of their respective owners.

Specifically exempt from any warranty are limited-life consumable components

subject to normal wear and tear, such as microphone windscreens, ear cushions,

decorative finishes, batteries, and other accessories

Jabra (GN Netcom) is not liable for any incidental or consequential damages arising

from the use or misuse of any Jabra (GN Netcom) product

This warranty gives you specific rights and you may have other rights which vary

Unless otherwise instructed in the User Manual, the user may not, under any

circumstances, attempt to perform service, adjustments or repairs on this unit,

whether in or out of warranty. It must be returned to the purchase point, factory or

authorized service agency for all such work

Jabra (GN Netcom) will not assume any responsibility for any loss or damage incurred

in shipping. Any repair work on Jabra (GN Netcom) products by unauthorized third

parties voids any warranty

Bluetooth: is a radio technology that connects devices, such as mobile phones and

headsets, without wires or cords over a short distance (approx. 30 feet). Get more

information at www.bluetooth.com

Bluetooth profiles are the different ways that Bluetooth devices communicate with

other devices. Bluetooth phones support either the headset profile, the hands-free

profile or both. In order to support a certain profile, a phone manufacturer must

implement certain mandatory features within the phone’s software.

Pairing: creates a unique and encrypted link between two Bluetooth devices and

lets them communicate with each other. Bluetooth devices will not work if the

devices have not been paired.

Passkey or PIN: is a code that you enter on your mobile phone to pair it with your

Jabra BT160. This makes your phone and the Jabra BT160 recognize each other and

automatically work together.

Standby mode: is when the Jabra BT160 is passively waiting for a call. When you

‘end’ a call on your mobile phone, the headset goes into standby mode.

Dispose of the product

standards and regulations.
