USER MANUAL EA8340 KRUPS

A B C E F D G H I J T K

1.3 Warranty conditions 23

1.5 Limits to use 24

2.1 Measuring water hardness 25

2.2 Claris - Aqua Filter System cartridge 25

2.3 Putting the filter in place 25

3. PREPARING THE MACHINE 25

3.1 First use / Machine settings 26

3.2 First use / setting installing the filter 26

3.4 Preparing the grinder 27

4. PREPARING ESPRESSO AND ORDINARY COFFEE 27

4.1 Preparing an Espresso (from 20 to 70 ml) 27

4.2 Preparing ordinary coffee (from 80 to 160 ml) 27

4.3 Preparing a long coffee (from 120 to 240 ml) 27

4.4 2-cup function 27

5. PREPARING OTHER DRINKS 28

5.1 Making drinks with hot water 28

6. MAKING DRINKS WITH THE SUPER CAPPUCCINO ACCESSORY OR THE STEAM NOZZLE 28

6.1 Super Cappuccino Accessory (depending on model) 28

6.2 With the steam nozzle (depending on model) 29

7. MAINTAINING YOUR APPLIANCE 29

7.1 Emptying the coffee grounds collector, the cleaning tray and the drip tray 29

7.2 Cleaning program 30

7.3 Scale removal program 30

7.4 General maintenance 30

9. MOVING THE APPLIANCE 33

10. ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE 33

11. PROBLEMS AND CORRECTIVE ACTIONS 34

EN KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page21Caution! This machine must only be used with approved accessories for the guarantee to be valid.

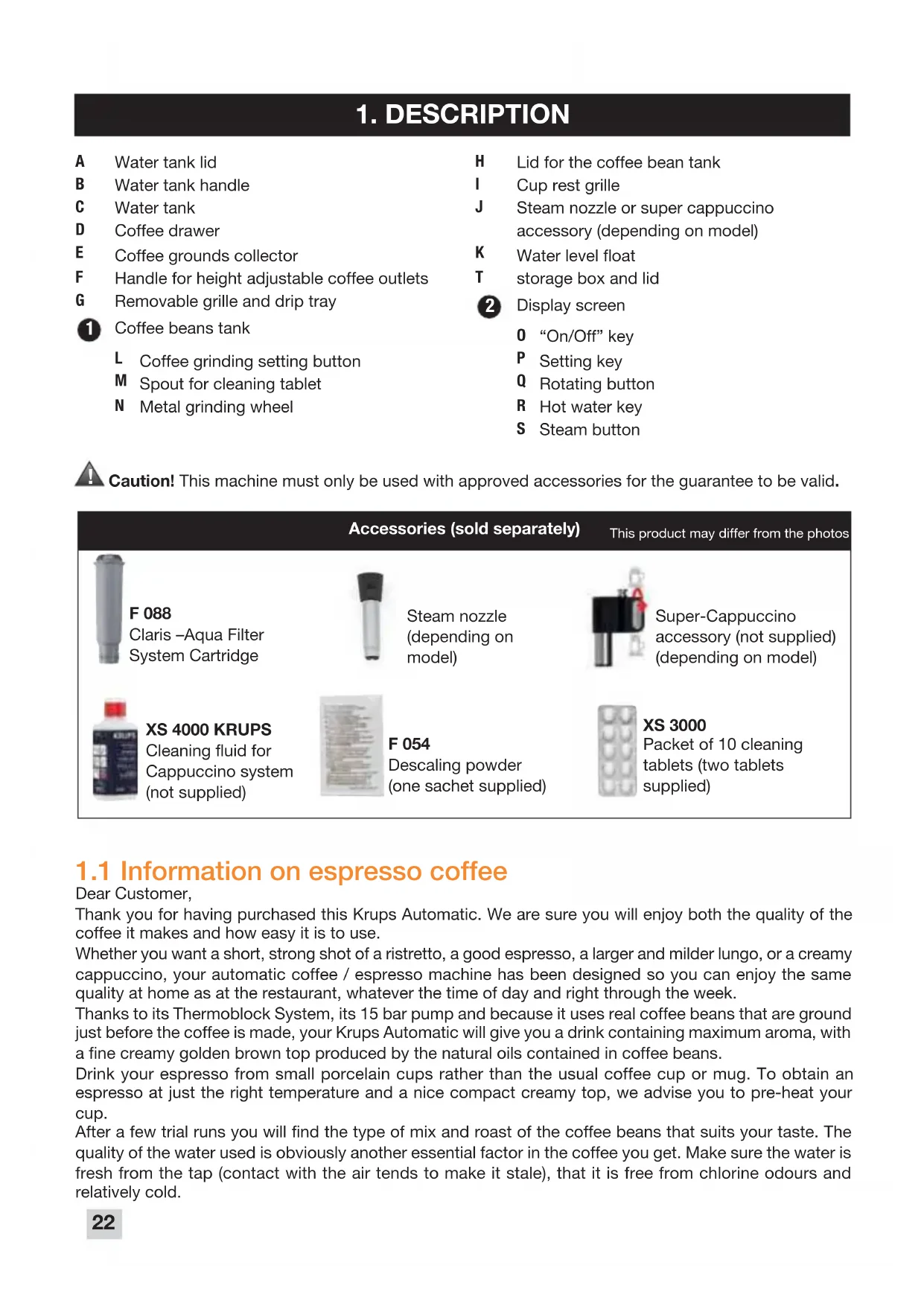

1.1 Information on espresso coffee

Thank you for having purchased this Krups Automatic. We are sure you will enjoy both the quality of the

coffee it makes and how easy it is to use.

Whether you want a short, strong shot of a ristretto, a good espresso, a larger and milder lungo, or a creamy

cappuccino, your automatic coffee / espresso machine has been designed so you can enjoy the same

quality at home as at the restaurant, whatever the time of day and right through the week.

Thanks to its Thermoblock System, its 15 bar pump and because it uses real coffee beans that are ground

just before the coffee is made, your Krups Automatic will give you a drink containing maximum aroma, with

a fine creamy golden brown top produced by the natural oils contained in coffee beans.

Drink your espresso from small porcelain cups rather than the usual coffee cup or mug. To obtain an

espresso at just the right temperature and a nice compact creamy top, we advise you to pre-heat your

After a few trial runs you will find the type of mix and roast of the coffee beans that suits your taste. The

quality of the water used is obviously another essential factor in the coffee you get. Make sure the water is

fresh from the tap (contact with the air tends to make it stale), that it is free from chlorine odours and

E Coffee grounds collector

F Handle for height adjustable coffee outlets

G Removable grille and drip tray

L Coffee grinding setting button

M Spout for cleaning tablet

N Metal grinding wheel

H Lid for the coffee bean tank

J Steam nozzle or super cappuccino

accessory (depending on model)

Accessories (sold separately)

This product may differ from the photos

Packet of 10 cleaning

tablets (two tablets

(one sachet supplied)

accessory (not supplied)

XS 4000 KRUPS Cleaning fluid for

KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page2223

Espresso coffee is richer in aroma than a conventional filter coffee. Despite its stronger, longer lasting

taste, espresso in fact contains less caffeine than filter coffee (about 60 to 80 mg a cup as compared

with 80 to 100 mg a cup). This is due to the shorter percolation time.

Due to the visibility of the containers and its automatic cleaning and scale removal programs, your

Espresseria Automatic is extremely easy to use.

1.2 Automatic espresso machines energy saver mode

Your automatic espresso machine has an energy saver mode.

The display panel dims when your appliance has not been used for a few minutes. The machine leaves

the energy-saving mode when you use the machine again. The display fully lights up again and your

automatic machine is ready for use after pre-heating, if necessary.

1.3 Warranty conditions

This appliance is covered by a two year manufacturer's guarantee. Please refer to the guarantee

document for details on the guarantee terms and conditions in your country.

This product has been designed for domestic use only. Any commercial use, inappropriate use or

failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee

To comply with the warranty conditions, it is essential to perform the descaling and cleaning cycle. The

guarantee will not be valid if all the operations or cleaning and descaling instructions are not followed

or if cleaning or descaling products that do not comply with KRUPS original specifications are used.

The guarantee does not apply if the Claris Aqua Filter System cartridge has not been used according

to the KRUPS instructions.

Normal wear and tear of the parts (grinding wheel, valves, seals) are exempt from the guarantee as is

damage caused by external objects in the coffee grinder (for example: wood, stones, plastic, parts,

1.4 Safety instructions

Important : these instructions are provided to protect you, third parties and the appliance. Strict

compliance is therefore necessary.

Do not immerse the appliance in water. Do not immerse the power cord or plug in water or any other

liquid. Any contact between the appliance’s conductive parts and humidity or water can cause fatal

injuries due to the presence of electricity! This appliance can only be used in dry locations

If the room temperature should change from cold to hot, please wait a few hours before starting the

appliance to ensure that it is not damaged due to condensation.

Avoid placing the appliance in direct sunlight, or exposing it to heat, cold, ice or humidity.

Take care not to place the appliance on a hot surface such as a warming plate or near a naked flame,

to avoid any risk of fire or other damage.

Keep the appliance out of the reach of children.

This appliance is not intended to be used by persons (including children) with reduced physical, sensory

or mental capacities or lack of experience and knowledge, unless they are supervised or have been

given instructions beforehand concerning use of the appliance by a person responsible for their safety.

Children should not be allowed to play with the appliance.

If one of the products supplied with the machine is swallowed, inform your doctor and/or poison centre

This appliance is not suitable for making drinks for babies under the age of 2 years

Electrical power supply

Danger : Non-compliance with these instructions could cause fatal injuries due to electric shock!

EN KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page2324

Please check that the supply voltage indicated on the name plate of the appliance corresponds to your

electrical installation. The appliance should always be plugged into a socket outlet with an earth connection.

Check that the socket outlet can be easily accessed so that the plug can be disconnected easily in the

event of a malfunction or during a thunderstorm for example.

For the safety of your appliance, remove the plug in the event of a thunderstorm. Do not pull the power

lead to remove the plug.

Remove the plug immediately if you notice any problem during operation or if there is a problem during

Disconnect the appliance if you are not going to use it over a long period and when cleaning.

Do not use the appliance if the power cord or the appliance itself is damaged. If the power cord or plug is

damaged, the power cord must be replaced by an approved KRUPS centre.

Do not leave the power cord overhanging a table or work surface. Do not leave your hand or power cord

on hot parts of the appliance.

The power cord must never be close to or in contact with a source of heat or resting on sharp edges.

The use of multiple plugs or extension leads is not recommended. Any error in connection will invalidate

With the exception of cleaning and descaling according to the appliance’s instructions, any intervention

on the appliance must be performed by an approved KRUPS centre.

For your own safety, only use approved KRUPS accessories and spare parts since these are suitable for

Disconnect the appliance when you leave the room or house for a long period of time.

Never open the appliance. Caution, risk of death due to electrical current! Any unauthorised opening of

the appliance will negate the guarantee. Do not use your appliance if it is not working properly or if it has

been damaged. In this event, it is recommended that you get the appliance examined by an approved

KRUPS centre (refer to the list in the KRUPS service booklet).

For safety and accreditation reasons, any transformation or modification of the appliance, performed

individually, is forbidden, as only tested appliances are accredited and the manufacturer will refuse all

liability in the event of damage.

For safety reasons, while producing steam for making a cappuccino, heating milk or heating water, take

care not to put your hand under the steam nozzle or the super cappuccino accessory, or under the coffee

nozzle while making coffee.

The steam spout can be very hot, take care not to handle it during or just after use.

To avoid dirty water overflowing onto your work-top or running the risk of burning yourself, remember to

fit the drip tray and make sure you protect your work-top during the descaling cycles, particularly if it is

made of marble, stone or wood.

Never put ground coffee into the coffee tank.

Do not put water in the coffee beans tank.

This Espresso Automatic Series EA83XX coffee/espresso machine should only be used to make

espressos, coffee, hot water or to froth milk.

This appliance is intended for domestic use only. It is not intended to be used in the following applications

and the guarantee will not apply for:

- staff kitchen areas in stores, offices and other working environments

- by clients in hotel, motels and other residential type environments.

- Bed and breakfast type environments.

The Espresso Automatic Series EA83XX coffee/espresso machine is not intended for commercial or

professional use. Use for any purpose other than those described in the present manual does not comply

with the instructions and can result in injuries and property damage as well as the deterioration or

destruction of the appliance.

KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page242.1 Measuring water hardness

Before using the appliance for the first time or if you have noted a change in water hardness, it is

advisable to adapt the appliance to the observed water hardness. To determine the water hardness,

use the measuring stick delivered with the appliance or get in contact with your water board. The

appliance will ask you for the hardness of your water on first use (see First use / Setting machine

parameters section page 26).

Water testing: Fill a glass with water and immerse a water testing stick into it. Fig. 1

After 1 minute the hardness measurement will appear (moderately hard water). Fig. 2

2.2 Claris - Aqua Filter System cartridge

To get the best taste from your coffee and extend your appliance’s service life, we advise you to use

only the Claris - Aqua Filter System cartridge sold as an accessory.

The cartridge comprises a scale-removing substance and activated carbon that reduces chlorine,

impurities, lead, copper, pesticides, etc. that are present in the water. Minerals and trace elements will

Filter the water using the Claris - Aqua Filter System cartridge to reduce carbonate hardness by as

much as 75 %*, Chlorine – up to 85 %*, Lead – up to 90 %*, Copper – up to 95 %*, Aluminium – up to

Mechanism to memorise the month the cartridge was fitted and when to replace it (after 2 months at

Note: Your appliance will give you a message telling you when to replace your Claris - Aqua Filter

2.3 Putting the filter in place

To prime the cartridge correctly, follow this procedure every time you fit a cartridge.

When using later or replacing the cartridge: Select the "FILTER" function using the Prog button: :

Maintenance -OK - Filter - OK - Place or change -OK - and follow the instructions on the screen:

On first use, screw the filter cartridge into the bottom of the water tank. Fig. 4

Place a 0.6 L container underneath the steam nozzle. Fig. 5

Pull out and fill the water tank. Fig. 6

Place the lid on the tank to close it. Fig. 7

Open the coffee bean container lid. Add the coffee beans (250g maximum). Fig. 8

Close the coffee bean container lid again. Fig. 9

Note: Do not fill the water tank with hot water, milk or any other liquid.

3. PREPARING THE APPLIANCE

25 * indications provided by the manufacturer

EN KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page25Important: It is recommended that you do not use oily, caramelised or flavoured coffee beans for

this machine. These kinds of beans may damage the machine.

3.1 First use / setting machine parameters

Use the rotating button to select a function, increase or reduce values.

Confirm your choice using the OK key.

Press to turn your appliance on. Fig. 10

Follow the instructions that appear on the “choice of language” screen.

Use the rotating button to choose a language (highlighted). Press the OK key to validate.

When you first use your appliance, it will ask you to set several parameters. If you unplug your appliance,

you will again be asked for some of these parameters.

The appliance will ask you to set:

You can select your chosen language from those offered.

Choose either ml or oz as your measurement unit.

You must set the date.

You can choose between 12 hour or 24 hour time display.

You can choose the period after which your appliance will stop automatically, from 30 minutes to 4 hours

by 30 minute increments.

You can automatically start pre-heating of your appliance at your chosen time.

You must set your water hardness between 0 and 4. See “Water hardness measurement” page 25 sec-

3.2 First use / setting installing the filter

ON first use, the product ask you if you want to change the filter. Press the OK key to validate and then

fold the instructions on the display.

To install the refill into the machine, screw the filter into the back of the water tank.

Adjust the month for installing the refill Fig. 3 by turning the grey band located on the top end of the filter.

The month of replacing the cartridge is shown in position 2 as shown.

Place a 0.6 L container underneath the steam nozzle.

3.3 Rinsing the circuits

Rinsing out the coffee circuit :

Once you have turned the machine on and the preheating stage has completed, you can rinse out the

Place a container under the coffee outlets then select "YES" from the menu proposed. The rinsing cycle

will stop automatically after about 40 ml.

Rinsing out the steam circuit :

Place a container under the steam nozzle. Press the key to rinse the steam circuit. The rinsing cycle will

stop automatically after the volume of water displayed has flowed through.

Press at any time to display menus to perform rinsing and then select MAINTENANCE => OK =>

KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:34 Page26Note: It is best to perform rinsing after the appliance has remained unused for several days.

3.4 Preparing the grinder

Adjust the fineness of your coffee grinding to set the strength of your coffee. The finer the grind setting,

the stronger and creamier the coffee will be.

Turn the “Grinding fineness setting” button to set the degree of grinding fineness.

Adjust the size of the ground beans by turning the ‘Coffee grinding setting’ button (L) on the bean tank.

You are advised to do this during the grinding process and gradually. After three preparations, you will

notice a very distinctive difference in taste.

Turn anticlockwise for a finer grind. Turn clockwise for a coarser grind. Fig. 13

4.1 Preparing an espresso

The quantity of water for an espresso must be between 20 and 70 ml.

Each time you plug your machine in, it will carry out an initialisation cycle.

Press the button, wait for the end of pre-heating and perform a rinsing operation if you wish.

The drink selection menu will be displayed.

Put a cup under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your

Use the rotating button to select your drink and confirm by pressing the OK key.

Note: You can press the button once to stop filling your cup.

The amount of water required for a coffee is between 80 and 160 ml.

4.3 Making a long coffee

The amount of water required for a long coffee is between 120 and 240 ml. The machine

automatically carries out a double cycle, do not remove your cup before the process has ended.

There is a temperature setting function to control how hot your coffee is (see § Settings page 32).

Caution! Do not remove the water compartment before the end of the cycle (that is around 15

seconds after the coffee has finished dripping through).

Your appliance enables you to prepare 2 cups of coffee or espresso for the following 3 kinds of drink :

espresso / strong espresso / coffee. For "Large coffee" drinks, the 2-cup function is not available.

Remember not to remove the cups after the first cycle. The drink select menu will be displayed.

Put two cups under the coffee outlets.

You can lower or raise the coffee outlets to suit the size of your cups.

Select your drink and confirm by clicking twice on the OK key.

A message will appear to tell you that you have chosen two cups.

Note: The appliance will automatically sequence 2 complete coffee making cycles.

Caution! AUTOMATIC RINSING OF THE COFFEE NOZZLE Depending on the type of recipes prepared, the machine may carry out an automatic

rinsing operation when it is switched off.

EN KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page27For drinks with frothy milk or hot water, the drip tray has been specially designed to allow you to fit a large

cup under the steam nozzle or the super cappuccino accessory, once the magnetised box has been

removed. The cup is ideally positioned to collect the frothy milk or the hot water produced by the nozzle

or the super cappuccino accessory. Furthermore, you can use the box as storage for the super cappuccino

5.1 Making drinks with hot water

Make sure that the steam nozzle is securely fitted on its tip.

While the screen displays the drink selection menu, press the “hot water” key . Fig. 14.

A message will invite you to place a container under the steam nozzle. Again press the “hot water” key

to produce hot water.

To interrupt the steam function, just press any key.

If the nozzle is blocked, clean it out with a fine needle.

Steam froths up the milk to make a cappuccino or a caffe latte, for example, and also heats up

liquids. As you need a higher temperature to produce steam than to make an espresso, the

appliance runs an additional pre-heating phase for steam.

While the screen displays the drink selection menu, press the “steam” key . Fig. 15.

A screen will inform you that the appliance is being pre-heated. Once the pre-heating phase has been

completed, a message will ask you to place a container under the steam nozzle. Press the “steam” key

again to start generating steam. A little water will be produced first and then steam will start. Use the same

key to stop steam generation.

Be careful, because the cycle does not stop immediately.

Note: We recommend that you use very cold, fresh pasteurised or UHT milk that has been recently

opened. Do not use untreated milk.

6.1 Super Cappuccino Accessory (depending on model)

The super cappuccino accessory helps the preparation of a cappuccino or latte.

Attach the various parts together. Fig. 16

Put the beveled end to the milk.

Select the cappuccino or caffe latte position on the special nozzle. Fig. 17

Fill up the milk pot and place a cup or a glass underneath the Super-cappuccino nozzle.Fig. 18-19

Press the button to start and then to stop the cycle.

Place your cup under the coffee outlets and start a coffee / espresso cycle. Fig. 20

Important: The inlet must not be twisted.

Cleaning and maintenance: remove the accessory and clean the parts using a small brush and, if necessary,

a little washing-up liquid. Make sure to carefully clean the parts circled in the photo. The hole in the metal

part should not be allowed to become blocked. Fig. 21.

To prevent milk from drying on the auto-cappuccino accessory, it must be cleaned thoroughly after use..

It is recommend that you wash it immediately by carrying out a cycle with steam and the accessory pot

filled with water in order to clean the inside of the nozzle. To do so, you can also use liquid cleaner, available

KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:35 Page286.2 With the steam nozzle (depending on model)

Note: After the steam function has been used, the nozzle will be hot, and we recommend that you

wait for a few moments before handling it.

Check that the steam nozzle is correctly fitted. Fig. 22

Pour the milk into your milk jug. Only half fill it. Immerse the nozzle in the milk. Immerse the steam

nozzle in the milk. Fig. 23

key Fig. 15 and follow the instructions on the screen.

When the nozzle is hot, handle it only with the plastic part. Fig. 24

Again press the “steam” key Fig. 15 to stop the cycle.

Be careful, because the cycle does not stop immediately.

To achieve a good result:

To achieve a good result:

Stage 1: While holding the milk container, immerse the steam spout into the milk (about 2 cm) and wait

for it to start frothing.

Stage 2: Raise the container slightly (about 1 cm). Never immerse the metal tube completely.

Stage 3: Lower the container gradually as the foam increases.

To remove any remaining milk from the steam nozzle, place a container under the nozzle and press the

Let the steam escape for at least 10 seconds and then again press the “hot water” key to stop the

You can remove the steam nozzle for thorough cleaning Fig. 25. Wash it using a brush with water and

a little non-abrasive washing up liquid. Rinse and dry it Fig. 25-26.Before re-fitting, make certain that

the air inlet holes are not clogged by milk residues. Clean out the holes with a needle if necessary Fig.

Note: To interrupt the steam function, just press any key. If the nozzle is blocked, clean it out with

7.1 Emptying the coffee grounds collector, the coffee cleaning tray and

After 12 coffees, the machine will ask you to empty the coffee grounds collector and to clean the coffee

drawer. Failure to perform these operations correctly can damage your machine.

Wait at least for 8 seconds before refitting the coffee drawer and the coffee grounds collector, and

follow the instructions on the screen.

The drip tray collects the used water and the coffee grounds collector collects the used coffee grounds.

The coffee drawer allows you to remove any coffee grounds below the

percolation chamber.

If the above message appears, remove, empty and clean the drip tray.

1. Remove, empty and clean the coffee grounds collector.Fig. 28

2. Remove the cleaning tray. Fig. 28

First put the cleaning tray back then the coffee grounds collector.

The drip tray is equipped with a float to indicate when it needs emptying.

EN KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page2930

7.2 Machine cleaning program – total duration: about 13 minutes

Press the key to start the automatic cleaning program when the “Cleaning needed” message is

Just follow the instructions shown on the screen.

The automatic cleaning program is in two parts – the cleaning cycle itself, then 1 rinsing cycles. Press

to perform cleaning at any time and then choose MAINTENANCE => OK => CLEANING from the menus

Note: If your machine is unplugged when cleaning or if there is a power cut, the cleaning programme

will restart at the step in progress when the incident occurred. You will not be able to postpone

this operation. This is essential due to water system rinsing reasons. In this case, a new cleaning

tablet may be required. Be sure to complete the entire cleaning cycle to avoid any risk of irritation

(seek medical advice if cleaning solutions are accidently swallowed). The cleaning cycle is a

continuous cycle and the pump can be heard intermittently. Do not put your hands under the

coffee outlets during the cycle.

7.3 Automatic scale removal program – total duration: about 22 minutes

Caution! If your product is equipped with our Claris - Aqua Filter System cartridge F088 -

Please remove this cartridge during the descaling operation.

The quantity of scale deposited depends on the hardness of the water used. The appliance will

automatically warn you with a message when you need to proceed with scale removal.

n To perform the scale removal program, you will need a container with minimum capacity of 0.6

litres and a KRUPS (40 g) descaling sachet.

Press the key MAINTENANCE => OK => DESCALING to start the automatic cleaning program when

the “Scale removal needed” message is displayed.

Just follow the instructions shown on the screen, making sure the sachet dissolves fully.

The scale removal program is in three parts – the scale removal cycle itself, then 2 rinsing cycles.

If a power cut occurs during the cycle or if you unplug your machine, the cycle will re-start at the step in

progress when the incident occurred, without the option of postponing this operation

Caution! Be sure to complete the entire scale removal cycle to avoid any risk of intoxication.

7.4 General maintenance

Always remove the power supply cord from the socket and let your appliance cool down before cleaning

Do not use utensils or cleaning products likely to scratch or corrode the appliance.

Wipe the body with a damp non-abrasive cloth. Wipe the display screen carefully with a soft and dry cloth.

For optimal hygiene, clean it regularly to prevent condensation from forming and falling into the cup.

Clean the coffee grounds, the drip tray and cover with hot water and washing up liquid Fig. 30, 31, 32.

Accessories must be dried before replacing.

For easy cleaning, remove the drip tray as described above Fig. 31 et 32.

Rinse the water tank with tap water Fig. 6.

Caution! Cleaning tray, Drip tray and its grid, Coffee grounds collector and its front part and the water

tank are not designed to go into the dishwasher.

KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page30Press the key from the drinks choice screen to access the appliance’s other functions menu. Use the rotating button to browse through menus and options for all settings and validate your choiceusing the OK button. Press the button to cancel a choice and go back to the drink selection menu 8.1 Maintenance You can use all the following options to start selected programs. Then follow the instructions on screen 8.2 Settings

8. OTHER FUNCTIONS: KEY

31 SETTINGS  Language You can select your chosen language from those offered.Display contrast You can set screen contrast for comfort. Date You need to set the date, especially if you use an anti-scalecartridge.Time You can choose between 12 hour or 24 hour time display.Auto-offYou can choose the period after which your appliance will stopautomatically, from 30 minutes to 4 hours by 30 minute incrementsAuto-onYou can automatically start pre-heating of your appliance at yourchosen time.Volume unit Choose either ml or oz as your measurement unit. 

8.4 Demonstration mode When this mode is activated and the screen displays the drink selection menu, the appliance will scroll thevarious functions available at regular intervals, so you can access them. 32 Water hardnessYou must set your water hardness between 0 and 4. See “Waterhardness measurement” page 25 section.CoffeetemperatureYou can set the temperature of your espresso or coffee to one ofthree levels.Exit Return to the previous menu.SETTINGS 

 MACHINE INFO  Coffee cycles Displays the total number of coffees the machine has made.Water cycles Displays the total number of hot water cycles the machine has performed.Steam cyclesDisplays the total number of steam cycles the machine has performed.RinsingDisplays the total number of rinsing cycles the machine has performed.Cleaning 

Last Displays the total number of coffees made since last clea-ning. 

Next Displays the number of coffees that can be made beforenext cleaning.  CleanStarts the cleaning program. 

Exit Return to the previous menu. 

Last Displays the total number of hot water or steam cyclesmade since last scale removal. 

Next Displays the number of hot water or steam cycles thatcan be made before next scale removal. 

Exit Return to the previous menu. Exit Return to the previous menu. 

Last Displays the date of the last filter change* and the quan-tity of water that has run through. 

Next Displays the date for the next filter change* and the quan-tity of water to run through.  InstallStarts the filter change procedure. 

Exit Return to the previous menu.

* : You must first have correctly installed a filter through the program accessible via SERVICES => WATER FILTER => INSTALL before being able to access the first two options of the filter information sub-

menu. KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page32Keep the packing and use it again to move the appliance.

Caution! If the unpacked appliance is dropped, it is advisable to take it back to an authorized

service centre to avoid any risk of fire or electrical problems.

Let’s all help protect the environment !

 Your appliance contains many recyclable materials that can be recovered or recycled.

 Leave it at a local civic waste collection point.

HELPLINE If you have any product problems or queries, please contact our Customer Relations Team first for

expert help and advice:

0845 330 6460 - UK / (01) 677 4003 - ROI

or consult our website - www.krups.co.uk

9. MOVING THE APPLIANCE

10. ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE

11. PROBLEMS AND CORRECTIVE ACTIONS

MALFUNCTION CORRECTIVE MEASURES The machine indicates a

fault, the software is frozen

or your machine is malfunc-

Switch off and unplug the machine, remove the filter cartridge,

wait for one minute and start the machine again.

The appliance does not

come on after pressing the

Check the fuses and wall socket.

Check that the 2 lead connectors are correctly plugged into the

appliance and into the wall socket.

The grinder is making a

Foreign bodies are present in the grinder.

Disconnect the machine before any intervention.

Check whether you can extract the foreign body using your va-

The steam nozzle makes a

The steam nozzle of your

machine seems partially or

completely blocked or clog-

The steam nozzle does not

make any or only makes a

Check that the steam nozzle is correctly positioned on its corres-

Unblock the holes with the needle supplied with your appliance. If

the problem persists, dismantle the nozzle and the steam end piece.

When the end piece has been taken off, use hot water to remove

the rest of the deposits and make sure that the hole is not obs-

tructed by any milk or calcium residue.

For preparations made with milk:

We recommend using fresh, pasteurised or UHT milk, recently ope-

ned, and we also recommend using a cold container.

EN KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page3334

MALFUNCTION CORRECTIVE MEASURES No steam is coming out of

Empty the tank and temporarily remove the Claris cartridge.

Fill the tank with calcium rich mineral water (>100 mg/l) and per-

form successive steam cycles (5 to 10) into a container until you

obtain a constant flow of steam.

Re-insert the Claris cartridge into the tank.

The super cappuccino ac-

cessory does not make any

or makes little foam.

The super cappuccino ac-

cessory does not suck up

Check that the accessory is correctly fitted to the appliance, re-

move it and then replace it.

Check that the flexible hose is not obstructed or pierced shaped

and that it is correctly connected to the accessory to avoid any

Rinse and clean the accessory (refer to the "Super cappuccino

accessory" chapter).

If the problem persists replace the part surrounded in red on Fig.

21 with the replacement part supplied with your machine.

The machine is asking you

to empty the drip tray even

though it is not full.

The machine is programmed to ask for drainage of the drip tray

every 12 coffees, irrespective of any intermediate drainage that

There is water under the ap-

Before lifting off the tank, wait for 15 seconds after the coffee has run

through so that the machine finishes its cycle correctly.

Check that the drip tray is correctly positioned on the machine, it must

always be in place, even when your appliance is not being used.

Check that the drip tray is not full.

The drip tray must not be removed during a cycle.

When you turn off the ap-

pliance, warm water comes

out of the coffee nozzles.

According to the type of recipe prepared, the machine can carry

out an automatic rinsing operation when it is turned off. This cycle

lasts only a few seconds and stops automatically.

After emptying the coffee

grounds collector and clea-

ning the coffee drawer, the

warning message is still dis-

Correctly refit the coffee drawer and the coffee grounds collector,

follow the instructions on the screen.

Wait at least for 8 seconds before refitting them.

The coffee comes out too

Turn the grinding setting button to the right for coarser coffee

grounds (this can depend on the type of coffee used).

Perform one or several rinse cycles. Launch a clean programme

(see” Machine cleaning programme" p.30).

abnormally coming out of

At the start or end of the recipe some drops may fall from the

After filling the water tank,

remains on the screen.

Check that the tank is correctly positioned in the appliance.

Check and unblock the float if necessary. The float at the bottom

of the tank should move freely.

KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page3435

Danger : Only a qualified technician is authorised to perform repairs on the power cord and the

electrical network. If this instruction is not followed, you are at risk of death due to elec-

tric shock! Never use an appliance that is visibly damaged!

MALFUNCTION CORRECTIVE MEASURES The grinding setting button

is difficult to turn.

Only change the grinding setting when in operation.

The espresso or coffee is

Increase the temperature of the coffee in the Settings menu.

Heat the cup by rinsing with hot water before starting the prepa-

The coffee is too clear or

Do not use oily, caramelised or aromatised coffees.

Check that the bean tank contains coffee and that it descends

Reduce the volume of the preparation, increase the strength of

Turn the grinding setting button to the left for finer coffee

Prepare your coffee in two cycles using the two cup function.

No coffee is coming out of

An incident has been detected during the preparation.

The appliance is restarted automatically and is ready for a new

There is a power cut

The appliance restarts automatically when reconnected.

Here are some recipes you can make using your KRUPS Automatic :

For a cappuccino, the ideal proportions are as follows: 1/3 hot milk, 1/3 coffee, 1/3 milk froth.

To make coffee with milk, also often called Latte Macchiato, the proportions are as follows: 3/5 hot milk, 1/5

coffee, 1/5 milk froth

• For these milk-based preparations, it is best to use cold skimmed milk straight from the refrigerator (ideally

between 6 and 8° C).

• To finish off, you can sprinkle with cocoa.

• Prepare a conventional espresso in a large cup.

• Add a little cream to get a café crème.

• Prepare a cup of espresso as usual.

• Then add 1/4 or 1/2 of a liqueur glass of Cognac to taste.

You can also use anisette, brandy, Sambuca, Kirsch or Cointreau.

There are many other ways to give some punch to your espresso.

Just use your imagination.

• Mix 3 cups of espresso, 250 g of brown sugar candy and 1/2 litre of Cognac or Kirsch in an empty 0.75 litre

• Leave the mixture to marinate for at least 2 weeks.

You will obtain a delicious liqueur. A real treat for coffee lovers.

• Italian style iced coffee

4 scoops of vanilla ice-cream, 2 cups of espresso with sugar to taste, 1/8 l milk, fresh cream, grated choco-

• Mix the cold espresso with the milk.

• Serve the scoops of ice-cream into the glasses, pour the coffee onto them and decorate with fresh cream

and grated chocolate.

• Coffee à la frisonne*

• Add a small glass of rum to a cup of sweetened espresso.

• Decorate with a good layer of fresh cream and serve.

• Flambéed espresso*

2 cups of espresso, 2 small glasses of Cognac, 2 teaspoons of brown sugar, fresh cream.

• Pour the Cognac into heat-resistant glasses, heat and light.

• Add the sugar, mix, pour in the coffee and decorate with fresh cream.

2 cups of espresso, 6 egg yolks, 200g sugar, 1/8 litre of sweetened fresh cream, 1 small glass of orange li-

• Beat the egg yolks with the sugar until it forms a thick, frothy mass.

• Add the cold espresso and the orange liqueur.

• Then mix in the whipped fresh cream.

• Pour the mix into saucer champagne glasses or ordinary.

• Put the champagne glasses in the freezer.

(*: Remember, over-indulgence in alcohol is bad for the health.)

KR_ESPRESSO_EA83_EO_EA83_NEW CHARTE 30/05/13 11:28 Page3637

(2 pastilles fournies)

bletten (2 tabletten meege-

Whenever you connect your device, the machine performs an initialization cycle.

7. VEDLIKEHOLD AV APPARATET 157

M Plass for rengjøringstablett

N Kvern med kniver i metall

H Lokk for beholder for kaffebønner

VEDLIKEHOLD => OK => SKYLLING => OK.

7. VEDLIKEHOLD AV APPARATET

via programmet VEDLIKEHOLD => FILTER => INSTALLERE.
