USER MANUAL Arezzo TAURUS

Many thanks for choosing to purchase a

TAURUS brand product.

Thanks to its technology, design and

operation and the fact that it exceeds

the strictest quality standards, a fully

satisfactory use and long product life can

A Leaver for opening capsule

C Coffee preparation button

D Red pilot light indicating that

machine is heating up

E Green luminous pilot light indicating

that the temperature is sufficient for

extraction of coffee

G Extractable receiver draw for used

I Extractable drip draw

J Side handles for transport

K Extractable water deposit

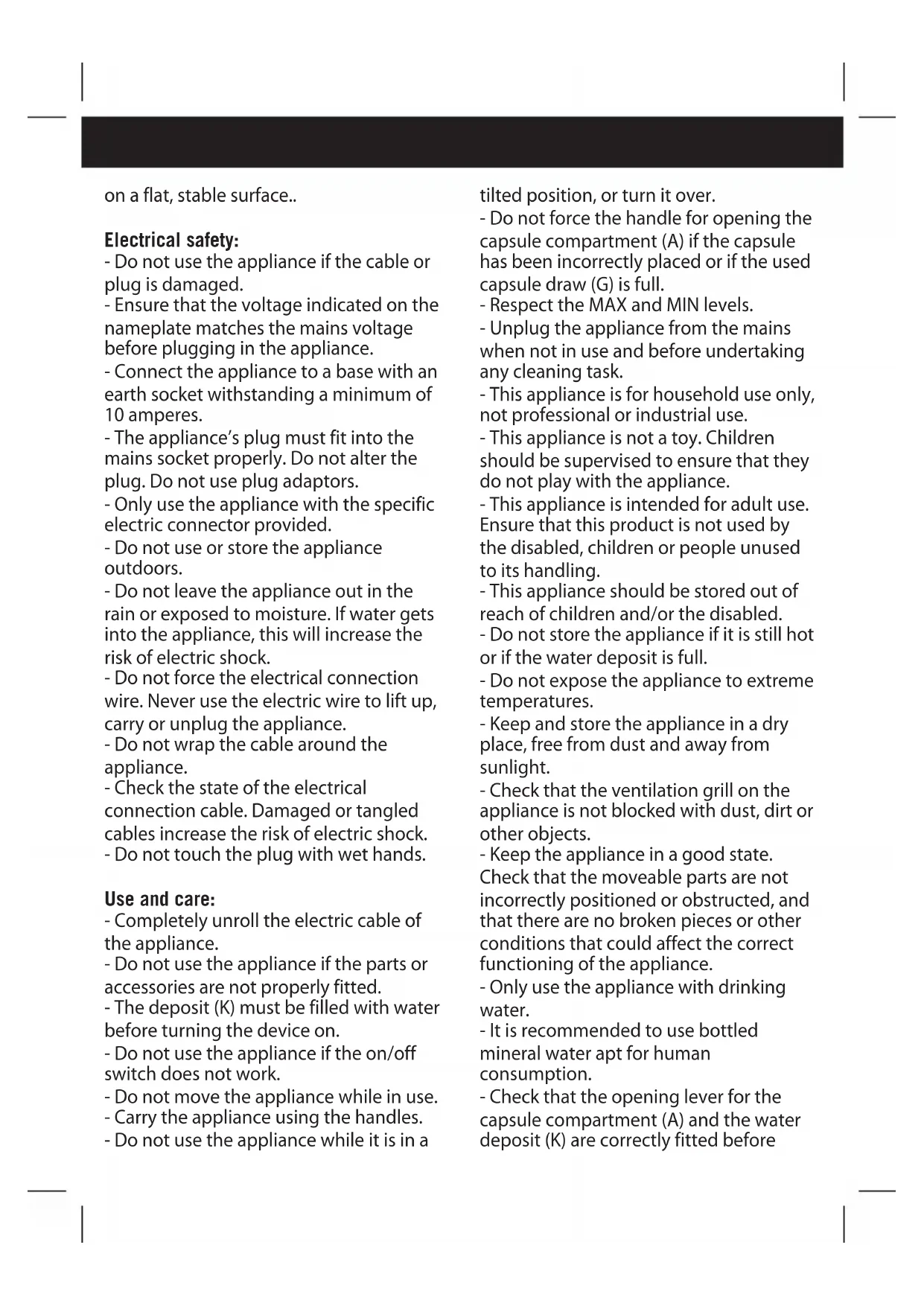

Safety advice and cautions

- Read these instructions carefully before

switching on the appliance and keep

them for future reference. Failure to follow

and observe these instructions could lead

- Before using for the first time, clean all

parts of the appliance that can come into

contact with edible products, observing

the instructions of the cleaning section.

Use or working environment:

- The appliance must be used and placed

Englishon a flat, stable surface..

- Ensure that the voltage indicated on the

nameplate matches the mains voltage

before plugging in the appliance.

- Connect the appliance to a base with an

earth socket withstanding a minimum of

- The appliance’s plug must fit into the

mains socket properly. Do not alter the

plug. Do not use plug adaptors.

- Only use the appliance with the specific

electric connector provided.

- Do not use or store the appliance

- Do not leave the appliance out in the

rain or exposed to moisture. If water gets

into the appliance, this will increase the

risk of electric shock.

- Do not force the electrical connection

wire. Never use the electric wire to lift up,

carry or unplug the appliance.

- Do not wrap the cable around the

- Check the state of the electrical

connection cable. Damaged or tangled

cables increase the risk of electric shock.

- Do not touch the plug with wet hands.

- Completely unroll the electric cable of

- Do not use the appliance if the parts or

accessories are not properly fitted.

- The deposit (K) must be filled with water

before turning the device on.

- Do not use the appliance if the on/off

switch does not work.

- Do not move the appliance while in use.

- Carry the appliance using the handles.

- Do not use the appliance while it is in a

tilted position, or turn it over.

- Do not force the handle for opening the

capsule compartment (A) if the capsule

has been incorrectly placed or if the used

capsule draw (G) is full.

- Respect the MAX and MIN levels.

- Unplug the appliance from the mains

when not in use and before undertaking

- This appliance is for household use only,

not professional or industrial use.

- This appliance is not a toy. Children

should be supervised to ensure that they

do not play with the appliance.

- This appliance is intended for adult use.

Ensure that this product is not used by

the disabled, children or people unused

- This appliance should be stored out of

reach of children and/or the disabled.

- Do not store the appliance if it is still hot

or if the water deposit is full.

- Do not expose the appliance to extreme

- Keep and store the appliance in a dry

place, free from dust and away from

- Check that the ventilation grill on the

appliance is not blocked with dust, dirt or

- Keep the appliance in a good state.

Check that the moveable parts are not

incorrectly positioned or obstructed, and

that there are no broken pieces or other

conditions that could affect the correct

functioning of the appliance.

- Only use the appliance with drinking

- It is recommended to use bottled

mineral water apt for human

- Check that the opening lever for the

capsule compartment (A) and the water

deposit (K) are correctly fitted beforeturning the appliance on.

- Do not pull the opening lever for the

capsule compartment (A) while the coffee

is being poured or during cleaning.

- Do not extract the water deposit (K)

while the coffee is being poured or during

- Any misuse or failure to follow the

instructions for use renders the guarantee

and the manufacturer’s liability null and

Instructions for use

- Do not use the appliance for more

than one minute at a time, or carry out

cycles during a time period greater

than 3 minutes, in which case the rest

periods between cycles should be at

least 1 minute. Under no circumstances

is it recommendable to maintain the

appliance functioning for more than the

- In order to guarantee the correct

functioning of the coffee machine,

and to obtain the best coffee, using

“Coffeemotion” capsules is recommended.

- The appropriate volume of coffee for

a generous espresso is 40ml (some 23

- The appropriate volume of coffee

for a double espresso is between 80

and 110 ml (some 50 seconds). Using

“Coffeemotion Largo” capsules is

- Always supervise the appliance while it

- Do not leave the appliance connected

unsupervised. This will also save energy

and prolong the life of the appliance.

- Check that all the product packaging has

- Before using the product for the first

time, it is advisable to run the cycle using

- Before using the product for the first

time, clean the parts that come into

contact with edible elements as described

in the Cleaning section.

- The deposit must be filled with water

before turning the appliance on.

- Extract the appliance deposit.

- Fill the deposit with cold water.

- Fill the recipient respecting the MAX and

MIN levels (Fig. 1).

- Put the deposit back on its stand,

ensuring that it is correctly positioned.

- Connect the appliance to the mains with

the power cable (L).

- Turn the appliance on, using the on/off

- The red pilot light (D) will light up.

- Wait until the green luminous pilot

light (E) lights up, which means that

the appliance has reached a sufficient

- Lift up the lever (A) to open the capsule

compartment and introduce one capsule

- Make sure that the capsule has been

correctly positioned (Fig 2).

- Lower the lever (A) and close the capsule

- While the appliance is in use the pilot

light (E) will connect and disconnect

automatically, indicating that the heating

elements are functioning in order to

maintain the desired temperature.

- Position the coffee cup.

- Press the pour coffee button (C) to pour

out the coffee and press again to stop

- Withdraw the cup of coffee.- The capsule will be automatically

expulsed when the capsule compartment

- Empty the drip tray (I).

Once you have finished using the

- Turn off the appliance, by using the on/

- This device has two Handles (J) on both

sides at the bottom so that it can be easily

and comfortably carried

- Unplug the appliance from the mains

and let it cool before starting any

- Clean the equipment with a damp cloth

with a few drops of washing-up liquid and

- Do not use solvents, or products with

an acid or base pH such as bleach, or

abrasive products, for cleaning the

- Empty and wash the deposit, the drip

tray (I) and the used capsule draw (G)

- Wash, rinse and refill the water deposit

with drinking water (K).

- Never submerge the appliance in water

or any other liquid or place it under

- If the appliance is not kept in a clean

condition, its surface can deteriorate

and badly affect the product’s shelf

life, provoking a potentially dangerous

- The appliance has a draw that enables

used capsules to be collected (G).

- Extract the drip tray (I) from the

appliance (Fig 4) and take out the capsule

- Throw away the content of the draw (G).

- Return the drip tray (I) along with the

capsule tray (G) to the appliance. (Fig 5)

Auto-cleaning Function:

- Turn the appliance on (L).

- Check that there is water in the deposit

- Leave the appliance to heat up until the

pilot light (E) indicates that a sufficient

temperature has been reached.

- Turn on the pour coffee button (C)

- Press the pour coffee button again (C) to

stop the water from pouring.

- It’s important to carry out the auto-

cleaning function at least once a month

to eliminate the lime scale residue and

other minerals that have collected in the

inside of the appliance.

- It is important to carry out the auto-

cleaning function if a different type of

How to deal with lime scale incrustations:

- However, if it is not possible to use the

kind of water recommended above, you

should periodically remove the lime scale

- Every 6 weeks if the water is “very hard”.

- Every 12 weeks if the water is “hard”.

- To do so, we recommend the use of

the specific product Taurus Decal, which

can be found in specialised shops and

authorised technical services.

- Homemade solutions are not

recommended in the descaling of this

appliance, such as the use of vinegar.

Anomalies and repair

- Take the appliance to an authorisedtechnical support service if problems

arise. Do not try to dismantle or repair

without assistance, as this may be

- If the connection to the mains has been

damaged, it must be replaced and you

should proceed as you would in the case

Ecology and recyclability of the product

- The materials of which the packaging

of this appliance consists are included in

a collection, classification and recycling

system. Should you wish to dispose

of them, use the appropriate public

containers for each type of material.

- The product does not contain

concentrations of substances that

could be considered harmful to the

- This symbol means that in

case you wish to dispose of

the product once its working

life has ended, take it to an

authorised waste agent for the

selective collection of Waste

from Electric and Electronic

This appliance complies with

Directive 2006/95/EC on Low Voltage

and Directive 2004/108/EC on

Electromagnetic Compatibility.
