MX4157 - Blender TRISTAR - Free user manual and instructions

Product type	Multifunctional immersion blender
Brand	TriStar
Model	MX4157
Power supply	220-240 V ~ 50 Hz
Cable length	Approximately 1 meter
Shaft material	Stainless steel
Bowl material	Plastic
Chopper bowl capacity	0.5 liter (approx.)
Package contents	Motor base, stainless steel shaft, whisk, chopper bowl with lid, measuring cup
Main functions	Mixing, emulsifying, chopping, pureeing
Speeds	Variable via selector + turbo speed
Maximum continuous use	1 minute, then 15 seconds cool down
Maintenance and cleaning	Removable parts (shaft, whisk, bowl, cup) dishwasher safe; base and lid cleaned with a damp cloth
Safety	Very sharp blades; never immerse the base; stops when button is released
Warranty	2 years
Certifications	CE, RoHS, food contact
Color	White and gray
Weight	Approximately 1.2 kg (approx.)
Dimensions (L x W x H)	40 x 8 x 8 cm (approx.)

Frequently Asked Questions - MX4157 TRISTAR

Can the TriStar MX4157 chop ice cubes?

No, it is not recommended to chop very hard ingredients like ice cubes, coffee beans, or nutmeg, as the blades may lose their sharpness.

How long can I use the appliance continuously?

Continuous operation must not exceed 1 minute. After that, let the appliance cool down for 15 seconds.

Can I wash the parts in the dishwasher?

Yes, the stainless steel shaft, whisk, bowl, and measuring cup are dishwasher safe. The motor base and lid should only be cleaned with a damp cloth.

How to use the turbo speed?

Hold down the Turbo button (No.3) for maximum speed. The speed selector is then inactive. Use it in short bursts for precise chopping.

Can I blend hot foods?

Yes, the stainless steel shaft allows blending soups and cooked foods. Make sure to fully immerse the blade guard to avoid splashes, but let it cool before handling.

How to clean the chopper blades?

The blades are very sharp. Always hold them by the plastic part. Wash them in warm soapy water or in the dishwasher. Avoid direct contact with skin.

What to do if food sticks to the bowl walls?

Release the button to stop the appliance, then dislodge the food with a spatula or add a little liquid before continuing.

Can I use the whisk for thick batters?

No, the whisk is for light ingredients such as egg yolks, cream, or instant desserts. For thick batters, use the stainless steel shaft.

Does the appliance have an automatic shut-off?

No, the appliance only works when you hold down the speed button. Release it to stop. There is no built-in automatic shut-off.

What is the power of the TriStar MX4157 blender?

The power is not specified in the manual. The appliance operates on 220-240 V and is designed for light household use.

USER MANUAL MX4157 TRISTAR

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed off an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

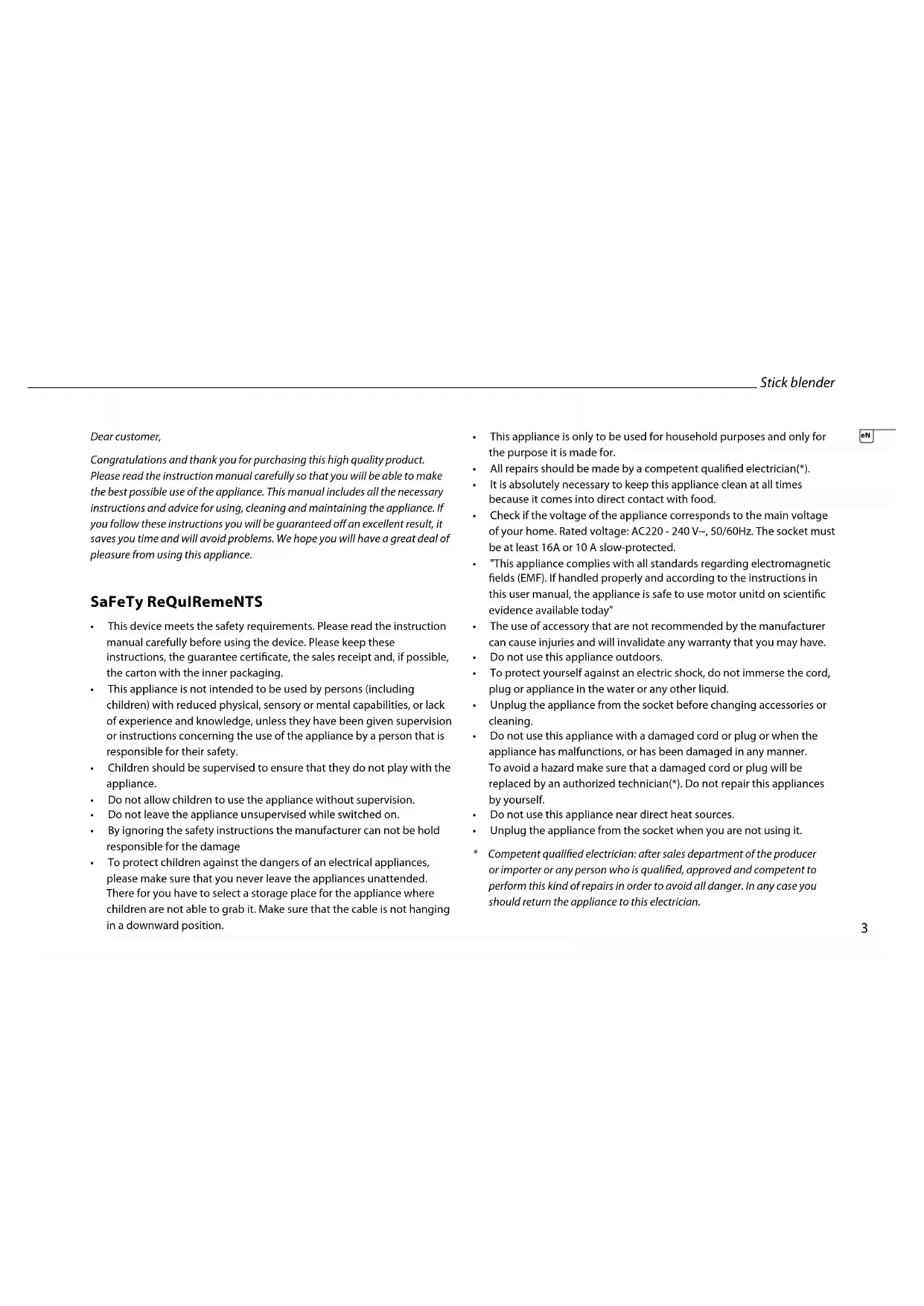

SaFeTy ReQuIRemeNTS

• This device meets the safety requirements. Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children to use the appliance without supervision.
• Do not leave the appliance unsupervised while switched on.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage

• To protect children against the dangers of an electrical appliances, please make sure that you never leave the appliances unattended. There for you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.

• This appliance is only to be used for household purposes and only for the purpose it is made for.
  All repairs should be made by a competent qualified electrician*
  It is absolutely necessary to keep this appliance clean at all times because it comes into direct contact with food.

• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220 - 240 V~, 50/60Hz. The socket must be at least 16A or 10 A slow-protected.
• "This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use motor unitid on scientific evidence available today"
• The use of accessory that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.
  Do not use this appliance outdoors.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Unplug the appliance from the socket before changing accessories or cleaning.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician ^(*) . Do not repair this appliances by yourself.
• Do not use this appliance near direct heat sources.
• Unplug the appliance from the socket when you are not using it.
• Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

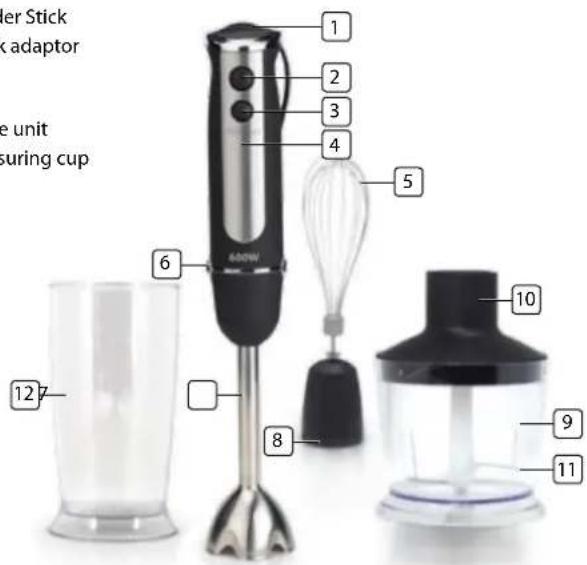

PaRTs IIST

1. Speed selector
2. Normal speed button
3. Turbo speed button
4. Motor unit
5. Whisk
6. Release buttons
7. Blender Stick
8. Whisk adaptor
9. Bowl
10. Lid
11. Blade unit
12. Measuring cup

BeFoRe uSe

• Remove the appliance from its packaging.
• Remove all packaging material such as plastic film, filler material, cable ties and box packaging.
• Check the packaging contents for completeness.
• Do not operate the appliance if package contents is incomplete or appear damaged. Return it immediately to the dealer.
• Risk of suffocation! Packaging materials are not toys. Plastic bags, foil and Styrofoam parts can suffocate children. Always keep all packaging materials away from children.
• Wash before using for the first time, the Blender Stick (No. 7), the Whisk (No. 5), the bowl (No. 9), the measuring cup (No. 12) and the Blade unit (No. 11) in warm soapy water. Rinse and dry thoroughly. These parts are also dishwasher safe.
• CAUTION! The Blade unit is very sharp, always pick up the Blade unit at the plastic part, avoid all bodily contact with the blades, they can seriously injure you. Attention! Never immerse the motor unit (No. 4), the Whisk adaptor (No. 8), the lid (No. 10) in water or other liquid or rinse under the tap. Clean these parts with a damp cloth.

uSe oF The DevIce wITh The BleNDeR STIck

• The Blender Stick is intended for: Blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks and shakes. Mixing soft ingredients, e.g. pancake batter or mayonnaise.
  Pureeing cooked ingredients, e.g. for making baby food.
• Put the Blender Stick (No. 7) on the motor unit (No. 4) until it it locks in place and a 'click' sound is heard.
• Immerse the blade guard completely in the ingredients to avoid splashing.
• Press and hold the normal (No. 2) or turbo (No. 3) speed button to switch on the appliance When you use the normal speed button, you

can adjust the speed with the speed selector (No. 1). The higher the speed, the shorter the processing time required. To select a different speed setting, turn the speed selector to the preferred setting before or while you press the normal speed button.

• When you use the turbo speed button, the appliance operates at maximum speed. In this case, you can't adjust the speed with the speed selector.
• Blend the ingredients by moving the appliance slowly up and down and in circles.
• Press the release buttons (No. 6) to disconnect the motor unit of the Blender Stick.

uSINg The haND whISk

• The Whisk is intended for stiring minor ingredients such as egg white, cream, instant desserts and eggs and sugar for cakes. Do not beat thicker mixtures such as margarine and sugar, this may damage the Whisk. For this use the blender stick (No.7). Connect the whisk (No.5) to the whisk base (No.8) by pushing the whisk into the opening on the whisk base. Now connect the whisk base to the motor unit.
• Immerse the whisk completely in the ingredients. - To avoid splashing, start processing at normal speed by pressing the normal speed button (No. 2). To select a different speed setting, turn the speed selector (No. 1) to the preferred setting before or while you press the normal speed button.

uSIng The choPPeR

• The chopper is intended for chopping ingredients such as nuts, meat, onions, hard cheese, boiled eggs, garlic, herbs, dry bread etc.

• The blades are very sharp! Be very careful when you handle the blade unit, especially when you remove it from the bowl, when you empty the bowl and during cleaning.

• Place the Blade unit (No. 11) at the pivot point in the middle of the bowl (No. 9).
• Attention! The Blade unit is very sharp. Screw the lid (No.10) clockwise onto the bowl. Place the motor unit (No.4) on the lid until it locks in place and a 'click' sound is heard..
• Press and hold the normal (No. 2) or turbo (No. 3) speed button to switch on the appliance. When you use the normal speed button, you can adjust the speed with the speed selector.
• (No. 1). The higher the speed, the shorter the processing time required. To select a different speed setting, turn the speed selector to the preferred setting before or while you press the normal speed button.
• When you use the turbo speed button, the appliance operates at maximum speed. In this case, you can't adjust the speed with the speed selector.
  After processing, release the normal or the turbo speed button to switch off the appliance and wait until the blade has stopped rotating.
• Press the lid release buttons (No. 6) and turn the lid anti-clockwise to remove it.

TIPS

• If the ingredients stick to the wall of the bowl, release the button to switch off the appliance and loosen the ingredients with a spatula or add some liquid.

• The appliance chops very quickly. Use the normal speed button or the turbo speed button. If you use the turbo speed button, use it briefly to prevent the food from becoming too finely chopped.

• Do not let the appliance run too long when you chop (hard) cheese or chocolate. Otherwise these ingredients become too hot, start to melt and turn lumpy.

• Do not use the blade unit to chop very hard ingredients like coffee beans, turmeric, nutmeg and ice cubes, as this may cause the blade to get blunt.

cleaNINg aND malNTeNaNce

Always remove the plug from the outlet when not in use or when the device is being cleaned.
- Clean the Blender Stick (No. 7), the Whisk (No. 5), the bowl (No. 9), the measuring cup (No. 12) and the Blade unit (No. 11) in warm soapy water. Rinse and dry thoroughly. CAUTION! The Blade unit is very sharp, always pick up the Blade unit at the plastic part, avoid all bodily contact with the blades, they can seriously injure you. These parts are also dishwasher safe. Never immerse the motor unit (No. 4), the Whisk adaptor (No. 8) and the lid (No. 10) in water or other liquid or rinse under the tap. Clean these parts with a damp cloth. This parts are not dishwasher safe.

CAUTION! The knives are very sharp, never try it yourself to undo the chopper blade of the Blender Stick and be careful by cleaning it. Avoid all bodily contact with the blades, they can seriously injure you or someone else.

guaRaNTee

• Tristar is not liable for damages occurred through:

o In case the appliance has been dropped.
o In case the appliance has been technically changed by the owner or another third party.
o In case of improper use of the appliance.
o In case of normal wear of the appliance.

• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.
  Always keep your receipt, without this receipt you cannot claim any form of warranty what so ever.
• Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.
• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instruction are not properly executed.
• Other then cleaning, as mentioned in this manual, there is no other maintenance necessary.
• When the application should be repaired, make sure that this will be performed by an authorized company.
  This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase".

• This appliances is covered with a 24 month guarantee starting on the date of purchase (receipt).

• Only material or manufacturing defects are included in this warranty.
  If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.

• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our website: www.tristaronderdelen.eu. (Broken glass or breakage of plastic parts are always subject to a charge.
  Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
  The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This appliance is designed to come into contact with food and is designed in accordance with EC Directive89/109/EEC. This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
