BL4421 - Blender TRISTAR - Free user manual and instructions

Brand	TriStar
Model	BL4421
Product Type	Blender
Power	230 V / 50 Hz / 200 W
Bowl Capacity	400 ml
Bowl Material	Glass
Blade Material	Stainless Steel
Lid Material	Styrene-acrylonitrile (SAN) with measuring cap
Usage	Domestic
Maximum Operating Time	1 minute per cycle
Speeds	Variable according to button (not specified)
Main Functions	Blend, chop, emulsify, purée, make sauces, juices, mayonnaises, butter, grate cheese
Safety	Locking lid, sharp blades, do not immerse motor unit, stop before removing bowl
Care and Cleaning	Unplug before cleaning; wash bowl parts in warm soapy water, rinse and dry; do not wash in dishwasher; clean motor unit with a damp cloth
Spare Parts and Repairability	Sealed motor, no user repair; contact an authorized service center
Included Accessories	Glass bowl, lid with cap, blade assembly, seal
Gross Weight (approx.)	1.2 kg (estimate)
Dimensions (approx.)	15 x 15 x 30 cm (estimate)
Warranty	2 years (according to legislation)
Standards	CE, WEEE compliant recycling

Frequently Asked Questions - BL4421 TRISTAR

How to clean the TriStar BL4421 blender?

Unplug the appliance. Disassemble the bowl, lid, cap and blade assembly. Wash all these parts in warm soapy water, rinse and dry thoroughly. Do not put them in the dishwasher. Clean the motor unit with a damp cloth, without immersing it.

Can I blend hot liquids with this blender?

Yes, but with caution. Remove the measuring cap from the lid. Do not fill beyond the maximum level. Keep hands and skin away from the opening to avoid burns.

What to do if the motor stalls during use?

Turn off the appliance immediately and unplug it. Remove some of the food to reduce the load. Do not force the motor. Then plug in and try again.

Are the blades removable for cleaning?

Yes, the blade assembly unscrews from the bowl. Caution, they are very sharp. Handle them carefully, use a cloth to grip them if necessary.

What is the maximum capacity of the bowl?

The bowl capacity is 400 ml. Do not exceed this level, especially for hot or foaming liquids.

Can I use this blender to chop raw meat?

No, this blender is not designed to chop raw meat. It can chop cooked meats or cooked offal cut into small pieces (max 2.5 cm).

How to correctly assemble the bowl onto the motor unit?

Turn the bowl upside down, place the blade assembly on the opening, then the rubber gear on top. Screw the assembly firmly onto the motor unit, engaging the threads properly. Never assemble or disassemble the bowl when the motor is running.

How long can I run the blender continuously?

The continuous operating time is less than 1 minute per cycle. Allow the appliance to cool down between cycles.

Can the blender be used to make juice?

This blender cannot extract juice from fruits and vegetables like a juicer. It can blend whole fruits or cooked vegetables for smoothies or soups.

What to do if the lid seal leaks?

Check that the seal is properly installed and not damaged. If the bowl leaks or is cracked, do not use the blender as it could break during use.

USER MANUAL BL4421 TRISTAR

Red plastic blender with a glass lid and small white food item on top (no text or symbols visible)

BL-4421

GEBRUIKSAANWIJZING

Diagram showing two labeled components: a funnel-like object above a stack of papers, with numbered callouts ① and ②.

Diagram of a device with numbered parts labeled 3 and 4, showing internal components and base structure.

⑤

3D rendered image of a white cylindrical object with a flanged top and side gap, against a pink background (no text or symbols)

3D rendered image of a white cylindrical object with a small yellow tag attached to the top-right corner, no visible text or symbols.

3D rendered model of a yellow and white plastic device with a funnel-like top component (no text or symbols visible)

3D rendered image of a white cylindrical object with a circular top and small green markings (no text or symbols)

3D rendered image of a cylindrical object with a star-shaped mark on its side, against a plain pink background (no text or symbols)

3D rendered model of a yellow and white plastic device with a funnel-like top (no text or symbols visible)

3D rendered image of a white cylindrical object with a flanged top and side protrusions, against a pink background (no text or symbols)

3D rendered illustration of a white cylindrical object with a small yellow tag and a star-shaped pattern on its side (no text or symbols)

3D rendered model of a laboratory pipette with yellow base and white cap (no text or symbols)

Please carefully read these instructions before use

230V/50Hz/200W

IMPORTANT SAFEGUARDS

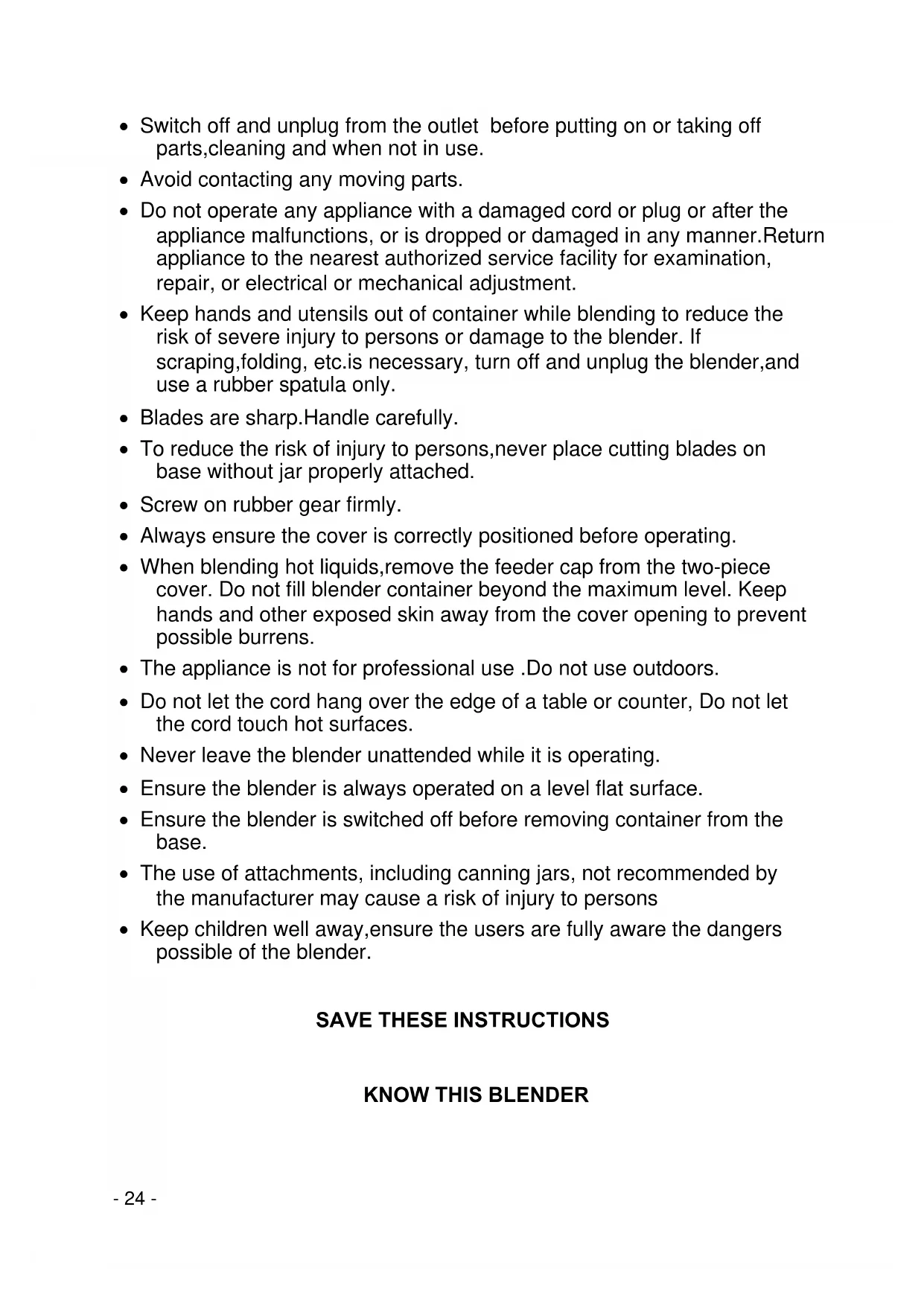

When using electrical, basic safety precautions should always be followed, including the following.

• Read all instructions manual carefully when any appliance is used and keep them in a safe place.
• To protect against risk of electrical shock, do not immerse base assembly, or cord in water or other liquid.

• Close supervision is necessary when any appliance is used by or near children.

• Switch off and unplug from the outlet before putting on or taking off parts, cleaning and when not in use.

• Avoid contacting any moving parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. If scraping, folding, etc. is necessary, turn off and unplug the blender, and use a rubber spatula only.
• Blades are sharp. Handle carefully.
• To reduce the risk of injury to persons, never place cutting blades on base without jar properly attached.
• Screw on rubber gear firmly.
• Always ensure the cover is correctly positioned before operating.
• When blending hot liquids, remove the feeder cap from the two-piece cover. Do not fill blender container beyond the maximum level. Keep hands and other exposed skin away from the cover opening to prevent possible burrens.
• The appliance is not for professional use .Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, Do not let the cord touch hot surfaces.
• Never leave the blender unattended while it is operating.
• Ensure the blender is always operated on a level flat surface.
• Ensure the blender is switched off before removing container from the base.
• The use of attachments, including canning jars, not recommended by the manufacturer may cause a risk of injury to persons
• Keep children well away, ensure the users are fully aware the dangers possible of the blender.

SAVE THESE INSTRUCTIONS

KNOW THIS BLENDER

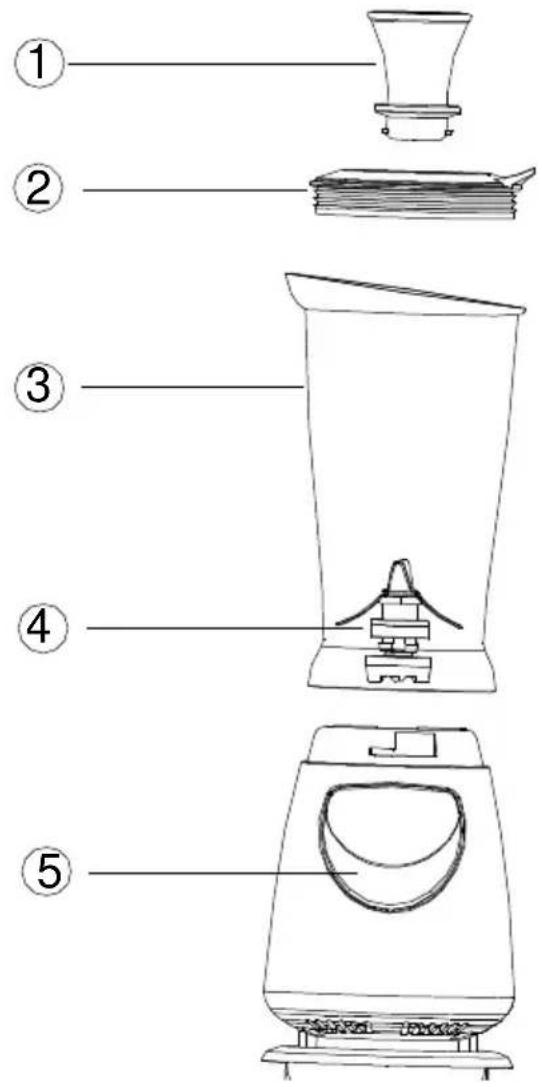

Labeled diagram of a kitchen appliance with numbered parts for identification

This blender is designed for household use only.

COVER

The cover for this blender consists of two parts, the styrene acrylonitrile(san) feeder cap(1), the styrene acrylonitrile(san) cover with a seal ring(2) that is the cover and seal ring be used as a whole. The cover is made of styrene acrylonitrile(San), which is easy to clean and resistant to stains, The feeder cap is removable for provides an opening for the addition of other ingredients.

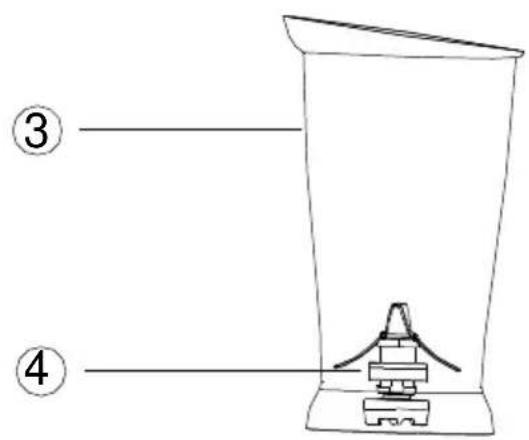

CONTAINER

The container, which is made of glass jar and a pressing ring. The capacity of the container is 400 milli litres (3) for the blender is graduated for easy measurement and is molded of heat and cold resistant material.

BLADE

Agitator assembly of high-grade stainless steel (4);

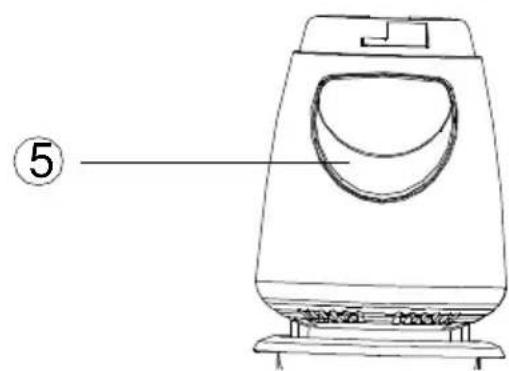

MOTOR AND MOTOR BASE

The powerful motor is the heart of the appliance and is designed just for this Unit. It is completely enclosed within the plastic cover housing (5). The motor uses a “free-floating” feature to reduce noise and wear. In order to make the motor work normally, continuously operating time less than 1 min at one time, and please closely follow the instructions and the quantities recommendations in this book.

CARE AND CLEANING OF THIS BLENDER

Blender container parts are corrosion resistant, sanitary and easily cleaned. Before first use and after every use, separate container parts(items 1-6)and clean thoroughly in warm, soapy water, then rinse and dry well, DO NOT WASH ANY PARTS IN AN AUTOMATIC DISHWASHER, Periodically check all parts before reassembly. If the processing blades are stuck or difficult to turn,DO NOT USE BLENDER, Check by carefully turning the blades in a counterclockwise direction (opposite edges are sharp).Blades should turn freely. If the container is dripped or cracked,DO NOT USE BLENDER, Further use could result in the container breaking during use. When you need take the blade out, please use the cloth or other similar thing to get it out.

USE OF DAMAGED OR NON-RECOMMENDED PARTS COULD RESULT IN A SEVERE PERSONAL IN JURY AND/OR DAMAGE TO THE BLENDER. See next page for proper container assembly an user instructions.

NEVER IMMERSE THE MOTOR BASE IN WATER. Unplug unit. The housing can be cleaned with a damp cloth. If there is water flow into the unit, the water will flow out from the water leakpipe.

The motor is permanently lubricated and does not require any additional lubrication.

CAUTION: Follow these important steps to assemble, tighten, and mount blender container quickly and correctly, INJURY MAY RESULT IF MOVING BLADES ARE ACCIDENTALLY EXPOSED.

Do not attempt to place the container on, or remove from the motor base while the motor is running.

THIS BLENDER DO'S AND DON'TS

DO:

• Use only the voltage and frequency as specified on the bottom of the blender.

• Always operate blender on a clean, dry surface to prevent air from carrying foreign material or water into the motor.

• Put liquid portions into blender container first unless the instructions in recipes specify otherwise.

• Cut all firm fruits and vegetables, cooked meats, fish and sea foods into pieces no larger than 3/4 “(1.8cm) to 1” (2.5cm). Cut all kinds of cheeses into pieces no larger than 3/4 (1.8cm).
• Use rubber spatula to push ingredients to be chopped into liquid portion of recipe only when motor is off.
• Place cover firmly on blender container before starting, and rest hand on the container cover when starting and running motor.
• Remove heavy dips and spreads, nut butters, mayonnaise and products of similar consistency by removing the processing assembly and pushing the mixture out through the bottom opening into serving dishes or storage container.
• Pour mixtures if liquid or semi-liquid consistence, such as muffin and cake batters, from blender container.
• Allow cooked vegetables and broth to cool before pouring into blender container for processing.

DON'T

• DON'T expect your blender to replace all of your kitchen appliances. It will not: mash potatoes, whip egg whites or substitutes for dairy whippings, grind raw meat, knead or mix stiff doughs or extract juices from fruits and vegetables.
• DON'T process mixtures too long. Remember, the blender performs its tasks in seconds, not minutes. It is better to stop and check the consistency after a few seconds than to overblend and have a mushy or too finely ground product.
• DON'T overload the motor with extra-heavy or extra-large loads. If the motor stalls, turn off immediately, unplug cord from outlet and remove a portion of the load before beginning again.
• DON'T attempt to remove blender container from motor base or replace it until the motor has coasted to a complete stop. Blender parts could be damaged.
• DON'T remove container cover while processing, as food spillage can occur, Use feeder cap opening to add ingredients.
• DON'T use any utensil, including spatulas, in the container while the motor is rumming. They can catch in the moving blades, break the container and cause severe injury to person.

DON'T use any container not recommended by manufacturer for processing foods. Other containers may break or loosen during processing and cause severe injury.

ASSEMBLY

THIS BLENDER BLENDING TIPS

HOW TO USE A RUBBER SPATULA WITH THIS BLENDER

3D rendered image of a white cylindrical object with a flanged top and side protrusions, against a pink background (no text or symbols)

1. Turn container upside down so that the small opening is at the top.

3D rendered image of a cylindrical object with a small yellow tag and a star-shaped mark on its side (no text or symbols)

1. Turn the cutting blades assembly upside-down and place into mouthand place into the mouth of the container. To equip with rubber gear.

3D rendered model of a yellow and white plastic device with a funnel-like top (no text or symbols visible)

1. Thread container assembly to the base assembly. Engage threads properly. Screw on firmly.

When blending ingredients of a heavy consistency, such as cheese dips and sandwich spreads, it is necessary to use a rubber spatula to help the mixture get down to the blades. To use spatula, turn motor off, remove the cover,

move the spatula up and down rapidly along sides of the container, and push the ingredients from the sides of the container to the center.

MAYONNAISE

If mayonnaise curdles or liquefies, empty contents from container, blend another egg and liquefied or curdled mayonnaise until mixed. Remove feeder cap and pour remaining mayonnaise instead of oil into center of container, Use rubber spatula thoroughly blend oil into mixture.

GRAVY OR WHITE SAUCE

To smooth gravy or white sauce which may be lumpy, allow to cool slightly and pour into blender container. Cover and start processing. Remove feeder cap, and with motor running, gradually add remaining gravy or sauce. Continue to process until smooth.

CHOPPING GIBLETS

To chop giblets for gravy, cook the giblets in water or broth, then cool to room temperature. Cut giblets into 1 (2.5cm) pieces, put in blender container and cover with cooled cooking liquid. Cover container, process two 30-second cycle.( If giblets are not chopped finely enough, process for two additional cycles).

MAKING BUTTER

Heavy cream, sweet or sour, can be used make butter-pour into blender container. Cover and process at HIGH until butter forms. Pour into strainer to drain off liquid, then put butter into small bowl and press with spatula to remove as much liquid possible. Add salt while kneading butter.

HARD AND DRY CHEESE

Cheddar or processed cheese which has become hard and dry after long storage in the refrigerator may be cut into pieces and grated in the blender process at HIGH until finely grated. Then use for casserole toppings, in sauces, etc.

*****

ISTRUZIONI

3D rendered image of a white cylindrical object with a circular top and small green markings (no text or symbols)

3D rendered image of a white cylindrical object with a small yellow tag attached to the top-right corner, containing a faint sketch of a star-like shape on its surface (no text or symbols)

3D rendered image of a yellow and white plastic device with a green internal structure, labeled '- 33 -' (no text or symbols on the device itself)

Labeled diagram of a kitchen appliance with numbered parts for identification

3D rendered image of a white cylindrical object with a flanged top and side gap, against a pink background (no text or symbols)

3D rendered image of a cylindrical object with a small yellow tag and a faint cross symbol on its surface (no text or labels)

3D rendered model of a handheld device with yellow base and white top (no text or symbols visible)

Diagram of a kitchen appliance with numbered parts for identification

3D rendered image of a white cylindrical object with a flanged top and side gap, against a pink background (no text or symbols)

3D rendered image of a cylindrical object with a small yellow tag and a faint cross symbol on its surface (no text or labels)

3D rendered model of a yellow and white plastic device with a funnel-like top component (no text or symbols visible)

Symbol of a trash bin with no text or labels, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Guidelines for protection of the environment

Symbol of a trash bin crossed with a diagonal line and a horizontal line, representing waste sorting or disposal (no text or labels)

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..

Symbol of a discarded bin with crossed lines and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)
