BQ2812 - Barbecue TRISTAR - Free user manual and instructions

Brand	TriStar
Model	BQ2812
Product Type	Electric barbecue
Usage	Outdoor only
Power Supply	220-240 V ~ 50 Hz
Power	Not specified (adjustable thermostat)
Cooking Surface	Steel plate (ref. no.3)
Temperature Control	Thermostat from MIN to MAX with indicator light
Lid	Yes, with handle (no.1) for closing and wind protection
Leg and Base	Removable leg (no.7) with fixing screw
Side Tables	Two folding tables (no.6)
Grease Tray	Removable receptacle with water for easy cleaning
Thermostat Handle	Removable, with safety switch (no.9)
Safety	Safety switch preventing startup if thermostat handle is not properly attached; thermal protection
Cleaning	Cooking plate: soak in warm soapy water, scrub; grease tray: empty and wash with warm water; do not use abrasive cleaners
Dishwasher	Plate not dishwasher safe
Storage	Indoors, in a clean and dry place, after complete cooling
Warranty	24 months from date of purchase (with proof of purchase)
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - BQ2812 TRISTAR

How to assemble the TriStar BQ2812 barbecue?

Attach the lid (no.2) to the body (no.5) using the pins and axis pins. Mount the leg (no.7) into the base (no.8) with the screw. Place the body on the leg. Insert the plate (no.3). Deploy the side tables (no.6). Attach the thermostat handle (no.9) and insert the thermostat (no.4) into the pan opening.

Why does my barbecue emit smoke and odor during first use?

This is normal during first use. The appliance may emit smoke and odor due to burning off manufacturing residues. This phenomenon disappears quickly after a few minutes of heating at maximum power.

How to adjust the temperature on the TriStar BQ2812?

Turn the thermostat (no.4) to the desired position between MIN and MAX. To sear meat, use the MAX position. For slower cooking, reduce the setting. The indicator light turns on and off to indicate temperature maintenance.

Can I use the barbecue indoors?

No, this barbecue is designed for outdoor use only. It must not be used indoors or near flammable materials.

How to clean the cooking plate?

Unplug the appliance and let it cool. Soak the plate (no.3) in warm soapy water and scrub residues with a dish brush. Never put the plate in the dishwasher and do not use abrasive cleaners or steel wool.

What to do if the barbecue does not turn on?

Check that the thermostat handle (no.9) is properly attached. The thermostat has a safety switch that prevents startup if the handle is not correctly installed. Also ensure the plug is connected and the thermostat is turned to a position other than 0.

Can I use an extension cord?

No, the use of an extension cord or similar device is not permitted according to safety instructions. Plug the appliance directly into a grounded outlet.

How to store the barbecue after use?

Allow the appliance to cool completely. Empty the water from the grease tray and clean the parts. Store the barbecue indoors, in a clean and dry place, protected from weather.

What to do if the power cord is damaged?

Do not use the appliance. The cord or plug must be replaced by an authorized repairer to avoid danger. Do not attempt to repair yourself.

What is the warranty period for the TriStar BQ2812?

The barbecue is covered by a warranty of 24 months from the date of purchase against any material or manufacturing defects. Keep your proof of purchase. Wear parts and glass or plastic accessories are not covered.

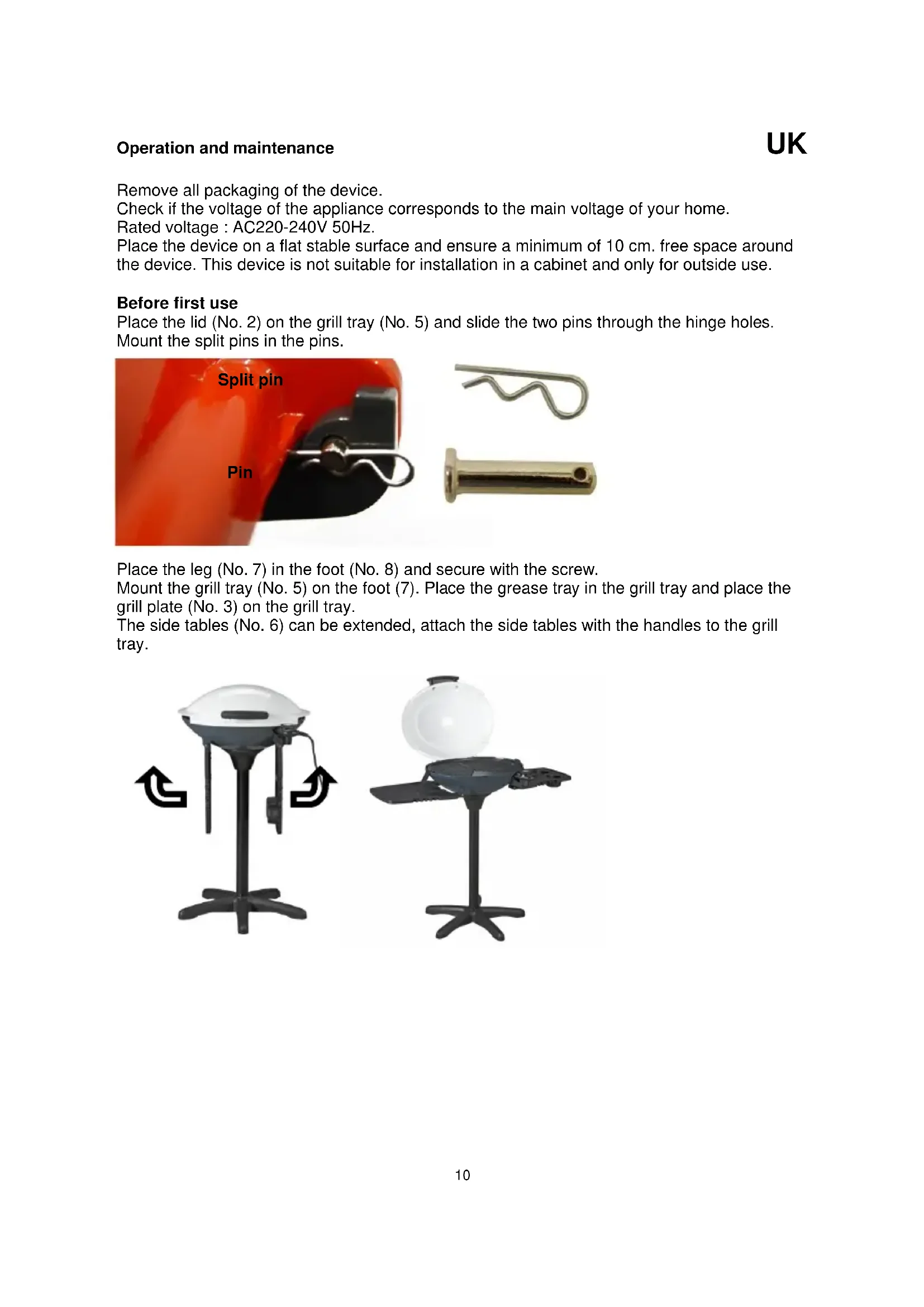

USER MANUAL BQ2812 TRISTAR

Operation and maintenance

Remove all packaging of the device.

Check if the voltage of the appliance corresponds to the main voltage of your home.

Rated voltage: AC220-240V 50Hz.

Place the device on a flat stable surface and ensure a minimum of 10cm free space around the device. This device is not suitable for installation in a cabinet and only for outside use.

Before first use

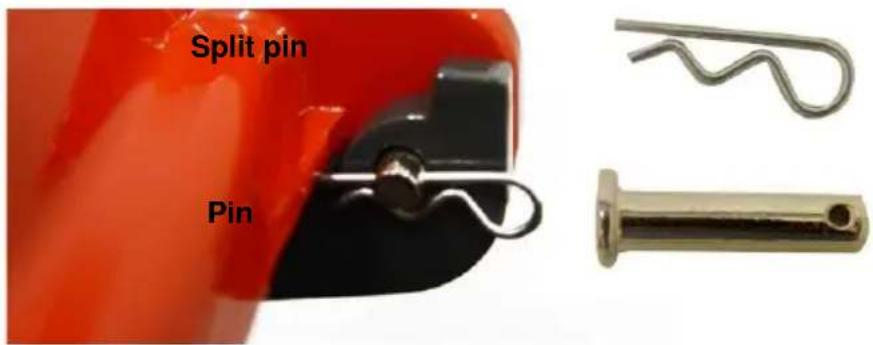

Place the lid (No. 2) on the grill tray (No. 5) and slide the two pins through the hinge holes. Mount the split pins in the pins.

Place the leg (No. 7) in the foot (No. 8) and secure with the screw.

Mount the grill tray (No. 5) on the foot (7). Place the grease tray in the grill tray and place the grill plate (No. 3) on the grill tray.

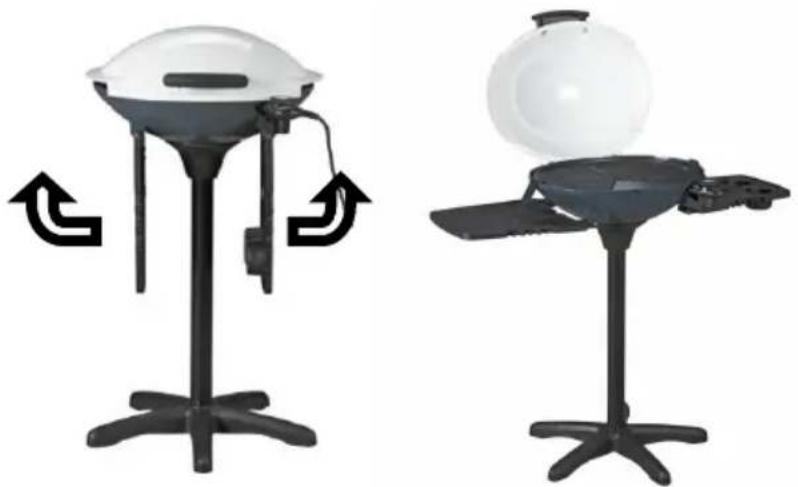

The side tables (No. 6) can be extended, attach the side tables with the handles to the grill tray.

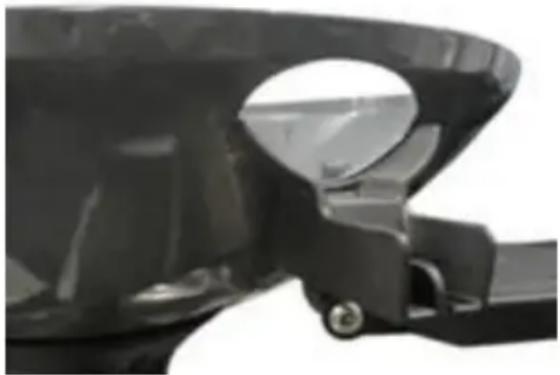

Mount the thermostat holder (no. 9) with the provided screws under the notch in the grill bowl.

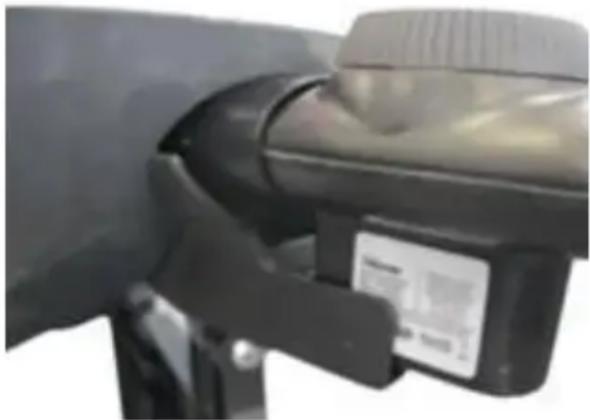

Push the thermostat (No. 4) in the notch of the grill bowl (No. 3) and the thermostat holder. Make sure it locks firmly in place. The thermostat is equipped with a safety switch which ensures that the device will not turn on when the thermostat holder (No. 9) is not properly attached.

Use

Fill the grease tray with a thin layer of water, for easy cleaning after use. Water should be added in good time, while ensuring that it does not come into contact with the heating element. Plug into a grounded outlet and turn the thermostat (No. 4) at the highest setting. The red light comes on.

During the first use may be some smoke and smell created. This is normal for new heating elements and will disappear after a short time.

Use the thermostat (No. 4) to the desired position between MIN and MAX. To sear meat quickly select the highest setting, the MAX position. For the quiet thread of meat and other dishes select a lower setting.

The thermostat regulates a constant temperature. During grilling the light comes on and off, this is normal, the temperature will be constantly adjusted.

The lid (No. 2) can be closed for better circulation of heat for grilling large food. The cover can also be used as a wind shield.

Attention! The unit is very hot, do not touch. Always open the lid with the handle (No 1).

Always use tools for turning the food on the grill (No. 3), to lay out and to take off. Do not use in rainy weather.

Cleaning

Remove the plug from the socket and allow all parts to cool down.

Soak the grill plate (No. 3) in warm soapy water and remove the remains with a dishwashing brush. The grill plate is not dishwasher safe.

Empty the drip tray after each use and then clean in warm soapy water.

Never use harsh and abrasive cleaners, steel wool or a scouring pad as this will damage the device.

It is important to store the materials in a dry and secure indoor environment to prevent damage.

IMPORTANT SAFEGUARDS

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.
• Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have.
• Do not use outdoors, or on or near direct heat sources
• Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc.
• Do not, under any circumstances, cover the grill rack with aluminium foil, barbecue dishes or other items, as the resulting build-up of heat could destroy the grill.
• Remember that food with a high fat or moisture content may tend to ignite.
• The barbecue grill must be supervised at all times during operation.
• Before carrying, transporting or storing the grill, ensure that it has sufficiently cooled down. Pour out any remaining water after use.
• Ensure that the grill is not stored outdoors, or in any other location where it might be subjected to extremes of temperature or high humidity.
• No responsibility can be/will be accepted if damage results from improper use, or if instructions are not complied with.
• This appliance is for household use only and only for the purpose it is made for.
• The appliance must be placed on a stable, level surface.
• This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
  This device is not intended for use with an external timer or a remote control system.
• Note: To avoid danger by the accidental resetting thermal protection, the device may not be powered through an external switching device, such as a timer, or connected to a circuit and is turned regularly by the subject.
  This device is not intended for use with an external timer or a remote control system.
• Note: To avoid danger by the accidental resetting thermal protection, the device may not be powered through an external switching device, such as a timer, or connected to a circuit and is turned regularly by the subject.
• A damaged cord or plug must be replaced by an authorized technician to avoid a hazard. Do not repair the device yourself.
• Using an extension cord or something similar is not allowed.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee

• The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt).
• During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
• Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
• If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Guidelines for protection of the environment

13/14

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
